Model Whirlpool AC1504XT0 AIR CONDITIONER – Common Parts & Diagrams

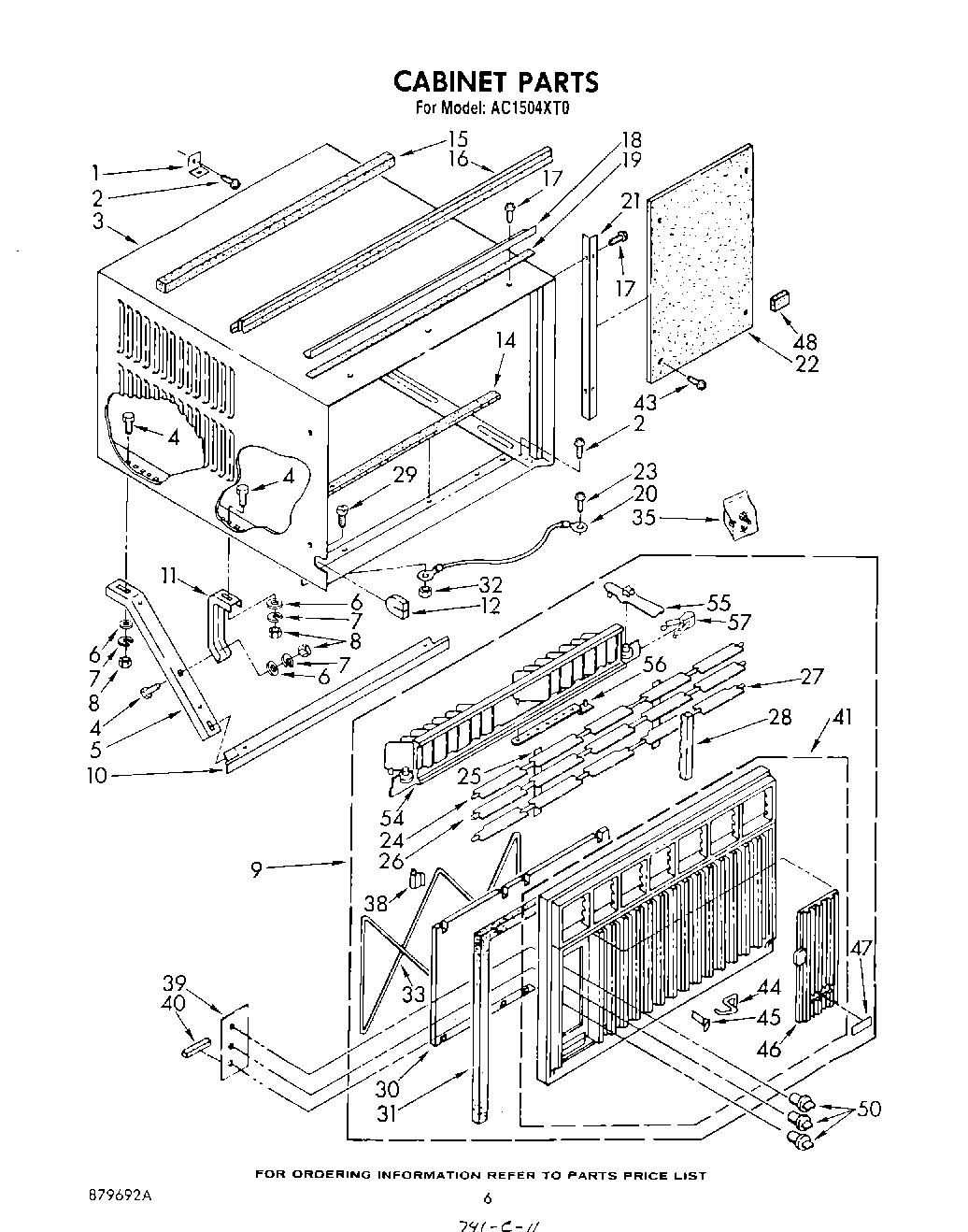

04 - CABINET

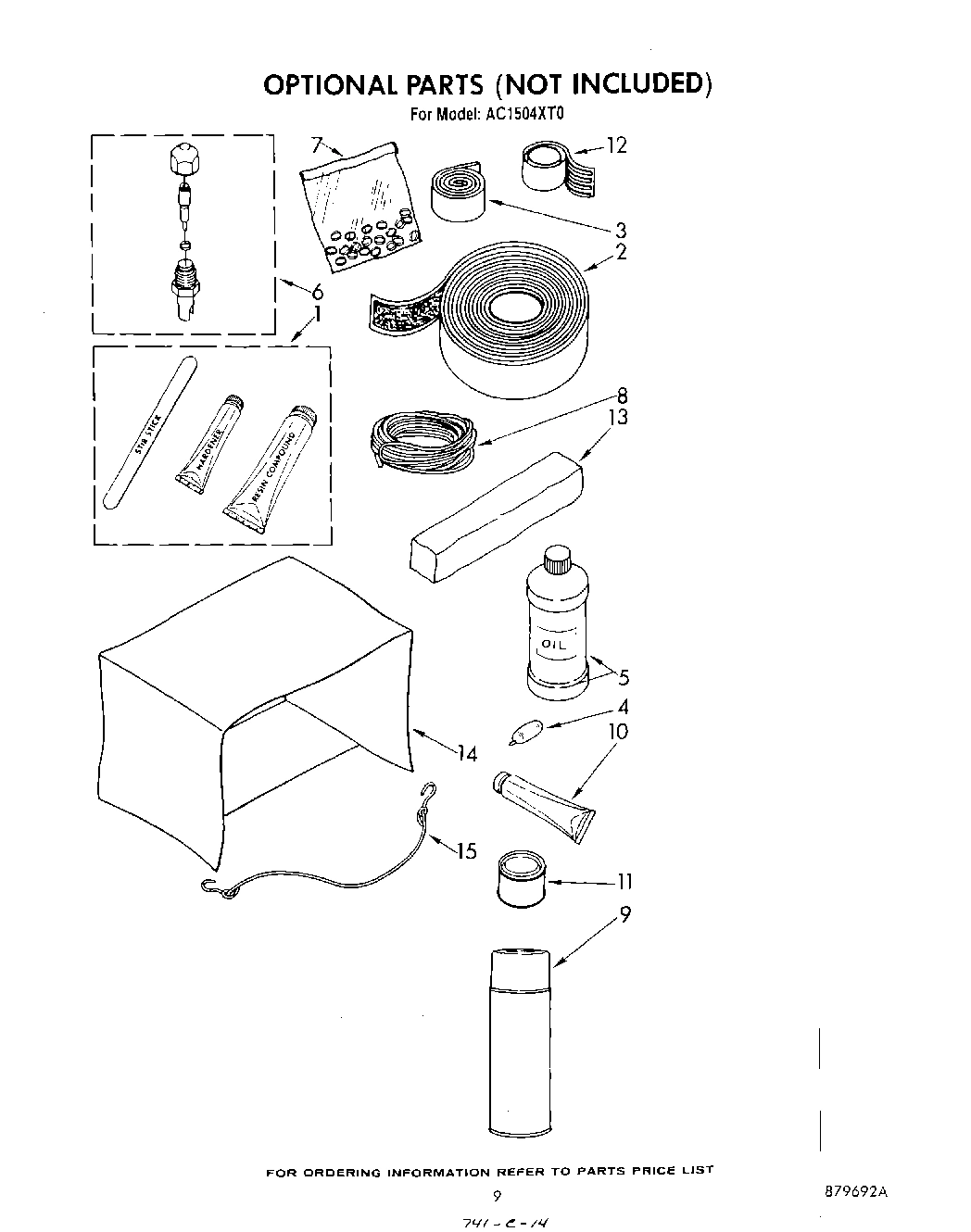

06 - LIT/OPTIONAL

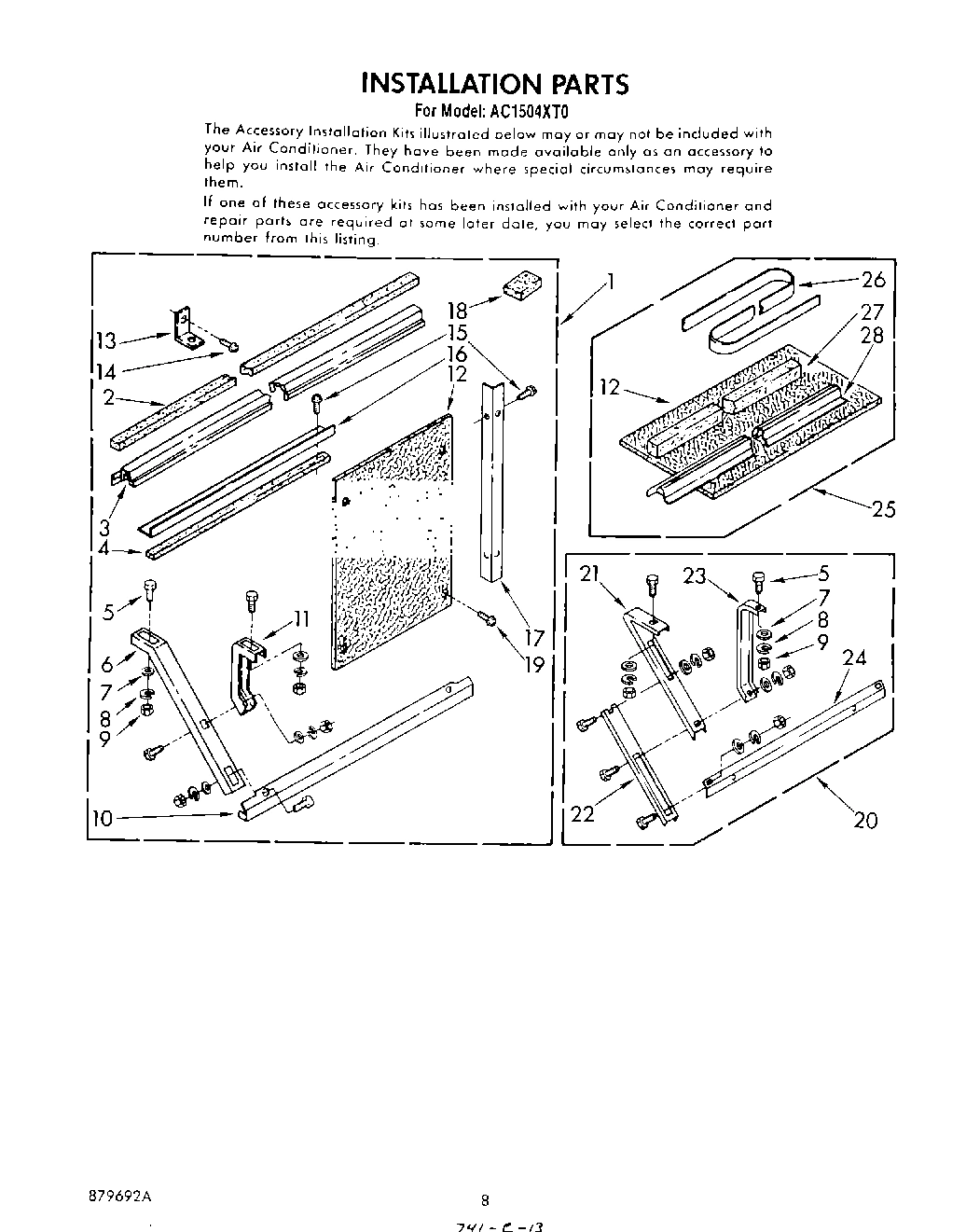

05 - INSTALLATION

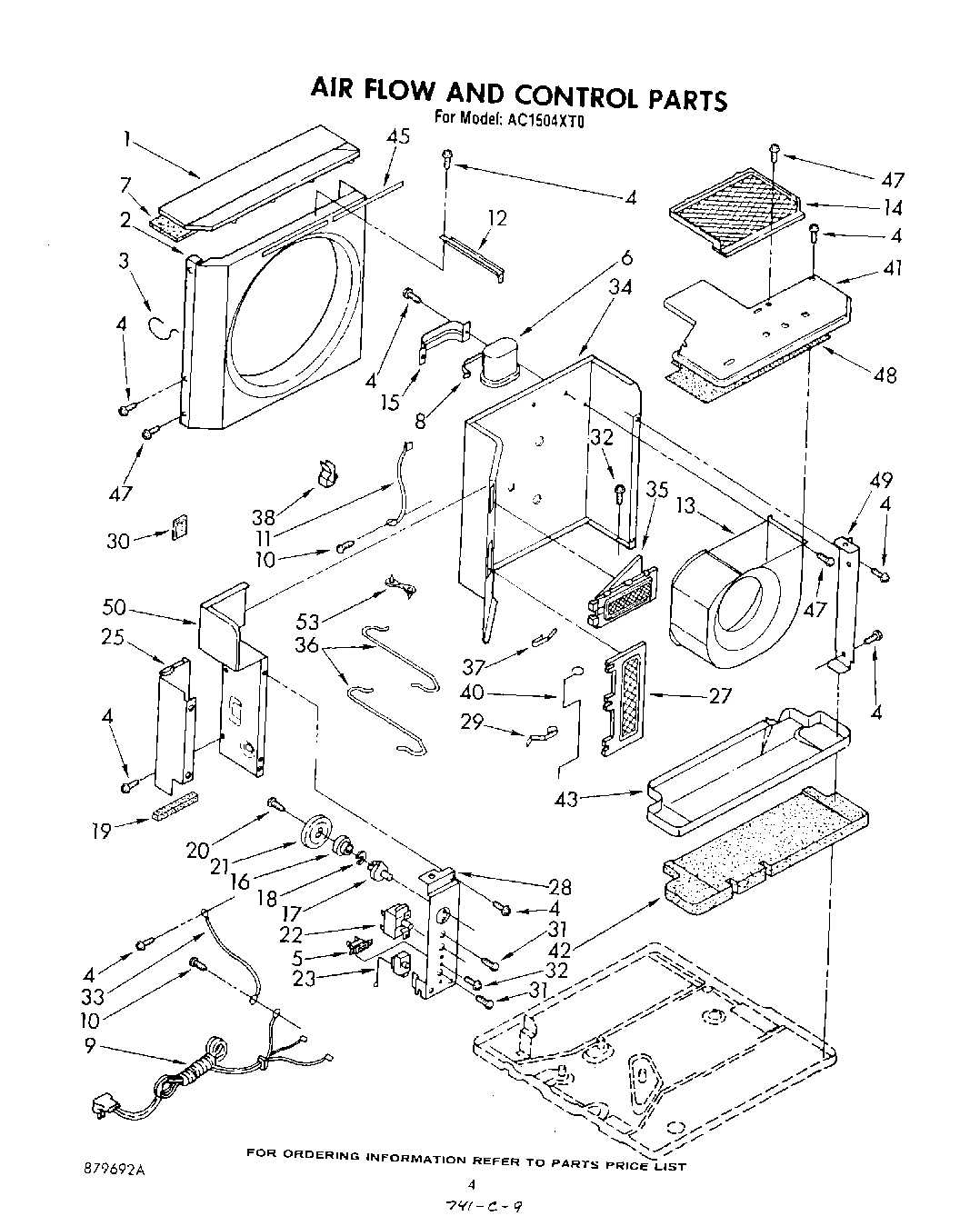

03 - AIRFLOW AND CONTROL

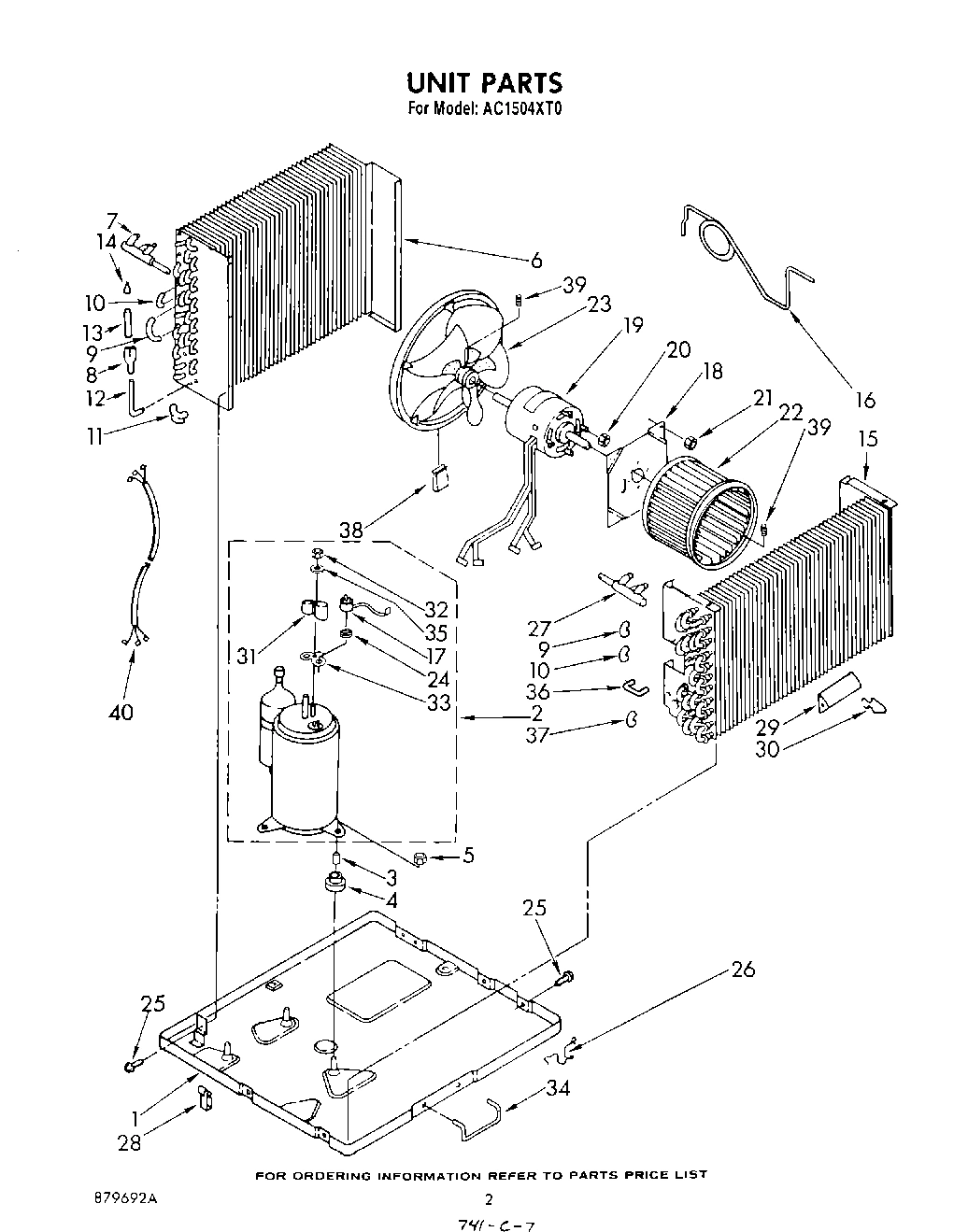

02 - UNIT
Common parts from model Whirlpool AC1504XT0 AIR CONDITIONER
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
Guide, Energy WPL LIT1156382 Contact Us For Availability
Sheet, Tech And Wiring Diagram WPL LIT1156390 Contact Us For Availability
List, Repair Parts WPL LIT879692 Contact Us For Availability
Guide, Use And Care WPL LIT950335 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Standard Installation WPL 485854 Contact Us For Availability
1
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
1
Base WPL 950364 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Shroud, Condenser WPL 953028 Contact Us For Availability
2
Compressor WPL 4210305 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Clip, Shroud (2) WPL 477442 Contact Us For Availability
3
Sleeve (3) WPL 950020 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Switch, Sliding WPL 950529 Contact Us For Availability
5
Locknut (3) WPL 858121 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Capacitor, Running WPL 1155592 Contact Us For Availability
6
Condenser WPL 1156327 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Seal, Condenser Fin WPL 1156412 Contact Us For Availability
7
Tube, Manifold WPL 1156330 Contact Us For Availability
8
Washer, Lock (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Tube, Flow Divider WPL 947364 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
9
Cable, Appliance WPL 649070 Contact Us For Availability
9
Bend, Return Condenser (12) Evaporator (11) WPL 708532 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
10
Bend, Return (7) Condenser (7) Evaporator (8) WPL 708531 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Ground Wire WPL 998177 Contact Us For Availability
11
Bend, Return (3-Way) WPL 1156107 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
12
unit, support WPL 858663 Contact Us For Availability
12
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
13
Bracket, Window Lock WPL 644228 Contact Us For Availability
13
Housing, Blower Wheel WPL 997220 Contact Us For Availability
13
Tube, Strainer Assembly (Includes Illus. 14) WPL 484230 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 856506 Contact Us For Availability
14
Strainer WPL 49599 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Bracket WPL 852992 Contact Us For Availability
15
Evaporator WPL 1156570 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Bushing WPL 647879 Contact Us For Availability
16
Tube, Restrictor (Length 46.0``) (3) WPL 1156440 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Shaft, Control WPL 852669 Contact Us For Availability
18
Spacer, Block WPL 995274 Contact Us For Availability
18
Spring, Washer WPL 647881 Contact Us For Availability
18
Plate, Fan Motor WPL 998024 Contact Us For Availability
19
Seal, Strip WPL 853170 Contact Us For Availability
19
Motor, Fan WPL 952072 Contact Us For Availability
20
Ground Wire (Base To Cabinet) WPL 857022 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Cam WPL 647882 Contact Us For Availability
21
Locknut (4) WPL 858122 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Switch, Rotary WPL 950522 Contact Us For Availability
22
Wheel, Blower WPL 647618 Contact Us For Availability
23
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Control, Temperature WPL 951073 Contact Us For Availability
23
Blade, Fan WPL 997226 Contact Us For Availability
24
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Spring, Overload WPL 950032 Contact Us For Availability
25
Retainer, Horizontal Louver (4) WPL 855998 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Cover, Control Access WPL 952208 Contact Us For Availability
26
Louver, Horizontal (Handle) WPL 947267 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Clip, Mtg. (3) (Base To Front) WPL 852272 Contact Us For Availability
27
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Door, Fresh Air WPL 997222 Contact Us For Availability
27
Tube, Manifold WPL 1156596 Contact Us For Availability
28
Rack, Louver (2) WPL 649955 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Panel, Control WPL 950545 Contact Us For Availability
28
Clamp, Tube WPL 642684 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
29
Spring, Fresh Air Door WPL 998178 Contact Us For Availability
29
Anticipator, Temperature WPL 472046 Contact Us For Availability
30
Filter WPL 649958 Contact Us For Availability
30
Seal, Evaporator Outlet Tube WPL 1155479 Contact Us For Availability
30
Clip, Anticipator WPL 472047 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
31
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
32
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
33
Retainer, Filter WPL 476707 Contact Us For Availability
33
Ground Wire WPL 997388 Contact Us For Availability
34
Wall, Dividing WPL 953040 Contact Us For Availability
34
Handle, Base WPL 647971 Contact Us For Availability
35
Bag, Accessory WPL 993848 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
35
Gasket, Nut WPL 950037 Contact Us For Availability
36
Wire, Control Exhaust WPL 647883 Contact Us For Availability
36
Wire, Control (Fresh Air) WPL 859370 Contact Us For Availability
36
Tube, Riser WPL 1156564 Contact Us For Availability
37
Spring, Exhaust Door WPL 859369 Contact Us For Availability
37
Tube, Riser WPL 1156595 Contact Us For Availability
38
Clip, Retainer (4) WPL 855999 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
38
Clip, Balancing WPL 876034 Contact Us For Availability
39
Plate, Escutcheon WPL 952547 Contact Us For Availability
39
Setscrew, 5/16-24 x 1/4 (2) WPL 595085 Contact Us For Availability
40
Spacer, Escutcheon Plate (3) WPL 469175 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
40
Harness, Wiring WPL 484136 Contact Us For Availability
41
Frame, Front (Includes Illus. 44, 45 & 46) WPL 950548 Contact Us For Availability
41
Cover, Evaporator WPL 997269 Contact Us For Availability
42
Insulation, Condensate Pan WPL 997237 Contact Us For Availability
43
Pan, Condensate WPL 997238 Contact Us For Availability
44
Pin, Hinge WPL 649943 Contact Us For Availability
45
Spring, Catch WPL 649949 Contact Us For Availability
45
seal, condenser cover (side) WPL 997266 Contact Us For Availability
46
Door, Control WPL 950546 Contact Us For Availability
47
Nameplate WPL 950547 Contact Us For Availability
48
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
49
Adapter, Evaporator Header Plate WPL 997397 Contact Us For Availability
50
Knob, Control (3) WPL 947264 Contact Us For Availability
50
Extension, Wall WPL 1155423 Contact Us For Availability
53
Clamp, Cable WPL 648791 Contact Us For Availability
54
Louver, Vertical WPL 649957 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 852010 Contact Us For Availability
56
Link, Vertical Louver (2) WPL 852209 Contact Us For Availability
57
Spring, Detent (2) WPL 641484 Contact Us For Availability
× ![]()
