Model Whirlpool AC1404XP0 AIR CONDITIONER – Common Parts & Diagrams
04 - CABINET
05 - ACCESSORY KIT
02 - UNIT

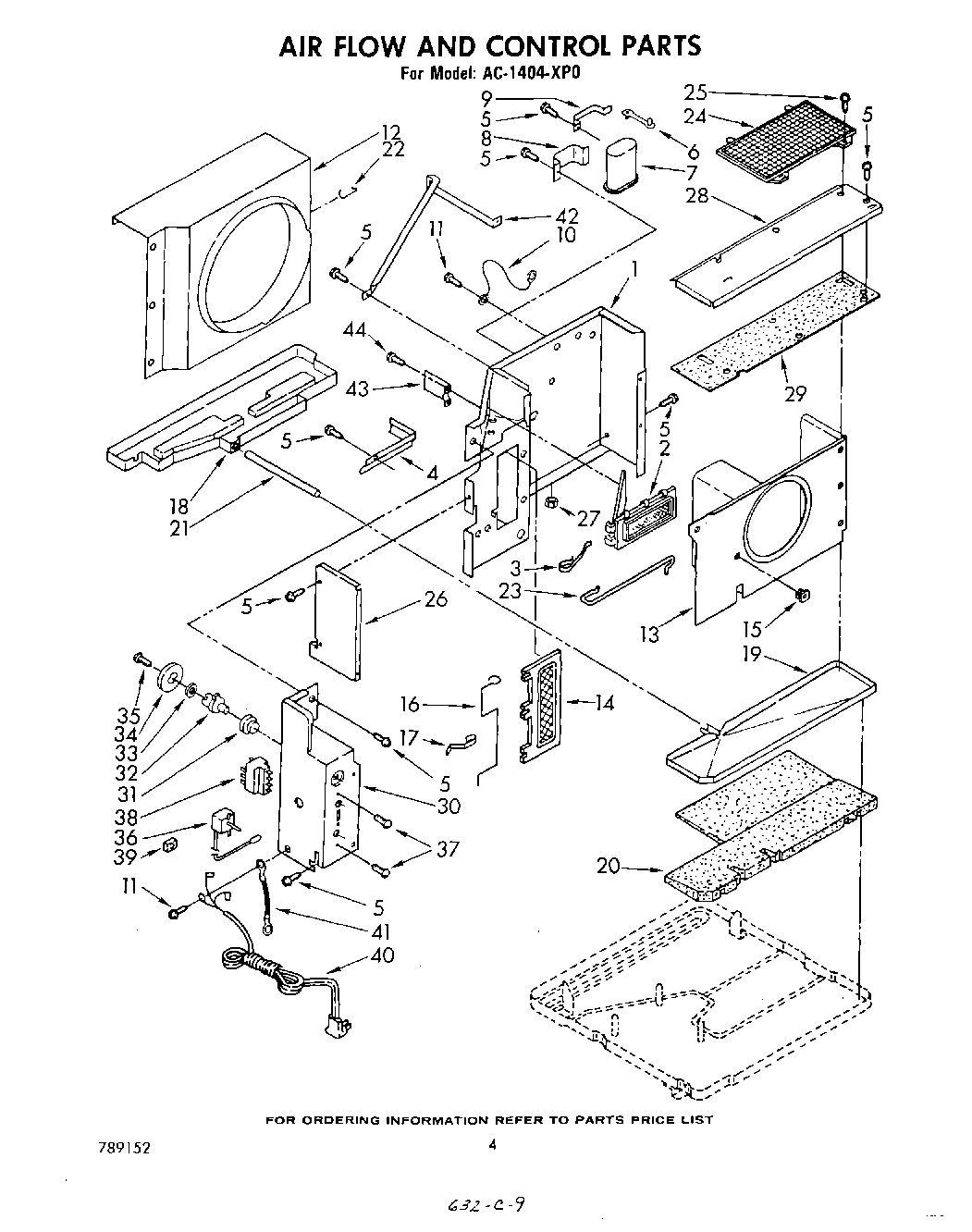

03 - AIRFLOW AND CONTROL , LIT/OPTIONAL
Common parts from model Whirlpool AC1404XP0 AIR CONDITIONER
WPL LIT789152 WPL LIT789152 Contact Us For Availability
WPL LIT950318 WPL LIT950318 Contact Us For Availability
WPL LIT951391 WPL LIT951391 Contact Us For Availability
WPL LIT951393 WPL LIT951393 Contact Us For Availability
1
Kit Outside Sill WPL 485678 Contact Us For Availability
1
Base Assembly WPL 951381 Contact Us For Availability
1
Wall, Dividing (Requires Insulation No. 46993 WPL 997944 Contact Us For Availability
2
Kit, Outside Support WPL 485679 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
2
Door, Exhaust Air WPL 649720 Contact Us For Availability
3
Kit, Wide Window WPL 485676 Contact Us For Availability
3
Compressor Assembly WPL 876799 Contact Us For Availability
3
Spring, Door WPL 859369 Contact Us For Availability
4
Kit, Quick Mount WPL 485675 Contact Us For Availability
4
Gasket, Nut WPL 950037 Contact Us For Availability
4
Channel, Wiring WPL 852317 Contact Us For Availability
5
Kit, Standard Installation WPL 485674 Contact Us For Availability
5
Screw (Repair) No.10 x 3/8 WPL 488481 Contact Us For Availability
6
Kit, Condensate Cup WPL 978929 Contact Us For Availability
6
Clamp, Cable WPL 648791 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
7
Capacitor, Run WPL 951291 Contact Us For Availability
8
Bracket, Capacitor WPL 475844 Contact Us For Availability
9
Bracket, Sill (2) WPL 645515 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
9
Bracket, Capacitor WPL 852992 Contact Us For Availability
10
Front Assembly, Cabinet (Complete) WPL 951140 Contact Us For Availability
10
Bracket, Rail (2) WPL 485466 Contact Us For Availability
10
Motor, Fan WPL 997586 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
11
Lockwasher WPL 486009 Contact Us For Availability
11
Front, Cabinet WPL 950538 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Shroud, Condenser WPL 647862 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
13
Wheel, Blower WPL 949430 Contact Us For Availability
13
Housing, Blower Wheel WPL 859641 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Evaporator Assembly WPL 949606 Contact Us For Availability
14
Door, Fresh Air WPL 859639 Contact Us For Availability
15
Extension, Support (2) WPL 644284 Contact Us For Availability
15
Tube, Restrictor (2) (Length 33.0``) WPL 951385 Contact Us For Availability
15
Fastener, snap (2) WPL 487808 Contact Us For Availability
16
Filter, Air WPL 648008 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
16
Fan, Blade WPL 949124 Contact Us For Availability
16
Actuator, Door WPL 853434 Contact Us For Availability
17
Retainer, Filter WPL 476707 Contact Us For Availability
17
Condenser Assembly WPL 951386 Contact Us For Availability
17
Spring, Door WPL 649428 Contact Us For Availability
18
Seal, Cabinet Front WPL 647914 Contact Us For Availability
18
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
18
Bend, Return (16) WPL 854624 Contact Us For Availability
18
Pan, Condensate Condenser WPL 859238 Contact Us For Availability
19
Louver, Vertical WPL 647798 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
19
Tube, Flow Divider WPL 947364 Contact Us For Availability
19
Pan, Condensate Evaporator WPL 853268 Contact Us For Availability
20
Handle, Louver (2) WPL 644165 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
20
Tube, 90~ Connect WPL 950814 Contact Us For Availability
20
Insulation, Pan WPL 853269 Contact Us For Availability
21
Link, Louver (2) WPL 647799 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
21
Bend, Return Condenser (12) WPL 855199 Contact Us For Availability
21
Tube, Condensate WPL 49181 Contact Us For Availability
22
Spring, Detent (2) WPL 641484 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
22
Tube, 90~ WPL 475635 Contact Us For Availability
22
Retainer, Shroud WPL 647873 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
23
Tube & Strainer Assembly (Includes Illus. 24) WPL 484230 Contact Us For Availability
23
Wire, Fresh Air Control WPL 648132 Contact Us For Availability
23
Wire, Control (Exhaust Air) WPL 859370 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
24
Strainer WPL 49599 Contact Us For Availability
24
Guard, Impeller WPL 997949 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
26
Cover, Tube Opening WPL 994400 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
27
Clip, Speed WPL 853831 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
28
Cup, Condensate WPL 647850 Contact Us For Availability
28
Cover, Evaporator WPL 856957 Contact Us For Availability
29
Bag, Accessory WPL 993823 Contact Us For Availability
29
Washer, Shim WPL 470280 Contact Us For Availability
29
Insulation, Cover WPL 948410 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
30
Overload WPL 951300 Contact Us For Availability
30
Box, Control WPL 994174 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
31
Spring, Overload WPL 950032 Contact Us For Availability
31
Bushing, Shaft WPL 647879 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
32
Anticipator, Temperature WPL 475573 Contact Us For Availability
32
Control, Shaft WPL 648130 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
33
Clip, Anticipator WPL 475577 Contact Us For Availability
33
Washer, Spring WPL 647881 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
34
Cam, Air Control WPL 647882 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
36
Screw, St 8-32 x 3/8 WPL 488854 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
36
Seal WPL 649610 Contact Us For Availability
36
Switch, Rotary WPL 950283 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
37
Clip, Cabinet Front (2) WPL 949634 Contact Us For Availability
37
Screw, Mach. 6-32 x .175 (4) WPL 488734 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
38
Control, Tempetature WPL 949431 Contact Us For Availability
39
Seal WPL 649609 Contact Us For Availability
39
Grommet, Wiring WPL 647865 Contact Us For Availability
40
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
40
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
40
Instructions, Installation (Outside Sill Kit) WPL 485706 Contact Us For Availability
40
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
40
Instructions, Installation (K WPL 978930 Contact Us For Availability
40
WPL 993380 WPL 993380 Contact Us For Availability
40
WPL 995075 WPL 995075 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
40
Cable, Appliance WPL 649070 Contact Us For Availability
41
Clip, Balancing WPL 485334 Contact Us For Availability
41
Wire, Ground WPL 857634 Contact Us For Availability
42
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
42
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
42
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
42
Tube, Suction WPL 951384 Contact Us For Availability
42
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
42
Support, Unit WPL 852318 Contact Us For Availability
43
Cover, Dividing Wall WPL 994399 Contact Us For Availability
44
Cover, Winter WPL 484069 Contact Us For Availability
44
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
44
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
44
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
44
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
44
Lacquer, Starl WPL 485426 Contact Us For Availability
44
WPL 647846 WPL 647846 Contact Us For Availability
44
WPL 647847 WPL 647847 Contact Us For Availability
44
WPL 647848 WPL 647848 Contact Us For Availability
× ![]()
