Model Whirlpool AC1402XM0 AIR CONDITIONER – Common Parts & Diagrams

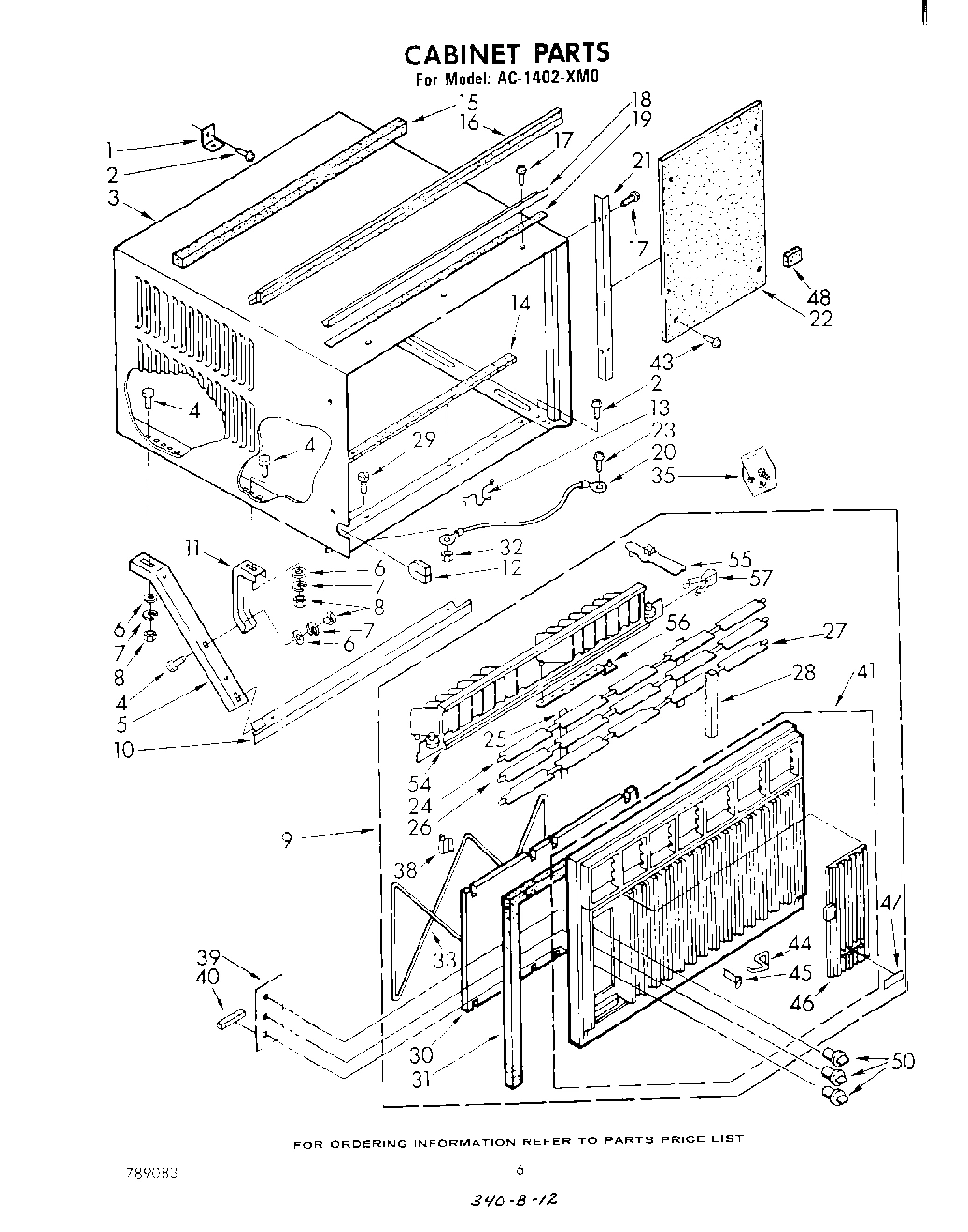

04 - CABINET

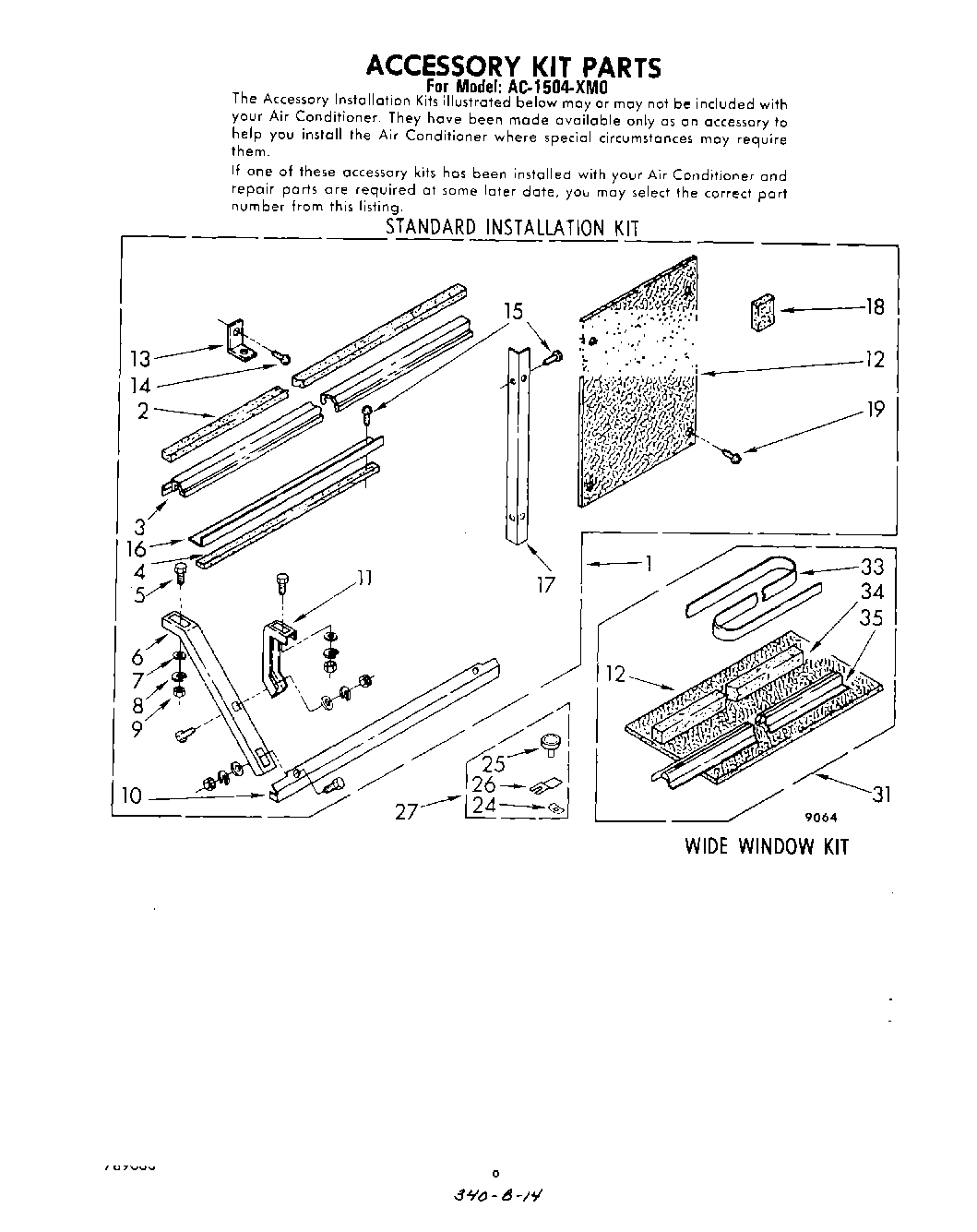

05 - ACCESSORY KIT

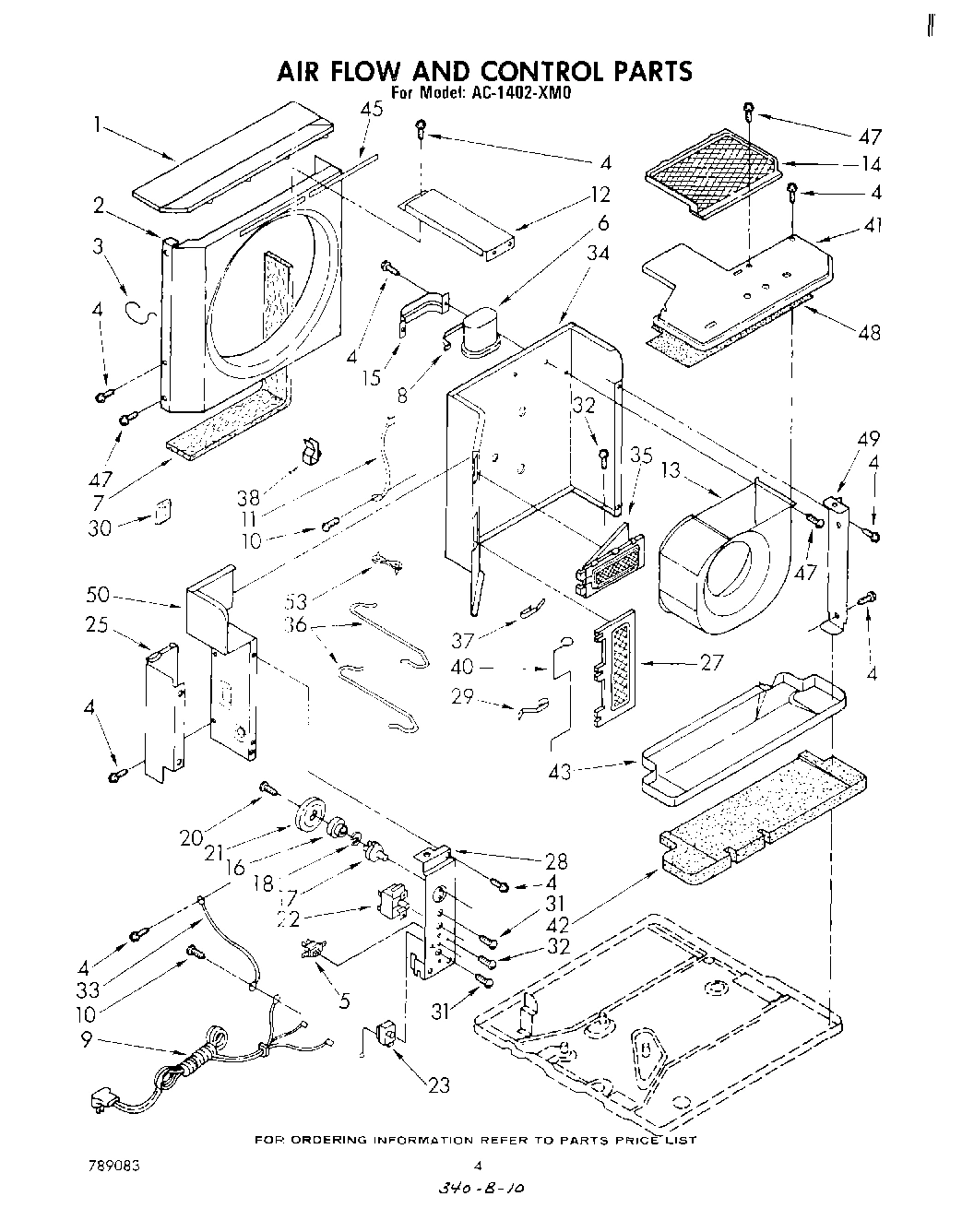

03 - AIR FLOW AND CONTROL, LIT/OPTIONAL

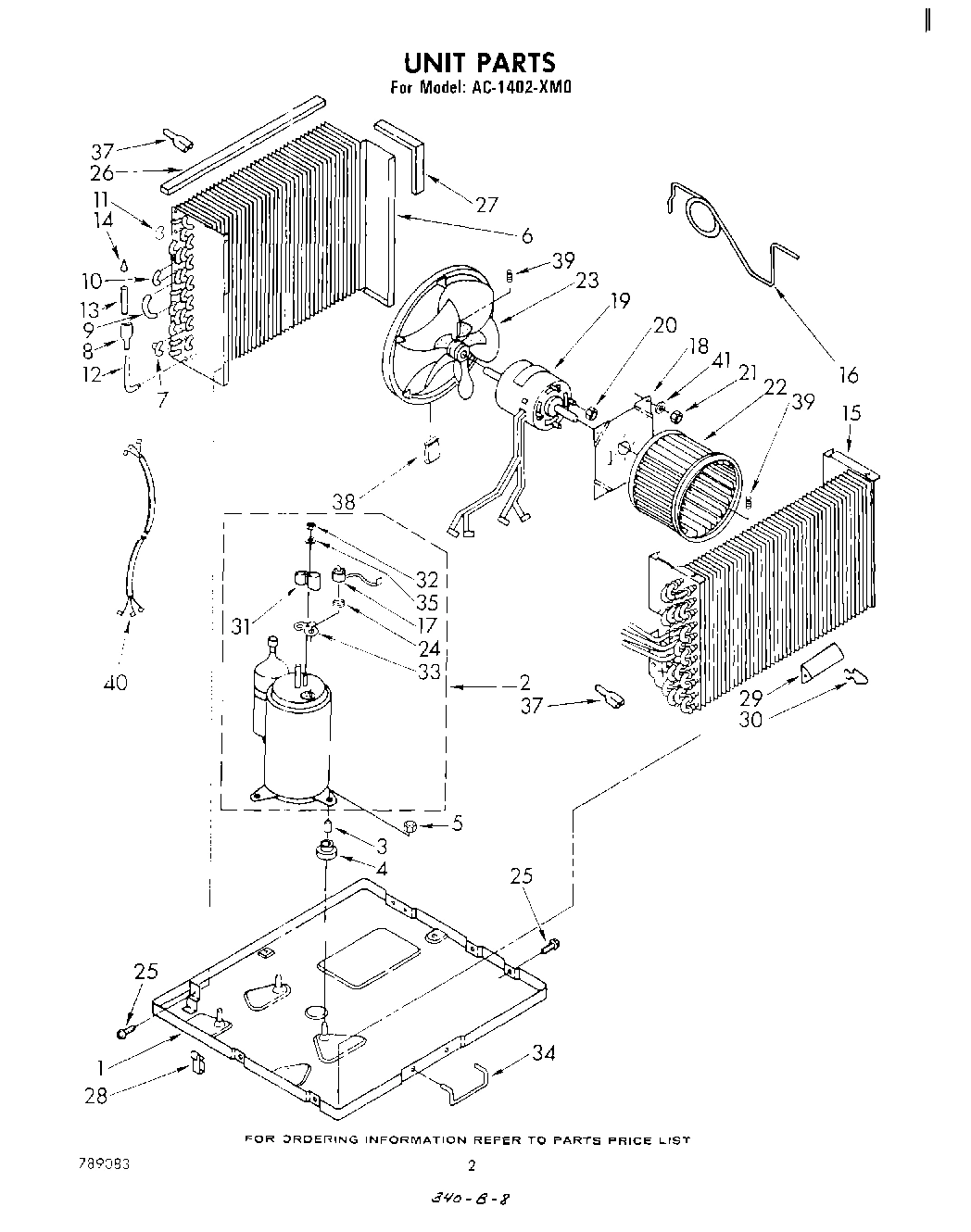

02 - UNIT
Common parts from model Whirlpool AC1402XM0 AIR CONDITIONER
1
Kit, Standard Installation WPL 485854 Contact Us For Availability
1
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
1
Base WPL 950365 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
2
Shroud, Condenser (Requires Insulation No. 46 WPL 997224 Contact Us For Availability
2
Compressor WPL 876785 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Clip, Shroud (2) WPL 477442 Contact Us For Availability
3
Sleeve (3) WPL 950020 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Switch, Sliding WPL 950529 Contact Us For Availability
5
Locknut (3) WPL 858121 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Capacitor, Running WPL 950368 Contact Us For Availability
6
Condenser WPL 950813 Contact Us For Availability
7
Seal, Condenser Fin WPL 948600 Contact Us For Availability
7
Bend, Return (3-Way) WPL 948810 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Bracket WPL 997215 Contact Us For Availability
8
Tube, Flow Divider WPL 466527 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Cable, Appliance WPL 859444 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
10
Bend, Return (16) WPL 855199 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Ground Wire WPL 998177 Contact Us For Availability
11
Bend, Return (3) WPL 998682 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
12
Support, Unit WPL 997262 Contact Us For Availability
12
Tube, 90~ Connect WPL 950814 Contact Us For Availability
13
Clip, Cabinet Front (3) WPL 852272 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Housing, Blower Wheel WPL 997220 Contact Us For Availability
13
Tube, Strainer Assembly (Includes Illus. 14) WPL 484230 Contact Us For Availability
14
Seal, Bottom WPL 852220 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 856506 Contact Us For Availability
14
Strainer WPL 49599 Contact Us For Availability
15
Bracket WPL 997218 Contact Us For Availability
15
Evaporator WPL 947359 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Bushing WPL 647879 Contact Us For Availability
16
Tube, Restrictor (3) (Length 44.0``) WPL 950812 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Shaft, Control WPL 852669 Contact Us For Availability
17
Overload WPL 950031 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Spring, Washer WPL 647881 Contact Us For Availability
18
Plate, Fan Motor WPL 998024 Contact Us For Availability
19
Motor, Fan WPL 947187 Contact Us For Availability
20
Ground Wire (Base To Cabinet) WPL 857022 Contact Us For Availability
20
Screw, Sems 7-18 x 5/8 WPL 489092 Contact Us For Availability
21
Cam WPL 647882 Contact Us For Availability
21
Locknut (4) WPL 858122 Contact Us For Availability
22
Switch, Rotary WPL 950522 Contact Us For Availability
22
Wheel, Blower WPL 855608 Contact Us For Availability
23
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
23
Control, Temperature WPL 949127 Contact Us For Availability
23
Blade, Fan WPL 949536 Contact Us For Availability
24
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
24
Speed Nut WPL 997286 Contact Us For Availability
24
Spring, Overload WPL 950032 Contact Us For Availability
25
Retainer, Horizontal Louver (4) WPL 855998 Contact Us For Availability
25
Cup, Condensate WPL 997285 Contact Us For Availability
25
Cover, Control Access WPL 997278 Contact Us For Availability
26
Louver, Horizontal (Handle) WPL 947267 Contact Us For Availability
26
support, cup WPL 997284 Contact Us For Availability
26
Seal WPL 649609 Contact Us For Availability
27
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
27
Kit, Condensate Cup WPL 876135 Contact Us For Availability
27
Door, Fresh Air WPL 997222 Contact Us For Availability
27
Seal WPL 649610 Contact Us For Availability
28
Rack, Louver (2) WPL 649955 Contact Us For Availability
28
Panel, Control WPL 950545 Contact Us For Availability
28
Clamp, Tube WPL 642684 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
29
Spring, Fresh Air Door WPL 998178 Contact Us For Availability
29
Anticipator, Temperature WPL 996773 Contact Us For Availability
30
Filter WPL 649958 Contact Us For Availability
30
Seal, Evaporator Outlet Tube WPL 948520 Contact Us For Availability
30
Clip, Anticipator WPL 475577 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
31
Kit, Wide Window WPL 485856 Contact Us For Availability
31
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
32
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
33
Retainer, Filter WPL 476707 Contact Us For Availability
33
Strip, Seal WPL 856979 Contact Us For Availability
33
Ground Wire WPL 997388 Contact Us For Availability
34
Seal, Meeting Rail WPL 470800 Contact Us For Availability
34
Wall, Dividing (Requires Insulation No. 46993 WPL 997208 Contact Us For Availability
34
Handle, Base WPL 647971 Contact Us For Availability
35
Bag, Accessory WPL 993848 Contact Us For Availability
35
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
35
Instructions, Installation (Wide Window Stand WPL 852908 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
35
Gasket, Nut WPL 950037 Contact Us For Availability
36
Wire, Control Exhaust WPL 647883 Contact Us For Availability
36
Wire, Control (Fresh Air) WPL 859370 Contact Us For Availability
37
Spring, Exhaust Door WPL 859369 Contact Us For Availability
37
Tube, Flow Divider WPL 947364 Contact Us For Availability
38
Clip, Retainer (4) WPL 855999 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
38
Clip, Balancing WPL 485334 Contact Us For Availability
39
Plate, Escutcheon WPL 950540 Contact Us For Availability
39
Setscrew, 5/16 x 1/4 (2) WPL 595085 Contact Us For Availability
40
Spacer, Escutcheon Plate (3) WPL 469175 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
40
Harness, Wiring WPL 484136 Contact Us For Availability
41
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
41
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
41
Frame, Front (Includes Illus. 44, 45 & 46) WPL 950548 Contact Us For Availability
41
Cover, Evaporator (Requires Insulation No. 46 WPL 997269 Contact Us For Availability
41
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
41
Washer, Shim (4) WPL 470280 Contact Us For Availability
41
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
41
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
42
Insulation, Condensate Pan WPL 997237 Contact Us For Availability
43
Pan, Condensate WPL 997238 Contact Us For Availability
44
Pin, Hinge WPL 649943 Contact Us For Availability
45
Spring, Catch WPL 649949 Contact Us For Availability
45
Seal, Condenser Cover (Front) WPL 997265 Contact Us For Availability
45
seal, condenser cover (side) WPL 997266 Contact Us For Availability
46
Door, Control WPL 950546 Contact Us For Availability
47
Nameplate WPL 950547 Contact Us For Availability
48
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
49
Adapter, Evaporator Header Plate WPL 997239 Contact Us For Availability
50
Knob, Control (3) WPL 947264 Contact Us For Availability
50
Extension Assembly, Divider Wall WPL 997330 Contact Us For Availability
53
WPL 484069 WPL 484069 Contact Us For Availability
53
WPL 47261 WPL 47261 Contact Us For Availability
53
WPL 47262 WPL 47262 Contact Us For Availability
53
WPL 47263 WPL 47263 Contact Us For Availability
53
WPL 485426 WPL 485426 Contact Us For Availability
53
WPL 648791 WPL 648791 Contact Us For Availability
53
WPL 789083 WPL 789083 Contact Us For Availability
53
WPL 799351 WPL 799351 Contact Us For Availability
53
WPL 854937 WPL 854937 Contact Us For Availability
53
WPL 854938 WPL 854938 Contact Us For Availability
53
WPL 855438 WPL 855438 Contact Us For Availability
53
WPL 950355 WPL 950355 Contact Us For Availability
53
WPL 950799 WPL 950799 Contact Us For Availability
53
WPL 950883 WPL 950883 Contact Us For Availability
53
WPL 950888 WPL 950888 Contact Us For Availability
53
WPL 978317 WPL 978317 Contact Us For Availability
53
WPL 997236 WPL 997236 Contact Us For Availability
53
WPL 998179 WPL 998179 Contact Us For Availability
54
Louver, Vertical WPL 649957 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 852010 Contact Us For Availability
56
Link, Vertical Louver (2) WPL 852209 Contact Us For Availability
57
Spring, Detent (2) WPL 641484 Contact Us For Availability
× ![]()
