Model Whirlpool AC1352XT0 AIR CONDITIONER – Common Parts & Diagrams

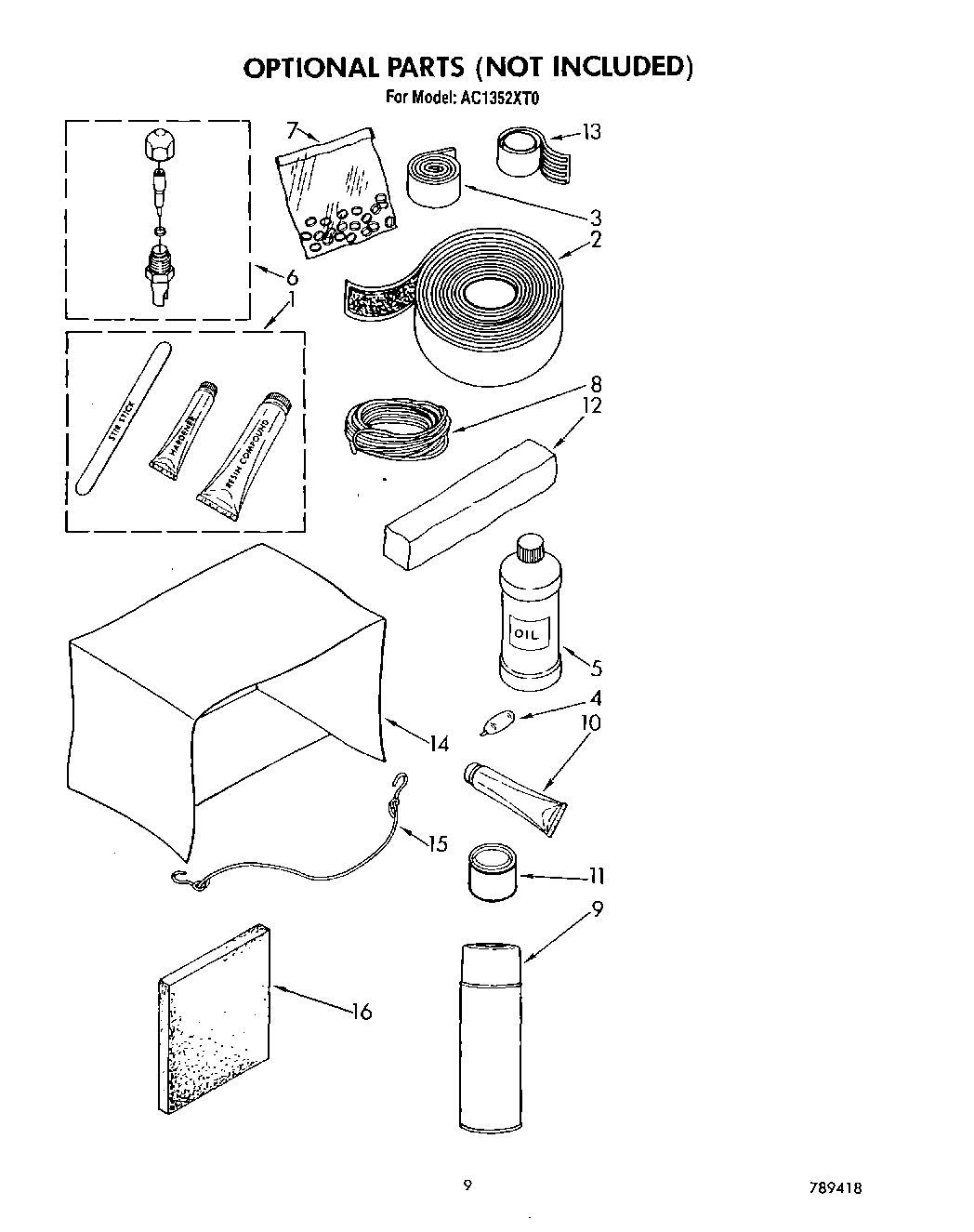

06 - OPTIONAL

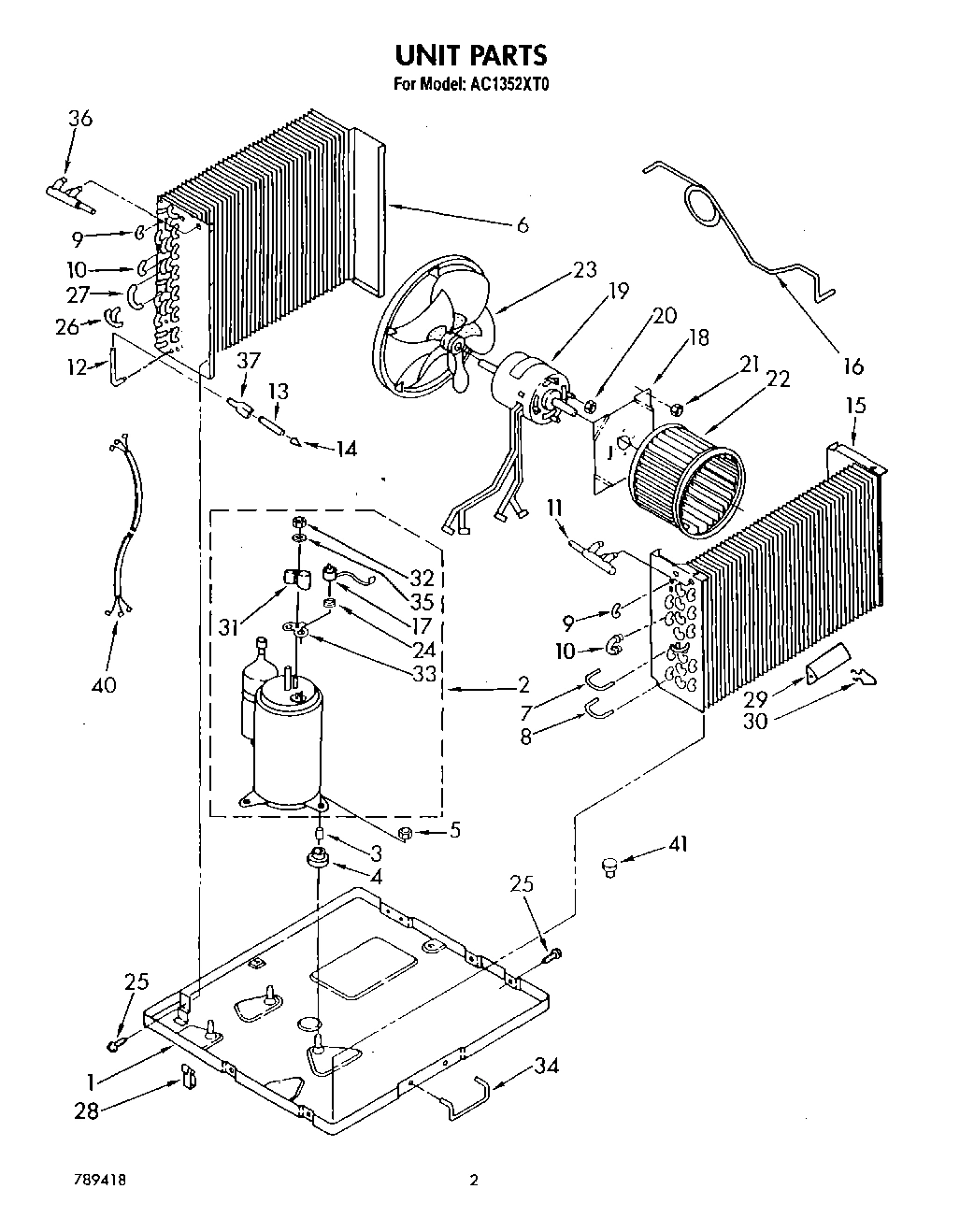

02 - UNIT, LITERATURE

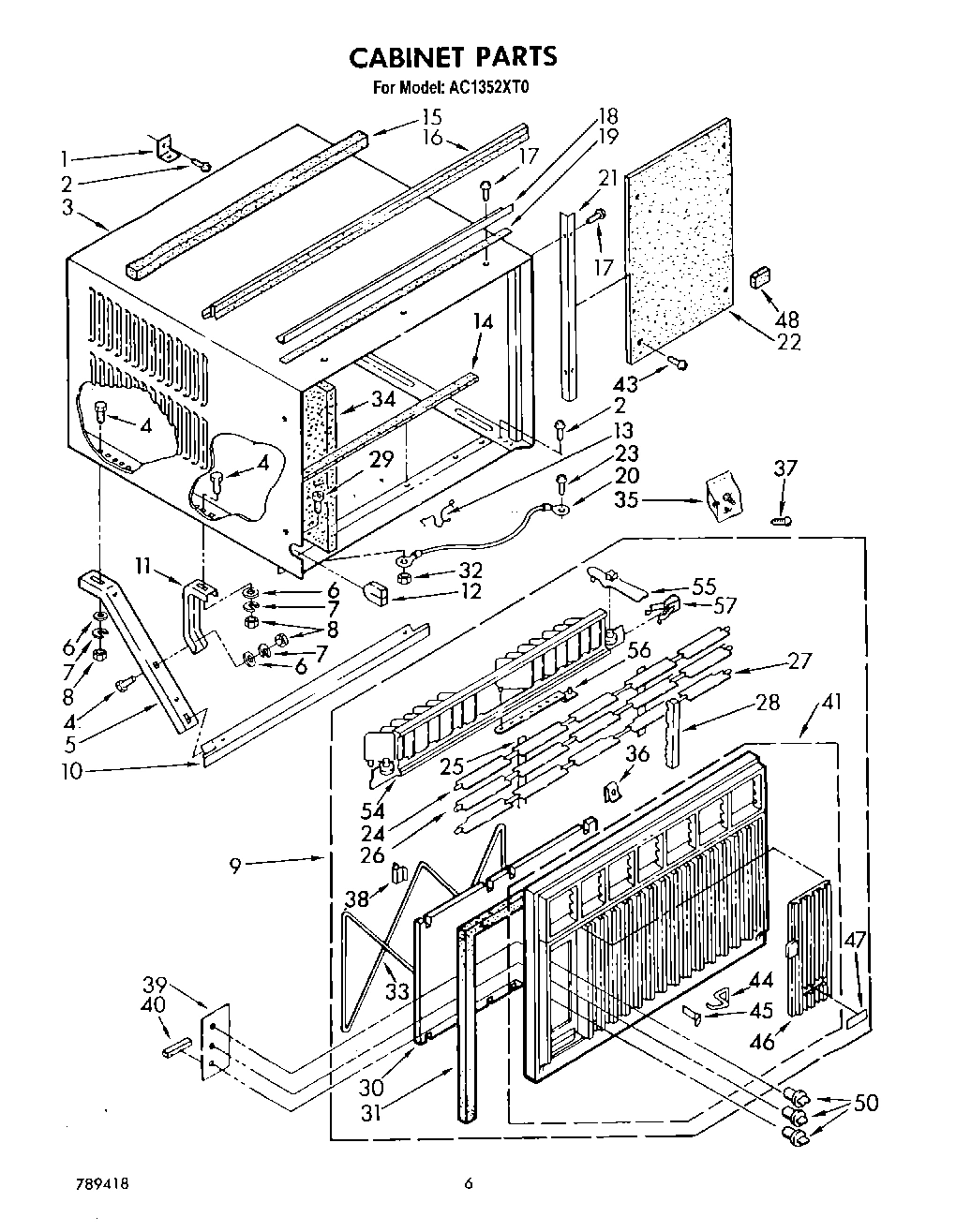

04 - CABINET

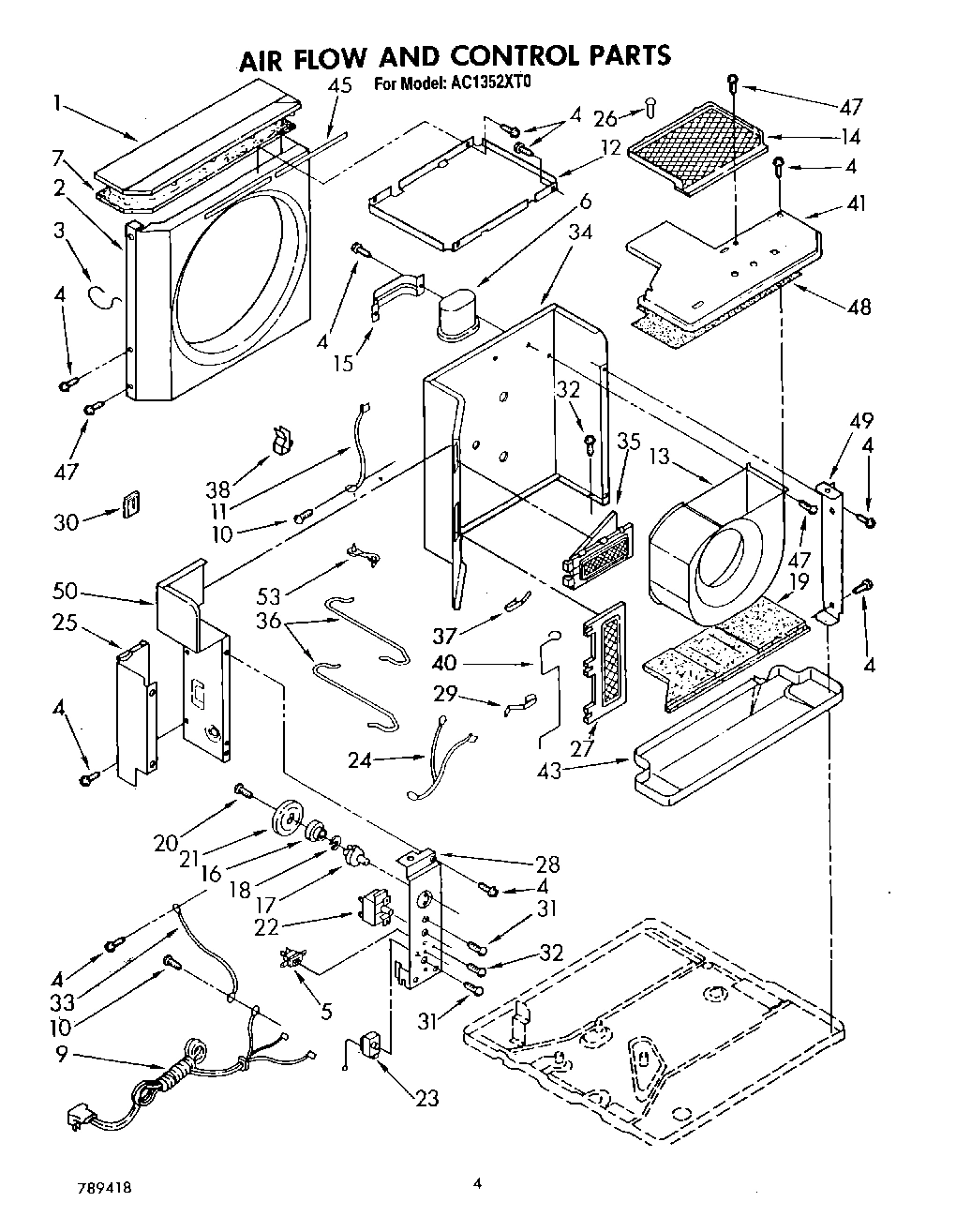

03 - AIR FLOW AND CONTROL

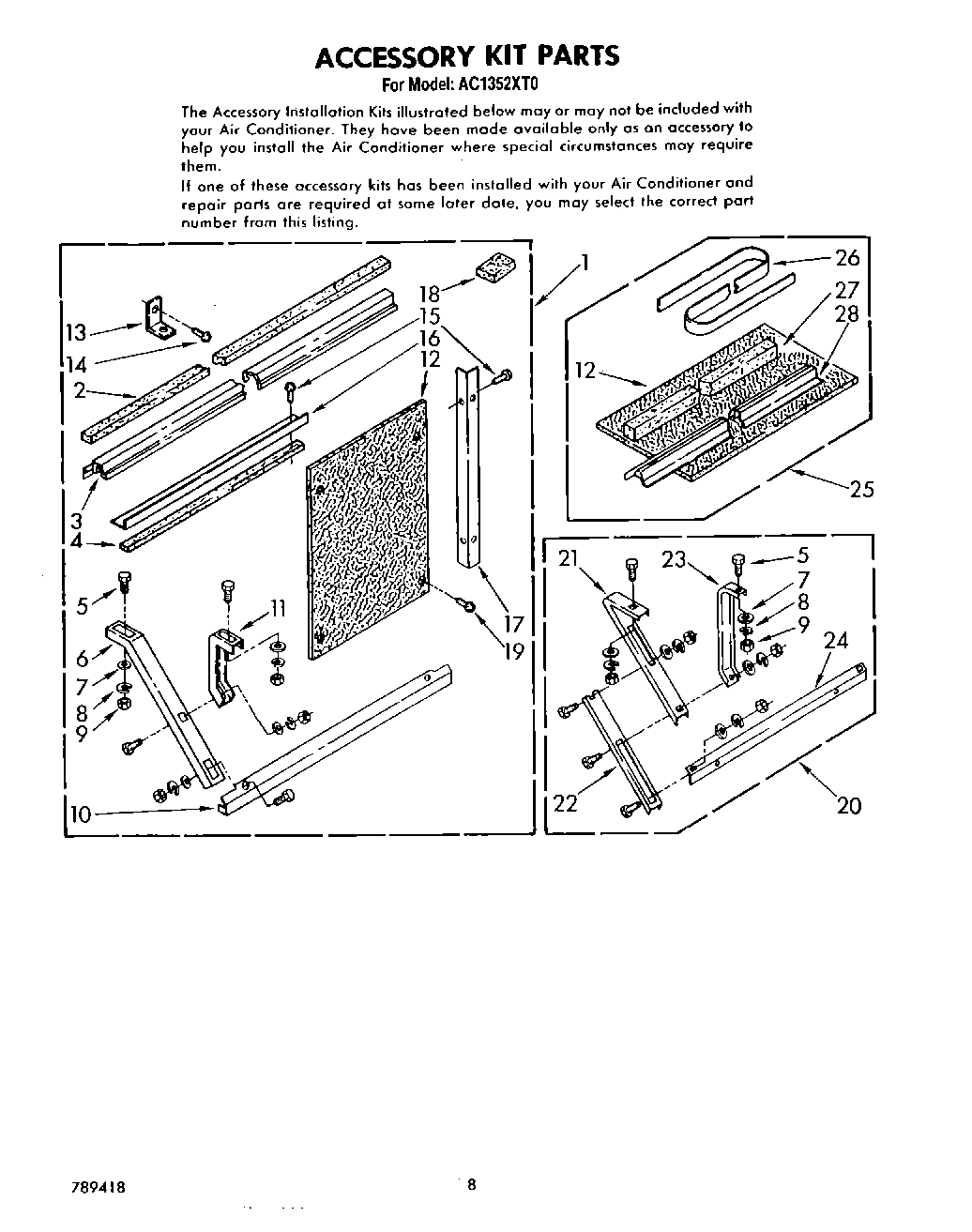

05 - ACCESSORY KIT
Common parts from model Whirlpool AC1352XT0 AIR CONDITIONER
Guide, Use and Care WPL LIT1155963 Contact Us For Availability
Instructions, Installation WPL LIT1155965 Contact Us For Availability
Sheet, Tech and Wiring Diagram WPL LIT1156687 Contact Us For Availability
List, Repair Parts WPL LIT789418 Contact Us For Availability
1
Base WPL 950364 Contact Us For Availability
1
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
1
Kit, Standard Installation WPL 1160600 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 819117 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
2
Shroud, Condenser WPL 953028 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Sleeve (3) WPL 950020 Contact Us For Availability
3
Cabinet WPL 1157805 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Clip, Shroud (2) WPL 994686 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
5
Locknut (3) WPL 858121 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Switch, Sliding WPL 950529 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Condenser WPL 1156327 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Capacitor, Running WPL 1156153 Contact Us For Availability
7
Lockwasher (6) WPL 486009 Contact Us For Availability
7
Bend Return WPL 1158407 Contact Us For Availability
7
Seal, Condenser Fin WPL 948600 Contact Us For Availability
8
Tube, Riser WPL 1156595 Contact Us For Availability
9
Bend, Return Condenser (12) Evaporator (11) WPL 708532 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Front, Cabinet (Complete) WPL 1155391 Contact Us For Availability
9
Cable, Appliance WPL 859444 Contact Us For Availability
10
Bend, Return Condenser (7) Evaporator (8) WPL 708531 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
11
Tube, Manifold WPL 1156596 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Ground Wire WPL 998177 Contact Us For Availability
12
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
12
Unit, Support WPL 1156536 Contact Us For Availability
13
Tube, Strainer Assembly (Includes Illus. 14) WPL 1155598 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Clip, Cabinet Front (3) WPL 852272 Contact Us For Availability
13
Housing, Blower Wheel WPL 997220 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Strainer WPL 49599 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Seal, Bottom WPL 852220 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 1160859 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Evaporator WPL 1156570 Contact Us For Availability
15
Bracket WPL 852992 Contact Us For Availability
16
Insulation, Cabinet (Right Side) WPL 647847 Contact Us For Availability
16
Insulation, Cabinet (Left Side) WPL 647848 Contact Us For Availability
16
Insulation, Cabinet (Top) WPL 950157 Contact Us For Availability
16
Tube, Restrictor (3) (Length 35.0``) WPL 1156685 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Bushing WPL 647879 Contact Us For Availability
17
Overload WPL 1155700 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Shaft, Control WPL 852669 Contact Us For Availability
18
Plate, Fan Motor WPL 998024 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Spring, Washer WPL 647881 Contact Us For Availability
19
Motor, Fan WPL 1155606 Contact Us For Availability
19
Insulation, Blower Wheel WPL 997236 Contact Us For Availability
20
Ground Wire (Base To Cabinet) WPL 857022 Contact Us For Availability
20
Screw, Sems 8-15 x 5/8 WPL 489092 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
21
Locknut (4) WPL 858122 Contact Us For Availability
21
Cam WPL 647882 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
22
Wheel, Blower WPL 1159499 Contact Us For Availability
22
Switch, Rotary WPL 950522 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
23
Blade, Fan WPL 853699 Contact Us For Availability
23
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
23
Control, Temperature WPL 951071 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
24
Spring, Overload WPL 950032 Contact Us For Availability
24
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
24
Wire Asm. WPL 950369 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
25
Retainer, Horizontal Louver (4) WPL 855998 Contact Us For Availability
25
Cover, Control Access WPL 952208 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
26
Bend, Return (3-Way) WPL 1156107 Contact Us For Availability
26
Louver, Horizontal (Handle) WPL 947267 Contact Us For Availability
26
Clip (2) WPL 1161162 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
27
Bend Return (2) WPL 1156329 Contact Us For Availability
27
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
27
Door, Fresh Air WPL 997222 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
28
Clamp, Tube WPL 642684 Contact Us For Availability
28
Rack, Louver (2) WPL 649955 Contact Us For Availability
28
Panel, Control WPL 950545 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Anticipator, Temperature WPL 996773 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
29
Spring, Fresh Air Door WPL 998178 Contact Us For Availability
30
Clip, Anticipator WPL 475577 Contact Us For Availability
30
Filter WPL 649958 Contact Us For Availability
30
Seal, Evaporator Outlet Tube WPL 1162510 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
31
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
32
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
33
Retainer, Filter WPL 476707 Contact Us For Availability
33
Ground Wire WPL 997388 Contact Us For Availability
34
Handle, Base WPL 647971 Contact Us For Availability
34
Insulation, Cabinet (3) WPL 1157053 Contact Us For Availability
34
Wall, Dividing WPL 953040 Contact Us For Availability
35
Gasket, Nut WPL 950037 Contact Us For Availability
35
Bag, Accessory WPL 993848 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
36
Tube, Manifold WPL 1156330 Contact Us For Availability
36
Clip, Front (2) WPL 1157140 Contact Us For Availability
36
Wire, Control (Red) WPL 1162615 Contact Us For Availability
36
wire, control (blue) WPL 647883 Contact Us For Availability
37
Tube, Flow Divider WPL 947364 Contact Us For Availability
37
Screw, Front (2) WPL 1157141 Contact Us For Availability
37
Spring, Exhaust Door WPL 859369 Contact Us For Availability
38
Clip, Retainer (4) WPL 855999 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
39
Plate, Escutcheon WPL 1155399 Contact Us For Availability
40
Harness, Wiring WPL 484136 Contact Us For Availability
40
Spacer, Escutcheon Plate (3) WPL 469175 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
41
Bushing, Base To Condenser WPL 948130 Contact Us For Availability
41
Frame, Front (Includes Illus. 44, 45 & 46) WPL 1155392 Contact Us For Availability
41
Cover, Evaporator WPL 997269 Contact Us For Availability
43
Pan, Condensate (Includes No.49) WPL 1159315 Contact Us For Availability
44
Pin, Hinge WPL 649943 Contact Us For Availability
45
Spring, Catch WPL 649949 Contact Us For Availability
45
seal, condenser cover (side) WPL 997266 Contact Us For Availability
46
Door, Control WPL 1155394 Contact Us For Availability
47
Nameplate WPL 950547 Contact Us For Availability
48
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
49
Adapter, Evaporator Header Plate WPL 1161423 Contact Us For Availability
50
Knob, Control (3) WPL 947264 Contact Us For Availability
50
Extension Assembly, Divider Wall WPL 1155423 Contact Us For Availability
53
Clamp, Cable WPL 648791 Contact Us For Availability
54
Louver, Vertical WPL 649957 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 852010 Contact Us For Availability
56
Link, Vertical Louver (2) WPL 852209 Contact Us For Availability
57
Spring, Detent (2) WPL 641484 Contact Us For Availability
× ![]()
