Model Whirlpool AC1012XM2 AIR CONDITIONER – Common Parts & Diagrams

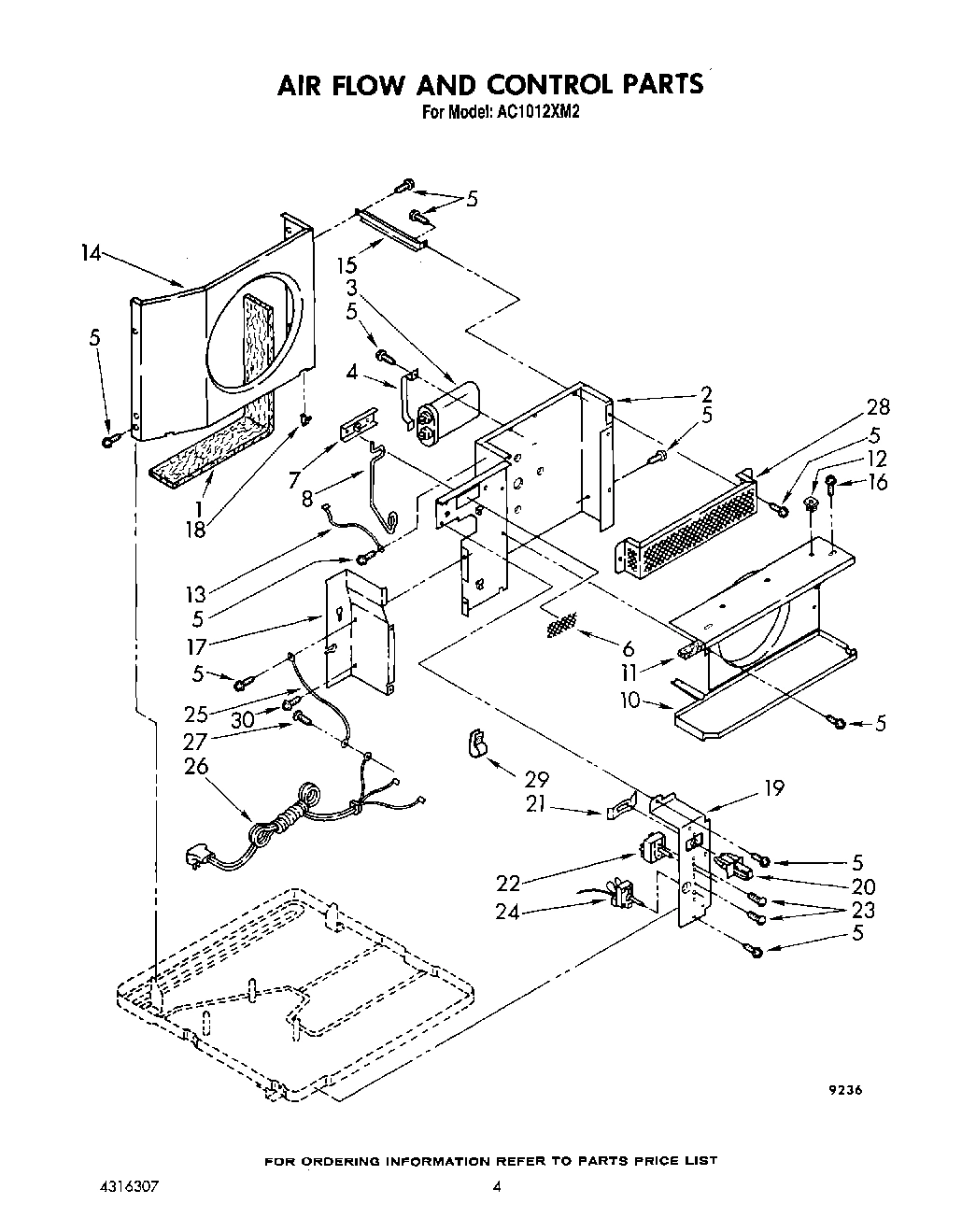

03 - AIR FLOW AND CONTROL

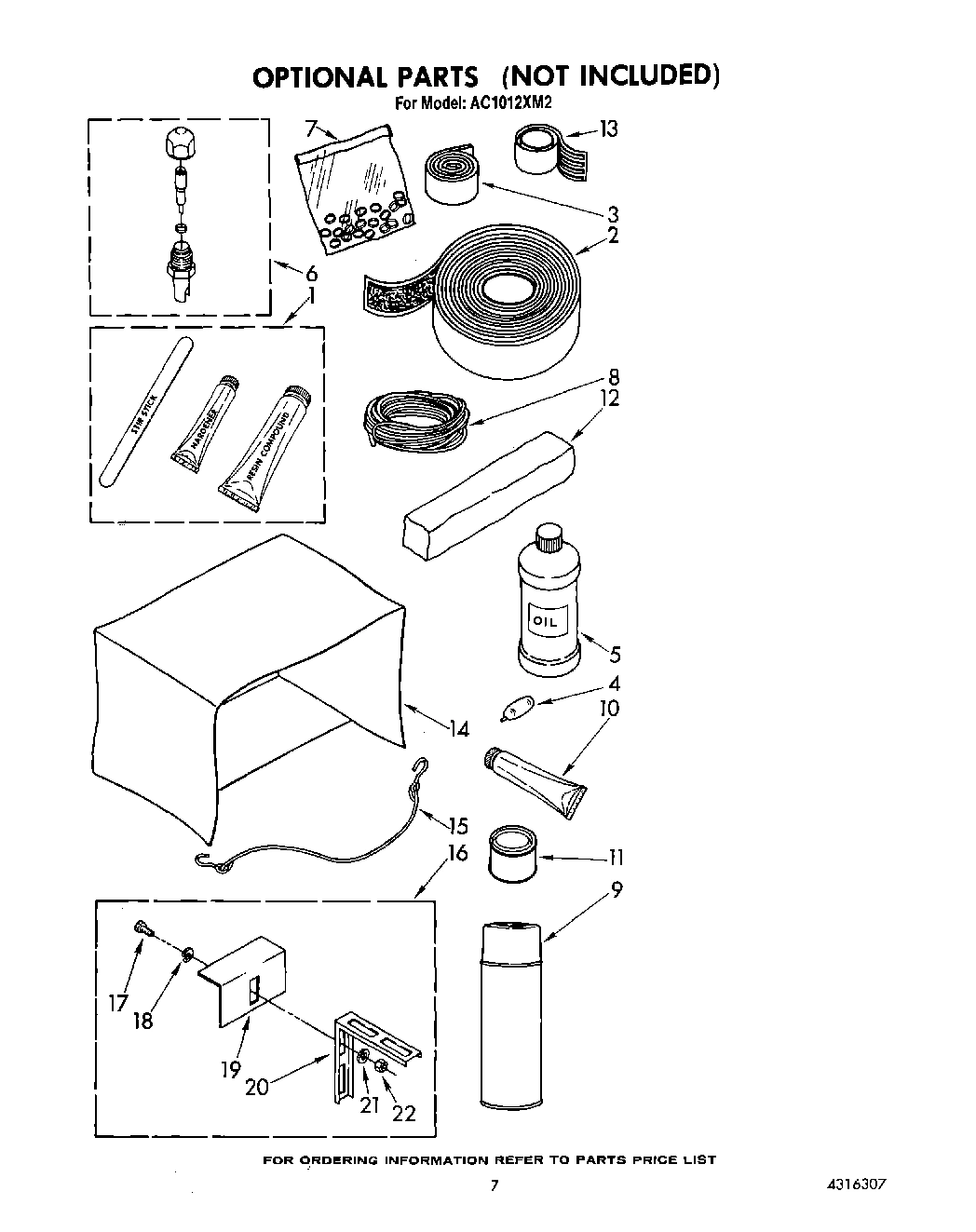

05 - OPTIONAL
02 - UNIT

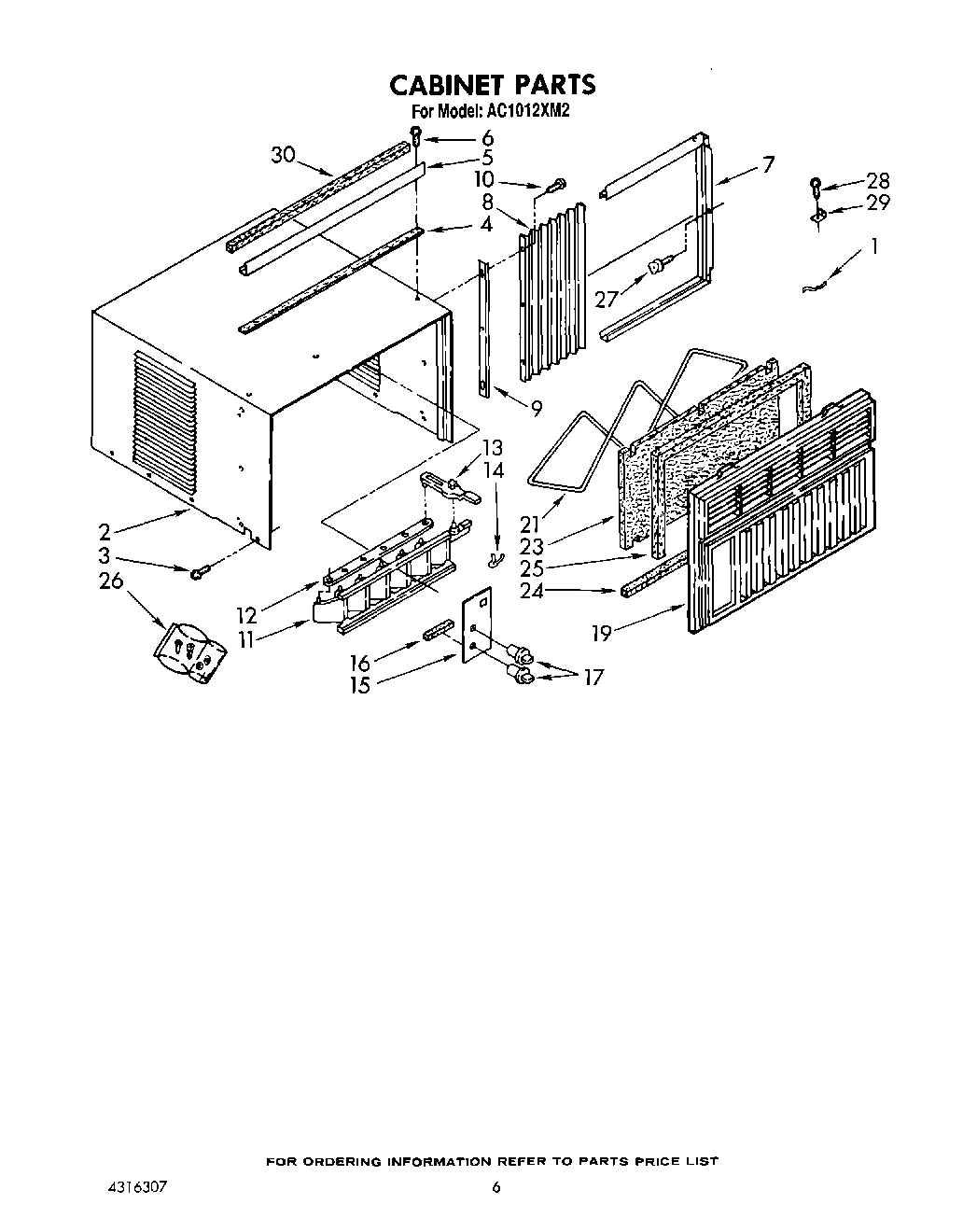

04 - CABINET, LIT/OPTIONAL
Common parts from model Whirlpool AC1012XM2 AIR CONDITIONER
List, Repair Parts WPL LIT4316307 Contact Us For Availability
Guide, WPL LIT950318 Contact Us For Availability
Guide, Energy WPL LIT952035 Contact Us For Availability
Sheet, Service Tech (Service Information) WPL LIT952616 Contact Us For Availability
1
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
1
Base WPL 858949 Contact Us For Availability
1
Clip, Cabinet Front Mounting (2) WPL 649966 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 952609 Contact Us For Availability
2
Cabinet WPL 949594 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 952610 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Spring, Overload WPL 949997 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Spring, Compressor Mounting WPL 643179 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Plate, Compressor Mounting WPL 646497 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Grommet, Compressor Mounting (3) WPL 469581 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 951094 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Nut, Lock (3) WPL 858121 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
10
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
10
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
11
Paint, Touch-Up Starlite Gray 1/2 Pint (Lacqu WPL 485426 Contact Us For Availability
11
Cover, Terminal WPL 949999 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
12
Retainer, Terminal Cover WPL 950005 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
13
Motor, Fan WPL 995303 Contact Us For Availability
13
Handle, Vertical Louver WPL 645887 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Spring, Detent WPL 641484 Contact Us For Availability
15
Support, Unit (2) WPL 1155100 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
Plate, Escutcheon WPL 952539 Contact Us For Availability
16
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 998090 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
Bolt, 1/4-20 x 3/4 (2) WPL 488750 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
17
Knob, Control (2) WPL 947264 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Evaporator WPL 948367 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Bracket, Sill WPL 645515 Contact Us For Availability
19
Tube, Restrictor (Length 28.0``) WPL 951001 Contact Us For Availability
19
Front, Cabinet WPL 950534 Contact Us For Availability
20
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
20
Bracket, Rail (2) WPL 485466 Contact Us For Availability
20
Condenser WPL 950933 Contact Us For Availability
21
Washer, Lock (2) WPL 486009 Contact Us For Availability
21
Retainer, Detent Spring WPL 858765 Contact Us For Availability
21
Bend, Return (7) WPL 854624 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
22
Switch, Rotary WPL 950283 Contact Us For Availability
22
Nut, 1/4-20 (2) WPL 486035 Contact Us For Availability
22
Bend, Return (16) WPL 855199 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Filter, Air WPL 855246 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
24
Tube, 90~ Connect WPL 858187 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 484230 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
26
Cable, Appliance WPL 646306 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
27
Screw, Thumb WPL 475581 Contact Us For Availability
28
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
29
Clip, Wiring WPL 948279 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
30
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
30
Clamp, Tube WPL 855930 Contact Us For Availability
30
Seal, Meeting Rail WPL 469877 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
33
Setscrew, 5/16-24 x 1/4 WPL 595085 Contact Us For Availability
34
Clip, Fan Balancing WPL 876034 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
36
Tube, 90~ Connect WPL 950814 Contact Us For Availability
× ![]()
