Model Whirlpool AC1012XM0 AIR CONDITIONER – Common Parts & Diagrams
03 - SECTION
02 - SECTION
04 - SECTION
01 - SECTION

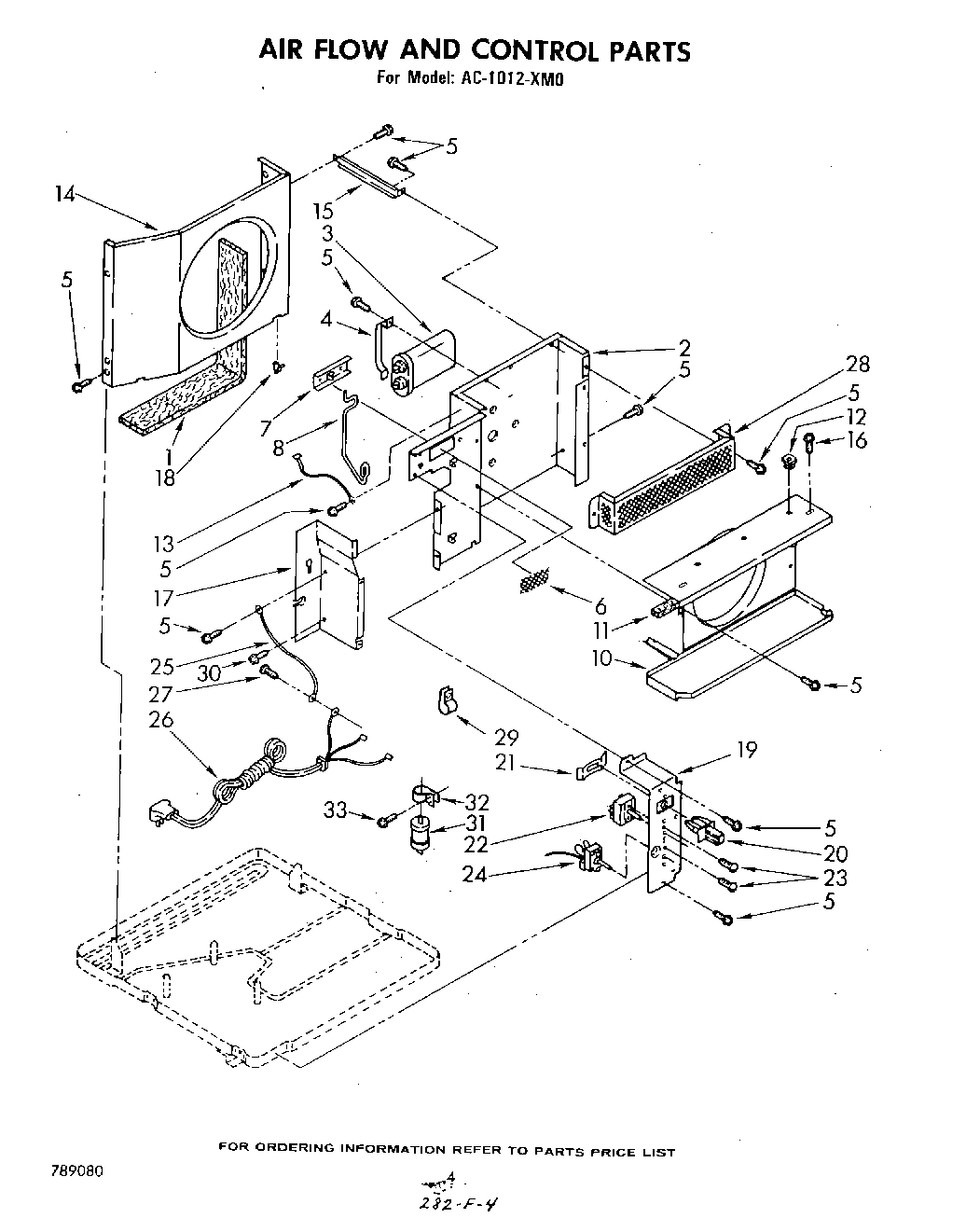

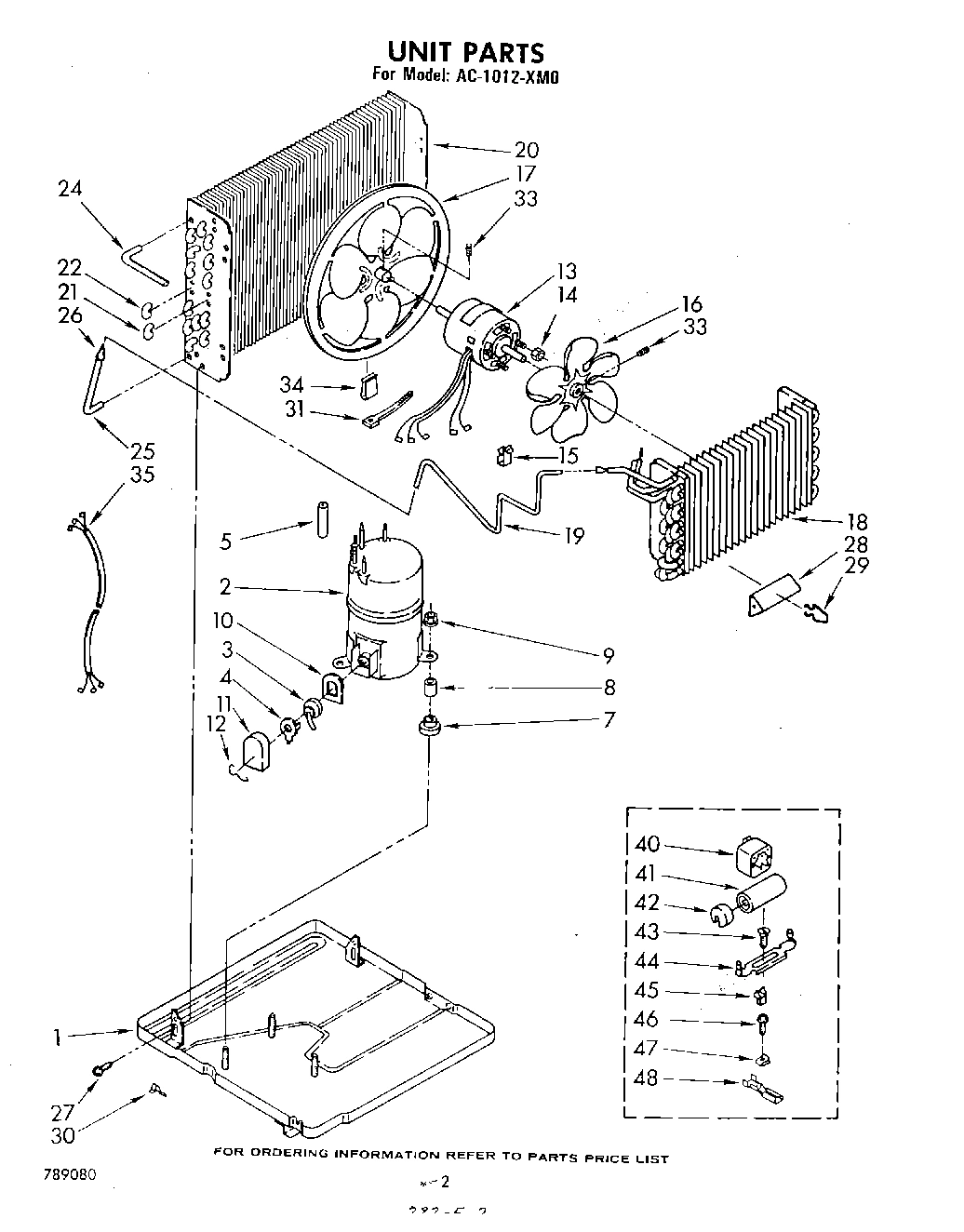

Common parts from model Whirlpool AC1012XM0 AIR CONDITIONER
1
Base WPL 859405 Contact Us For Availability
1
Clip, Cabinet Front Mounting (2) WPL 649966 Contact Us For Availability
2
Compressor WPL 484081 Contact Us For Availability
2
Cabinet WPL 856686 Contact Us For Availability
3
Overload WPL 852521 Contact Us For Availability
4
Spring, Overload WPL 644362 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
5
Split Dampener WPL 857548 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
7
Grommet, Compressor Mounting (3) WPL 469581 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 858148 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
9
Nut, Lock (3) WPL 858121 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
10
Shroud, Evaporator (Includes Illus. 11) WPL 948219 Contact Us For Availability
10
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
10
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
11
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
11
Cover, Terminal WPL 855762 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
12
Fastener, snap WPL 487808 Contact Us For Availability
12
Retainer, Terminal Cover WPL 475062 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
13
Wire, Capacitor Ground WPL 857568 Contact Us For Availability
13
Motor, Fan WPL 995305 Contact Us For Availability
13
Handle, Vertical Louver WPL 645887 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Spring, Detent WPL 641484 Contact Us For Availability
15
support, unit (2) WPL 858663 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
plate, escutcheon WPL 950530 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 998090 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
17
Knob, Control (2) WPL 947264 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Evaporator WPL 948367 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Tube, Restrictor (Length 28.0``) WPL 997903 Contact Us For Availability
19
Front, Cabinet WPL 950534 Contact Us For Availability
20
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
20
Condenser WPL 949834 Contact Us For Availability
21
Retainer, Detent Spring WPL 858765 Contact Us For Availability
21
Bend, Return (7) WPL 854624 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
22
Switch, Rotary WPL 950283 Contact Us For Availability
22
Bend, Return (15) WPL 855199 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Filter WPL 855246 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
24
Tube, 90o Connect WPL 947612 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
tube, strainer assembly (includes part no. 49 WPL 484230 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
26
Cable, Appliance WPL 646139 Contact Us For Availability
26
Strainer WPL 49599 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
27
Screw, Thumb WPL 475581 Contact Us For Availability
28
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
29
Clip, Wiring WPL 948279 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
30
Screw, S.M. No.8 x 3/8A WPL 488624 Contact Us For Availability
30
Clamp, Tube WPL 855930 Contact Us For Availability
30
Seal, Meeting Rail WPL 469877 Contact Us For Availability
31
Thermistor WPL 949177 Contact Us For Availability
32
Clamp, Mounting WPL 949176 Contact Us For Availability
33
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
33
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
33
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
33
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
33
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
33
Insulation, Cabinet (5/8`` x 13`` x 25-11/16` WPL 649939 Contact Us For Availability
33
List, Repair Parts WPL 789080 Contact Us For Availability
33
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
33
guide, use & care WPL 950318 Contact Us For Availability
33
WPL 950798 WPL 950798 Contact Us For Availability
33
WPL 950923 WPL 950923 Contact Us For Availability
33
WPL 951021 WPL 951021 Contact Us For Availability
33
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
34
Clip, Fan Balancing WPL 485334 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
40
xRelay WPL 484177 Contact Us For Availability
41
xCapacitor WPL 48616 Contact Us For Availability
42
xCap, Capacitor WPL 465280 Contact Us For Availability
43
xScrew, 10 x 5/8 WPL 487880 Contact Us For Availability
44
xBracket, capacitor WPL 35564 Contact Us For Availability
45
Multiplier, Terminal WPL 90654 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
48
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
48
xClip, terminal WPL 45571 Contact Us For Availability
48
Start Assist Kit WPL 484220 Contact Us For Availability
48
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
48
Start Kit WPL 485608 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
