Model Whirlpool AC1002XS1 AIR CONDITIONER – Common Parts & Diagrams

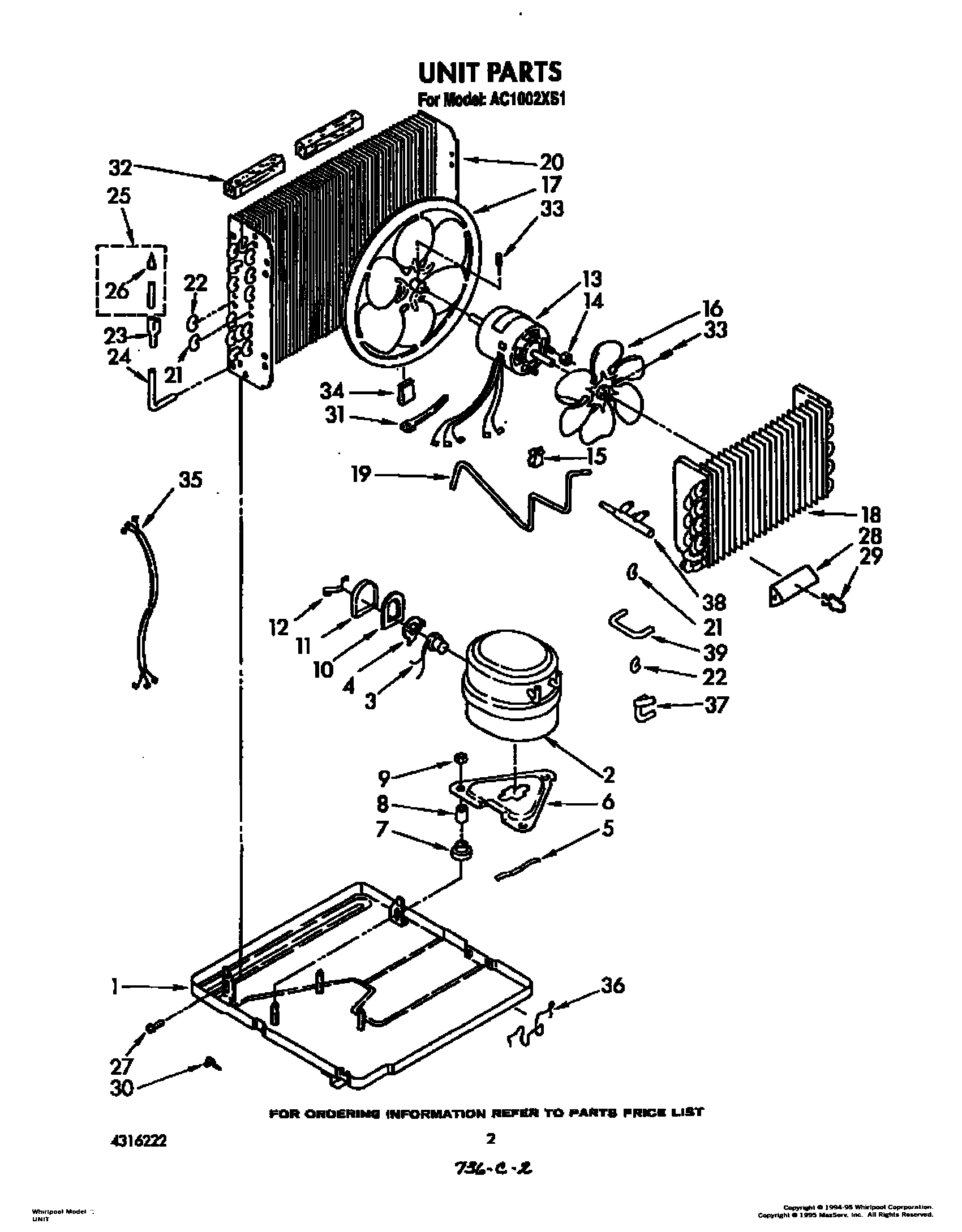

02 - UNIT, LIT/OPTIONAL

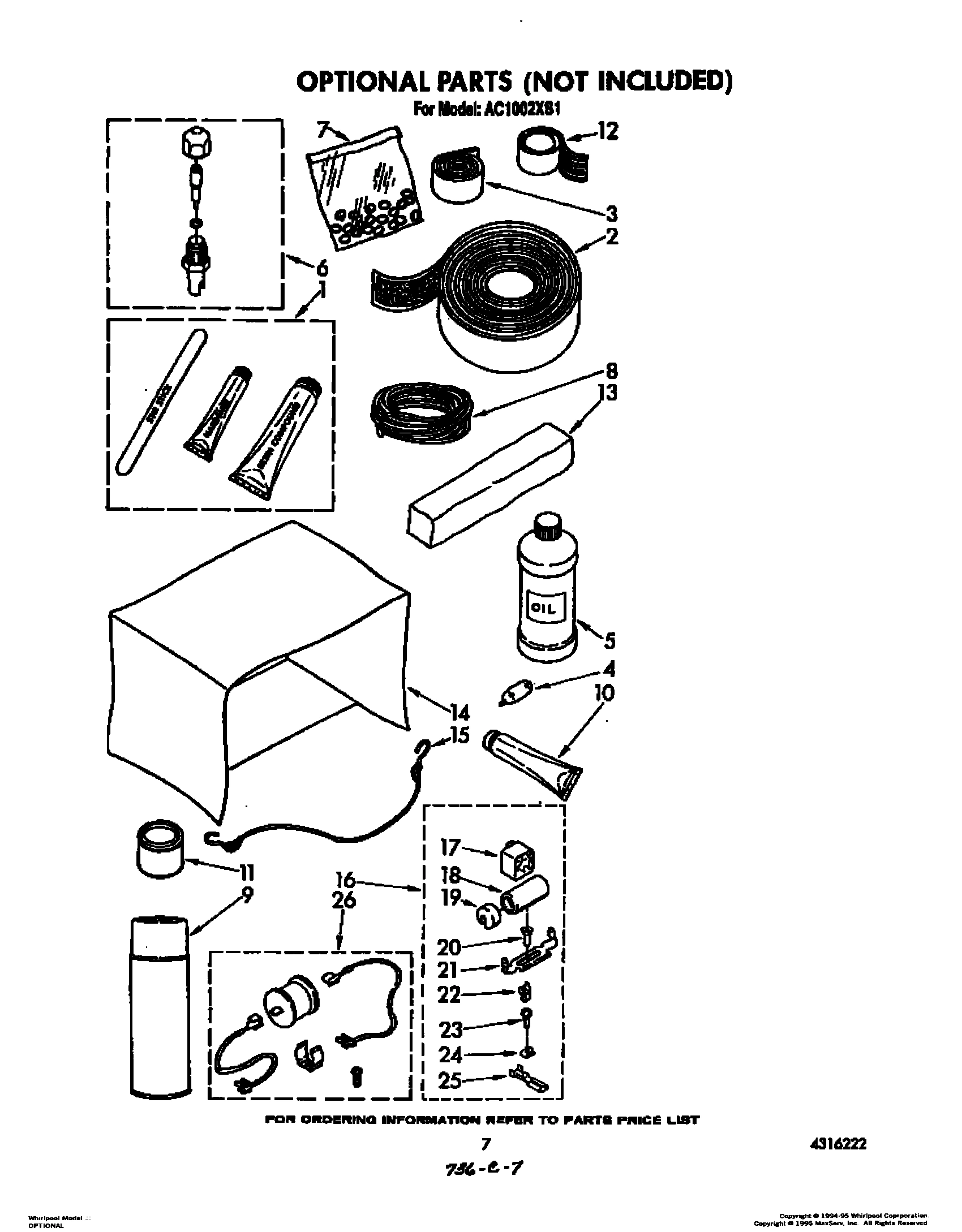

05 - OPTIONAL
03 - AIRFLOW AND CONTROL
04 - CABINET
06 - ACCESSORY KIT
Common parts from model Whirlpool AC1002XS1 AIR CONDITIONER
Instructions Installation (Economy Mounting K WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Wall, Dividing WPL 1156320 Contact Us For Availability
2
Cabinet WPL 1157984 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 952088 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Running Capacitor WPL 856105 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain (L.S. (Includes No.8)) WPL 855573 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
9
Strip, Seal WPL 855266 Contact Us For Availability
10
Shroud, Evaporator (Includes No.11) WPL 948219 Contact Us For Availability
10
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
11
Seal, Meeting Rail WPL 469877 Contact Us For Availability
12
Retainer, Terminal Cover WPL 643299 Contact Us For Availability
12
Fastener, snap WPL 487808 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
13
Motor, Fan WPL 1156084 Contact Us For Availability
13
Wire, Capacitor Ground WPL 857568 Contact Us For Availability
13
Handle, Vertical Louver WPL 641483 Contact Us For Availability
13
Angle, Side Mounting (2) WPL 646233 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Spring, Detent WPL 641484 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Support, Unit (2) WPL 1155100 Contact Us For Availability
15
Plate, Escutcheon WPL 952541 Contact Us For Availability
15
Screw, Wood No.8 X 3/8 (6) WPL 488255 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 949369 Contact Us For Availability
16
Hard Start Kit (Use With 484395 Compressor) WPL 484274 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
16
Screw S.M. No.10 x 3/8 (6) WPL 488481 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
17
Relay, Start WPL 484275 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
Knob, Control (2) WPL 951156 Contact Us For Availability
18
Evaporator Includes Numbers, 21, 22, 37, 38 WPL 1157956 Contact Us For Availability
18
Capacitor, Start WPL 467614 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Spacer, Filler Board (2) WPL 995274 Contact Us For Availability
19
Tube, Restrictor WPL 1158124 Contact Us For Availability
19
Panel, Control WPL 950532 Contact Us For Availability
19
Front, Cabinnet WPL 1157249 Contact Us For Availability
19
Board, Filler, (2) WPL 646237 Contact Us For Availability
20
Condenser Includes Numbers, 21 And 22 WPL 1155550 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
21
Bend, Return (7) WPL 708532 Contact Us For Availability
21
Bracket, Capacitor WPL 35564 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
22
Bend, Return (16) WPL 708531 Contact Us For Availability
22
Mult WPL 90654 Contact Us For Availability
22
Switch, Rotary WPL 950999 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Filter, Air WPL 951039 Contact Us For Availability
24
Tube, 90~ Collect WPL 1155580 Contact Us For Availability
24
Control, Temperature WPL 951017 Contact Us For Availability
24
Seal, Cabinet Front ((Top & Sides)) WPL 476899 Contact Us For Availability
24
Seal, Cabinet Front (Middle) WPL 950731 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950825 Contact Us For Availability
25
WPL 45571 WPL 45571 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
WPL 484220 WPL 484220 Contact Us For Availability
26
Cable, Appliance WPL 646139 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
27
Screw, Thumb WPL 475581 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
29
Clip, Wiring WPL 948279 Contact Us For Availability
30
Clamp, Tube WPL 855930 Contact Us For Availability
30
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
33
Setscrew, 5/16-24 x 1/4 WPL 595085 Contact Us For Availability
34
Clip, Fan Balancing WPL 876034 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
36
Clip, Cabinet Front Mtg. WPL 949634 Contact Us For Availability
37
Bend, Return (3-Way) WPL 1156107 Contact Us For Availability
38
Tube, Mainifold WPL 1156642 Contact Us For Availability
39
Return Bend WPL 1158407 Contact Us For Availability
× ![]()
