Model Whirlpool AC1002XS0 AIR CONDITIONER – Common Parts & Diagrams

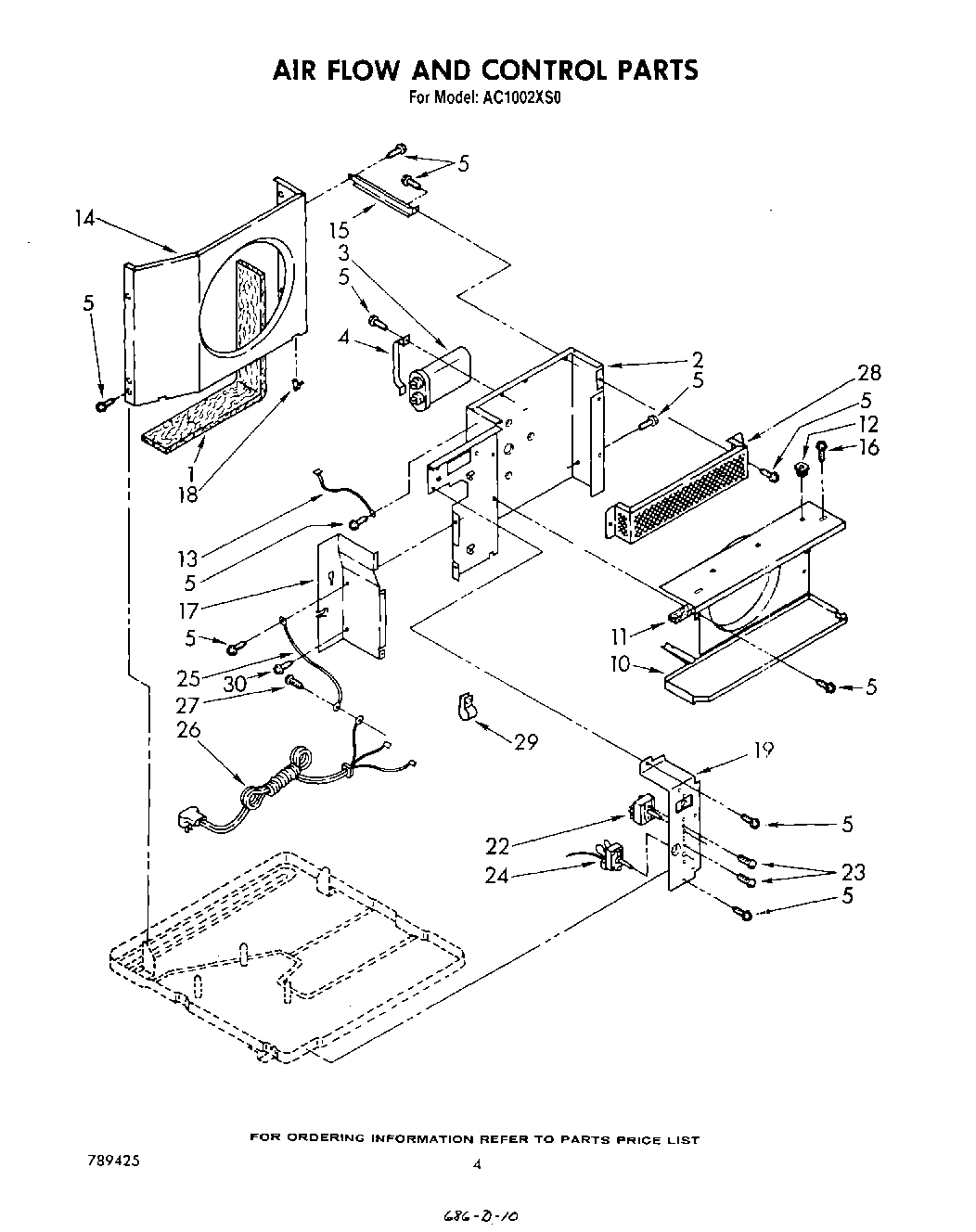

03 - AIRFLOW AND CONTROL

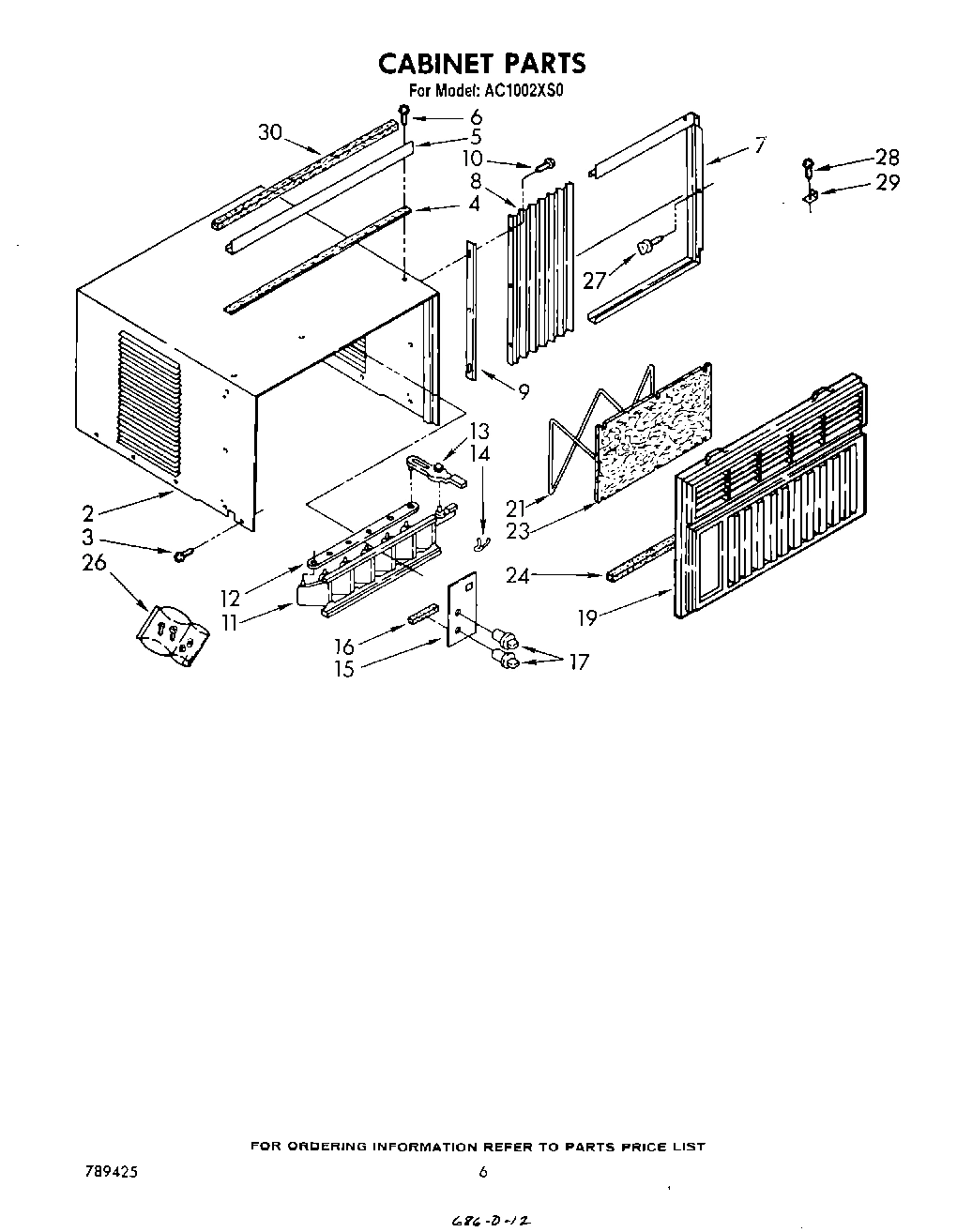

04 - CABINET

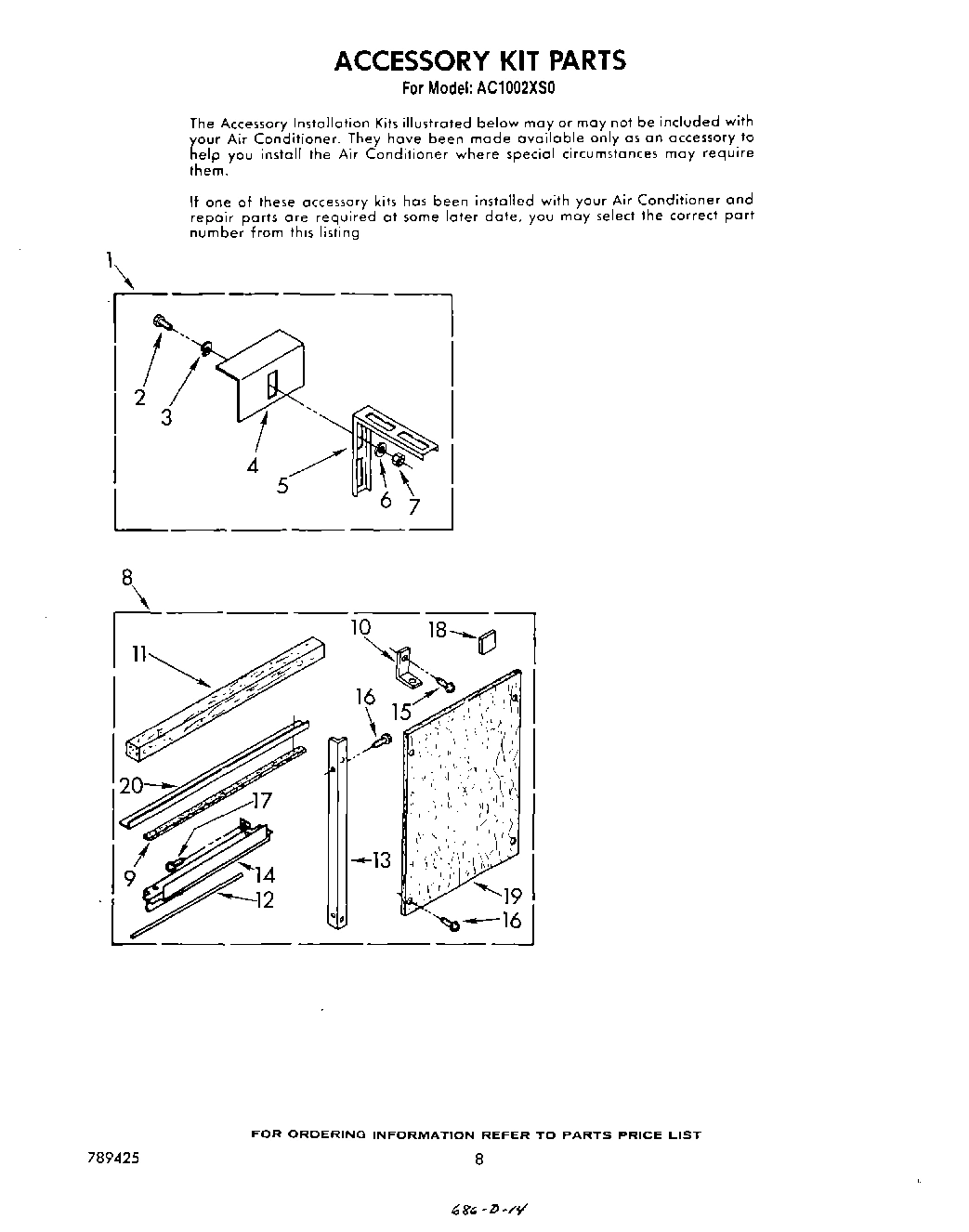

06 - ACCESSORY KIT

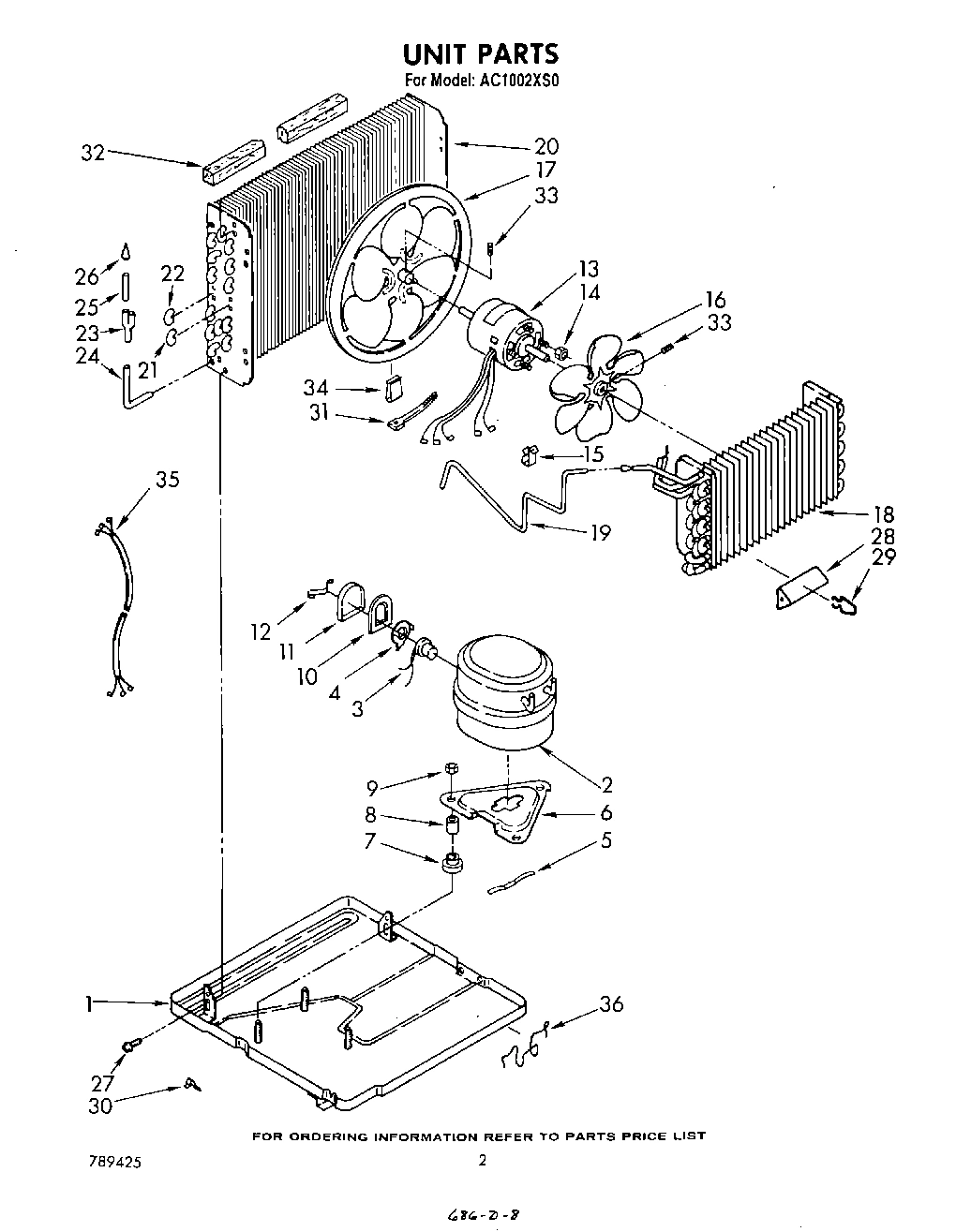

02 - UNIT

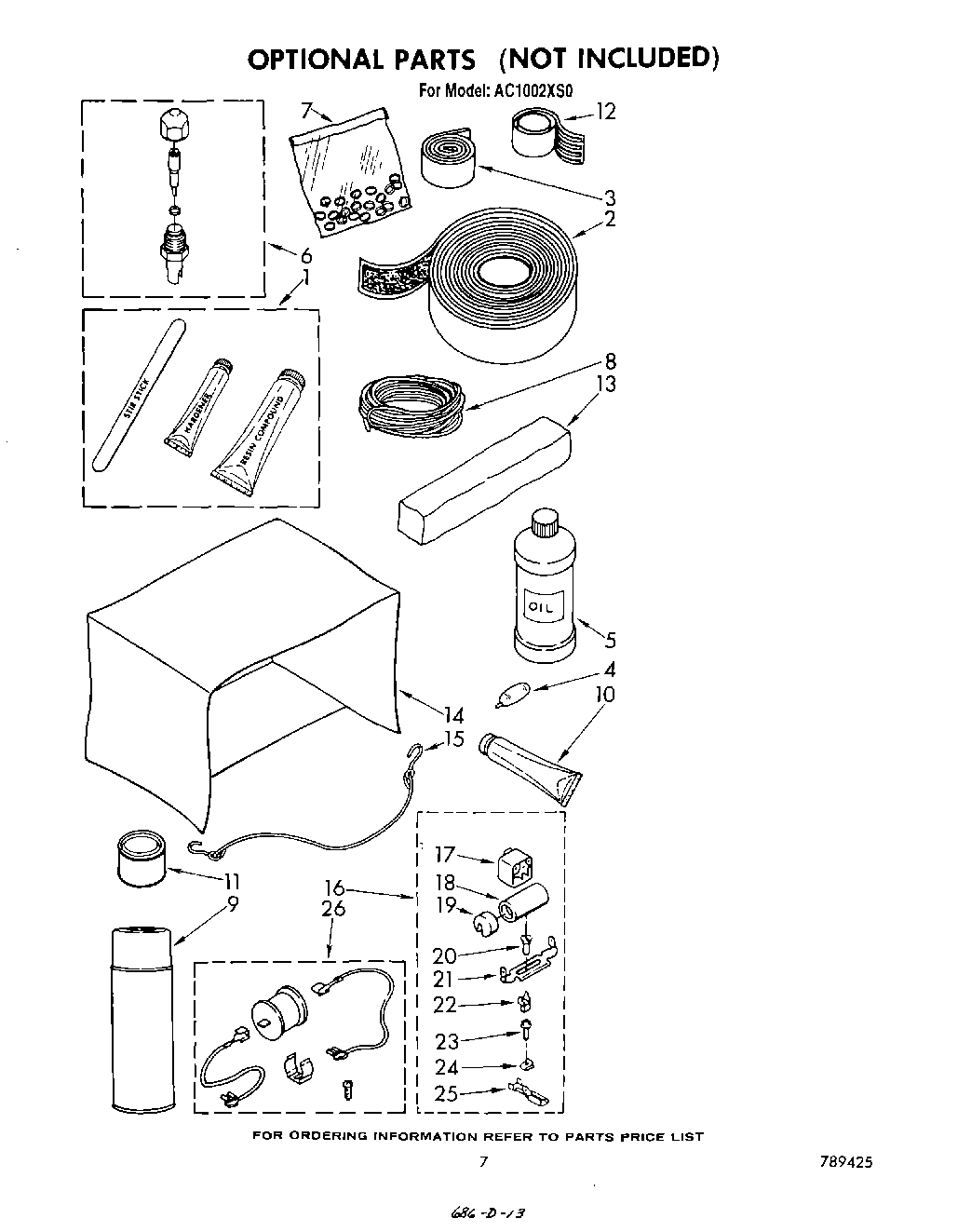

05 - LIT/OPTIONAL
Common parts from model Whirlpool AC1002XS0 AIR CONDITIONER
Instructions Installation (Economy Mounting K WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
Sheet, Tech And Wiring Daigram WPL LIT1156086 Contact Us For Availability
Guide, Energy WPL LIT1156088 Contact Us For Availability
List, Repair Parts WPL LIT789425 Contact Us For Availability
Guide, Use And Care WPL LIT950354 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Base WPL 858949 Contact Us For Availability
1
Epoxy, Tube WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Cabinet WPL 856040 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Compressor WPL 485552 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 950834 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Spring, Overload WPL 994171 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Spring, Compressor Mtg. WPL 643179 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Plate, Compressor Mtg. WPL 644356 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain (L.S. (Includes No.8)) WPL 855573 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Grommet, Compressor Mtg. WPL 469581 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
8
Sleeve, WPL 951094 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
9
Strip, Seal WPL 855266 Contact Us For Availability
9
Nut, Lock (3) Compressor Mtg. WPL 858121 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
10
Gasket, Terminal Cover WPL 647154 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
11
Seal, Meeting Rail WPL 469877 Contact Us For Availability
11
Cover, Terminal WPL 647152 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
12
Retainer, Terminal Cover WPL 643299 Contact Us For Availability
13
Handle, Vertical Louver WPL 641483 Contact Us For Availability
13
Angle, Side Mounting (2) WPL 646233 Contact Us For Availability
13
MOTOR WPL 1156084 Contact Us For Availability
14
Spring, Detent WPL 641484 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Plate, Escutcheon WPL 952541 Contact Us For Availability
15
Screw, Wood No.8 x 3/4 (6) WPL 488255 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
16
Screw S.M. No.10 x 3/8 (6) WPL 488481 Contact Us For Availability
16
BLADE (Evaporator) WPL 998090 Contact Us For Availability
16
Hard Start Kit (Use With 485397 Compressor) WPL 485884 Contact Us For Availability
17
Knob, Control (2) WPL 951156 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
17
Relay, Start WPL 484177 Contact Us For Availability
18
Spacer, Filler Board (2) WPL 995274 Contact Us For Availability
18
Evaporator WPL 951586 Contact Us For Availability
18
Capacitor, Start WPL 467614 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Front, Cabinet WPL 950533 Contact Us For Availability
19
Board, Filler WPL 646237 Contact Us For Availability
19
Tube, Restrictor (Length 28.0``) WPL 951001 Contact Us For Availability
19
Cap, Capacitor WPL 791869 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
20
Condenser WPL 950933 Contact Us For Availability
20
Screw, S.M. No.10 x 5/8 (2) WPL 487880 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
21
Bend, Return (7) WPL 854624 Contact Us For Availability
21
Bracket, Capacitor Multiplier WPL 35564 Contact Us For Availability
22
SWITCH WPL 950999 Contact Us For Availability
22
Bend, Return (16) WPL 855199 Contact Us For Availability
22
Multiplier, Terminal WPL 90654 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Filter, Air WPL 951039 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Screw, 8 x 3/8 WPL 487860 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
24
Seal, Cabinet Front ((Top & Sides)) WPL 476899 Contact Us For Availability
24
Seal, Cabinet Front (Middle) WPL 950731 Contact Us For Availability
24
Tube, 90~ Connect WPL 950814 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 484230 Contact Us For Availability
25
Clip, Terminal (8) WPL 45571 Contact Us For Availability
26
Cable, Appliance WPL 646139 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Start Assist Kit WPL 484220 Contact Us For Availability
27
Screw, Thumb WPL 475581 Contact Us For Availability
28
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
29
Clip, Wiring WPL 948279 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
30
Clamp, Tube WPL 855930 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
33
Setscrew, 5/16-24 x 1/4 WPL 595085 Contact Us For Availability
34
Clip, Fan Balancing WPL 876034 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
36
Clip, Cabinet Front Mtg (2) WPL 949634 Contact Us For Availability
× ![]()
