Model Whirlpool AC1002XM0 AIR CONDITIONER – Common Parts &amp; Diagrams

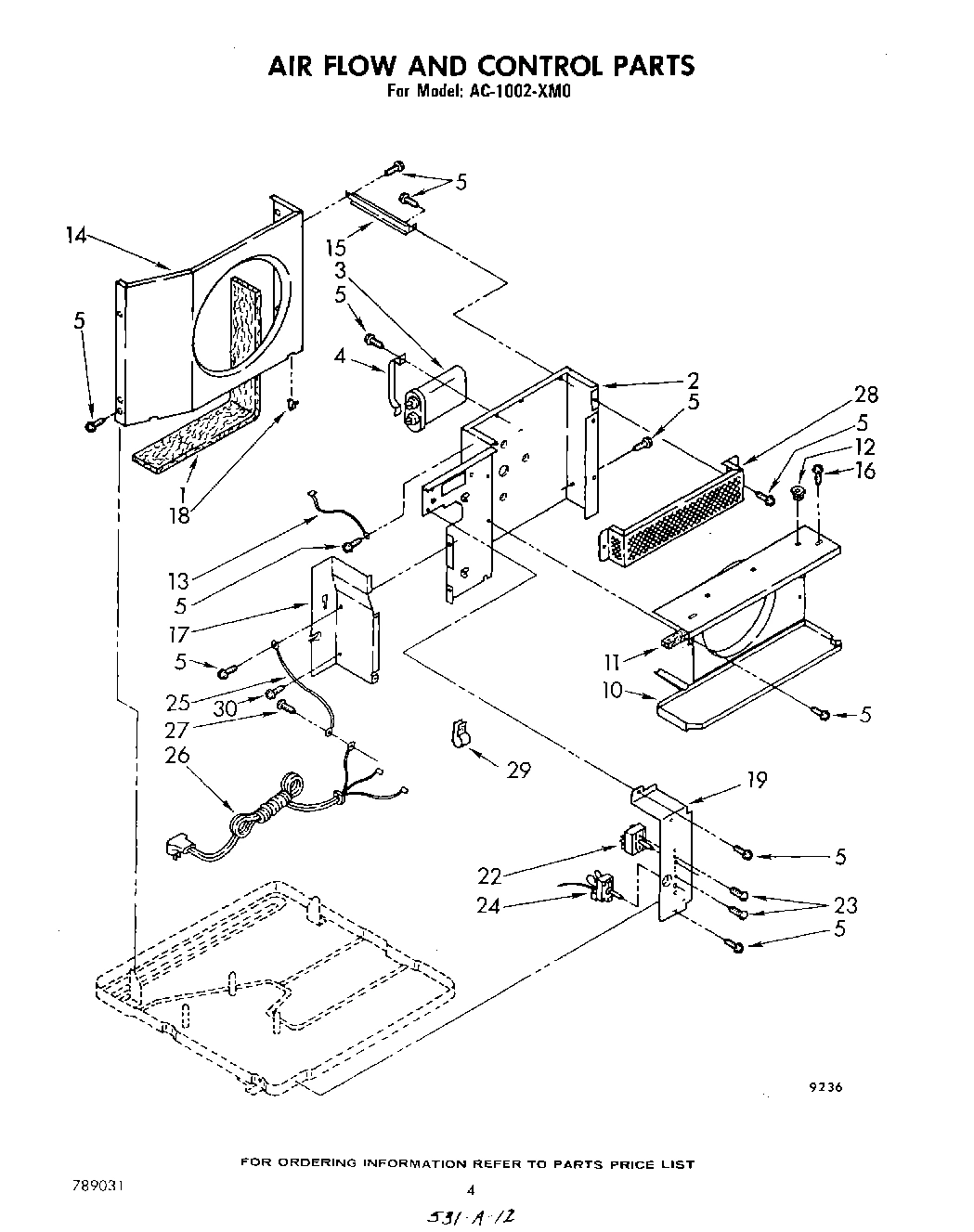

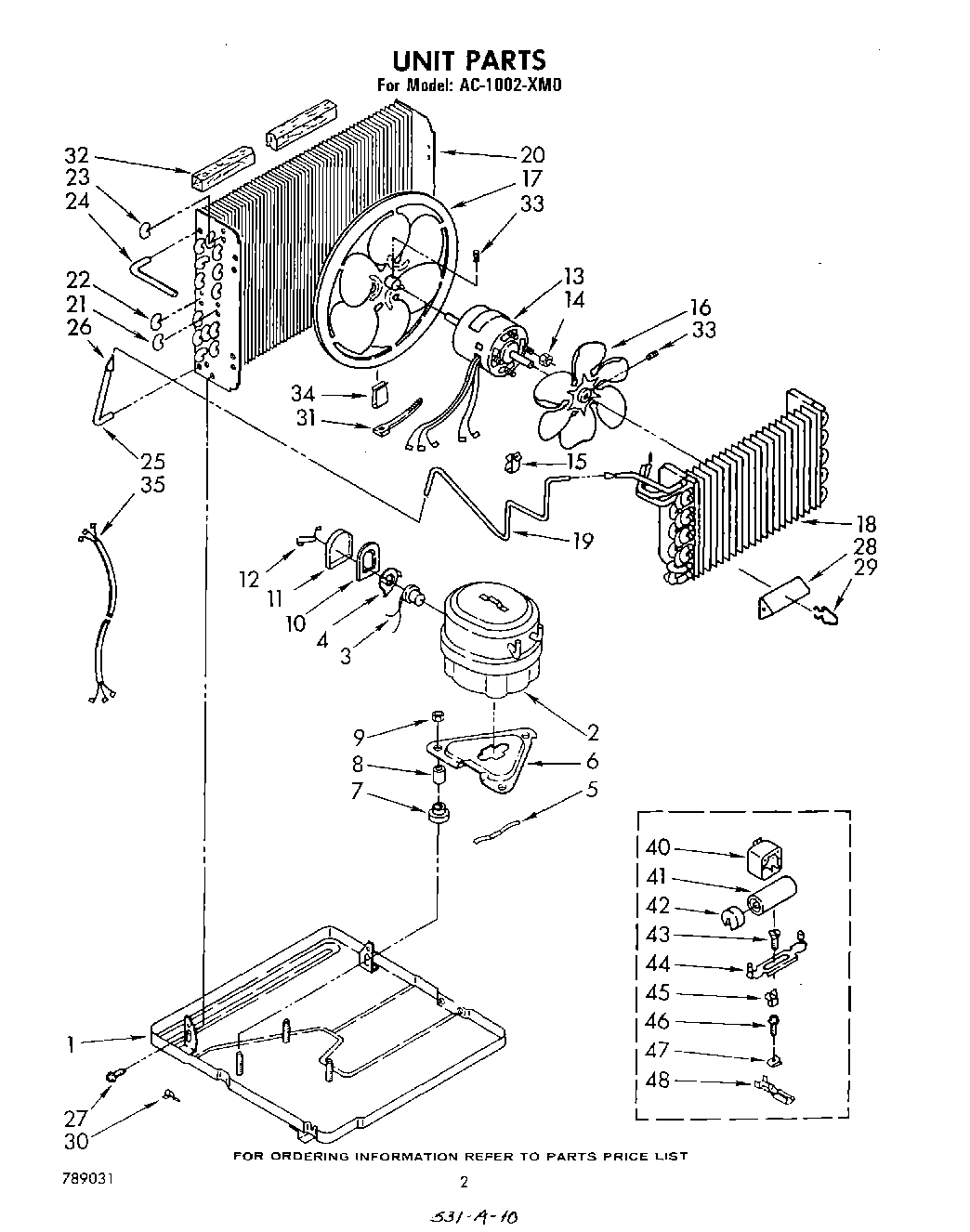

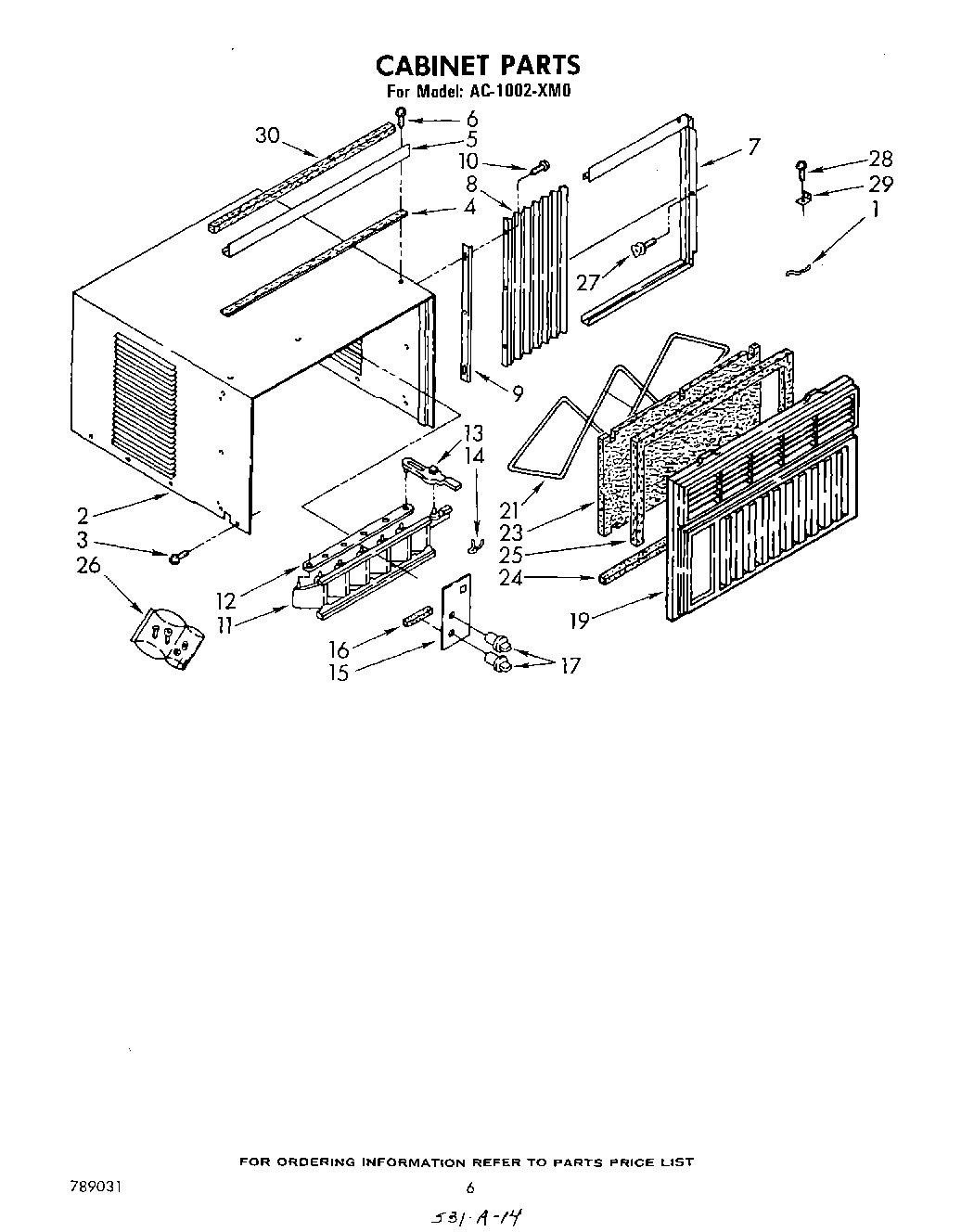

1

Clip, Cabinet Front Mounting (2) WPL 649966 Contact Us For Availability

2

Cabinet WPL 949594 Contact Us For Availability

2

Wall, Dividing (Requires Insulation Part No. WPL 949030 Contact Us For Availability

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

3

Capacitor, Running WPL 995633 Contact Us For Availability

4

Strip, Seal WPL 856989 Contact Us For Availability

4

Bracket, Running Capacitor WPL 475844 Contact Us For Availability

5

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

5

Channel, Top Mounting WPL 993786 Contact Us For Availability

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

7

Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability

7

Housing, Curtain L.S. WPL 855573 Contact Us For Availability

8

Curtain (2) WPL 947160 Contact Us For Availability

9

Nut, Lock (3) WPL 858121 Contact Us For Availability

9

Retainer, Curtain (2) WPL 644224 Contact Us For Availability

10

Gasket, Terminal Cover WPL 647154 Contact Us For Availability

10

Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability

10

Shroud, Evaporator (Includes Illus. 11) WPL 948219 Contact Us For Availability

11

Cover, Terminal WPL 647152 Contact Us For Availability

11

Louver, Vertical WPL 641481 Contact Us For Availability

11

Insulation, Evaporator Cover WPL 948220 Contact Us For Availability

12

Retainer, Terminal Cover WPL 643299 Contact Us For Availability

12

Link, Vertical Louver WPL 641482 Contact Us For Availability

12

Fastener, snap WPL 487808 Contact Us For Availability

13

Motor, Fan WPL 949023 Contact Us For Availability

13

Handle, Vertical Louver WPL 645887 Contact Us For Availability

13

Wire, Capacitor Ground WPL 857568 Contact Us For Availability

14

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

14

Spring, Detent WPL 641484 Contact Us For Availability

14

Shroud, Condenser WPL 856037 Contact Us For Availability

15

Clamp, Cable WPL 852451 Contact Us For Availability

15

Plate, Escutcheon WPL 950531 Contact Us For Availability

15

support, unit (2) WPL 858663 Contact Us For Availability

16

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

16

Blade, Fan (Evaporator) WPL 998090 Contact Us For Availability

16

Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability

17

Blade, Fan (Condenser) WPL 998093 Contact Us For Availability

17

Knob, Control (2) WPL 950730 Contact Us For Availability

17

Extension, Dividing Wall WPL 994560 Contact Us For Availability

18

Evaporator WPL 949602 Contact Us For Availability

18

Clip, Retainer WPL 644401 Contact Us For Availability

19

Tube, Restrictor (Length 49.0``) WPL 949600 Contact Us For Availability

19

Front, Cabinet WPL 950533 Contact Us For Availability

19

Panel, Control WPL 950532 Contact Us For Availability

20

Condenser WPL 949437 Contact Us For Availability

21

Bend, Return (16) WPL 854624 Contact Us For Availability

21

Retainer, Filter WPL 646963 Contact Us For Availability

22

Bend, Return (10) WPL 855199 Contact Us For Availability

22

Switch, Rotary WPL 950999 Contact Us For Availability

23

Bend, Return WPL 855457 Contact Us For Availability

23

Filter, Air WPL 951039 Contact Us For Availability

23

Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability

24

Tube, 90~ Connect WPL 947612 Contact Us For Availability

24

Seal, Cabinet Front WPL 852923 Contact Us For Availability

24

Control, Temperature WPL 951017 Contact Us For Availability

25

tube, strainer assembly (includes part no. 49 WPL 484230 Contact Us For Availability

25

Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability

25

Wire, Ground WPL 856094 Contact Us For Availability

26

Strainer WPL 49599 Contact Us For Availability

26

Bag, Accessory WPL 476180 Contact Us For Availability

26

Cable, Appliance WPL 646139 Contact Us For Availability

27

WPW10141604 Whirlpool Screw Backorder WPL WPW10141604 $3.90

27

Screw, Thumb WPL 475581 Contact Us For Availability

28

Anticipator, Temperature WPL 996773 Contact Us For Availability

28

Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability

28

Guard, Evaporator Impeller WPL 856912 Contact Us For Availability

29

Clip, Temperature Anticipator WPL 475577 Contact Us For Availability

29

Bracket, Window Lock WPL 644228 Contact Us For Availability

29

Clip, Wiring WPL 948279 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

Clamp, Tube WPL 855930 Contact Us For Availability

Seal, Meeting Rail WPL 469877 Contact Us For Availability

Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability

Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability

Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability

Wire, White (25 Ft.) WPL 47263 Contact Us For Availability

Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability

Screw, S.M. No.8 x 3/8A WPL 488624 Contact Us For Availability

Insulation, Cabinet (5/8`` x 13`` x 25-11/16` WPL 649939 Contact Us For Availability

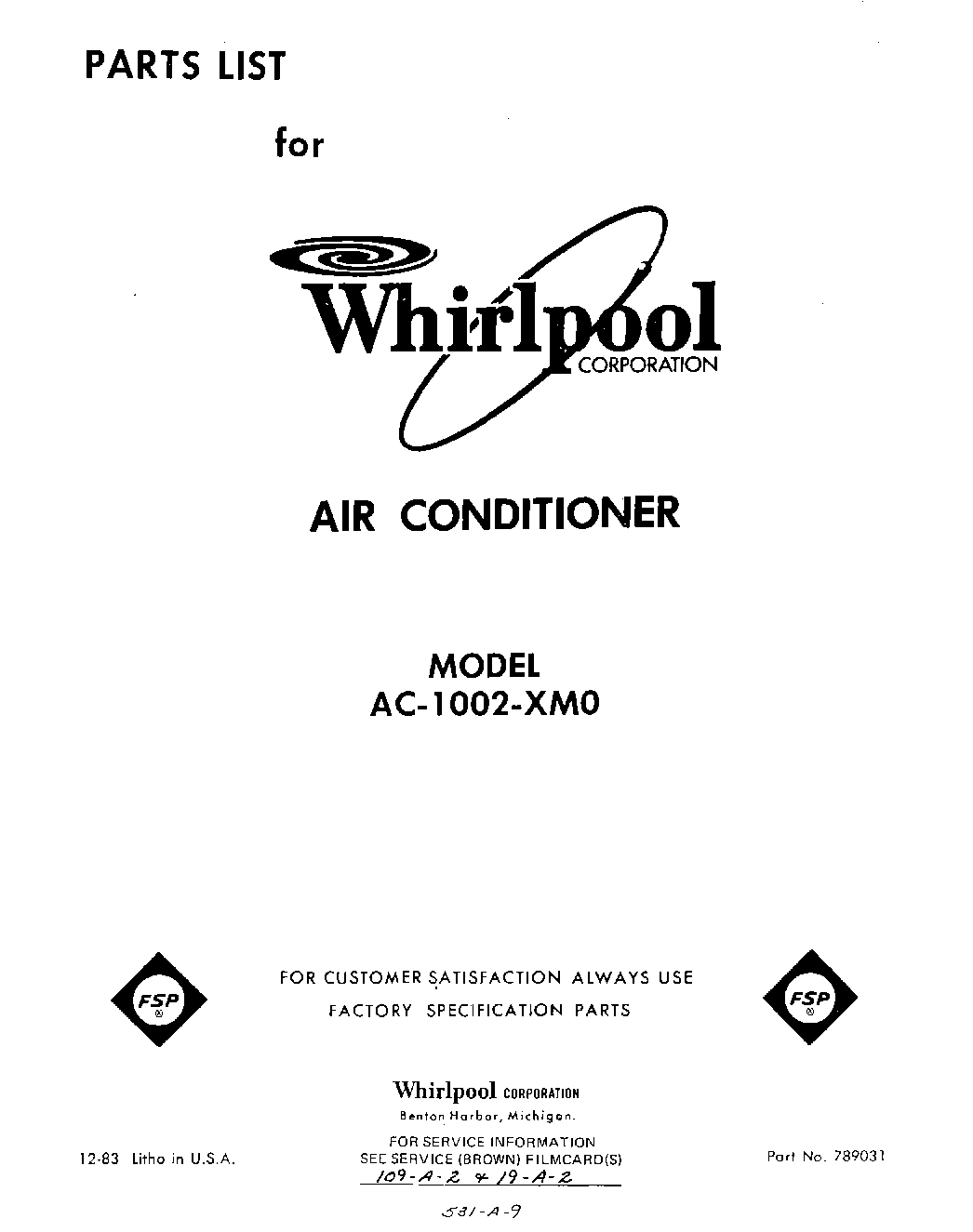

List, Repair Parts WPL 789031 Contact Us For Availability

Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Guide, Use & Care WPL 950354 Contact Us For Availability

Sheet, Service Tech (Service Information) WPL 950723 Contact Us For Availability

Guide, Energy WPL 950727 Contact Us For Availability

Guide, Consumer Buy WPL 950728 Contact Us For Availability

31

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

32

Seal, Condenser Top WPL 948090 Contact Us For Availability

33

Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability

34

Clip, Fan Balancing WPL 485334 Contact Us For Availability

35

Harness, Wiring WPL 484136 Contact Us For Availability

40

xRelay WPL 484275 Contact Us For Availability

41

xCapacitor WPL 467614 Contact Us For Availability

42

xCap, Capacitor WPL 791869 Contact Us For Availability

43

xScrew, 10 x 5/8 WPL 487880 Contact Us For Availability

44

xBracket, capacitor WPL 35564 Contact Us For Availability

45

Multiplier, Terminal WPL 90654 Contact Us For Availability

46

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

47

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $9.13

484184 Whirlpool Air Conditioner Winter Cover Backorder WPL 484184 $38.05

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability

Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability

xClip, terminal WPL 45571 Contact Us For Availability

Start Assist Kit WPL 484220 Contact Us For Availability

start kit WPL 484274 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
