Model Electrolux AC088M7B1 ROOM AIR CONDITIONER – Common Parts & Diagrams

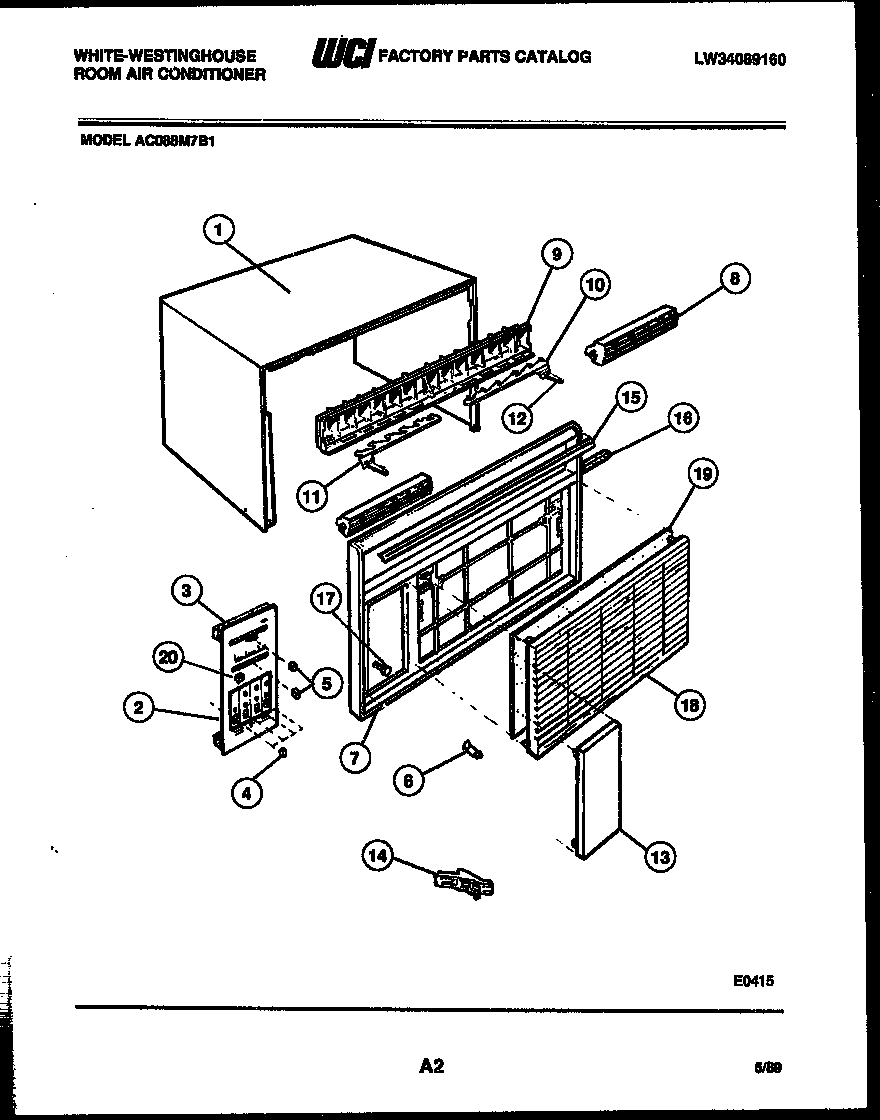

02 - CABINET PARTS

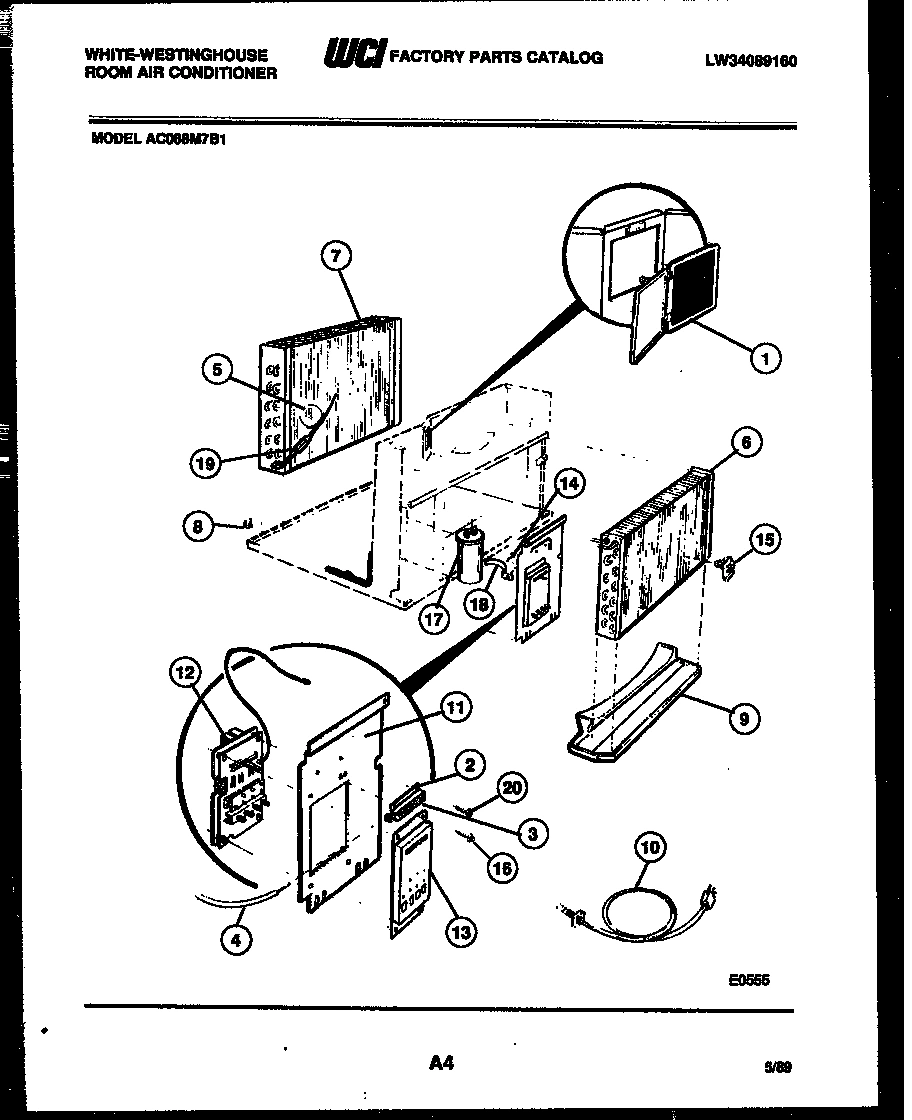

03 - ELECTRICAL PARTS

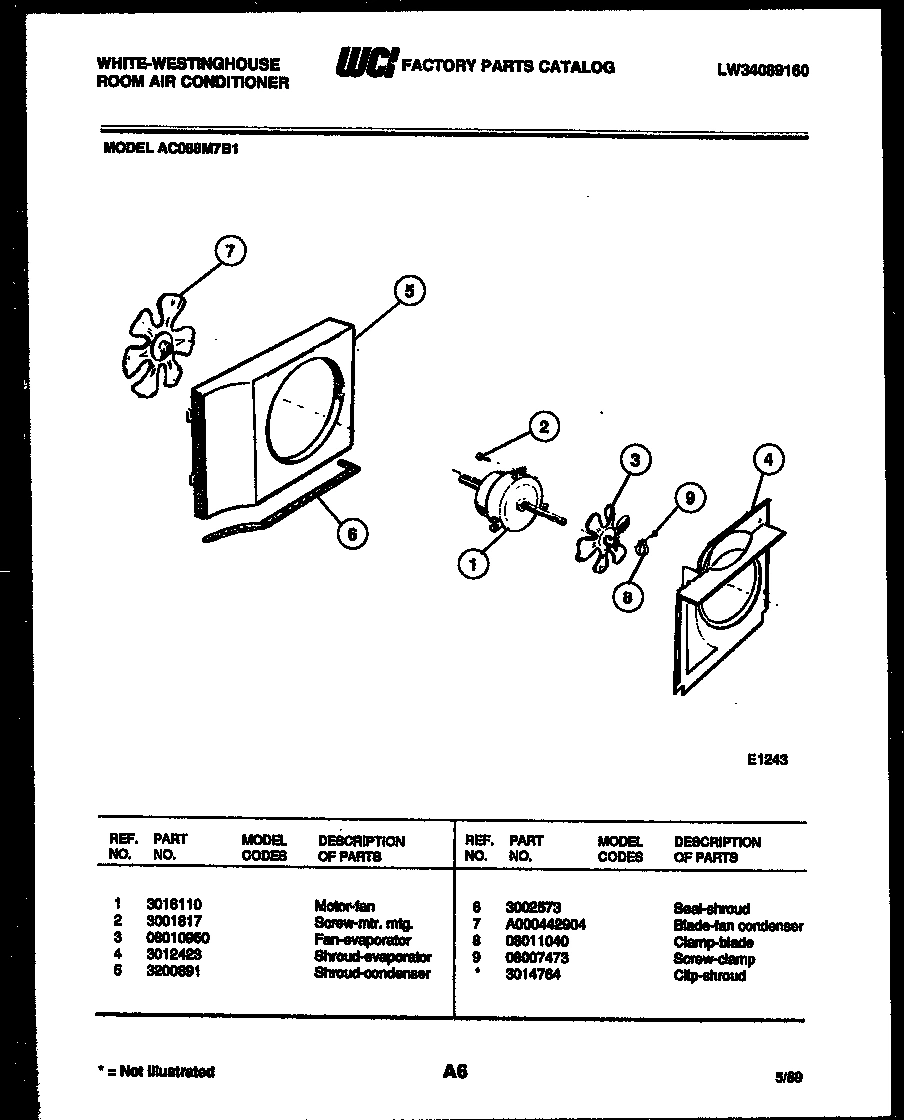

04 - AIR HANDLING PARTS

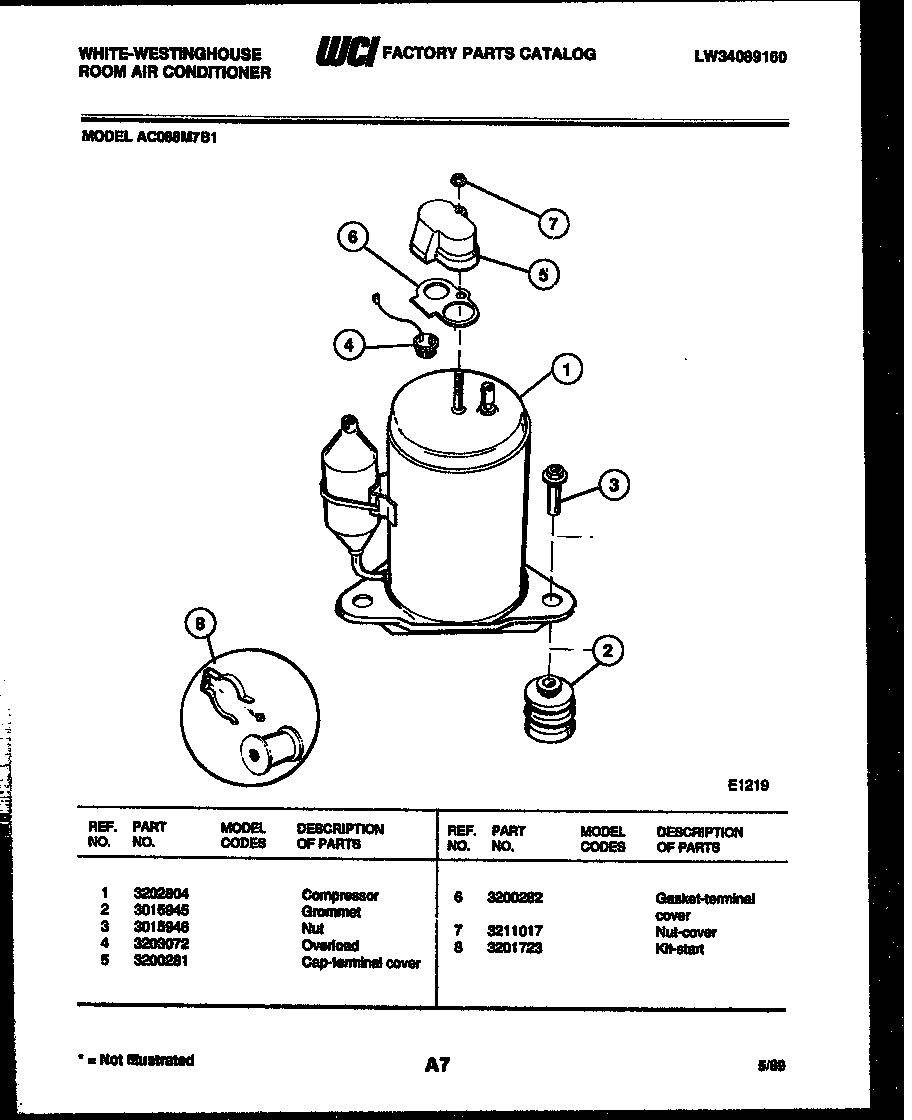

05 - COMPRESSOR PARTS

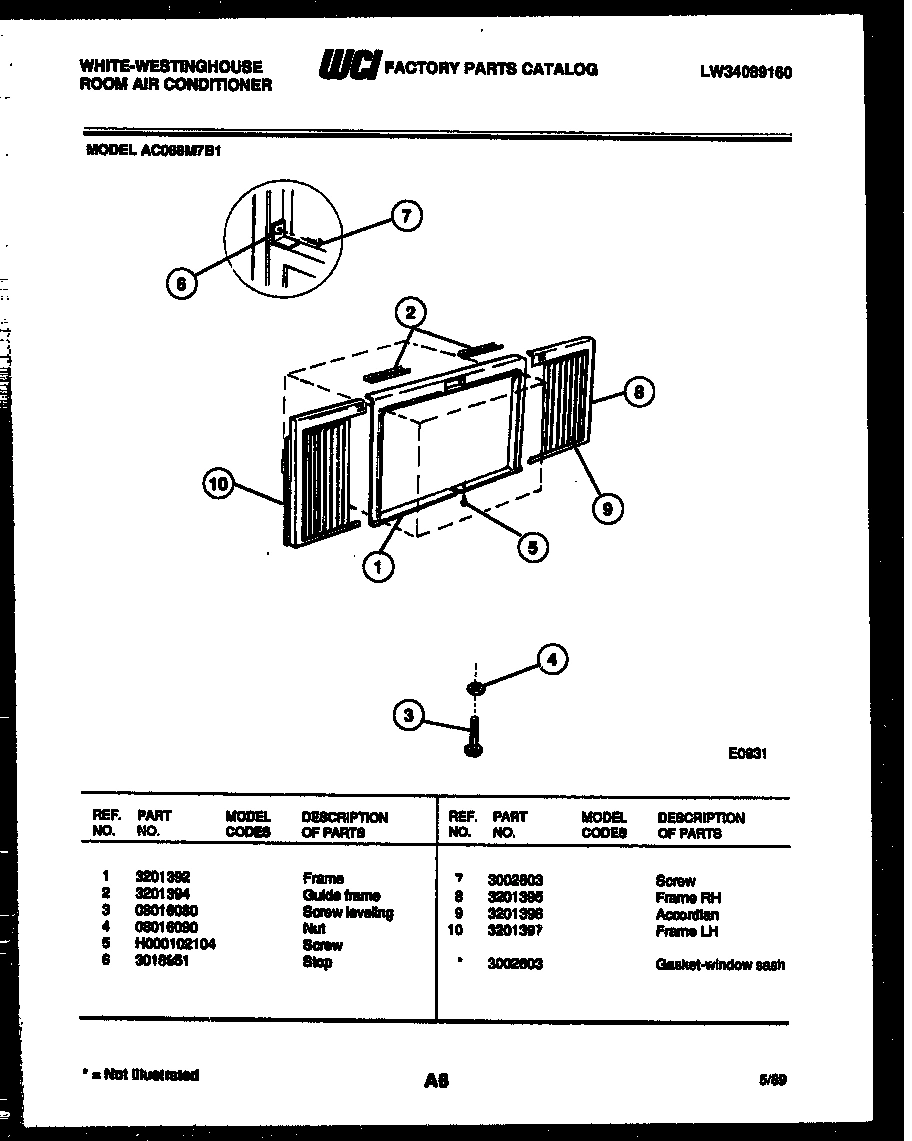

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AC088M7B1 ROOM AIR CONDITIONER
*19810
BRACKET-FRAME FRONT WCI 08017124 Contact Us For Availability
*19810
WCI A000138101 WCI A000138101 Contact Us For Availability
*19816
WCI 3014764 WCI 3014764 Contact Us For Availability
1
WRAPPER WCI 3201391 Contact Us For Availability
1
VENT DOOR WCI 3012455 Contact Us For Availability
1
WCI 3016110 WCI 3016110 Contact Us For Availability
1
WCI 3202804 WCI 3202804 Contact Us For Availability
1
WCI 3201392 WCI 3201392 Contact Us For Availability
2
WCI A000463903 WCI A000463903 Contact Us For Availability
2
WCI 3001848 WCI 3001848 Contact Us For Availability
2
SCREW-MTR. MTG. WCI 3001817 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
WCI 3201394 WCI 3201394 Contact Us For Availability
3
SEAL SPACER WCI 08016088 Contact Us For Availability
3
WCI 3002126 WCI 3002126 Contact Us For Availability
3
FAN-EVAPORATOR WCI 08010950 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
WCI 08016080 WCI 08016080 Contact Us For Availability
4
WCI 08016116 WCI 08016116 Contact Us For Availability
4
WCI 3002131 WCI 3002131 Contact Us For Availability
4
WCI 3012423 WCI 3012423 Contact Us For Availability
4
WCI 3203072 WCI 3203072 Contact Us For Availability
4
NUT WCI 08016090 Contact Us For Availability
5
WCI 3002189 WCI 3002189 Contact Us For Availability
5
TUBE-CAPILLARY 40`` WCI 3203179 Contact Us For Availability
5
WCI 3200891 WCI 3200891 Contact Us For Availability
5
CAP-TERMINAL COVER WCI 3200281 Contact Us For Availability
5
WCI H000102104 WCI H000102104 Contact Us For Availability
6
CLIP-FRONT TO BASE (2) WCI 3001784 Contact Us For Availability
6
WCI 3203074 WCI 3203074 Contact Us For Availability
6
WCI 3002573 WCI 3002573 Contact Us For Availability
6
GASKET-TERMINAL COVER WCI 3200282 Contact Us For Availability
6
STOP WCI 3018951 Contact Us For Availability
7
FRONT-LESS PANEL WCI A000462602 Contact Us For Availability
7
WCI 3018681 WCI 3018681 Contact Us For Availability
7
BLADE-FAN CONDENSER WCI A000442904 Contact Us For Availability
7
WCI 3211017 WCI 3211017 Contact Us For Availability
7
WCI 3002803 WCI 3002803 Contact Us For Availability
8
FRAME-HORIZONTAL LOUVER WCI 08017364 Contact Us For Availability
8
WCI 08002941 WCI 08002941 Contact Us For Availability
8
CLAMP-BLADE WCI 08011040 Contact Us For Availability
8
KIT-START WCI 3201723 Contact Us For Availability
8
FRAME-RH WCI 3201395 Contact Us For Availability
9
VERTICAL LOUVER AND LINK ASSEMBLY WCI 3002457 Contact Us For Availability
9
WCI 08017202 WCI 08017202 Contact Us For Availability
9
ACCORDIAN WCI 3201396 Contact Us For Availability
10
LINK-VERTICAL LOUVER RH WCI 3002160 Contact Us For Availability
10
WCI 3002376 WCI 3002376 Contact Us For Availability
10
FRAME-LH WCI 3201397 Contact Us For Availability
11
LINK-VERTICAL LOUVER LH WCI 3002161 Contact Us For Availability
11
WCI 3016111 WCI 3016111 Contact Us For Availability
12
WCI 3001844 WCI 3001844 Contact Us For Availability
12
WCI 08017193 WCI 08017193 Contact Us For Availability
12A
HOUSING-RECEPTACLE (NON-ILLUSTRATED) WCI 08016086 Contact Us For Availability
13
DOOR-FRONT WCI 3201390 Contact Us For Availability
13
WCI 08017139 WCI 08017139 Contact Us For Availability
14
WCI 3017980 WCI 3017980 Contact Us For Availability
14
SCREW WCI 3016106 Contact Us For Availability
15
WCI A000344901 WCI A000344901 Contact Us For Availability
15
WCI 3204838 WCI 3204838 Contact Us For Availability
15A
CLIP THERMISTOR (NON-ILLUSTRATED) WCI A310003 Contact Us For Availability
16
WCI 3016094 WCI 3016094 Contact Us For Availability
16
SCREW (4) WCI 08016220 Contact Us For Availability
17
SCREW - FRONT WCI A000111606 Contact Us For Availability
17
WCI 3012047 WCI 3012047 Contact Us For Availability
18
WCI A000453903 WCI A000453903 Contact Us For Availability
18
WCI 3001740 WCI 3001740 Contact Us For Availability
19
WCI 3016114 WCI 3016114 Contact Us For Availability
19A
TRACK-FILTER WCI 3016113 Contact Us For Availability
20
KNOB-PB-FILTER CHECK WCI 08017143 Contact Us For Availability
20
SCREW (2) WCI 3017342 Contact Us For Availability
× ![]()
