Model Electrolux AC086N7A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

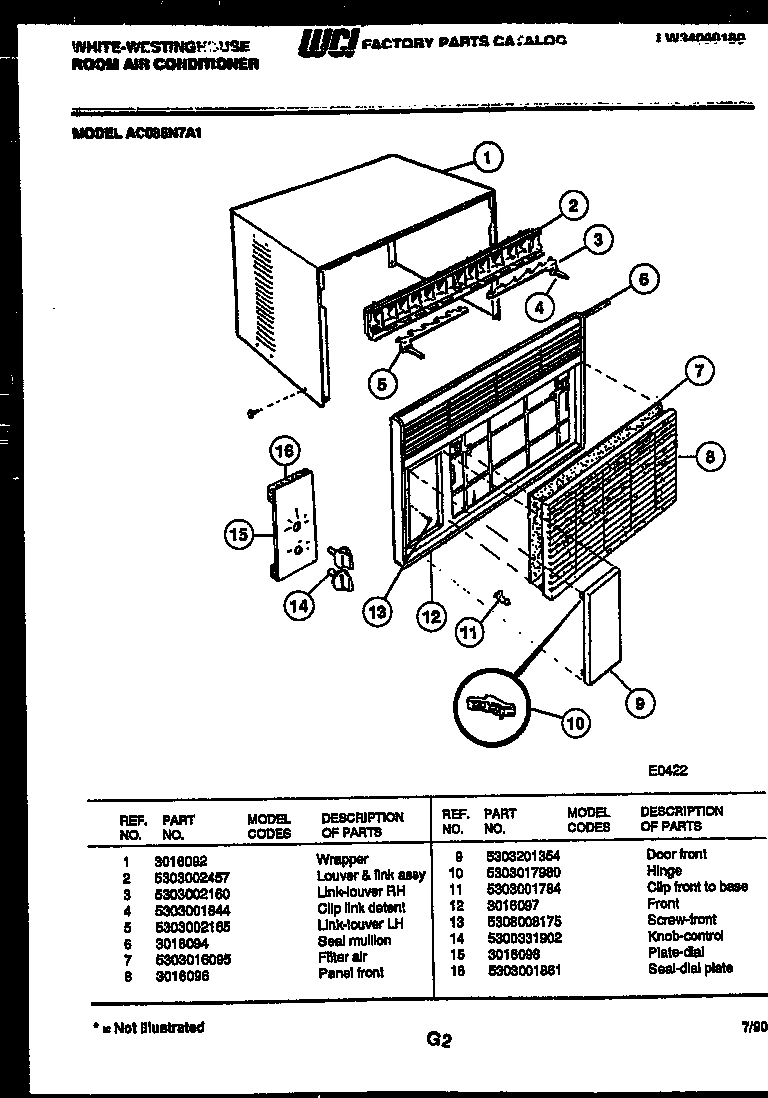

02 - CABINET PARTS

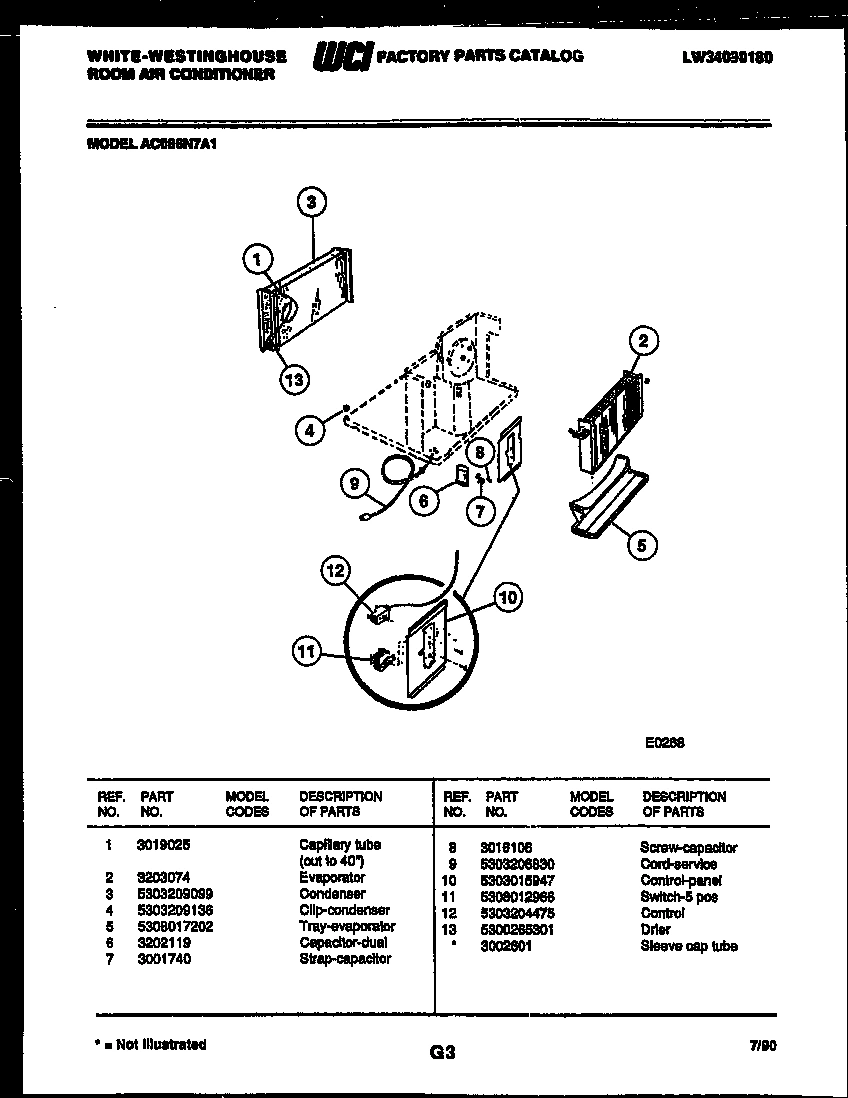

03 - ELECTRICAL PARTS

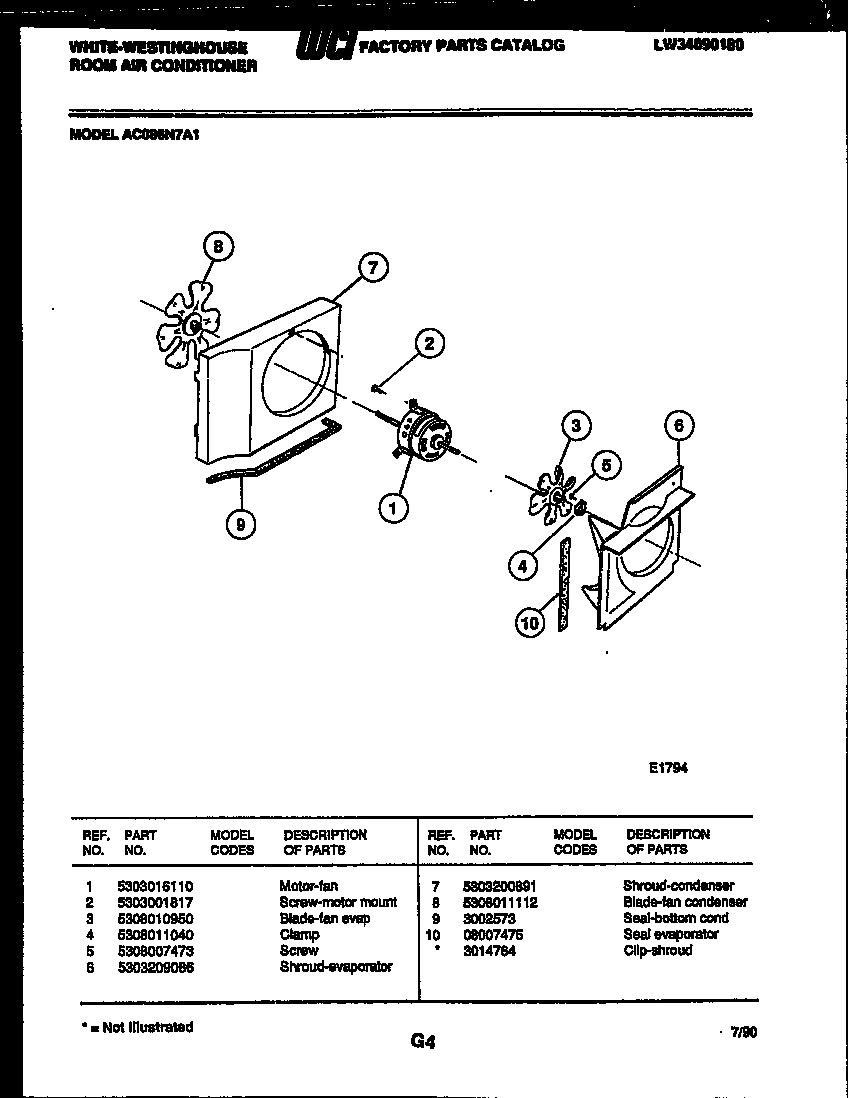

04 - AIR HANDLING PARTS

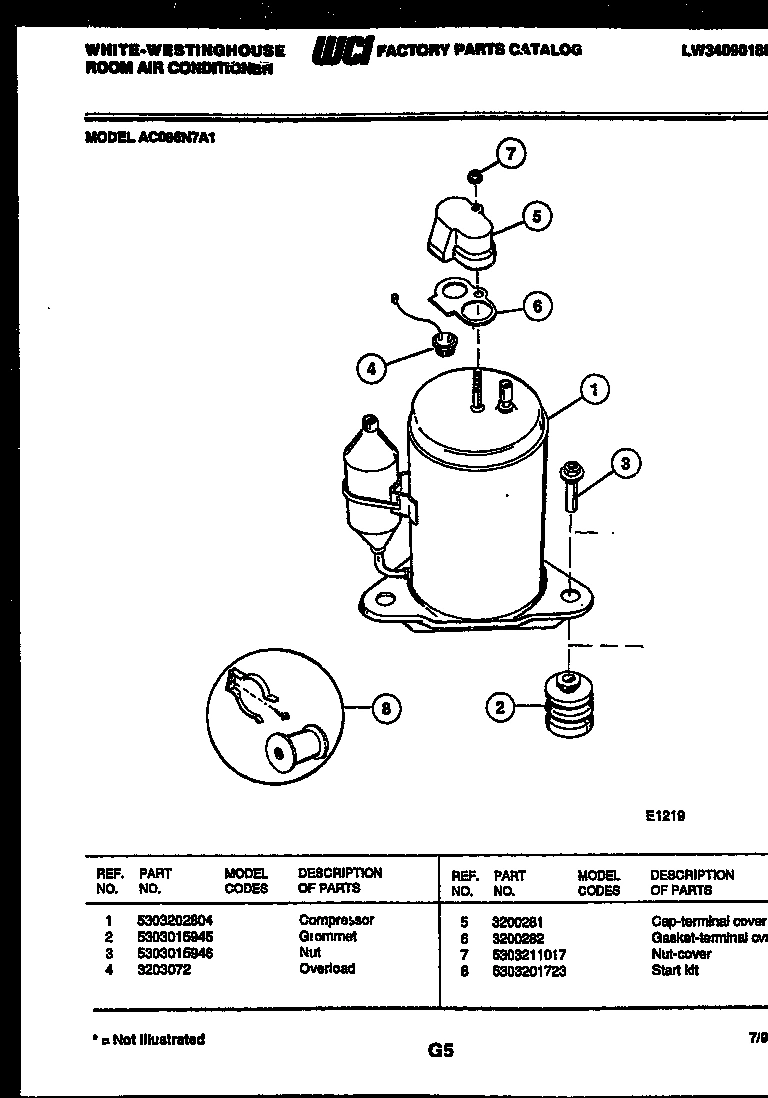

05 - COMPRESSOR PARTS

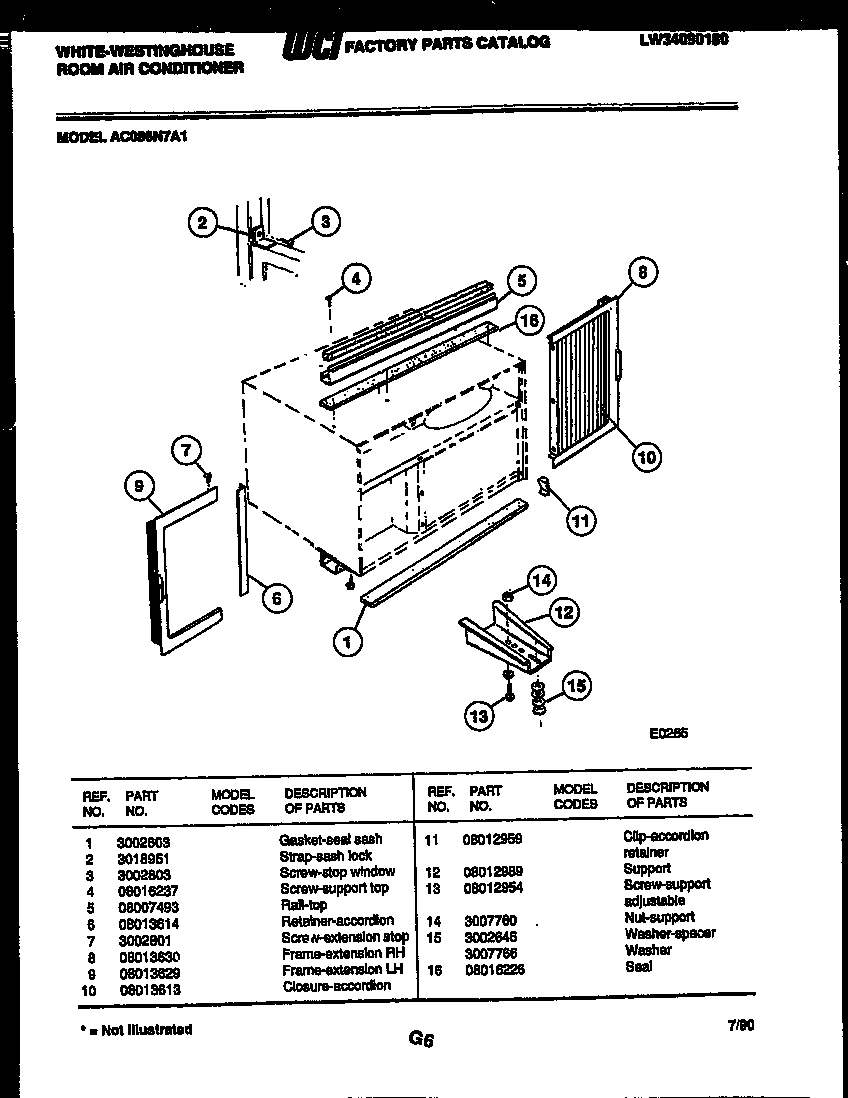

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AC086N7A1 ROOM AIR CONDITIONER
*32297
SLEEVE-CAP. TUBE WCI 3002601 Contact Us For Availability
*32299
WCI 3014764 WCI 3014764 Contact Us For Availability
1
WRAPPER WCI 3016092 Contact Us For Availability
1
WCI 3019025 WCI 3019025 Contact Us For Availability
1
WCI 5303016110 WCI 5303016110 Contact Us For Availability
1
WCI 5303202804 WCI 5303202804 Contact Us For Availability
2
LOUVER & LINK ASSY WCI 5303002457 Contact Us For Availability
2
WCI 3203074 WCI 3203074 Contact Us For Availability
2
SCREW-MOTOR MOUNT WCI 5303001817 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
STRAP-SASH LOCK WCI 3018951 Contact Us For Availability
3
WCI 5303002160 WCI 5303002160 Contact Us For Availability
3
WCI 5303209099 WCI 5303209099 Contact Us For Availability
3
WCI 5308010950 WCI 5308010950 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
3
SCREW-STOP WINDOW WCI 3002803 Contact Us For Availability
4
CLIP-LINK DETENT WCI 5303001844 Contact Us For Availability
4
WCI 5303209136 WCI 5303209136 Contact Us For Availability
4
WCI 5308011040 WCI 5308011040 Contact Us For Availability
4
WCI 3203072 WCI 3203072 Contact Us For Availability
4
WCI 08016237 WCI 08016237 Contact Us For Availability
5
LINK-LOUVER LH WCI 5303002165 Contact Us For Availability
5
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
5
CAP-TERMINAL COVER WCI 3200281 Contact Us For Availability
5
RAIL-TOP WCI 08007493 Contact Us For Availability
6
WCI 3016094 WCI 3016094 Contact Us For Availability
6
CAPACITOR-DUAL WCI 3202119 Contact Us For Availability
6
WCI 5303209086 WCI 5303209086 Contact Us For Availability
6
GASKET-TERMINAL CVR WCI 3200282 Contact Us For Availability
6
WCI 08013614 WCI 08013614 Contact Us For Availability
7
WCI 5303016095 WCI 5303016095 Contact Us For Availability
7
STRAP-CAPACITOR WCI 3001740 Contact Us For Availability
7
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
7
WCI 5303211017 WCI 5303211017 Contact Us For Availability
7
SCREW-EXTENSION STOP WCI 3002801 Contact Us For Availability
8
WCI 3016096 WCI 3016096 Contact Us For Availability
8
BLADE-FAN CONDENSER WCI 5308011112 Contact Us For Availability
8
WCI 5303201723 WCI 5303201723 Contact Us For Availability
8
FRAME-EXTENSION RH WCI 08013630 Contact Us For Availability
9
WCI 5303201354 WCI 5303201354 Contact Us For Availability
9
WCI 5303206830 WCI 5303206830 Contact Us For Availability
9
SEAL-BOTTOM COND WCI 3002573 Contact Us For Availability
9
FRAME, EXTENSION, LH WCI 08013629 Contact Us For Availability
10
WCI 5303017980 WCI 5303017980 Contact Us For Availability
10
CONTROL-PANEL WCI 5303015947 Contact Us For Availability
10
WCI 08007475 WCI 08007475 Contact Us For Availability
10
CLOSURE-ACCORDION WCI 08013613 Contact Us For Availability
11
WCI 5303001784 WCI 5303001784 Contact Us For Availability
11
SWITCH-5 POS WCI 5308012966 Contact Us For Availability
11
CLIP, ACCORDION RETAINER WCI 08012959 Contact Us For Availability
12
FRONT WCI 3016097 Contact Us For Availability
12
CONTROL WCI 5303204475 Contact Us For Availability
12
SUPPORT WCI 08012989 Contact Us For Availability
13
SCREW-FRONT WCI 5308008175 Contact Us For Availability
13
SCREW-SUPPORT ADJUSTABLE WCI 08012954 Contact Us For Availability
14
WCI 5300331902 WCI 5300331902 Contact Us For Availability
14
WCI 3007760 WCI 3007760 Contact Us For Availability
15
WCI 3016098 WCI 3016098 Contact Us For Availability
15
WASHER SPACER WCI 3002646 Contact Us For Availability
16
SEAL-DIAL PLATE WCI 5303001861 Contact Us For Availability
16
WCI 08016226 WCI 08016226 Contact Us For Availability
× ![]()
