Model Electrolux AC083L1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

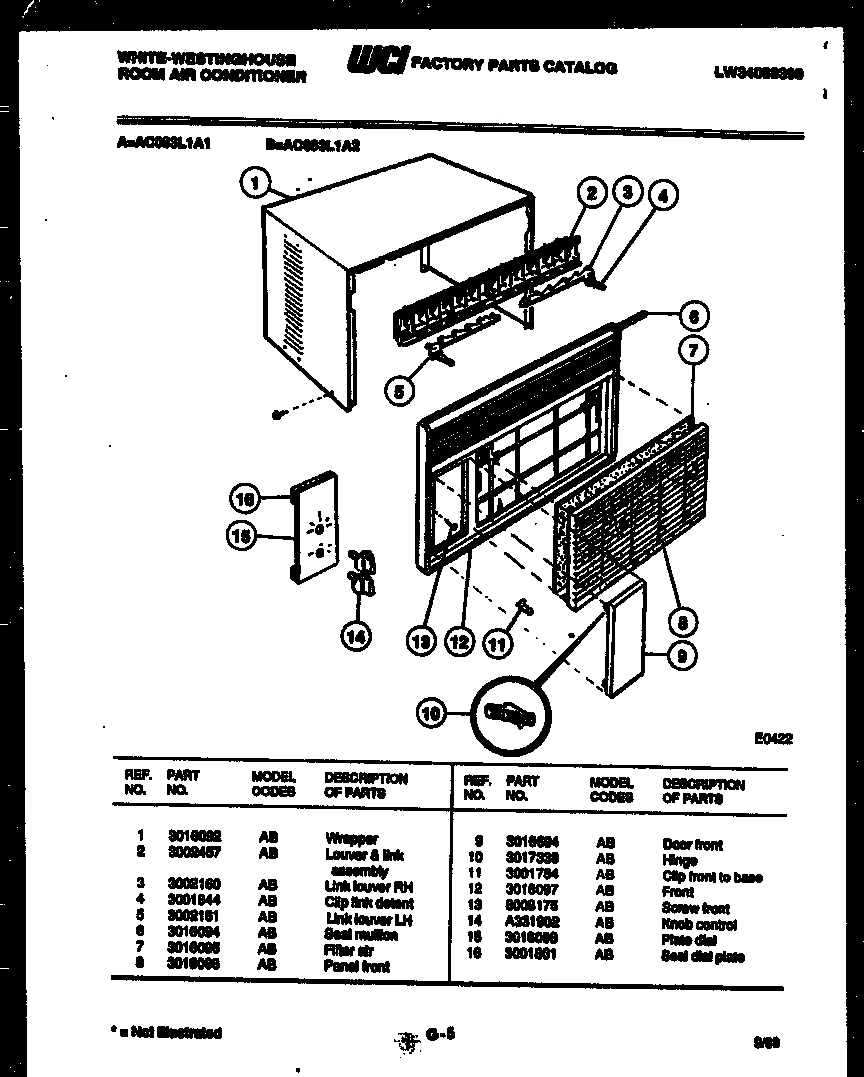

02 - CABINET PARTS

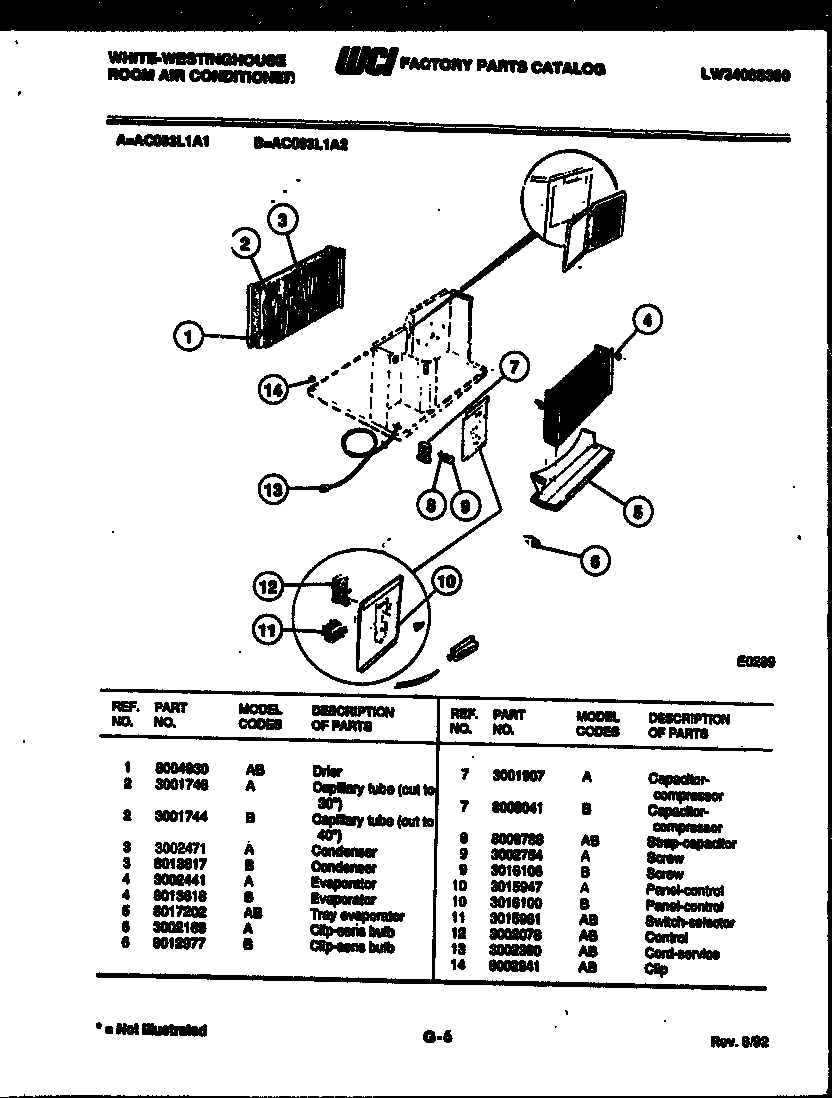

03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR PARTS
07 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AC083L1A1 ROOM AIR CONDITIONER
1
WRAPPER WCI 3016092 Contact Us For Availability
1
DRIER WCI 8004930 Contact Us For Availability
1
WCI 3015944 WCI 3015944 Contact Us For Availability
1
WCI 3017315 WCI 3017315 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
2
LOUVER & LINK ASSEMBLY WCI 3002457 Contact Us For Availability
2
WCI 3001746 WCI 3001746 Contact Us For Availability
2
SCREW-MOTOR MOUNTING WCI 3001817 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
RETAINER-ACCORDIAN WCI 8013614 Contact Us For Availability
3
WCI 3002160 WCI 3002160 Contact Us For Availability
3
WCI 3002471 WCI 3002471 Contact Us For Availability
3
BLADE FAN EVAP WCI 8010950 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
RAIL TOP WCI 8007493 Contact Us For Availability
4
WCI 3001844 WCI 3001844 Contact Us For Availability
4
WCI 3002441 WCI 3002441 Contact Us For Availability
4
WCI 3002150 WCI 3002150 Contact Us For Availability
4
SEAL TOP RAIL WCI 8016226 Contact Us For Availability
5
WCI 3002161 WCI 3002161 Contact Us For Availability
5
TRAY-EVAPORATOR WCI 8017202 Contact Us For Availability
5
GASKET-COVER WCI 3002056 Contact Us For Availability
5
FRAME RH WCI 8013630 Contact Us For Availability
6
WCI 3016094 WCI 3016094 Contact Us For Availability
6
WCI 3002169 WCI 3002169 Contact Us For Availability
6
WCI 3012423 WCI 3012423 Contact Us For Availability
6
WCI 3002054 WCI 3002054 Contact Us For Availability
6
ACCORDIAN WCI 8013613 Contact Us For Availability
7
WCI 3016095 WCI 3016095 Contact Us For Availability
7
CAPACITOR-COMPRESSOR WCI 3001907 Contact Us For Availability
7
SHROUD, CONDENSER WCI 8016230 Contact Us For Availability
7
CAP-TERMINAL COVER WCI 3002055 Contact Us For Availability
7
CLIP-ACCORDIAN WCI 8012959 Contact Us For Availability
8
WCI 3016096 WCI 3016096 Contact Us For Availability
8
STRAP-CAPACITOR WCI 8006788 Contact Us For Availability
8
WCI 3002074 WCI 3002074 Contact Us For Availability
8
NUT WCI 3211017 Contact Us For Availability
8
SCREW - ADJUSTMENT WCI 3002801 Contact Us For Availability
9
WCI 3016694 WCI 3016694 Contact Us For Availability
9
WCI 3002754 WCI 3002754 Contact Us For Availability
9
CLAMP-FAN BLADE WCI 8011040 Contact Us For Availability
9
KIT-START WCI 8950087 Contact Us For Availability
9
FRAME-LH WCI 8013629 Contact Us For Availability
10
HINGE WCI 3017338 Contact Us For Availability
10
WCI 3015947 WCI 3015947 Contact Us For Availability
10
SCREW WCI 8007473 Contact Us For Availability
11
CLIP-FRONT TO BASE WCI 3001784 Contact Us For Availability
11
WCI 3015961 WCI 3015961 Contact Us For Availability
11
SEAL WCI 3002573 Contact Us For Availability
11
SUPPORT UNIT WCI 8012989 Contact Us For Availability
12
FRONT WCI 3016097 Contact Us For Availability
12
CONTROL WCI 3002078 Contact Us For Availability
12
SCREW-STOP WCI 3002803 Contact Us For Availability
13
SCREW-FRONT WCI 8008175 Contact Us For Availability
13
CORD-SERVICE WCI 3002360 Contact Us For Availability
13
WCI C404701 WCI C404701 Contact Us For Availability
14
WCI A331902 WCI A331902 Contact Us For Availability
14
CLIP WCI 8002941 Contact Us For Availability
14
SCREW ADJUSTMENT WCI A115602 Contact Us For Availability
15
WCI 3016098 WCI 3016098 Contact Us For Availability
16
WCI 3001861 WCI 3001861 Contact Us For Availability
16
NUT WCI 3007760 Contact Us For Availability
17
STOP WINDOW WCI 8007594 Contact Us For Availability
18
SCREW WCI 684B755H04 Contact Us For Availability
19
SCREW WCI 3001806 Contact Us For Availability
20
WCI 3017451 WCI 3017451 Contact Us For Availability
× ![]()
