Model Whirlpool AC0802XS1 AIR CONDITIONER – Common Parts & Diagrams
05 - LIT/OPTIONAL
02 - UNIT

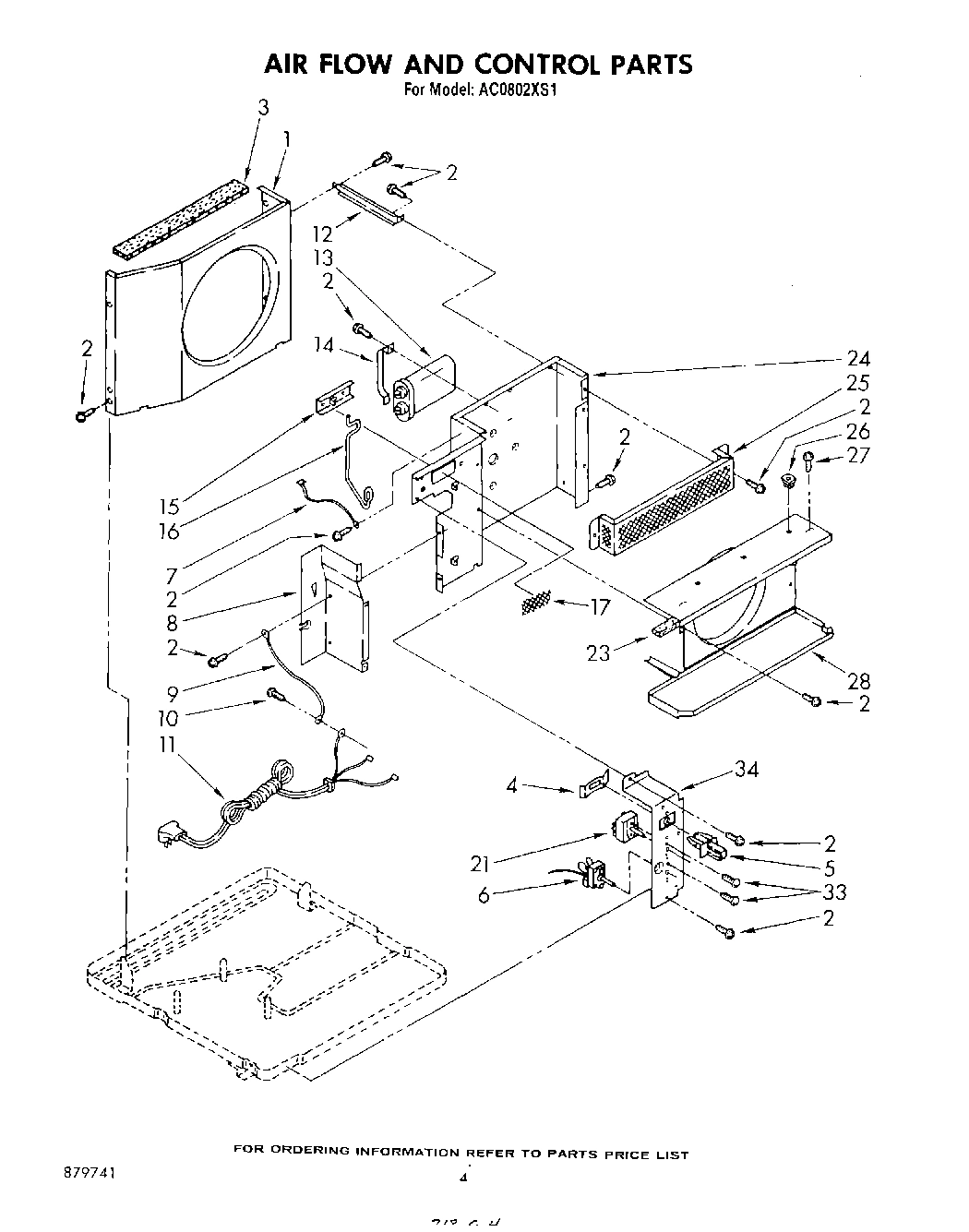

03 - AIR FLOW AND CONTROL

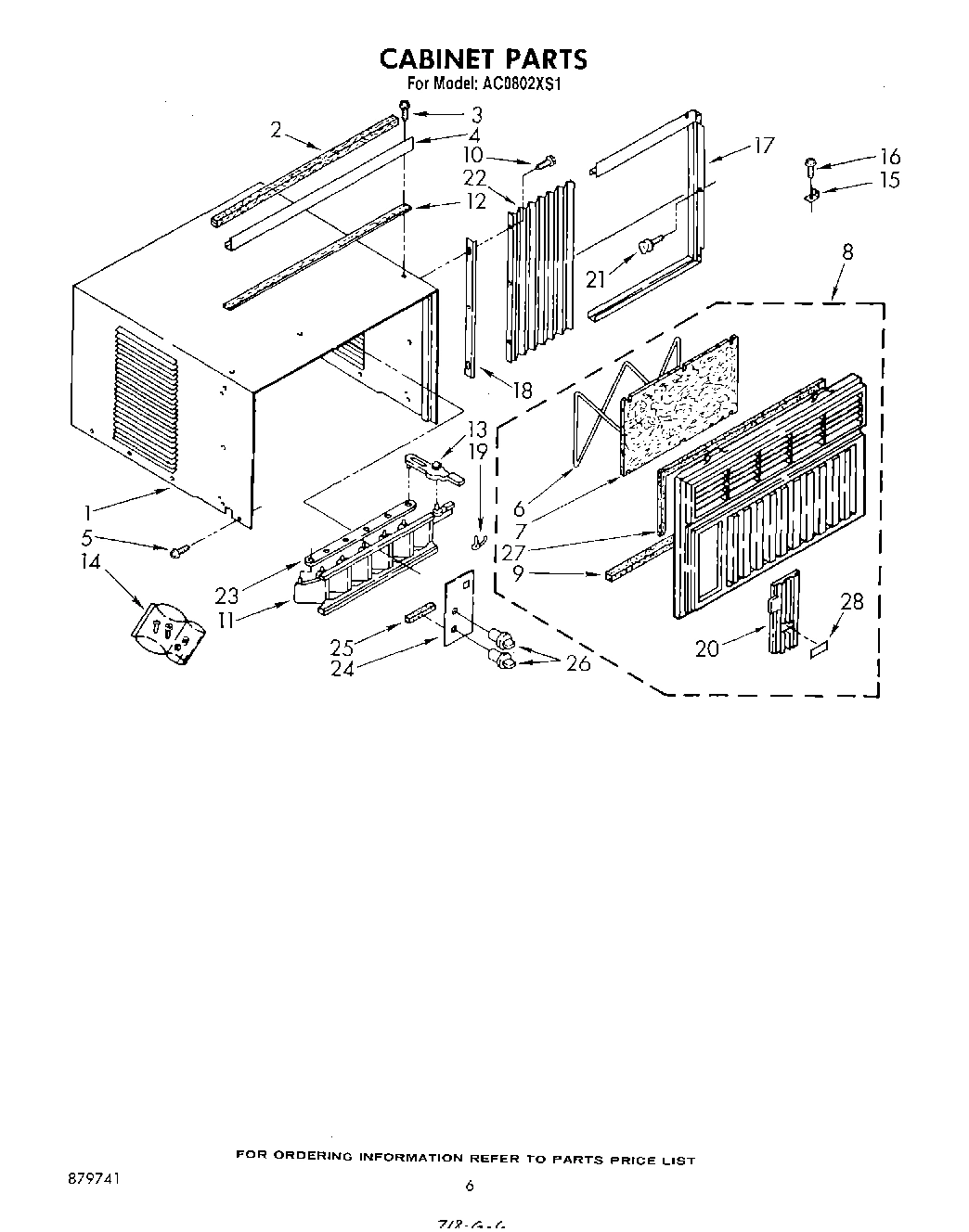

04 - CABINET

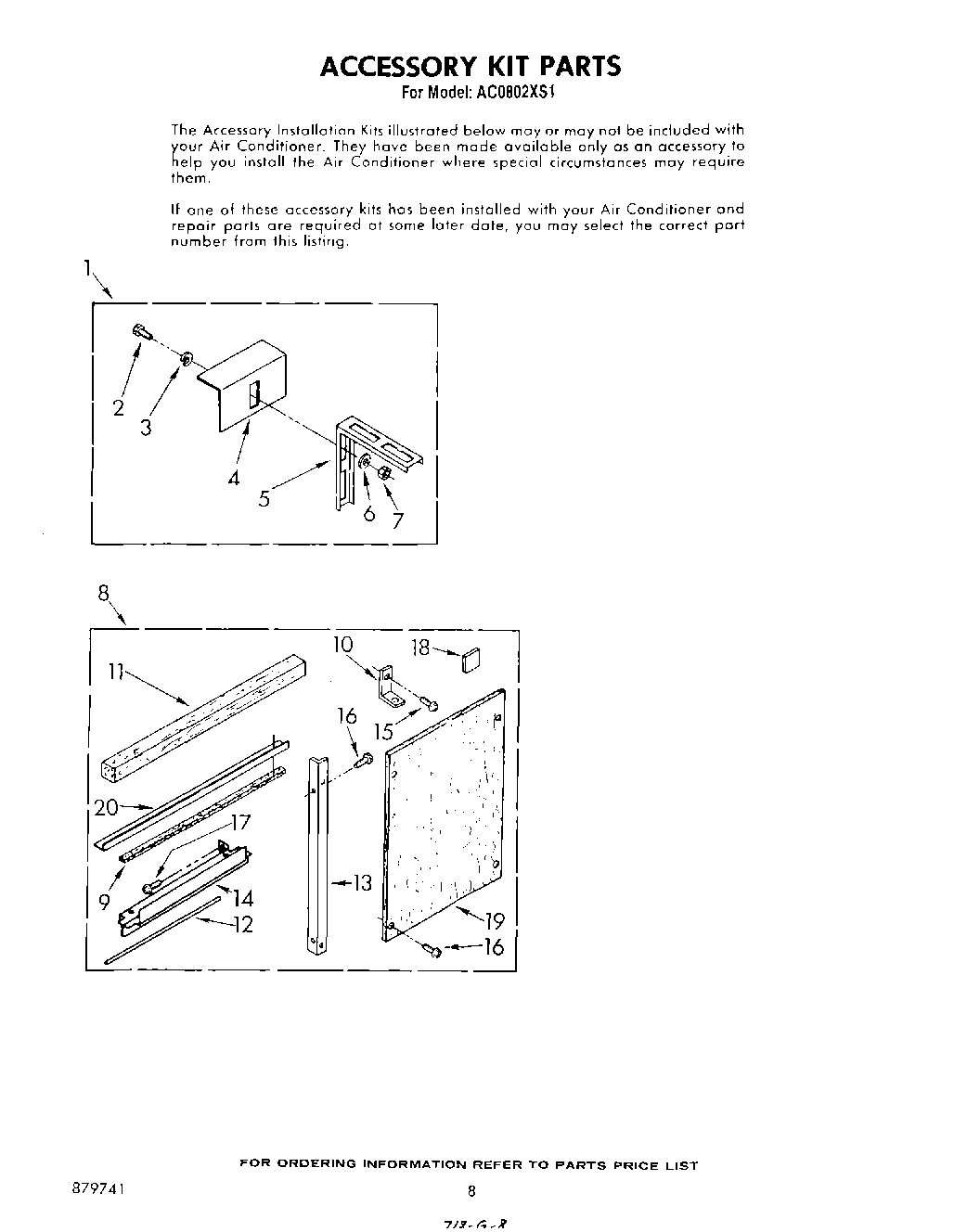

06 - ACCESSORY
Common parts from model Whirlpool AC0802XS1 AIR CONDITIONER
Guide, Energy WPL LIT1155767 Contact Us For Availability
Instructions, Installation WPL LIT1155974 Contact Us For Availability
Sheet, Tech And Wiring Diagram WPL LIT1156719 Contact Us For Availability
Guide, Use and Care WPL LIT1156970 Contact Us For Availability
List, Repair Parts WPL LIT879741 Contact Us For Availability
Instructions, Installation (Economy Window Mo WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Condenser WPL 1155786 Contact Us For Availability
1
Shroud, Condenser WPL 856037 Contact Us For Availability
1
Cabinet WPL 856686 Contact Us For Availability
1
Kit Outside Sill WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Anticipator, Temperature WPL 996773 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Retainer, Exhaust Door WPL 858765 Contact Us For Availability
4
Channel, Top WPL 993786 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 484230 Contact Us For Availability
5
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Lockwasher WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (53.0 Length) WPL 1156675 Contact Us For Availability
6
Control, Tempetature WPL 949431 Contact Us For Availability
6
Retainer, Filter WPL 646963 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
7
Wire, Ground WPL 857568 Contact Us For Availability
7
Filter, Air WPL 855246 Contact Us For Availability
7
Nut, 1/4-20 WPL 486035 Contact Us For Availability
8
Setscrew, 5/16-24 x 1/4 WPL 595085 Contact Us For Availability
8
Extension, Dividing Wall WPL 994560 Contact Us For Availability
8
Front, Cabinet WPL 1155842 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
9
Clip, Balancing WPL 876034 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Seal, Front WPL 852923 Contact Us For Availability
9
Strip, Seal WPL 855266 Contact Us For Availability
10
Motor, Fan WPL 1156061 Contact Us For Availability
10
Screw, No.8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Cord, Appliance WPL 647216 Contact Us For Availability
11
Seal, Meeting Rail WPL 469877 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
12
Support, Unit (2) WPL 1155100 Contact Us For Availability
12
Strip, Seal WPL 856989 Contact Us For Availability
13
Evaporator WPL 1156641 Contact Us For Availability
13
Capacitor, Running WPL 1155592 Contact Us For Availability
13
Handle, Louver WPL 645887 Contact Us For Availability
13
Angle, Side (2) WPL 646233 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Capacitor WPL 856105 Contact Us For Availability
14
Bag, Accessory WPL 476180 Contact Us For Availability
14
Bracket, Top (Right Side) WPL 645562 Contact Us For Availability
14
Bracket, Top (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
15
Door, Exhaust WPL 644206 Contact Us For Availability
15
Screw, Wood No.8 x 3/4 (6) WPL 488255 Contact Us For Availability
16
Insulation, Cabinet (Rigth Side) WPL 854937 Contact Us For Availability
16
Insulation, Cabinet (Left Side) WPL 854938 Contact Us For Availability
16
Insulation, Cabinet (Top) WPL 855438 Contact Us For Availability
16
Tube, Flow Divider WPL 947364 Contact Us For Availability
16
Screw S.M. No.10 x 3/8 (6) WPL 488481 Contact Us For Availability
16
Arm, Exhaust Door WPL 856042 Contact Us For Availability
17
Screen, Exhaust Door WPL 856929 Contact Us For Availability
17
Housing, Curtain (Right Side) WPL 855572 Contact Us For Availability
17
Housing, Curtain (Left Side (Includes No.22)) WPL 855573 Contact Us For Availability
18
Base WPL 951570 Contact Us For Availability
18
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
18
Spacer, Filler Board (2) WPL 995274 Contact Us For Availability
19
Clip, Anticipator WPL 475577 Contact Us For Availability
19
Clip, Handle WPL 641484 Contact Us For Availability
19
Board, Filler, (2) WPL 646237 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
20
Door, Cabinet WPL 1155385 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
21
Switch, Rotary WPL 950283 Contact Us For Availability
21
Screw, Thumb (2) WPL 475581 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Curtain (2) WPL 947160 Contact Us For Availability
23
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
23
Link, WPL 641482 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Dividing Wall WPL 951968 Contact Us For Availability
24
Plate, Escutcheon WPL 1155424 Contact Us For Availability
25
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
25
Spacer, Escutcheon WPL 470036 Contact Us For Availability
26
Fastener, snap WPL 487808 Contact Us For Availability
26
Knob, Control (2) WPL 947264 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Seal, Front (Top And Sides) WPL 645883 Contact Us For Availability
28
Shroud Assembly, Evaporator (Includes Item 23 WPL 948219 Contact Us For Availability
28
Plate, Name WPL 951916 Contact Us For Availability
30
Blade, Fan (Evaporator) WPL 947533 Contact Us For Availability
31
Clamp, Cable WPL 852451 Contact Us For Availability
32
Clamp, Tube WPL 855930 Contact Us For Availability
33
Tube, Riser WPL 1156564 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Bend, Return (6) WPL 708532 Contact Us For Availability
34
Panel, Control WPL 996966 Contact Us For Availability
35
Bend, Return (5) WPL 708531 Contact Us For Availability
36
Bend, Return (3-Way) WPL 1156107 Contact Us For Availability
37
Maniflod, Header WPL 1156642 Contact Us For Availability
38
Clip, Mtg. (2) WPL 949634 Contact Us For Availability
× ![]()
