Model Whirlpool AC0752XM2 AIR CONDITIONER – Common Parts & Diagrams

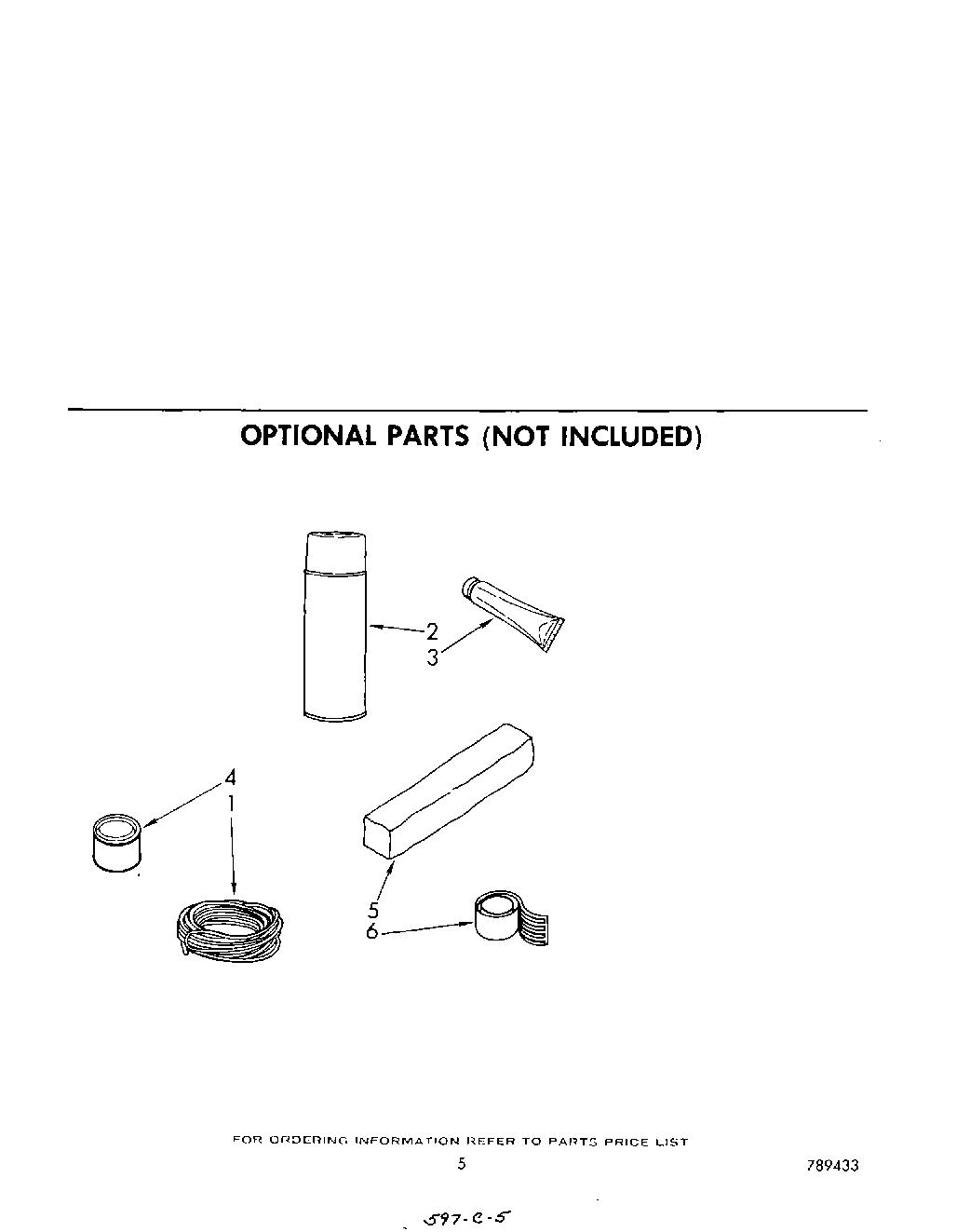

05 - OPTIONAL (CONTINUED)

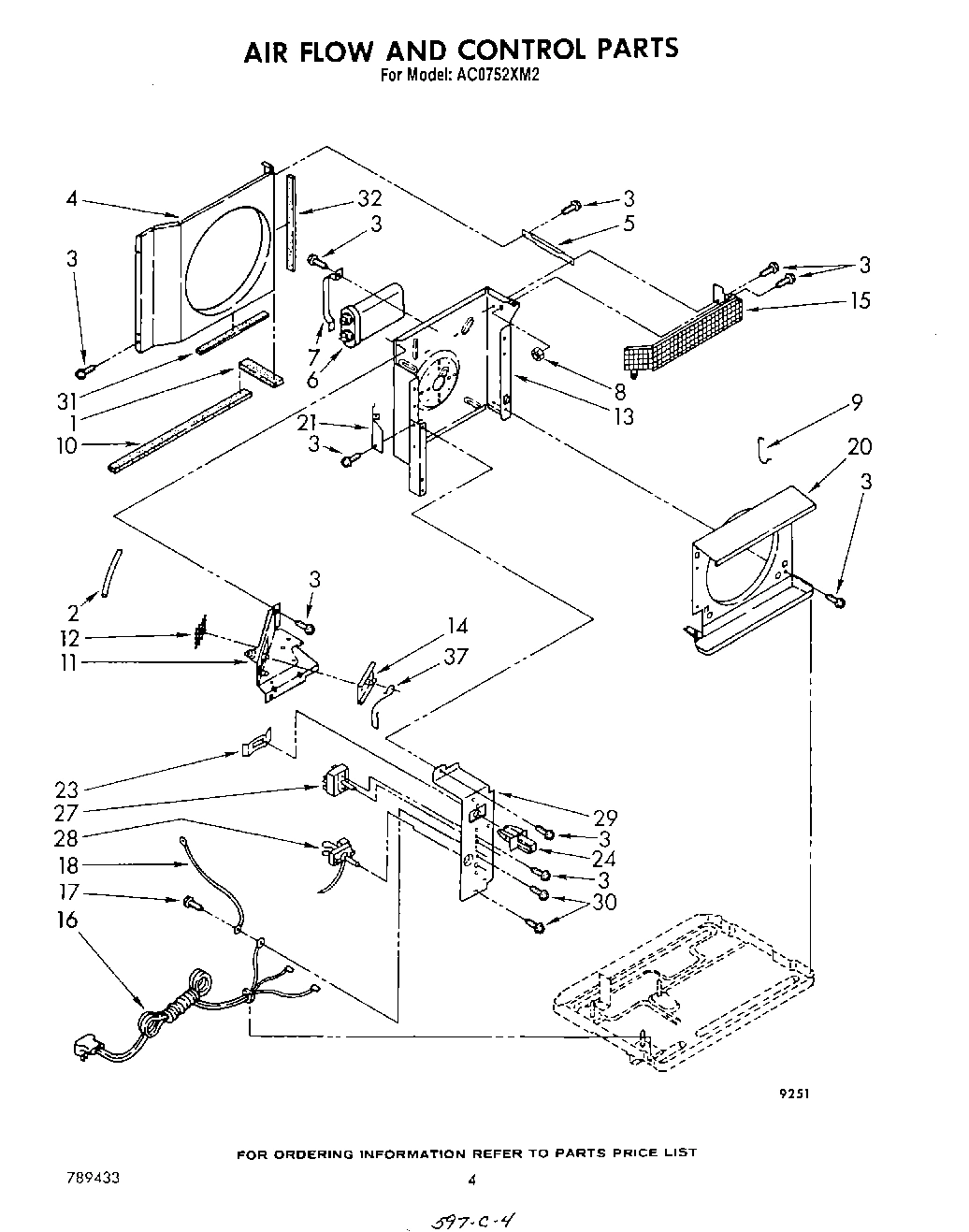

04 - AIR FLOW AND CONTROL
06 - CABINET , LITERATURE
02 - UNIT
03 - LIT/OPTIONAL
Common parts from model Whirlpool AC0752XM2 AIR CONDITIONER
List, Repair List WPL LIT789433 Contact Us For Availability
Guide, Use & Care WPL LIT950318 Contact Us For Availability
Guide, Energy WPL LIT952028 Contact Us For Availability
Sheet, Tech (Service Information) WPL LIT952811 Contact Us For Availability
1
Cabinet WPL 857903 Contact Us For Availability
1
Condenser WPL 952576 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 484319 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Bend, Return Condenser (2) Evaporator (7) WPL 854624 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (15) Evaporator (5) WPL 855199 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Tube, Outlet (Includes No.4) WPL 484230 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Cover, Winter WPL 484067 Contact Us For Availability
6
cord, retainer (winter, cover) WPL 813610 Contact Us For Availability
6
Capacitor, Running WPL 952739 Contact Us For Availability
6
Front, Cabinet Assembly WPL 950281 Contact Us For Availability
6
Tube, Restrictor (Length 41.0``) WPL 952820 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Housing, Curtain (L.S.) WPL 646158 Contact Us For Availability
7
Blade, Fan WPL 997885 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
8
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
8
Setscrew, 5/16-24 x 1/4 WPL 595085 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Clip, Balancing WPL 876034 Contact Us For Availability
10
Seal, Strip WPL 855493 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Motor, Fan WPL 952809 Contact Us For Availability
11
Extension, Dividing Wall (Requires Insulation WPL 646130 Contact Us For Availability
11
Knob, Control (2) WPL 947264 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Tube, 90~ Connect (1) WPL 950814 Contact Us For Availability
13
Wall, Dividing Assembly (Requires Insulation WPL 859822 Contact Us For Availability
13
Seal, Rear Cabinet Flange WPL 857777 Contact Us For Availability
13
Evaporator WPL 952572 Contact Us For Availability
14
Door, Exhaust WPL 646134 Contact Us For Availability
14
Plate, Mounting WPL 949975 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Spring, Mounting WPL 643179 Contact Us For Availability
16
Cord, Appliance WPL 646306 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Anticipator, Temperature WPL 994262 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Louver, Vertical WPL 645605 Contact Us For Availability
18
Base WPL 950323 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
20
Shroud, Evaporator WPL 646123 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Plate, Dividing Wall WPL 859955 Contact Us For Availability
21
Plate, Escutcheon WPL 952537 Contact Us For Availability
21
Compressor WPL 952609 Contact Us For Availability
22
Clip, Front (2) WPL 949634 Contact Us For Availability
22
Grommet (3) WPL 646499 Contact Us For Availability
23
Retainer, Detent Spring WPL 853565 Contact Us For Availability
23
Sleeve (3) WPL 949990 Contact Us For Availability
24
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
26
Overload WPL 952610 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
27
Filter, Air WPL 852344 Contact Us For Availability
27
Spring, Overload WPL 949997 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Cover, Terminal WPL 949999 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
29
Retainer, Terminal Cover WPL 950005 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Fan, Blade Evaporator WPL 997887 Contact Us For Availability
31
Seal, Condenser WPL 859931 Contact Us For Availability
31
Clamp, Wiring WPL 852451 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Screw, Repair WPL 488481 Contact Us For Availability
34
Seal, Base (R.S.) WPL 993191 Contact Us For Availability
37
Arm, Exhaust Door WPL 950255 Contact Us For Availability
× ![]()
