Model Electrolux AC066N7A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

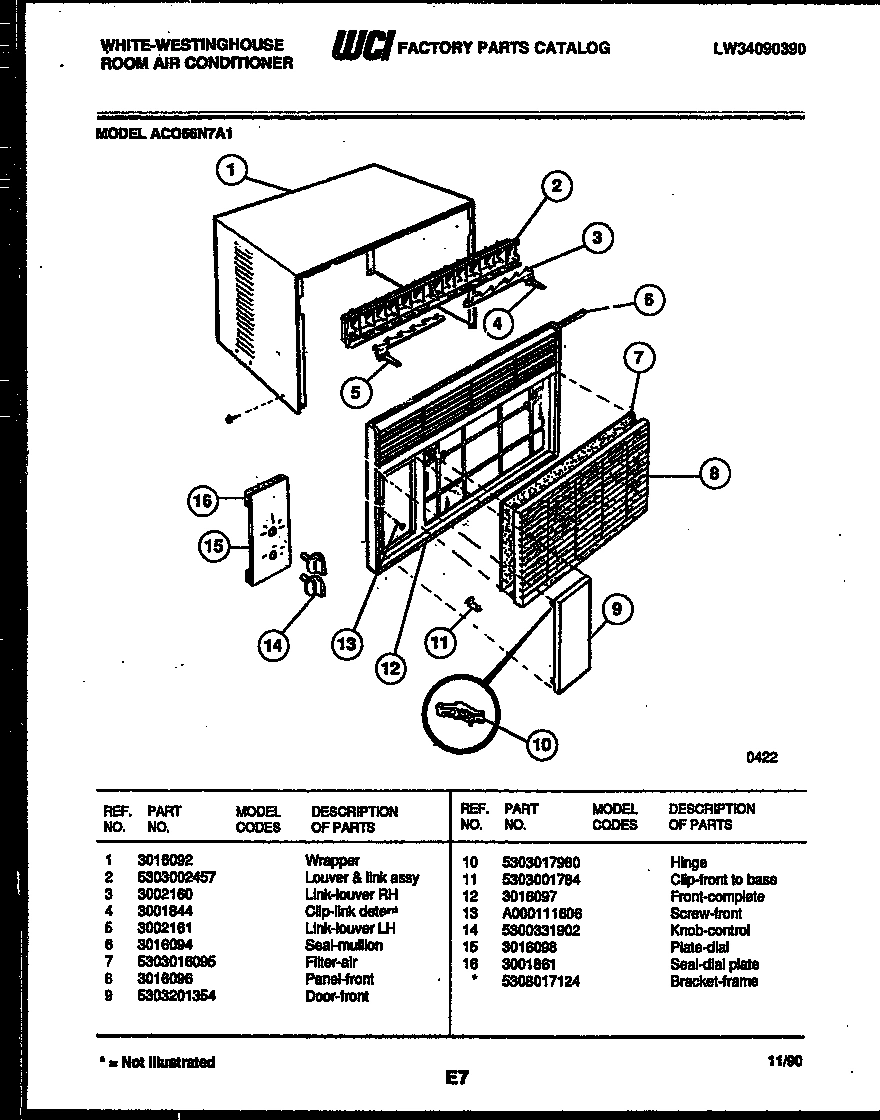

02 - CABINET PARTS

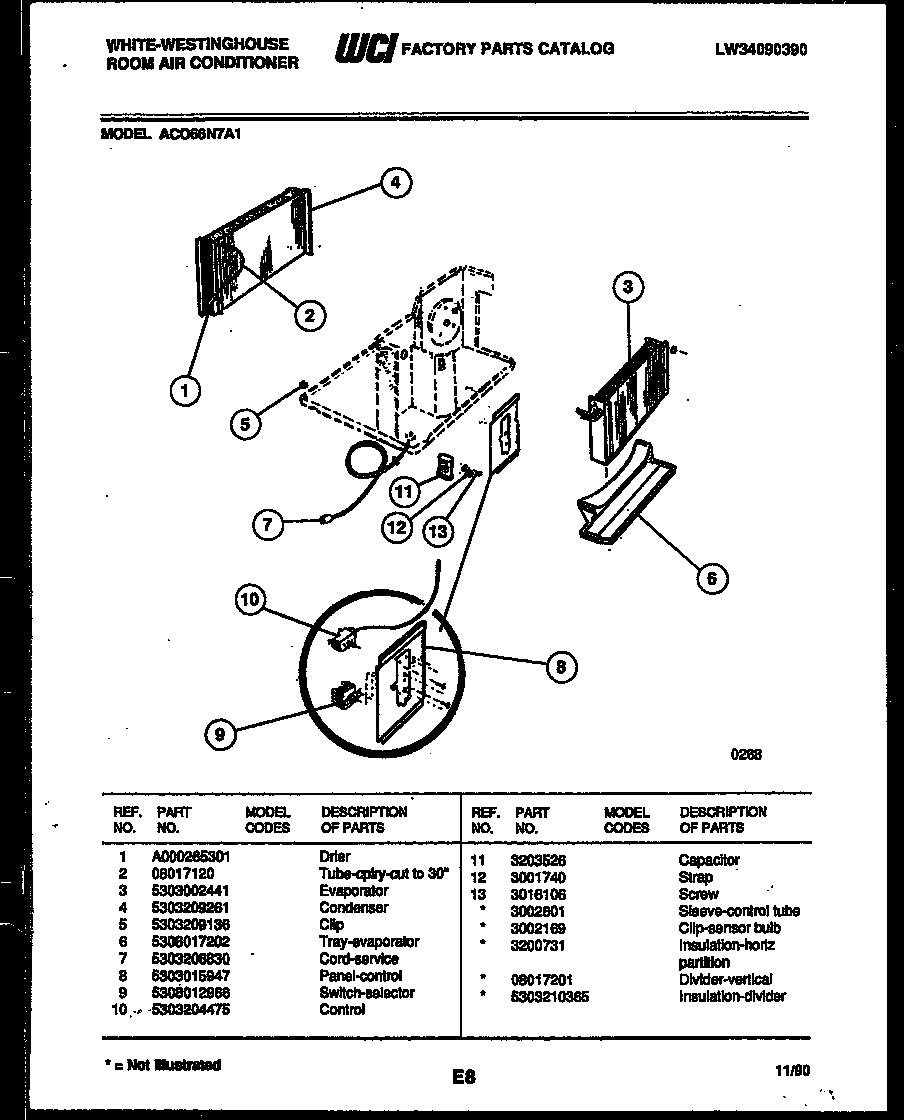

03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AC066N7A1 ROOM AIR CONDITIONER
*39767
CLIP-SENSOR BULB WCI 3002169 Contact Us For Availability
*39767
SLEEVE-CONTROL TUBE WCI 3002601 Contact Us For Availability
*39768
INSULATION-HORIZ PARTITION WCI 3200731 Contact Us For Availability
*39769
WCI 08017201 WCI 08017201 Contact Us For Availability
*39769
INSULATION-DIVIDER WCI 5303210365 Contact Us For Availability
*39776
BRACKET STOOL SUPPORT WCI 5303211056 Contact Us For Availability
1
WRAPPER WCI 3016092 Contact Us For Availability
1
WCI 5303212765 WCI 5303212765 Contact Us For Availability
1
WCI 5303017824 WCI 5303017824 Contact Us For Availability
1
RAIL-BOTTOM WCI 3203489 Contact Us For Availability
1A
SCREW - MTG (NON-ILLUSTRATED) WCI 3001817 Contact Us For Availability
2
LOUVER & LINK ASSY WCI 5303002457 Contact Us For Availability
2
TUBE-CPLRY (CUT TO 30``) WCI 08017120 Contact Us For Availability
2
GASKET-COVER WCI 3200282 Contact Us For Availability
2
RETAINER-ACCORDIAN WCI 08013614 Contact Us For Availability
3
WCI 3002160 WCI 3002160 Contact Us For Availability
3
WCI 5303002441 WCI 5303002441 Contact Us For Availability
3
WCI 5303002074 WCI 5303002074 Contact Us For Availability
3
NUT WCI 5303211017 Contact Us For Availability
3
RAIL-TOP WCI 08007493 Contact Us For Availability
4
WCI 3001844 WCI 3001844 Contact Us For Availability
4
WCI 5303209261 WCI 5303209261 Contact Us For Availability
4
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
4
COVER-TERMINAL WCI 3200281 Contact Us For Availability
4
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
5
WCI 3002161 WCI 3002161 Contact Us For Availability
5
CLIP WCI 5303209136 Contact Us For Availability
5
FRAME-RH WCI 08013630 Contact Us For Availability
6
WCI 3016094 WCI 3016094 Contact Us For Availability
6
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
6
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
6
GROMMET WCI 5303015945 Contact Us For Availability
6
ACCORDIAN WCI 08013613 Contact Us For Availability
7
WCI 5303016095 WCI 5303016095 Contact Us For Availability
7
WCI 5303206830 WCI 5303206830 Contact Us For Availability
7
SEAL - SHROUD BOTTOM WCI 3002573 Contact Us For Availability
7
NUT - COMPRESSOR MTG. WCI 5303015946 Contact Us For Availability
7
CLIP - ACCORDIAN WCI 08012959 Contact Us For Availability
8
WCI 3016096 WCI 3016096 Contact Us For Availability
8
WCI 5303015947 WCI 5303015947 Contact Us For Availability
8
WCI 5308010950 WCI 5308010950 Contact Us For Availability
8
SCREW - ADJUSTMENT WCI 3002801 Contact Us For Availability
9
WCI 5303201354 WCI 5303201354 Contact Us For Availability
9
SWITCH-SELECTOR WCI 5308012966 Contact Us For Availability
9
WCI 3017825 WCI 3017825 Contact Us For Availability
9
FRAME-LH WCI 08013629 Contact Us For Availability
10
WCI 5303017980 WCI 5303017980 Contact Us For Availability
10
CONTROL WCI 5303204475 Contact Us For Availability
10
WCI 53080011040 WCI 53080011040 Contact Us For Availability
10
WCI 3002036 WCI 3002036 Contact Us For Availability
11
WCI 5303001784 WCI 5303001784 Contact Us For Availability
11
CAPACITOR WCI 3203526 Contact Us For Availability
11
WCI 5303209086 WCI 5303209086 Contact Us For Availability
11
KIT-START WCI 5303201723 Contact Us For Availability
11
SUPPORT-UNIT WCI 08012989 Contact Us For Availability
12
WCI 3016097 WCI 3016097 Contact Us For Availability
12
WCI 3001740 WCI 3001740 Contact Us For Availability
12
SCREW-STOP WCI 3002803 Contact Us For Availability
13
SCREW - FRONT WCI A000111606 Contact Us For Availability
13
SCREW WCI 3016106 Contact Us For Availability
13
WASHER SPACER WCI 3002646 Contact Us For Availability
14
WCI 5300331902 WCI 5300331902 Contact Us For Availability
14
SCREW ADJUSTMENT WCI 08012954 Contact Us For Availability
15
WCI 3016098 WCI 3016098 Contact Us For Availability
16
WCI 3001861 WCI 3001861 Contact Us For Availability
16
NUT WCI 3007760 Contact Us For Availability
17
STOP - WINDOW WCI 3018951 Contact Us For Availability
18
WCI 684B755H08 WCI 684B755H08 Contact Us For Availability
19
WCI 3002608 WCI 3002608 Contact Us For Availability
20
SCREW WCI 3001806 Contact Us For Availability
× ![]()
