Model Electrolux AC053L7A2 ROOM AIR CONDITIONER – Common Parts & Diagrams

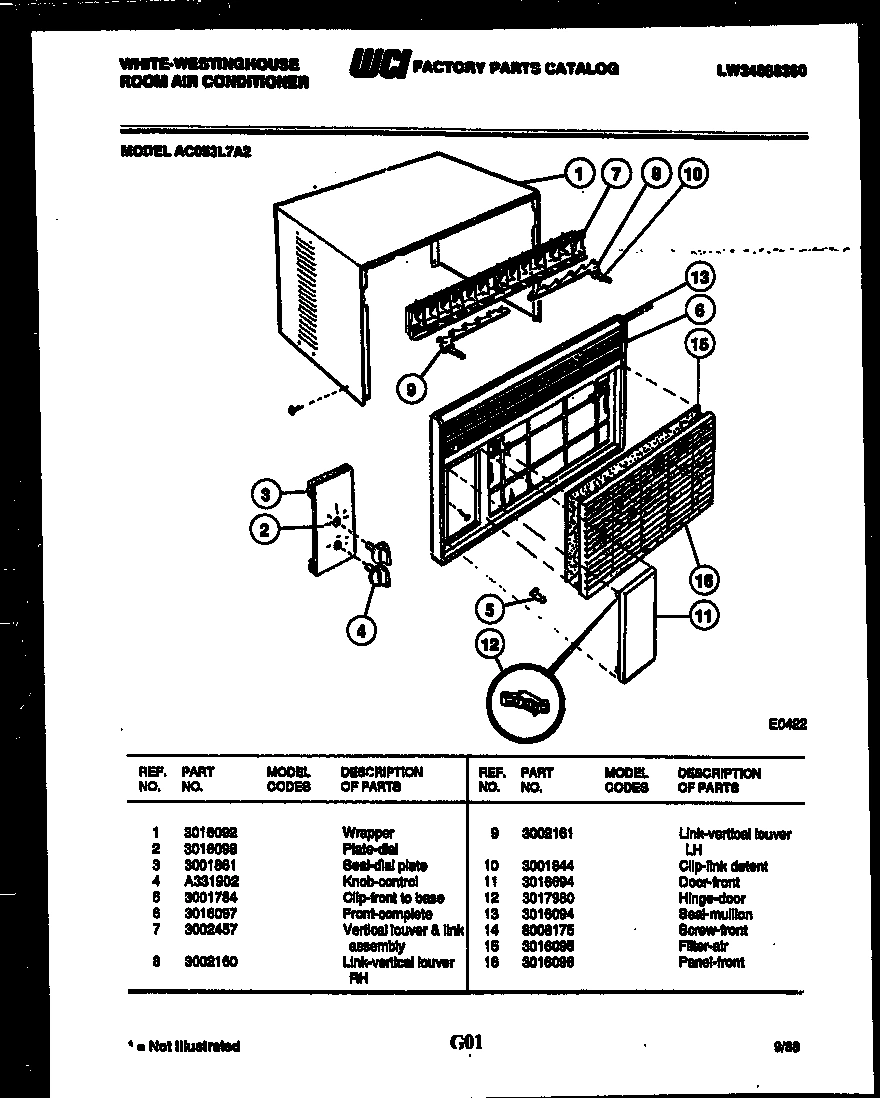

02 - CABINET PARTS

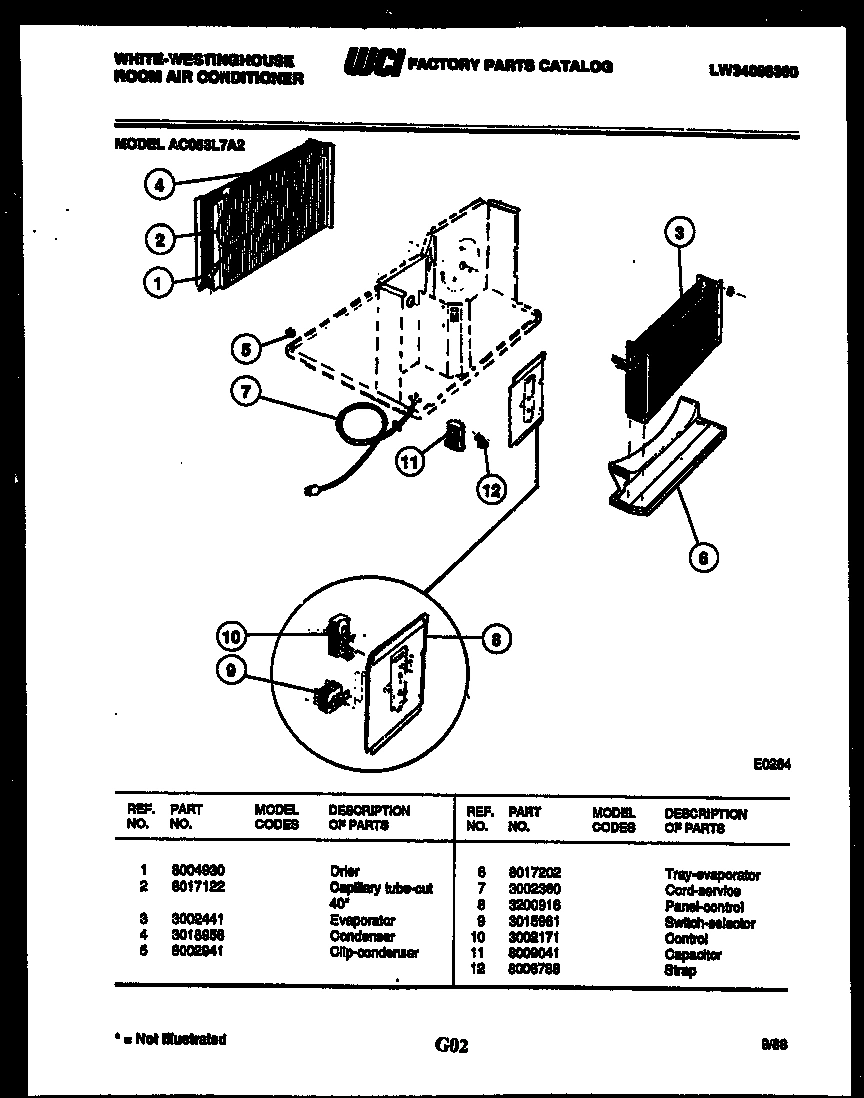

03 - ELECTRICAL PARTS

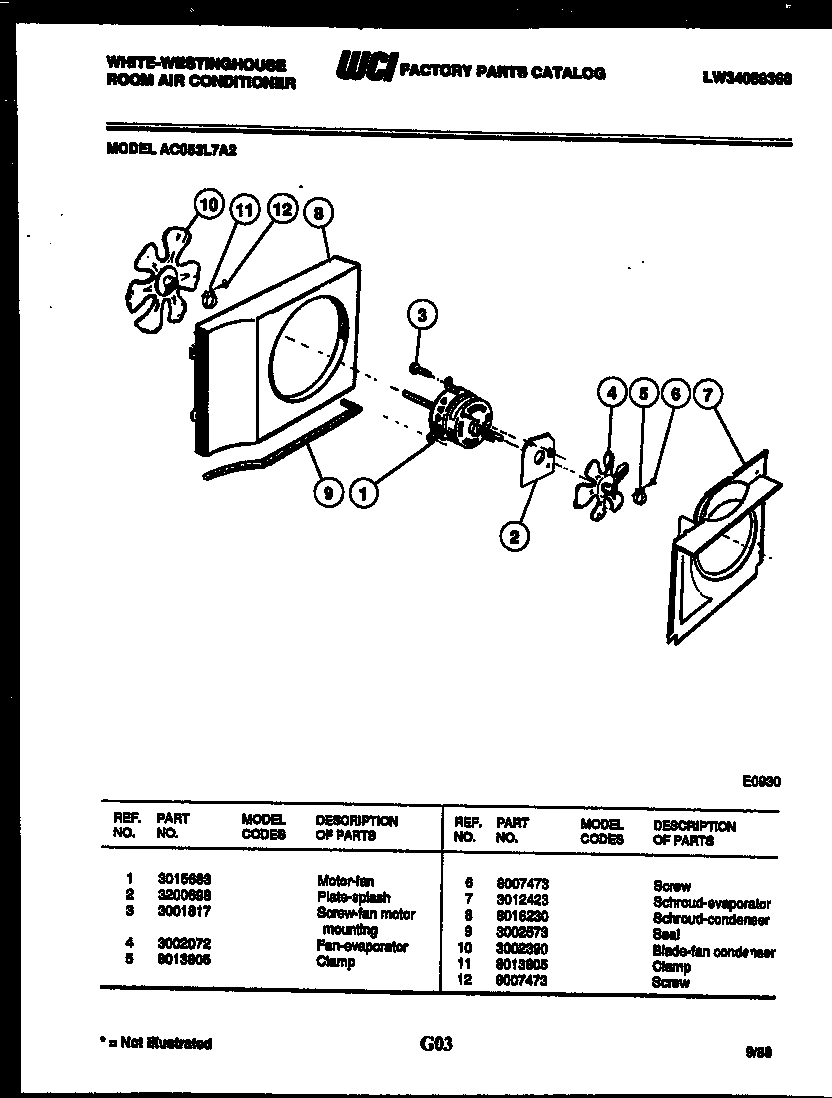

04 - AIR HANDLING PARTS

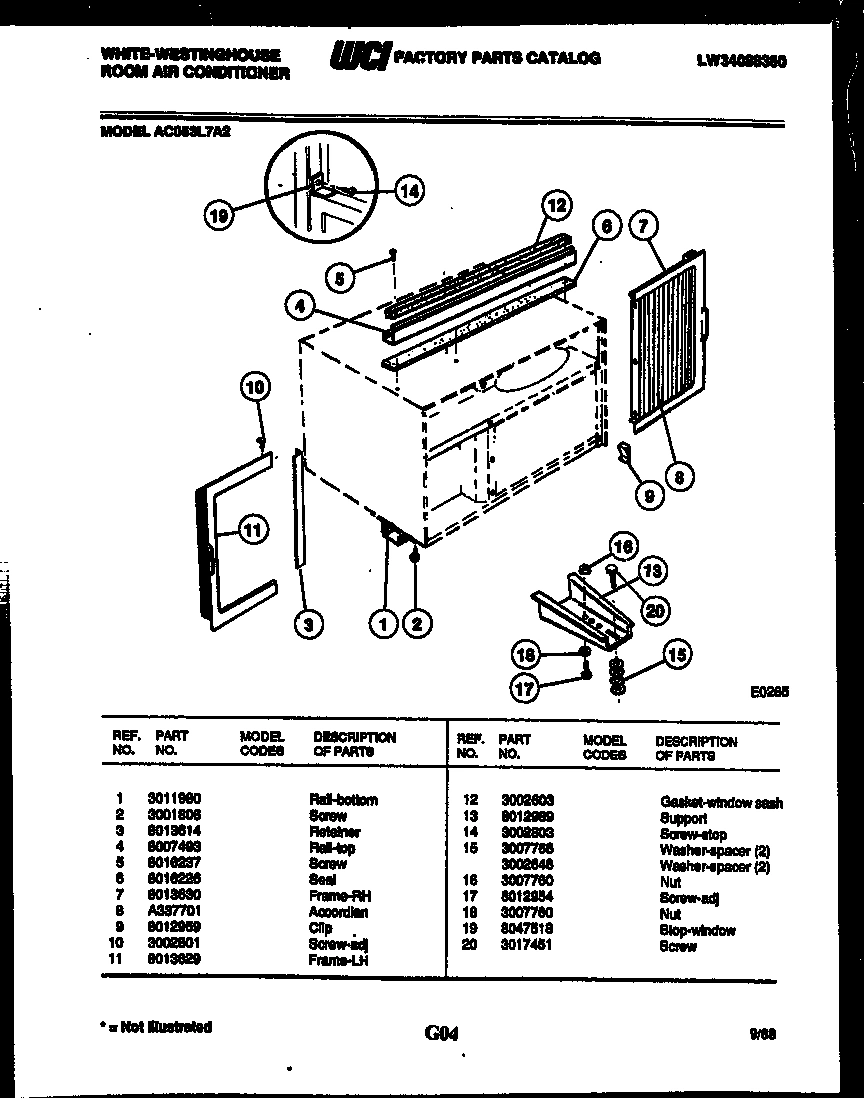

05 - CABINET AND INSTALLATION PARTS

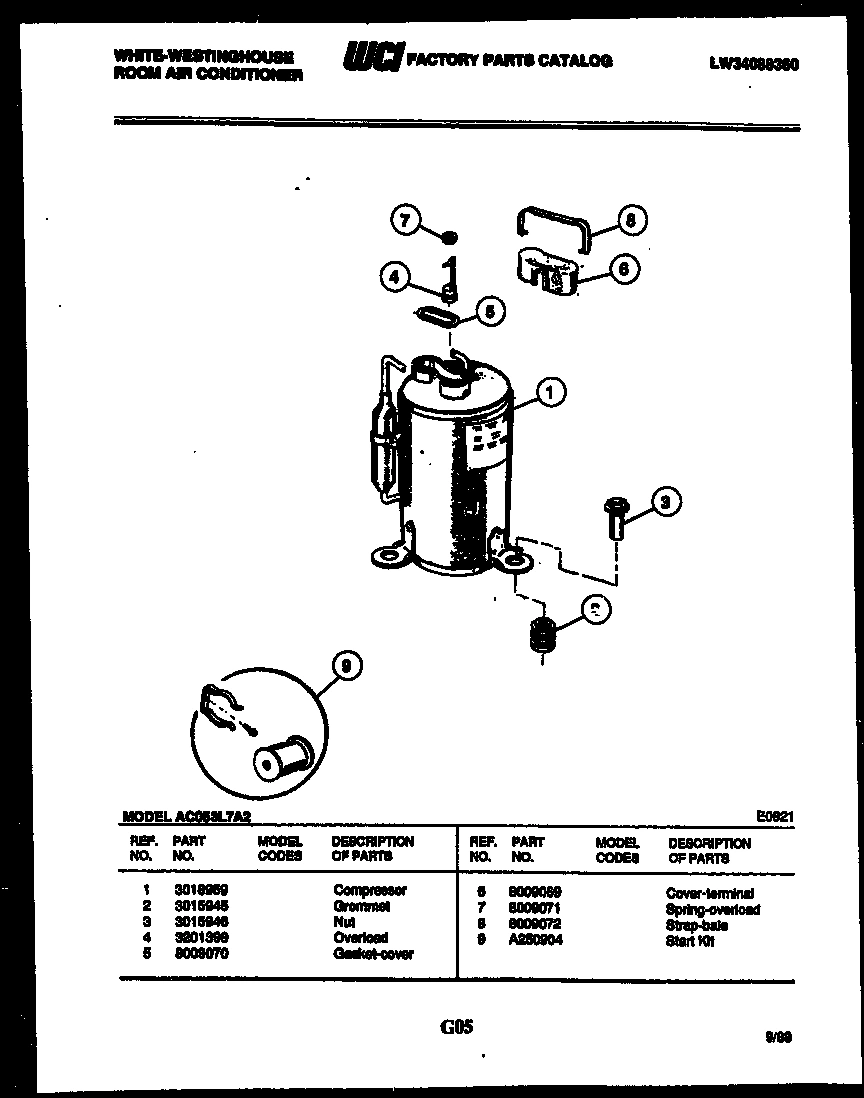

06 - COMPRESSOR PARTS
Common parts from model Electrolux AC053L7A2 ROOM AIR CONDITIONER
1
WRAPPER WCI 3016092 Contact Us For Availability
1
DRIER WCI 8004930 Contact Us For Availability
1
WCI 3015683 WCI 3015683 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
1
WCI 3018959 WCI 3018959 Contact Us For Availability
2
WCI 3016098 WCI 3016098 Contact Us For Availability
2
CAPILLARY TUBE-CUT 40`` WCI 8017122 Contact Us For Availability
2
PLATE-SPLASH WCI 3200698 Contact Us For Availability
2
SCREW WCI 3001806 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
3
WCI 3001861 WCI 3001861 Contact Us For Availability
3
WCI 3002441 WCI 3002441 Contact Us For Availability
3
SCREW-FAN MOTOR MOUNTING WCI 3001817 Contact Us For Availability
3
RETAINER WCI 8013614 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
4
WCI A331902 WCI A331902 Contact Us For Availability
4
WCI 3018958 WCI 3018958 Contact Us For Availability
4
FAN-EVAPORATOR WCI 3002072 Contact Us For Availability
4
RAIL TOP WCI 8007493 Contact Us For Availability
4
WCI 3201399 WCI 3201399 Contact Us For Availability
5
CLIP-FRONT TO BASE WCI 3001784 Contact Us For Availability
5
CLIP-CONDENSER WCI 8002941 Contact Us For Availability
5
SCREW WCI 8016237 Contact Us For Availability
5
GASKET-COVER WCI 8009070 Contact Us For Availability
6
WCI 3016097 WCI 3016097 Contact Us For Availability
6
TRAY-EVAPORATOR WCI 8017202 Contact Us For Availability
6
WCI 8016226 WCI 8016226 Contact Us For Availability
6
WCI 8009069 WCI 8009069 Contact Us For Availability
7
VERTICAL LOUVER & LINK ASSEMBLY WCI 3002457 Contact Us For Availability
7
CORD-SERVICE WCI 3002360 Contact Us For Availability
7
SCHROUD-EVAPORATOR WCI 3012423 Contact Us For Availability
7
FRAME RH WCI 8013630 Contact Us For Availability
7
WCI 8009071 WCI 8009071 Contact Us For Availability
8
LINK-VERTICAL LOUVER RH WCI 3002160 Contact Us For Availability
8
WCI 3200916 WCI 3200916 Contact Us For Availability
8
SCHROUD-CONDENSER WCI 8016230 Contact Us For Availability
8
WCI A337701 WCI A337701 Contact Us For Availability
8
WCI 8009072 WCI 8009072 Contact Us For Availability
9
LINK-VERTICAL LOUVER LH WCI 3002161 Contact Us For Availability
9
WCI 3015961 WCI 3015961 Contact Us For Availability
9
SEAL WCI 3002573 Contact Us For Availability
9
CLIP WCI 8012959 Contact Us For Availability
9
WCI A250904 WCI A250904 Contact Us For Availability
10
WCI 3001844 WCI 3001844 Contact Us For Availability
10
CONTROL WCI 3002171 Contact Us For Availability
10
WCI 3002390 WCI 3002390 Contact Us For Availability
10
SCREW-ADJ WCI 3002801 Contact Us For Availability
11
WCI 3016694 WCI 3016694 Contact Us For Availability
11
WCI 8009041 WCI 8009041 Contact Us For Availability
11
CLAMP WCI 8013805 Contact Us For Availability
11
FRAME-LH WCI 8013629 Contact Us For Availability
12
WCI 3017980 WCI 3017980 Contact Us For Availability
12
STRAP WCI 8006788 Contact Us For Availability
12
SCREW WCI 8007473 Contact Us For Availability
13
WCI 3016094 WCI 3016094 Contact Us For Availability
13
WCI 8012989 WCI 8012989 Contact Us For Availability
14
SCREW-FRONT WCI 8008175 Contact Us For Availability
14
SCREW-STOP WCI 3002803 Contact Us For Availability
15
WCI 3016095 WCI 3016095 Contact Us For Availability
15
WASHER-SPACER (2) WCI 3002646 Contact Us For Availability
16
WCI 3016096 WCI 3016096 Contact Us For Availability
17
SCREW ADJ WCI 8012954 Contact Us For Availability
18
NUT WCI 3007760 Contact Us For Availability
19
STOP-WINDOW WCI 8047518 Contact Us For Availability
20
WCI 3017451 WCI 3017451 Contact Us For Availability
× ![]()
