Model Whirlpool AC0062XM1 AIR CONDITIONER – Common Parts & Diagrams
02 - SECTION
04 - SECTION
01 - SECTION
03 - SECTION

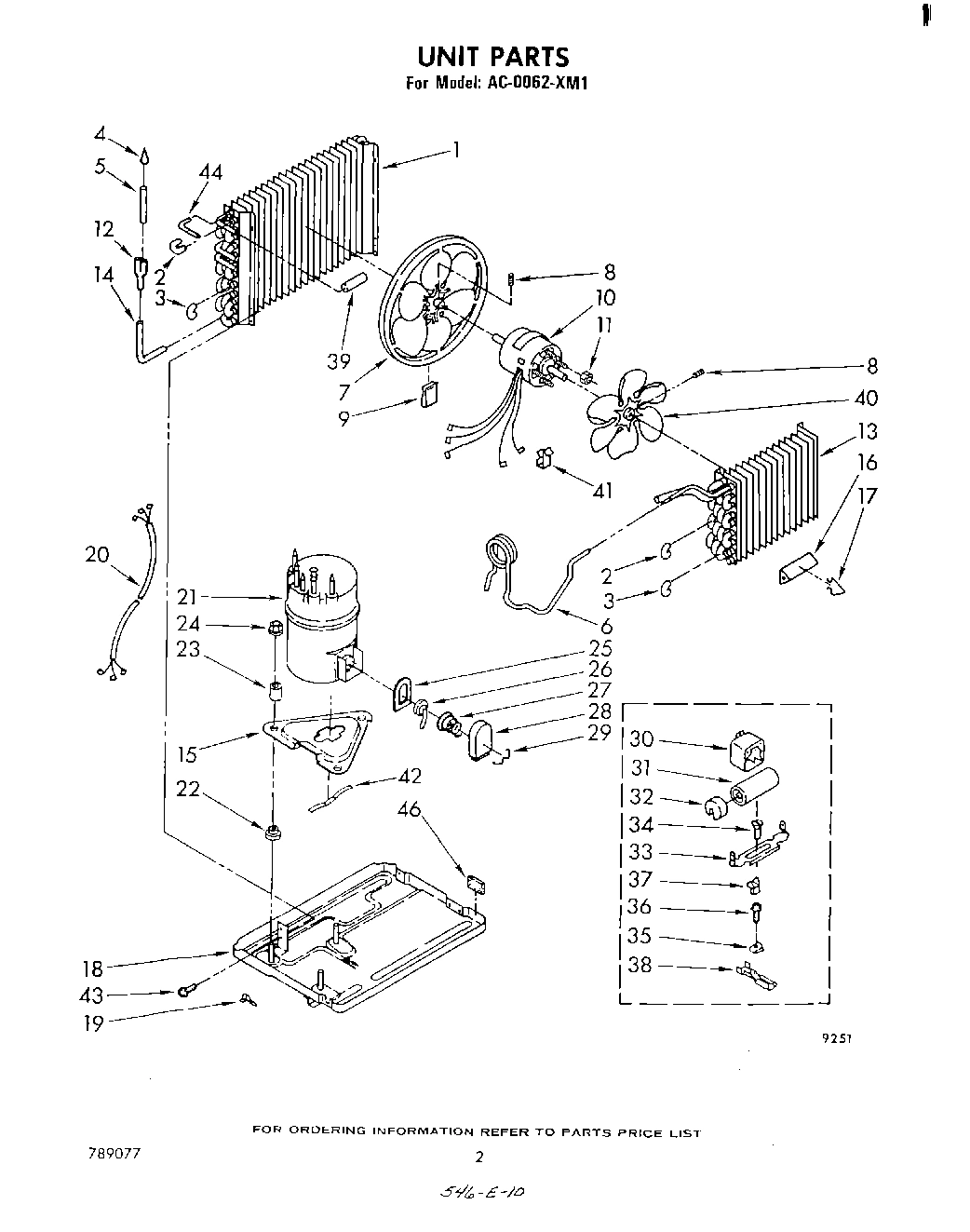

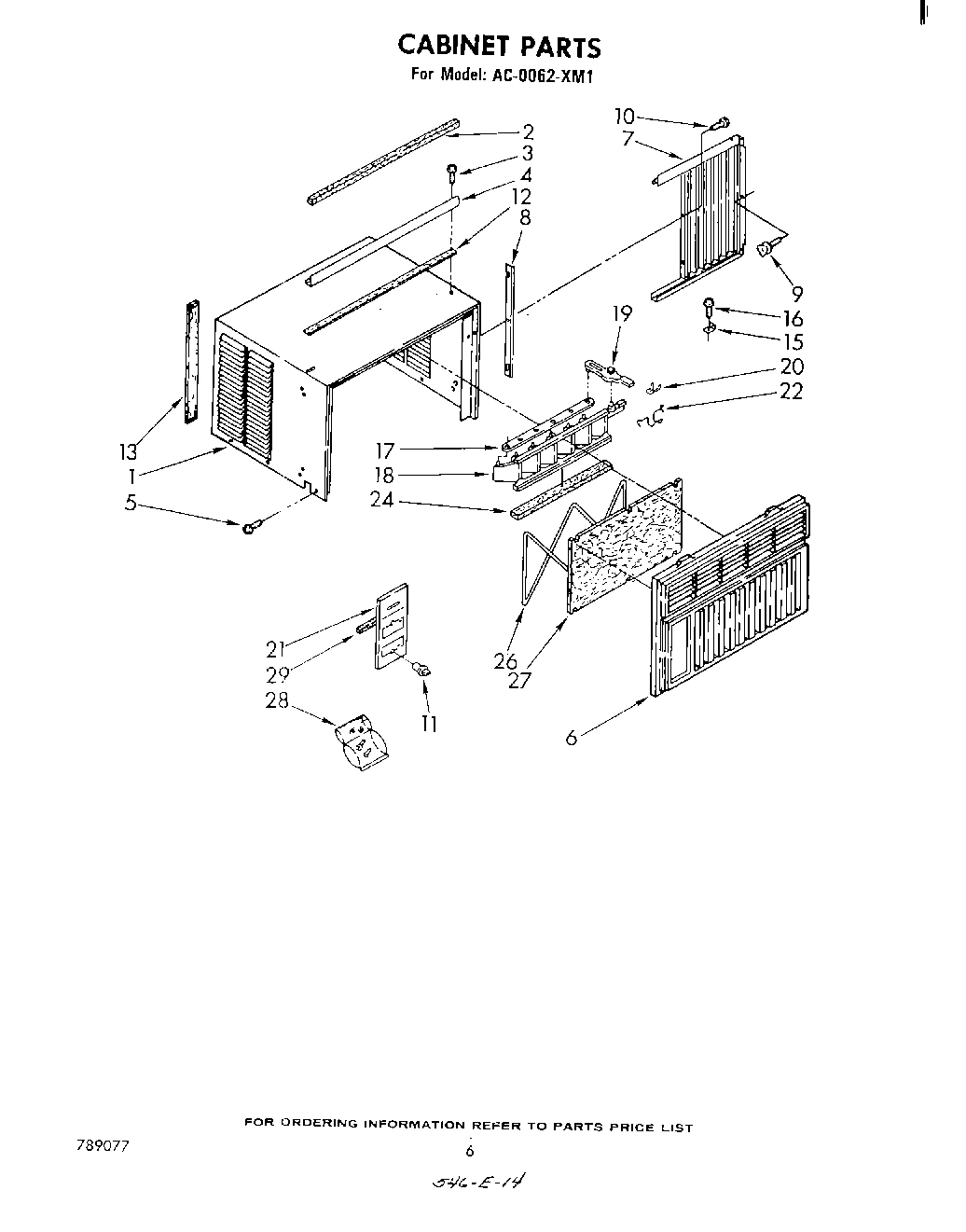

Common parts from model Whirlpool AC0062XM1 AIR CONDITIONER
List, Repair Parts WPL LIT789077 Contact Us For Availability
Guide, Use & Care WPL LIT950318 Contact Us For Availability
Guide, Energy WPL LIT950332 Contact Us For Availability
Sheet, Service Tech (Service Info WPL LIT951678 Contact Us For Availability
1
Cabinet WPL 857903 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Screw, Repair WPL 488481 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
6
Front, Cabinet WPL 950281 Contact Us For Availability
6
Capacitor, Running WPL 951675 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Housing, Curtain (L.S.) WPL 646158 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
8
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
8
Nut, Speed 8A WPL 486288 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
10
Motor, Fan WPL 949617 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Seal, Strip WPL 859931 Contact Us For Availability
11
Knob, Control (2) WPL 947264 Contact Us For Availability
11
Extension, Dividing Wall (Requires Insulation WPL 646130 Contact Us For Availability
12
Divider, Flow WPL 947364 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
13
Evaporator WPL 950840 Contact Us For Availability
13
Seal, Cabinet Rear Flange WPL 857777 Contact Us For Availability
13
Wall, Dividing Assembly (Requires Insulation WPL 859822 Contact Us For Availability
14
Tube, 90~ Connect WPL 950814 Contact Us For Availability
14
Door, Exhaust WPL 646134 Contact Us For Availability
15
Plate, Mounting WPL 646497 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
18
Base WPL 950323 Contact Us For Availability
18
Louver, Vertical WPL 645605 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Shroud, Evaporator WPL 646123 Contact Us For Availability
21
Compressor WPL 485460 Contact Us For Availability
21
Plate, Escutcheon WPL 950279 Contact Us For Availability
21
Plate, Dividing Wall WPL 859955 Contact Us For Availability
22
Grommet (3) WPL 646499 Contact Us For Availability
22
Clip, Front (2) WPL 949634 Contact Us For Availability
23
Sleeve (3) WPL 949990 Contact Us For Availability
23
Retainer, Detent Spring WPL 853565 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
25
Gasket, Terminal Cover WPL 647154 Contact Us For Availability
26
Overload WPL 858886 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Spring, Overload WPL 994171 Contact Us For Availability
27
filter WPL 854344 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
28
Cover, Terminal WPL 647152 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
29
Retainer, Terminal Cover WPL 643299 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
30
xRelay WPL 484177 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
xCapacitor WPL 467614 Contact Us For Availability
32
xCap, Capacitor WPL 791869 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
33
xBracket, capacitor WPL 35564 Contact Us For Availability
33
Bracket, Evaporat Mounting WPL 855502 Contact Us For Availability
34
xScrew, 10 x 5/8 WPL 487880 Contact Us For Availability
34
Seal, Strip WPL 854841 Contact Us For Availability
37
Multiplier, Terminal WPL 90654 Contact Us For Availability
37
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
37
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
37
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
37
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
37
Cover, Winter WPL 484067 Contact Us For Availability
37
Lacquer, Starlight Gray (1/2 Pt. Uncut) (1 Ga WPL 485426 Contact Us For Availability
37
Insulation, Cabinet (5/8`` x 25-11/16`` x 13` WPL 649939 Contact Us For Availability
37
Arm, Exhaust Door WPL 950255 Contact Us For Availability
38
xClip, terminal WPL 45571 Contact Us For Availability
39
Split Dampener WPL 857548 Contact Us For Availability
40
Blade, Fan Evaporator WPL 997886 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
42
Spring, Mounting WPL 643179 Contact Us For Availability
44
Tube, Inlet WPL 467894 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Tape, No Drip (For Sweating Tubes) WPL 505168 Contact Us For Availability
46
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
46
Kit, Start Assist WPL 484220 Contact Us For Availability
46
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
46
Compressor Start Kit WPL 485884 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
WPL 993191 WPL 993191 Contact Us For Availability
× ![]()
