Model Whirlpool AC0052XM1 AIR CONDITIONER – Common Parts & Diagrams
03 - SECTION
04 - SECTION

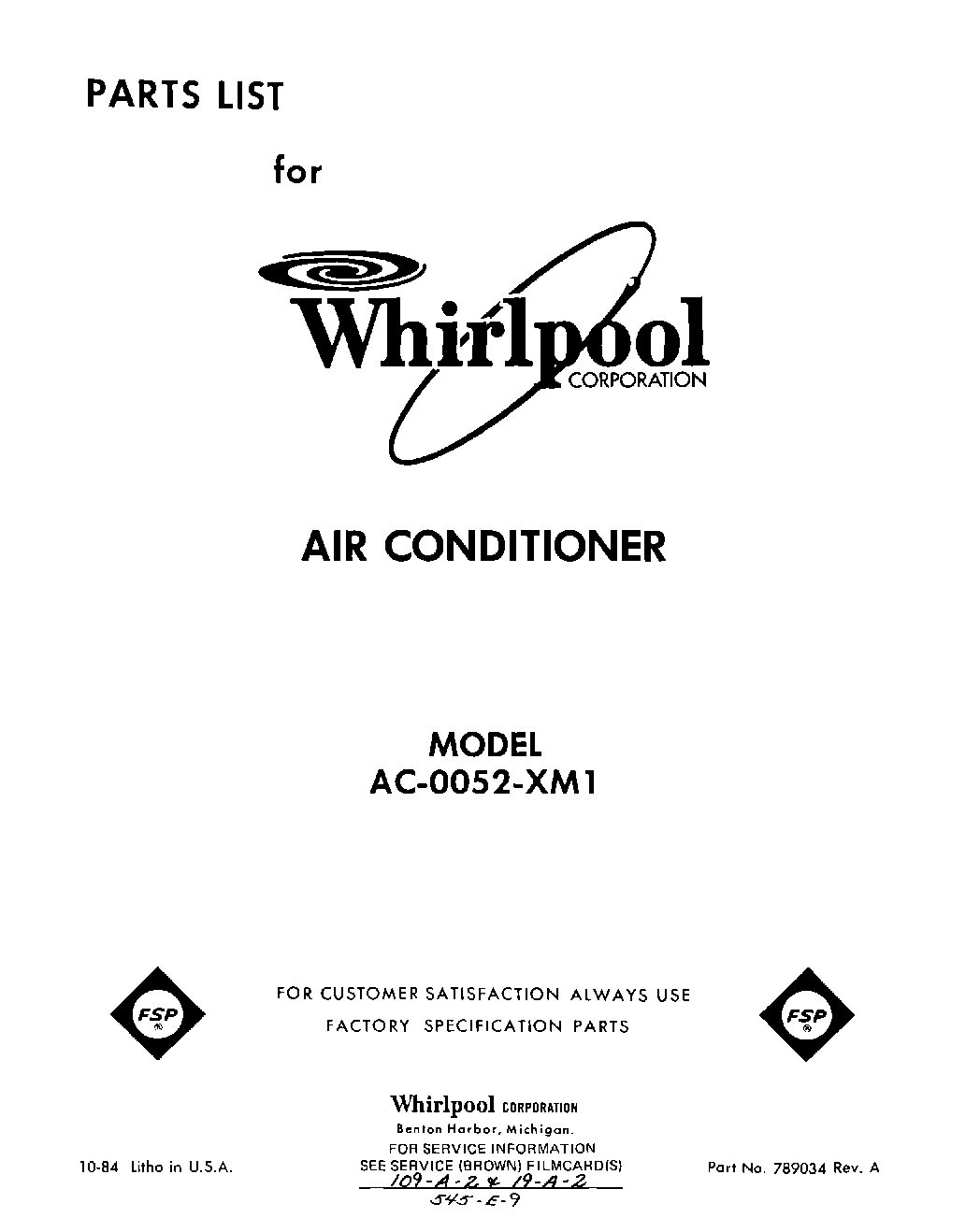

01 - SECTION

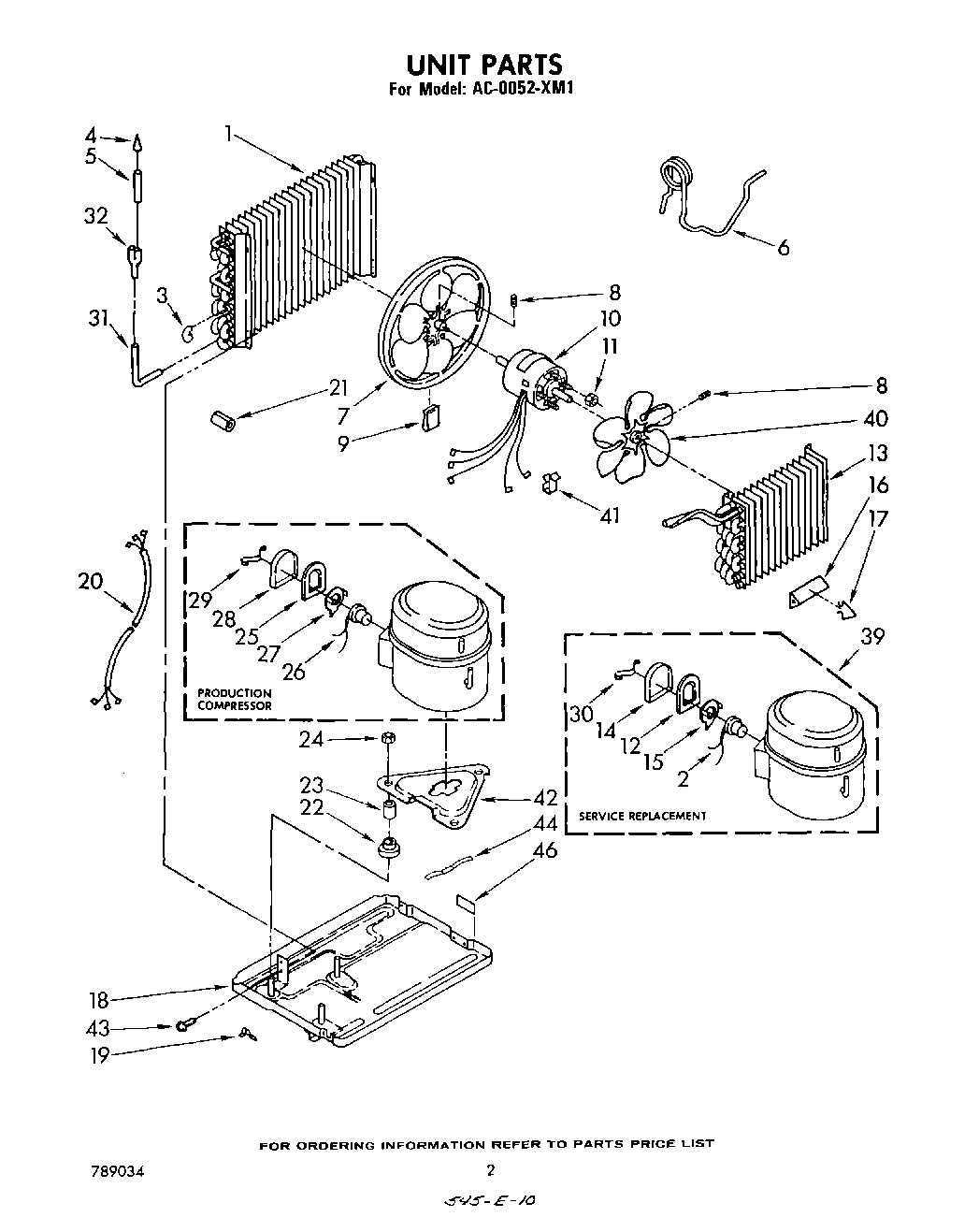

02 - SECTION
Common parts from model Whirlpool AC0052XM1 AIR CONDITIONER
1
Cabinet WPL 857903 Contact Us For Availability
1
Condenser WPL 950960 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Overload WPL 643295 Contact Us For Availability
3
Bend, Return (11) WPL 855199 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
6
Front, Cabinet Assembly WPL 950408 Contact Us For Availability
6
Tube, Restrictor (Length 40.0``) WPL 950961 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Housing, Curtain (L.S.) WPL 646158 Contact Us For Availability
7
Blade, Fan WPL 997884 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
8
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
10
Seal, Strip WPL 859931 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Motor, Fan WPL 949497 Contact Us For Availability
11
Extension, Dividing Wall (Requires Insulation WPL 646774 Contact Us For Availability
11
Knob, Control (2) WPL 950730 Contact Us For Availability
12
Seal, Strip WPL 854841 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
13
Wall, Dividing Assembly (Requires Insulation WPL 859822 Contact Us For Availability
13
Seal, Rear Cabinet Flange WPL 857777 Contact Us For Availability
13
Evaporator WPL 950243 Contact Us For Availability
14
Cover, Terminal WPL 643297 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Spring, Overload WPL 643298 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Louver, Vertical WPL 645605 Contact Us For Availability
18
Base WPL 950323 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
20
Shroud, Evaporator WPL 646123 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Plate, Dividing Wall WPL 859890 Contact Us For Availability
21
Dampener, Split WPL 950253 Contact Us For Availability
22
Clip, Front (2) WPL 949634 Contact Us For Availability
22
Grommet (3) WPL 646499 Contact Us For Availability
23
Sleeve (3) WPL 949990 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
26
Overload WPL 949996 Contact Us For Availability
27
Switch, Rotary WPL 950524 Contact Us For Availability
27
Filter WPL 854925 Contact Us For Availability
27
Spring, Overload WPL 949997 Contact Us For Availability
28
Control, Temperature WPL 950403 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Cover, Terminal WPL 949999 Contact Us For Availability
29
Panel, Control WPL 950400 Contact Us For Availability
29
Retainer, Terminal Cover WPL 950005 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Retainer, Cover WPL 643299 Contact Us For Availability
31
Tube, 90~ Connect WPL 950814 Contact Us For Availability
32
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
32
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
32
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
32
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
32
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
32
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
32
No Drip Tape (Sweating Tubes) WPL 50516 Contact Us For Availability
32
Insulation, Cabinet (5/8`` x 25-11/16`` x 13` WPL 649939 Contact Us For Availability
32
List, Repair Parts WPL 789034 Contact Us For Availability
32
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
32
Guide, Use & Care WPL 950354 Contact Us For Availability
32
Guide, Energy WPL 950409 Contact Us For Availability
32
Sheet, Service Tech (Service Information) WPL 950556 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
39
Compressor Assembly WPL 485320 Contact Us For Availability
40
Fan, Blade Evaporator WPL 646122 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
42
Plate, Mounting Compressor WPL 949975 Contact Us For Availability
43
Screw, Repair WPL 488481 Contact Us For Availability
44
Spring, Mounting WPL 643179 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Cover, Winter WPL 484067 Contact Us For Availability
46
Kit, Evaporator Repair (Aluminum Epoxy) WPL 48431 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
Seal, Base (R.S.) WPL 993191 Contact Us For Availability
× ![]()
