Model Maytag ABR192ZFES3 REFRIGERATOR – Common Parts & Diagrams

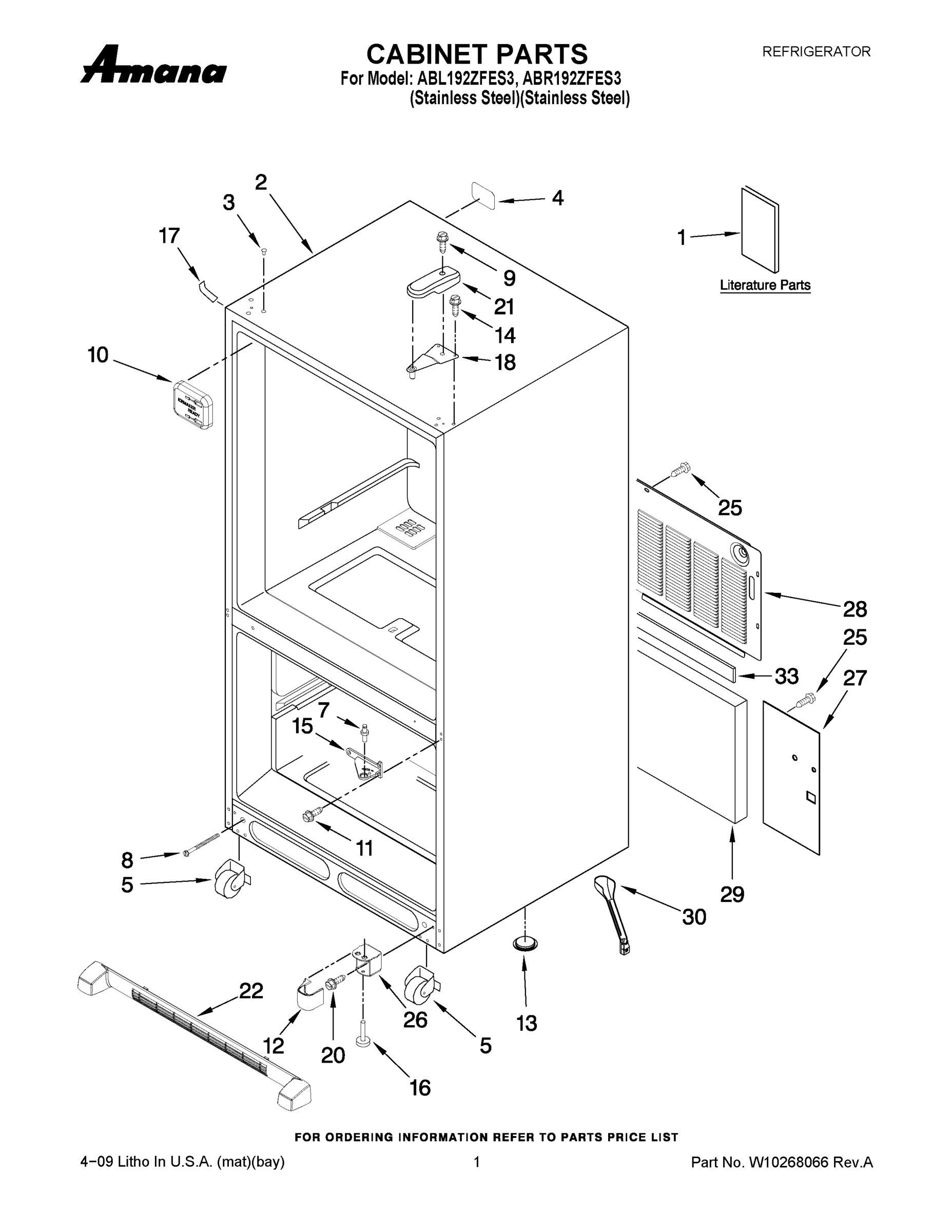

01 - CABINET PARTS

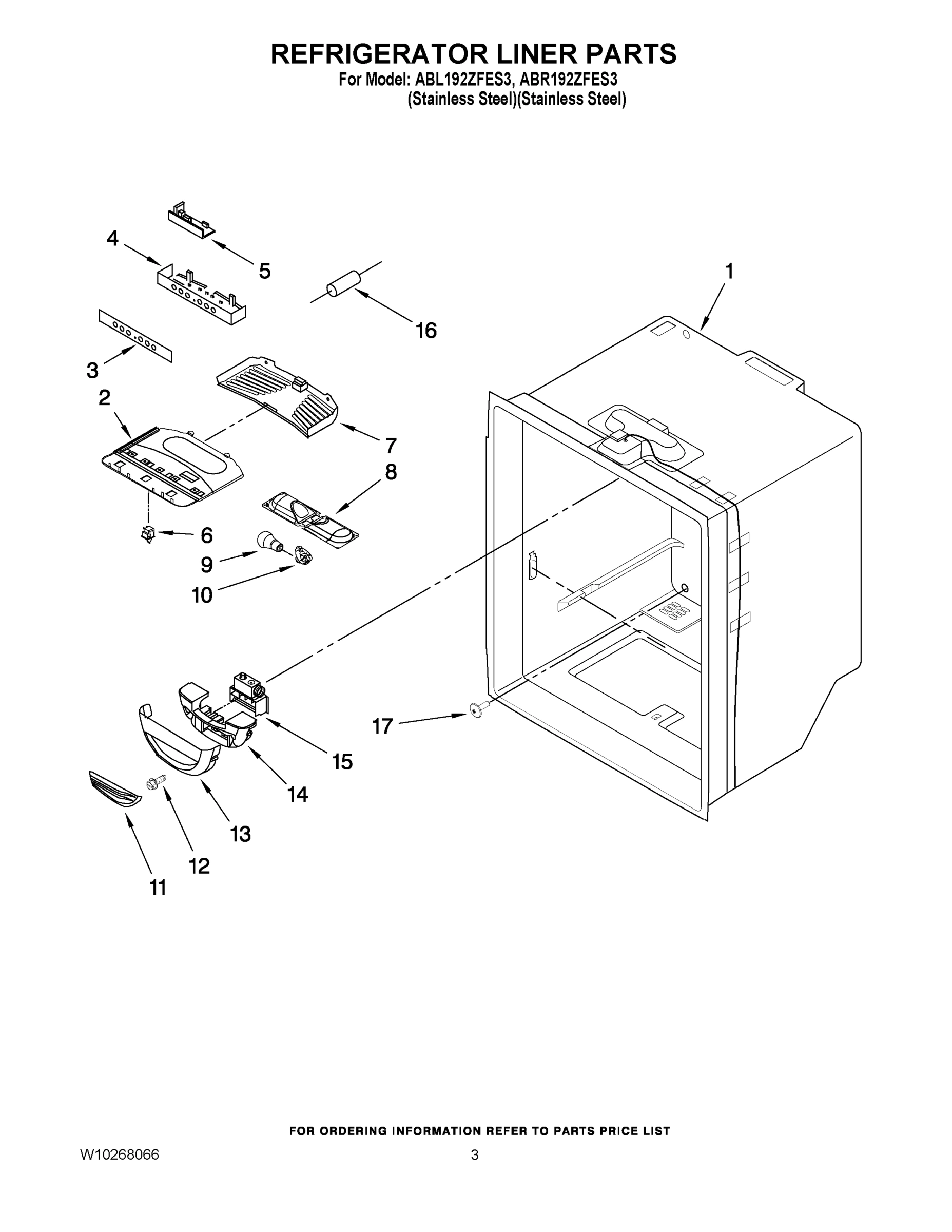

02 - REFRIGERATOR LINER PARTS

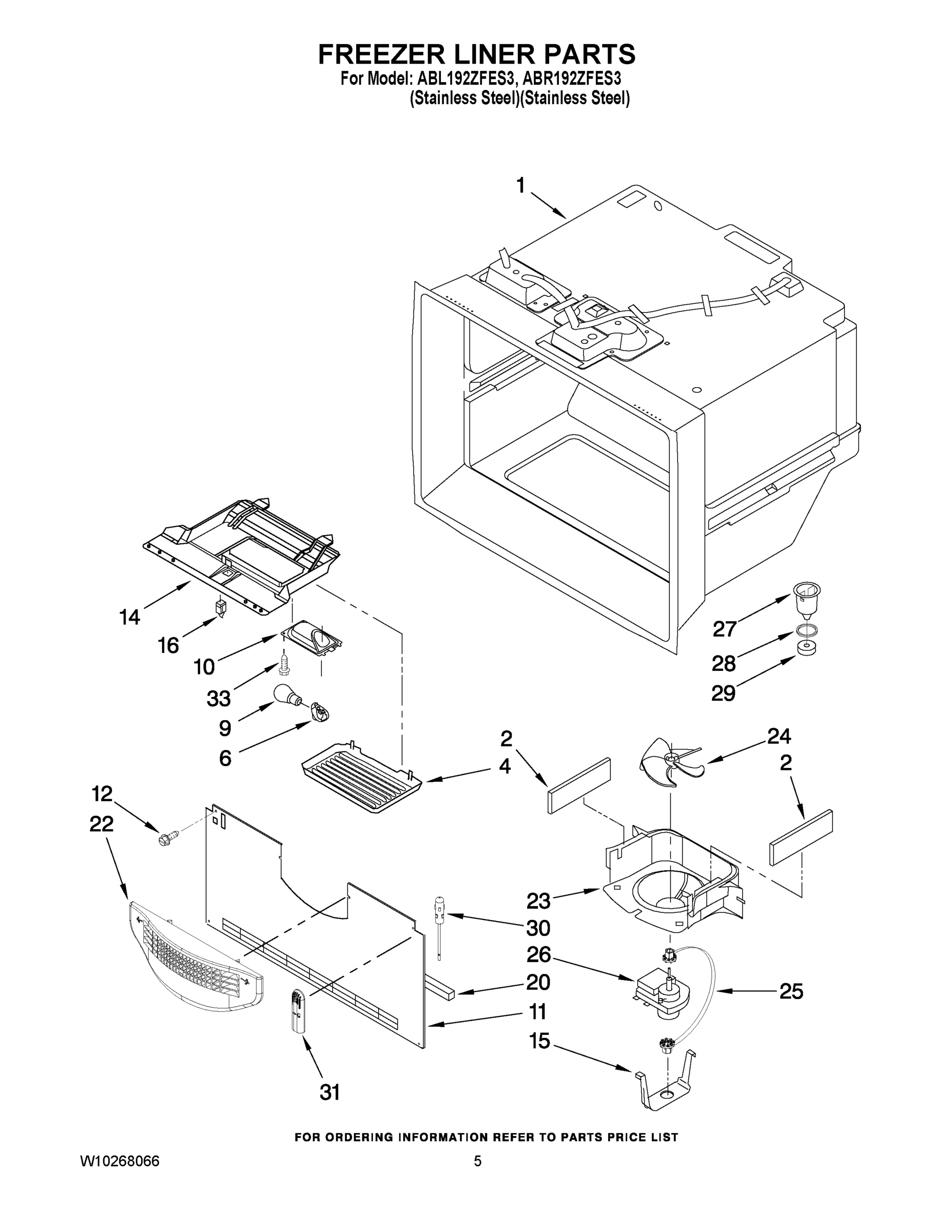

03 - FREEZER LINER PARTS

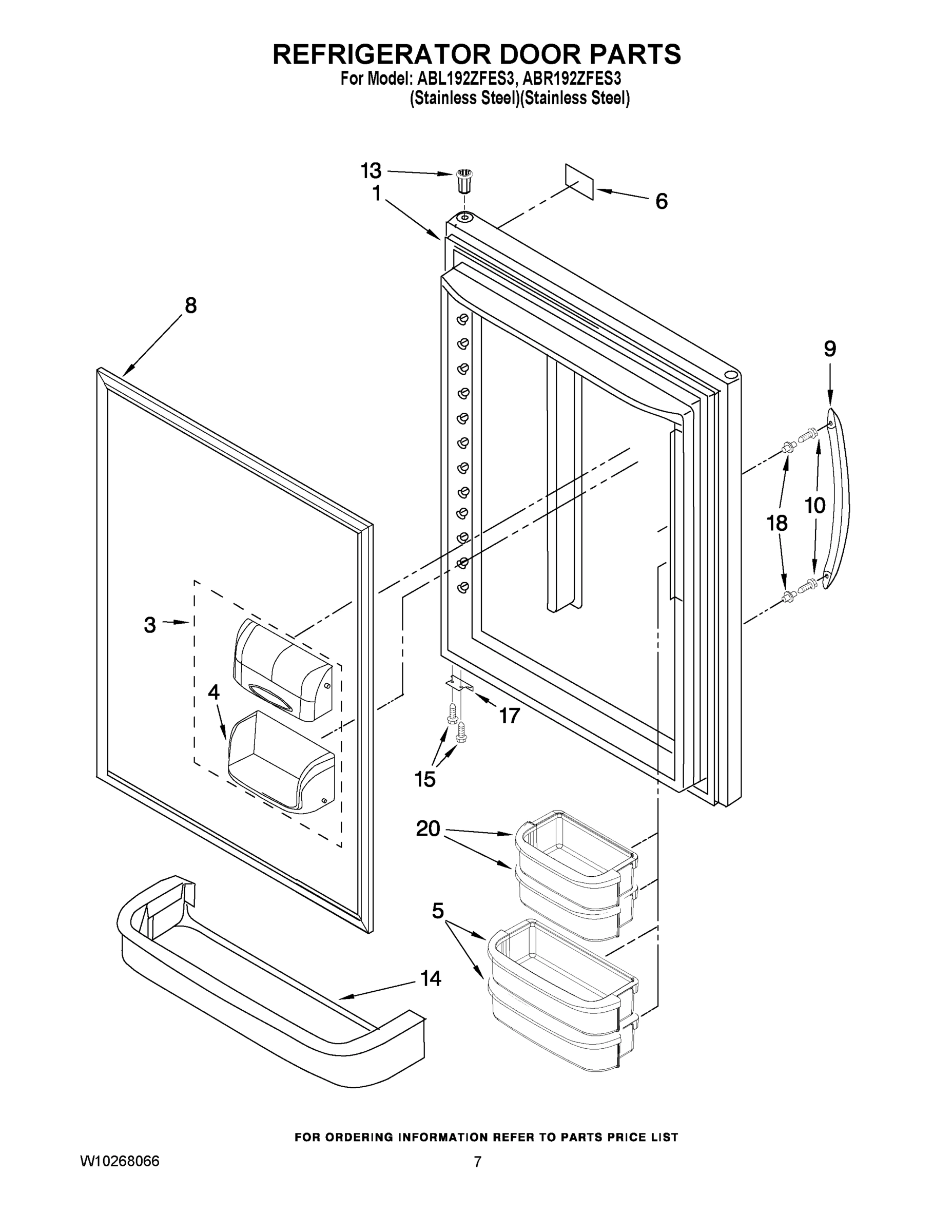

04 - REFRIGERATOR DOOR PARTS

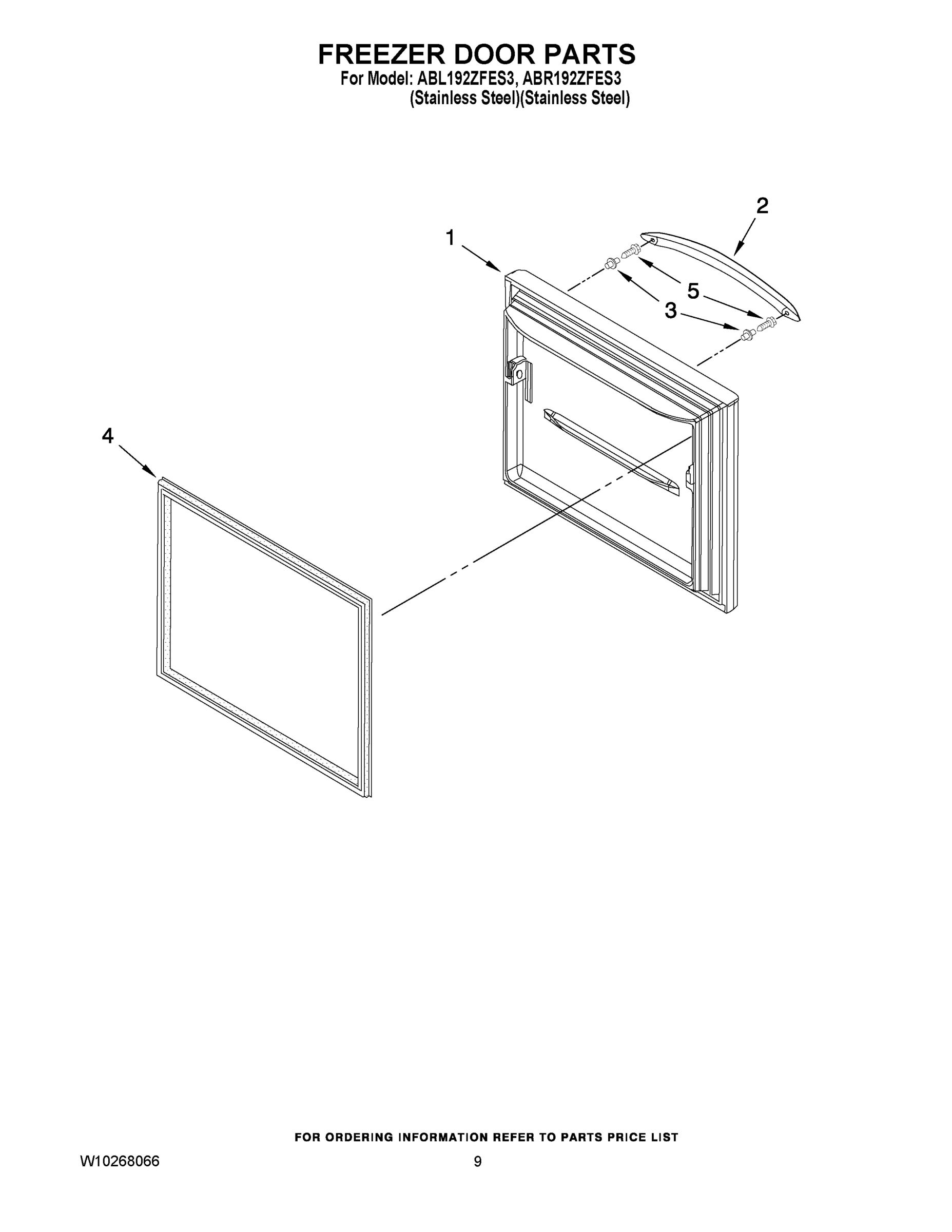

05 - FREEZER DOOR PARTS

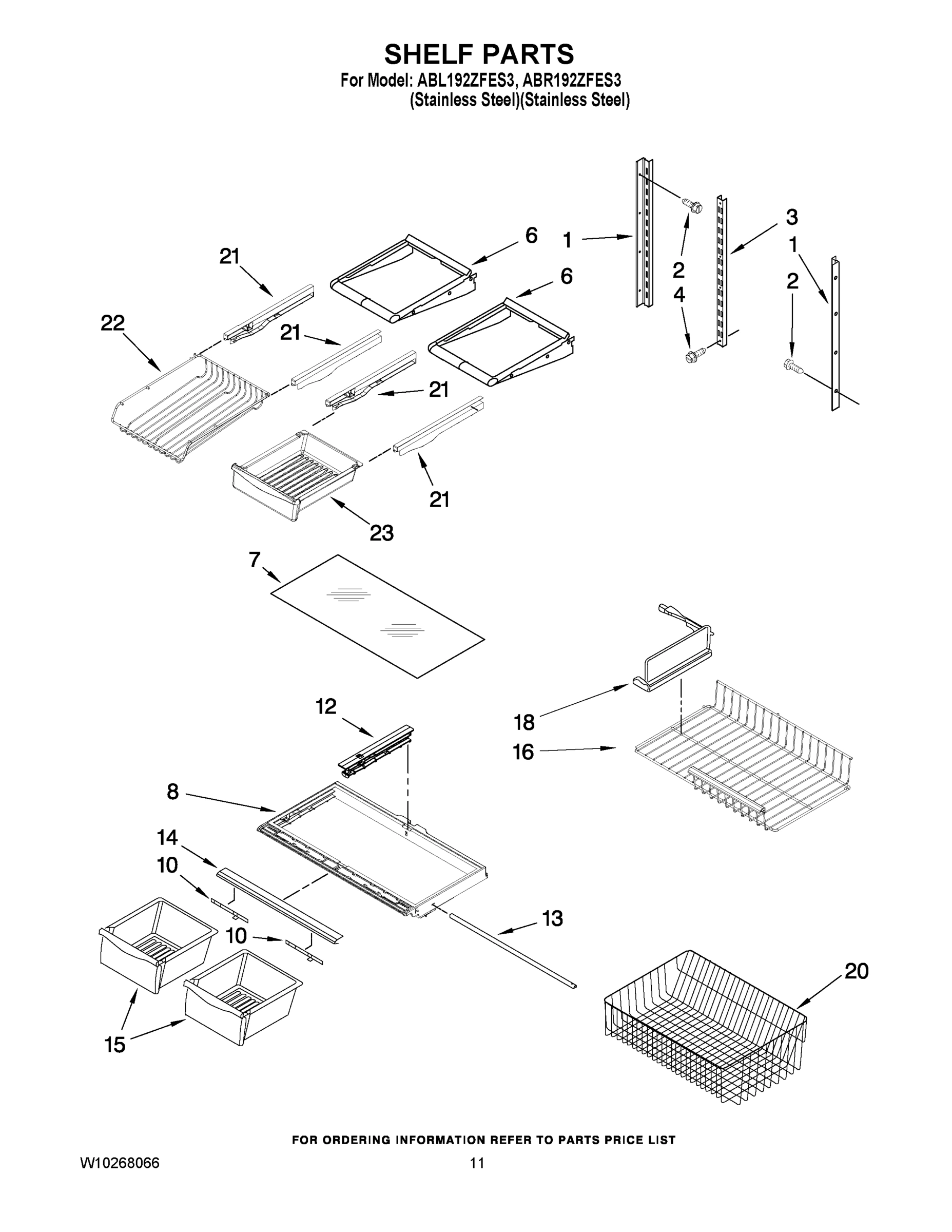

06 - SHELF PARTS

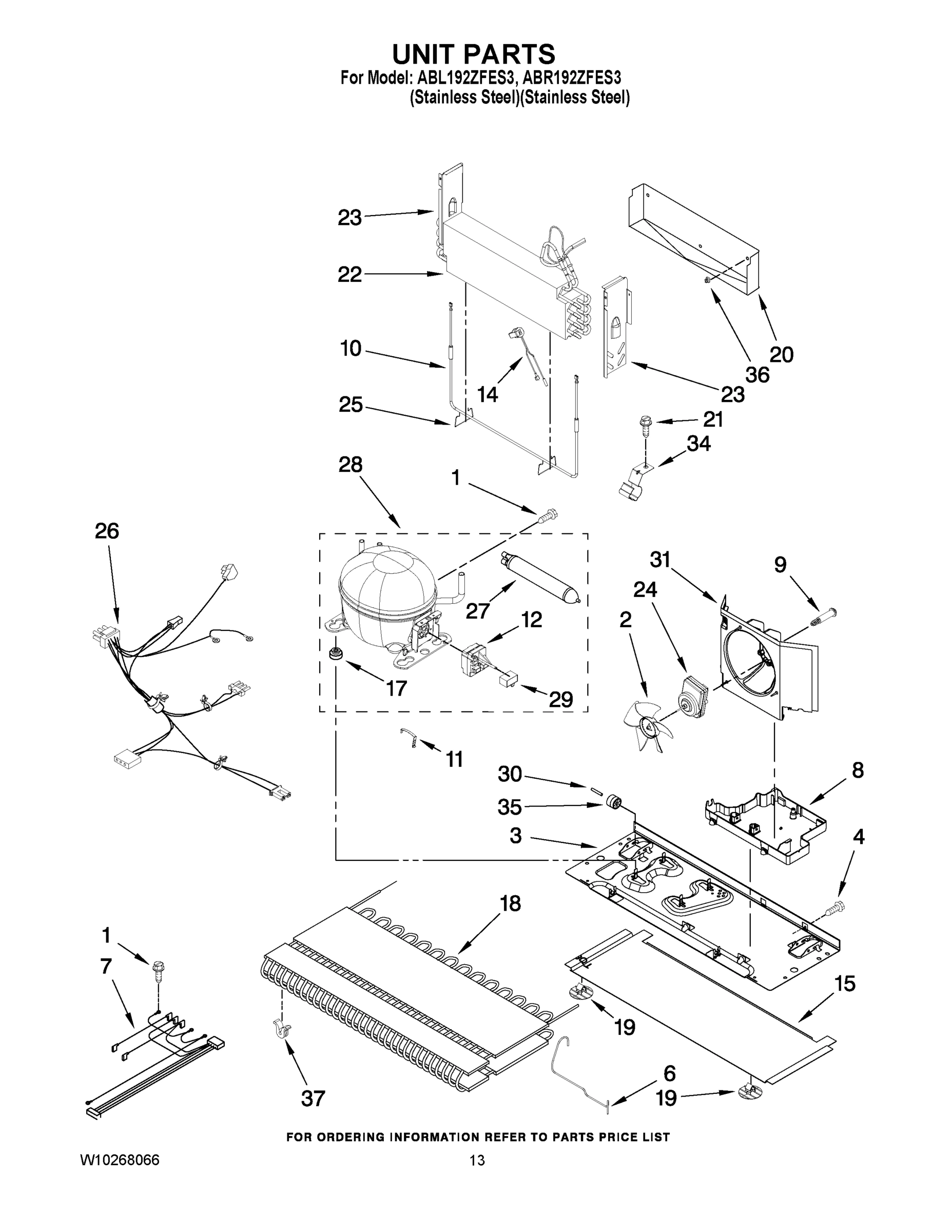

07 - UNIT PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ABR192ZFES3 REFRIGERATOR
1
REFRIGERATOR DOOR (W/ INSULATION) STAINLESS S MAY 13023846SQ Contact Us For Availability
1
REFRIGERATOR DOOR (W/ INSULATION) STAINLESS S MAY 13023847SQ Contact Us For Availability
1
FREEZER DOOR (W/ INSULATION) (STAINLESS STEEL MAY 13024222SQ Contact Us For Availability
1
MAY 12710606 MAY 12710606 Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
2
MAY 12806301 MAY 12806301 Contact Us For Availability
2
Gasket, Foam (2) MAY A3189392 Contact Us For Availability
2
MAY W10159105 MAY W10159105 Contact Us For Availability
2
MAY 12990513 MAY 12990513 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
MAY 12816501 MAY 12816501 Contact Us For Availability
3
MAY 12744905V MAY 12744905V Contact Us For Availability
3
MAY 13001201 MAY 13001201 Contact Us For Availability
3
MAY 12435807 MAY 12435807 Contact Us For Availability
3
MAY W10210982 MAY W10210982 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
Housing, Electronic Control MAY 12806406 Contact Us For Availability
4
MAY 12804901 MAY 12804901 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10164033 MAY W10164033 Contact Us For Availability
4
MAY 12990515 MAY 12990515 Contact Us For Availability
5
MAY 12580304 MAY 12580304 Contact Us For Availability
5
MAY 12868513 MAY 12868513 Contact Us For Availability
5
MAY 12557204V MAY 12557204V Contact Us For Availability
5
SCREW MAY 12991703 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
Socket, Light MAY 12570701V Contact Us For Availability
6
MAY 12528501 MAY 12528501 Contact Us For Availability
6
MAY 12463608 MAY 12463608 Contact Us For Availability
6
MAY W10217744 MAY W10217744 Contact Us For Availability
7
MAY 10351005 MAY 10351005 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12204823 MAY 12204823 Contact Us For Availability
7
MAY W10224241 MAY W10224241 Contact Us For Availability
8
Bolt, Adjusting (Rear) MAY 12606103 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door Magnetic (Black) MAY W10164031 Contact Us For Availability
8
MAY 12724014KVF MAY 12724014KVF Contact Us For Availability
8
MAY W10189185 MAY W10189185 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10194422V MAY W10194422V Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
COVER-FILL TUBE MAY 12477501 Contact Us For Availability
10
Housing, Frz. Light MAY 12476401V Contact Us For Availability
10
Slide, Humidity MAY 12530805SP Contact Us For Availability
10
MAY 12729127 MAY 12729127 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12226110 MAY 12226110 Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
12
COVER-HINGE MAY 12561901B Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
SCREW (7) MAY 12990101 Contact Us For Availability
12
Rail, Center Crisper MAY 12530701 Contact Us For Availability
12
MAY 2320150 MAY 2320150 Contact Us For Availability
12
MAY W10136414 MAY W10136414 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
Bushing (Black) MAY 10961006B Contact Us For Availability
13
BRACE, CRISPER FRAME MAY 12227302WD Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
Housing, Lighting MAY 12805001 Contact Us For Availability
14
MAY 12557904 MAY 12557904 Contact Us For Availability
14
MAY W10231337 MAY W10231337 Contact Us For Availability
14
MAY 12639324SP MAY 12639324SP Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
MAY W10196393 MAY W10196393 Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY 12990504 MAY 12990504 Contact Us For Availability
15
Pan, Crisper (2) MAY 12531305 Contact Us For Availability
15
MAY W10206336 MAY W10206336 Contact Us For Availability
16
Foot Brake (2) MAY 10354002 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
SHELF, GLIDE (UPPER) MAY 12694606 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
PLUG, BUTTON MAY M0310343 Contact Us For Availability
17
Stop, Door (Black) MAY 10447112 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
18
MAY 12566606ED MAY 12566606ED Contact Us For Availability
18
Divider, Upper Basket MAY 12693802 Contact Us For Availability
18
MAY W10135028 MAY W10135028 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
MAY A3189394 MAY A3189394 Contact Us For Availability
20
BUCKET (2) (SMALL) MAY 12557202 Contact Us For Availability
20
MAY W10143565 MAY W10143565 Contact Us For Availability
20
MAY 12225401WD MAY 12225401WD Contact Us For Availability
21
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
21
GLIDE, LEFT MAY 12656601SP Contact Us For Availability
21
GLIDE, RIGHT MAY 12656602SP Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
Grille Assembly (Includes Clips) (Black) MAY 12734404B Contact Us For Availability
22
Cover, Fan Shroud MAY 13024803 Contact Us For Availability
22
MAY 12503804SP MAY 12503804SP Contact Us For Availability
22
MAY 12726401 MAY 12726401 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12656504SP MAY 12656504SP Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
25
Grommet (2) MAY W10121318 Contact Us For Availability
26
HINGE-BOTTOM MAY 12465005ED Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY W10234024 MAY W10234024 Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
FUNNEL, DRAIN (INCL. No. 28 & 29) MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY W10210978 MAY W10210978 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 2 MAY W10130129 Contact Us For Availability
29
Insulation, Sound MAY 12820505 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
30
MAY W10210987 MAY W10210987 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
33
MAY B5759655 MAY B5759655 Contact Us For Availability
33
MAY 12991603V MAY 12991603V Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
37
Grommet (4) MAY W10137529 Contact Us For Availability
NI
MAY 12868701 MAY 12868701 Contact Us For Availability
NI
MAY 13014801 MAY 13014801 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10261234 MAY W10261234 Contact Us For Availability
× ![]()
