Model Maytag ABL192ZWES1 REFRIGERATOR – Common Parts & Diagrams

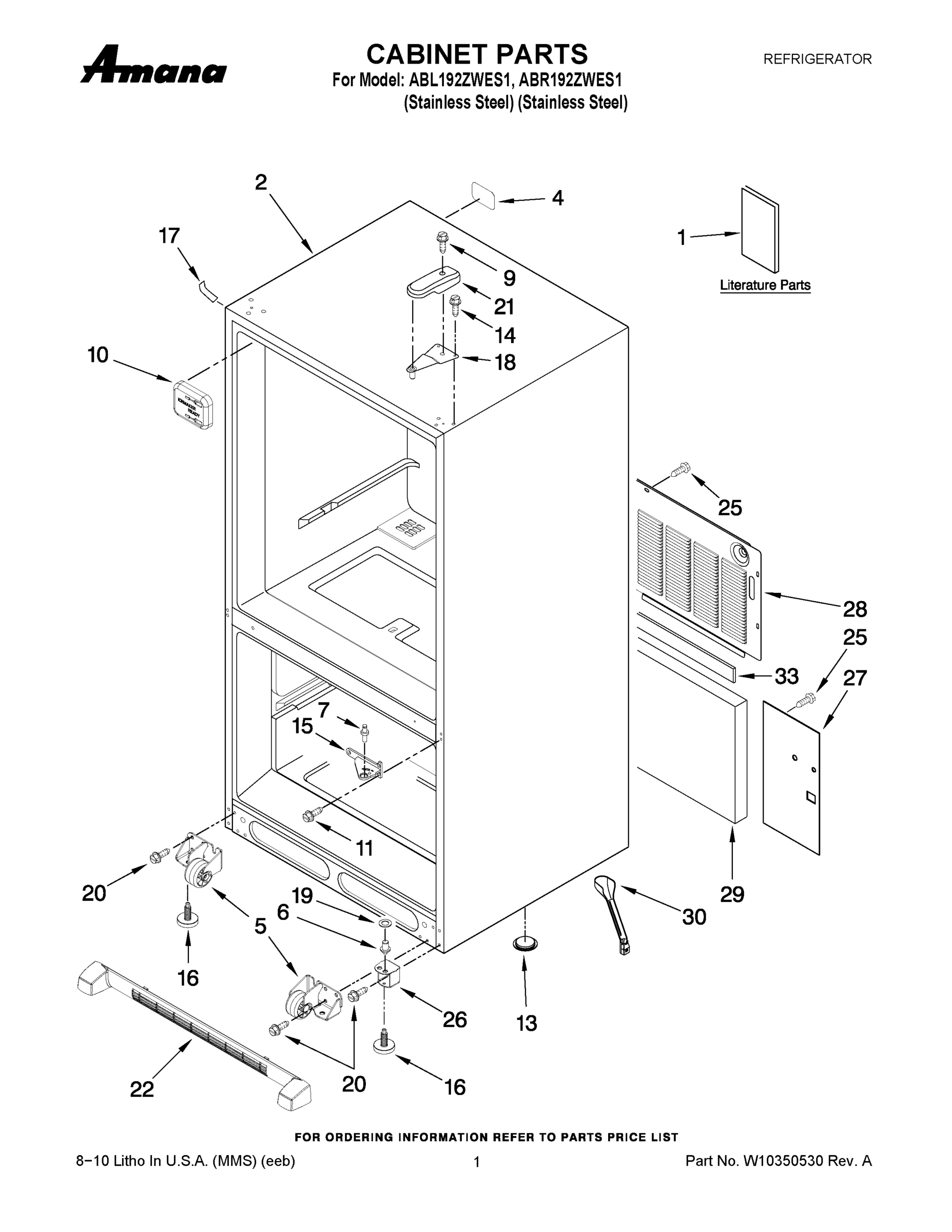

01 - CABINET PARTS

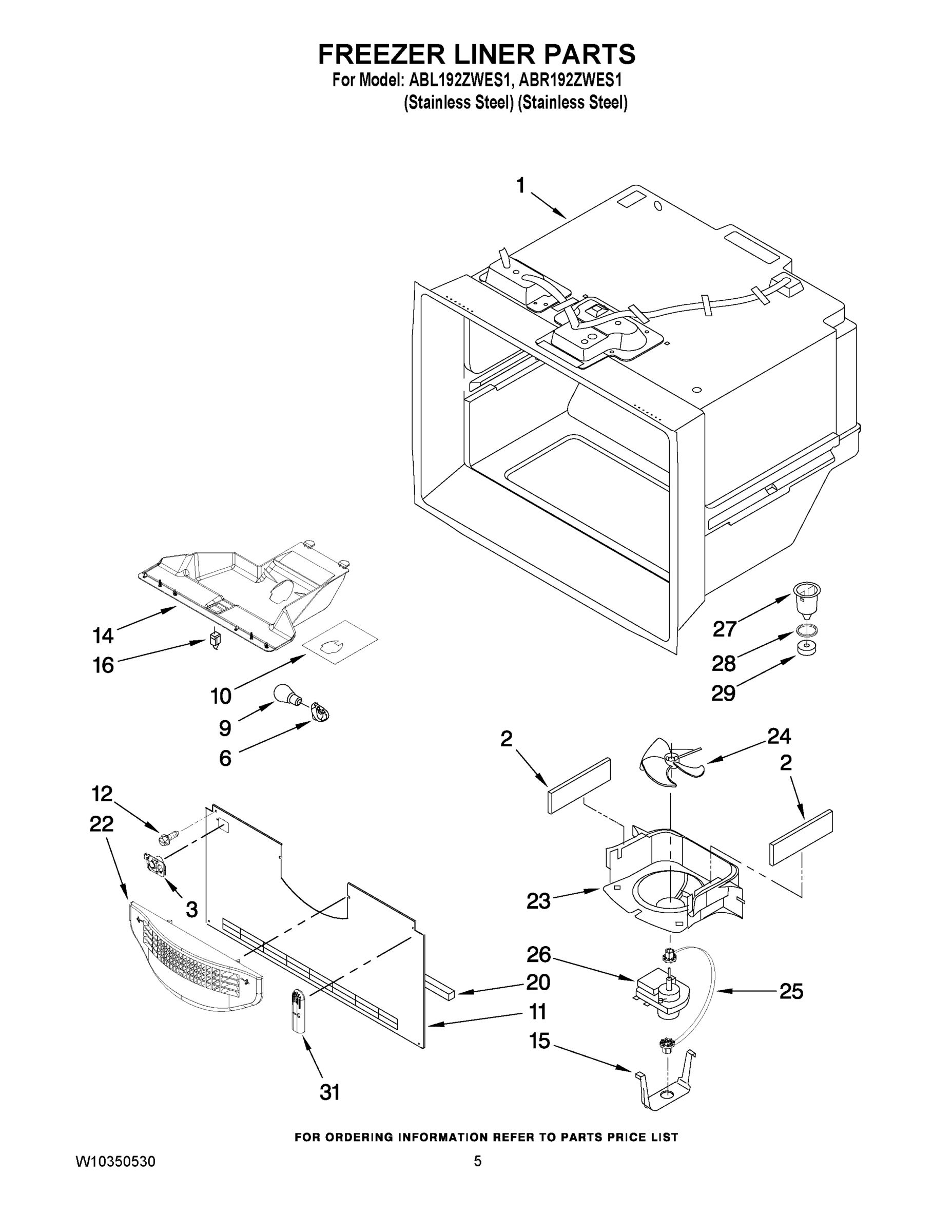

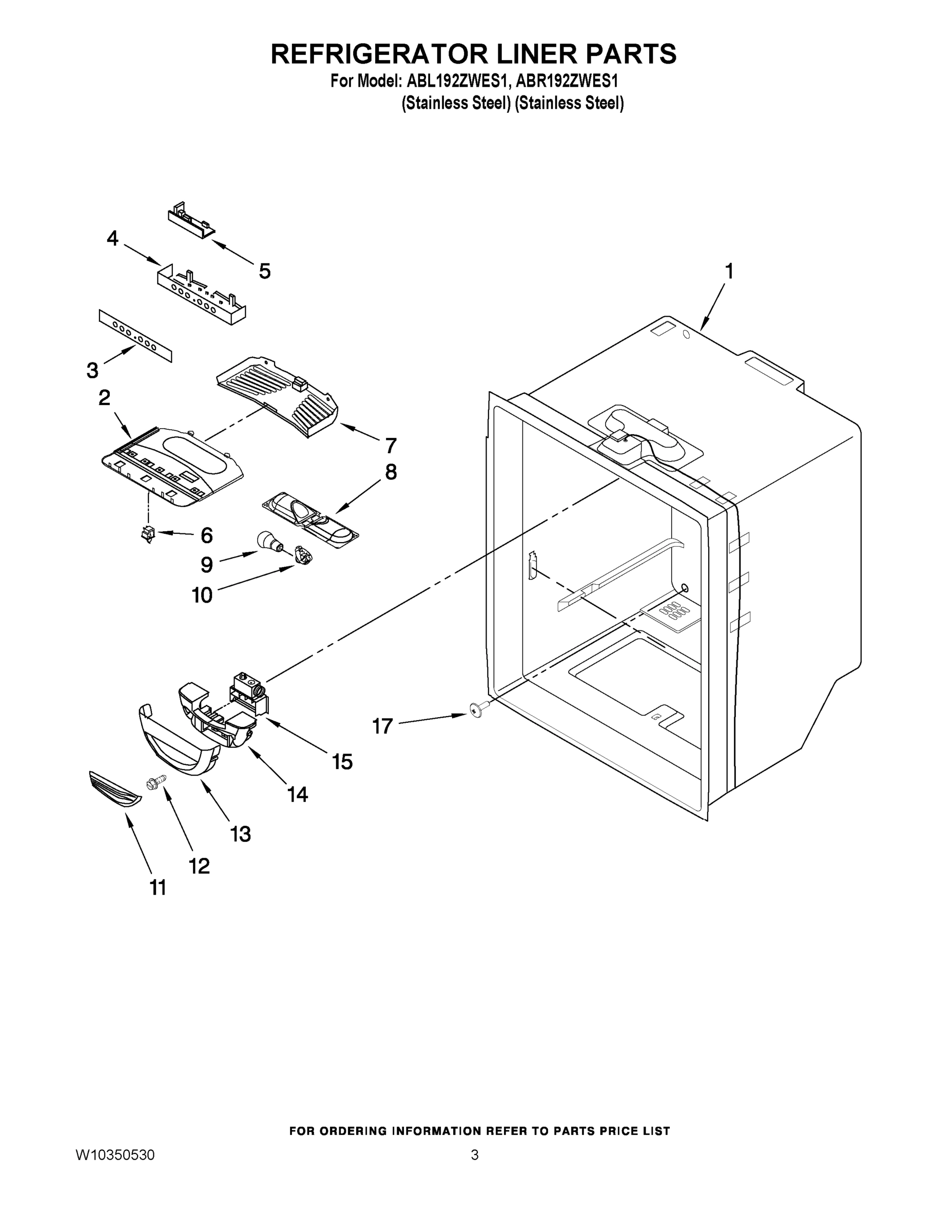

02 - REFRIGERATOR LINER PARTS
03 - FREEZER LINER PARTS

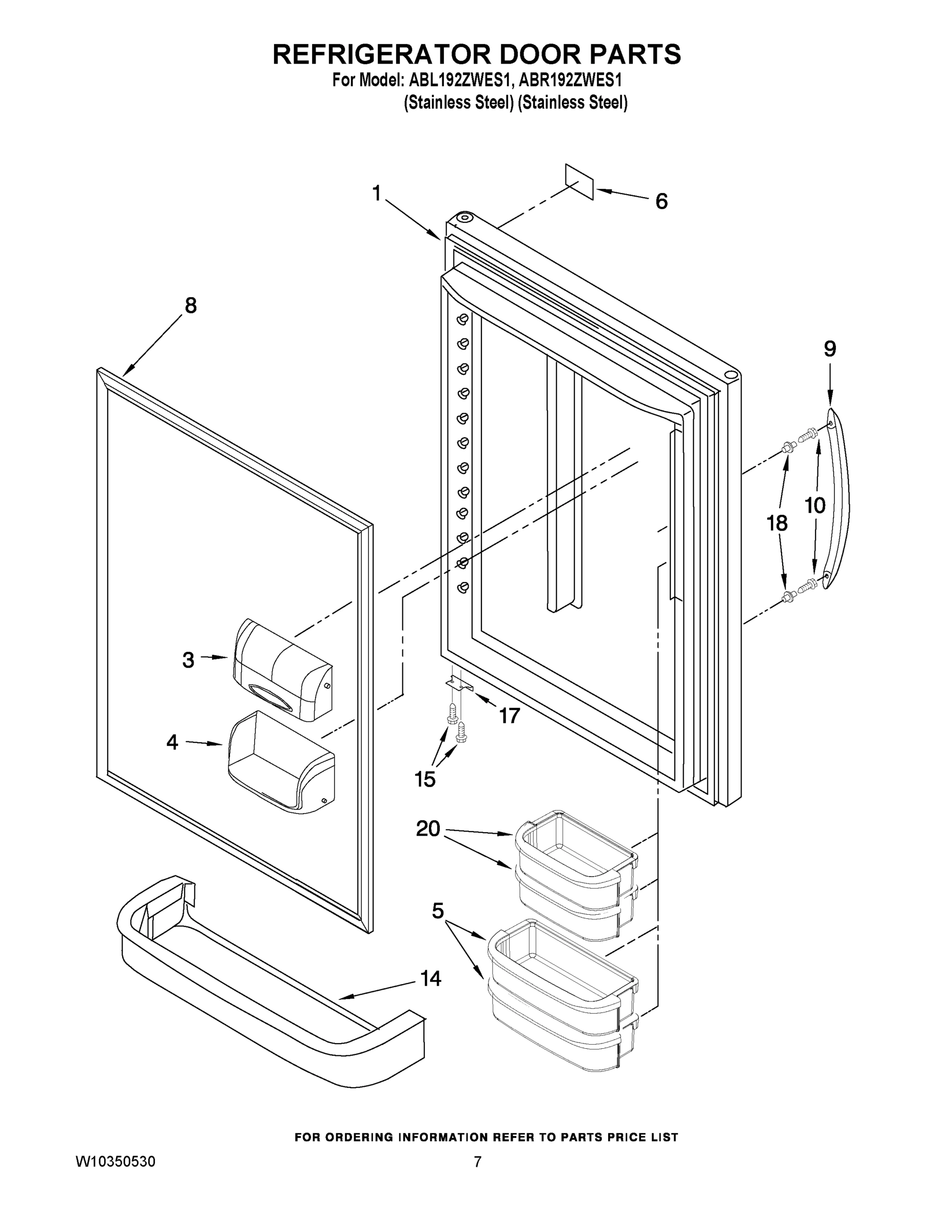

04 - REFRIGERATOR DOOR PARTS

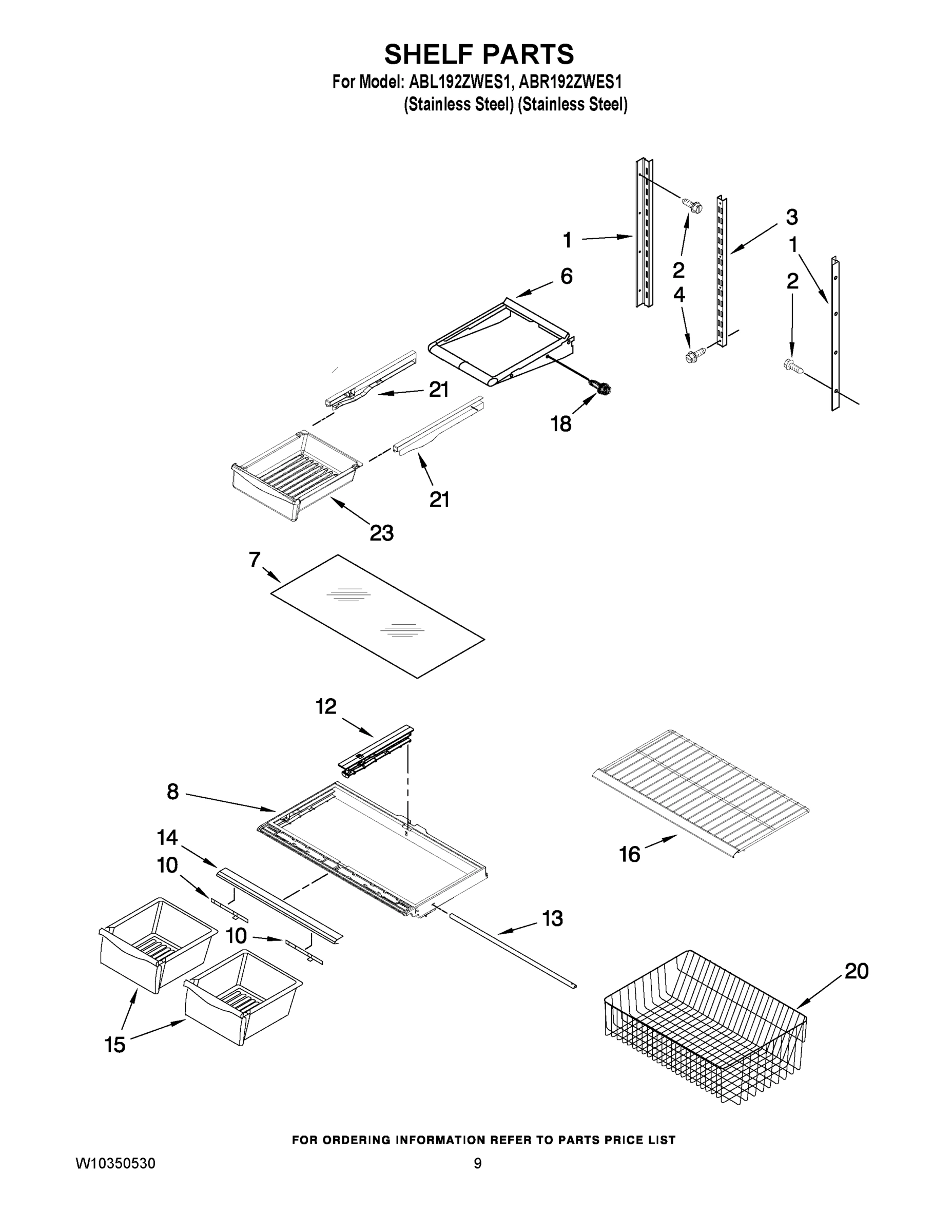

05 - SHELF PARTS

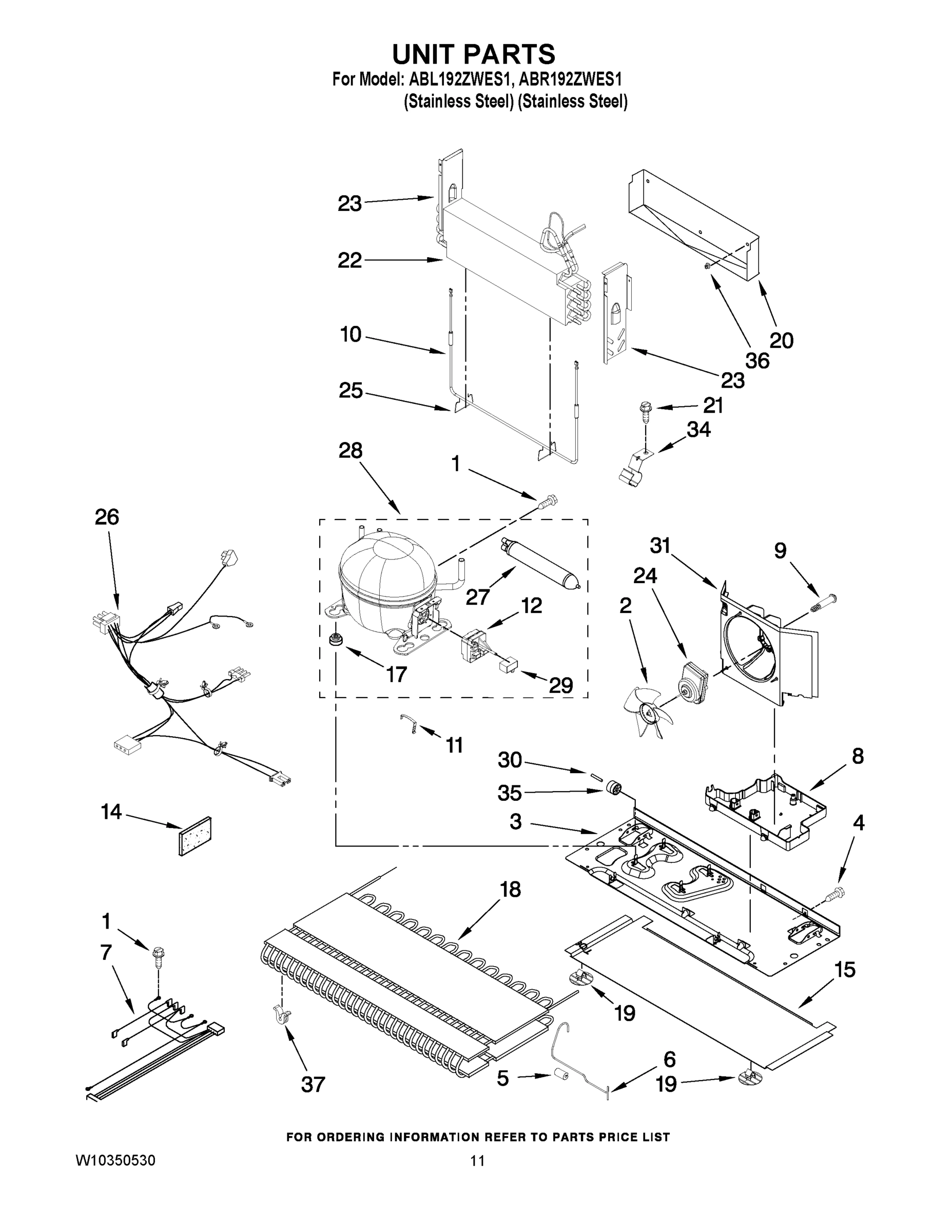

06 - UNIT PARTS

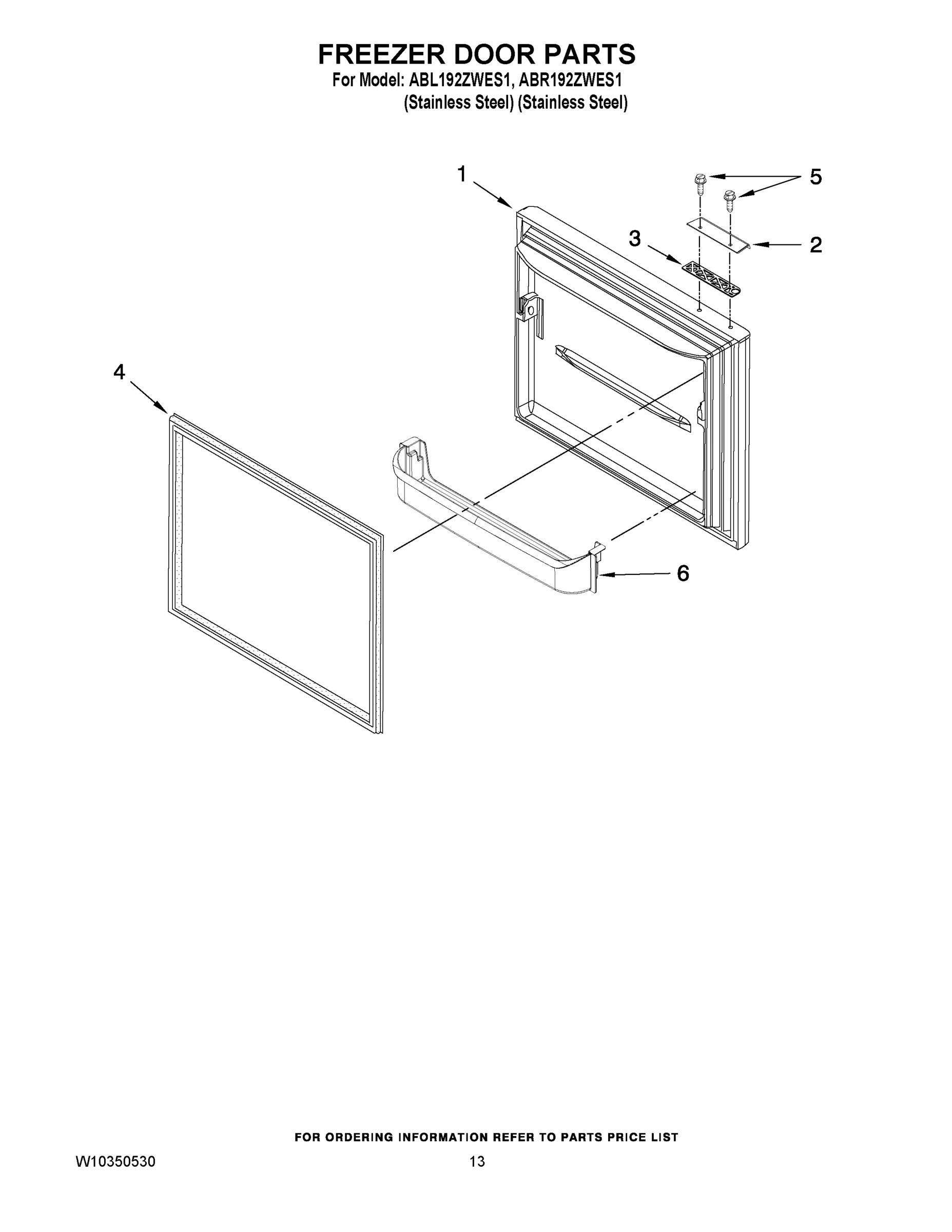

07 - FREEZER DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ABL192ZWES1 REFRIGERATOR
1
MAY W10322959 MAY W10322959 Contact Us For Availability
1
REFRIGERATOR DOOR (W/ INSULATION) STAINLESS S MAY 13107509SQ Contact Us For Availability
1
REFRIGERATOR DOOR (W/ INSULATION) STAINLESS S MAY 13107511SQ Contact Us For Availability
1
MAY W10251970 MAY W10251970 Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
FREEZER DOOR (W/ INSULATION) (STAINLESS STEEL MAY 13024243SQ Contact Us For Availability
2
MAY 12806301 MAY 12806301 Contact Us For Availability
2
Gasket, Foam (2) MAY A3189392 Contact Us For Availability
2
MAY 12990513 MAY 12990513 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS STEEL) MAY 12660007S Contact Us For Availability
3
MAY W10205986 MAY W10205986 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10273463 MAY W10273463 Contact Us For Availability
3
MAY W10210982 MAY W10210982 Contact Us For Availability
3
MAY 12647901S MAY 12647901S Contact Us For Availability
4
LABEL-FILL TUBE MAY 12249902 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
Housing, Electronic Control MAY 12806406 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
SCREW (2) MAY W10215666 Contact Us For Availability
4
MAY W10164033 MAY W10164033 Contact Us For Availability
5
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
5
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
5
MAY 12784415V MAY 12784415V Contact Us For Availability
5
MAY 12557204V MAY 12557204V Contact Us For Availability
5
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
5
SCREW MAY 12991701 Contact Us For Availability
6
MAY 10200802 MAY 10200802 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
Socket, Light MAY 12570701V Contact Us For Availability
6
MAY 12528501 MAY 12528501 Contact Us For Availability
6
SHELF, STATIONARY (4) MAY 12463608 Contact Us For Availability
6
MAY W10296293 MAY W10296293 Contact Us For Availability
6
RETAINER MAY 12737501 Contact Us For Availability
7
MAY 10351005 MAY 10351005 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
GLASS, CRISPER MAY 12204823N Contact Us For Availability
7
HARNESS, EVAP HEATER MAY W10292244 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door Magnetic (Black) MAY W10164031 Contact Us For Availability
8
MAY 12530901SP MAY 12530901SP Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY 2255743N MAY 2255743N Contact Us For Availability
9
HANDLE, DOOR (STAINLESS STEEL) MAY W10136873N Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
COVER-FILL TUBE MAY 12477501 Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
SCREW MAY W10290759 Contact Us For Availability
10
Slide, Humidity MAY 12530805SP Contact Us For Availability
10
MAY 12729127 MAY 12729127 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308414 MAY W10308414 Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
SCREW (7) MAY 12990101 Contact Us For Availability
12
MAY 12530701N MAY 12530701N Contact Us For Availability
12
MAY W10194431 MAY W10194431 Contact Us For Availability
12
MAY W10293291 MAY W10293291 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
BRACE, CRISPER FRAME MAY 12227302WD Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
MAY 12557904 MAY 12557904 Contact Us For Availability
14
MAY W10231337 MAY W10231337 Contact Us For Availability
14
INSULATION, SOUND MAY 2169104 Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
MAY W10196393 MAY W10196393 Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY 12990504 MAY 12990504 Contact Us For Availability
15
Pan, Crisper (2) MAY 12531305 Contact Us For Availability
15
MAY W10206336 MAY W10206336 Contact Us For Availability
16
FOOT BRAKE (2) MAY W10141622 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
SHELF, GLIDE (UPPER) MAY 12476801 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
PLUG, BUTTON MAY M0310343 Contact Us For Availability
17
Stop, Door (Black) MAY 10447112 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
18
MAY 12566606ED MAY 12566606ED Contact Us For Availability
18
MAY 13001201 MAY 13001201 Contact Us For Availability
18
SCREW (4) MAY 12990302V Contact Us For Availability
18
MAY W10135028 MAY W10135028 Contact Us For Availability
19
SHIM MAY M0274062 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
MAY A3189394 MAY A3189394 Contact Us For Availability
20
BUCKET (2) (SMALL) MAY 12557202 Contact Us For Availability
20
MAY W10292801 MAY W10292801 Contact Us For Availability
21
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
21
GLIDE, LEFT MAY 12656601V Contact Us For Availability
21
GLIDE, RIGHT MAY 12656602V Contact Us For Availability
21
MAY 12992101 MAY 12992101 Contact Us For Availability
22
Grille Assembly (Includes Clips) (Black) MAY W10236650 Contact Us For Availability
22
Cover, Fan Shroud MAY 13024803 Contact Us For Availability
22
MAY W10317012 MAY W10317012 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12656504V MAY 12656504V Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
Grommet (2) MAY W10121318 Contact Us For Availability
26
HINGE, BOTTOM MAY W10325141 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY W10234024 MAY W10234024 Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
FUNNEL, DRAIN (INCL. No. 28 & 29) MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY W10210978 MAY W10210978 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY W10187125 MAY W10187125 Contact Us For Availability
29
Insulation, Sound MAY 12820505 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
30
MAY W10210987 MAY W10210987 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
33
MAY B5759655 MAY B5759655 Contact Us For Availability
34
MAY W10281329 MAY W10281329 Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
37
GROMMET (2) MAY W10137529 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES TH MAY 12868701 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10261234 MAY W10261234 Contact Us For Availability
× ![]()
