Model Maytag AB2526PEKW4 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

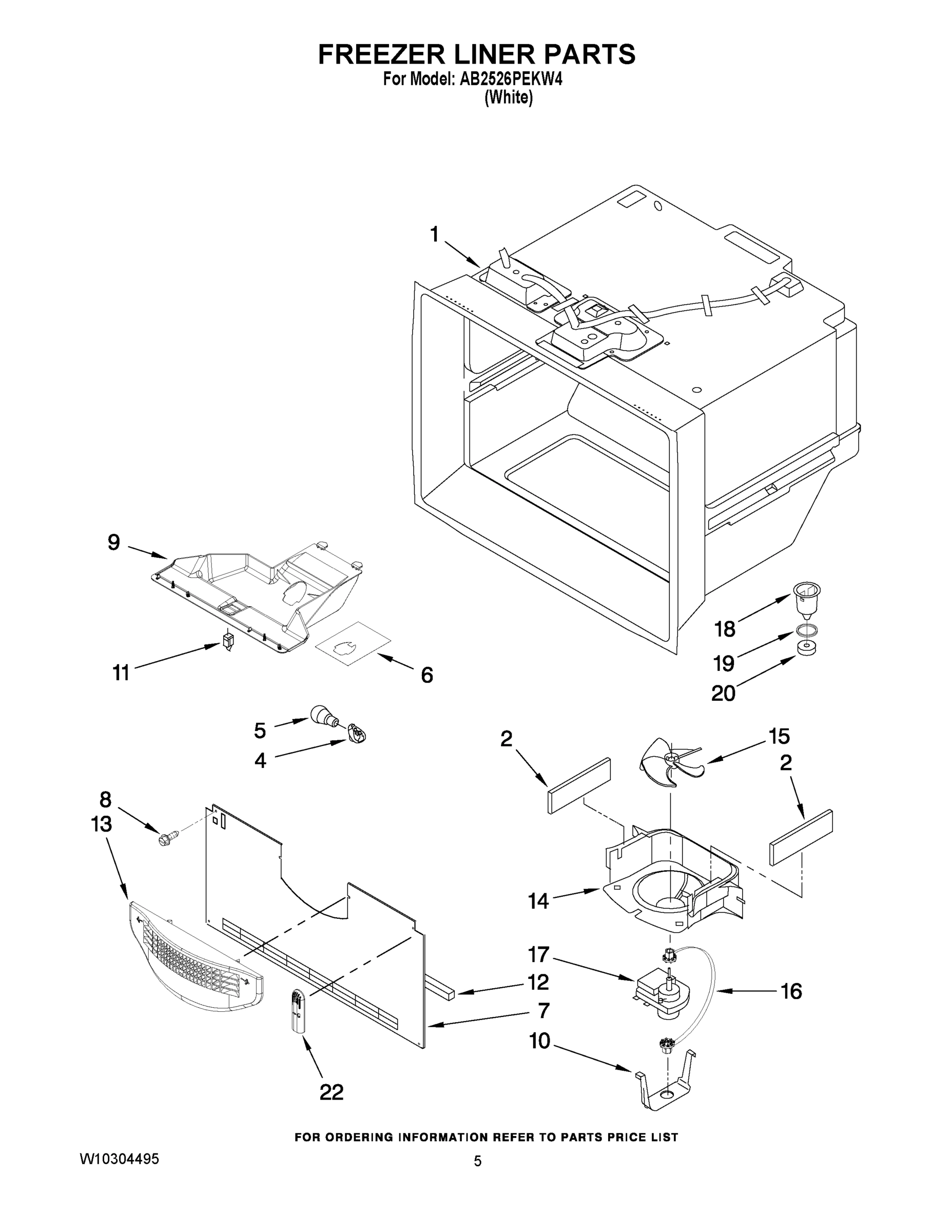

03 - FREEZER LINER PARTS

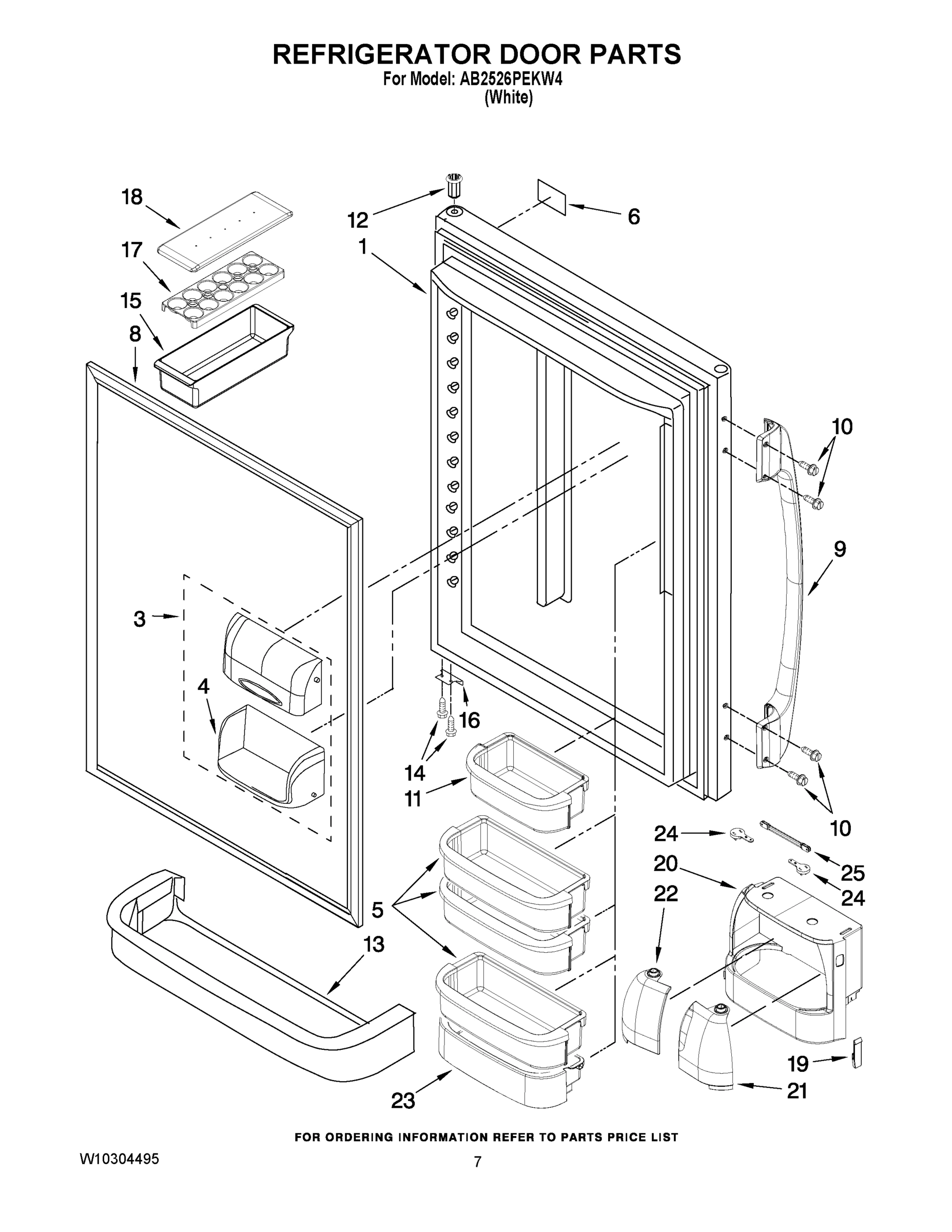

04 - REFRIGERATOR DOOR PARTS

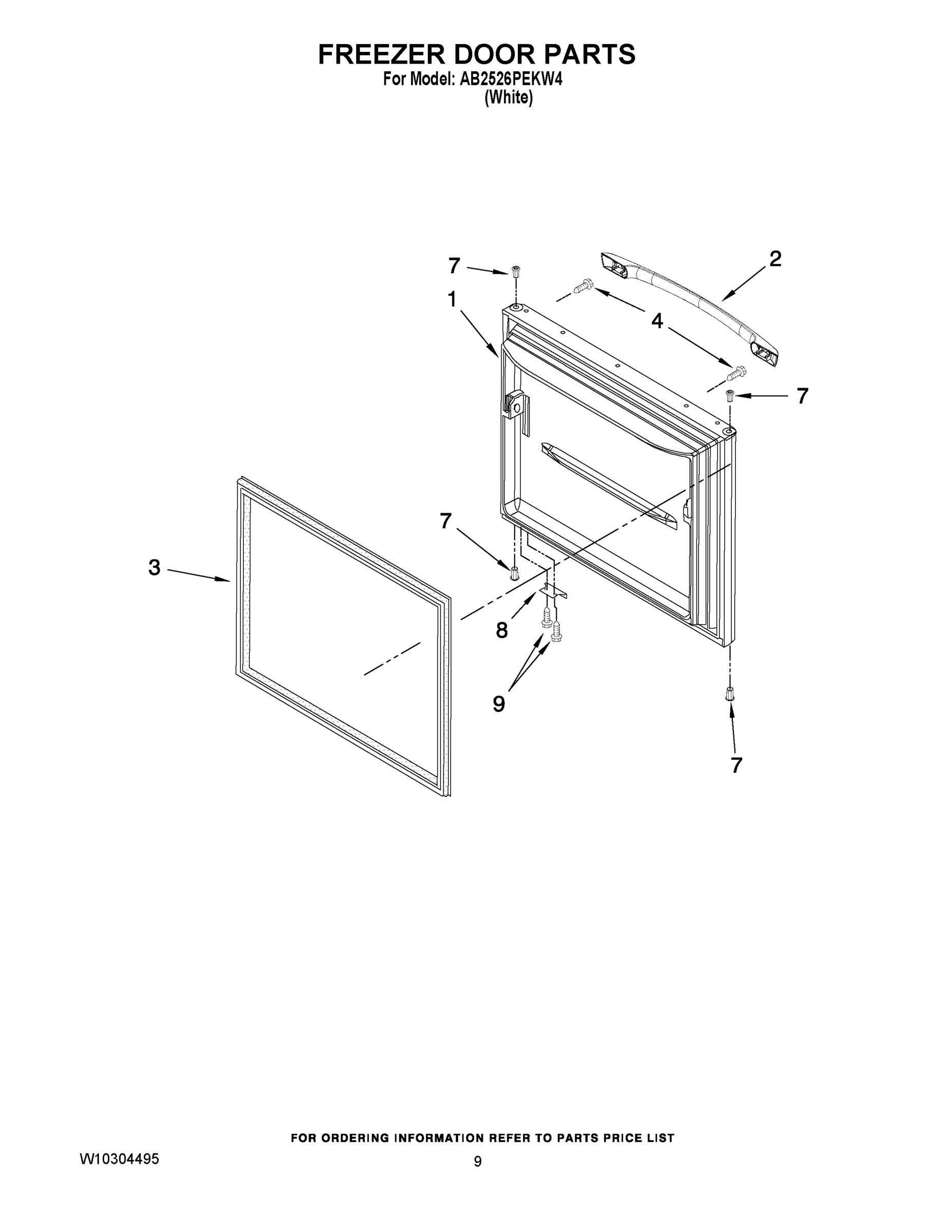

05 - FREEZER DOOR PARTS

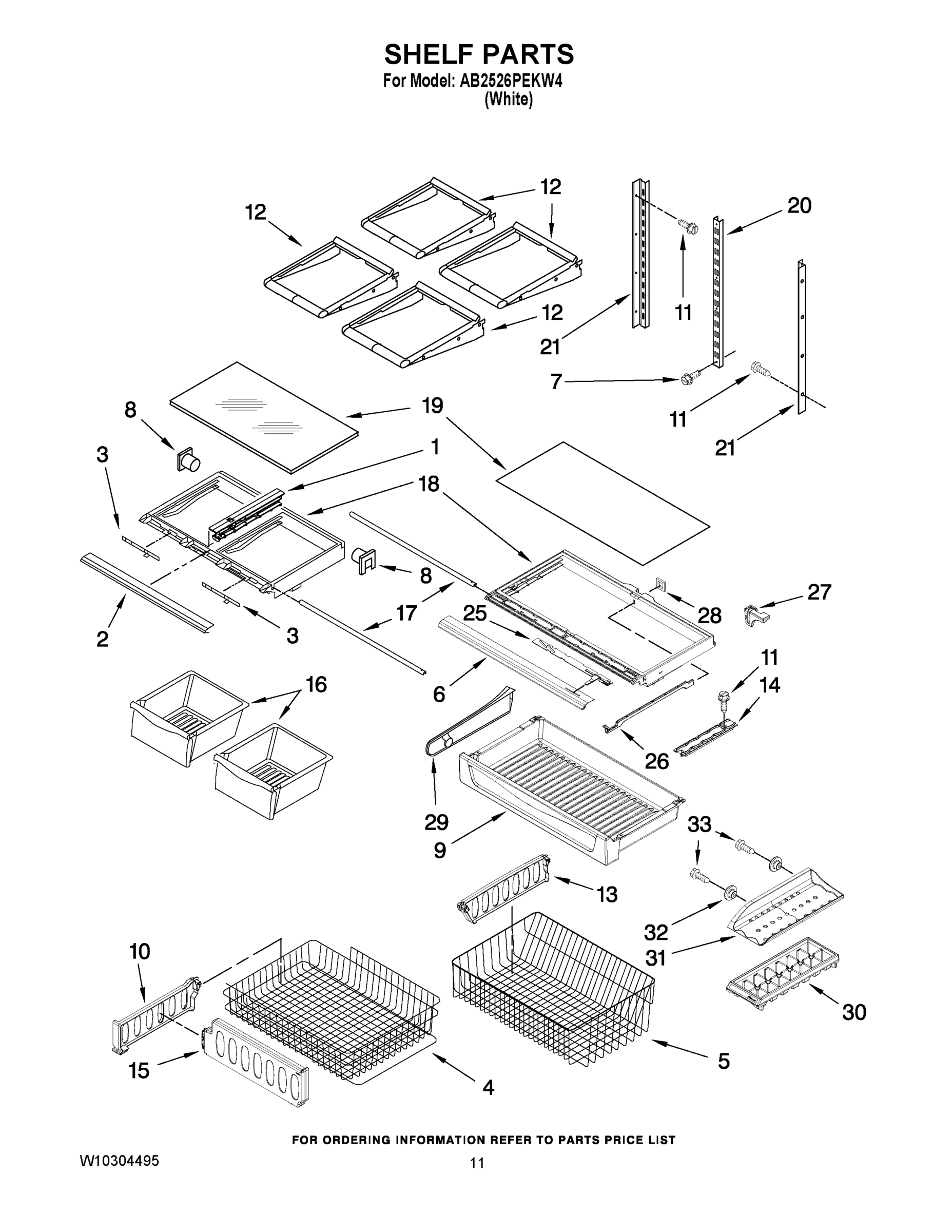

06 - SHELF PARTS

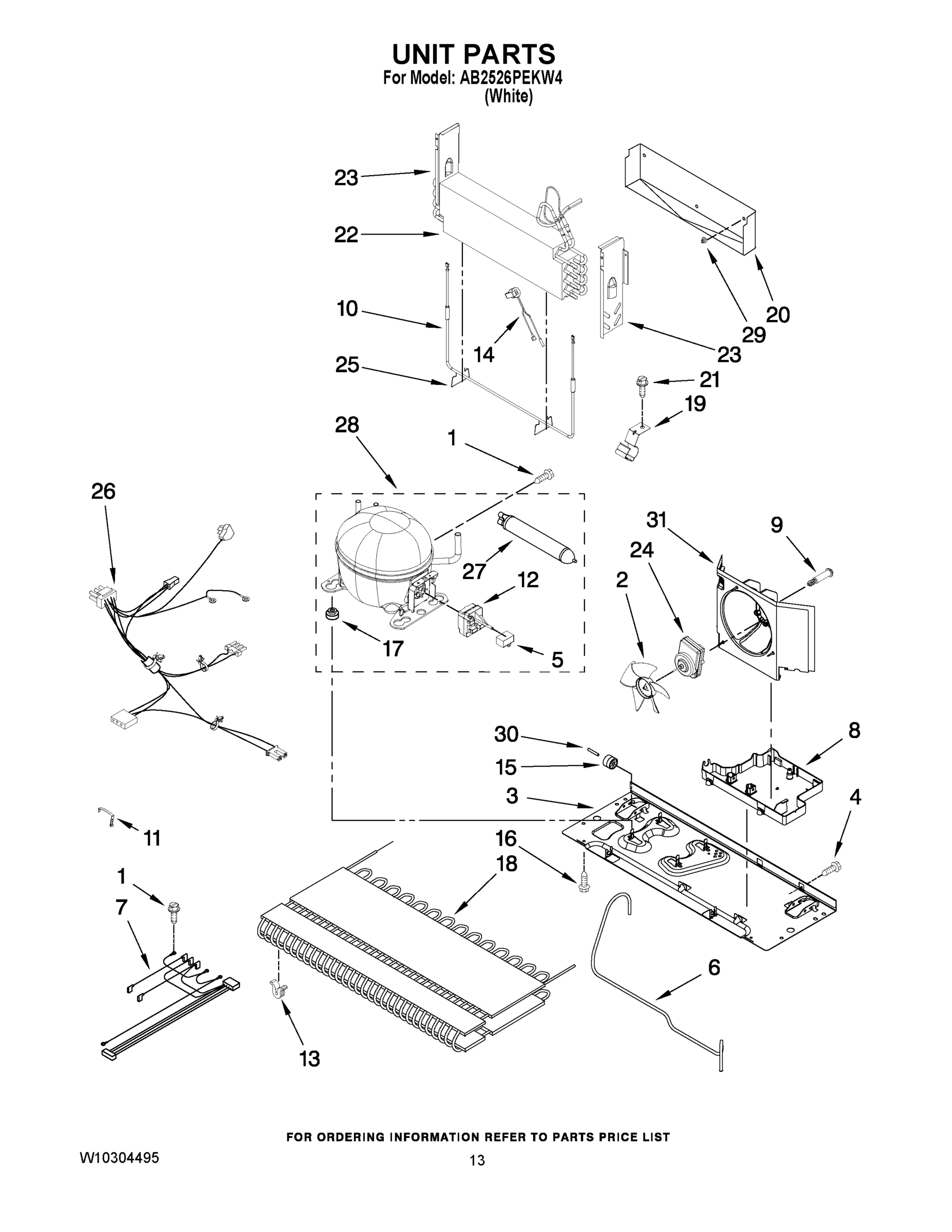

07 - UNIT PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AB2526PEKW4 REFRIGERATOR
1
MAY 12658531WQ MAY 12658531WQ Contact Us For Availability
1
MAY 13092203WQ MAY 13092203WQ Contact Us For Availability
1
RAIL, CENTER CRISPER MAY 12796401 Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
2
MAY 12806301 MAY 12806301 Contact Us For Availability
2
Gasket, Foam (2) MAY A3189392 Contact Us For Availability
2
MAY W10179171 MAY W10179171 Contact Us For Availability
2
MAY W10231344 MAY W10231344 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
MAY M0310729 MAY M0310729 Contact Us For Availability
3
MAY 12816516 MAY 12816516 Contact Us For Availability
3
MAY 12744905 MAY 12744905 Contact Us For Availability
3
MAY W10164040 MAY W10164040 Contact Us For Availability
3
Slide, Humidity MAY 12530805SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
4
LABEL-FILL TUBE MAY 12249902 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
Housing, Electronic Control MAY 12806406 Contact Us For Availability
4
MAY W10134764V MAY W10134764V Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10209706 MAY W10209706 Contact Us For Availability
5
MAY 12868515 MAY 12868515 Contact Us For Availability
5
MAY A0282808V MAY A0282808V Contact Us For Availability
5
MAY 12849108 MAY 12849108 Contact Us For Availability
5
Basket, Freezer (Lower) MAY W10150039 Contact Us For Availability
5
CAPACITOR MAY 2321245 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY W10277466 MAY W10277466 Contact Us For Availability
6
MAY 12528501 MAY 12528501 Contact Us For Availability
6
MAY W10231336 MAY W10231336 Contact Us For Availability
6
MAY W10217747 MAY W10217747 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12226114 MAY 12226114 Contact Us For Availability
7
MAY 10961006W MAY 10961006W Contact Us For Availability
7
MAY 12990515 MAY 12990515 Contact Us For Availability
7
HARNESS, EVAP. HEATER MAY W10280429 Contact Us For Availability
8
Bolt, Adjusting (Rear) MAY 12606103 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
GASKET, DOOR MAGNETIC (WHITE) MAY W10164038 Contact Us For Availability
8
MAY 10447111 MAY 10447111 Contact Us For Availability
8
MAY 13062602 MAY 13062602 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10277025 MAY W10277025 Contact Us For Availability
9
MAY W10179172 MAY W10179172 Contact Us For Availability
9
MAY 12990504 MAY 12990504 Contact Us For Availability
9
MAY 12645021 MAY 12645021 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
COVER-FILL TUBE MAY 12477501 Contact Us For Availability
10
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
10
Screw MAY 12992802 Contact Us For Availability
10
MAY W10241046 MAY W10241046 Contact Us For Availability
10
MAY 12729132 MAY 12729132 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12466105 MAY 12466105 Contact Us For Availability
11
MAY 12849104 MAY 12849104 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
STRAP, BALE MAY 2302129 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
Gasket, Bottom MAY A3189397 Contact Us For Availability
12
SHELF, GLIDE (4) MAY 12654610 Contact Us For Availability
12
START DEVICE MAY 2312007 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
Cover, Fan Shroud MAY 13024803 Contact Us For Availability
13
MAY 12819901 MAY 12819901 Contact Us For Availability
13
MAY W10146440 MAY W10146440 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
14
TRACK, DELI MAY 12531901 Contact Us For Availability
14
Thermostat, Defrost MAY 12639322SP Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY W10177399 MAY W10177399 Contact Us For Availability
15
Fan, Evaporator MAY 2169142 Contact Us For Availability
15
MAY 10423131SP MAY 10423131SP Contact Us For Availability
15
MAY W10171558 MAY W10171558 Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
16
FOOT BRAKE (2) MAY W10141622 Contact Us For Availability
16
Grommet (2) MAY W10121318 Contact Us For Availability
16
MAY 12724126 MAY 12724126 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 10449516 MAY 10449516 Contact Us For Availability
17
MAY 10436506S MAY 10436506S Contact Us For Availability
17
Brace, Crisper (2) MAY 12642303WD Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
18
Hinge, Top MAY 12566604ED Contact Us For Availability
18
FUNNEL, DRAIN (INCL. No. 19 & 20) MAY D7753903 Contact Us For Availability
18
MAY 10436404S MAY 10436404S Contact Us For Availability
18
FRAME, CRISPER (2) MAY 12796301SP Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY 12827501SP MAY 12827501SP Contact Us For Availability
19
MAY 12204824 MAY 12204824 Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
Gasket MAY B8381501 Contact Us For Availability
20
MAY 12805901SP MAY 12805901SP Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
21
MAY 12477601W MAY 12477601W Contact Us For Availability
21
MAY 12805301SP MAY 12805301SP Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE) MAY W10244559 Contact Us For Availability
22
MAY 12815301 MAY 12815301 Contact Us For Availability
22
MAY 12805402SP MAY 12805402SP Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
23
MAY 12830302SP MAY 12830302SP Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
MAY 12568401SP MAY 12568401SP Contact Us For Availability
24
MAY W10246191 MAY W10246191 Contact Us For Availability
25
MAY 12568502SP MAY 12568502SP Contact Us For Availability
25
Slide,Pantry MAY 12531502 Contact Us For Availability
26
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
26
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
26
BAR, CONTROL MAY 12531402 Contact Us For Availability
26
MAY W10273559 MAY W10273559 Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
MAY 12531601 MAY 12531601 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY W10212541 MAY W10212541 Contact Us For Availability
28
MAY 12531701 MAY 12531701 Contact Us For Availability
28
MAY W101223234 MAY W101223234 Contact Us For Availability
29
Insulation, Sound MAY 12820505 Contact Us For Availability
29
MAY 12707602 MAY 12707602 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
MAY W10210988 MAY W10210988 Contact Us For Availability
30
TRAY, ICE CUBE MAY D7725402S Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
31
Rack, Ice MAY 12646501 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
33
Gasket MAY B5759649 Contact Us For Availability
33
SCREW (2) MAY 12991001 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
Harness, Controls (Refrigerator) MAY 12973503 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (IC514) MAY W10261455 Contact Us For Availability
× ![]()
