Model Maytag AB1924PEKS13 REFRIGERATOR – Common Parts & Diagrams

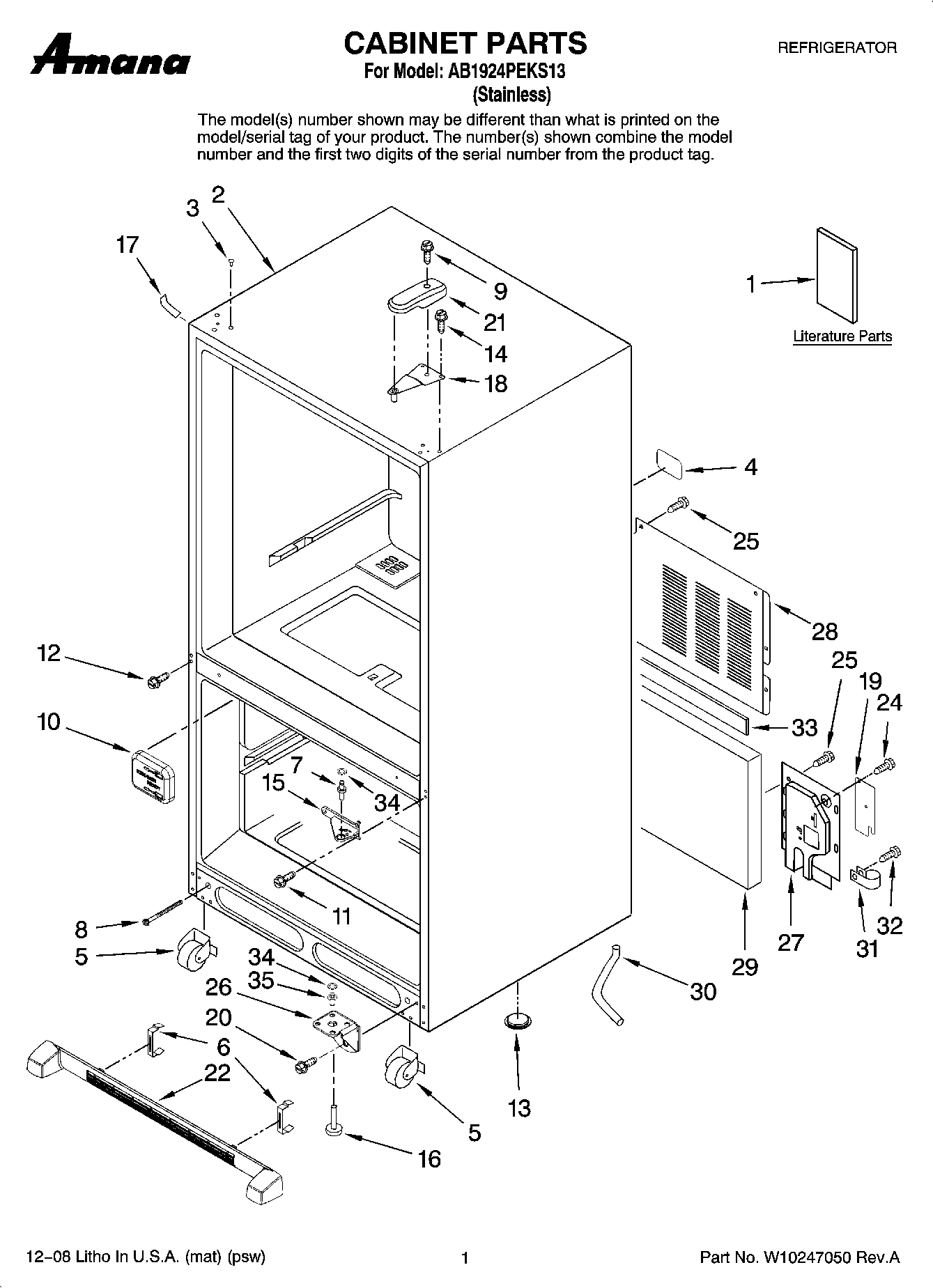

01 - CABINET PARTS

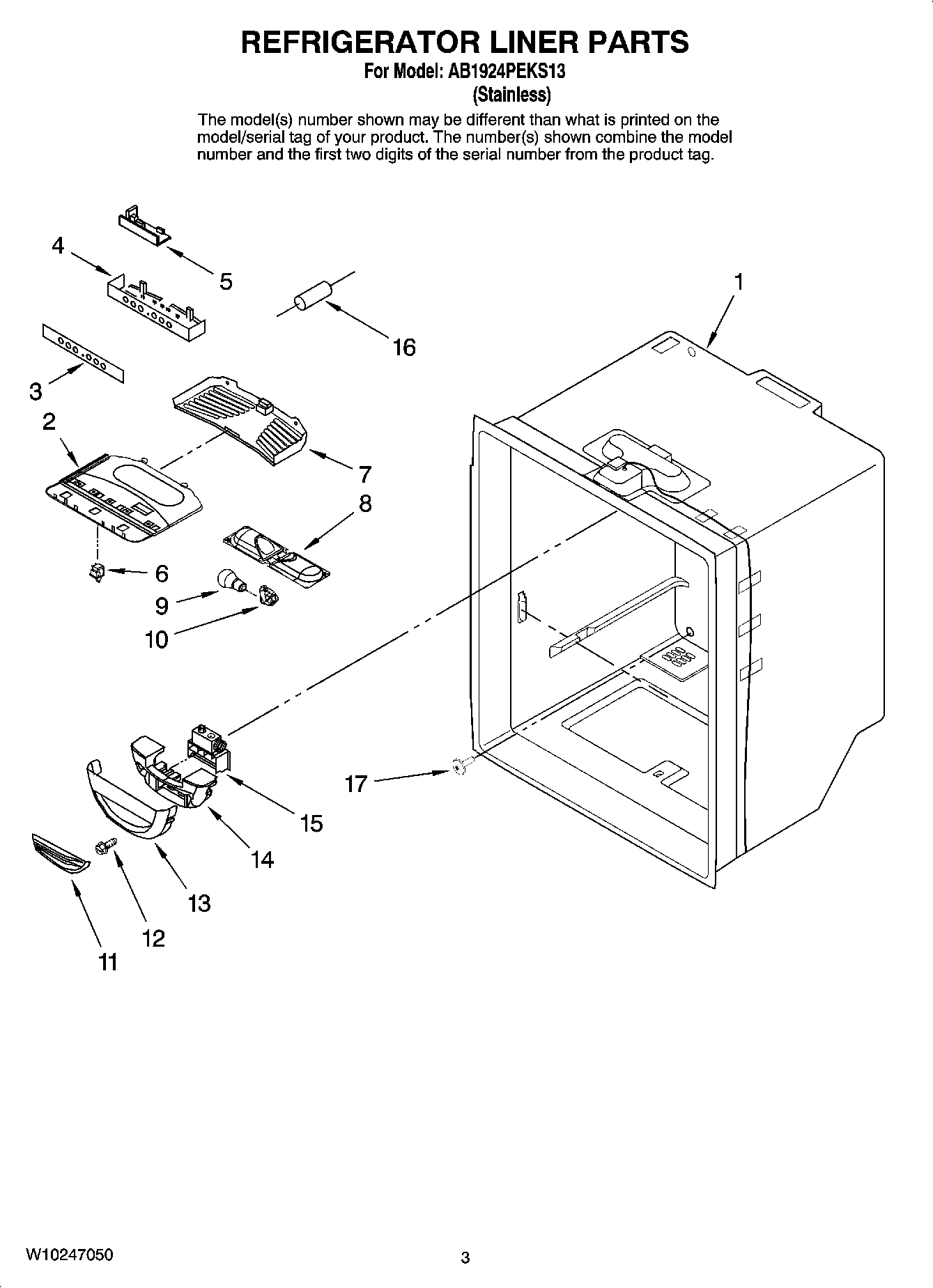

02 - REFRIGERATOR LINER PARTS
03 - FREEZER LINER PARTS
04 - REFRIGERATOR DOOR PARTS
05 - FREEZER DOOR PARTS
06 - SHELF PARTS
07 - UNIT PARTS
08 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AB1924PEKS13 REFRIGERATOR
1
MAY 13023849SQ MAY 13023849SQ Contact Us For Availability
1
MAY W10180598 MAY W10180598 Contact Us For Availability
1
MAY 67001302 MAY 67001302 Contact Us For Availability
1
Screw (3) MAY 67006433 Contact Us For Availability
2
MAY 67006400 MAY 67006400 Contact Us For Availability
2
MAY W10162928 MAY W10162928 Contact Us For Availability
3
MAY 12683816B MAY 12683816B Contact Us For Availability
3
MAY 67006914 MAY 67006914 Contact Us For Availability
3
Cup, Fill MAY 628356 Contact Us For Availability
4
Screw, Handle MAY 67006529 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
5
MAY 2182124 MAY 2182124 Contact Us For Availability
6
Clip, Grille MAY 12627302 Contact Us For Availability
6
Housing, Frz. Light MAY 67001035 Contact Us For Availability
6
MAY 12528501 MAY 12528501 Contact Us For Availability
6
MAY 67002470 MAY 67002470 Contact Us For Availability
6
Shelf, STA (4) MAY 67003707 Contact Us For Availability
6
MAY 12049773 MAY 12049773 Contact Us For Availability
6
Support & Motor Assembly MAY 2195914 Contact Us For Availability
7
MAY W10169651 MAY W10169651 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
8
Gasket, Door Magnetic (Black) MAY 12683815B Contact Us For Availability
8
Drain Pan MAY 67004713 Contact Us For Availability
9
MAY 12846104S MAY 12846104S Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
Screw (2) MAY 681249 Contact Us For Availability
10
MAY 67007083 MAY 67007083 Contact Us For Availability
10
Slide-Crisper MAY 67005864 Contact Us For Availability
10
MAY 12729118 MAY 12729118 Contact Us For Availability
11
MAY 67001747 MAY 67001747 Contact Us For Availability
11
MAY 67007162 MAY 67007162 Contact Us For Availability
12
Overload/Relay (Service) MAY 2303344 Contact Us For Availability
12
MAY 67006453 MAY 67006453 Contact Us For Availability
13
MAY 67002505 MAY 67002505 Contact Us For Availability
13
MAY A3223101 MAY A3223101 Contact Us For Availability
14
MAY 67003884 MAY 67003884 Contact Us For Availability
14
MAY 12639322SP MAY 12639322SP Contact Us For Availability
14
Tubing, Plastic MAY B5705307 Contact Us For Availability
15
MAY 10423131 MAY 10423131 Contact Us For Availability
15
Grommet (4) MAY W10137529 Contact Us For Availability
15
HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability
16
Grommet (2) MAY W10121318 Contact Us For Availability
16
Shelf, Freezer (Upper) MAY 67006231 Contact Us For Availability
16
Shroud, Condenser MAY 12575308 Contact Us For Availability
16
MAY 625910 MAY 625910 Contact Us For Availability
17
MAY 67005023 MAY 67005023 Contact Us For Availability
17
MAY 10436506 MAY 10436506 Contact Us For Availability
17
Rack, Ice MAY 12646501 Contact Us For Availability
17
MAY 67007052 MAY 67007052 Contact Us For Availability
17
MAY 67006662 MAY 67006662 Contact Us For Availability
18
Funnel, Drain (Incl. 19 & 20) MAY D7753903 Contact Us For Availability
18
MAY 10436404 MAY 10436404 Contact Us For Availability
18
Divider, Upper Basket MAY 67004127 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY 67006608 MAY 67006608 Contact Us For Availability
19
MAY 67004203 MAY 67004203 Contact Us For Availability
20
Gasket MAY B8381501 Contact Us For Availability
20
MAY 67001133 MAY 67001133 Contact Us For Availability
21
MAY 10623002 MAY 10623002 Contact Us For Availability
21
MAY 67005603 MAY 67005603 Contact Us For Availability
22
Grille Assembly (Includes Clips) (Black) MAY 67003843 Contact Us For Availability
22
Spacer, Rack MAY 10972101 Contact Us For Availability
22
MAY 67003718 MAY 67003718 Contact Us For Availability
23
MAY 67006530 MAY 67006530 Contact Us For Availability
23
MAY 67001083 MAY 67001083 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
24
MAY W10211284 MAY W10211284 Contact Us For Availability
26
MAY W10169655 MAY W10169655 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
28
MAY 10547003 MAY 10547003 Contact Us For Availability
29
Bracket, Fan MAY 67004953 Contact Us For Availability
30
MAY 67001066 MAY 67001066 Contact Us For Availability
31
Screw (2) MAY 67006432 Contact Us For Availability
32
Screw (4) MAY 67006573 Contact Us For Availability
33
SCREW MAY 67006737 Contact Us For Availability
35
MAY 67005491 MAY 67005491 Contact Us For Availability
NI
Harness, Lights (Freezer) MAY 13065802 Contact Us For Availability
NI
MAY 13015202 MAY 13015202 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
