Model Whirlpool A9854VPV ELECTRIC WALL OVEN – Common Parts & Diagrams

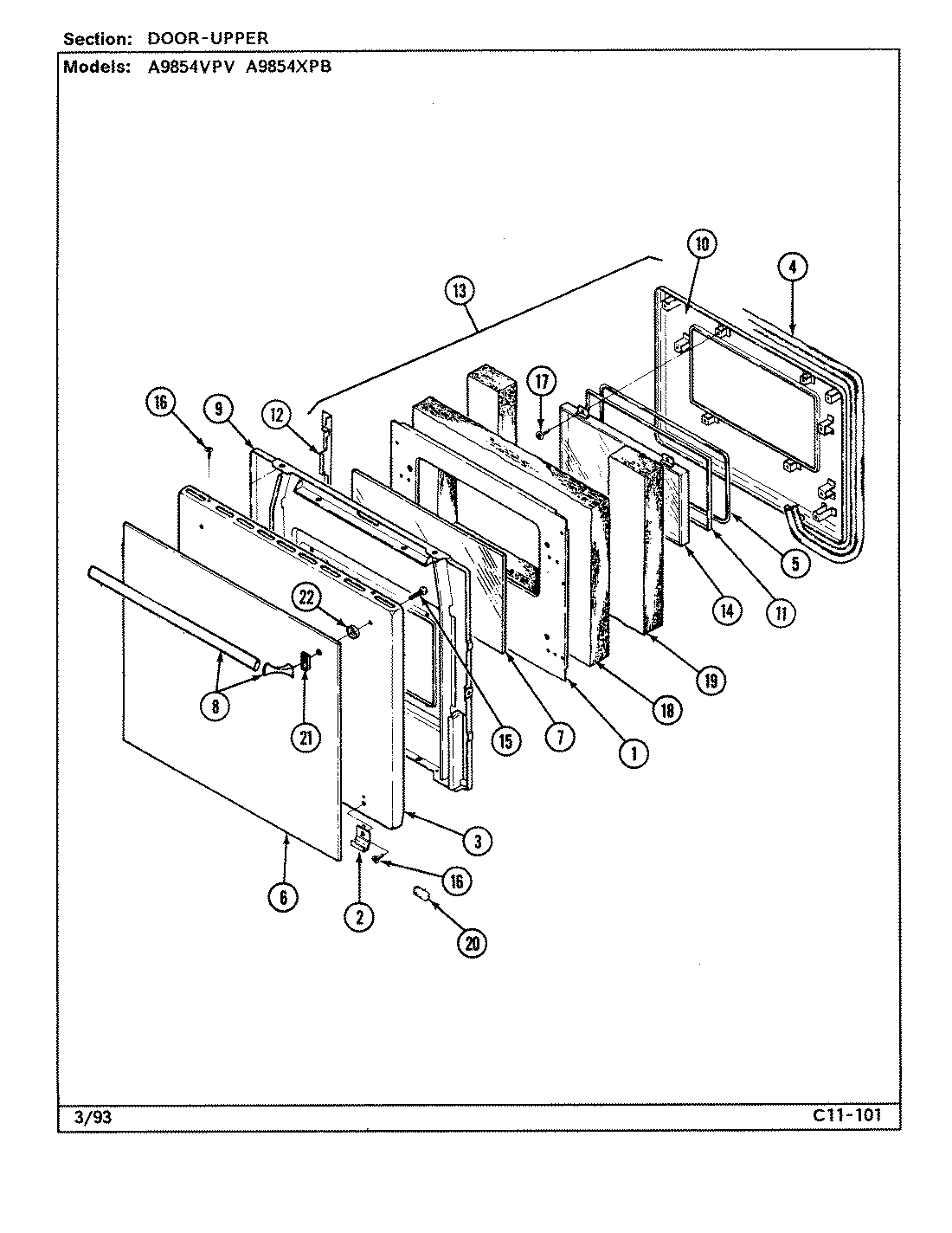

04 - DOOR (UPPER)

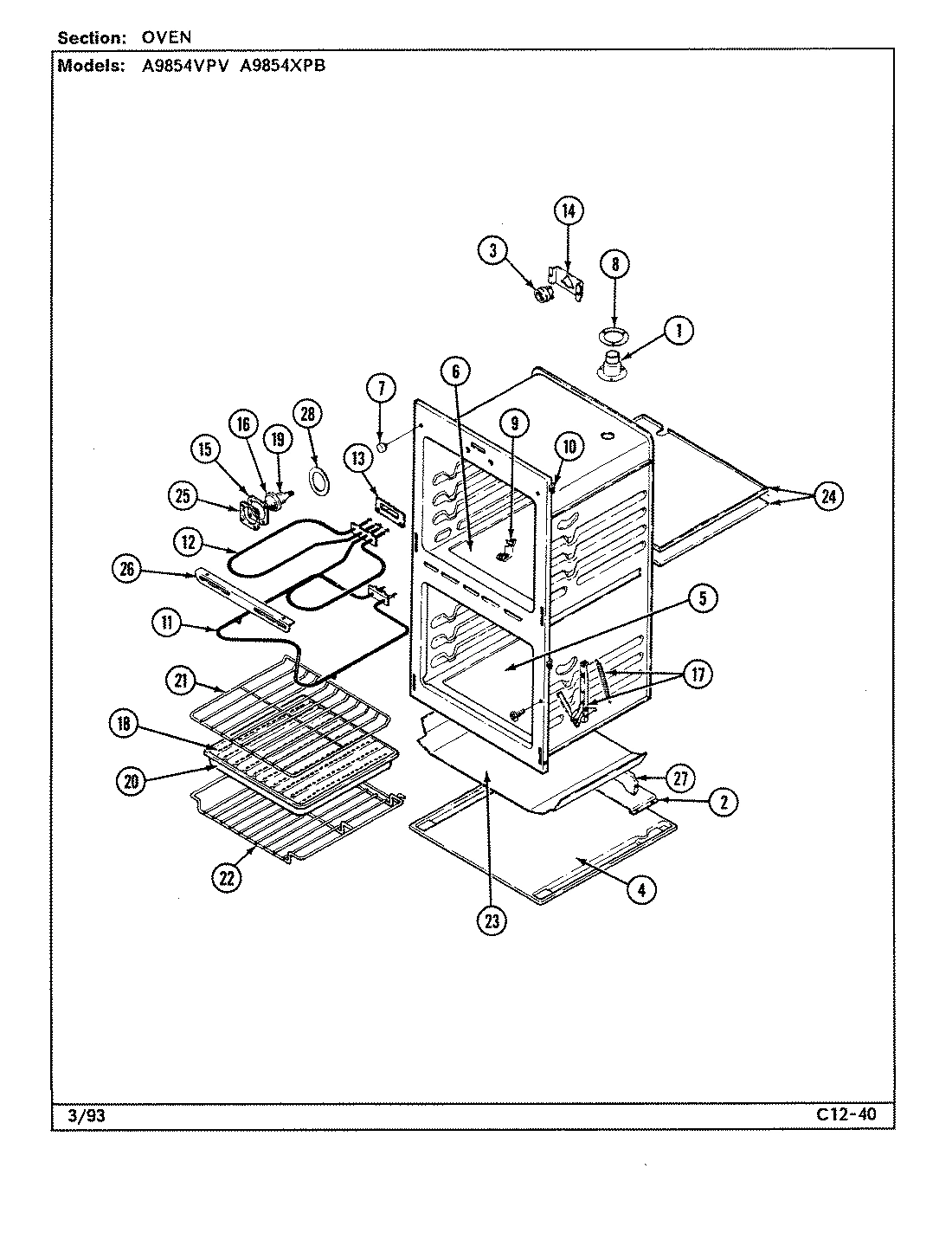

05 - OVEN

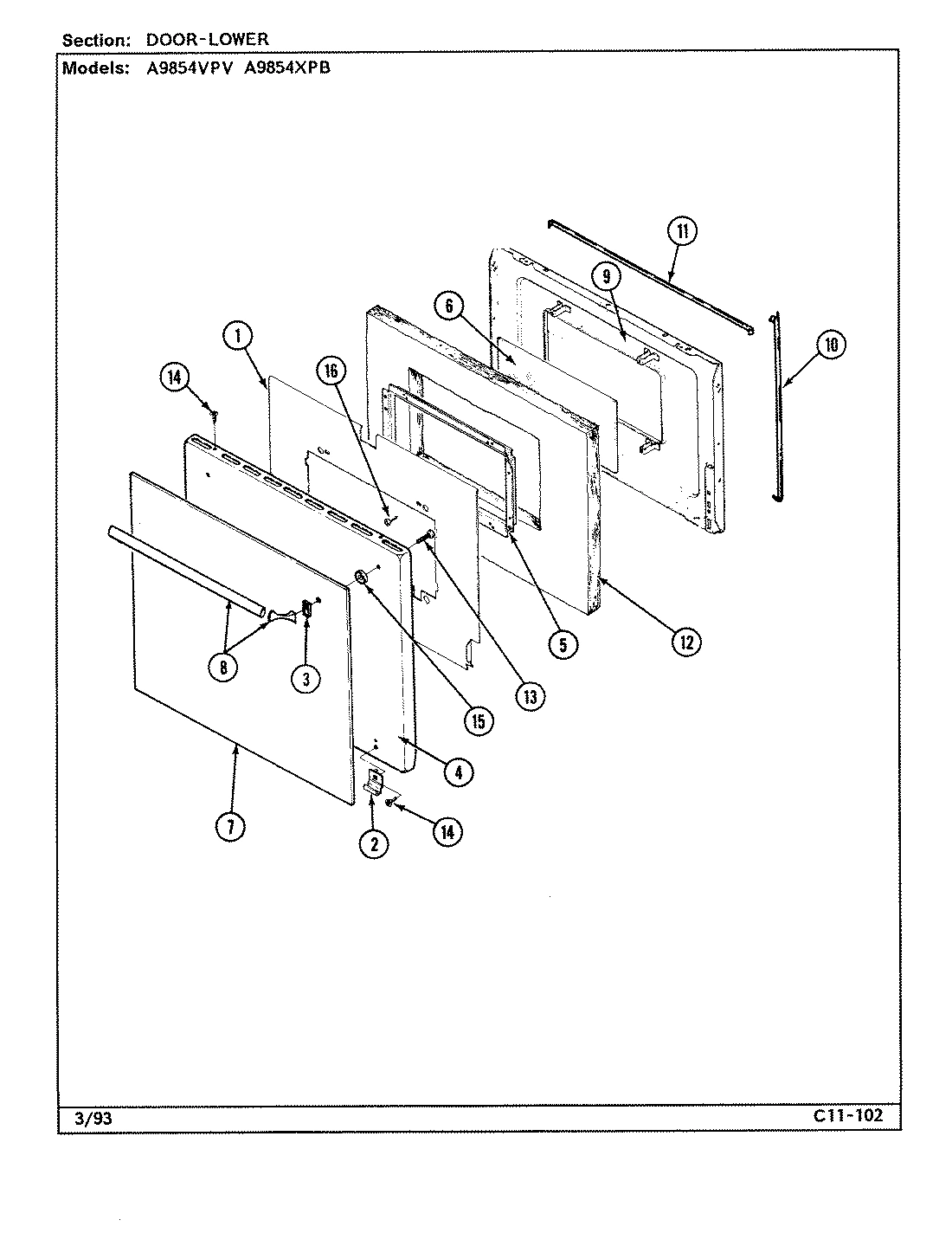

03 - DOOR (LOWER)

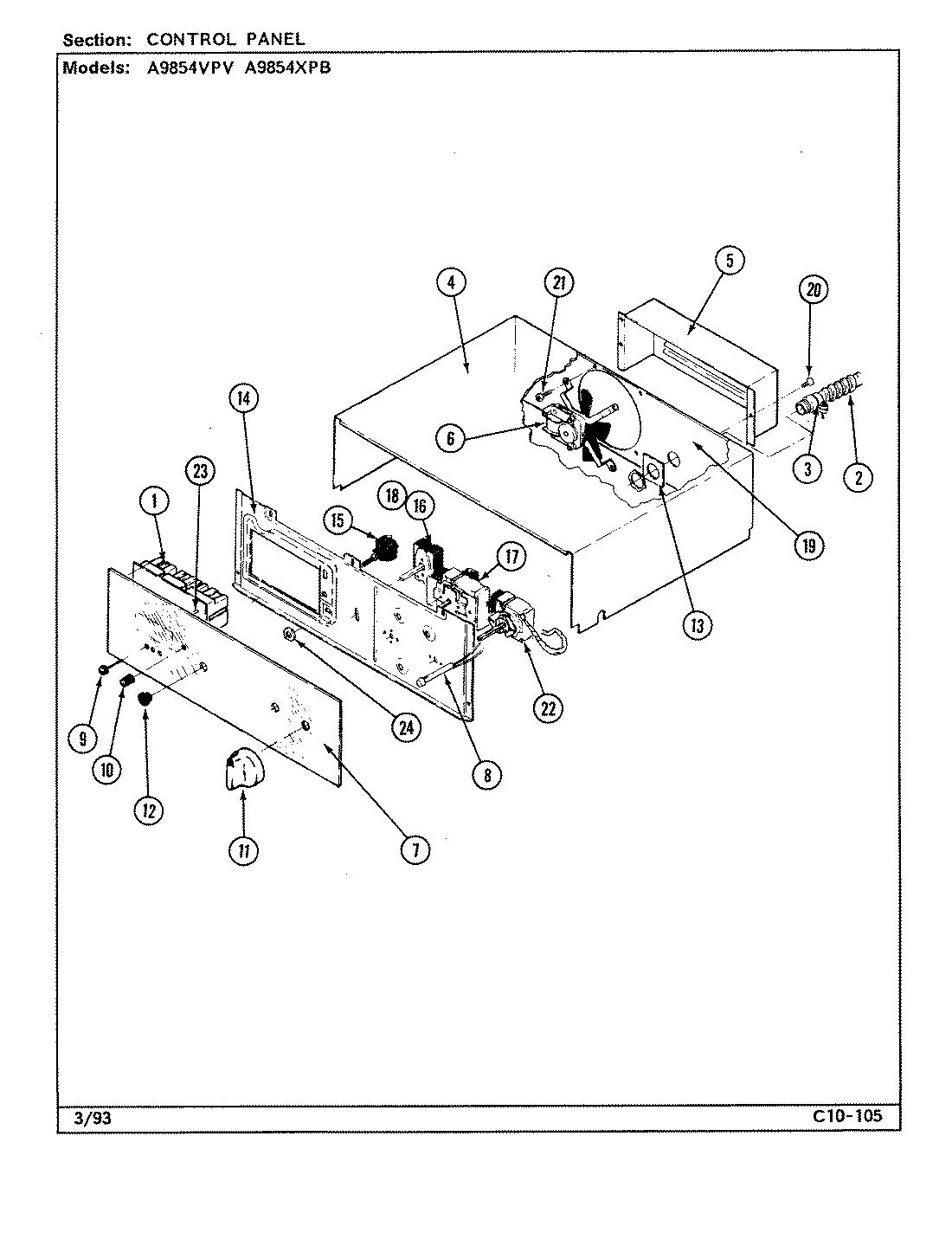

02 - CONTROL PANEL

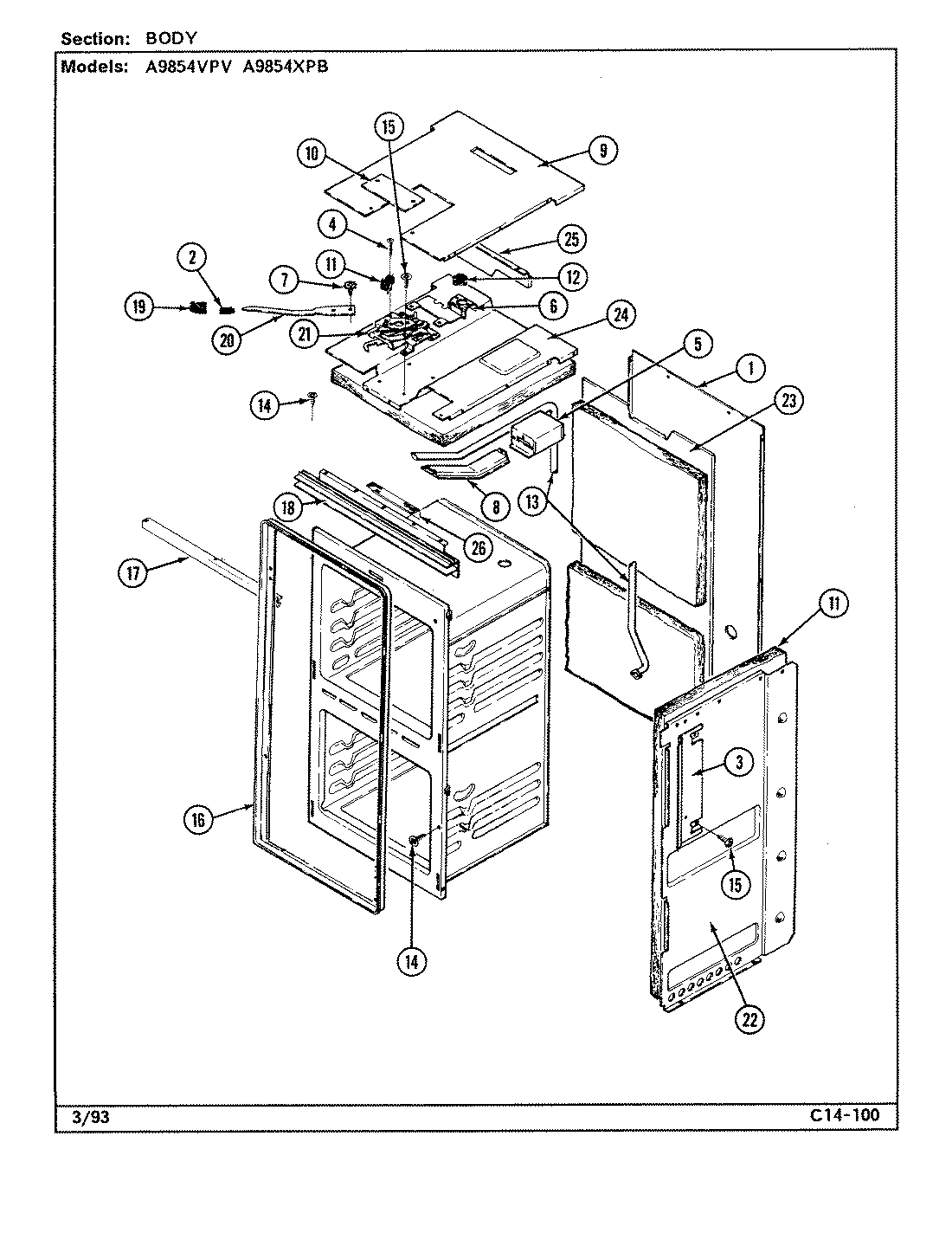

01 - BODY
Common parts from model Whirlpool A9854VPV ELECTRIC WALL OVEN
1
BAFFLE, DOOR ASSEMBLY WPL 3601W13151 Contact Us For Availability
1
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
1
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
1
CATALYST BURNER WPL 7505P01860 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
CLOCK WPL 7601P19760 Contact Us For Availability
1
BACK, MAIN WPL 4002F14351 Contact Us For Availability
2
CLIP, GLASS (WHT) WPL 7112P09460 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 3414P03744 Contact Us For Availability
2
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
3
PANEL, DOOR (WHT) WPL 2401F10371 Contact Us For Availability
3
SPACER, HANDLE (WHT) WPL 8010P07760 Contact Us For Availability
3
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
3
RECEPTACLE, OVEN BULB WPL 7408P03560 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
3
BAFFLE, SIDE WPL 3601F13051 Contact Us For Availability
4
GASKET, DOOR WPL 7201P05360 Contact Us For Availability
4
MAIN BASE WPL 4003A01180 Contact Us For Availability
4
PANEL, DOOR (WHT) WPL 2401F10471 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P03560 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
5
BOTTOM, OVEN (LOWER) WPL 2205F00419 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
COVER, FAN WPL 4005F26251 Contact Us For Availability
5
BOX, VENT WPL 4006W04645 Contact Us For Availability
6
GLASS, OUTER (WHT) WPL 7902P33460 Contact Us For Availability
6
TAPE WPL 8270P06560 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F00319 Contact Us For Availability
6
GLASS, INNER WPL 7902P38660 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
6
GROMMET WPL 8008P00460 Contact Us For Availability
6
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
7
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
7
SEAL, GLASS WPL 7208P00160 Contact Us For Availability
7
GLASS, OUTER (WHT) WPL 7902P33360 Contact Us For Availability
7
GLASS CONTROL PANEL WPL 7912P05260 Contact Us For Availability
7
FELT, DISC WPL 8010P05060 Contact Us For Availability
7
SCREW WPL 7101P11560 Contact Us For Availability
8
HANDLE, DOOR (WHT) WPL 7701P08660 Contact Us For Availability
8
GASKET WPL 7201P01660 Contact Us For Availability
8
LIGHT, INDICATOR WPL 5700A23660 Contact Us For Availability
8
INSULATOR, TERMINAL WPL 7414P00460 Contact Us For Availability
8
CHANNEL, VENT ASSY WPL 3818W00219 Contact Us For Availability
9
LINING, DOOR WPL 2402W13019 Contact Us For Availability
9
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
9
COVER, CAP HOLE WPL 4005F01135 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
LINING, DOOR WPL 2402W13219 Contact Us For Availability
9
KNOB, CLOCK (BUTTON-WHT) WPL 7711P42060 Contact Us For Availability
9
COVER, BOX WPL 4005F20251 Contact Us For Availability
10
PAD, DOOR WPL 2410W04219 Contact Us For Availability
10
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
10
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
10
KNOB, CLOCK (WHT) WPL 7711P41960 Contact Us For Availability
10
COVER, LOCK WPL 4005F16045 Contact Us For Availability
11
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
11
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
11
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
11
KNOB, SWITCH (WHT) WPL 7737P01160 Contact Us For Availability
11
SWITCH, DOOR LOCK WPL 7403P00760 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
12
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
12
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
12
SLEEVE, SWITCH (WHT) WPL 7214P02360 Contact Us For Availability
12
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
13
PAD, OVEN DOOR ASSY. WPL 2410A04219 Contact Us For Availability
13
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
13
SCREW, DOOR HANDLE WPL 7101P08960 Contact Us For Availability
13
PLATE, REINFORCEMENT WPL 3605F13151 Contact Us For Availability
13
TUBE, OVEN VENT WPL 8026P01460 Contact Us For Availability
14
WINDOW ASSY. WPL 5700A08260 Contact Us For Availability
14
INSULATION, WINDOW WRAP WPL 7002P05060 Contact Us For Availability
14
SEAL WPL 7208P00260 Contact Us For Availability
14
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
14
BRACKET WPL 3801F02451 Contact Us For Availability
14
PLATE, SWITCH WPL 3605F17080 Contact Us For Availability
14
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
14
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
14
NUT, SNAP WPL 7103P05160 Contact Us For Availability
15
SCREW WPL 7101P00460 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
15
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
15
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
15
SWITCH, PUSH (WHT) WPL 7403P20460 Contact Us For Availability
16
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P02360 Contact Us For Availability
16
EXTRUSION, FRONT FRAME WPL 7750P02760 Contact Us For Availability
17
HINGE, DOOR WPL 7106P03760 Contact Us For Availability
17
HINGE, DOOR WPL 7106P04260 Contact Us For Availability
17
INSULATION THERMOSTAT WPL 7003P03360 Contact Us For Availability
17
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
17
THERMOSTAT, UPPER WPL 7404P03960 Contact Us For Availability
17
EXTENSION TOP FRONT WPL 7756P04860 Contact Us For Availability
18
INSULATION, DOOR----NA WPL 7002P02360 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F01215 Contact Us For Availability
18
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
18
EXTRUSION, VENT WPL 7756P03260 Contact Us For Availability
19
INSULATION, DOOR WPL 7002P02160 Contact Us For Availability
19
COVER WPL 3604F03744 Contact Us For Availability
19
HOUSING LAMP WPL 4001W01251 Contact Us For Availability
19
INSULATION, LAMP HOUSING WPL 7002P09460 Contact Us For Availability
19
BULB, OVEN WPL 7407P09560 Contact Us For Availability
19
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
19
HANDLE, LATCH (WHT) WPL 7701P08960 Contact Us For Availability
20
PAN, BROILER WPL 3401F01515 Contact Us For Availability
20
TUBING, HEAT SHRINK WPL 7214P02060 Contact Us For Availability
20
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
21
RACK WPL 7801P00560 Contact Us For Availability
21
SCREW WPL 7101P07960 Contact Us For Availability
21
BRACKET, DOOR LATCH WPL 3801F12751 Contact Us For Availability
21
INSULATOR WPL 7003P00160 Contact Us For Availability
21
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
22
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
22
SCREW WPL 7101P23960 Contact Us For Availability
22
THERMOSTAT, LOWER WPL 7404P04260 Contact Us For Availability
22
PANEL, SIDE LF. WPL 2618F08851 Contact Us For Availability
22
PANEL, SIDE RIGHT WPL 2618F08951 Contact Us For Availability
23
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
23
SHAFT, CLOCK WPL 8312P01760 Contact Us For Availability
23
RETAINER, REAR WPL 3804F10151 Contact Us For Availability
24
RETAINER, INSULATION WPL 3804F05451 Contact Us For Availability
24
WIRE HARNESS WPL 5185A09460 Contact Us For Availability
24
WIRE HARNESS CONTROL PANEL WPL 5195A01960 Contact Us For Availability
24
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
24
MANUAL, USE & CARE WPL 8112P08760 Contact Us For Availability
24
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
25
RETAINER WPL 3804F01145 Contact Us For Availability
25
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
26
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
26
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
27
SUPPORT WPL 3807F13580 Contact Us For Availability
28
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
× ![]()
