Model Maytag A8WXNGMWH00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - DOOR PARTS

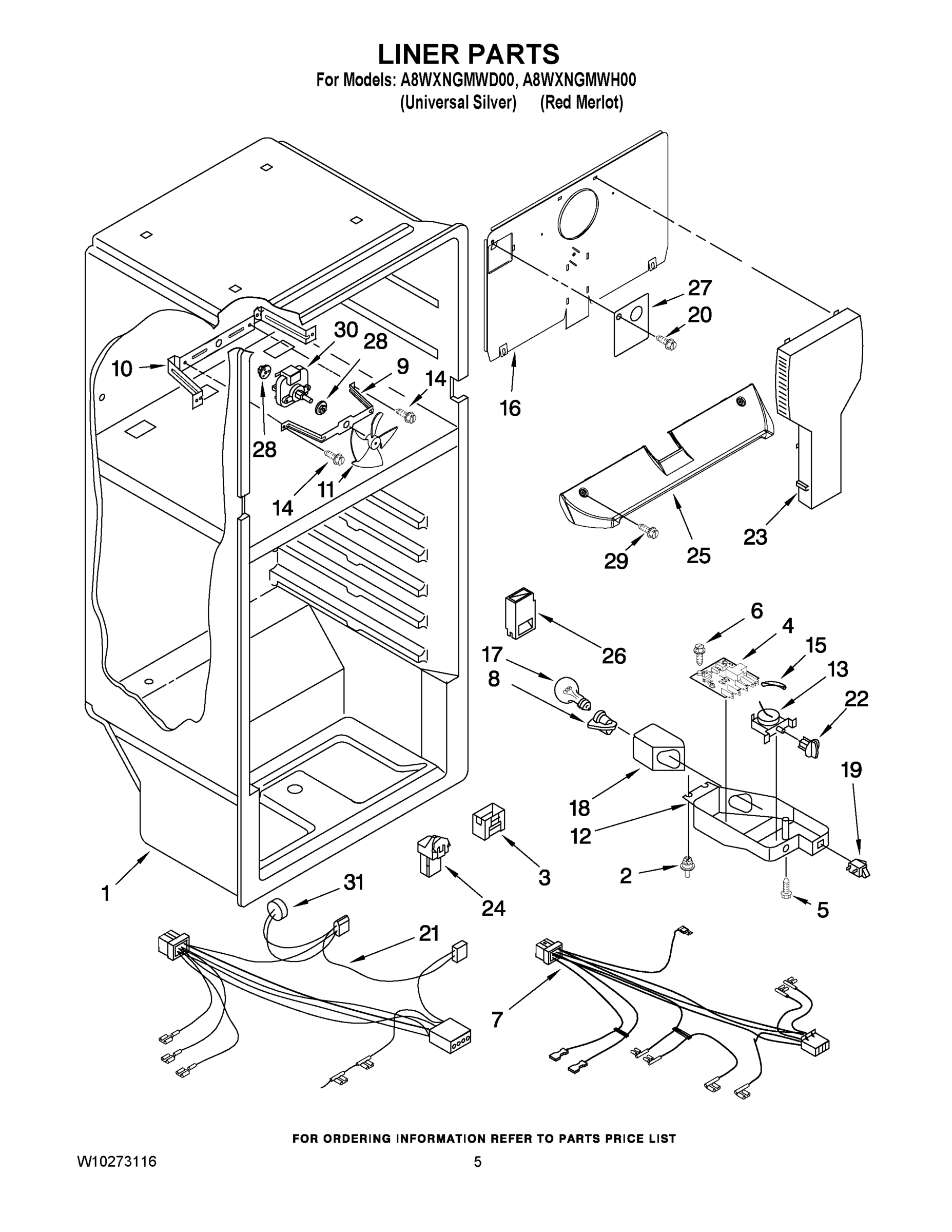

03 - LINER PARTS

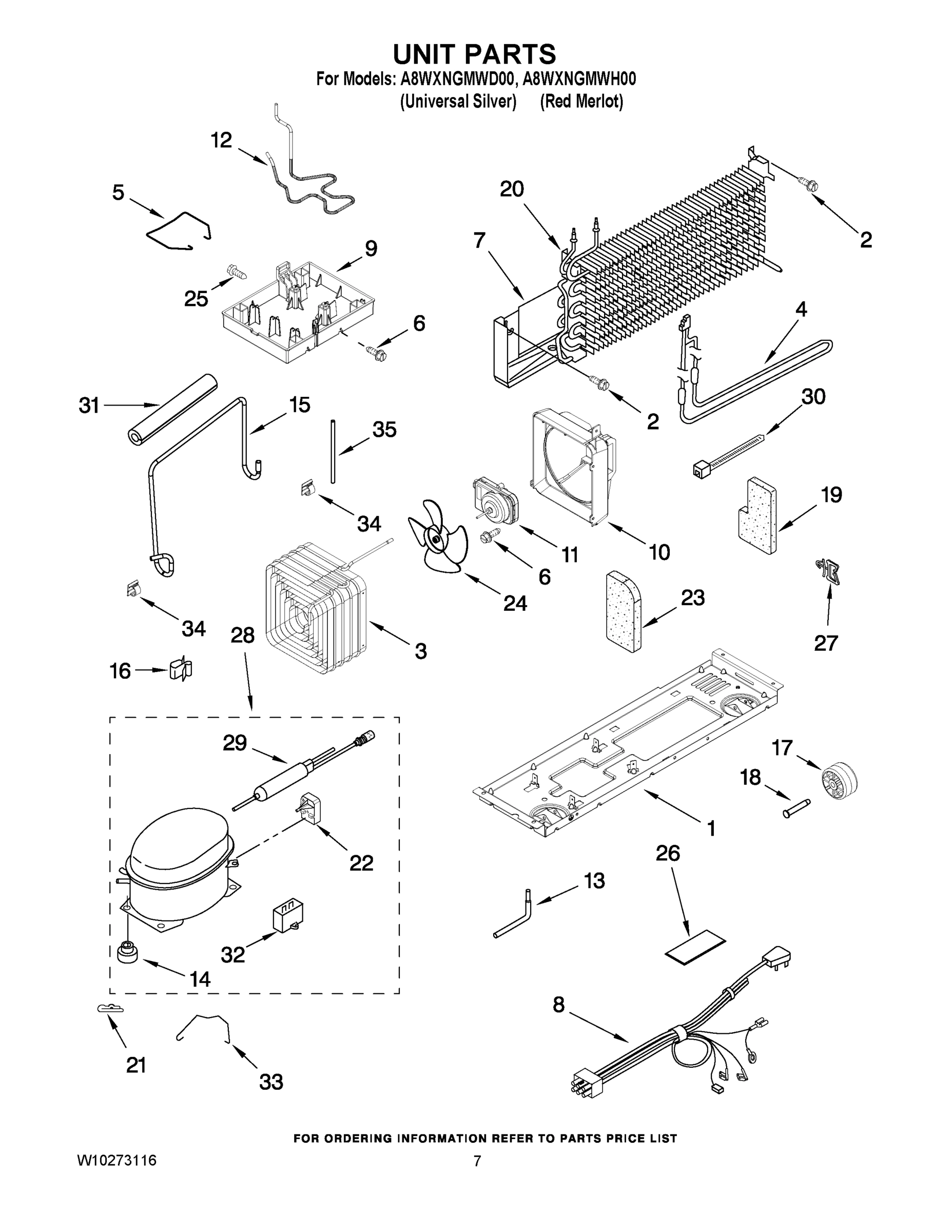

04 - UNIT PARTS

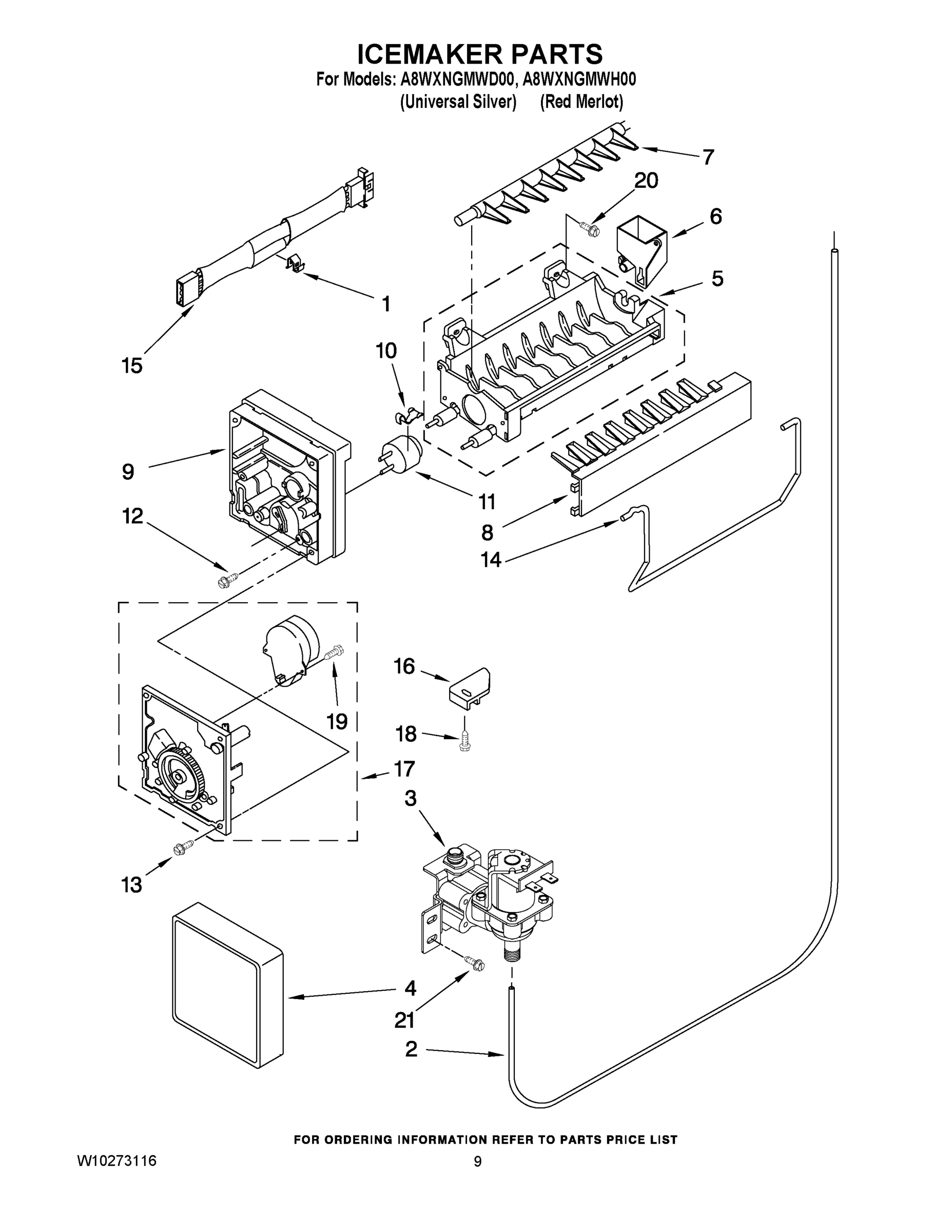

05 - ICEMAKER PARTS

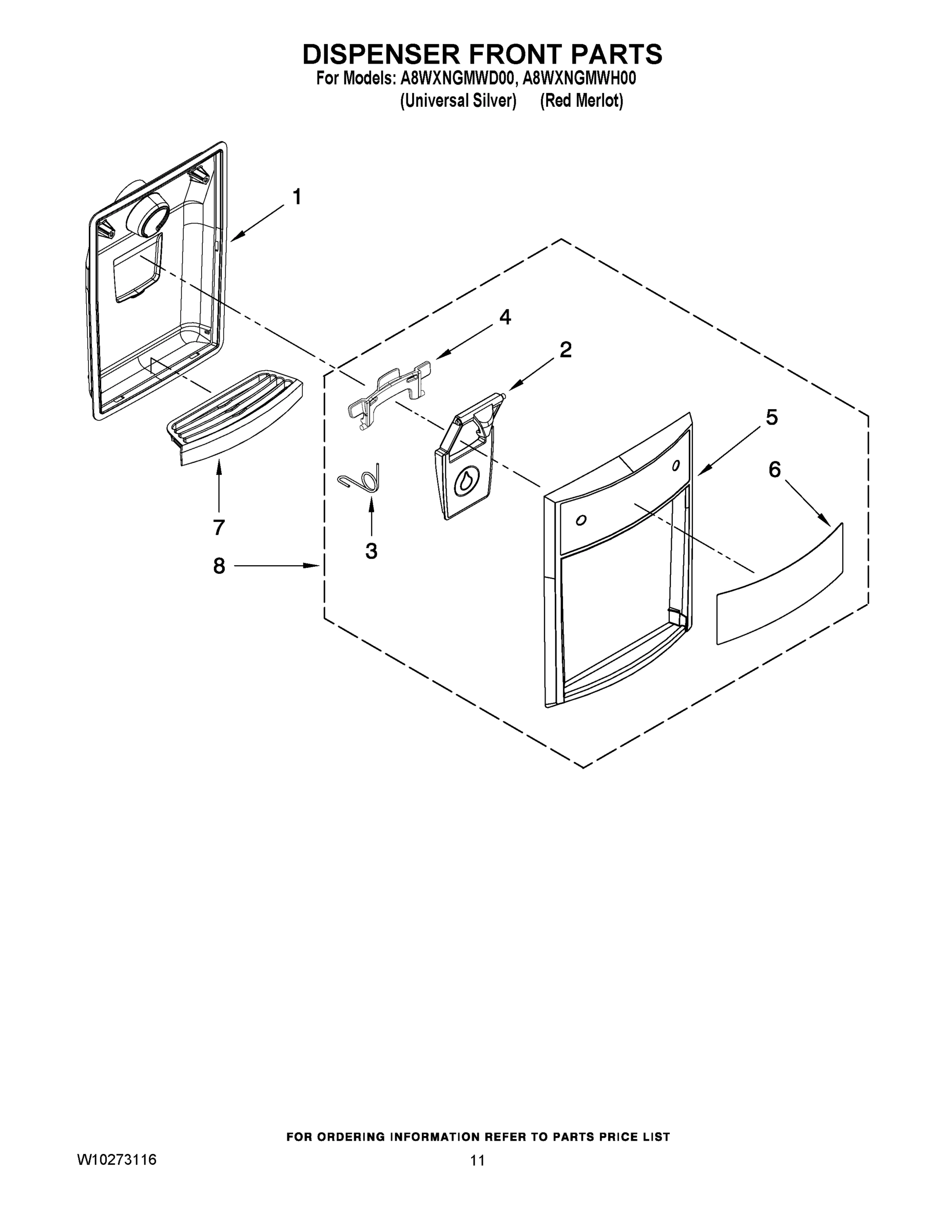

06 - DISPENSER FRONT PARTS

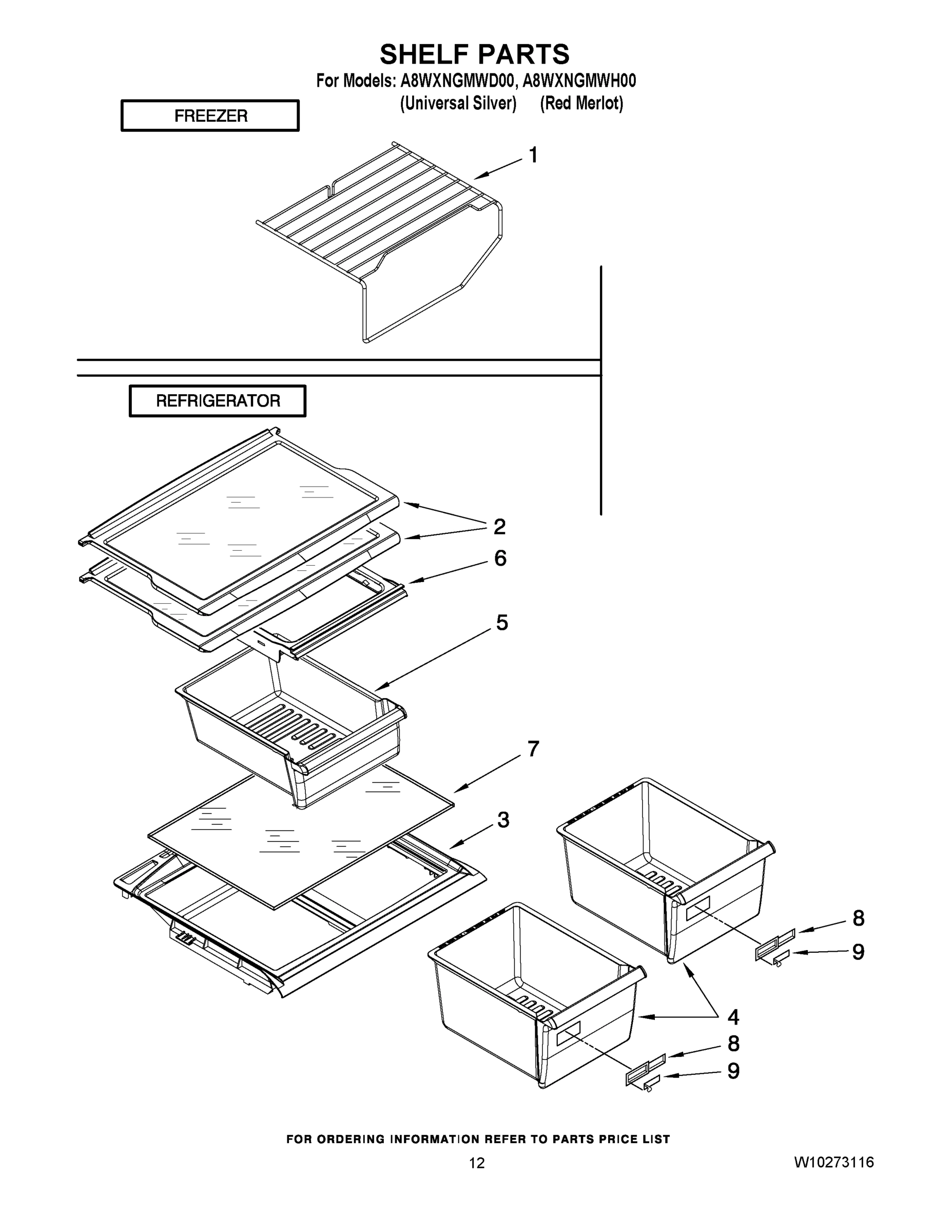

07 - SHELF PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag A8WXNGMWH00 REFRIGERATOR
1
MAY 2265591 MAY 2265591 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./ FRZ. MAY 677969 Contact Us For Availability
1
MAY W10211588 MAY W10211588 Contact Us For Availability
1
MAY W10211589 MAY W10211589 Contact Us For Availability
1
MAY W10209945 MAY W10209945 Contact Us For Availability
1
MAY W10209946 MAY W10209946 Contact Us For Availability
1
MAY W10127456 MAY W10127456 Contact Us For Availability
1
CLIP,FUSE MAY 628379 Contact Us For Availability
1
MAY W10142524 MAY W10142524 Contact Us For Availability
2
MAY 2261963 MAY 2261963 Contact Us For Availability
2
MAY 2265126 MAY 2265126 Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
TUBE WATER MAY 2181944 Contact Us For Availability
2
MAY 2321136D MAY 2321136D Contact Us For Availability
2
MAY 2263641 MAY 2263641 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
MAY 2258681W MAY 2258681W Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY 2264004 MAY 2264004 Contact Us For Availability
3
VALVE (SINGLE), SOLENOID MAY 2210494 Contact Us For Availability
3
MAY 2321137 MAY 2321137 Contact Us For Availability
3
CRISPER, COVER MAY 2222031 Contact Us For Availability
4
COVER, HINGE MAY 2213360D Contact Us For Availability
4
MAY 2265630 MAY 2265630 Contact Us For Availability
4
Control, Adaptive Defrost MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
MAY 2174157 MAY 2174157 Contact Us For Availability
4
MAY 2321143D MAY 2321143D Contact Us For Availability
4
MAY 2256704 MAY 2256704 Contact Us For Availability
5
Trim, Door Shelf (Narrow) MAY 2266727 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY 2264835 MAY 2264835 Contact Us For Availability
5
MAY W10122527 MAY W10122527 Contact Us For Availability
5
MAY 2261934 MAY 2261934 Contact Us For Availability
6
END CAP, TRIM MAY 2156003 Contact Us For Availability
6
Screw MAY 488693 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
CUP, WATER FILL MAY 628515 Contact Us For Availability
6
MAY 2321141 MAY 2321141 Contact Us For Availability
6
MAY 2256601 MAY 2256601 Contact Us For Availability
7
Trim, Door Shelf MAY 2316061 Contact Us For Availability
7
MAY 2265572 MAY 2265572 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MAY 627843 MAY 627843 Contact Us For Availability
7
MAY 2328533D MAY 2328533D Contact Us For Availability
7
GLASS, COVER MAY 2262441 Contact Us For Availability
8
CORNER FILLER MAY 2166003D Contact Us For Availability
8
ENDCAP, TRIM MAY 2156007 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
Wire Assy. Unit MAY W10151677 Contact Us For Availability
8
MAY W10122563 MAY W10122563 Contact Us For Availability
8
MAY 2325540D MAY 2325540D Contact Us For Availability
8
MAY 2212446 MAY 2212446 Contact Us For Availability
9
MAY W10133299 MAY W10133299 Contact Us For Availability
9
Door Gasket, Magnetic MAY 2264727 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
Evaporating Tray MAY 2263928 Contact Us For Availability
9
Support MAY 2194712 Contact Us For Availability
9
Slide, Humidity Control MAY 2176222 Contact Us For Availability
10
MAY 2266389 MAY 2266389 Contact Us For Availability
10
TRIM, DOOR MAY 2328217 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
MAY 2263929 MAY 2263929 Contact Us For Availability
10
MAY 2315522 MAY 2315522 Contact Us For Availability
11
SPACER, BACK CB MAY 2266506 Contact Us For Availability
11
MAY W10138779 MAY W10138779 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
MAY 2188875 MAY 2188875 Contact Us For Availability
11
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
12
MAY 549193 MAY 549193 Contact Us For Availability
12
MAY W10209944 MAY W10209944 Contact Us For Availability
12
MAY 2264732 MAY 2264732 Contact Us For Availability
12
Tube, Discharge (Incl. Pre-Cooler) MAY 2316181 Contact Us For Availability
12
MAY 8533917 MAY 8533917 Contact Us For Availability
13
MAY 487576 MAY 487576 Contact Us For Availability
13
MAY 2325418 MAY 2325418 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
MAY VS20001 MAY VS20001 Contact Us For Availability
13
MAY 489276 MAY 489276 Contact Us For Availability
14
MAY 2262176 MAY 2262176 Contact Us For Availability
14
MAY W10209947 MAY W10209947 Contact Us For Availability
14
MAY W10209948 MAY W10209948 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2222084 MAY 2222084 Contact Us For Availability
14
GROMMET (SERVICE) MAY 2264447 Contact Us For Availability
14
MAY 627792 MAY 627792 Contact Us For Availability
15
MAY 489497 MAY 489497 Contact Us For Availability
15
Door Gasket, Magnetic MAY 2264726 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
MAY 2264131 MAY 2264131 Contact Us For Availability
15
MAY 2187464 MAY 2187464 Contact Us For Availability
16
MAY 2166086 MAY 2166086 Contact Us For Availability
16
MAY 2189202 MAY 2189202 Contact Us For Availability
16
MAY 2264669 MAY 2264669 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
16
MAY 628320 MAY 628320 Contact Us For Availability
17
SHIM HINGE, CENTER MAY 2166043 Contact Us For Availability
17
MAY 8533904 MAY 8533904 Contact Us For Availability
17
MAY 2252970 MAY 2252970 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
17
MODULE ASSEMBLY (INCLUDES ITEM 19) MAY W10223929 Contact Us For Availability
18
Hinge Butt MAY 2325482 Contact Us For Availability
18
MAY W10209940 MAY W10209940 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 489478 MAY 489478 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
HINGE PIN, BOTTOM MAY 2325483 Contact Us For Availability
19
MAY W10209942 MAY W10209942 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
19
Screw MAY 489136 Contact Us For Availability
20
MAY 489341 MAY 489341 Contact Us For Availability
20
MAY 2328518 MAY 2328518 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
20
Screw MAY 488208 Contact Us For Availability
21
MAY 489442 MAY 489442 Contact Us For Availability
21
MAY 2201567 MAY 2201567 Contact Us For Availability
21
MAY 2328499 MAY 2328499 Contact Us For Availability
21
WIRING-FREEZER (INCLUDES ITEM 33) MAY W10164671 Contact Us For Availability
21
MAY 24364001 MAY 24364001 Contact Us For Availability
22
MAY 2174760 MAY 2174760 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
START-DEVICE, COMBINATION (START RELAY AND OV MAY 2225929 Contact Us For Availability
23
HOLE PLUG MAY 2326060 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Seal MAY 1106508 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
27
MAY 2217783 MAY 2217783 Contact Us For Availability
27
CLIP-HARNESS MAY 2266467 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 14, 22, 29 & 32) ( MAY 2217634 Contact Us For Availability
29
MAY 2262178 MAY 2262178 Contact Us For Availability
29
MAY 2319825 MAY 2319825 Contact Us For Availability
29
MAY W10143759 MAY W10143759 Contact Us For Availability
30
MAY 2319208 MAY 2319208 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2266067 MAY 2266067 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
CAPACITATOR (SERVICE) MAY 2169373 Contact Us For Availability
32
Capacitator (Production) MAY 2264017 Contact Us For Availability
33
MAY 2212996 MAY 2212996 Contact Us For Availability
34
MAY 1114718 MAY 1114718 Contact Us For Availability
35
MAY 2264278 MAY 2264278 Contact Us For Availability
100
MAY W10190952 MAY W10190952 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (ECKMF90) MAY 2155469A Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
Login and Registration Form
