Model Maytag A8RXNGMWG01 REFRIGERATOR – Common Parts & Diagrams

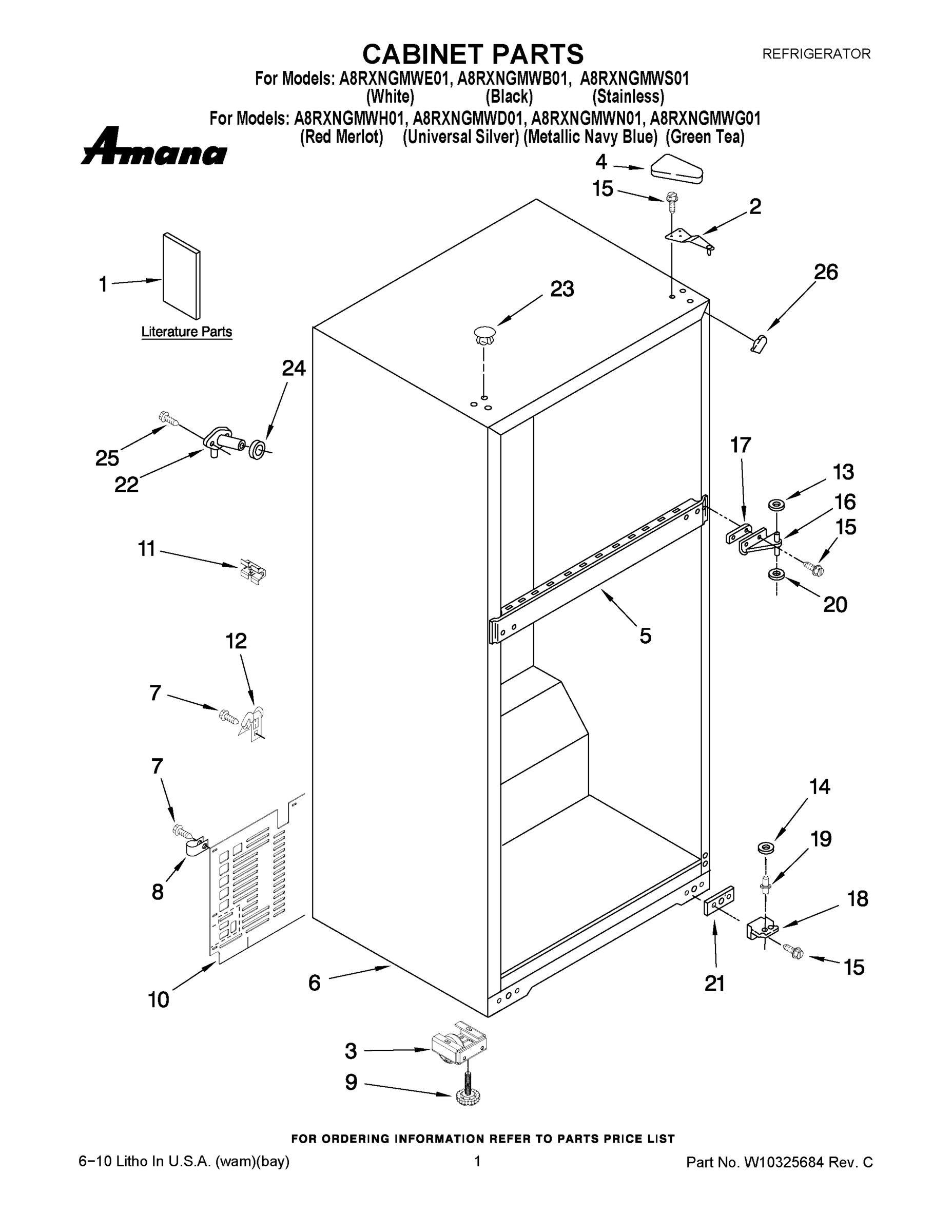

01 - CABINET PARTS

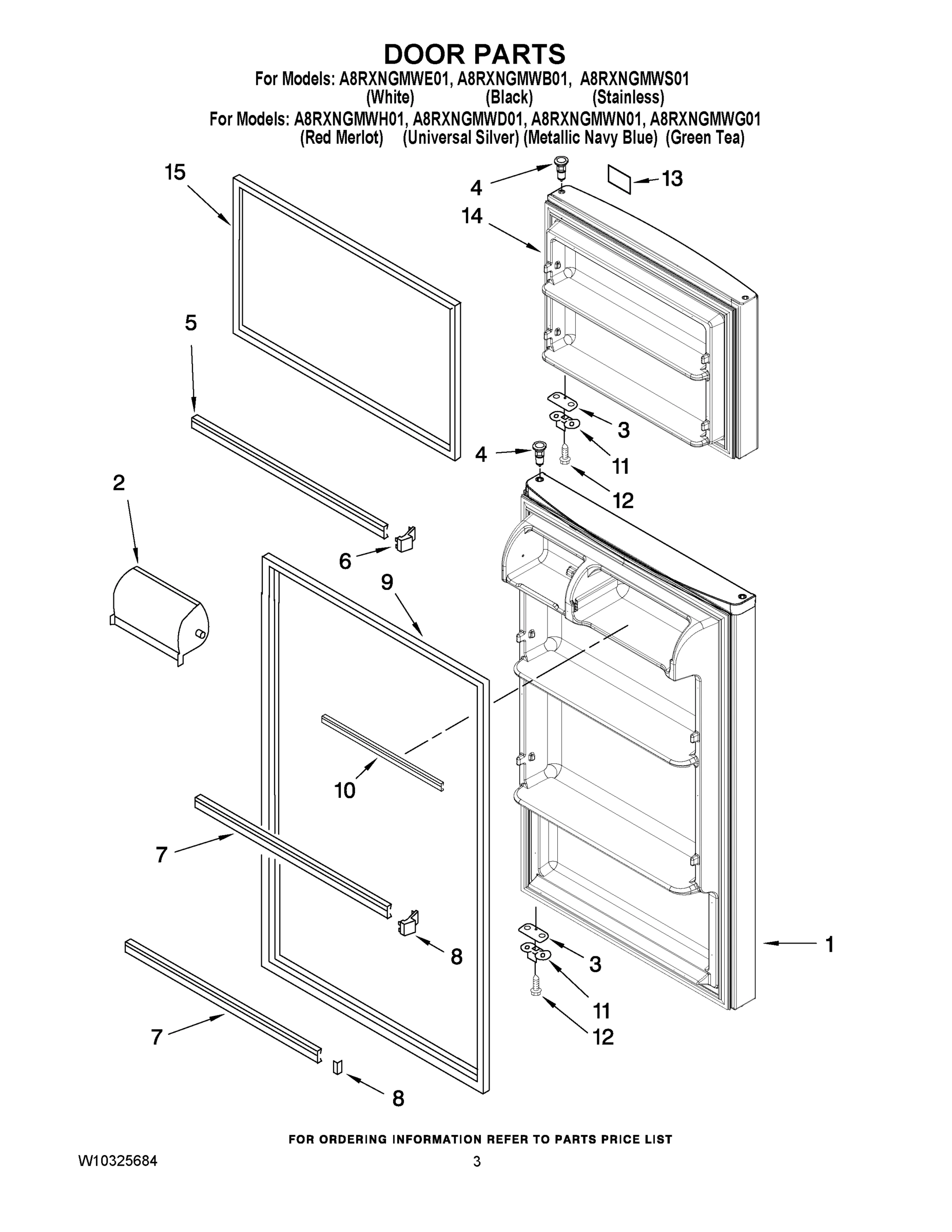

02 - DOOR PARTS

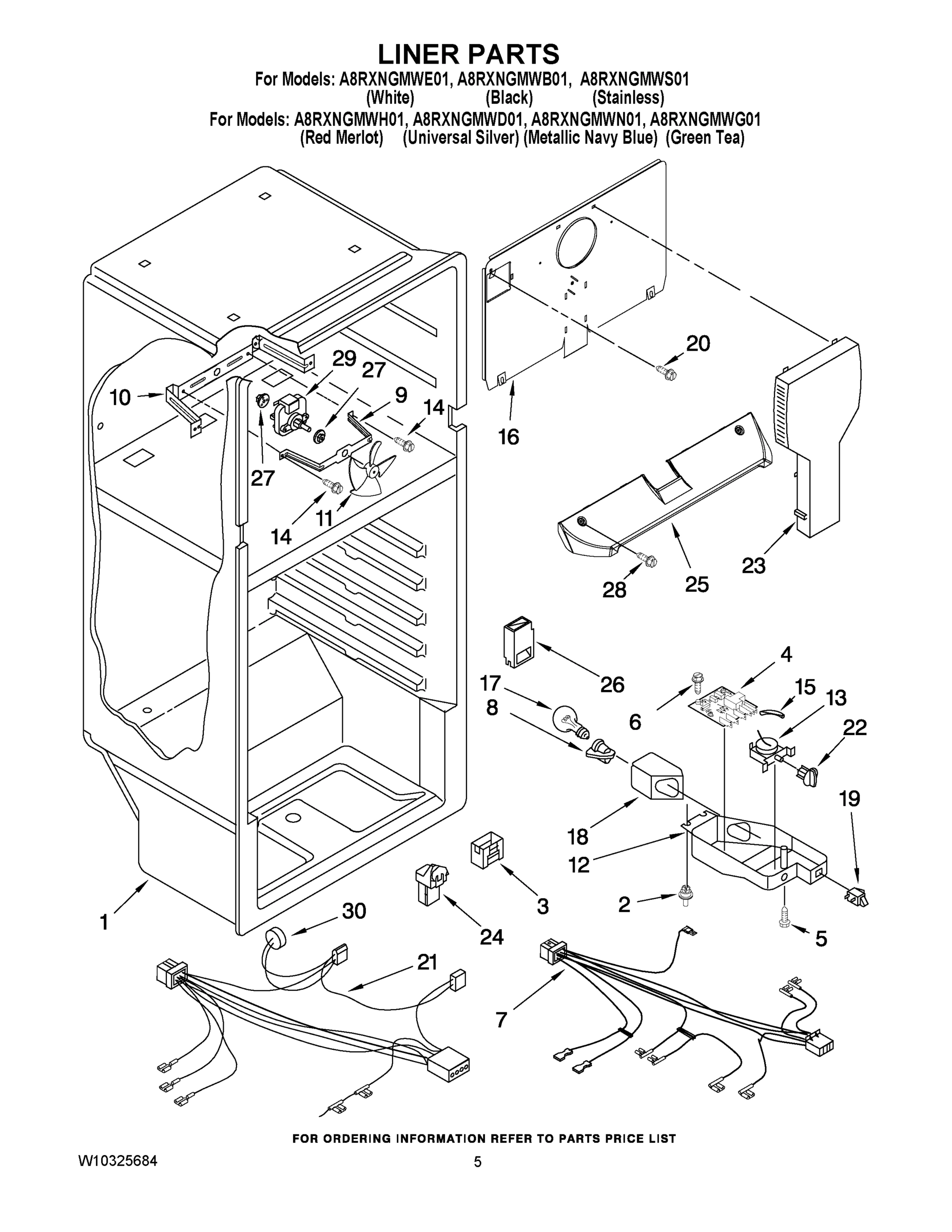

03 - LINER PARTS

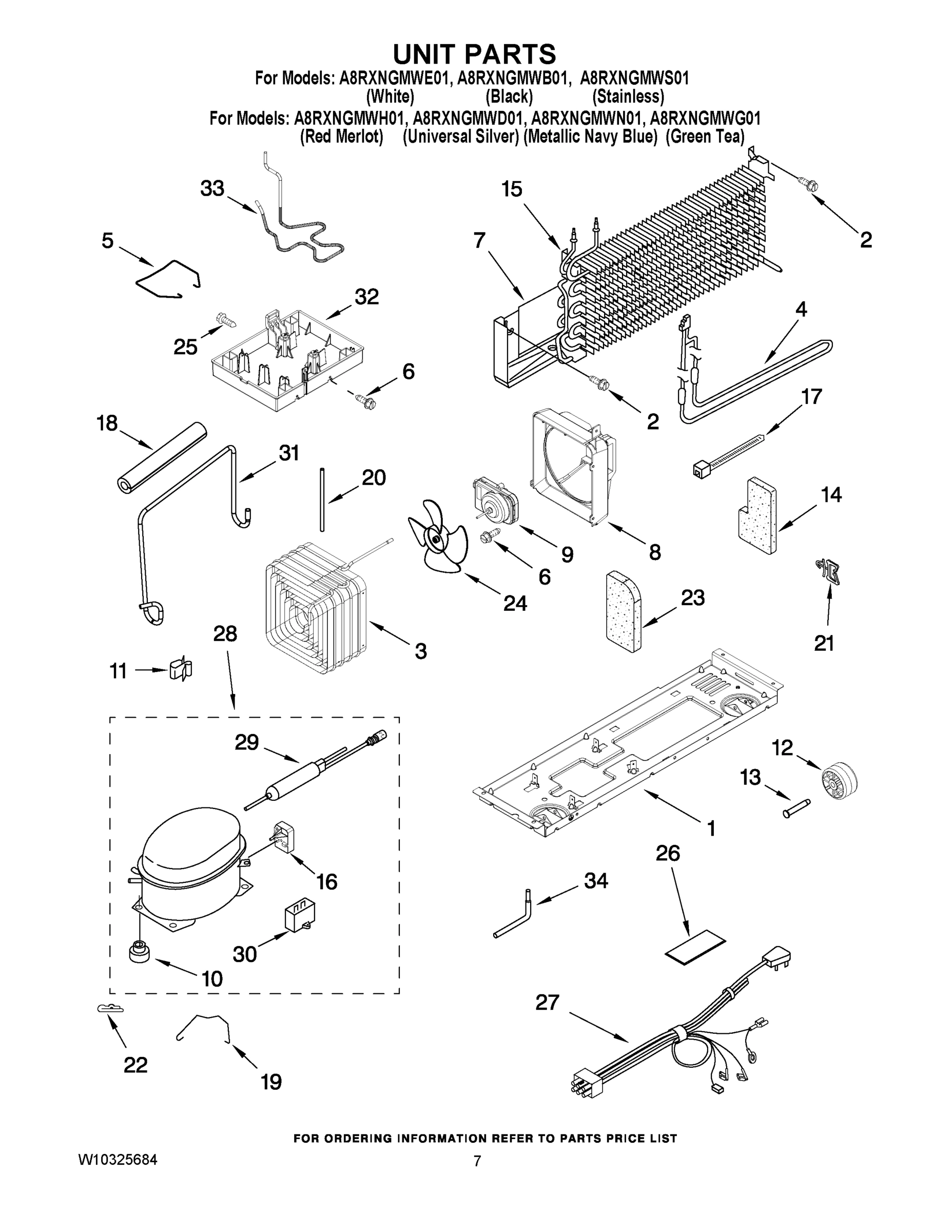

04 - UNIT PARTS

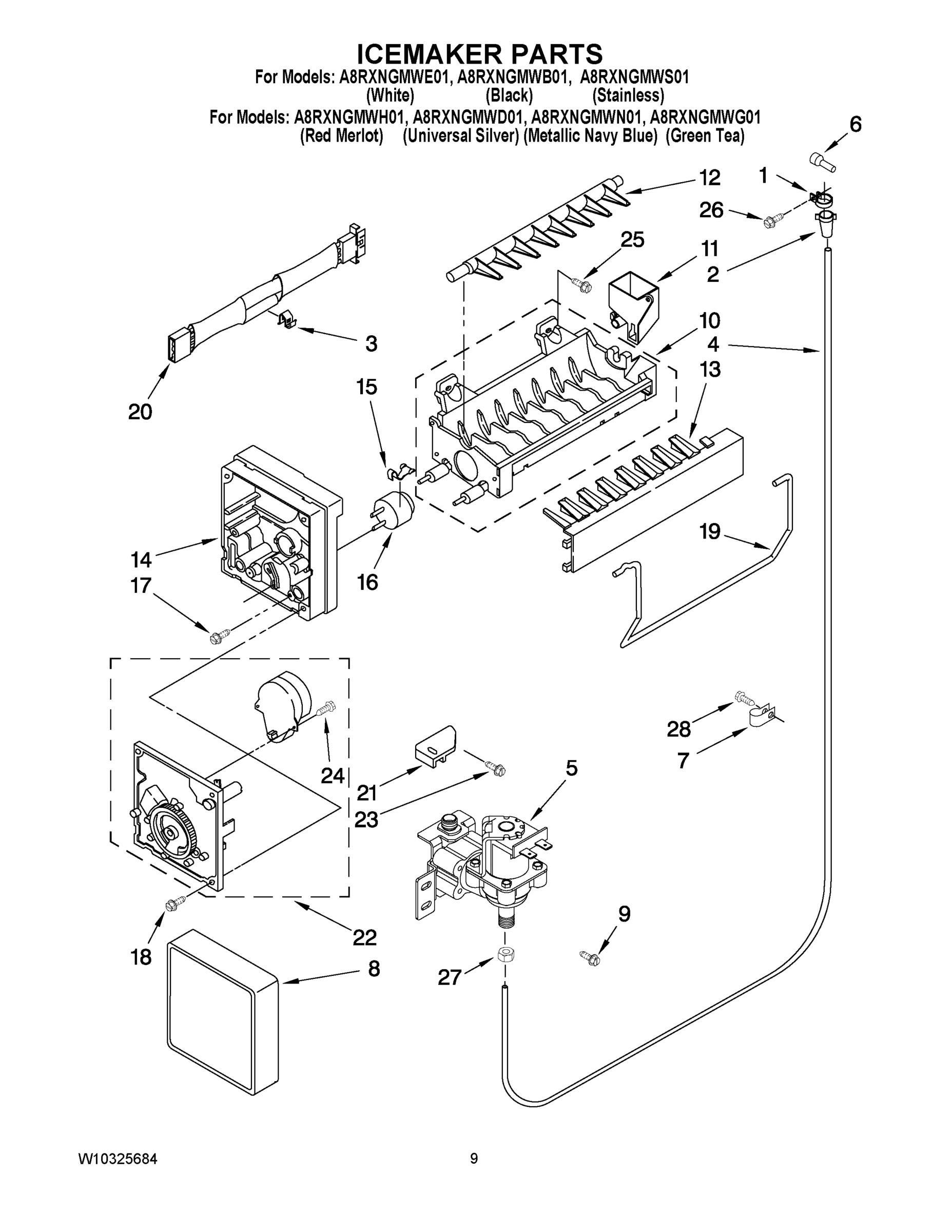

05 - ICEMAKER PARTS

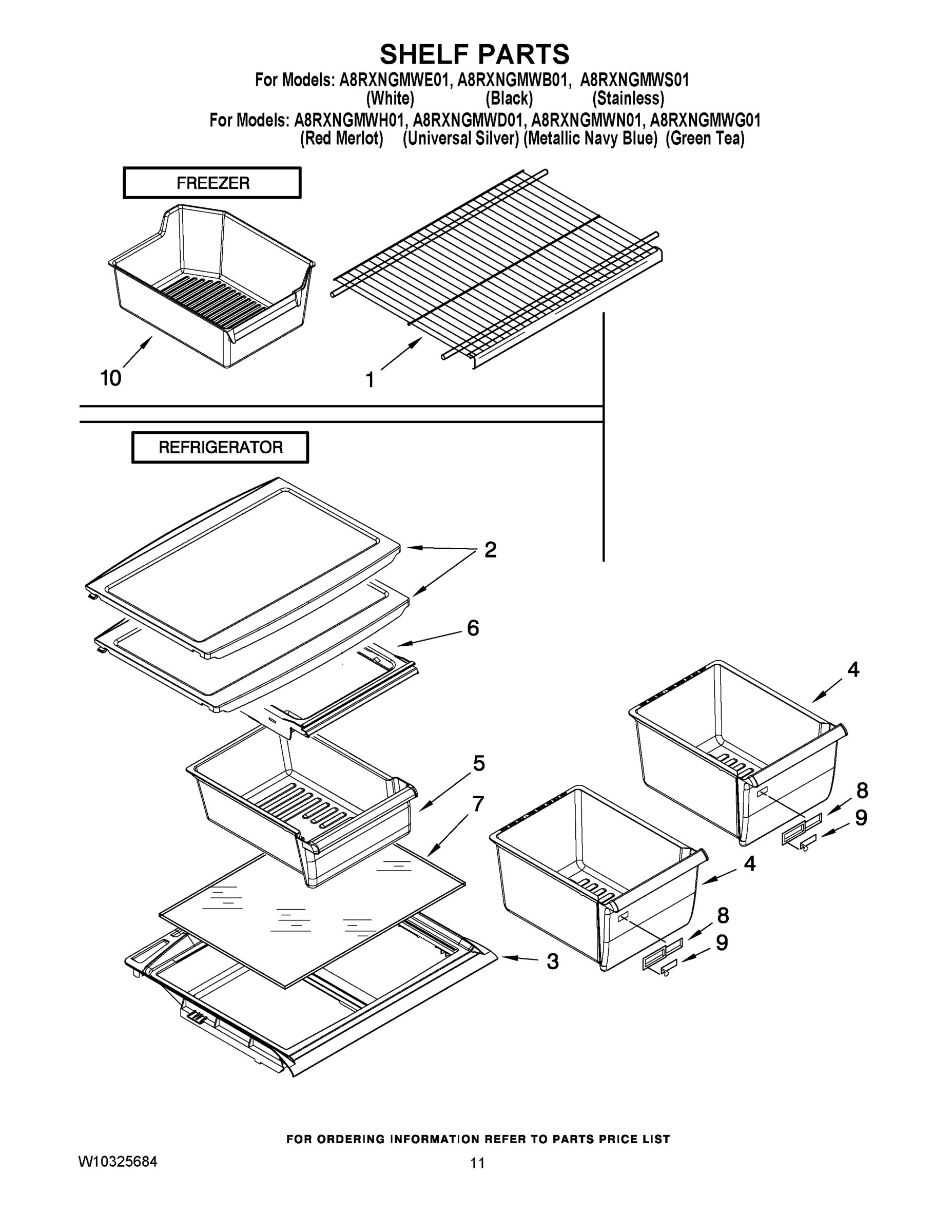

06 - SHELF PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag A8RXNGMWG01 REFRIGERATOR
1
MAY 628370 MAY 628370 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./ FRZ. MAY 677969 Contact Us For Availability
1
MAY W10154917 MAY W10154917 Contact Us For Availability
1
MAY W10246052 MAY W10246052 Contact Us For Availability
1
MAY W10283801 MAY W10283801 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED MAY 2265677B Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED MAY 2265677D Contact Us For Availability
1
MAY 2265677N MAY 2265677N Contact Us For Availability
1
MAY 2265677R MAY 2265677R Contact Us For Availability
1
MAY W10153823 MAY W10153823 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED MAY W10209801 Contact Us For Availability
1
MAY W10278947 MAY W10278947 Contact Us For Availability
1
MAY W10222450 MAY W10222450 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
1
MAY W10142525 MAY W10142525 Contact Us For Availability
2
MAY 2261963 MAY 2261963 Contact Us For Availability
2
MAY 2207942 MAY 2207942 Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
MAY 2181939 MAY 2181939 Contact Us For Availability
2
MAY 2263641 MAY 2263641 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
Shim, Door Stop (Black) MAY 2258681B Contact Us For Availability
3
Shim, Door Stop (White) MAY 2258681W Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY 2264004 MAY 2264004 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
3
MAY W10211610 MAY W10211610 Contact Us For Availability
4
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
4
MAY 2213360D MAY 2213360D Contact Us For Availability
4
MAY 2213363 MAY 2213363 Contact Us For Availability
4
Hole Plug (White) MAY 2212648 Contact Us For Availability
4
MAY 2212648D MAY 2212648D Contact Us For Availability
4
Hole Plug (Black) MAY 2212651 Contact Us For Availability
4
Control, Adaptive Defrost MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
TUBE WATER MAY 2181944 Contact Us For Availability
4
MAY 2256704 MAY 2256704 Contact Us For Availability
5
Trim, Door Shelf (Narrow) MAY 2266727 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY 2264835 MAY 2264835 Contact Us For Availability
5
Valve Solenoid (Single) MAY 2210494 Contact Us For Availability
5
MAY 2261934 MAY 2261934 Contact Us For Availability
6
END CAP, TRIM MAY 2156003 Contact Us For Availability
6
Screw MAY 488693 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY 2174755 MAY 2174755 Contact Us For Availability
6
MAY 2256601 MAY 2256601 Contact Us For Availability
7
CLIP, FILL TUBE MAY 489385 Contact Us For Availability
7
Trim, Door Shelf (Wide) MAY 2266738 Contact Us For Availability
7
MAY 2265930 MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
GLASS, COVER MAY 2262441 Contact Us For Availability
8
END CAP, TRIM MAY 2195916 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2263929 MAY 2263929 Contact Us For Availability
8
COVER MAY W10289690 Contact Us For Availability
8
MAY 2212446 MAY 2212446 Contact Us For Availability
9
SCREW, LEVELER MAY W10133299 Contact Us For Availability
9
Door Gasket, Magnetic (Black) MAY 2264723 Contact Us For Availability
9
MAY 2264727 MAY 2264727 Contact Us For Availability
9
MAY W10246160 MAY W10246160 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
MAY 2188875 MAY 2188875 Contact Us For Availability
9
Slide, Humidity Control MAY 2176222 Contact Us For Availability
10
MAY 2266389 MAY 2266389 Contact Us For Availability
10
TRIM, DOOR MAY W10234242 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
Grommet (Production) MAY 2264447 Contact Us For Availability
10
MAY W10122527 MAY W10122527 Contact Us For Availability
10
Pan-Ice Cube MAY 2166261 Contact Us For Availability
11
SPACER, BACK CB MAY 2266506 Contact Us For Availability
11
MAY 2189202 MAY 2189202 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
MAY 939054 MAY 939054 Contact Us For Availability
11
MAY W10122561 MAY W10122561 Contact Us For Availability
12
MAY 549193 MAY 549193 Contact Us For Availability
12
MAY 8533904 MAY 8533904 Contact Us For Availability
12
MAY 2263083 MAY 2263083 Contact Us For Availability
12
Roller MAY 2150304 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
13
MAY 489341 MAY 489341 Contact Us For Availability
13
Nameplate-Amana MAY 2325418 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
MAY 2264756 MAY 2264756 Contact Us For Availability
13
MAY W10122563 MAY W10122563 Contact Us For Availability
14
FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR MAY 2265678B Contact Us For Availability
14
FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR MAY 2265678D Contact Us For Availability
14
MAY 2265678N MAY 2265678N Contact Us For Availability
14
MAY 2265678R MAY 2265678R Contact Us For Availability
14
MAY W10162670 MAY W10162670 Contact Us For Availability
14
FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR MAY W10209802 Contact Us For Availability
14
MAY W10278946 MAY W10278946 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2262191 MAY 2262191 Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
15
MAY 489497 MAY 489497 Contact Us For Availability
15
Door Gasket, Magnetic (Black) MAY 2264722 Contact Us For Availability
15
MAY 2264726 MAY 2264726 Contact Us For Availability
15
MAY W10244875 MAY W10244875 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
MAY 2166086 MAY 2166086 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10249964 Contact Us For Availability
16
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
17
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
17
SHIM HINGE, CENTER (BLACK) MAY 2215385 Contact Us For Availability
17
MAY 527949 MAY 527949 Contact Us For Availability
17
MAY 2263990 MAY 2263990 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
18
Hinge Butt MAY 2325482 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264838 MAY 2264838 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
19
HINGE PIN, BOTTOM MAY 2325483 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2212996 MAY 2212996 Contact Us For Availability
19
MAY 627792 MAY 627792 Contact Us For Availability
20
MAY 487576 MAY 487576 Contact Us For Availability
20
MAY 2264278 MAY 2264278 Contact Us For Availability
20
MAY 2187464 MAY 2187464 Contact Us For Availability
21
MAY 2201567 MAY 2201567 Contact Us For Availability
21
WIRING-FREEZER (INCLUDES ITEM 30) MAY W10290502 Contact Us For Availability
21
CLIP-HARNESS MAY 2266467 Contact Us For Availability
21
MAY 628320 MAY 628320 Contact Us For Availability
22
MAY 2174760 MAY 2174760 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
MAY 24364001 MAY 24364001 Contact Us For Availability
22
MODULE ASSEMBLY (INCLUDES ITEM 24) MAY W10223929 Contact Us For Availability
23
MAY 2183998 MAY 2183998 Contact Us For Availability
23
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
23
HOLE PLUG (6) (SILVER) MAY 2326060 Contact Us For Availability
23
MAY 489478 MAY 489478 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Seal MAY 1106508 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
24
MAY 489136 MAY 489136 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
25
Screw MAY 488208 Contact Us For Availability
26
Screw, 8-18 x 1/2 MAY 489442 Contact Us For Availability
26
MAY 2166003 MAY 2166003 Contact Us For Availability
26
MAY 2166003D MAY 2166003D Contact Us For Availability
26
Corner Filler (Black) MAY 2215384 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
27
MAY 2264462 MAY 2264462 Contact Us For Availability
27
Wire Assy. Unit MAY W10151677 Contact Us For Availability
27
MAY 627018 MAY 627018 Contact Us For Availability
28
MAY 2262176 MAY 2262176 Contact Us For Availability
28
MAY 2262178 MAY 2262178 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 10, 16, 29 & 30) ( MAY W10252075 Contact Us For Availability
29
MAY W10188389 MAY W10188389 Contact Us For Availability
29
MAY W10143759 MAY W10143759 Contact Us For Availability
29
DRIER (PRODUCTION) MAY W10190413 Contact Us For Availability
30
MAY 2266067 MAY 2266067 Contact Us For Availability
30
CAPACITATOR (SERVICE) MAY 2169373 Contact Us For Availability
30
Capacitator (Production) MAY 2264017 Contact Us For Availability
31
MAY 2264131 MAY 2264131 Contact Us For Availability
32
Evaporating Tray MAY 2263928 Contact Us For Availability
33
TUBE, DISCHARGE (INCL. PRE-COOLER) MAY W10289687 Contact Us For Availability
34
MAY VS20001 MAY VS20001 Contact Us For Availability
100
MAY W10190952 MAY W10190952 Contact Us For Availability
NI
REFRIGERANT CHARGE (3.75 OZS. (R134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
