Model Maytag A8RXNGFXD00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - DOOR PARTS

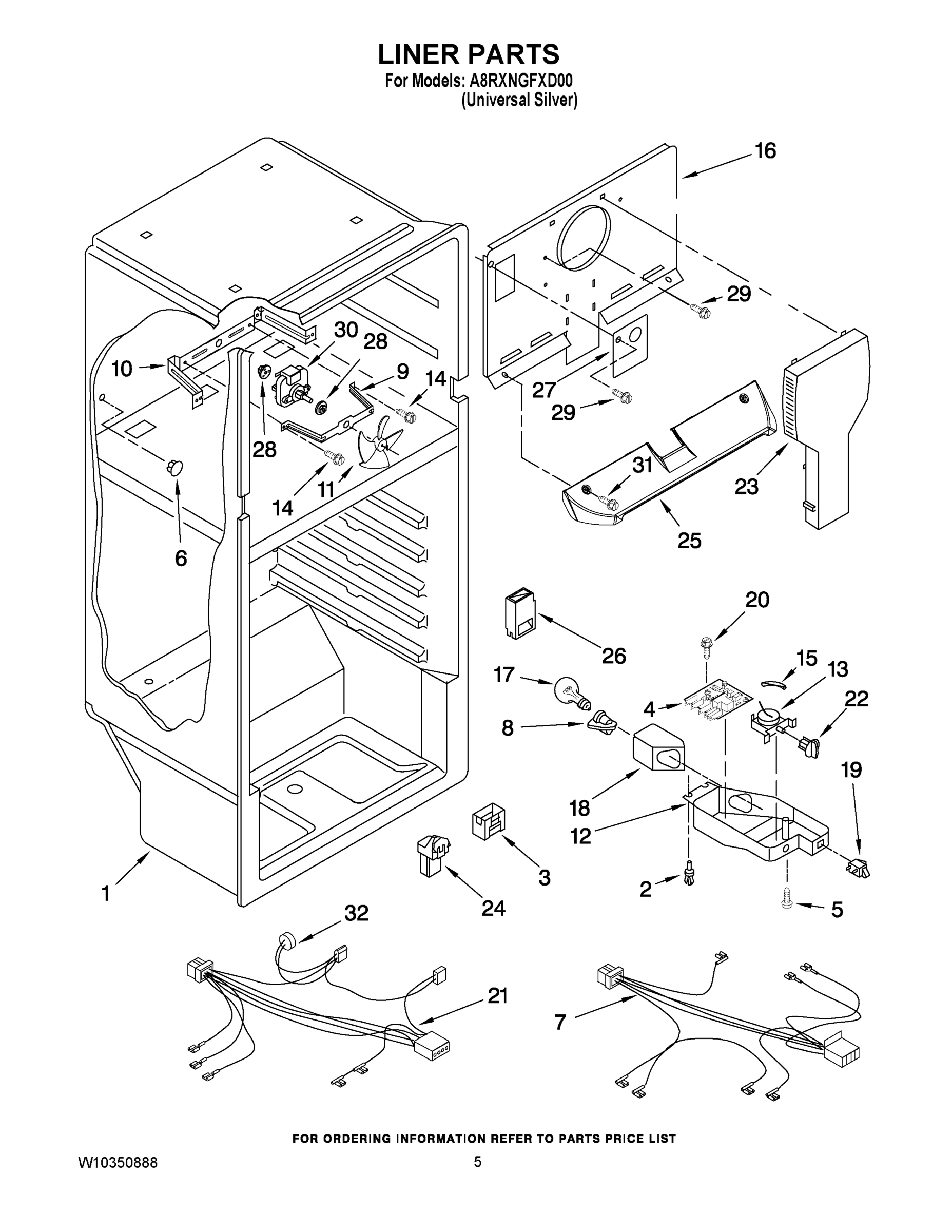

03 - LINER PARTS
04 - UNIT PARTS

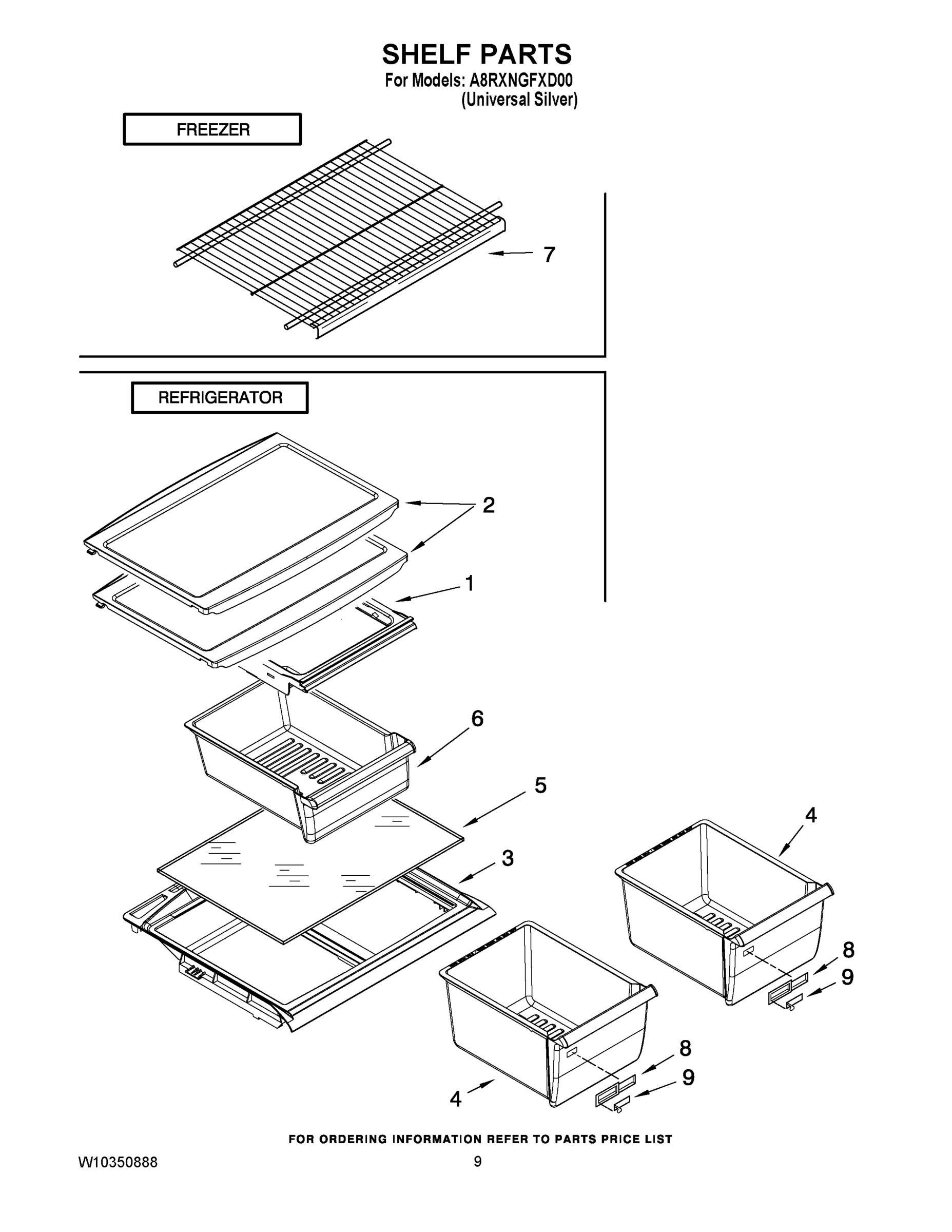

05 - SHELF PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag A8RXNGFXD00 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10214129 MAY W10214129 Contact Us For Availability
1
MAY W10283801 MAY W10283801 Contact Us For Availability
1
MAY W10287917 MAY W10287917 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED MAY W10130250 Contact Us For Availability
1
MAY W10222450 MAY W10222450 Contact Us For Availability
1
MAY W10258418 MAY W10258418 Contact Us For Availability
2
MAY 2261963 MAY 2261963 Contact Us For Availability
2
MAY 2258681B MAY 2258681B Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
CLIP MAY 2264835 Contact Us For Availability
2
MAY W10283851 MAY W10283851 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
MAY 2262054 MAY 2262054 Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY 2264004 MAY 2264004 Contact Us For Availability
3
MAY W10211610 MAY W10211610 Contact Us For Availability
4
END CAP, TRIM MAY 2156003 Contact Us For Availability
4

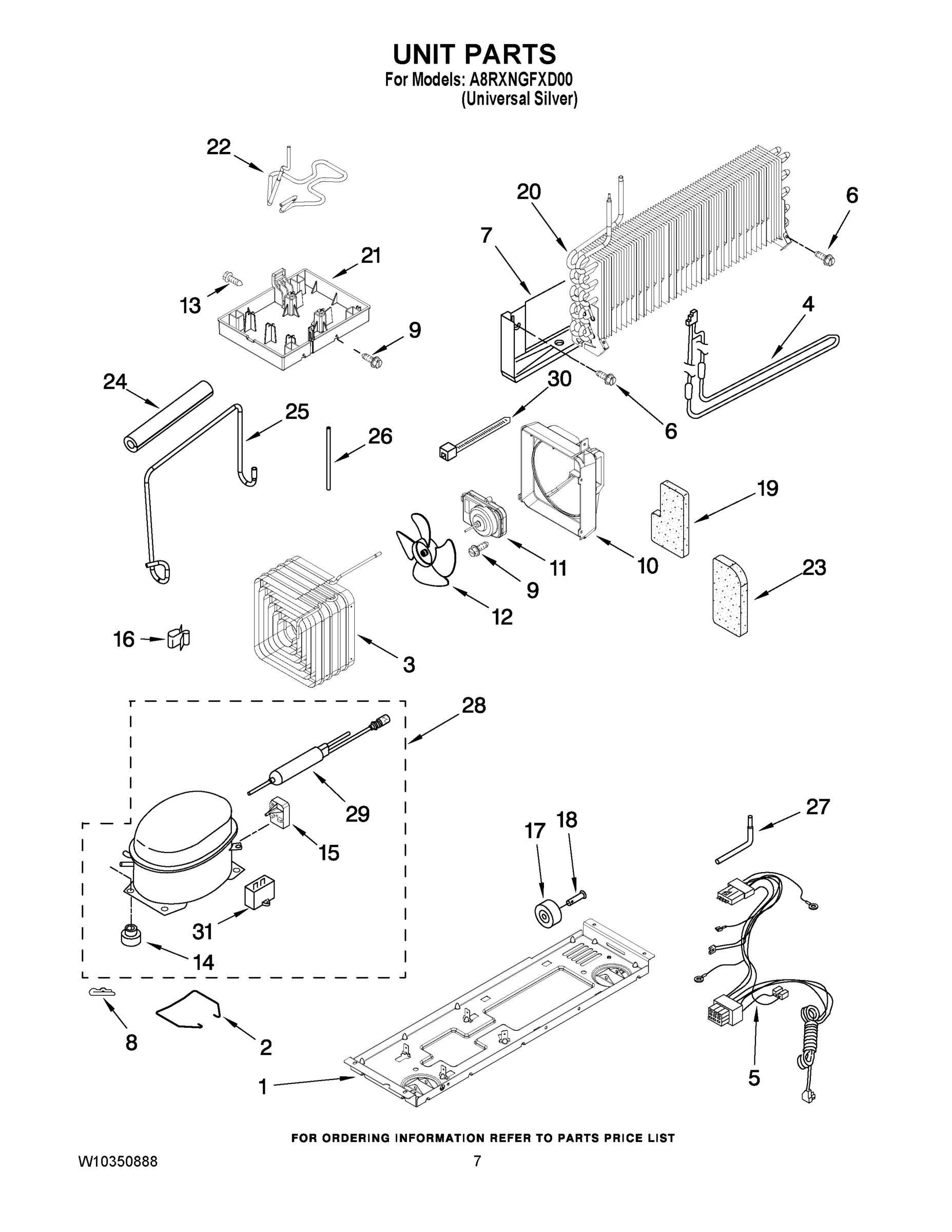

Control, Adaptive Defrost MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
MAY 2256704 MAY 2256704 Contact Us For Availability
5
SCREW, LEVELER MAY W10133299 Contact Us For Availability
5
MAY 2266727 MAY 2266727 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
Wire Assy. Unit MAY W10151677 Contact Us For Availability
5
GLASS, CRISPER MAY 2262441 Contact Us For Availability
6
MAY 549193 MAY 549193 Contact Us For Availability
6
MAY W10234242 MAY W10234242 Contact Us For Availability
6
MAY 941839 MAY 941839 Contact Us For Availability
6
MAY 489442 MAY 489442 Contact Us For Availability
6
MAY 2261934 MAY 2261934 Contact Us For Availability
7
MAY 489497 MAY 489497 Contact Us For Availability
7
END CAP, TRIM MAY 2195916 Contact Us For Availability
7
MAY 2265930 MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
SHELF, WIRE (FREEZER) MAY W10142525 Contact Us For Availability
8
MAY 2166086 MAY 2166086 Contact Us For Availability
8
TRIM, DOOR MAY 2266738 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 24364001 MAY 24364001 Contact Us For Availability
8
Body, Humidity MAY 2212446 Contact Us For Availability
9
MAY 2215385 MAY 2215385 Contact Us For Availability
9
MAY 2264723 MAY 2264723 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
MAY 8533859 MAY 8533859 Contact Us For Availability
9
Slide, Humidity MAY 2176222 Contact Us For Availability
10
Hinge Butt MAY 2325482 Contact Us For Availability
10
MAY 2207942 MAY 2207942 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
MAY 2263929 MAY 2263929 Contact Us For Availability
11
HINGE PIN, BOTTOM MAY 2325483 Contact Us For Availability
11
MAY 2325418 MAY 2325418 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
Motor, Condensor MAY 2188875 Contact Us For Availability
12
SCREW ANCHOR MAY 939101 Contact Us For Availability
12
MAY 2215210 MAY 2215210 Contact Us For Availability
12
MAY 2264129 MAY 2264129 Contact Us For Availability
13
MAY 2201567 MAY 2201567 Contact Us For Availability
13
Hole Plug MAY 2212651 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
MAY 2264841 MAY 2264841 Contact Us For Availability
14
MAY 2174760 MAY 2174760 Contact Us For Availability
14
FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOO MAY W10130249 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2222084 MAY 2222084 Contact Us For Availability
15
HOLE PLUG MAY 2183998 Contact Us For Availability
15
Door Gasket, Magnetic MAY W10190031 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
START DEVICE, COMBINATION (START RELAY AND OV MAY 2320150 Contact Us For Availability
15
START DEVICE, COMBINATION (START RELAY AND OV MAY 2320151 Contact Us For Availability
16
Seal MAY 1106508 Contact Us For Availability
16
MAY 2189202 MAY 2189202 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
MAY 2262176 MAY 2262176 Contact Us For Availability
17
MAY 8533904 MAY 8533904 Contact Us For Availability
17
MAY 527949 MAY 527949 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
Washer MAY 487802 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
Corner Filler MAY 2215384 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
MAY 487576 MAY 487576 Contact Us For Availability
20
Screw MAY 488693 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
CAP BUSHING MAY 487996 Contact Us For Availability
21
MAY W10290502 MAY W10290502 Contact Us For Availability
21
Evaporating Tray MAY 2263928 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
TUBE, DISCHARGE (INCL.PRE COOLER) MAY W10209728 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264838 MAY 2264838 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY W10209727 MAY W10209727 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
MAY 2264278 MAY 2264278 Contact Us For Availability
27
MAY 2217784 MAY 2217784 Contact Us For Availability
27
PROCESS TUBE MAY VS20001 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 14, 15, & 29) (ALS MAY 2320132 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
MAY 2317845 MAY 2317845 Contact Us For Availability
29
DRIER (PRODUCTION) MAY W10190413 Contact Us For Availability
30
MAY W10188389 MAY W10188389 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2262178 MAY 2262178 Contact Us For Availability
31
Capacitor (Production) MAY 2264017 Contact Us For Availability
32
MAY 2266067 MAY 2266067 Contact Us For Availability
NI
REFRIGERANT CHARGE (3.75 OZS. (R134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 2155469A MAY 2155469A Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
