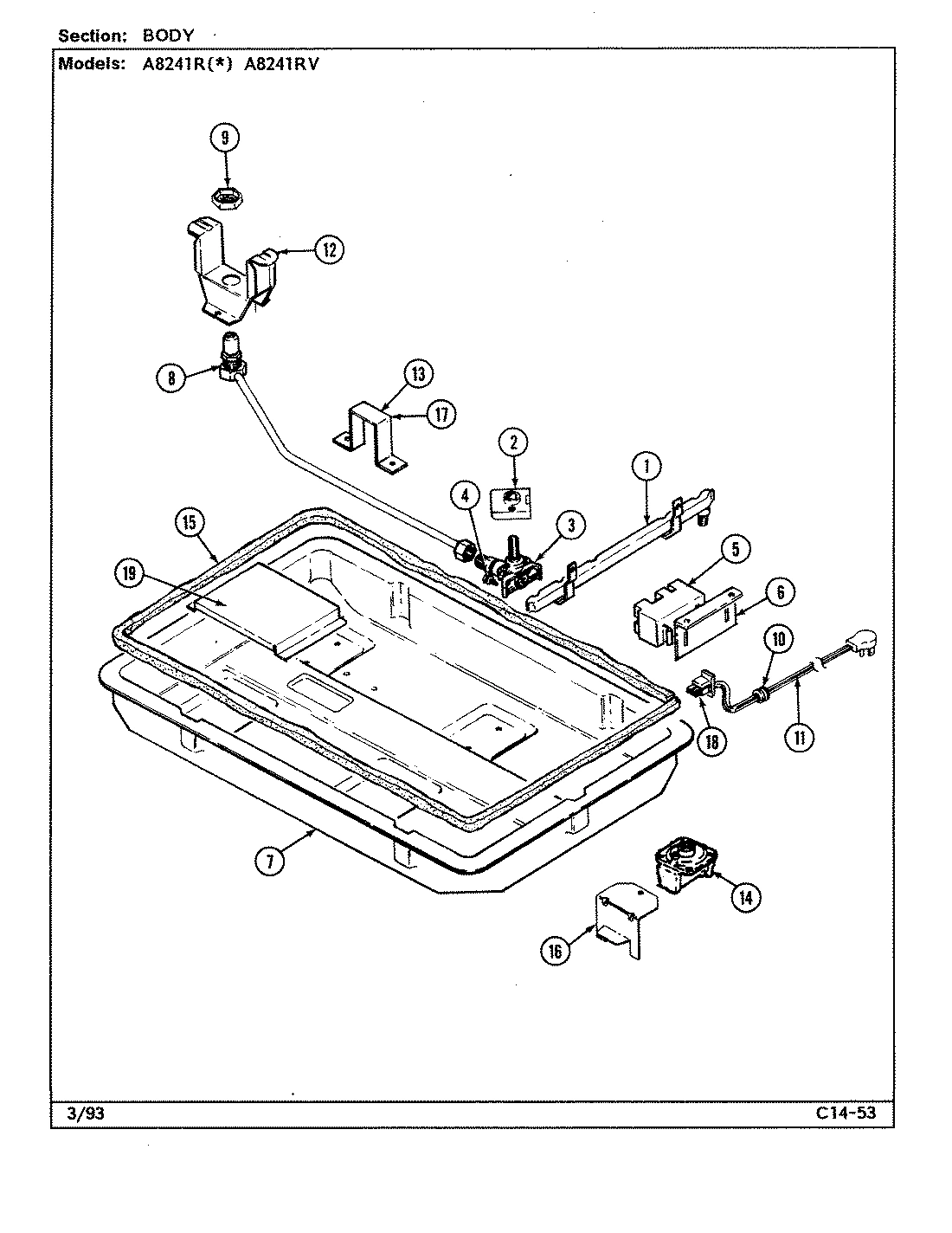

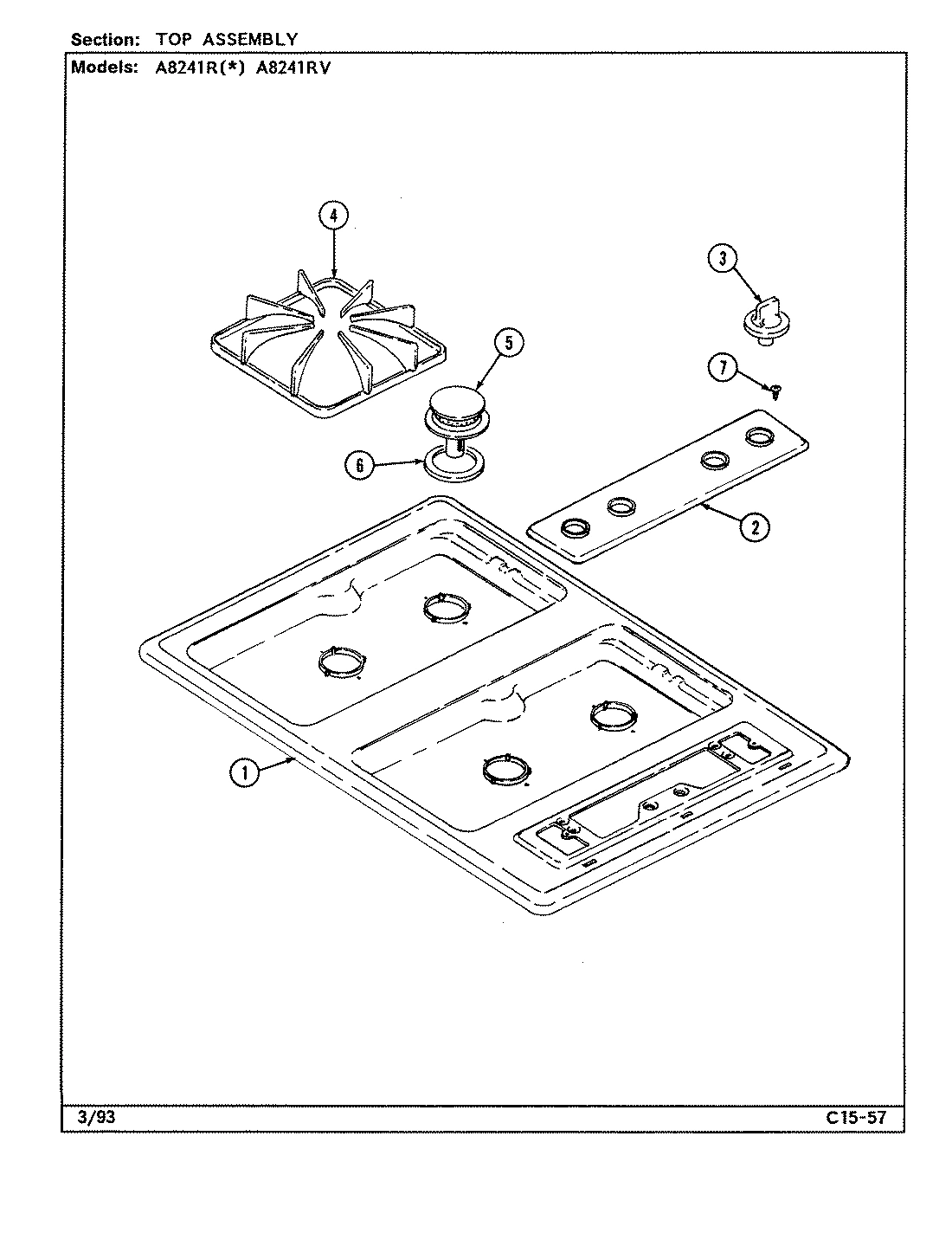

Model Whirlpool A8241RV GAS COOK-TOP – Common Parts & Diagrams

1
PIPE, MANIFOLD
PIPE, MANIFOLD WPL 7513P08960 Contact Us For Availability
View on Model
1
TOP, MAIN (WHT)
TOP, MAIN (WHT) WPL 2001W08381 Contact Us For Availability
View on Model
2
SWITCH, BURNER
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
View on Model
2
NAMEPLATE, ADMIRAL (BLK)
NAMEPLATE, ADMIRAL (BLK) WPL 7719P06260 Contact Us For Availability
View on Model
2
PANEL, CONTROL (WHT)
PANEL, CONTROL (WHT) WPL 7720P14860 Contact Us For Availability
View on Model
3
VALVE, TOP BURNER
VALVE, TOP BURNER WPL 7502P10660 Contact Us For Availability
View on Model
3
KNOB, BURNER (WHT)
KNOB, BURNER (WHT) WPL 7733P04360 Contact Us For Availability
View on Model
4
SCREW, CONTROL VALVE
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
View on Model
4
GRATE (DK GRY)
GRATE (DK GRY) WPL 2003W02326 Contact Us For Availability
View on Model
5
MODULE, SPARK
MODULE, SPARK WPL 7431P02360 Contact Us For Availability
View on Model
5
BURNER, SEALED
BURNER, SEALED WPL 3412D01726 Contact Us For Availability
View on Model
6
BRACKET, SPARK MODULE
BRACKET, SPARK MODULE WPL 3801F30445 Contact Us For Availability
View on Model
6
SCREW
SCREW WPL 7101P05960 Contact Us For Availability
View on Model
6
GASKET, BURNER
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
View on Model
7
BOX, BURNER
BOX, BURNER WPL 4011F20280 Contact Us For Availability
View on Model
7
SCREW
SCREW WPL 7101P07660 Contact Us For Availability
View on Model
7
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8113P03760 Contact Us For Availability
View on Model
8
FITTING, ORIFICE
FITTING, ORIFICE WPL 7507P14160 Contact Us For Availability
View on Model
8
FITTING, ORIFICE
FITTING, ORIFICE WPL 7507P14360 Contact Us For Availability
View on Model
8
FITTING, ORIFICE
FITTING, ORIFICE WPL 7507P14460 Contact Us For Availability
View on Model
8
FITTING, ORIFICE
FITTING, ORIFICE WPL 7507P14560 Contact Us For Availability
View on Model
9
PALNUT
PALNUT WPL 7103P11960 Contact Us For Availability
View on Model
10
SCREW, GROUND (GRN)
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
View on Model
10
BUSHING, SNAP
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
View on Model
11
SEAL, MANIFOLD PIPE
SEAL, MANIFOLD PIPE WPL 7208P01960 Contact Us For Availability
View on Model
11
CORD, POWER
CORD, POWER WPL 7402P01460 Contact Us For Availability
View on Model
12
SUPPORT, ORIFICE FITTING
SUPPORT, ORIFICE FITTING WPL 3807F44151 Contact Us For Availability
View on Model
12
SCREW
SCREW WPL 7118P01860 Contact Us For Availability
View on Model
13
BRACKET, MAIN TOP
BRACKET, MAIN TOP WPL 3801F29845 Contact Us For Availability
View on Model
14
REGULATOR, PRESSURE
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
View on Model
15
TAPE, FOAM 94``
TAPE, FOAM 94`` WPL 8270P07360 Contact Us For Availability
View on Model
16
BRACKET, TIE DOWN
BRACKET, TIE DOWN WPL 3801F19245 Contact Us For Availability
View on Model
17
TAPE, SEAL 112`` LONG
TAPE, SEAL 112`` LONG WPL 12400008 Contact Us For Availability
View on Model
18
BLOCK, DISCONNECT (PIN)
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
View on Model
18
BLOCK
BLOCK WPL 7401P01860 Contact Us For Availability
View on Model
19
COVER, ACCESS
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
View on Model
19
WIRES, LOOSE
WIRES, LOOSE WPL 5125A23460 Contact Us For Availability
View on Model
