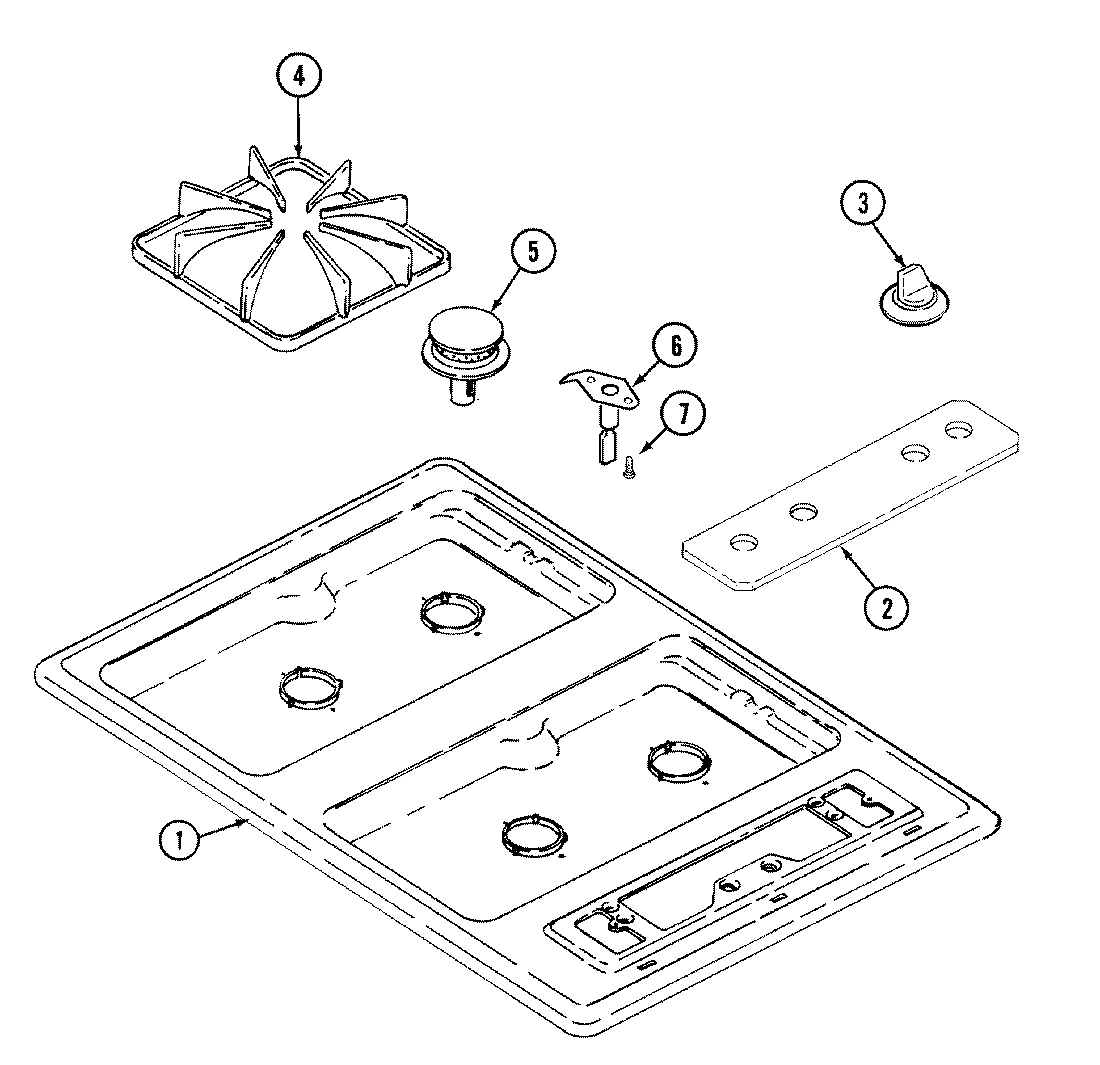

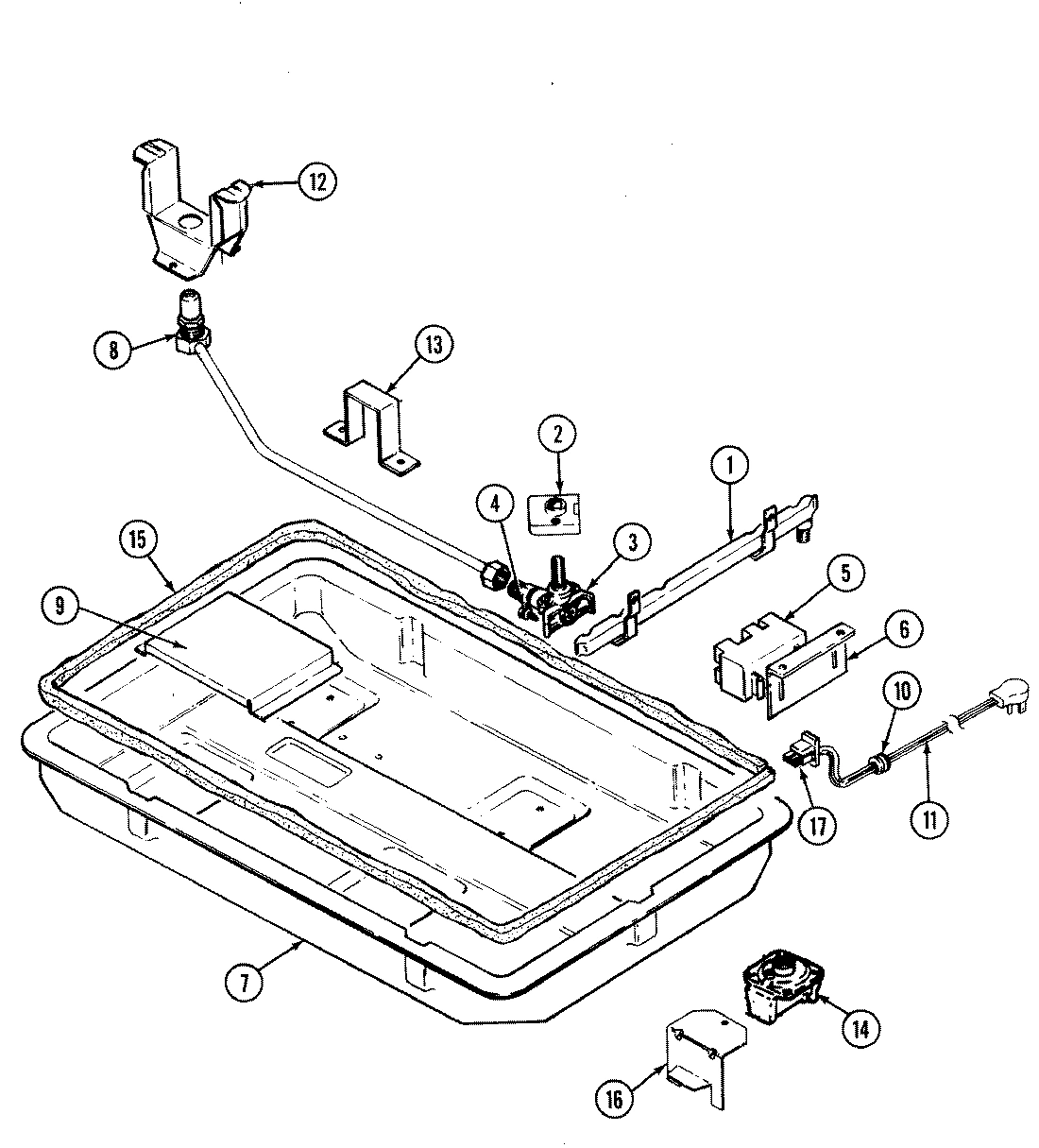

02 - TOP ASSEMBLY (A8241RT-L)

Print

• This Diagram
• All Diagrams

1

PIPE, MANIFOLD WPL 74001348 Contact Us For Availability

View on Model

2

NAMEPLATE, ADMIRAL (BLK) WPL 7719P06260 Contact Us For Availability

View on Model

2

PANEL, CONTROL (BLK) WPL 7720P14660 Contact Us For Availability

View on Model

2

SWITCH, BURNER WPL 7403P36760 Contact Us For Availability

View on Model

3

WP74001253 Whirlpool Top Knob Backorder WPL WP74001253 View Details $12.39

View on Model

3

VALVE, BURNER WPL 74001381 Contact Us For Availability

View on Model

4

SCREW, VALVE WPL 71003231 Contact Us For Availability

View on Model

5

8215557 Whirlpool Gas Stove Range Oven Cookto In Stock WPL 8215557 View Details $63.17

View on Model

5

WP3412D024-09 Whirlpool Oven Burner Head In Stock WPL WP3412D024-09 View Details $46.76

View on Model

6

74004053 Whirlpool Range Cooktop Top Burner E In Stock WPL 74004053 View Details $15.01

View on Model

6

W11233072 Whirlpool Screw In Stock WPL W11233072 View Details $9.96

View on Model

6

BRACKET, MODULE WPL 74004501 Contact Us For Availability

View on Model

7

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 View Details $2.60

View on Model

7

BOX, BURNER WPL 74004636 Contact Us For Availability

View on Model

8

ORIFICE ASSY. WPL 74001373 Contact Us For Availability

View on Model

8

ORIFICE ASSY. WPL 74001374 Contact Us For Availability

View on Model

8

ORIFICE ASSY. WPL 74001375 Contact Us For Availability

View on Model

8

ORIFICE ASSY. WPL 74001376 Contact Us For Availability

View on Model

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

View on Model

9

WIRES, LOOSE WPL 5125A23460 Contact Us For Availability

View on Model

10

BUSHING - STRAIN RELIEF WPL 550707 Contact Us For Availability

View on Model

11

CORD, POWER WPL 7402P01460 Contact Us For Availability

View on Model

12

SUPPORT, ORIFICE FITTING WPL 74001660 Contact Us For Availability

View on Model

13

BRACKET, MAIN TOP WPL 3801F29845 Contact Us For Availability

View on Model

14

REGULATOR, PRESSURE WPL 74001361 Contact Us For Availability

View on Model

15

TAPE, SEAL ROLL WPL 8270P05360 Contact Us For Availability

View on Model

16

BRACKET, TIE DOWN WPL 3801F19245 Contact Us For Availability

View on Model

16

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

View on Model

17

BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability

View on Model

17

BLOCK WPL 7401P01860 Contact Us For Availability

View on Model

NI

MANUAL, USE & CARE WPL 74001971 Contact Us For Availability

View on Model

NI

MANUAL, USE & CARE (FRCH) WPL 74004654 Contact Us For Availability

View on Model

×
