Model Whirlpool A79FN-5EVW-R ELECTRIC WALL OVEN – Common Parts & Diagrams

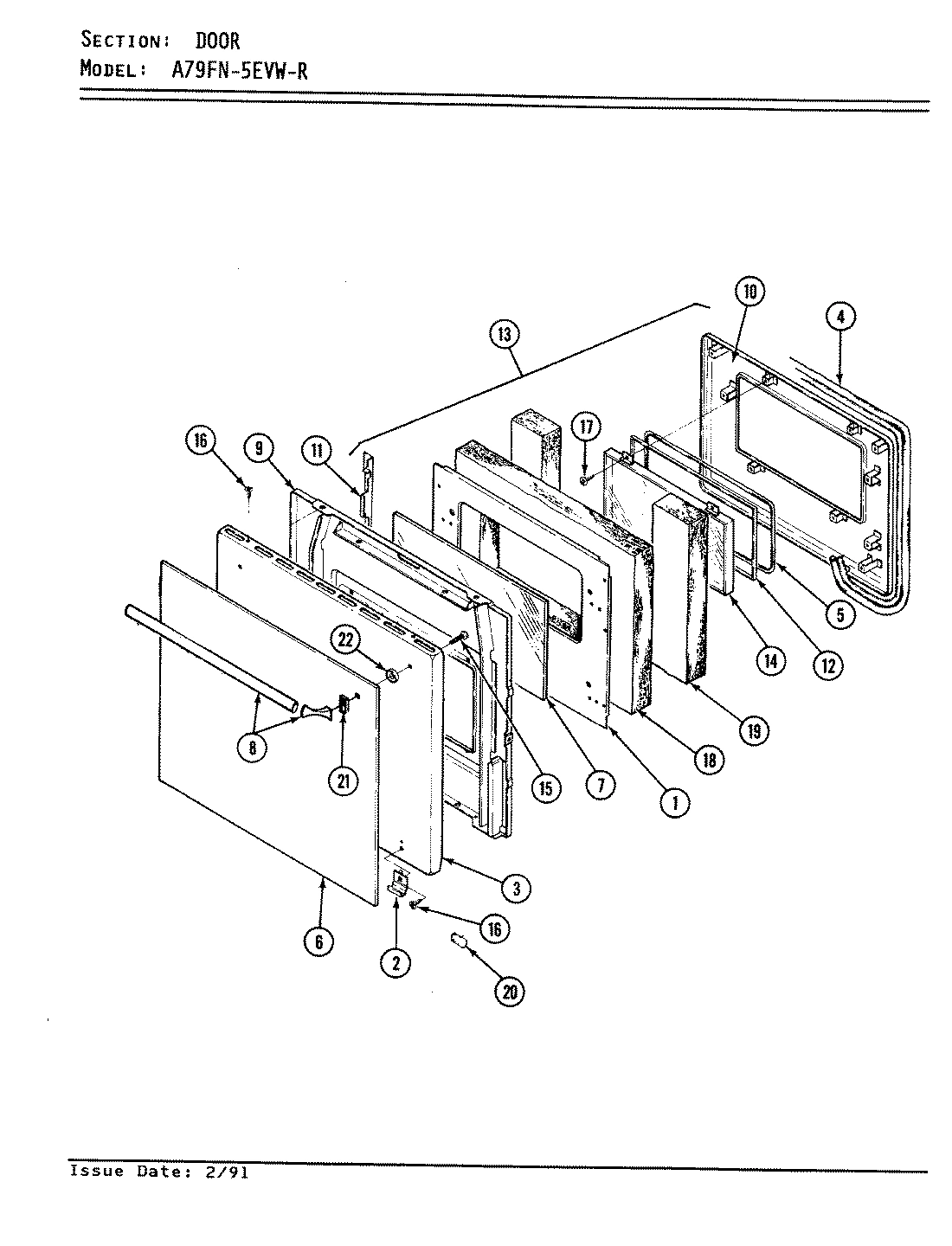

03 - DOOR
02 - CONTROL PANEL

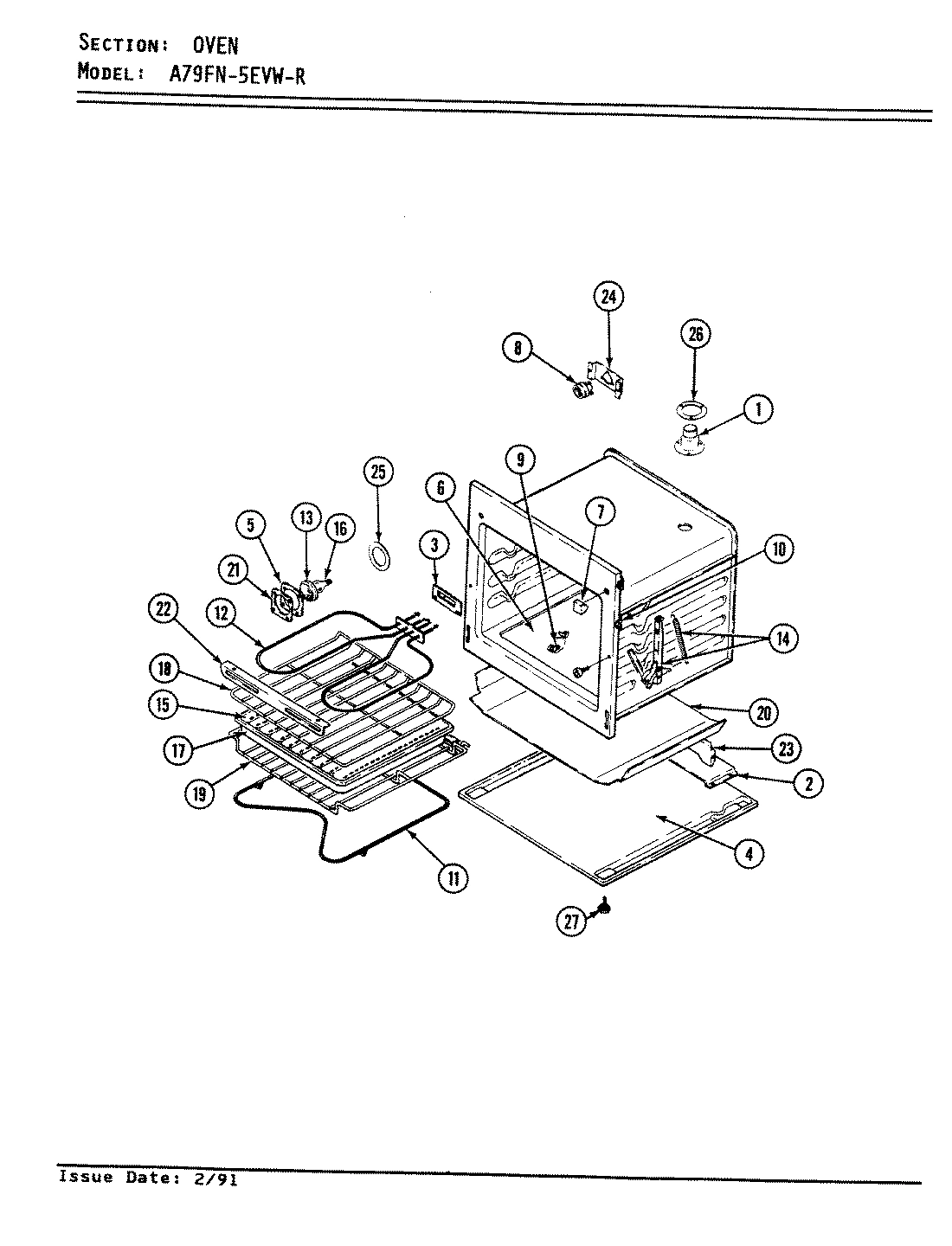

04 - OVEN
01 - BODY
Common parts from model Whirlpool A79FN-5EVW-R ELECTRIC WALL OVEN
1
BAFFLE, DOOR ASSEMBLY WPL 3601W13151 Contact Us For Availability
1
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
1
CLOCK WPL 7601P12360 Contact Us For Availability
1
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
1
CATALYST BURNER WPL 7505P01860 Contact Us For Availability
1
BACK, MAIN WPL 4002F12151 Contact Us For Availability
2
CLIP,GLASS RETAINER (WHT) WPL 3819F01071 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 3414P03744 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
3
PANEL, OVEN DOOR (WHITE) WPL 2401F04571 Contact Us For Availability
3
PANEL, DOOR (WHT) WPL 2401F10371 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
3
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
3
BAFFLE, SIDE WPL 3601F13051 Contact Us For Availability
4
GASKET WPL 7201P00460 Contact Us For Availability
4
GASKET, DOOR WPL 7201P05360 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
4
BASE, WALL OVEN WPL 4003F01180 Contact Us For Availability
4
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
5
GASKET WPL 7201P02060 Contact Us For Availability
5
COVER, FAN WPL 4005F26251 Contact Us For Availability
5
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
5
BOX, VENT WPL 4006W04615 Contact Us For Availability
6
GLASS, DOOR WPL 7902P30060 Contact Us For Availability
6
GLASS, OUTER (WHT) WPL 7902P33460 Contact Us For Availability
6
TAPE WPL 8270P06560 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
6
GROMMET WPL 8008P00460 Contact Us For Availability
6
BOTTOM, OVEN (UPPER) WPL 2205F00315 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F00319 Contact Us For Availability
6
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
GLASS CONTROL PANEL WPL 7912P06960 Contact Us For Availability
7
FELT, DISC WPL 8010P05060 Contact Us For Availability
7
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
7
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
8
HANDLE, DOOR (WHT) WPL 7701P08660 Contact Us For Availability
8
LIGHT, INDICATOR WPL 5700A23660 Contact Us For Availability
8
INSULATOR, TERMINAL WPL 7414P00460 Contact Us For Availability
8
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
8
COVER, BOX WPL 4005F20251 Contact Us For Availability
9
LINING ASSEMBLY WPL 2402W13015 Contact Us For Availability
9
LINING, DOOR WPL 2402W13019 Contact Us For Availability
9
KNOB, CLOCK (BUTTON-WHT) WPL 7711P42060 Contact Us For Availability
9
COVER, CAP HOLE WPL 4005F01135 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
COVER, LOCK WPL 4005F16045 Contact Us For Availability
10
PAD DOOR WPL 2410W04215 Contact Us For Availability
10
PAD, DOOR WPL 2410W04219 Contact Us For Availability
10
SCREW WPL 7101P06160 Contact Us For Availability
10
KNOB, CLOCK (WHT) WPL 7711P41960 Contact Us For Availability
11
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
11
KNOB, SWITCH (WHT) WPL 7737P01160 Contact Us For Availability
11
ELEMENT BAKE WPL 7406P01360 Contact Us For Availability
11
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
11
SCREW WPL 7101P11560 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
12
SLEEVE, SWITCH (WHT) WPL 7214P02360 Contact Us For Availability
12
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
12
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
12
SCREW, SWITCH WPL 7101P03560 Contact Us For Availability
12
SWITCH, DOOR LOCK WPL 7403P00760 Contact Us For Availability
13
PAD, OVEN DOOR WPL 2410A04215 Contact Us For Availability
13
PAD, OVEN DOOR ASSY. WPL 2410A04219 Contact Us For Availability
13
PLATE, REINFORCEMENT WPL 3605F13151 Contact Us For Availability
13
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
13
SHIELD, TERMINAL WPL 3604F04860 Contact Us For Availability
14
WINDOW ASSY. WPL 5700A08260 Contact Us For Availability
14
SUPPORT, CLOCK WPL 3605F13980 Contact Us For Availability
14
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
14
HINGE, UPPER WPL 7106A01960 Contact Us For Availability
14
HINGE, DOOR WPL 7106P03760 Contact Us For Availability
15
SCREW WPL 7101P00460 Contact Us For Availability
15
SWITCH, PUSH (WHT) WPL 7403P20460 Contact Us For Availability
15
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
15
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
15
EXTRUSION, FRONT FRAME (CHR) WPL 7750P03960 Contact Us For Availability
16
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P02360 Contact Us For Availability
16
HOUSING LAMP WPL 4001W01251 Contact Us For Availability
16
INSULATION, LAMP HOUSING WPL 7002P09460 Contact Us For Availability
16
BULB, OVEN WPL 7407P02660 Contact Us For Availability
16
EXTRUSION, RETAINER (WHT) WPL 7742P01060 Contact Us For Availability
17
INSULATION THERMOSTAT WPL 7003P03360 Contact Us For Availability
17
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
17
THERMOSTAT, UPPER WPL 7404P03960 Contact Us For Availability
17
PAN, BROIL WPL 3401F00423 Contact Us For Availability
17
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
17
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
17
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
17
NUT, SNAP WPL 7103P05160 Contact Us For Availability
17
EXTRUSION, VENT WPL 7756P03260 Contact Us For Availability
18
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
18
INSULATION, DOOR----NA WPL 7002P02360 Contact Us For Availability
18
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
18
RACK WPL 7801P00560 Contact Us For Availability
19
INSULATION, DOOR WPL 7002P02160 Contact Us For Availability
19
SCREW WPL 7101P07960 Contact Us For Availability
19
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
19
HANDLE, LATCH (WHT) WPL 7701P08960 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
SHAFT, CLOCK WPL 8312P01760 Contact Us For Availability
20
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
20
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
21
SPACER, DOOR HANDLE WPL 8010P05460 Contact Us For Availability
21
SPACER, HANDLE (WHT) WPL 8010P07760 Contact Us For Availability
21
RETAINER WPL 3804F01145 Contact Us For Availability
21
BRACKET, DOOR LATCH WPL 3801F12751 Contact Us For Availability
21
INSULATOR WPL 7003P00160 Contact Us For Availability
21
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
22
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
22
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
22
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
22
PANEL, SIDE (RT) WPL 2618F05351 Contact Us For Availability
22
PANEL, SIDE (LT) WPL 2618F05451 Contact Us For Availability
23
SUPPORT WPL 3807F13780 Contact Us For Availability
23
RETAINER, REAR WPL 3804F09651 Contact Us For Availability
24
BRACKET WPL 3801F02451 Contact Us For Availability
24
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
25
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
25
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
26
GASKET WPL 7201P01660 Contact Us For Availability
27
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
× ![]()
