Model LG A5UW36GFH0.AWGBEUS – Common Parts & Diagrams

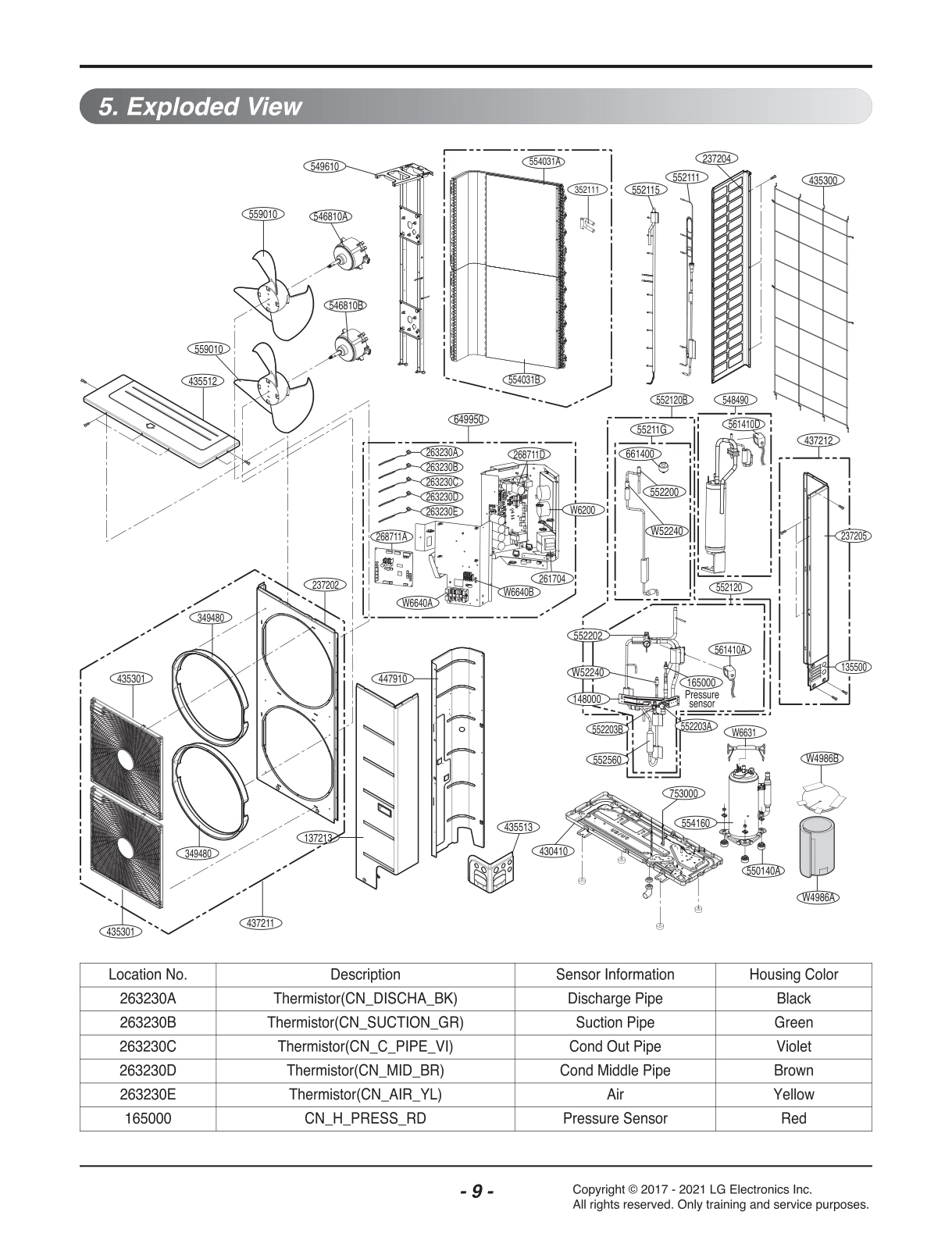

DIAGRAM 1
Common parts from model LG A5UW36GFH0.AWGBEUS
135500
Cover LGE MCK39626227 Contact Us For Availability
137213
Panel Assembly,Side LGE AGL34579165 Contact Us For Availability
148000
Supporter LGE MJH39544901 Contact Us For Availability
165000
Sensor,Pressure LGE EBD60663821 Contact Us For Availability
237202
Panel,Front LGE MGC39426120 Contact Us For Availability
237204
Panel,Side LGE MGC39426024 Contact Us For Availability
237205
Panel,Rear LGE MGC39613745 Contact Us For Availability
261704
Transformer,Reactor LGE EBJ62950506 Contact Us For Availability
263230A
Thermistor Assembly,NTC LGE EBG61406005 Contact Us For Availability
263230B
Thermistor Assembly,NTC LGE EBG61405903 Contact Us For Availability
263230C
Thermistor Assembly,NTC LGE EBG61445809 Contact Us For Availability
263230D
Thermistor Assembly,NTC LGE EBG61445902 Contact Us For Availability
263230E
Thermistor Assembly,NTC LGE EBG61446004 Contact Us For Availability
268711A
PCB Assembly,Cycle LGE EBR75879215 Contact Us For Availability
268711D
PCB Assembly,Inverter LGE EBR82655302 Contact Us For Availability
349480
Orifice LGE MFX63082101 Contact Us For Availability
352111
Tube Assembly,Connector LGE 5211A20349P Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN75870801 Contact Us For Availability
435300
Grille,Rear LGE MDX40922521 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131832 Contact Us For Availability
435513
Cover Assembly,Tubing LGE ACQ34583435 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL34578727 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL76512821 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM35646432 Contact Us For Availability
548490
Accumulator Assembly LGE AAB73490411 Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA34168809 Contact Us For Availability
550140A
Damper,Rubber LGE MCQ68888201 Contact Us For Availability
552111
Tube Assembly,Capillary LGE AJR74522404 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR74703604 Contact Us For Availability
552120
Tube Assembly LGE AJR75584501 Contact Us For Availability
552120B
Tube Assembly LGE AJR75584502 Contact Us For Availability
552200
Valve,Expansion Body LGE 5220A90013J Contact Us For Availability
552202
Valve,Reverse LGE 3A02080B Contact Us For Availability
552203A
Valve,Service LGE MJX62451601 Contact Us For Availability
552203B
Valve,Service LGE MJX42581402 Contact Us For Availability
552560
Muffler LGE 5256A30003R Contact Us For Availability
554031A
Condenser Assembly,Bending LGE ACG74464808 Contact Us For Availability
554031B
Condenser Assembly,Bending LGE ACG74464807 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ35638101 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ37955101 Contact Us For Availability
561410D
Solenoid LGE EBE61441605 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ74541615 Contact Us For Availability
661400
Coil,Expansion LGE EAP63107113 Contact Us For Availability
661400
Coil Module,Expansion LGE EAP65270707 Contact Us For Availability
753000
Heater,Electric LGE MEE63124904 Contact Us For Availability
W4986A
Sound proof LGE MDS63978803 Contact Us For Availability
W4986B
Sound proof LGE MDS63978804 Contact Us For Availability
W6200
Filter,Line Noise LGE EAM62792404 Contact Us For Availability
W6631
Harness,Multi LGE EAD63051119 Contact Us For Availability
W6640A
Connector,Terminal Block LGE EAG63111409 Contact Us For Availability
W52240
Strainer LGE 3H03659M Contact Us For Availability
× ![]()
