Model Whirlpool A3889VRV ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

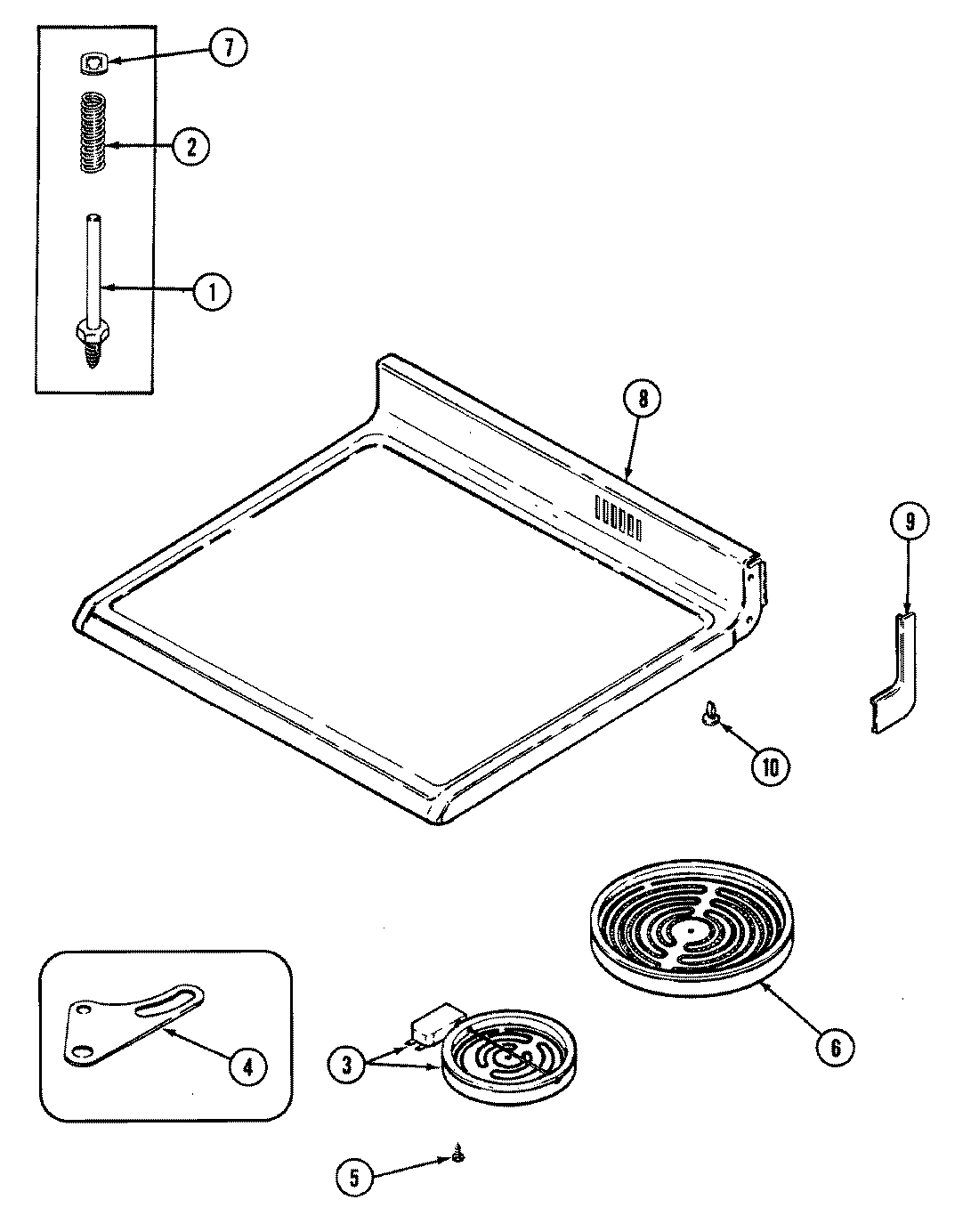

05 - TOP ASSEMBLY

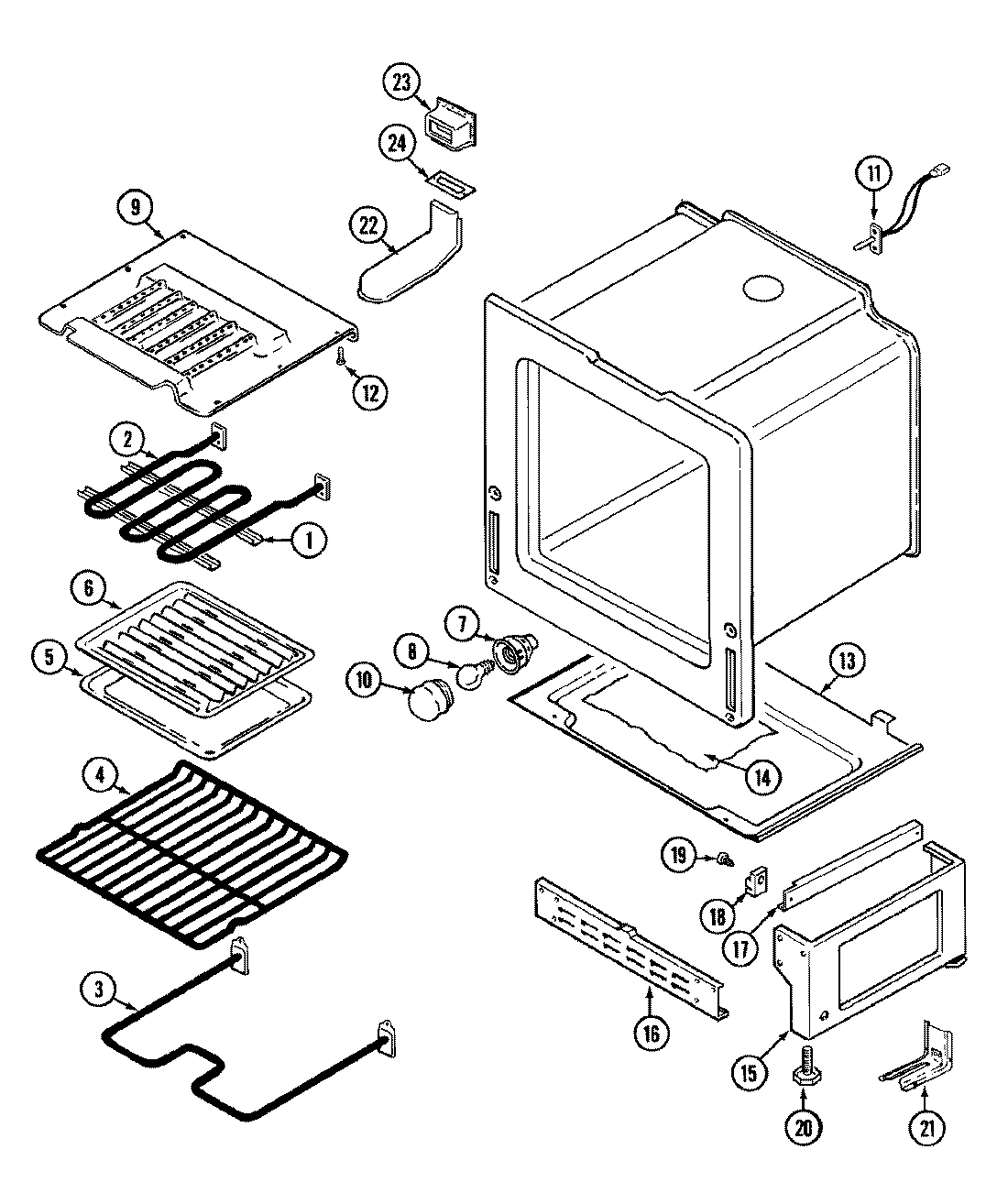

04 - OVEN/BASE

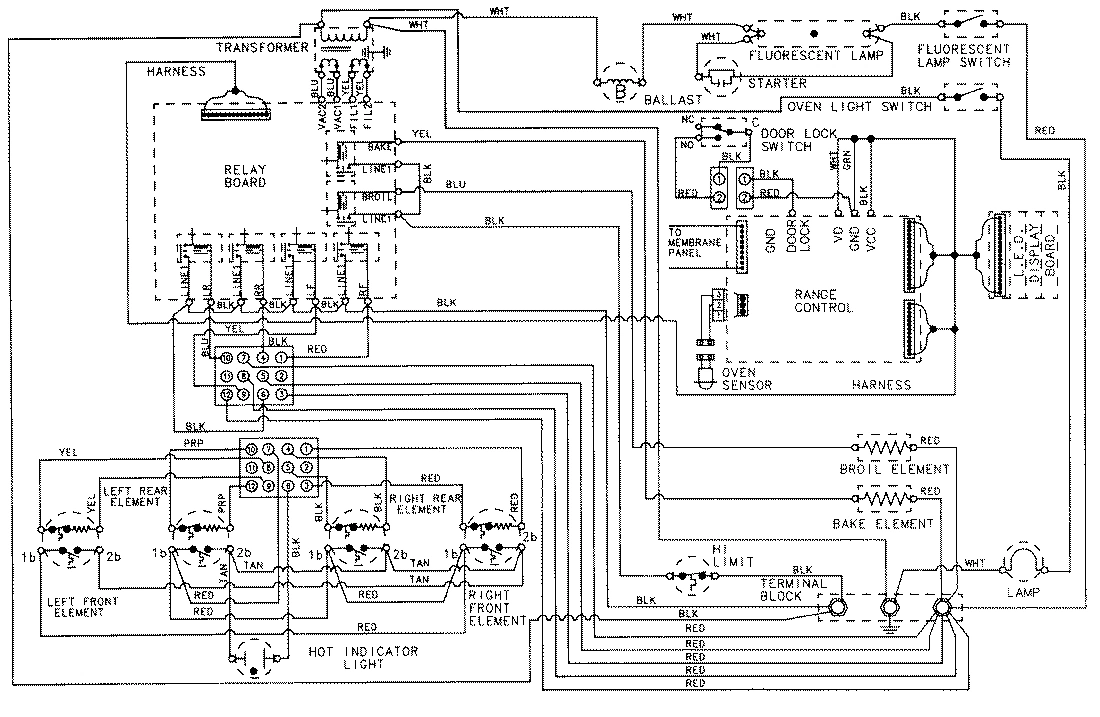

06 - WIRING INFORMATION

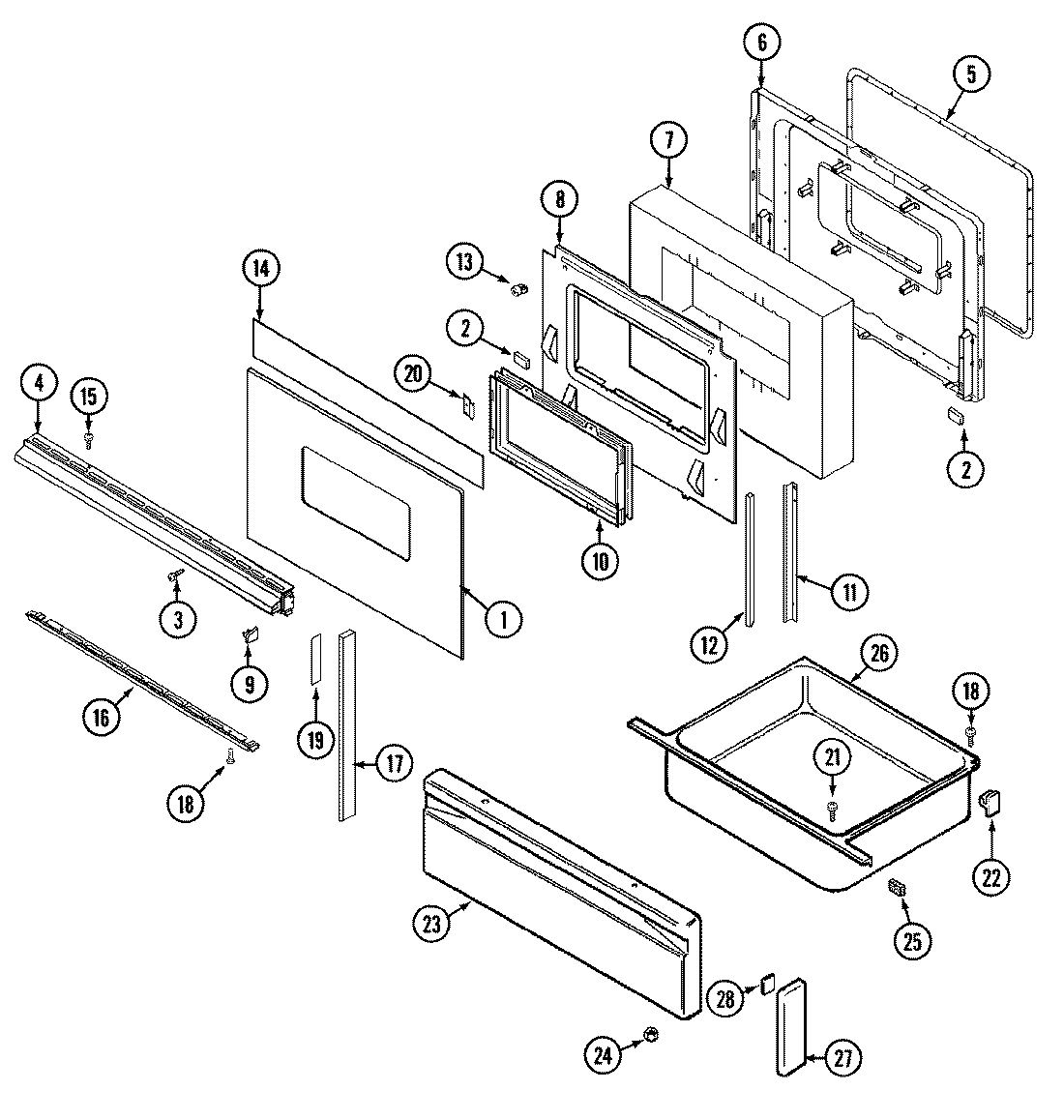

03 - DOOR/DRAWER
Common parts from model Whirlpool A3889VRV ELECTRIC RANGE
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
3
SPACER WPL 8010P08360 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
4
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 7701P10560 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
5
SCREW WPL 7101P34960 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SCREW WPL 7101P33160 Contact Us For Availability
6
PANEL, CONTROL (WHITE) WPL 7703P39660 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
SUPPORT, CLOCK WPL 3807F43745 Contact Us For Availability
7
CLOCK WPL 7601P17460 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
8
SUPPORT, CLOCK WPL 8004P03560 Contact Us For Availability
8
TOP ASSY. (WHT GLASS/WHT FRM) WPL 5706S07981 Contact Us For Availability
8
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
8
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
PANEL, CONTROL ASSY WPL 4876S03659 Contact Us For Availability
9
TAPE WPL 74001019 Contact Us For Availability
9
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
9
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
10
HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability
10
TRIM, GLASS RETAINER (WHT) WPL 7720P16060 Contact Us For Availability
10
GLIDE WPL 8016P01660 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
DISPLAY BOARD WPL 7424P00160 Contact Us For Availability
11
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
12
KNOB, CLOCK (WHT) WPL 7711P43260 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
RELAY BOARD WPL 7428P01160 Contact Us For Availability
13
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
14
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
SUPPORT, RELAY BOARD WPL 3807F45845 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
15
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
15
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
SWITCH, ROCKER (WHT) WPL 7403P31060 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
17
NUT, SPEED WPL 7103P12960 Contact Us For Availability
17
END CAP (RT-WHT) WPL 7726P07360 Contact Us For Availability
17
END CAP (LT-WHT) WPL 7726P07460 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
18
SCREW WPL 7101P29060 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
SCREW WPL 7101P33460 Contact Us For Availability
19
TAPE, SEALING ROLL WPL 8270P04860 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
STARTER WPL 7415P00160 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
SCREW WPL 7101P07260 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
22
INSULATOR WPL 74001722 Contact Us For Availability
22
INSULATOR, SWITCH WPL 74001999 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
22
COVER, LIGHT (WHT)----NA WPL 7724P05960 Contact Us For Availability
22
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
22
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
RECEPTACLE, LAMP WPL 7408P00760 Contact Us For Availability
23
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
23
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
GASKET, VENT WPL 7201P05460 Contact Us For Availability
24
NUT, LOCK WPL 7103P13960 Contact Us For Availability
25
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
25
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
26
LIGHT, INDICATOR WPL 7407P10660 Contact Us For Availability
26
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
27
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
27
END CAP, DRAWER (WHT) WPL 7744P06960 Contact Us For Availability
28
TAPE WPL 8270P09860 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
HARNESS, LOOSE WIRE WPL 5125A36560 Contact Us For Availability
NI
HARNESS, RELAY TO TRANSFER WPL 5140D04060 Contact Us For Availability
NI
HARNESS, LOCK & SENSOR WPL 5195D11960 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8112P10860 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P00960 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001542 Contact Us For Availability
× ![]()
