Model Whirlpool A3438SRW GAS RANGE – Common Parts & Diagrams

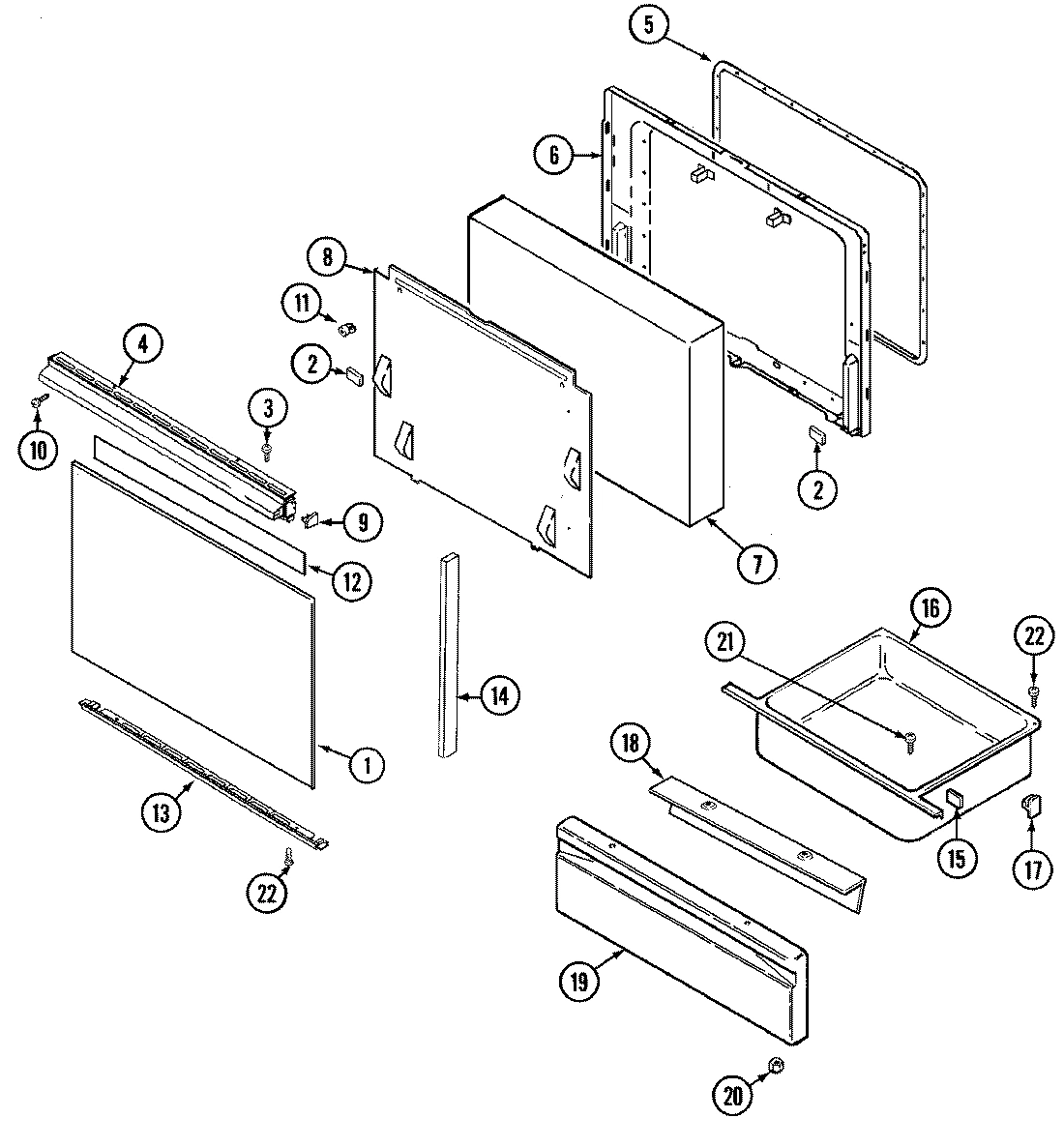

03 - DOOR/DRAWER

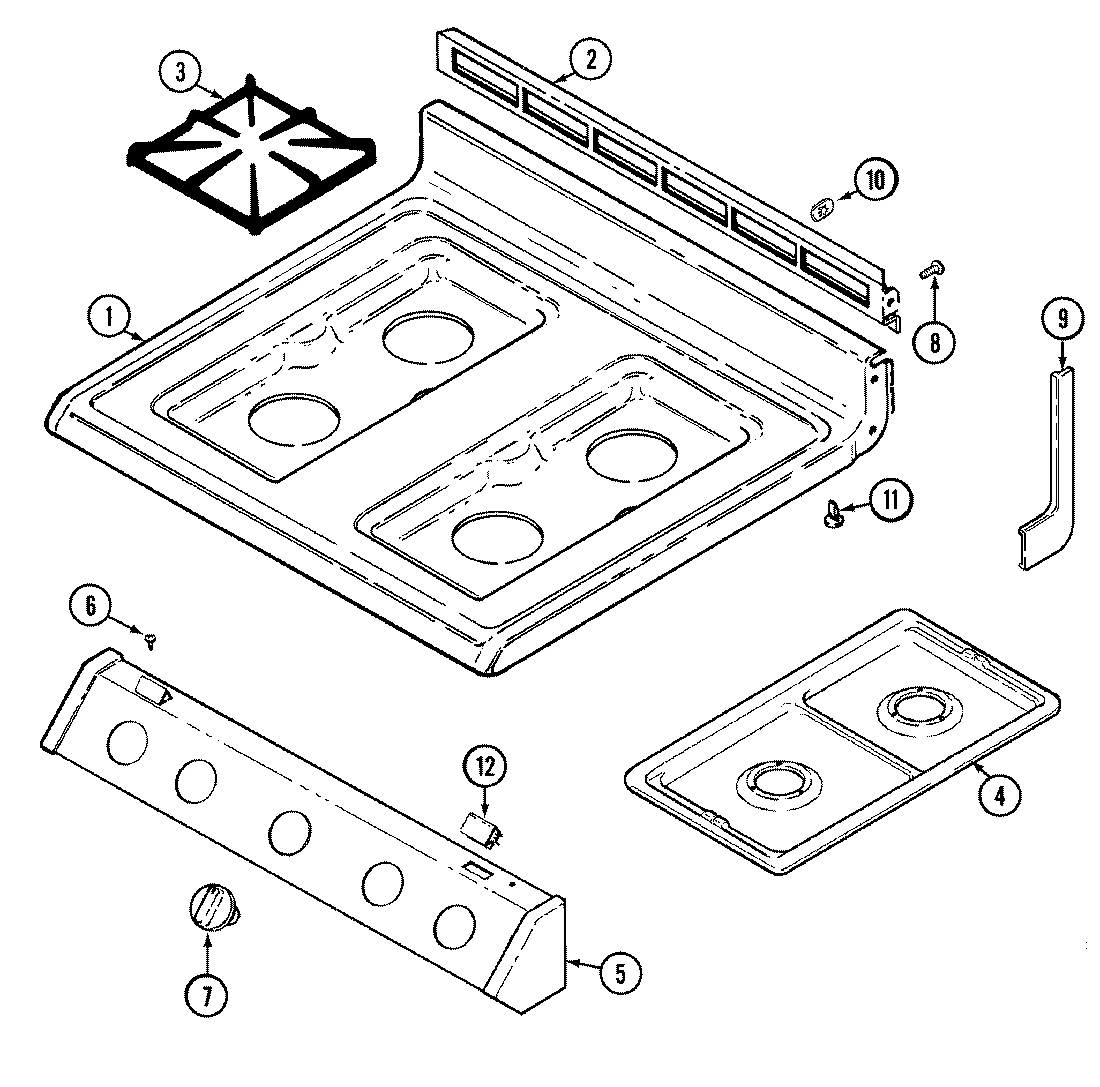

05 - TOP ASSEMBLY

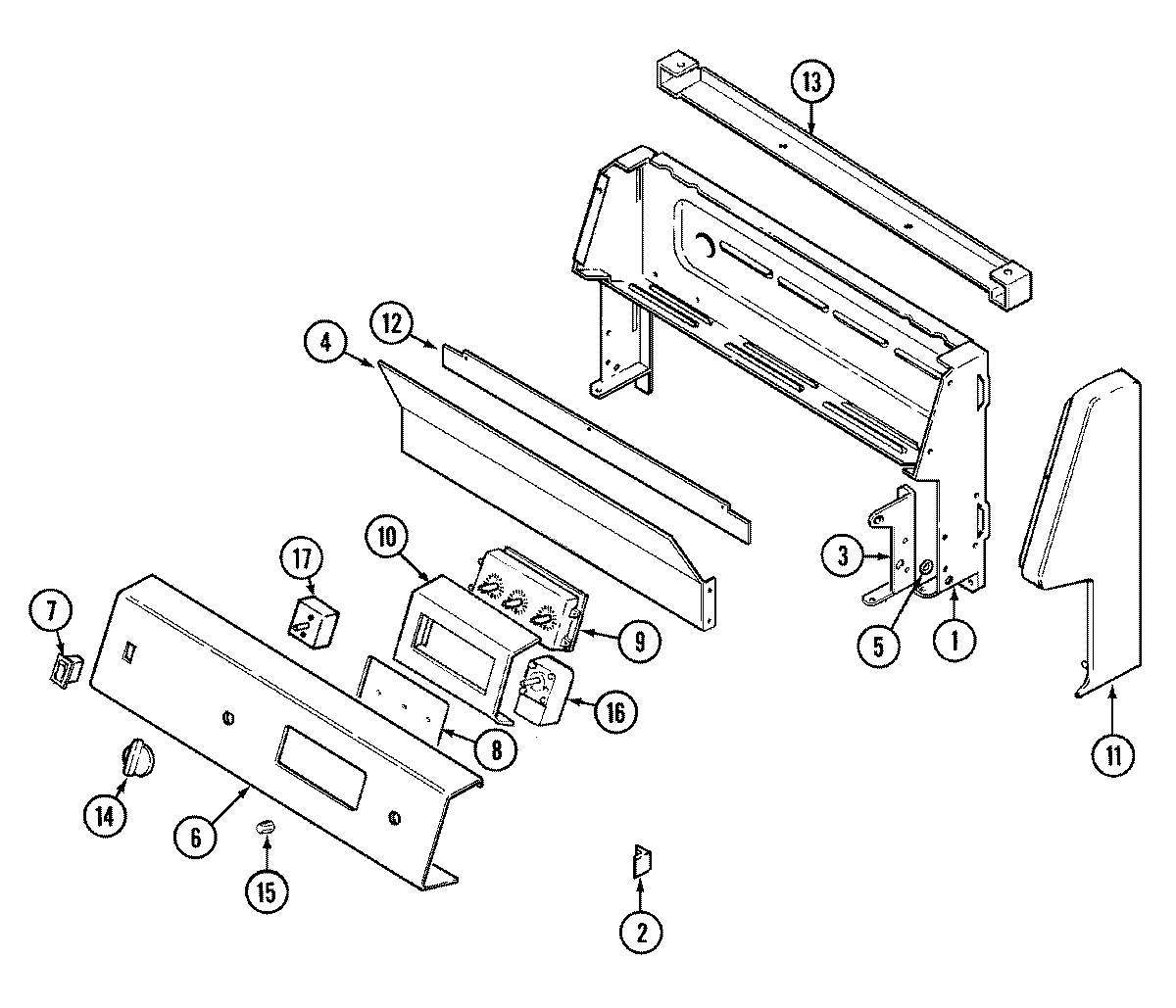

02 - CONTROL PANEL

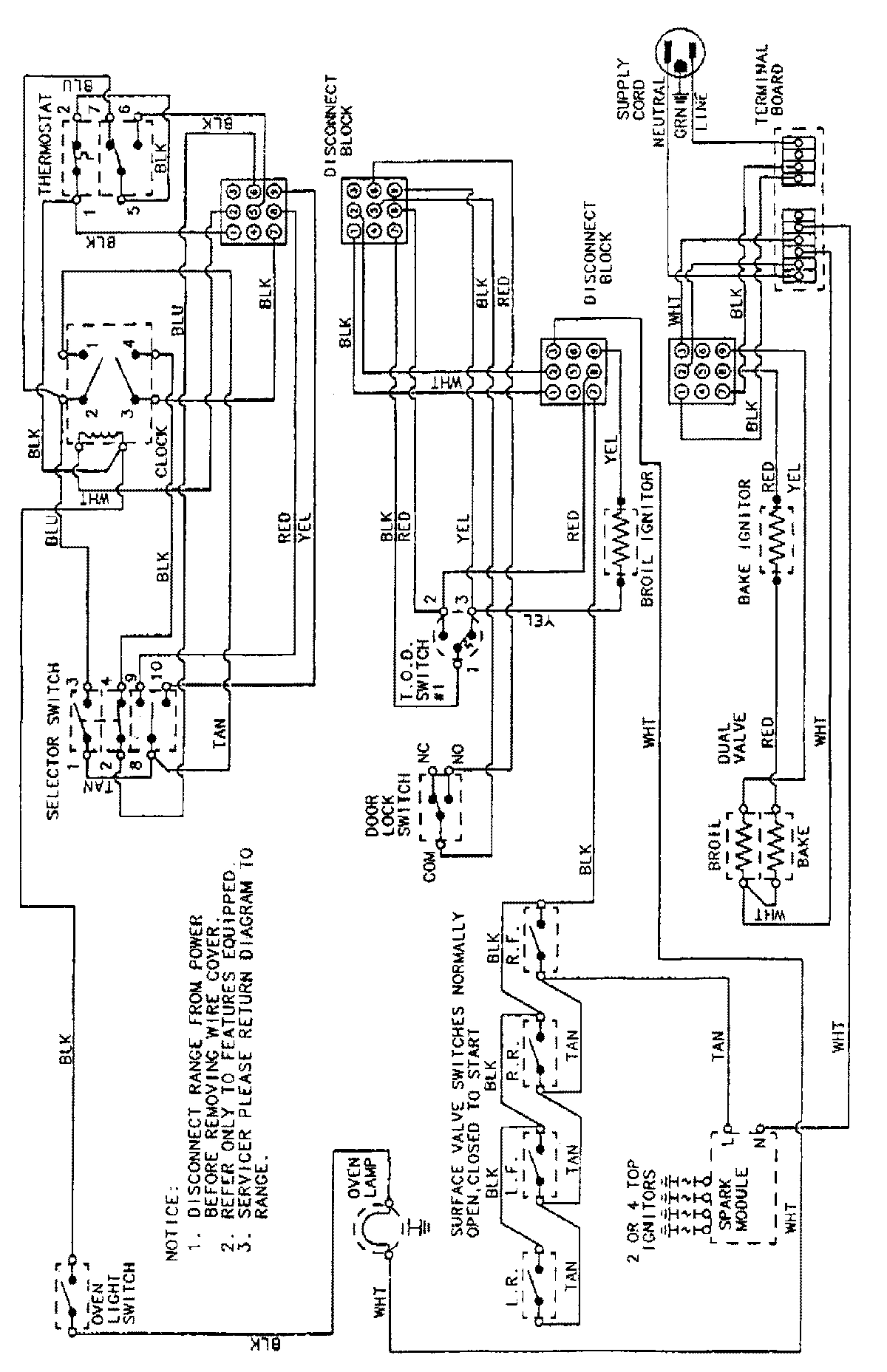

06 - WIRING INFORMATIN (A3438SRA/SRW)

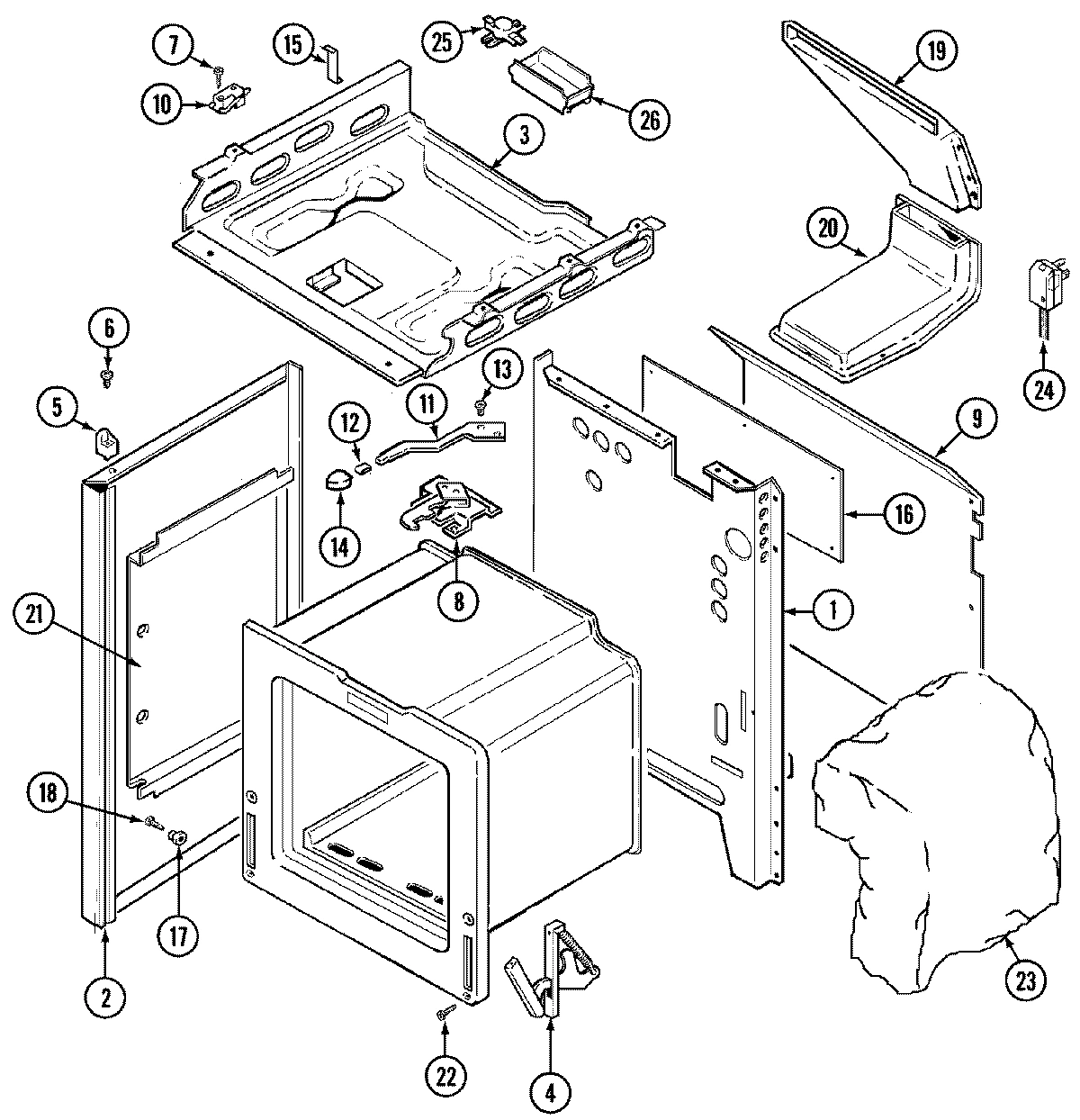

01 - BODY

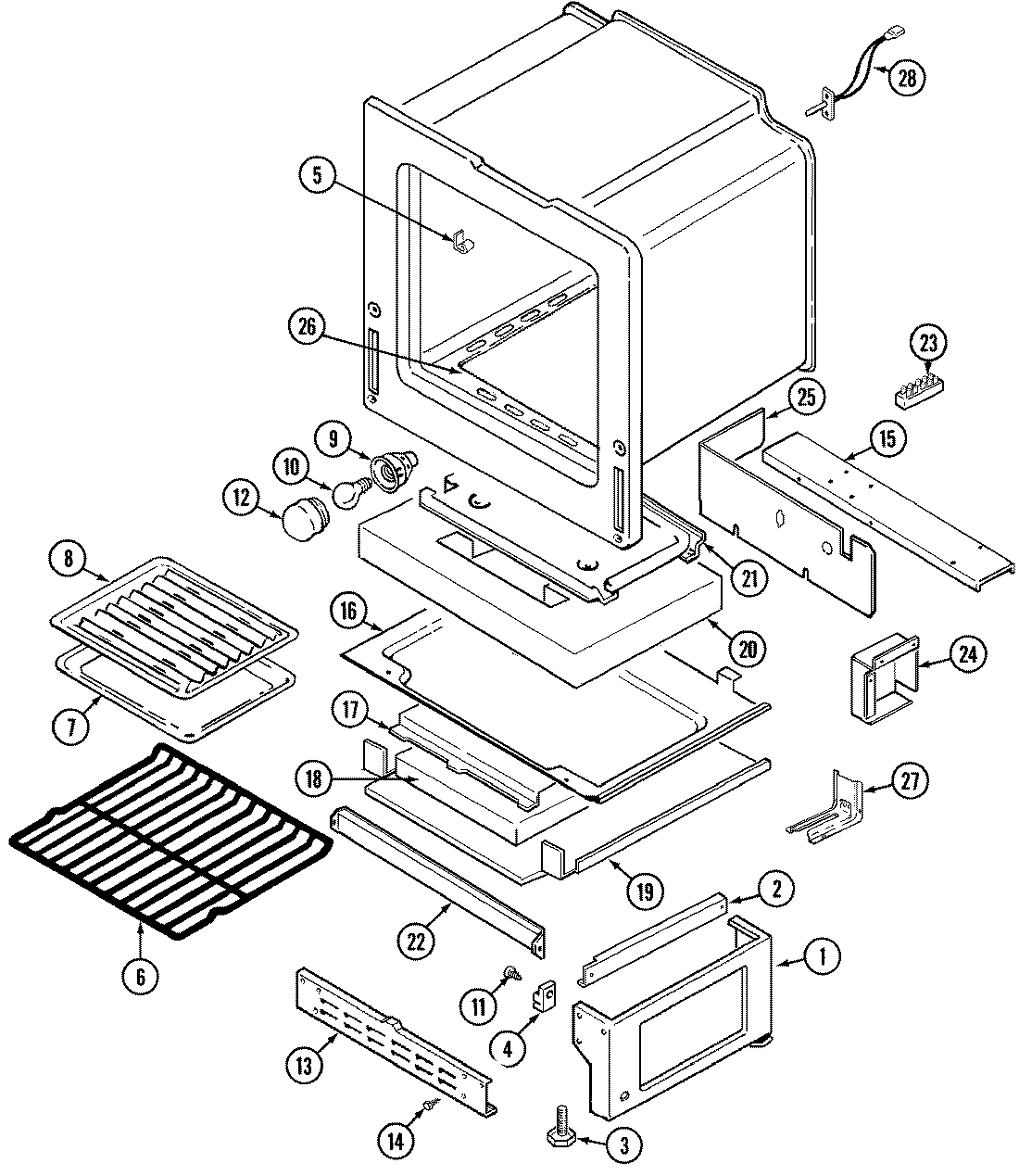

04 - OVEN/BASE
Common parts from model Whirlpool A3438SRW GAS RANGE
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08581 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
COVER, WIRE WPL 4005F44845 Contact Us For Availability
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
3
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
3
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
3
BOX, BURNER WPL 4011F23180 Contact Us For Availability
3
BOX, BURNER WPL 4011F25080 Contact Us For Availability
3
LEG, LEVELING WPL 74001311 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
4
HINGE WPL 7106P05660 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P13560 Contact Us For Availability
5
NUT, SPEED WPL 7103P04460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
LINING, DOOR WPL 2402W21019 Contact Us For Availability
6
SCREW WPL 7101P32960 Contact Us For Availability
6
PANEL, CONTROL WPL 7703P32560 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
7
KNOB, VALVE WPL 7733P05760 Contact Us For Availability
7
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
7
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
BAFFLE, DOOR SOLID WPL 3601F21851 Contact Us For Availability
8
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
8
GASKET WPL 7201P05660 Contact Us For Availability
8
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
8
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
8
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
9
CLOCK WPL 7601P17060 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
10
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
10
BRACKET, CLOCK WPL 3801F26445 Contact Us For Availability
10
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
10
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
10
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
11
GLIDE WPL 8016P01560 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
11
LEVER, LATCH ASSY. WPL 8009P02960 Contact Us For Availability
11
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
12
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
12
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
12
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
12
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
13
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
13
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
13
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
KNOB, SELECTOR WPL 7739P04960 Contact Us For Availability
14
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
15
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
15
SUPPORT, VALVE & REGULATOR WPL 3807F47651 Contact Us For Availability
16
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
16
THERMOSTAT WPL 7404P10260 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
16
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
17
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
17
SCREW WPL 7101P30960 Contact Us For Availability
17
SWITCH, SELECTOR WPL 7403P23660 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
18
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
19
PANEL, DRAWER (WHT) WPL 2416F03862 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
20
NUT, LOCK WPL 7103P13960 Contact Us For Availability
20
BOX, VENT WPL 4006W11345 Contact Us For Availability
20
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
21
SCREW WPL 7101P07260 Contact Us For Availability
21
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
21
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
22
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
23
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
23
INSULATION, BACK WPL 74001800 Contact Us For Availability
23
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
24
CORD, POWER WPL 7402P04360 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
25
SCREW WPL 7101P34960 Contact Us For Availability
25
SWITCH, HIGH LIMIT WPL 7403P27560 Contact Us For Availability
25
COVER, VALVE WPL 4005F42951 Contact Us For Availability
26
SUPPORT, THERMAL DISC WPL 3807F42051 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW WPL 7101P34460 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
HARNESS, WIRE BACKGUARD WPL 5180D15560 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P04560 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001188 Contact Us For Availability
× ![]()
