Model Maytag A31713XATL GAS RANGE – Common Parts & Diagrams

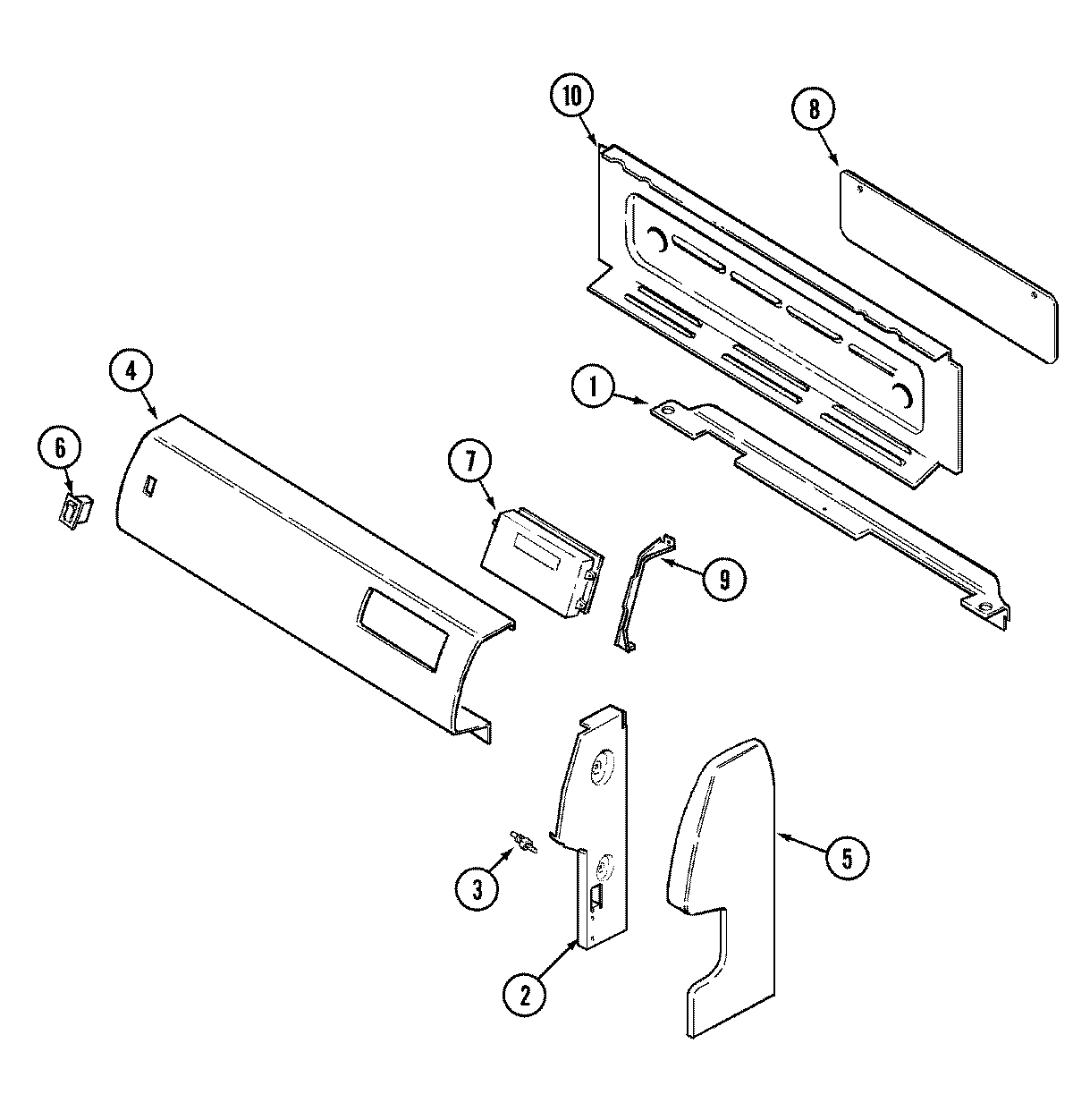

01 - CONTROL PANEL

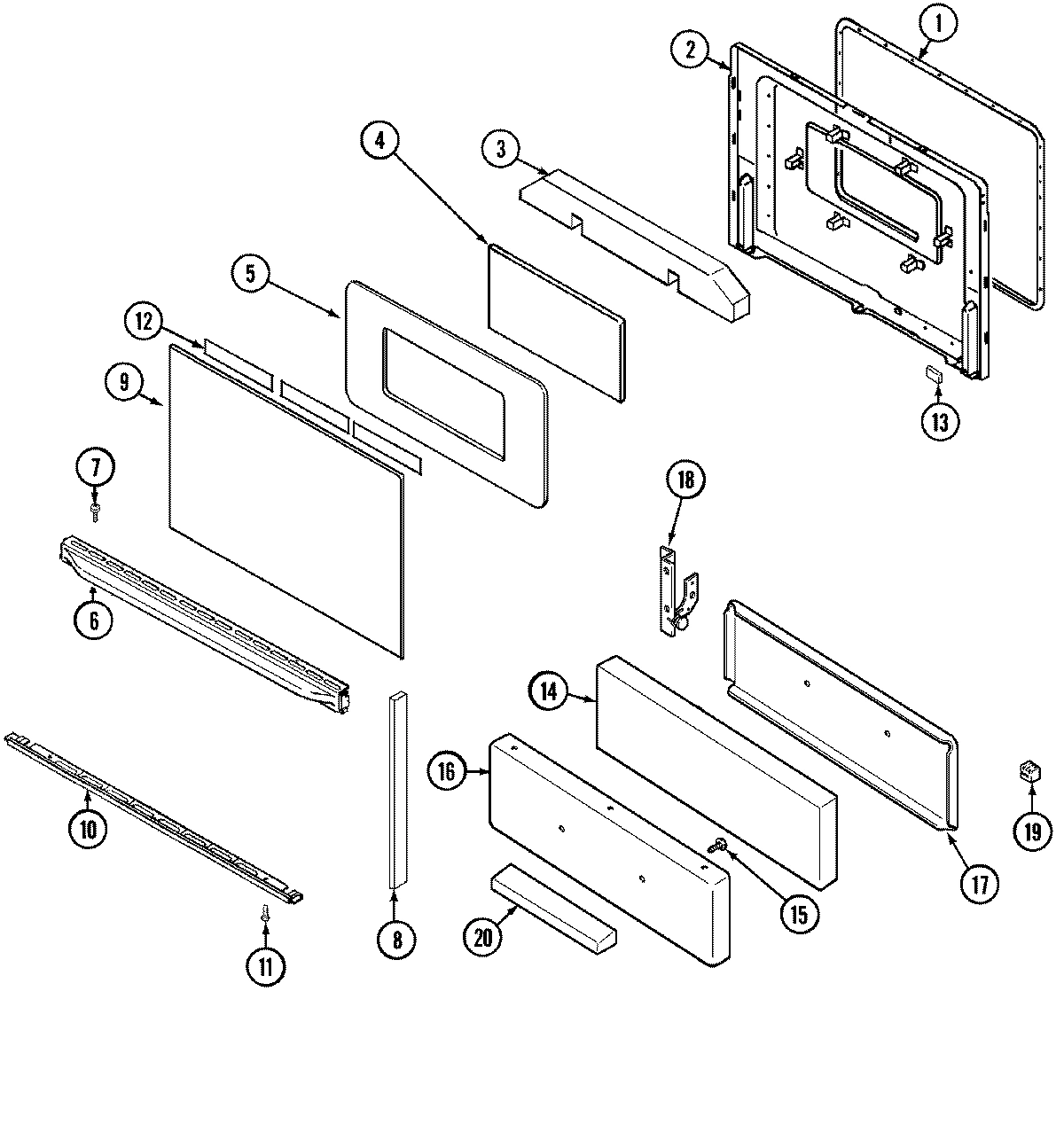

02 - DOOR/DRAWER

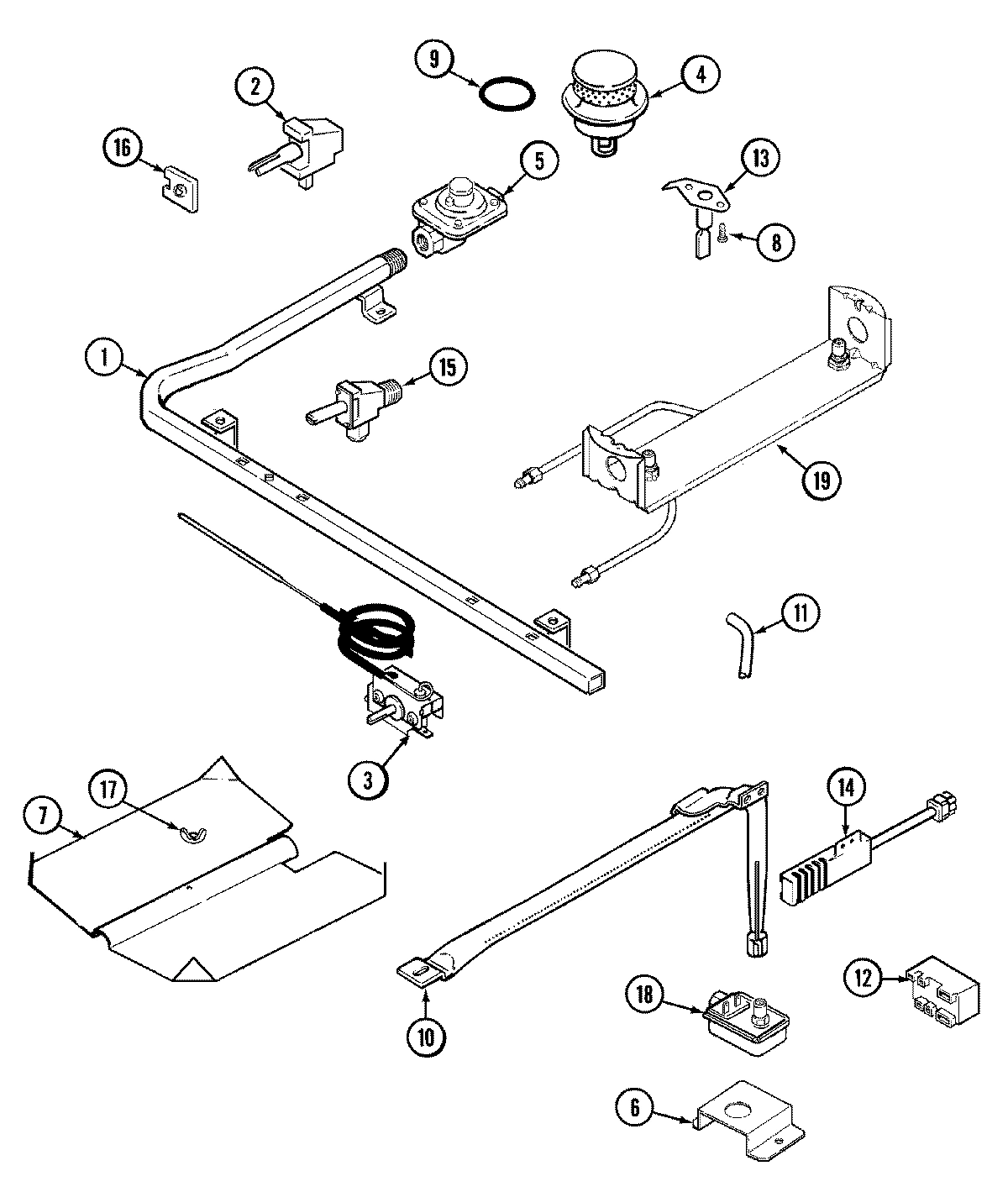

03 - GAS CONTROLS

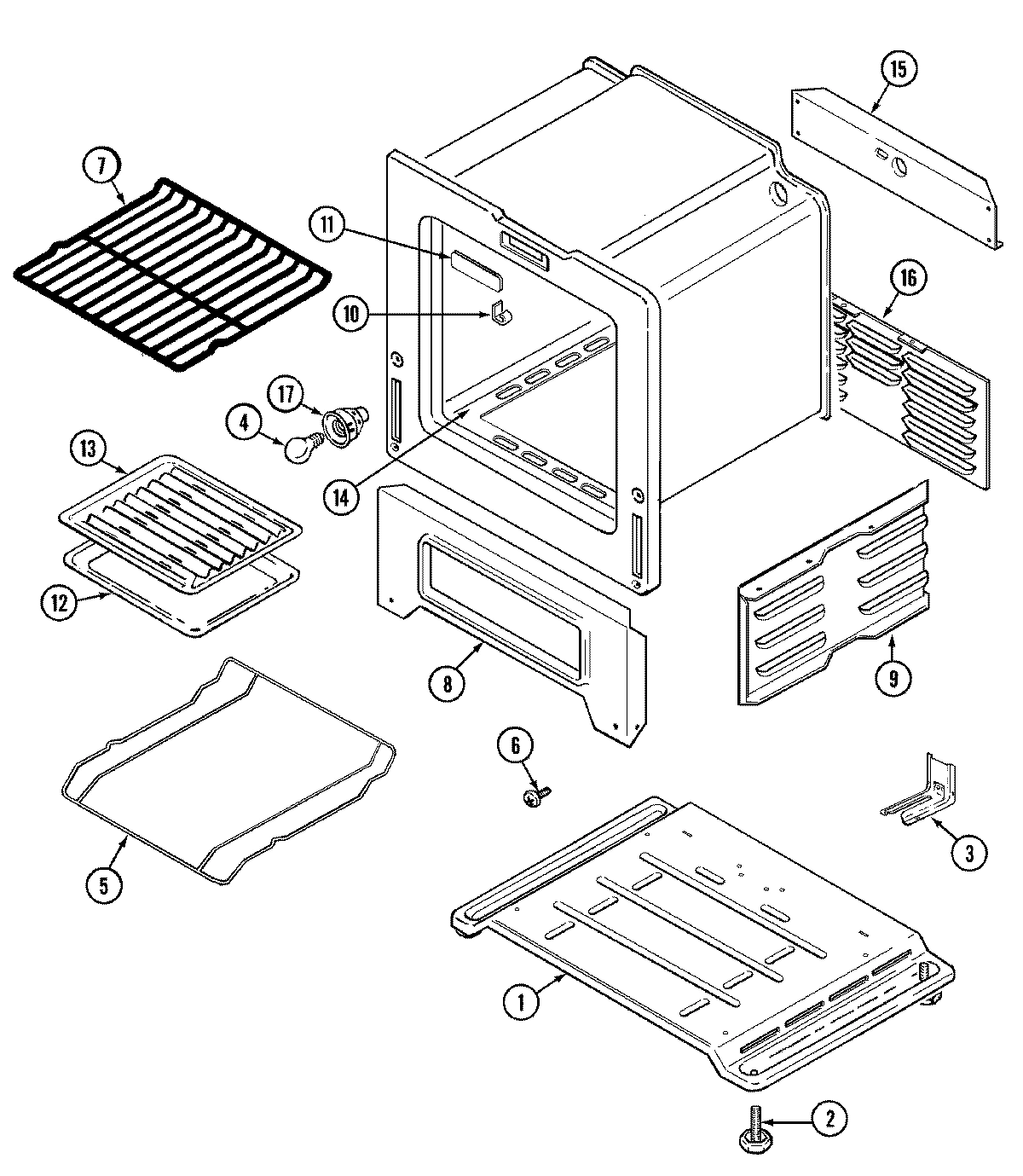

04 - OVEN/BASE
05 - WIRING INFORMATION
Common parts from model Maytag A31713XATL GAS RANGE
1
MAY 74002454 MAY 74002454 Contact Us For Availability
1
MAY 74001064 MAY 74001064 Contact Us For Availability
2
MAY 74005097 MAY 74005097 Contact Us For Availability
2
MAY 74002532 MAY 74002532 Contact Us For Availability
3
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
3
MAY 74002458 MAY 74002458 Contact Us For Availability
3
MAY 74002311 MAY 74002311 Contact Us For Availability
4
MAY 74002459 MAY 74002459 Contact Us For Availability
5
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
5
MAY 74002461 MAY 74002461 Contact Us For Availability
5
MAY 7510P052-60 MAY 7510P052-60 Contact Us For Availability
5
MAY 74002381 MAY 74002381 Contact Us For Availability
6
MAY 74003429 MAY 74003429 Contact Us For Availability
6
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
6
MAY 7403P102-60 MAY 7403P102-60 Contact Us For Availability
6
MAY 74005051 MAY 74005051 Contact Us For Availability
7
MAY 74002393 MAY 74002393 Contact Us For Availability
8
MAY 74003430 MAY 74003430 Contact Us For Availability
8
MAY Y707113 MAY Y707113 Contact Us For Availability
8
MAY 74002327 MAY 74002327 Contact Us For Availability
9
MAY 74003827 MAY 74003827 Contact Us For Availability
9
MAY 74003431 MAY 74003431 Contact Us For Availability
9
MAY 74002745 MAY 74002745 Contact Us For Availability
9
MAY 74002374 MAY 74002374 Contact Us For Availability
9
MAY 74002375 MAY 74002375 Contact Us For Availability
10
MAY 74002434 MAY 74002434 Contact Us For Availability
10
MAY 74002450 MAY 74002450 Contact Us For Availability
10
MAY 74003432 MAY 74003432 Contact Us For Availability
11
MAY 1555251 MAY 1555251 Contact Us For Availability
11
MAY 74002456 MAY 74002456 Contact Us For Availability
11
PLUG, LOCK SLOT MAY 74003406 Contact Us For Availability
12
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
MAY 74001814 MAY 74001814 Contact Us For Availability
14
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
14
MAY 7432P075-60 MAY 7432P075-60 Contact Us For Availability
14
MAY 74002376 MAY 74002376 Contact Us For Availability
14
MAY 74002377 MAY 74002377 Contact Us For Availability
15
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
15
MAY 74002378 MAY 74002378 Contact Us For Availability
16
MAY 74005191 MAY 74005191 Contact Us For Availability
16
MAY 74002533 MAY 74002533 Contact Us For Availability
16
MAY 74002379 MAY 74002379 Contact Us For Availability
17
MAY 74003387 MAY 74003387 Contact Us For Availability
17
MAY 74002397 MAY 74002397 Contact Us For Availability
17
NUT, WING MAY 7103P030-60 Contact Us For Availability
18
MAY 74002398 MAY 74002398 Contact Us For Availability
18
MAY 74002585 MAY 74002585 Contact Us For Availability
18
MAY 74005330 MAY 74005330 Contact Us For Availability
18
MAY 74006352 MAY 74006352 Contact Us For Availability
19
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
19
MAY 74002586 MAY 74002586 Contact Us For Availability
20
MAY 74001820 MAY 74001820 Contact Us For Availability
NI
MAY 16008701 MAY 16008701 Contact Us For Availability
NI
MAY 16010161 MAY 16010161 Contact Us For Availability
NI
MAY 74004367 MAY 74004367 Contact Us For Availability
NI
MAY 74004589 MAY 74004589 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K MAY W10124350 Contact Us For Availability
NI
MAY 74002362 MAY 74002362 Contact Us For Availability
NI
MAY 74002363 MAY 74002363 Contact Us For Availability
NI
MAY 74002457 MAY 74002457 Contact Us For Availability
NI
MAY 74004231 MAY 74004231 Contact Us For Availability
NI
MAY 15001767 MAY 15001767 Contact Us For Availability
× ![]()
