Model Maytag A31713XAAL GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

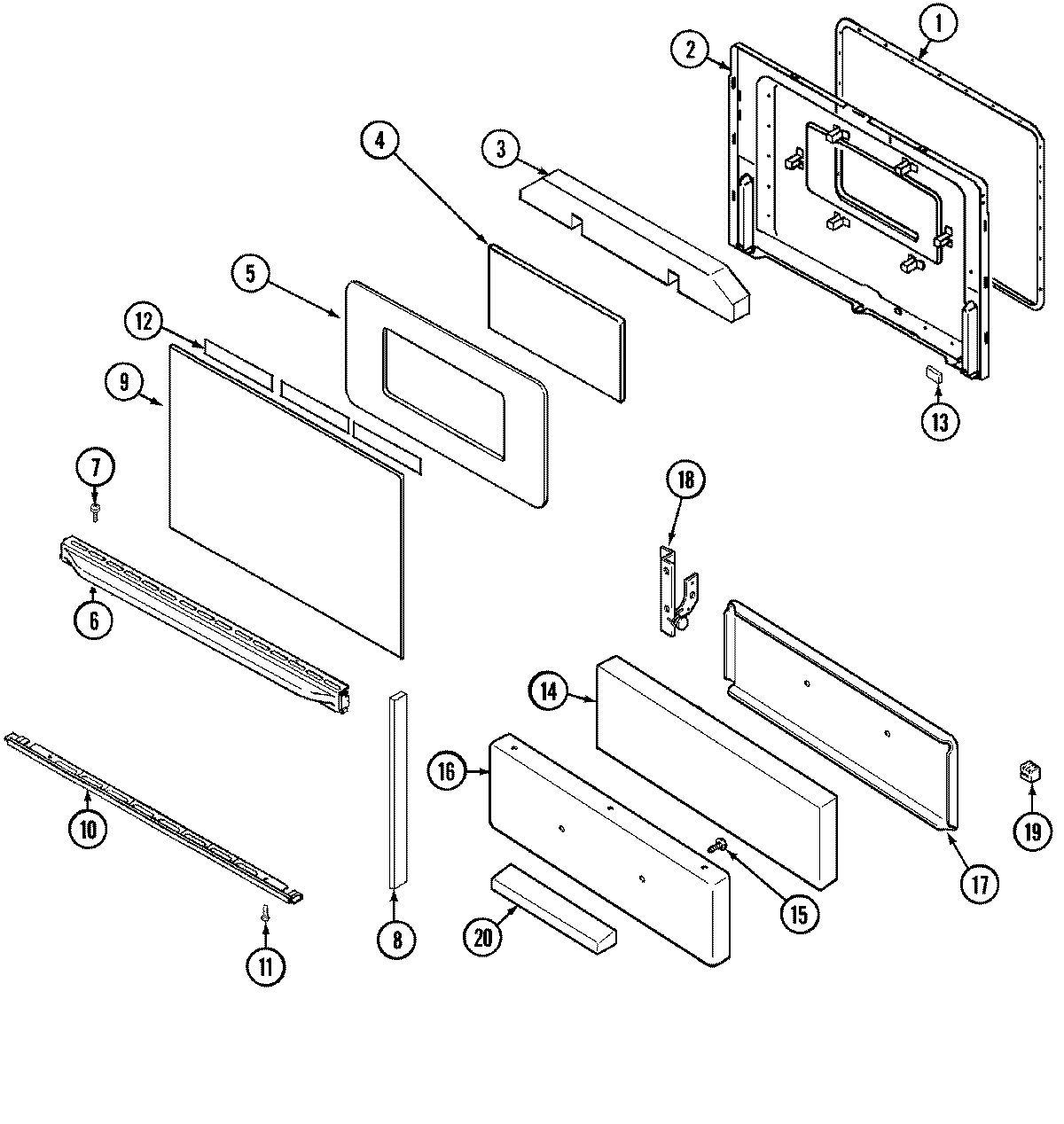

03 - DOOR/DRAWER

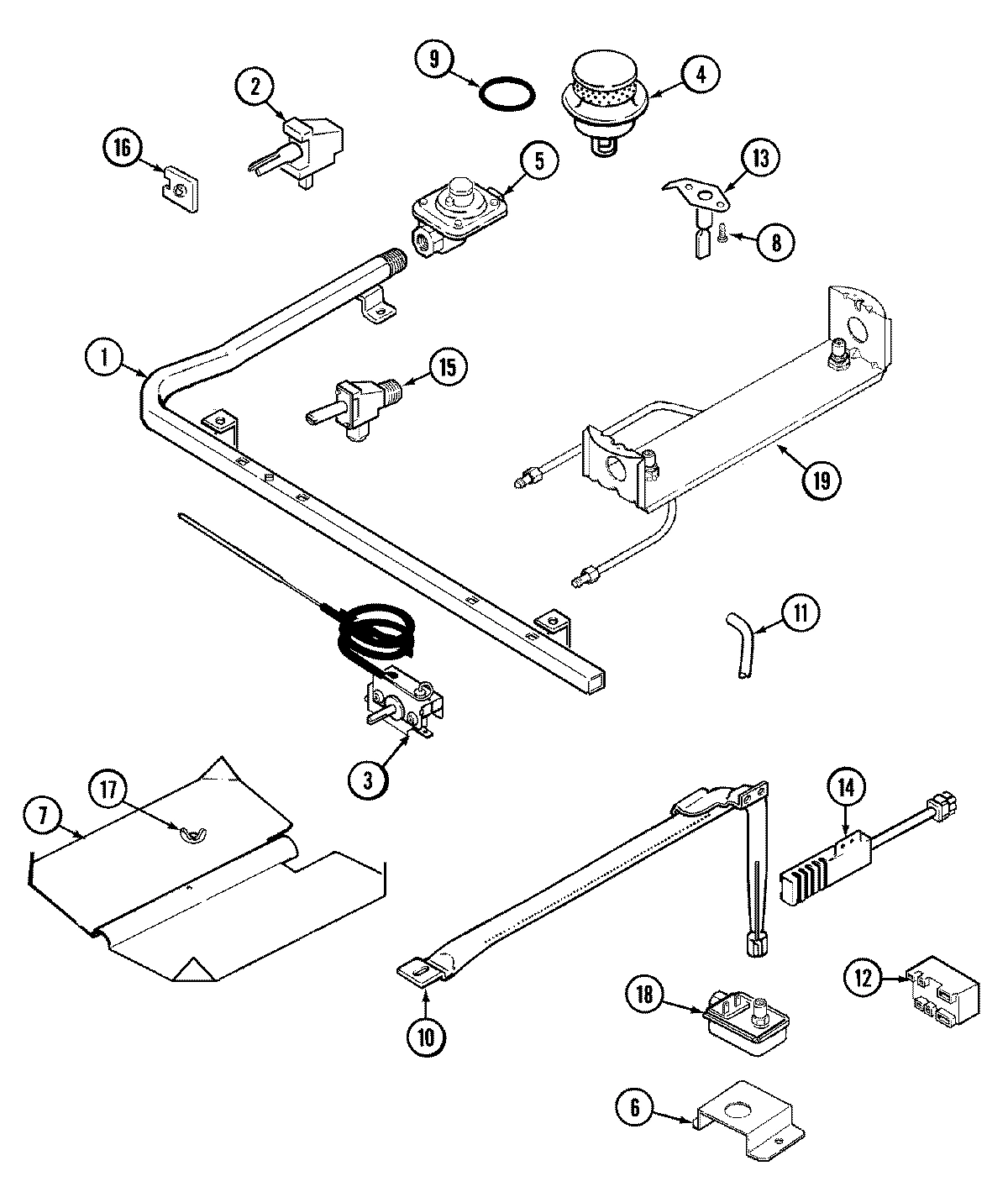

04 - GAS CONTROLS

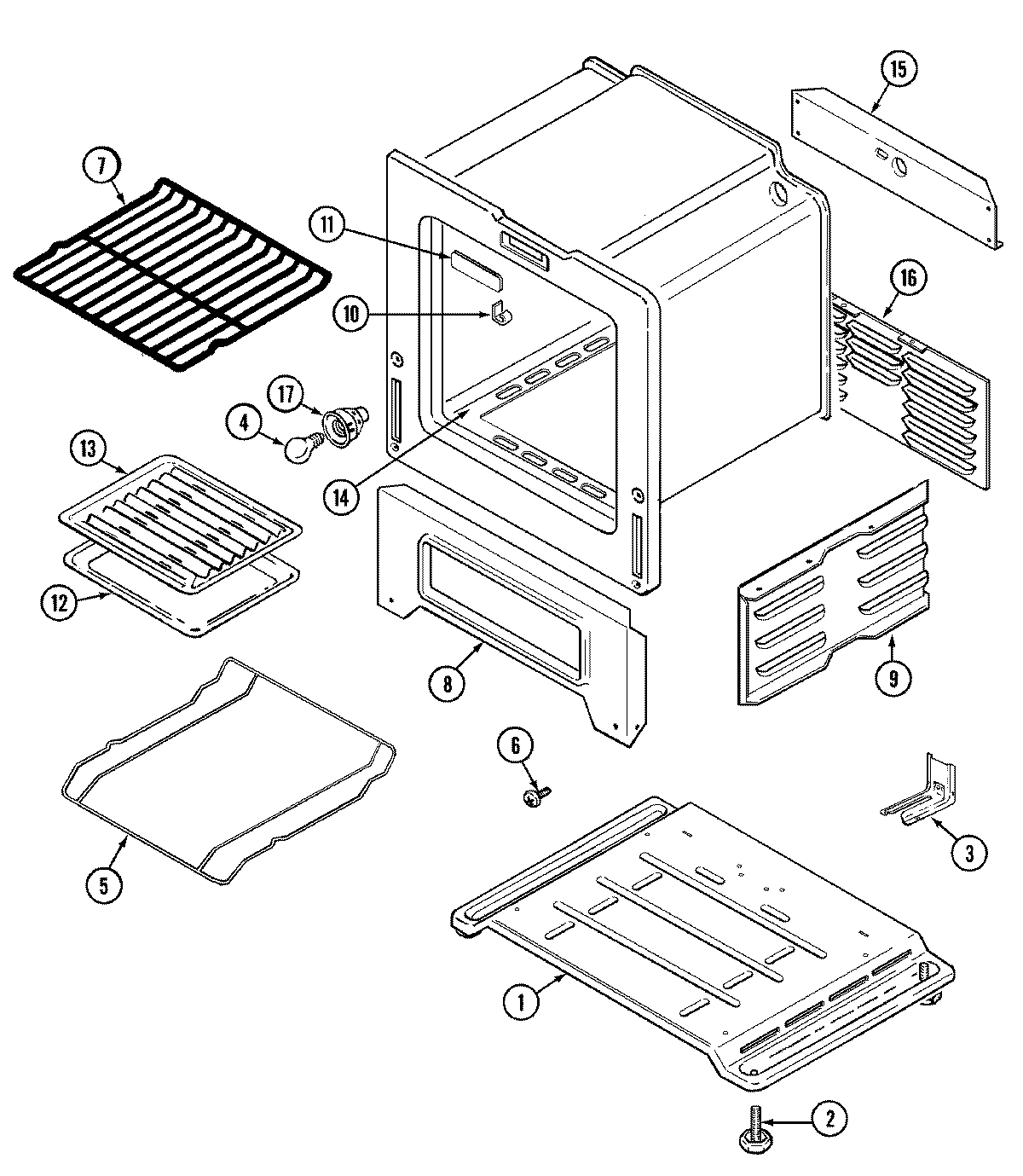

05 - OVEN/BASE

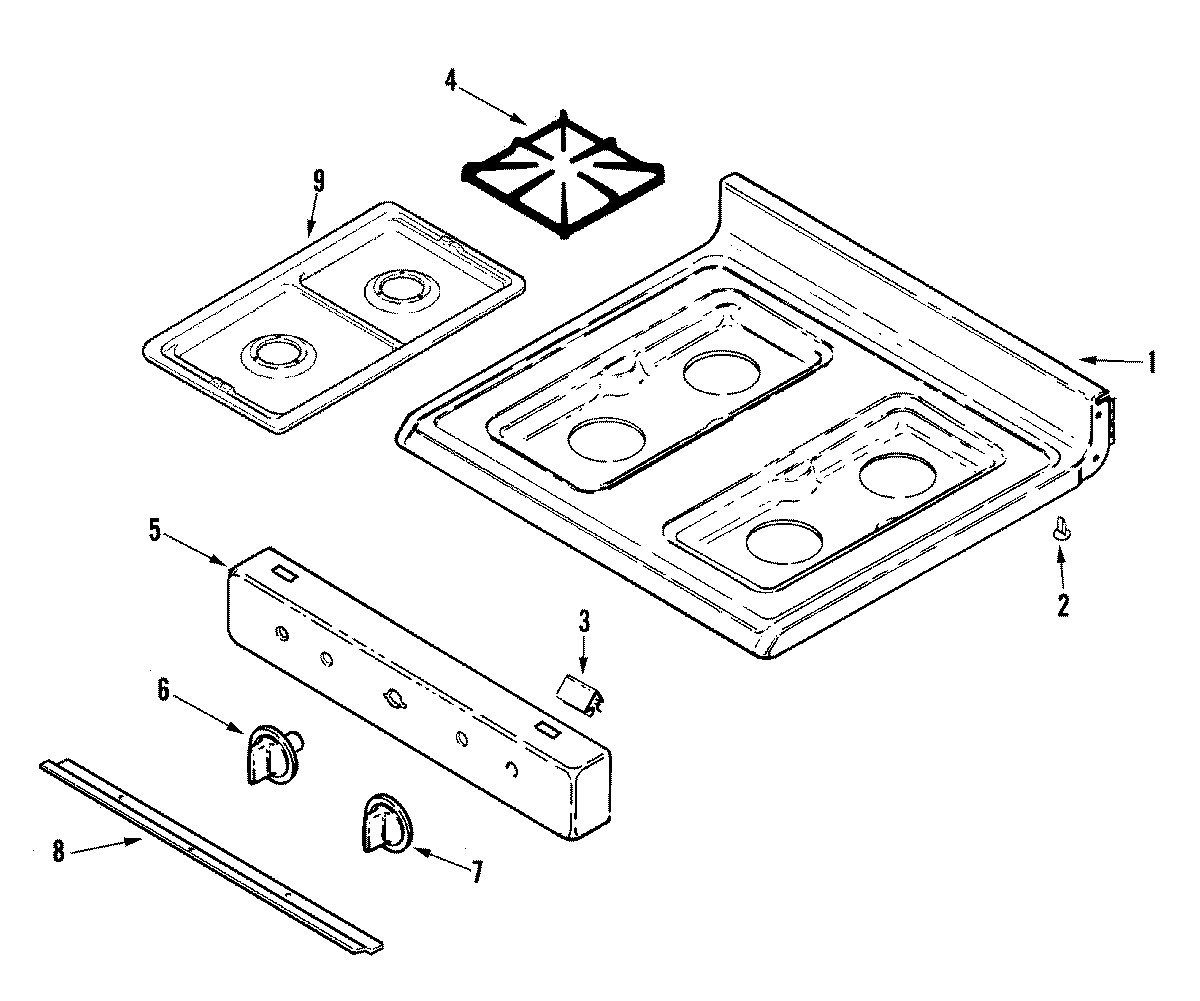

06 - TOP ASSEMBLY
07 - WIRING INFORMATION
Common parts from model Maytag A31713XAAL GAS RANGE
1
MAY 74002401 MAY 74002401 Contact Us For Availability
1
MAY 74002454 MAY 74002454 Contact Us For Availability
1
MAY 74002372 MAY 74002372 Contact Us For Availability
1
MAY 74002441 MAY 74002441 Contact Us For Availability
2
MAY 74002402 MAY 74002402 Contact Us For Availability
2
MAY 74002403 MAY 74002403 Contact Us For Availability
2
MAY 74002460 MAY 74002460 Contact Us For Availability
2
MAY 74003248 MAY 74003248 Contact Us For Availability
2
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
2
MAY 74002532 MAY 74002532 Contact Us For Availability
3
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
3
MAY 74002404 MAY 74002404 Contact Us For Availability
3
MAY 74002458 MAY 74002458 Contact Us For Availability
3
MAY 74002311 MAY 74002311 Contact Us For Availability
3
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
4
MAY 74002762 MAY 74002762 Contact Us For Availability
4
MAY 74002459 MAY 74002459 Contact Us For Availability
4
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
4
MAY 2003W027-00 MAY 2003W027-00 Contact Us For Availability
4
MAY 74001653 MAY 74001653 Contact Us For Availability
5
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
5
MAY 74002432 MAY 74002432 Contact Us For Availability
5
MAY 74002655 MAY 74002655 Contact Us For Availability
5
MAY 74002656 MAY 74002656 Contact Us For Availability
5
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
5
MAY 74002461 MAY 74002461 Contact Us For Availability
5
MAY 7510P052-60 MAY 7510P052-60 Contact Us For Availability
5
MAY 74002381 MAY 74002381 Contact Us For Availability
5
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
5
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
5
MAY 74002411 MAY 74002411 Contact Us For Availability
6
MAY 74003429 MAY 74003429 Contact Us For Availability
6
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
6
MAY 7403P102-60 MAY 7403P102-60 Contact Us For Availability
6
MAY 7701P144-60 MAY 7701P144-60 Contact Us For Availability
6
MAY 74002394 MAY 74002394 Contact Us For Availability
6
MAY 7731P096-60 MAY 7731P096-60 Contact Us For Availability
7
MAY 7602P118-60 MAY 7602P118-60 Contact Us For Availability
7
MAY 74002393 MAY 74002393 Contact Us For Availability
7
MAY 74002744 MAY 74002744 Contact Us For Availability
8
MAY 74003430 MAY 74003430 Contact Us For Availability
8
MAY 74002367 MAY 74002367 Contact Us For Availability
8
MAY 74002448 MAY 74002448 Contact Us For Availability
8
MAY 74002084 MAY 74002084 Contact Us For Availability
8
MAY Y707113 MAY Y707113 Contact Us For Availability
8
MAY 74002327 MAY 74002327 Contact Us For Availability
8
MAY 74002447 MAY 74002447 Contact Us For Availability
9
MAY 74002368 MAY 74002368 Contact Us For Availability
9
MAY 74002763 MAY 74002763 Contact Us For Availability
9
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
9
MAY 74002374 MAY 74002374 Contact Us For Availability
9
MAY 74002375 MAY 74002375 Contact Us For Availability
9
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
10
MAY 74002434 MAY 74002434 Contact Us For Availability
10
MAY 74002369 MAY 74002369 Contact Us For Availability
10
MAY 74002450 MAY 74002450 Contact Us For Availability
10
MAY 74003432 MAY 74003432 Contact Us For Availability
10
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
11
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
11
MAY 1555251 MAY 1555251 Contact Us For Availability
11
MAY 74002456 MAY 74002456 Contact Us For Availability
11
MAY 7718P013-60 MAY 7718P013-60 Contact Us For Availability
12
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
12
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
12
MAY 74003288 MAY 74003288 Contact Us For Availability
12
MAY 7431P027-60 MAY 7431P027-60 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 7106P055-60 MAY 7106P055-60 Contact Us For Availability
13
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
14
MAY 74001814 MAY 74001814 Contact Us For Availability
14
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
14
MAY 74002376 MAY 74002376 Contact Us For Availability
14
MAY 74002377 MAY 74002377 Contact Us For Availability
15
MAY 74002370 MAY 74002370 Contact Us For Availability
15
MAY 74002371 MAY 74002371 Contact Us For Availability
15
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
15
MAY 74002378 MAY 74002378 Contact Us For Availability
16
MAY 74001449 MAY 74001449 Contact Us For Availability
16
MAY 74002316 MAY 74002316 Contact Us For Availability
16
MAY 74002533 MAY 74002533 Contact Us For Availability
16
MAY 74002379 MAY 74002379 Contact Us For Availability
17
MAY 74003387 MAY 74003387 Contact Us For Availability
17
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
17
MAY 74002397 MAY 74002397 Contact Us For Availability
17
NUT, WING MAY 7103P030-60 Contact Us For Availability
17
MAY 7408P037-60 MAY 7408P037-60 Contact Us For Availability
18
MAY 74002398 MAY 74002398 Contact Us For Availability
18
MAY 74002585 MAY 74002585 Contact Us For Availability
18
MAY 74005330 MAY 74005330 Contact Us For Availability
19
MAY 74002586 MAY 74002586 Contact Us For Availability
20
MAY 74001820 MAY 74001820 Contact Us For Availability
NI
MAY 16008701 MAY 16008701 Contact Us For Availability
NI
MAY 16010161 MAY 16010161 Contact Us For Availability
NI
MAY 74002355 MAY 74002355 Contact Us For Availability
NI
MAY 74002477 MAY 74002477 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K MAY W10124350 Contact Us For Availability
NI
MAY 74002362 MAY 74002362 Contact Us For Availability
NI
MAY 74002363 MAY 74002363 Contact Us For Availability
NI
MAY 74002457 MAY 74002457 Contact Us For Availability
NI
MAY 74004231 MAY 74004231 Contact Us For Availability
NI
MAY 15001767 MAY 15001767 Contact Us For Availability
× ![]()
