Model LG A2UW18GFH0.AWGHEUS – Common Parts & Diagrams

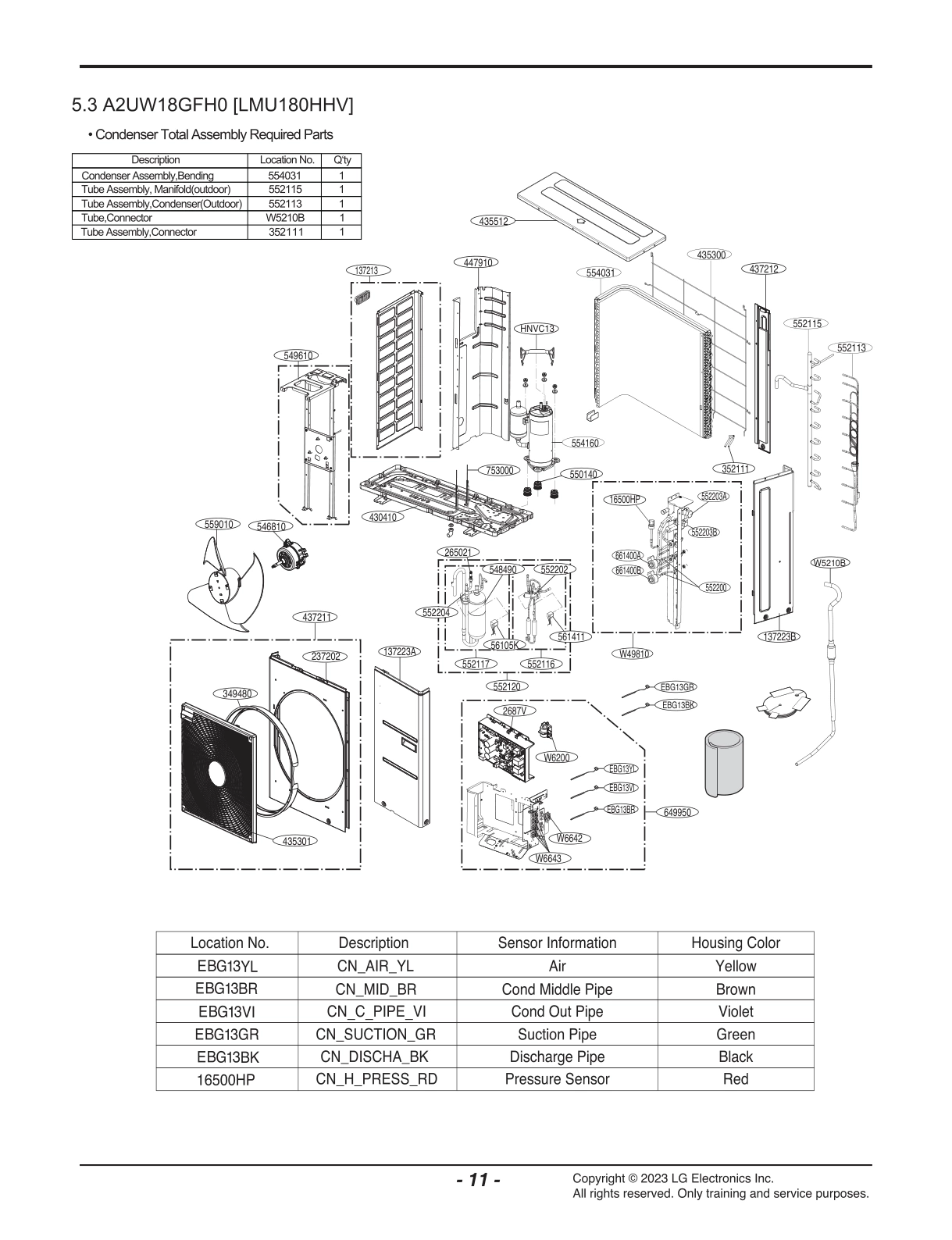

DIAGRAM 1
Common parts from model LG A2UW18GFH0.AWGHEUS
137223A
Panel Assembly,Side LGE AGL76812510 Contact Us For Availability
137223B
Panel Assembly,Side LGE AGL72341014 Contact Us For Availability
237202
Panel,Front LGE MGC53382924 Contact Us For Availability
349480
Orifice LGE 4948A20011F Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN75031013 Contact Us For Availability
435300
Grille,Rear LGE MDX61843728 Contact Us For Availability
435300
Grille,Rear LGE MDX61843733 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131821 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL72770356 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL72341119 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM72909130 Contact Us For Availability
548490
Accumulator LGE 4848A20007Q Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA71610517 Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA71610520 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR75786802 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR75786702 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR75786902 Contact Us For Availability
552117
Tube Assembly,Suction(Outdoor) LGE AJR75765602 Contact Us For Availability
552120
Tube Assembly LGE AJR76122302 Contact Us For Availability
552202
Valve,Reverse LGE MJX65075502 Contact Us For Availability
552203A
Valve,Service LGE 5220A20035C Contact Us For Availability
552203B
Valve,Service LGE 5220A20029P Contact Us For Availability
552204
Valve,Solenoid LGE MJX61841306 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG75285042 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ39185401 Contact Us For Availability
559010
Fan,Propeller LGE MDG62002904 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ30198408 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ75340904 Contact Us For Availability
661400A
Coil Module,Expansion LGE EAP65270704 Contact Us For Availability
661400B
Coil Module,Expansion LGE EAP65270705 Contact Us For Availability
753000
Heater,Electric LGE MEE63124903 Contact Us For Availability
EBG13GR
Thermistor Assembly,NTC LGE EBG61405904 Contact Us For Availability
EBG13VI
Thermistor Assembly,NTC LGE EBG61445805 Contact Us For Availability
HNVC13
Harness Assembly LGE EAD65648122 Contact Us For Availability
W5210B
Tube,Connector LGE MJU64829104 Contact Us For Availability
W6642
Connector,Terminal Block LGE EAG38884408 Contact Us For Availability
W6643
Connector,Terminal Block LGE EAG38884401 Contact Us For Availability
W49810
Supporter Assembly LGE AJJ76566919 Contact Us For Availability
× ![]()
