Model Electrolux A08ME2E4 ROOM AIR CONDITIONER – Common Parts & Diagrams

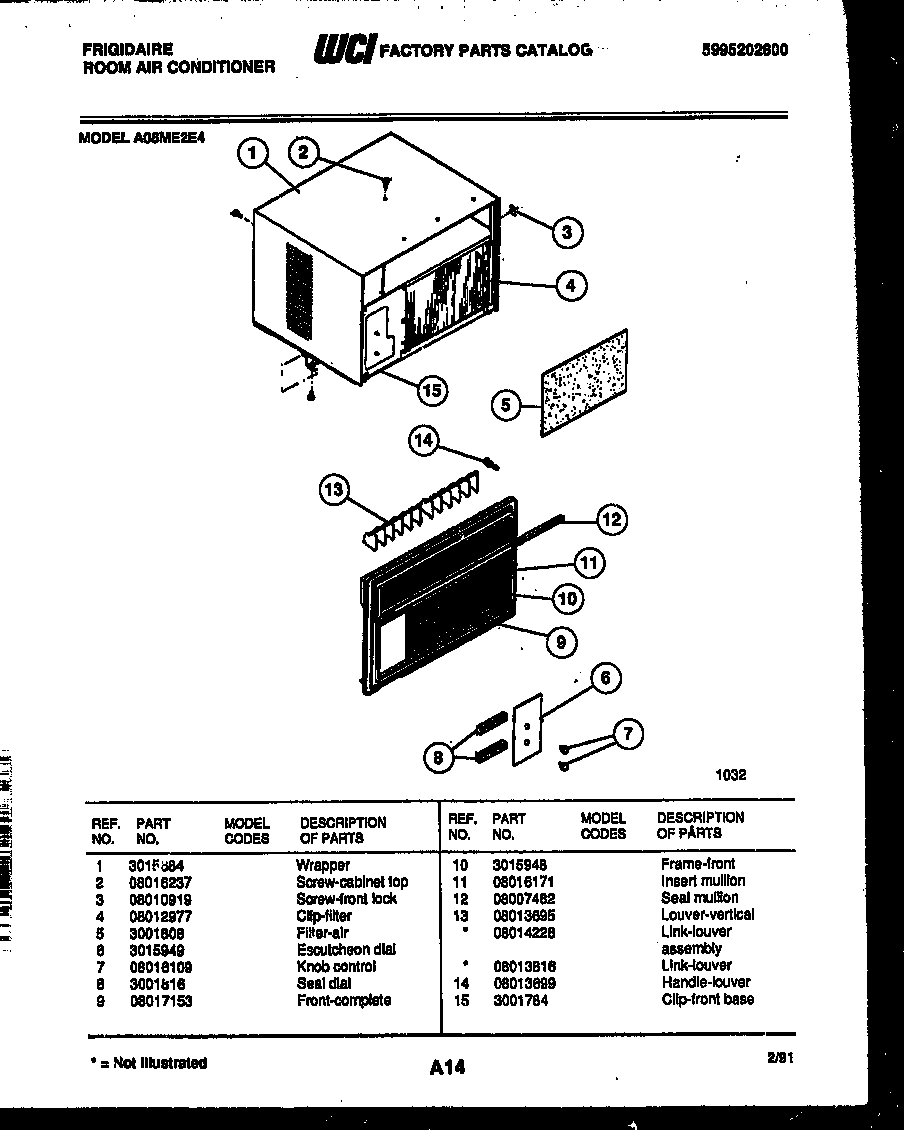

02 - CABINET PARTS

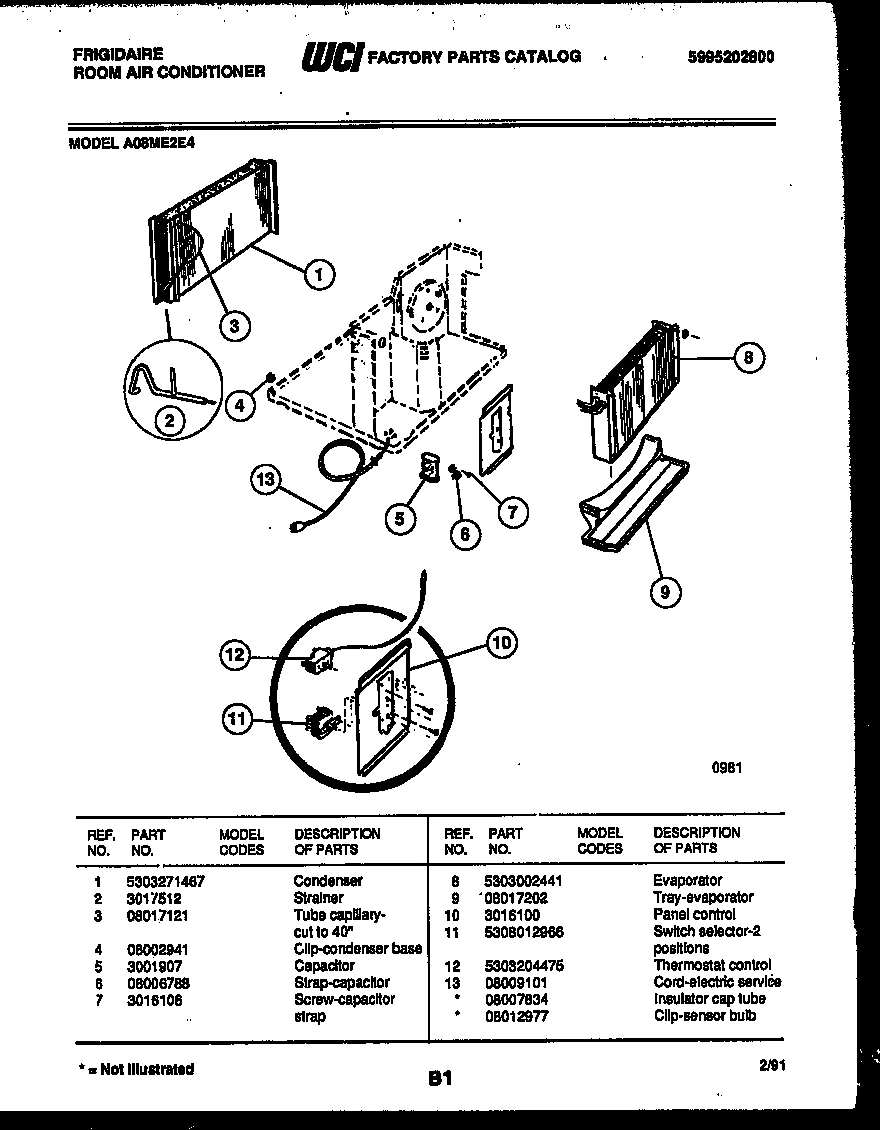

03 - UNIT PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR PARTS
06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux A08ME2E4 ROOM AIR CONDITIONER
*41612
CLIP-SENSOR BULB WCI 08012977 Contact Us For Availability
*41612
INSULATOR CAP TUBE WCI 08007834 Contact Us For Availability
1
WRAPPER WCI 3015684 Contact Us For Availability
1
WCI 5303271467 WCI 5303271467 Contact Us For Availability
1
WCI 3200945 WCI 3200945 Contact Us For Availability
1
WCI 5303017315 WCI 5303017315 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
2
WCI 08016237 WCI 08016237 Contact Us For Availability
2
SCREW-MOTOR MOUNTING WCI 3001817 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
RETAINER-ACCORDIAN WCI 08013614 Contact Us For Availability
3
SCREW-FRONT LOCK WCI 08010919 Contact Us For Availability
3
WCI 08017121 WCI 08017121 Contact Us For Availability
3
BLADE-FAN EVAPORATOR WCI 08010950 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
3
RAIL-TOP WCI 08007493 Contact Us For Availability
4
WCI 08002941 WCI 08002941 Contact Us For Availability
4
WCI 3002150 WCI 3002150 Contact Us For Availability
4
FRAME-RH WCI 08013630 Contact Us For Availability
5
WCI 3001808 WCI 3001808 Contact Us For Availability
5
CAPACITOR WCI 3001907 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
PANEL-ACCORDIAN WCI 08013613 Contact Us For Availability
6
ESCUTCHEON DIAL WCI 3015949 Contact Us For Availability
6
STRAP-CAPACITOR WCI 08006788 Contact Us For Availability
6
WCI 5303209086 WCI 5303209086 Contact Us For Availability
6
NUT-TERMINAL WCI 5303211017 Contact Us For Availability
6
CLIP-ACCORDIAN RETAINER WCI 08012959 Contact Us For Availability
7
WCI 08016109 WCI 08016109 Contact Us For Availability
7
WCI 3016106 WCI 3016106 Contact Us For Availability
7
WCI 08016230 WCI 08016230 Contact Us For Availability
7
GASKET-TERMINAL COVER WCI 3200282 Contact Us For Availability
7
FRAME, EXTENSION, LH WCI 08013629 Contact Us For Availability
8
WCI 3001816 WCI 3001816 Contact Us For Availability
8
WCI 5303002441 WCI 5303002441 Contact Us For Availability
8
WCI 3002074 WCI 3002074 Contact Us For Availability
8
START KIT-RELAY WCI 5303201723 Contact Us For Availability
8
SCREW-EXTENSION WCI 3002801 Contact Us For Availability
9
WCI 08017153 WCI 08017153 Contact Us For Availability
9
WCI 08017202 WCI 08017202 Contact Us For Availability
9
CLAMP-CONDENSER BLADE WCI 08011040 Contact Us For Availability
10
FRAME FRONT WCI 3015948 Contact Us For Availability
10
WCI 3016100 WCI 3016100 Contact Us For Availability
10
SEAL-CONDENSER SHROUD WCI 3002573 Contact Us For Availability
10
SUPPORT-UNIT WCI 08012989 Contact Us For Availability
11
WCI 08016171 WCI 08016171 Contact Us For Availability
11
SWITCH SELECTOR-2 POSITIONS WCI 5308012966 Contact Us For Availability
11
WCI 08047571 WCI 08047571 Contact Us For Availability
12
WCI 08007482 WCI 08007482 Contact Us For Availability
12
THERMOSTAT CONTROL WCI 5303204475 Contact Us For Availability
13
WCI 08013695 WCI 08013695 Contact Us For Availability
13
WCI 08009101 WCI 08009101 Contact Us For Availability
13
SCREW RAIL-TOP WCI 3002803 Contact Us For Availability
13A
LINK-LOUVER ASSEMBLY (NON-ILLUSTRATED) WCI 08014228 Contact Us For Availability
13B
LINK-LOUVER (NON-ILLUSTRATED) WCI 08013816 Contact Us For Availability
14
HANDLE-LOUVER WCI 08013699 Contact Us For Availability
14
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
15
WCI 3001784 WCI 3001784 Contact Us For Availability
15
WCI 3007760 WCI 3007760 Contact Us For Availability
16
SCREW-ADJUSTABLE WCI 08012954 Contact Us For Availability
18
WCI 3002646 WCI 3002646 Contact Us For Availability
× ![]()
