Model Electrolux A08LH5L2 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

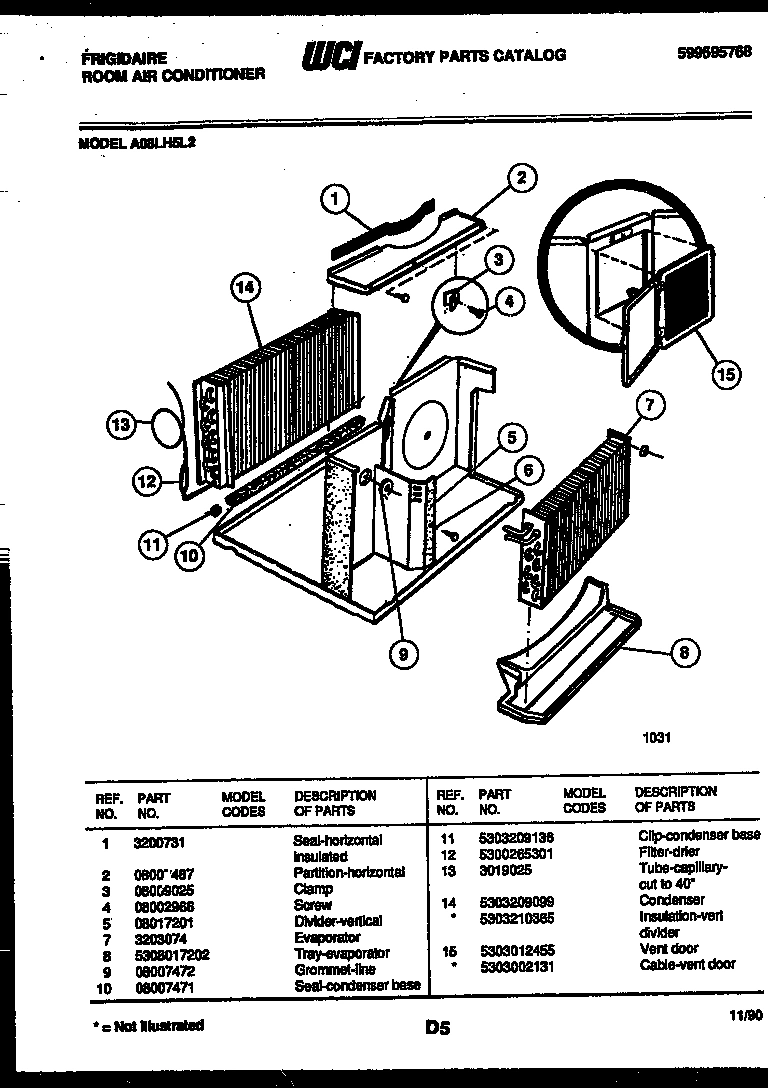

04 - UNIT PARTS

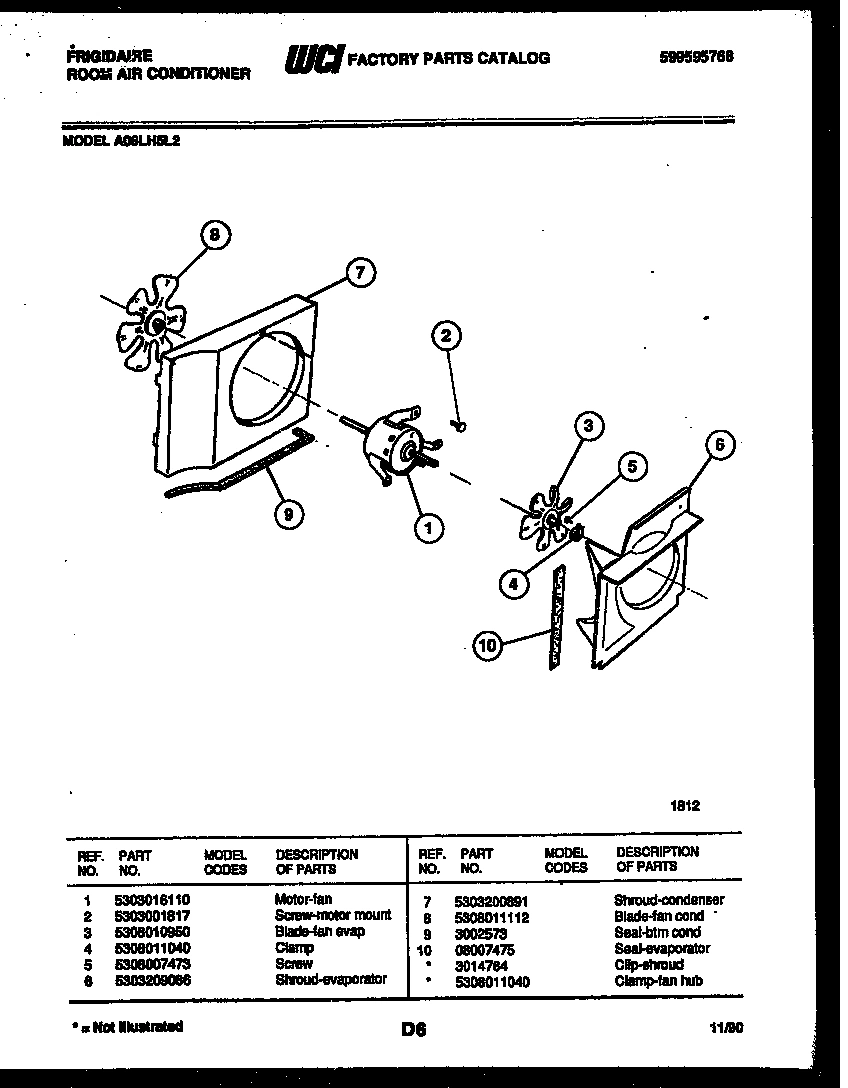

05 - AIR HANDLING PARTS

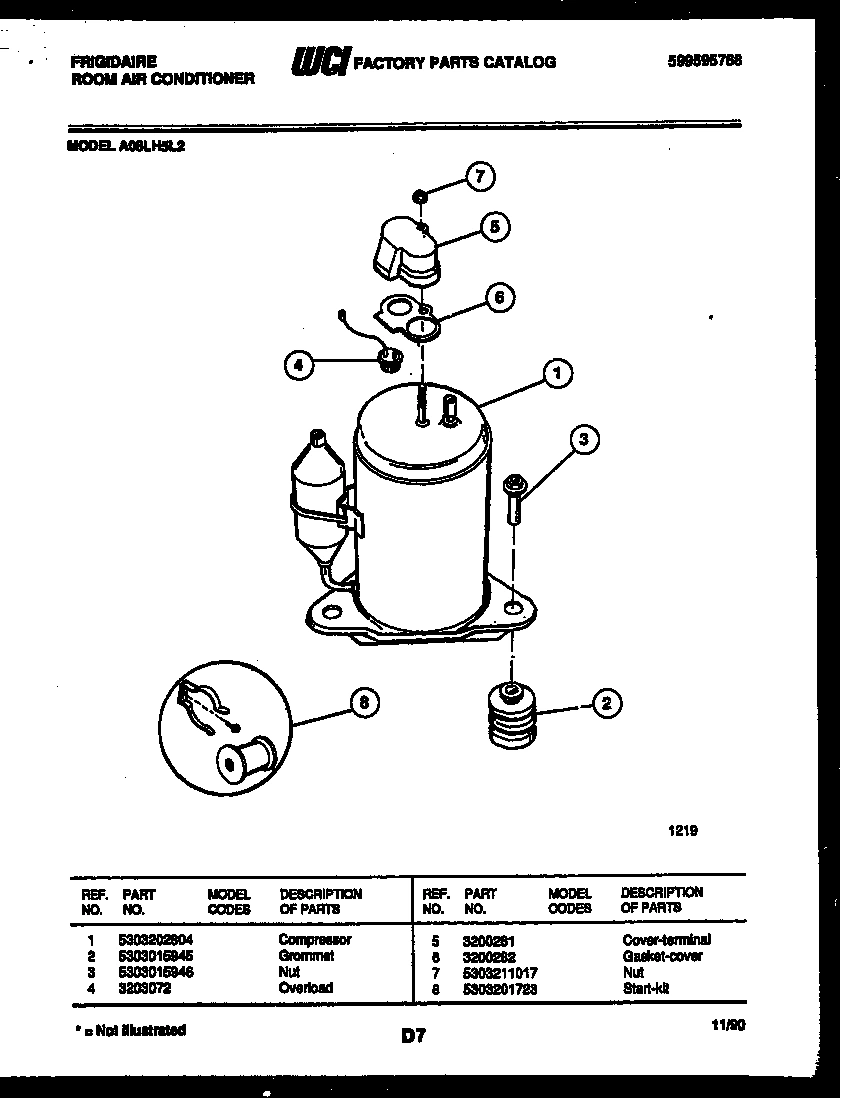

06 - COMPRESSOR PARTS

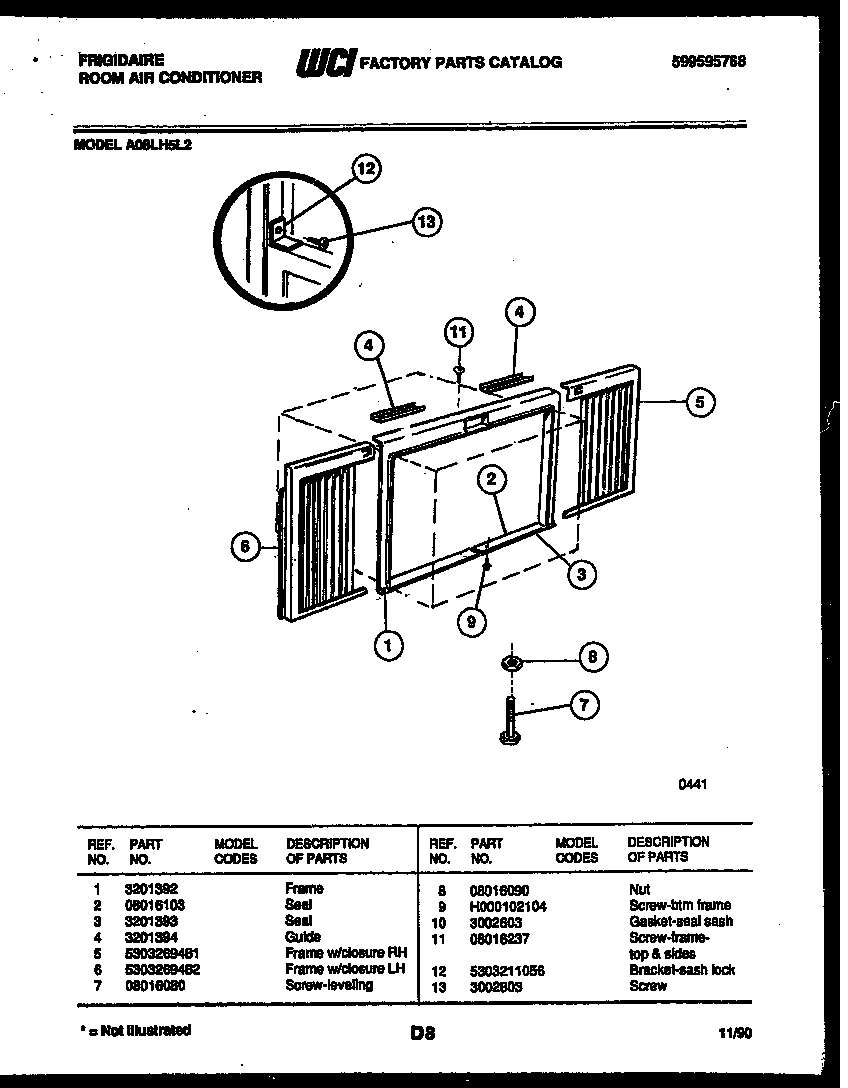

07 - WINDOW MOUNTING PARTS
Common parts from model Electrolux A08LH5L2 ROOM AIR CONDITIONER
*38574
WCI 5303002131 WCI 5303002131 Contact Us For Availability
*38575
WCI 3014764 WCI 3014764 Contact Us For Availability
1
CAPACITOR WCI 5308017135 Contact Us For Availability
1
SEAL-HORIZONTAL INSULATED WCI 3200731 Contact Us For Availability
1
WCI 5303016110 WCI 5303016110 Contact Us For Availability
1
WCI 5303202804 WCI 5303202804 Contact Us For Availability
1
WCI 3201392 WCI 3201392 Contact Us For Availability
2
LOUVER & LINK WCI 5303002457 Contact Us For Availability
2
WCI 3001740 WCI 3001740 Contact Us For Availability
2
WCI 08007487 WCI 08007487 Contact Us For Availability
2
SCREW-MOTOR MOUNT WCI 5303001817 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
SEAL WCI 08016103 Contact Us For Availability
3
LINK WCI 5303002160 Contact Us For Availability
3
SCREW-STRAP WCI 3016106 Contact Us For Availability
3
WCI 08009025 WCI 08009025 Contact Us For Availability
3
WCI 5308010950 WCI 5308010950 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
3
SEAL WCI 3201393 Contact Us For Availability
4
LOUVER-HORIZ WCI 08017364 Contact Us For Availability
4
WCI 5303015947 WCI 5303015947 Contact Us For Availability
4
WCI 08002966 WCI 08002966 Contact Us For Availability
4
WCI 5308011040 WCI 5308011040 Contact Us For Availability
4
WCI 3203072 WCI 3203072 Contact Us For Availability
4
GUIDE WCI 3201394 Contact Us For Availability
5
WCI 08002482 WCI 08002482 Contact Us For Availability
5
SCREW-THERMOSTAT WCI 5303007754 Contact Us For Availability
5
WCI 08017201 WCI 08017201 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
WCI 5303269481 WCI 5303269481 Contact Us For Availability
6
WCI 08017187 WCI 08017187 Contact Us For Availability
6
THERMOSTAT WCI 5303204475 Contact Us For Availability
6
WCI 5303209086 WCI 5303209086 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
6
WCI 5303269482 WCI 5303269482 Contact Us For Availability
7
FILTER WCI 5308017189 Contact Us For Availability
7
SWITCH-SELECTOR WCI 5308012966 Contact Us For Availability
7
WCI 3203074 WCI 3203074 Contact Us For Availability
7
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
7
NUT WCI 5303211017 Contact Us For Availability
7
WCI 08016080 WCI 08016080 Contact Us For Availability
8
TRACK-FILTER WCI 5308017137 Contact Us For Availability
8
CORD-ELECTRIC SERVICE WCI 5303206830 Contact Us For Availability
8
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
8
WCI 5308011112 WCI 5308011112 Contact Us For Availability
8
WCI 5303201723 WCI 5303201723 Contact Us For Availability
8
NUT WCI 08016090 Contact Us For Availability
8A
SLEEVE-CONTROL TUBE (NON-ILLUSTRATED) WCI 3002601 Contact Us For Availability
9
WCI 5308016109 WCI 5308016109 Contact Us For Availability
9
ACTUATOR ARM WCI 5303002126 Contact Us For Availability
9
WCI 08007472 WCI 08007472 Contact Us For Availability
9
SEAL-BTM COND WCI 3002573 Contact Us For Availability
9
SCREW-BTM FRAME WCI H000102104 Contact Us For Availability
10
WCI 5303002189 WCI 5303002189 Contact Us For Availability
10
BRACKET WCI 5303001848 Contact Us For Availability
10
WCI 08007471 WCI 08007471 Contact Us For Availability
10
WCI 08007475 WCI 08007475 Contact Us For Availability
11
DIAL-PLATE WCI 3016769 Contact Us For Availability
11
WCI 5303017342 WCI 5303017342 Contact Us For Availability
11
CLIP-CONDENSER BASE WCI 5303209136 Contact Us For Availability
11
WCI 08016237 WCI 08016237 Contact Us For Availability
12
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
12
WCI 5303001861 WCI 5303001861 Contact Us For Availability
13
WCI 5303001784 WCI 5303001784 Contact Us For Availability
13
TUBE-CAPILLARY (CUT TO 40``) WCI 3019025 Contact Us For Availability
13
WCI 3002803 WCI 3002803 Contact Us For Availability
14
PANEL-FRONT WCI 08017178 Contact Us For Availability
14
WCI 5303209099 WCI 5303209099 Contact Us For Availability
14A
INSULATION-VERT DIVIDER (NON-ILLUSTRATED) WCI 5303210365 Contact Us For Availability
15
DOOR WCI 08016194 Contact Us For Availability
15
VENT DOOR WCI 5303012455 Contact Us For Availability
16
NAME PLATE WCI 08017126 Contact Us For Availability
× ![]()
