Model Electrolux A05LH8N1 ROOM AIR CONDITIONER – Common Parts & Diagrams

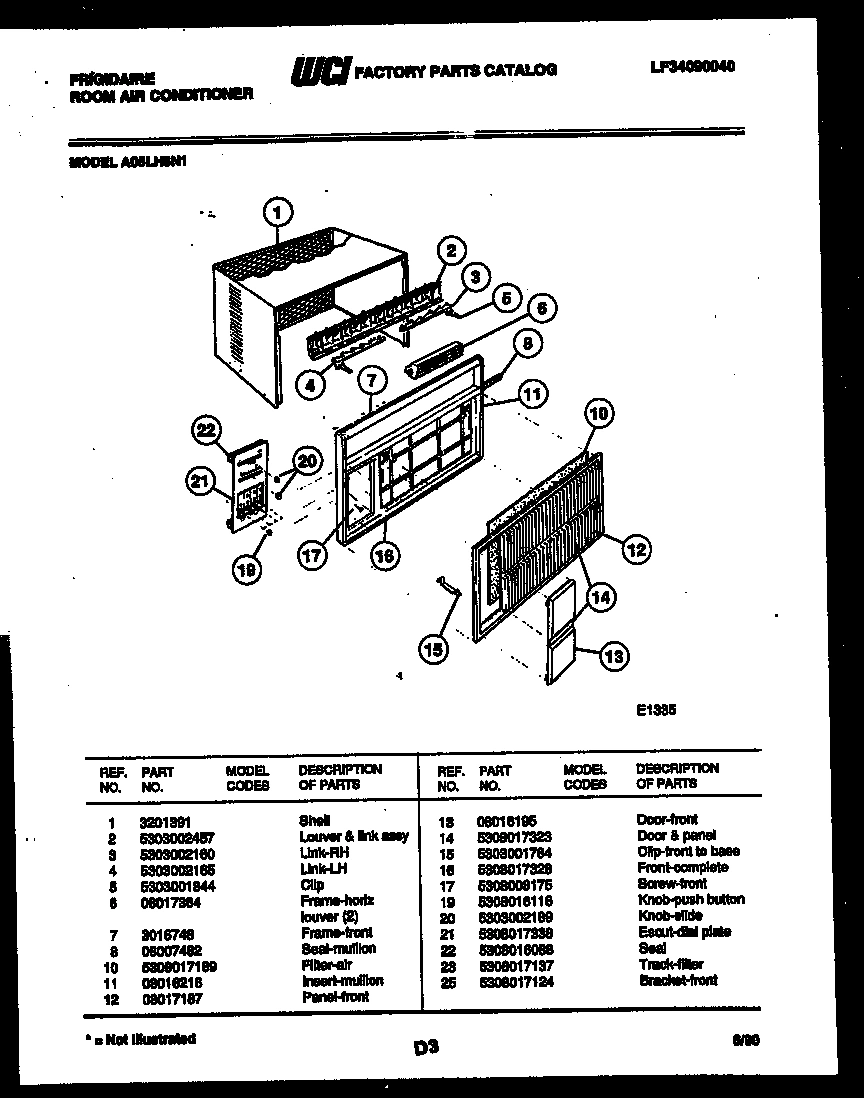

02 - CABINET PARTS

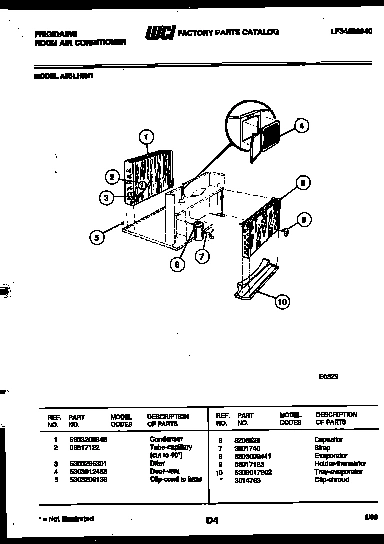

03 - UNIT PARTS

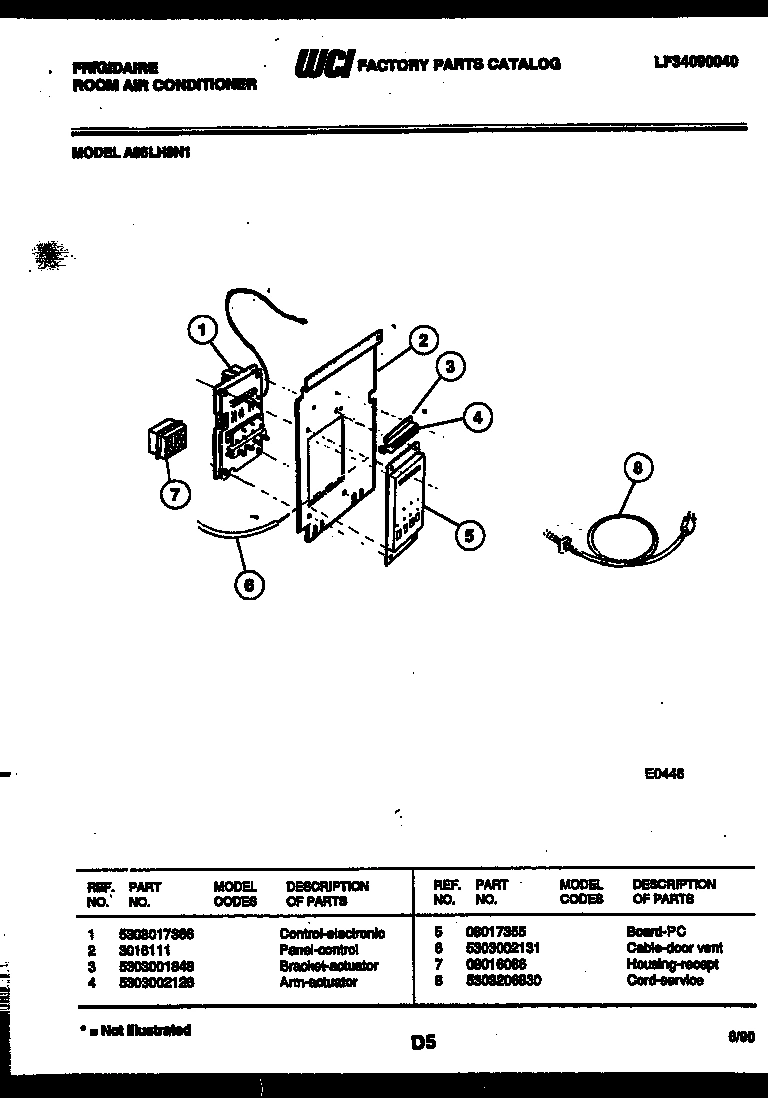

04 - ELECTRICAL PARTS

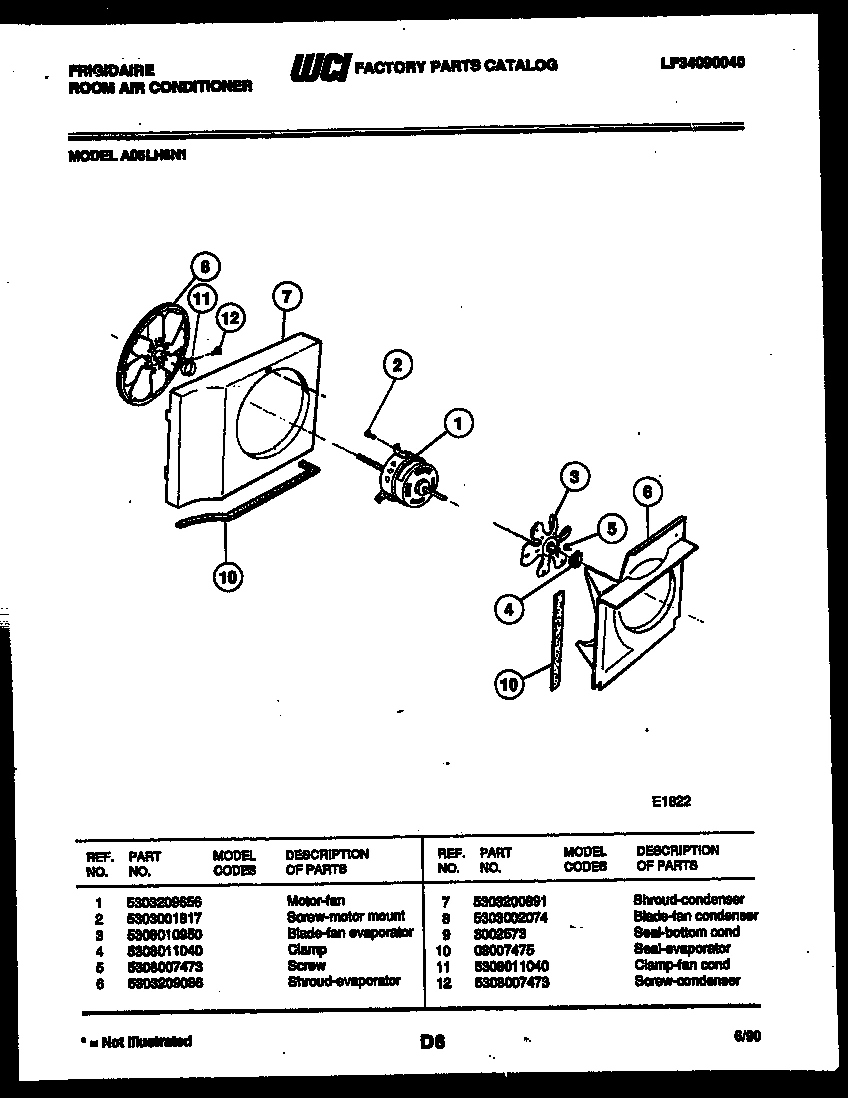

05 - AIR HANDLING PARTS

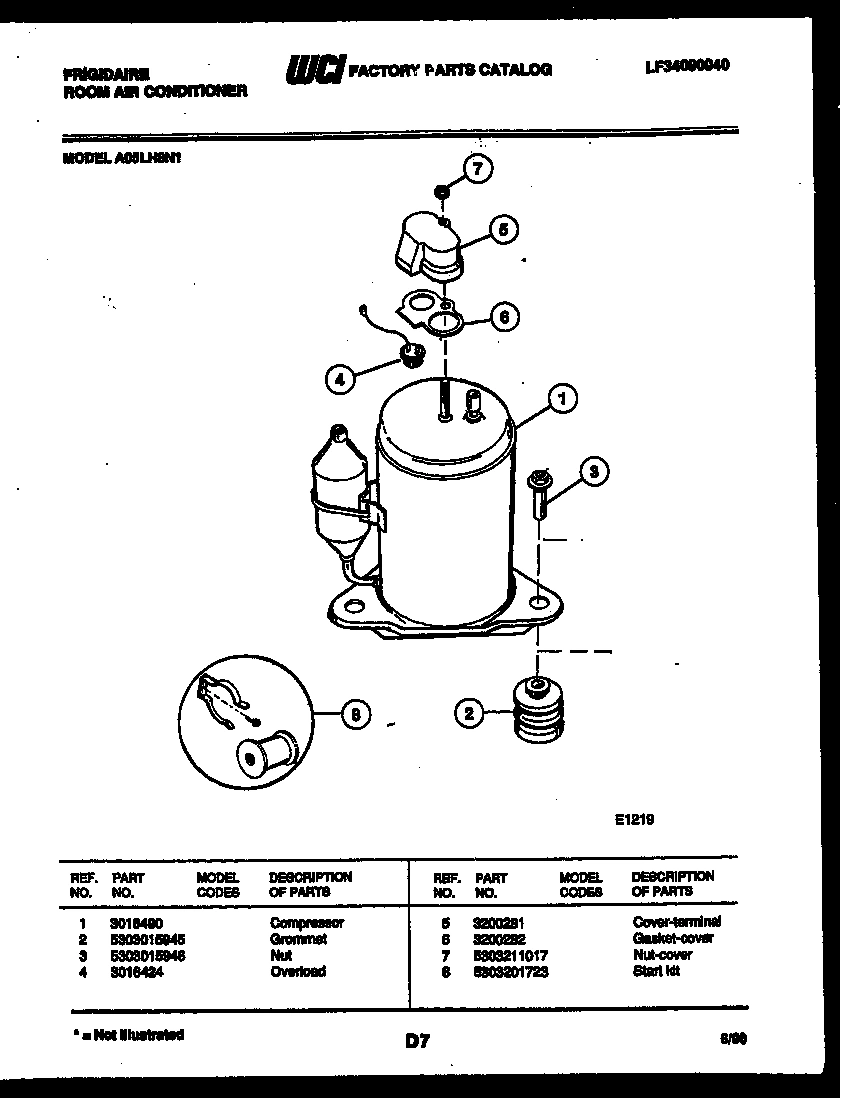

06 - COMPRESSOR PARTS

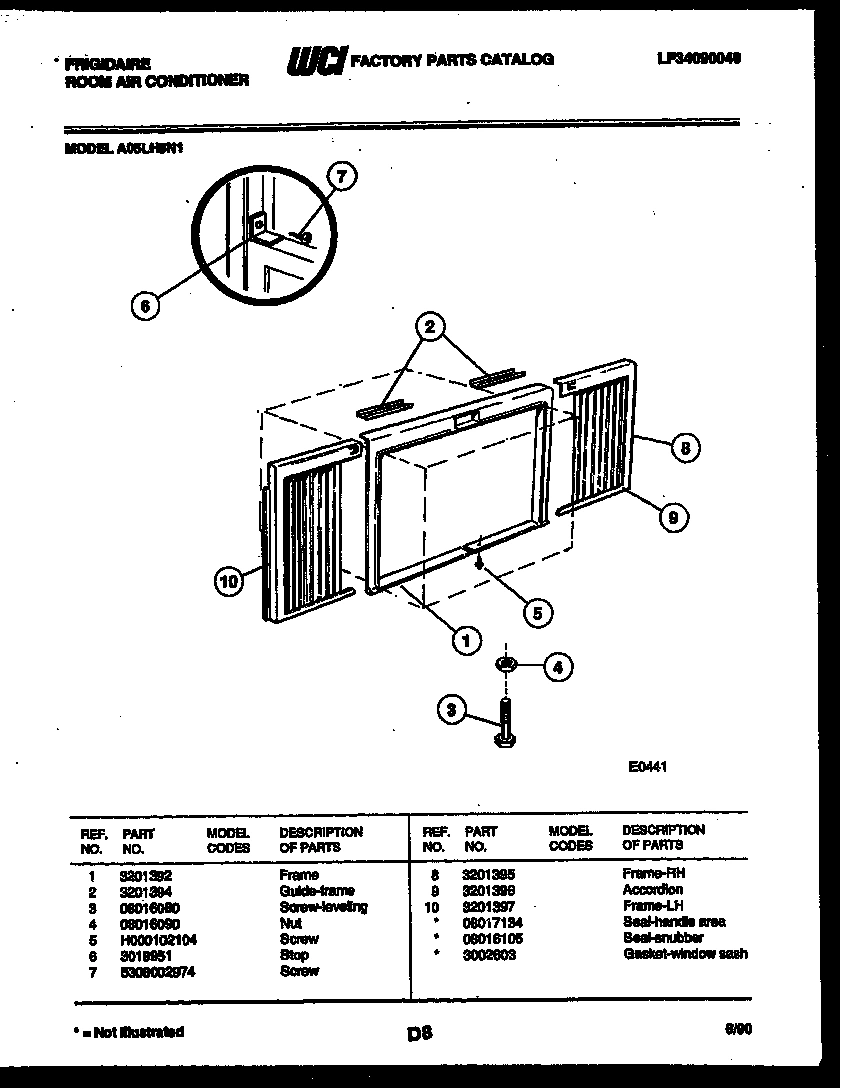

07 - WINDOW MOUNTING PARTS
Common parts from model Electrolux A05LH8N1 ROOM AIR CONDITIONER
*31718
WCI 3014763 WCI 3014763 Contact Us For Availability
*31720
SEAL-SNUBBER WCI 08016105 Contact Us For Availability
*31720
SEAL-HANDLE AREA WCI 08017134 Contact Us For Availability
1
SHELL WCI 3201391 Contact Us For Availability
1
WCI 5303209645 WCI 5303209645 Contact Us For Availability
1
WCI 5308017366 WCI 5308017366 Contact Us For Availability
1
MOTOR-FAN WCI 5303209656 Contact Us For Availability
1
WCI 3016490 WCI 3016490 Contact Us For Availability
1
WCI 3201392 WCI 3201392 Contact Us For Availability
2
LOUVER & LINK ASSY WCI 5303002457 Contact Us For Availability
2
TUBE-CAPILLARY (CUT TO 40``) WCI 08017122 Contact Us For Availability
2
WCI 3016111 WCI 3016111 Contact Us For Availability
2
SCREW-MOTOR MOUNT WCI 5303001817 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
WCI 3201394 WCI 3201394 Contact Us For Availability
3
LINK-RH WCI 5303002160 Contact Us For Availability
3
BRACKET-ACTUATOR WCI 5303001848 Contact Us For Availability
3
BLADE-FAN EVAPORATOR WCI 5308010950 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
3
WCI 08016080 WCI 08016080 Contact Us For Availability
4
WCI 5303002165 WCI 5303002165 Contact Us For Availability
4
WCI 5303012455 WCI 5303012455 Contact Us For Availability
4
ARM-ACTUATOR WCI 5303002126 Contact Us For Availability
4
WCI 3016424 WCI 3016424 Contact Us For Availability
4
NUT WCI 08016090 Contact Us For Availability
5
CLIP WCI 5303001844 Contact Us For Availability
5
CLIP-COND TO BASE WCI 5303209136 Contact Us For Availability
5
BOARD-P.C. WCI 08017355 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
WCI H000102104 WCI H000102104 Contact Us For Availability
6
FRAME-HORIZ LOUVER (2) WCI 08017364 Contact Us For Availability
6
CAPACITOR WCI 3203526 Contact Us For Availability
6
CABLE-DOOR VENT WCI 5303002131 Contact Us For Availability
6
WCI 5303209086 WCI 5303209086 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
6
STOP WCI 3018951 Contact Us For Availability
7
WCI 3016748 WCI 3016748 Contact Us For Availability
7
WCI 3001740 WCI 3001740 Contact Us For Availability
7
WCI 08016086 WCI 08016086 Contact Us For Availability
7
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
7
WCI 5303211017 WCI 5303211017 Contact Us For Availability
7
SCREW WCI 5308002974 Contact Us For Availability
8
WCI 08007482 WCI 08007482 Contact Us For Availability
8
WCI 5303002441 WCI 5303002441 Contact Us For Availability
8
WCI 5303206830 WCI 5303206830 Contact Us For Availability
8
WCI 5303002074 WCI 5303002074 Contact Us For Availability
8
WCI 5303201723 WCI 5303201723 Contact Us For Availability
8
FRAME-RH WCI 3201395 Contact Us For Availability
9
WCI 08017123 WCI 08017123 Contact Us For Availability
9
SEAL-BOTTOM COND WCI 3002573 Contact Us For Availability
9
ACCORDION WCI 3201396 Contact Us For Availability
10
FILTER-AIR WCI 5308017189 Contact Us For Availability
10
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
10
WCI 08007475 WCI 08007475 Contact Us For Availability
10
FRAME-LH WCI 3201397 Contact Us For Availability
11
WCI 08016216 WCI 08016216 Contact Us For Availability
11
CLAMP-FAN COND WCI 5308011040 Contact Us For Availability
12
PANEL-FRONT WCI 08017187 Contact Us For Availability
13
WCI 08016195 WCI 08016195 Contact Us For Availability
14
WCI 5308017323 WCI 5308017323 Contact Us For Availability
15
WCI 5303001784 WCI 5303001784 Contact Us For Availability
16
WCI 5308017328 WCI 5308017328 Contact Us For Availability
17
SCREW-FRONT WCI 5308008175 Contact Us For Availability
19
WCI 5308016116 WCI 5308016116 Contact Us For Availability
20
WCI 5303002189 WCI 5303002189 Contact Us For Availability
21
WCI 5308017338 WCI 5308017338 Contact Us For Availability
22
WCI 5308016088 WCI 5308016088 Contact Us For Availability
23
TRACK-FILTER WCI 5308017137 Contact Us For Availability
25
WCI 5308017124 WCI 5308017124 Contact Us For Availability
× ![]()
