Model Electrolux A05LH8L1 ROOM AIR CONDITIONER – Common Parts & Diagrams

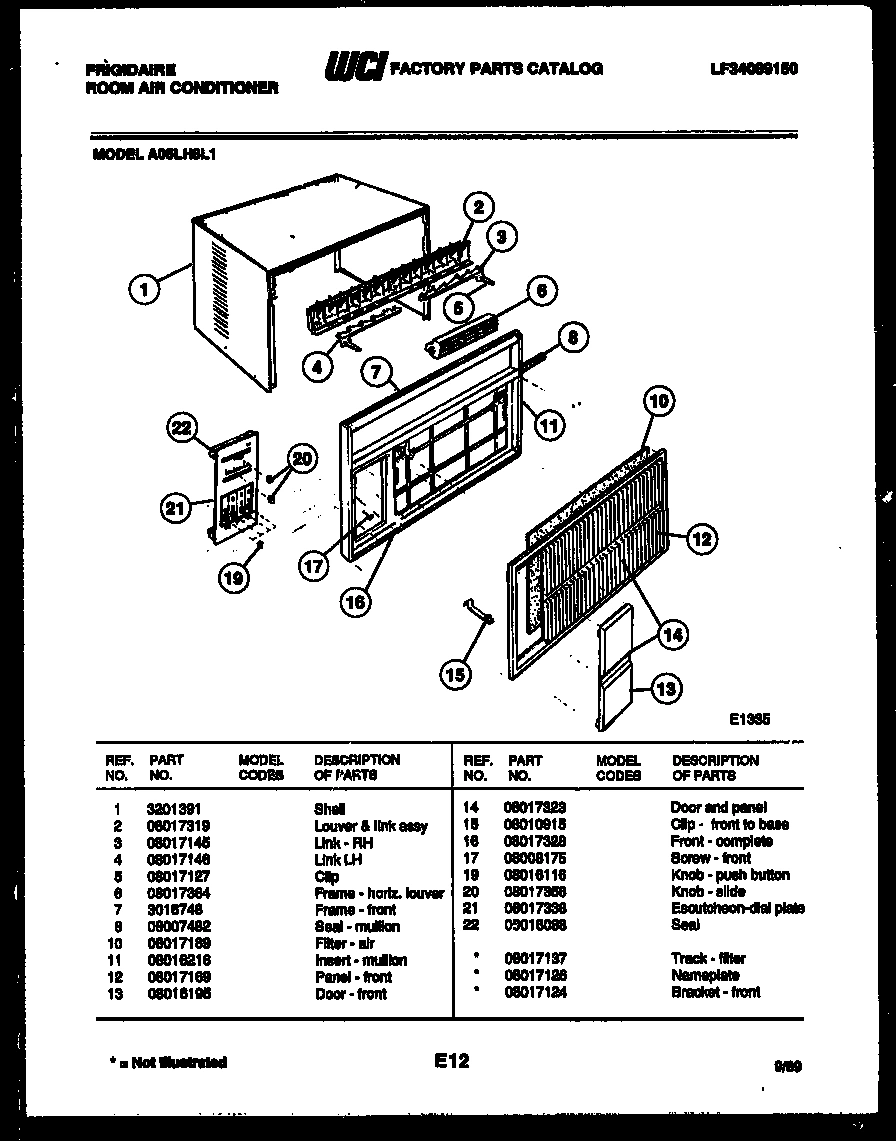

02 - CABINET PARTS

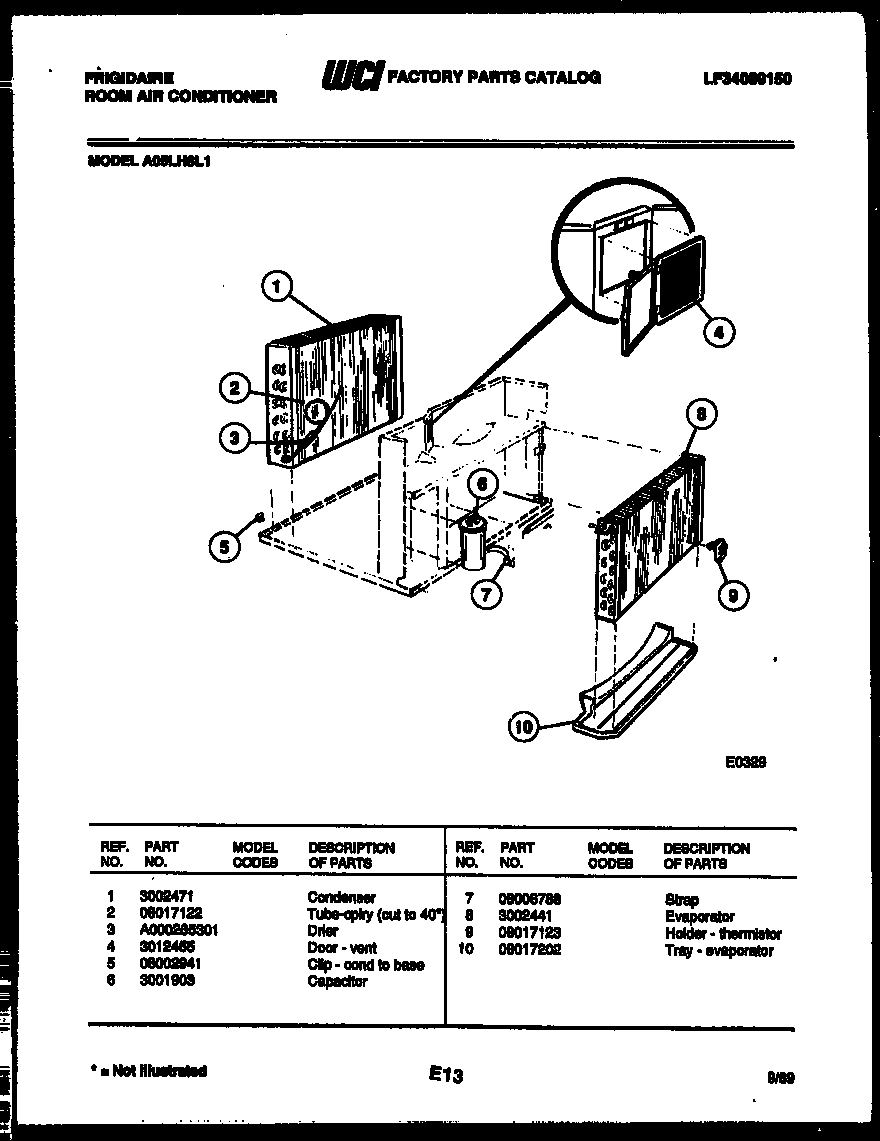

03 - UNIT PARTS

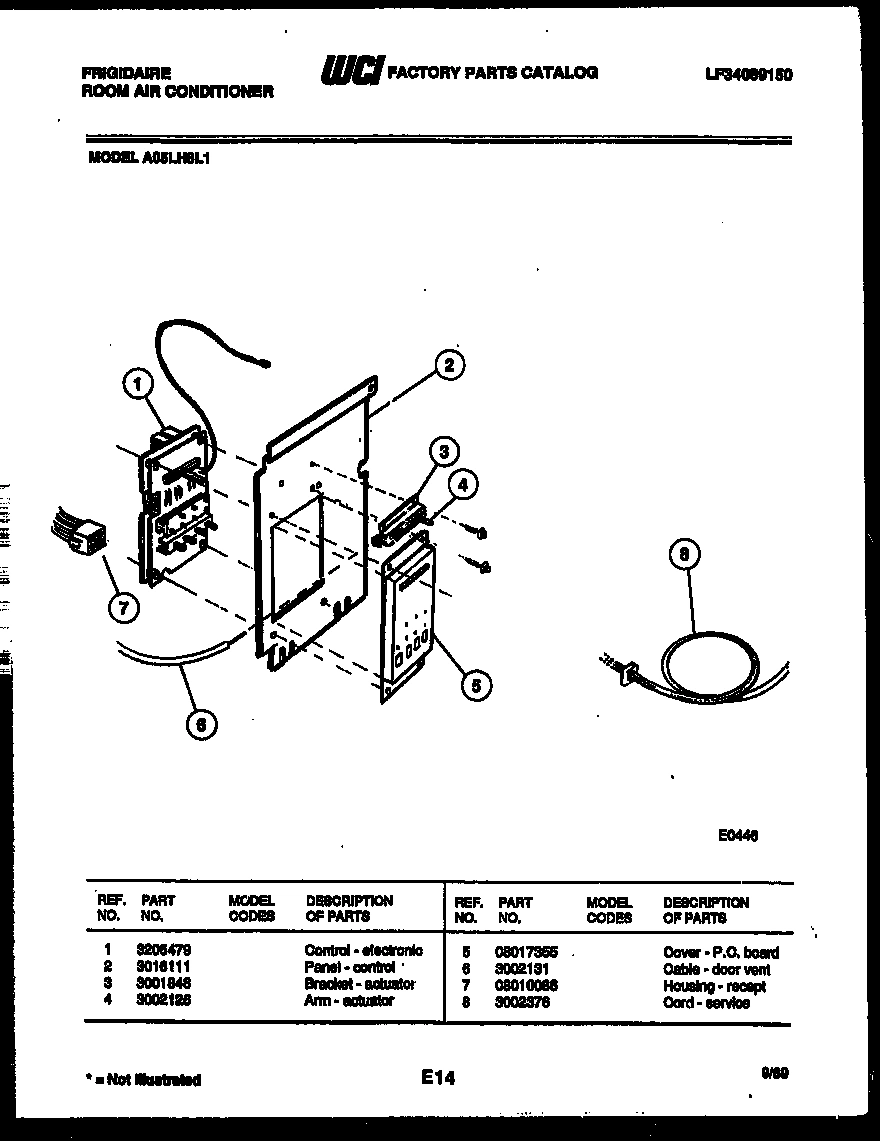

04 - ELECTRICAL PARTS

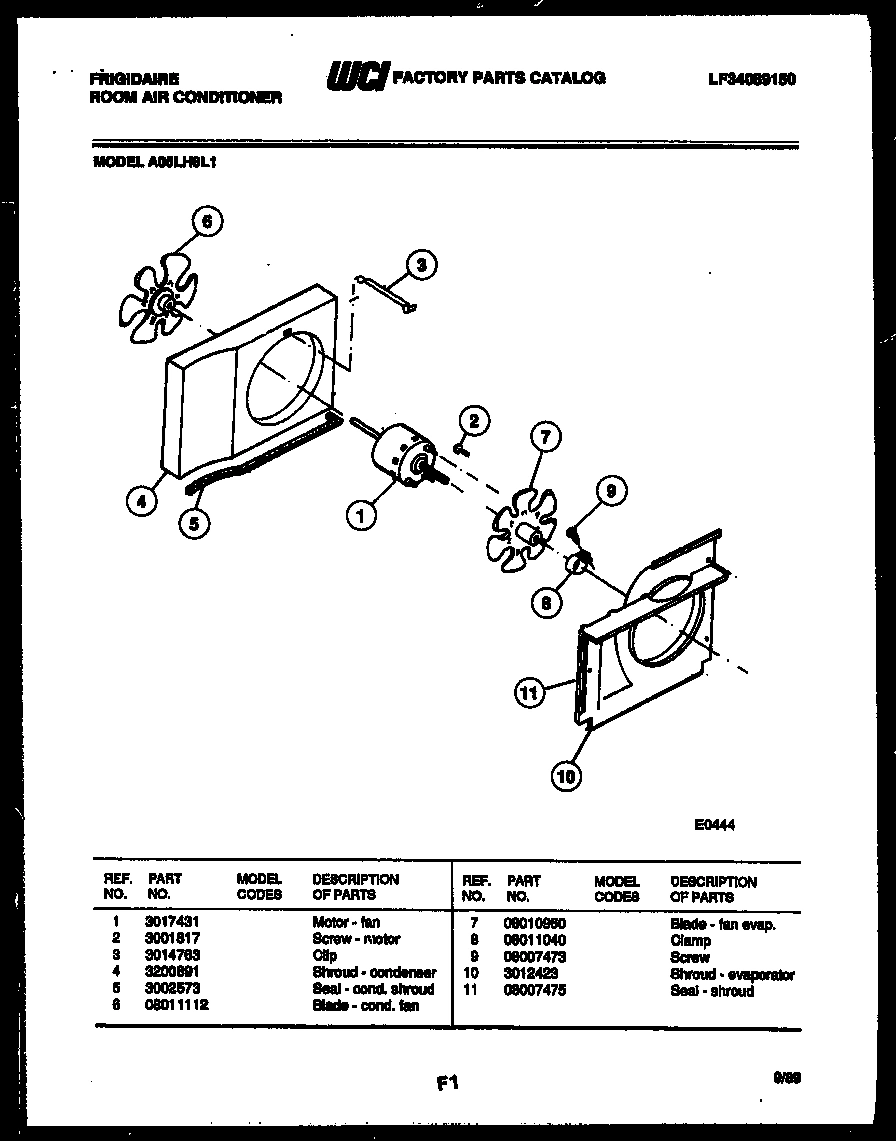

05 - AIR HANDLING PARTS

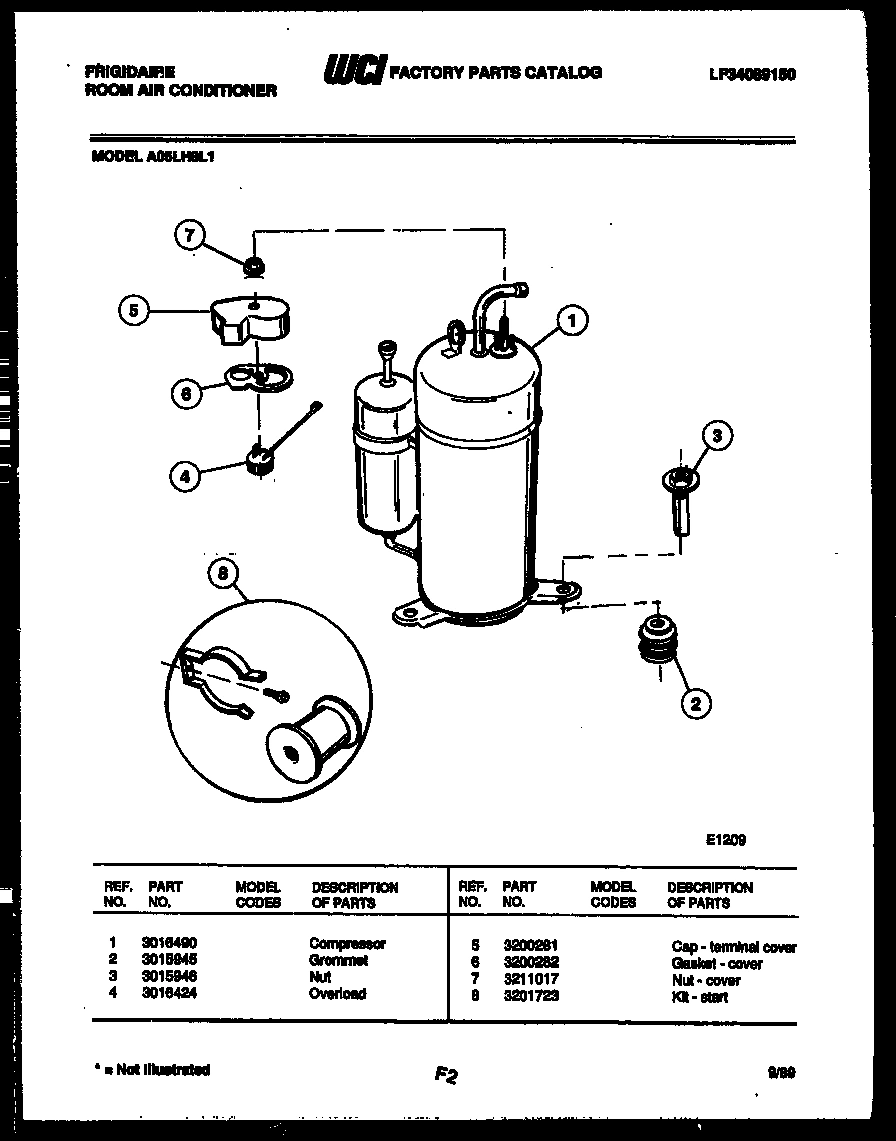

06 - COMPRESSOR PARTS

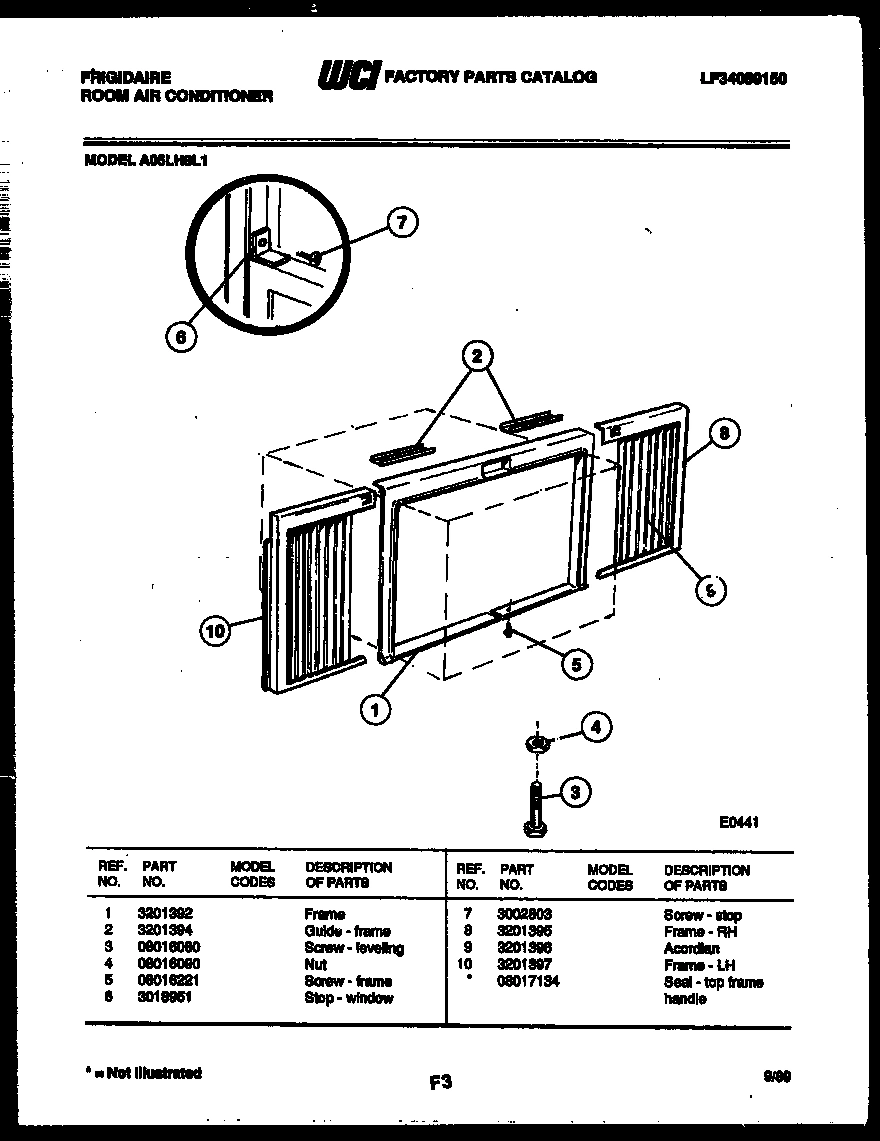

07 - WINDOW MOUNTING PARTS
Common parts from model Electrolux A05LH8L1 ROOM AIR CONDITIONER
*26618
BRACKET - FRONT WCI 08017124 Contact Us For Availability
*26618
NAME PLATE WCI 08017126 Contact Us For Availability
*26618
WCI 08017137 WCI 08017137 Contact Us For Availability
*26623
SEAL - TOP FRAME HANDLE WCI 08017134 Contact Us For Availability
1
SHELL WCI 3201391 Contact Us For Availability
1
WCI 3002471 WCI 3002471 Contact Us For Availability
1
WCI 3205479 WCI 3205479 Contact Us For Availability
1
WCI 3017431 WCI 3017431 Contact Us For Availability
1
WCI 3016490 WCI 3016490 Contact Us For Availability
1
WCI 3201392 WCI 3201392 Contact Us For Availability
2
WCI 08017319 WCI 08017319 Contact Us For Availability
2
TUBE - CPLRY (CUT TO 40``) WCI 08017122 Contact Us For Availability
2
WCI 3016111 WCI 3016111 Contact Us For Availability
2
SCREW - MOTOR WCI 3001817 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
WCI 3201394 WCI 3201394 Contact Us For Availability
3
WCI 08017145 WCI 08017145 Contact Us For Availability
3
WCI 3001848 WCI 3001848 Contact Us For Availability
3
CLIP WCI 3014763 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
WCI 08016080 WCI 08016080 Contact Us For Availability
4
WCI 08017146 WCI 08017146 Contact Us For Availability
4
WCI 3012455 WCI 3012455 Contact Us For Availability
4
WCI 3002126 WCI 3002126 Contact Us For Availability
4
WCI 3200891 WCI 3200891 Contact Us For Availability
4
WCI 3016424 WCI 3016424 Contact Us For Availability
4
NUT WCI 08016090 Contact Us For Availability
5
WCI 08017127 WCI 08017127 Contact Us For Availability
5
WCI 08002941 WCI 08002941 Contact Us For Availability
5
WCI 08017355 WCI 08017355 Contact Us For Availability
5
SEAL-COND SHROUD WCI 3002573 Contact Us For Availability
5
CAP-TERMINAL COVER WCI 3200281 Contact Us For Availability
5
WCI 08016221 WCI 08016221 Contact Us For Availability
6
FRAME-HORIZ LOUVER WCI 08017364 Contact Us For Availability
6
WCI 3001903 WCI 3001903 Contact Us For Availability
6
CABLE-DOOR VENT WCI 3002131 Contact Us For Availability
6
BLADE - COND. FAN WCI 08011112 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
6
STOP - WINDOW WCI 3018951 Contact Us For Availability
7
WCI 3016748 WCI 3016748 Contact Us For Availability
7
WCI 08006788 WCI 08006788 Contact Us For Availability
7
WCI 08016086 WCI 08016086 Contact Us For Availability
7
BLADE-FAN EVAP WCI 08010950 Contact Us For Availability
7
WCI 3211017 WCI 3211017 Contact Us For Availability
7
SCREW-STOP WCI 3002803 Contact Us For Availability
8
WCI 08007482 WCI 08007482 Contact Us For Availability
8
WCI 3002441 WCI 3002441 Contact Us For Availability
8
WCI 3002376 WCI 3002376 Contact Us For Availability
8
CLAMP WCI 08011040 Contact Us For Availability
8
KIT-START WCI 3201723 Contact Us For Availability
8
FRAME-RH WCI 3201395 Contact Us For Availability
9
WCI 08017123 WCI 08017123 Contact Us For Availability
9
ACORDIAN WCI 3201396 Contact Us For Availability
10
FILTER-AIR WCI 08017189 Contact Us For Availability
10
WCI 08017202 WCI 08017202 Contact Us For Availability
10
WCI 3012423 WCI 3012423 Contact Us For Availability
10
FRAME-LH WCI 3201397 Contact Us For Availability
11
WCI 08016216 WCI 08016216 Contact Us For Availability
11
WCI 08007475 WCI 08007475 Contact Us For Availability
12
WCI 08017169 WCI 08017169 Contact Us For Availability
13
WCI 08016195 WCI 08016195 Contact Us For Availability
14
WCI 08017323 WCI 08017323 Contact Us For Availability
15
WCI 08010915 WCI 08010915 Contact Us For Availability
16
WCI 08017328 WCI 08017328 Contact Us For Availability
17
SCREW-FRONT WCI 08008175 Contact Us For Availability
19
WCI 08016116 WCI 08016116 Contact Us For Availability
20
WCI 08017356 WCI 08017356 Contact Us For Availability
21
WCI 08017338 WCI 08017338 Contact Us For Availability
22
WCI 08016088 WCI 08016088 Contact Us For Availability
× ![]()
