Model Electrolux A05LH8F1 ROOM AIR CONDITIONER – Common Parts & Diagrams

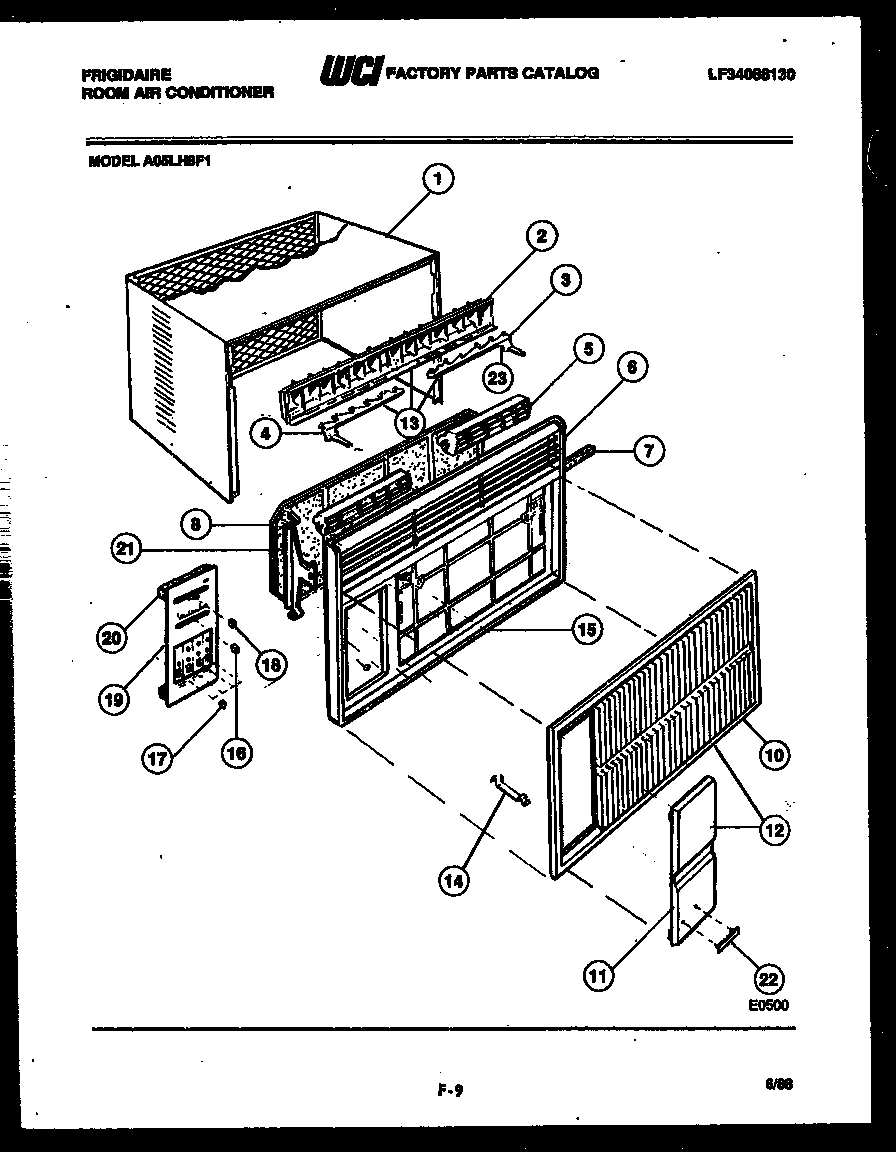

02 - CABINET PARTS

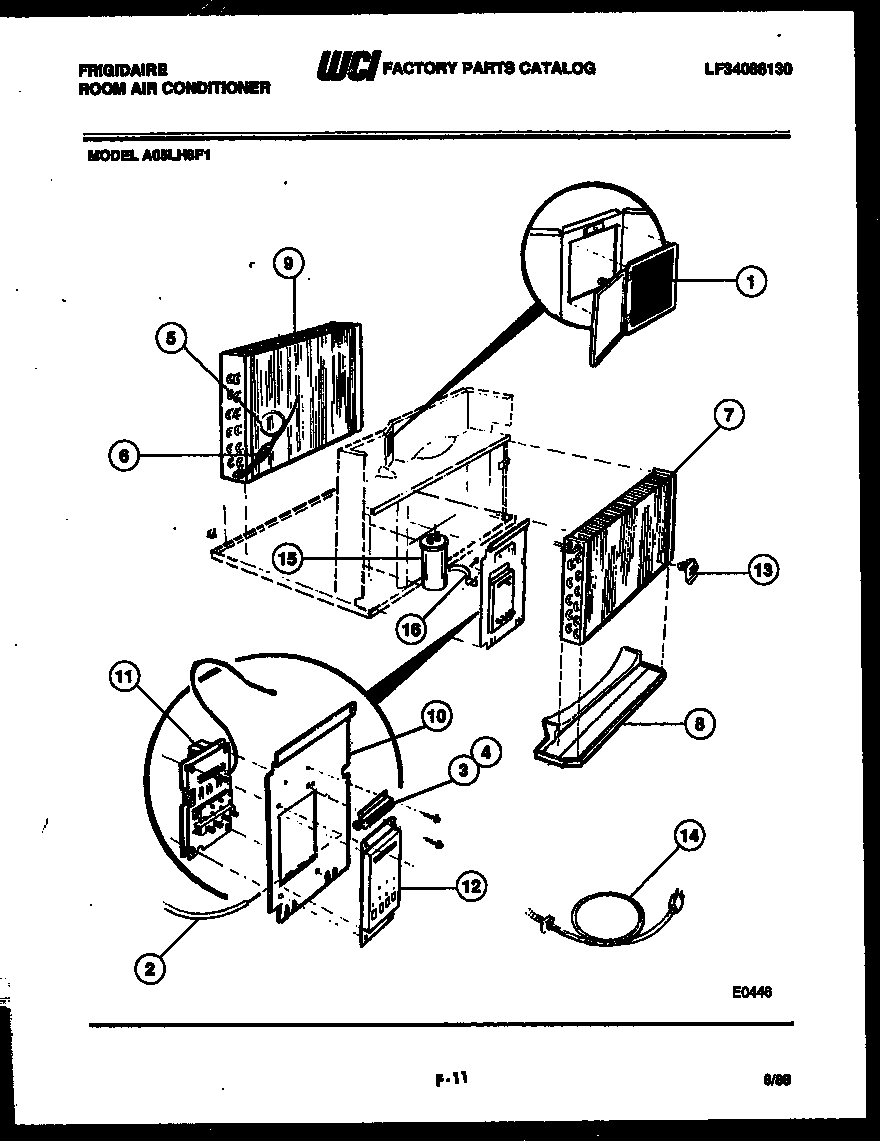

03 - UNIT PARTS

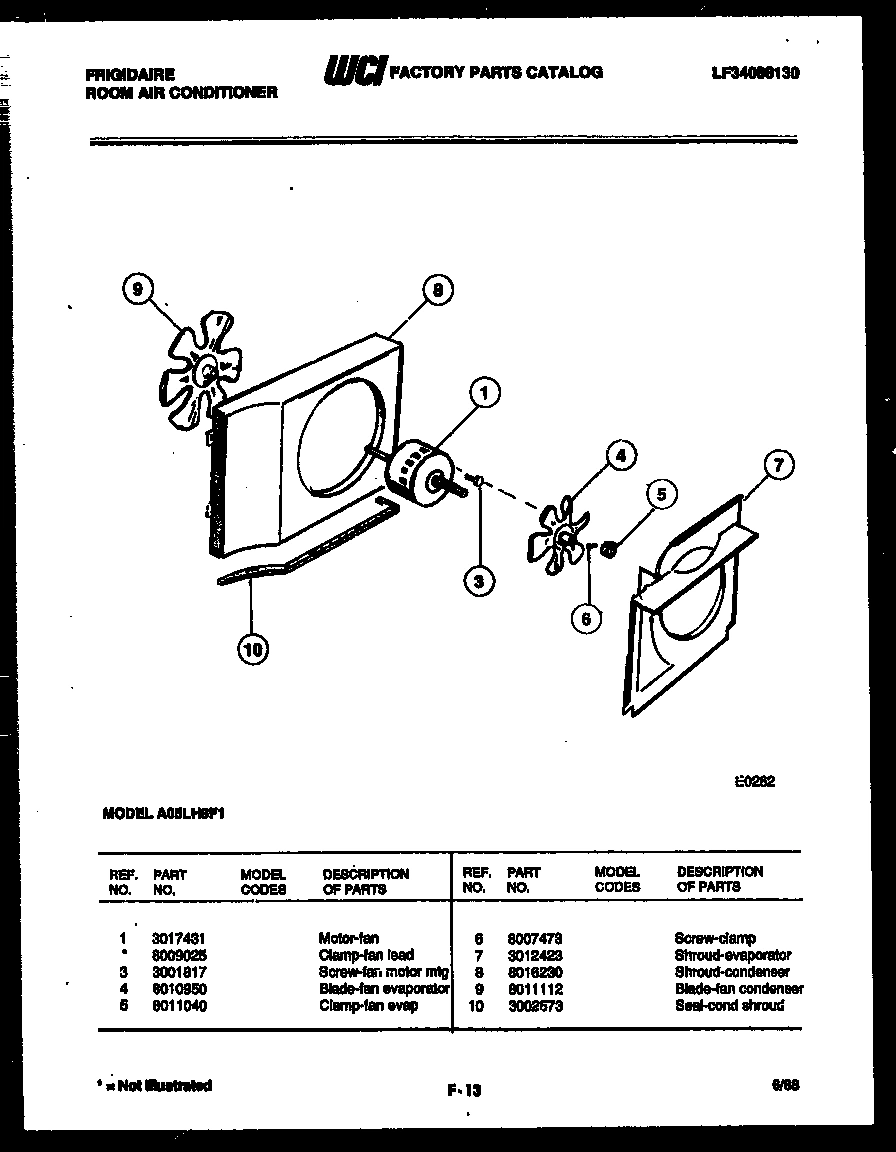

04 - AIR HANDLING PARTS

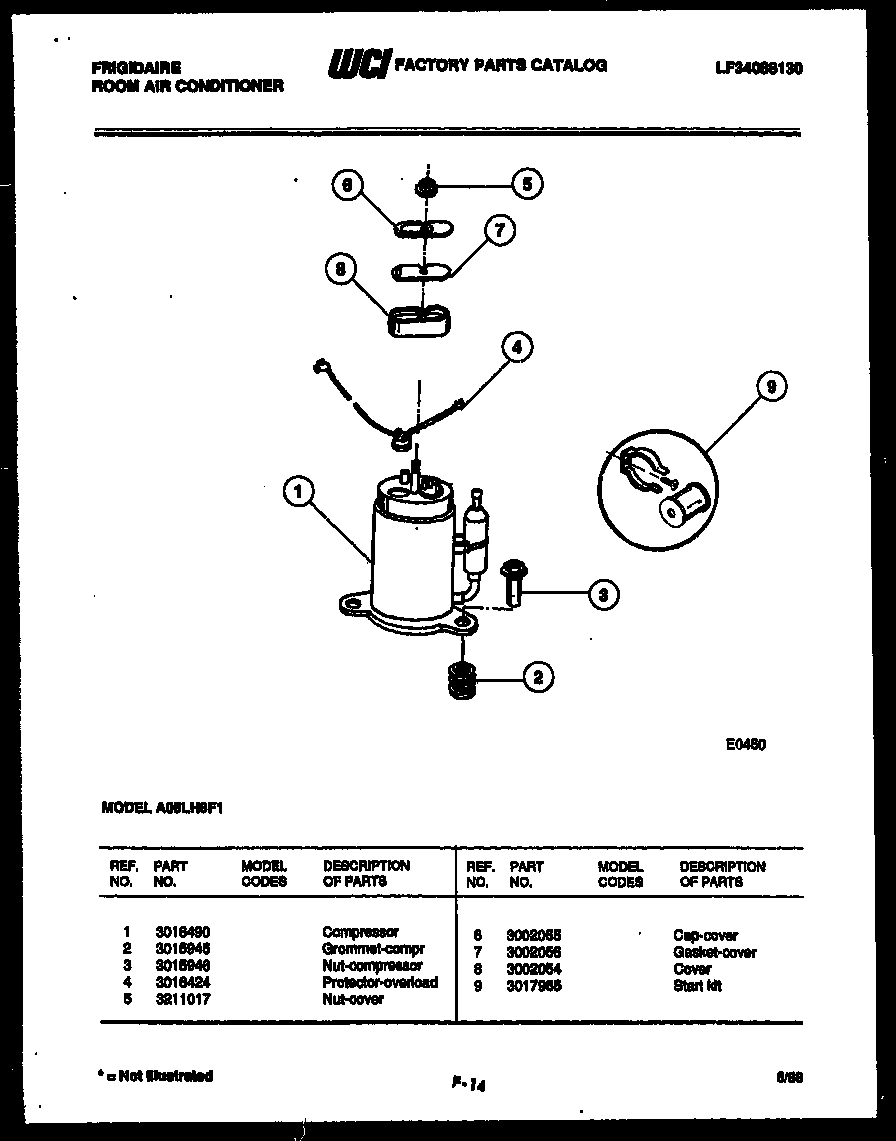

05 - COMPRESSOR PARTS

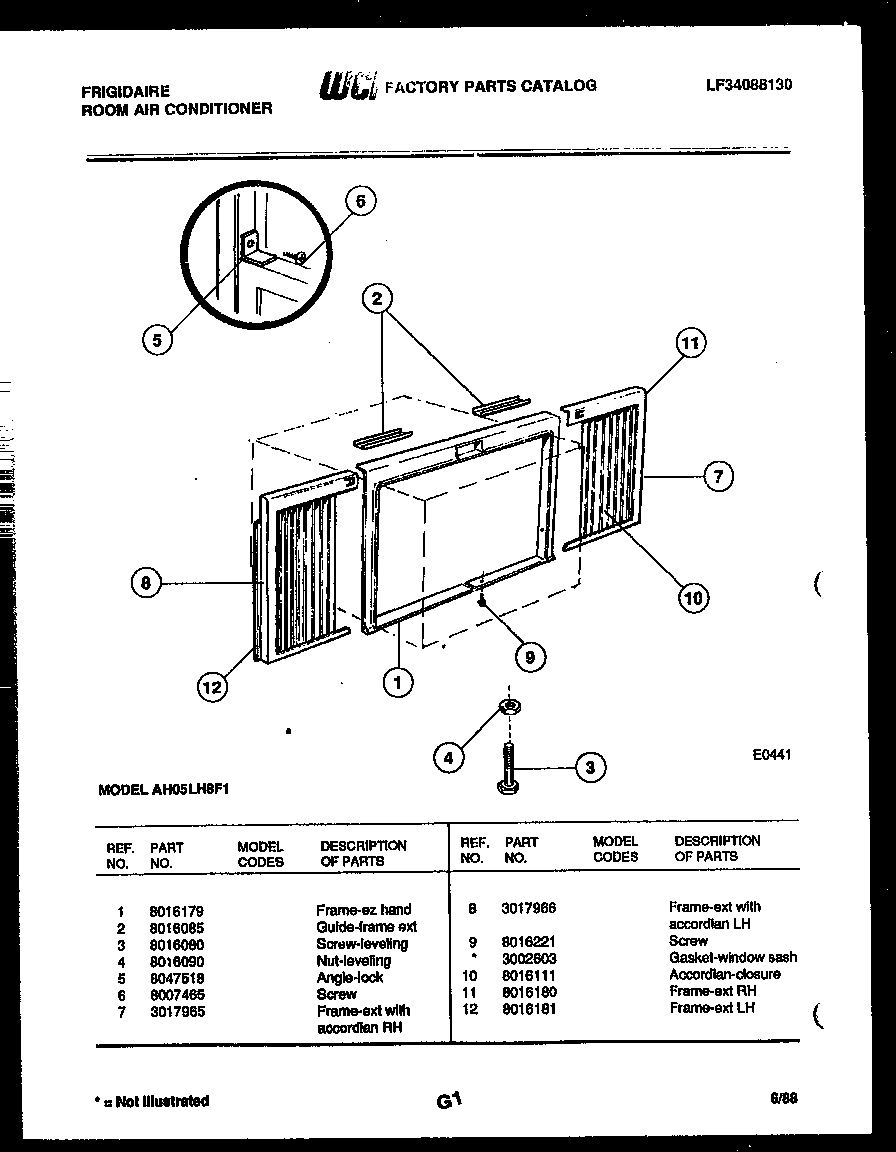

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux A05LH8F1 ROOM AIR CONDITIONER
1
SHELL-CABINET WCI 3016112 Contact Us For Availability
1
WCI 3012455 WCI 3012455 Contact Us For Availability
1
WCI 3017431 WCI 3017431 Contact Us For Availability
1
WCI 3016490 WCI 3016490 Contact Us For Availability
1
FRAME-EZ HAND WCI 8016179 Contact Us For Availability
1A
CLAMP-FAN LEAD (NON-ILLUSTRATED) WCI 8009025 Contact Us For Availability
2
FRAME-VERTICAL LOUVER WCI 8017164 Contact Us For Availability
2
CABLE-DOOR VENT WCI 3002131 Contact Us For Availability
2
WCI 3015945 WCI 3015945 Contact Us For Availability
2
GUIDE-FRAME EXT WCI 8016085 Contact Us For Availability
3
WCI 3002160 WCI 3002160 Contact Us For Availability
3
WCI 3001845 WCI 3001845 Contact Us For Availability
3
SCREW-FAN MOTOR MTG WCI 3001817 Contact Us For Availability
3
WCI 3015946 WCI 3015946 Contact Us For Availability
3
WCI 8016080 WCI 8016080 Contact Us For Availability
4
WCI 3002161 WCI 3002161 Contact Us For Availability
4
WCI 3002126 WCI 3002126 Contact Us For Availability
4
BLADE-FAN EVAPORATOR WCI 8010950 Contact Us For Availability
4
PROTECTOR-OVERLOAD WCI 3016424 Contact Us For Availability
4
WCI 8016090 WCI 8016090 Contact Us For Availability
5
FRAME-HORIZONTAL LOUVER WCI 8017364 Contact Us For Availability
5
WCI 8017122 WCI 8017122 Contact Us For Availability
5
CLAMP-FAN EVAP WCI 8011040 Contact Us For Availability
5
WCI 3211017 WCI 3211017 Contact Us For Availability
5
ANGLE-LOCK WCI 8047518 Contact Us For Availability
6
WCI 3016748 WCI 3016748 Contact Us For Availability
6
SCREW CLAMP WCI 8007473 Contact Us For Availability
6
CAP-COVER WCI 3002055 Contact Us For Availability
6
SCREW WCI 8007465 Contact Us For Availability
7
WCI 8007482 WCI 8007482 Contact Us For Availability
7
WCI 3002441 WCI 3002441 Contact Us For Availability
7
WCI 3012423 WCI 3012423 Contact Us For Availability
7
GASKET-COVER WCI 3002056 Contact Us For Availability
7
WCI 3017965 WCI 3017965 Contact Us For Availability
8
FILTER-AIR WITH FRAME WCI 8017189 Contact Us For Availability
8
TRAY-EVAPORATOR WCI 8017202 Contact Us For Availability
8
SHROUD, CONDENSER WCI 8016230 Contact Us For Availability
8
COVER WCI 3002054 Contact Us For Availability
8
WCI 3017966 WCI 3017966 Contact Us For Availability
8A
WCI 8016216 WCI 8016216 Contact Us For Availability
9
WCI 3002471 WCI 3002471 Contact Us For Availability
9
WCI 8011112 WCI 8011112 Contact Us For Availability
9
SCREW WCI 8016221 Contact Us For Availability
10
WCI 8017169 WCI 8017169 Contact Us For Availability
10
WCI 3016111 WCI 3016111 Contact Us For Availability
10
SEAL-COND SHROUD WCI 3002573 Contact Us For Availability
10
ACCORDIAN-CLOSURE WCI 8016111 Contact Us For Availability
11
WCI 8016195 WCI 8016195 Contact Us For Availability
11
WCI 8017366 WCI 8017366 Contact Us For Availability
11
FRAME-EXT RH WCI 8016180 Contact Us For Availability
12
WCI 8017323 WCI 8017323 Contact Us For Availability
12
WCI 8017355 WCI 8017355 Contact Us For Availability
12
FRAME-EXT LH WCI 8016181 Contact Us For Availability
13
VERTICAL LOUVER AND LINK ASSEMBLY WCI 3002457 Contact Us For Availability
13
WCI 8017149 WCI 8017149 Contact Us For Availability
14
CLIP-FRONT TO BASE WCI 3001784 Contact Us For Availability
14
CORD-ELECTRIC SERVICE WCI 3002376 Contact Us For Availability
15
WCI 8017328 WCI 8017328 Contact Us For Availability
15
WCI 3001903 WCI 3001903 Contact Us For Availability
16
STRAP-CAPACITOR WCI 8006788 Contact Us For Availability
17
WCI 8016116 WCI 8016116 Contact Us For Availability
18
WCI 3002189 WCI 3002189 Contact Us For Availability
19
WCI 8017338 WCI 8017338 Contact Us For Availability
20
WCI 8016088 WCI 8016088 Contact Us For Availability
21
TRACK-FILTER WCI 8017137 Contact Us For Availability
22
NAMEPLATE WCI 8017126 Contact Us For Availability
23
WCI 3001844 WCI 3001844 Contact Us For Availability
× ![]()
