Model Electrolux A05LH5F2 ROOM AIR CONDITIONER – Common Parts & Diagrams

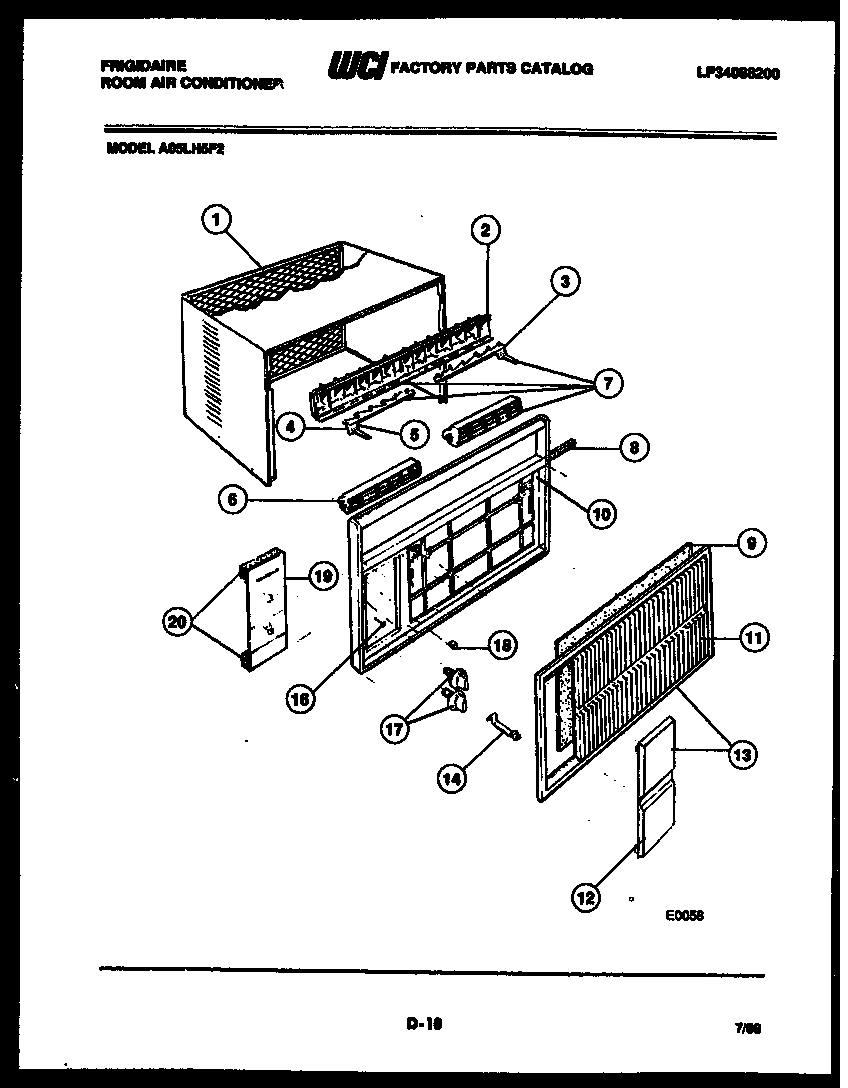

02 - CABINET PARTS

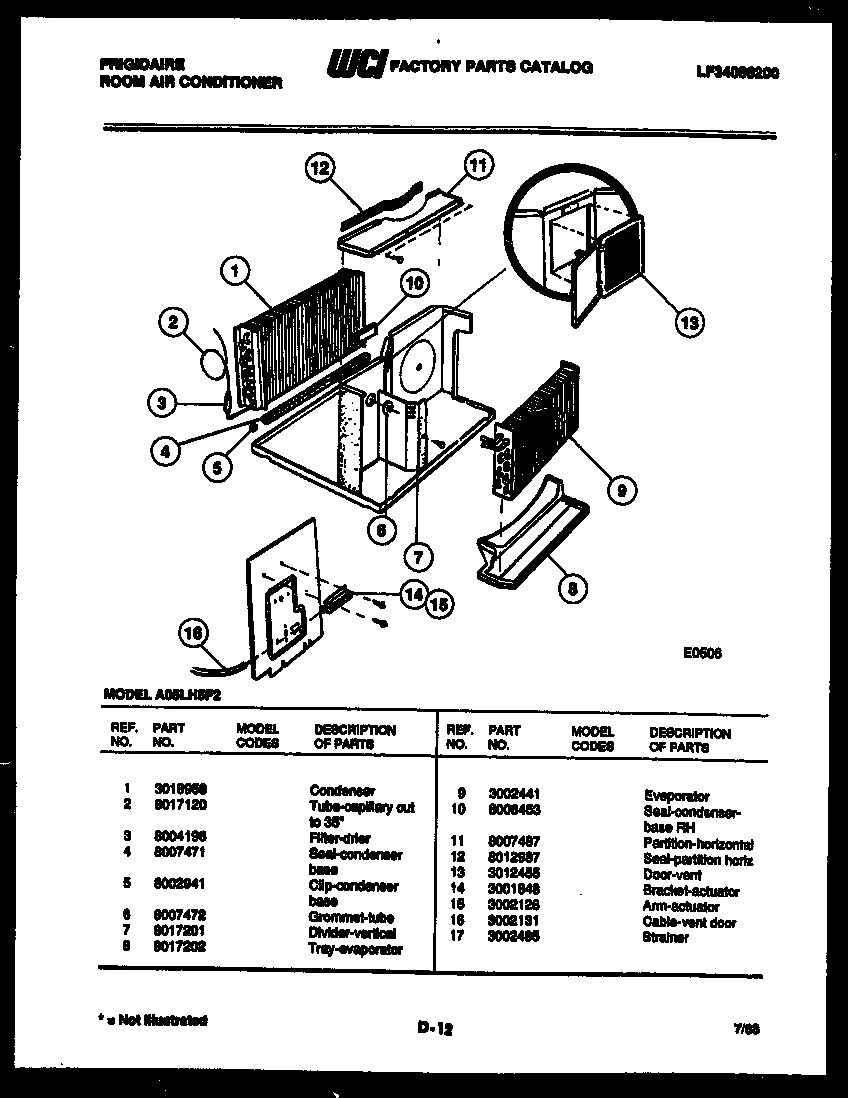

03 - UNIT PARTS

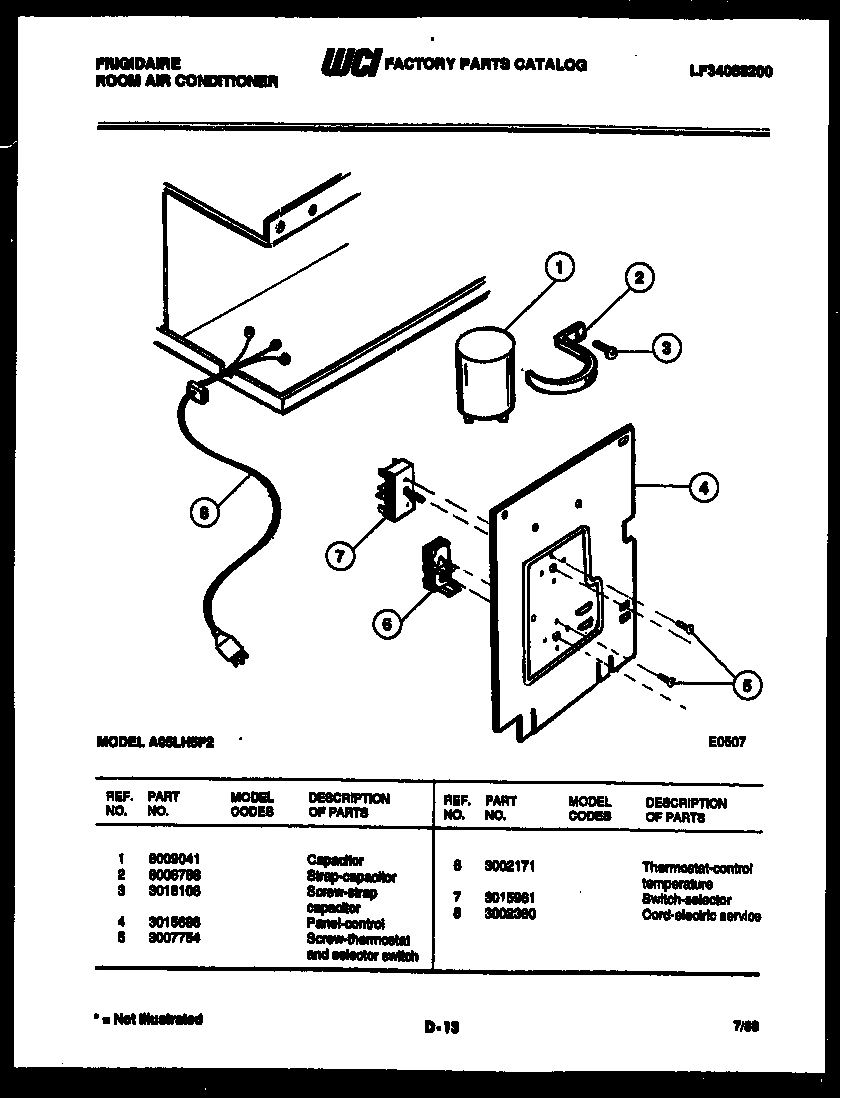

04 - ELECTRICAL PARTS

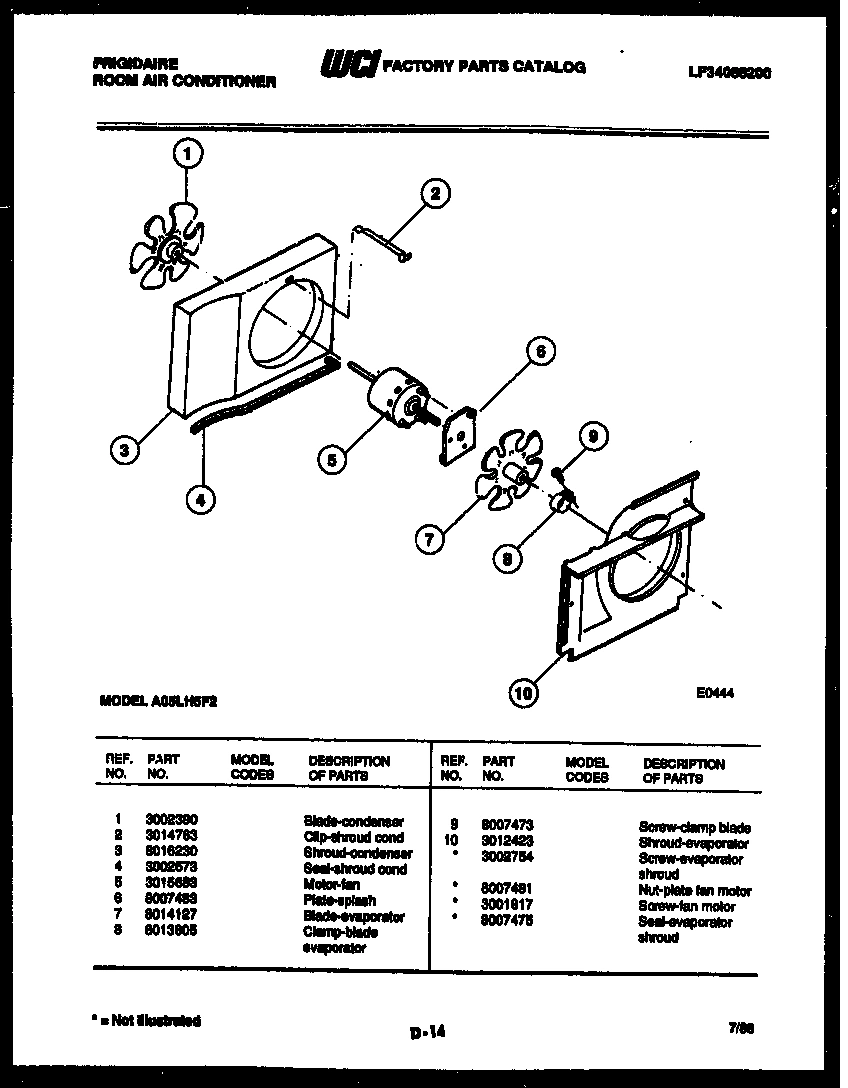

05 - AIR HANDLING PARTS

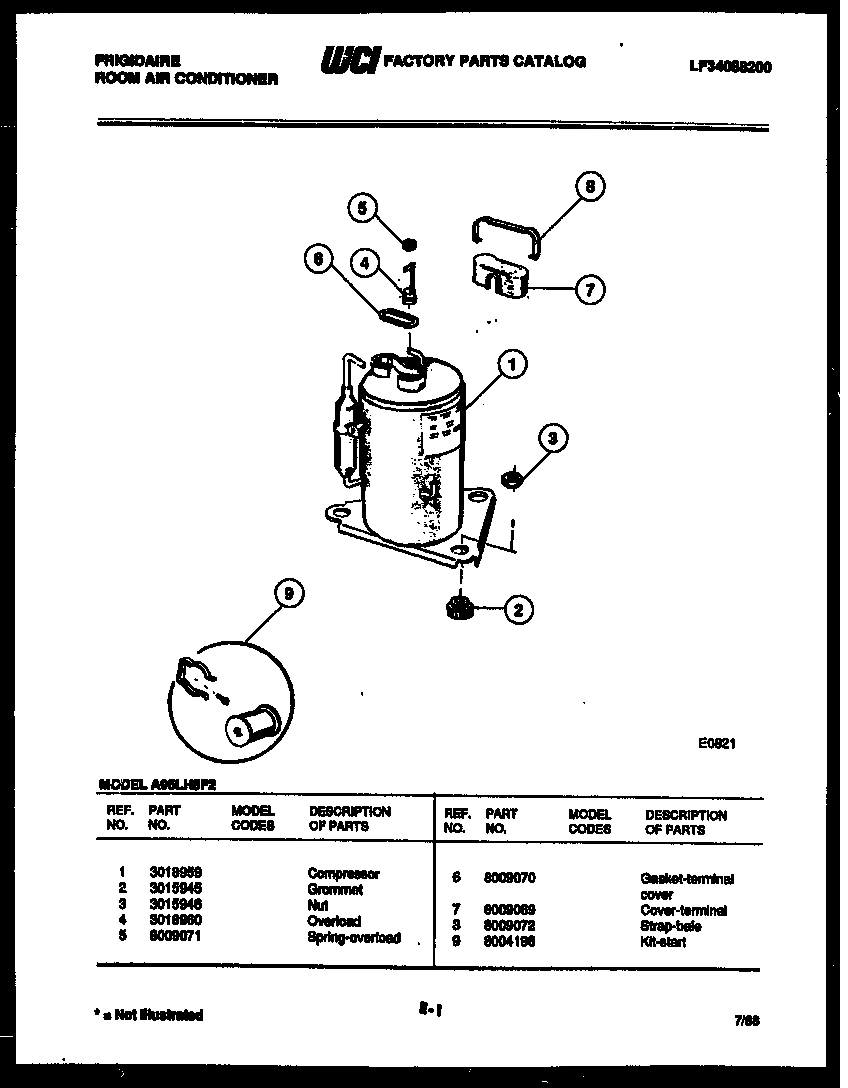

06 - COMPRESSOR PARTS

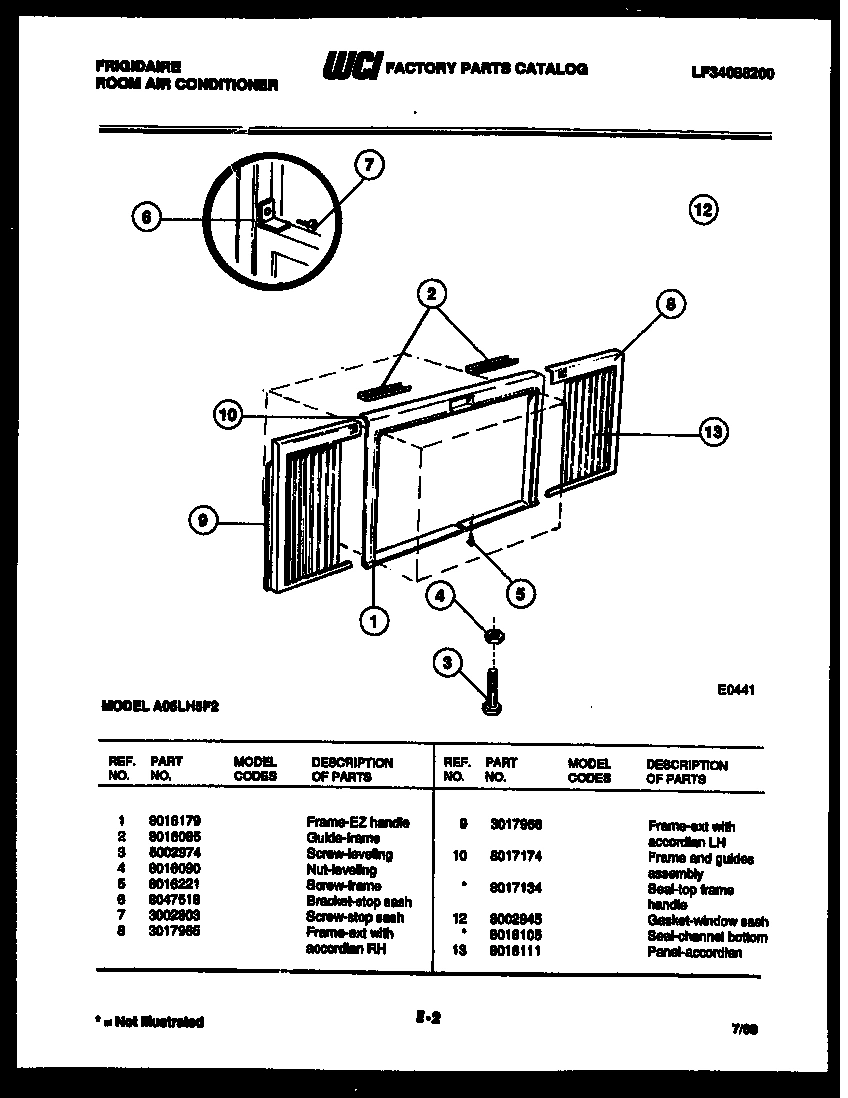

07 - WINDOW MOUNTING PARTS
Common parts from model Electrolux A05LH5F2 ROOM AIR CONDITIONER
*16493
SCREW-SHELL/BASE WCI 3211028 Contact Us For Availability
*16493
BRACKET-FRAME FRONT WCI 8017124 Contact Us For Availability
*16493
PLATE-NAME DOOR WCI 8017126 Contact Us For Availability
*16493
TRACK-FILTER WCI 8017137 Contact Us For Availability
*16496
WCI 3001817 WCI 3001817 Contact Us For Availability
*16496
SCREW-EVAPORATOR SHROUD WCI 3002754 Contact Us For Availability
*16496
SEAL-EVAPORATOR SHROUD WCI 8007475 Contact Us For Availability
*16496
NUT-PLATE FAN MOTOR WCI 8007481 Contact Us For Availability
1
SHELL-CABINET WCI 3016112 Contact Us For Availability
1
WCI 3018958 WCI 3018958 Contact Us For Availability
1
WCI 8009041 WCI 8009041 Contact Us For Availability
1
BLADE-CONDENSER WCI 3002390 Contact Us For Availability
1
WCI 3018959 WCI 3018959 Contact Us For Availability
1
FRAME, E-Z HANDLE WCI 8016179 Contact Us For Availability
2
FRAME-LOUVRE VERTICAL WCI 8017164 Contact Us For Availability
2
WCI 8017120 WCI 8017120 Contact Us For Availability
2
STRAP-CAPACITOR WCI 8006788 Contact Us For Availability
2
CLIP-SHROUD COND WCI 3014763 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
WCI 8016085 WCI 8016085 Contact Us For Availability
3
WCI 3002160 WCI 3002160 Contact Us For Availability
3
SCREW-STRAP CAPACITOR WCI 3016106 Contact Us For Availability
3
SHROUD, CONDENSER WCI 8016230 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
WCI 8002974 WCI 8002974 Contact Us For Availability
4
WCI 3002161 WCI 3002161 Contact Us For Availability
4
SEAL-CONDENSER BASE WCI 8007471 Contact Us For Availability
4
WCI 3015686 WCI 3015686 Contact Us For Availability
4
SEAL-SHROUD COND WCI 3002573 Contact Us For Availability
4
OVERLOAD WCI 3018960 Contact Us For Availability
4
WCI 8016090 WCI 8016090 Contact Us For Availability
5
WCI 3001844 WCI 3001844 Contact Us For Availability
5
CLIP-CONDENSER BASE WCI 8002941 Contact Us For Availability
5
SCREW-THERMOSTAT AND SELECTOR SWITCH WCI 3007754 Contact Us For Availability
5
WCI 3015683 WCI 3015683 Contact Us For Availability
5
WCI 8009071 WCI 8009071 Contact Us For Availability
5
WCI 8016221 WCI 8016221 Contact Us For Availability
6
FRAME-LOUVER HORIZ WCI 8017364 Contact Us For Availability
6
GROMMET-TUBE WCI 8007472 Contact Us For Availability
6
THERMOSTAT-CONTROL TEMPERATURE WCI 3002171 Contact Us For Availability
6
WCI 8007483 WCI 8007483 Contact Us For Availability
6
WCI 8009070 WCI 8009070 Contact Us For Availability
6
WCI 8047518 WCI 8047518 Contact Us For Availability
7
WCI 3002457 WCI 3002457 Contact Us For Availability
7
DIVIDER-VERTICAL WCI 8017201 Contact Us For Availability
7
WCI 3015961 WCI 3015961 Contact Us For Availability
7
WCI 8014127 WCI 8014127 Contact Us For Availability
7
WCI 8009069 WCI 8009069 Contact Us For Availability
7
SCREW-STOP (SASH) WCI 3002803 Contact Us For Availability
8
TRAY-EVAPORATOR WCI 8017202 Contact Us For Availability
8
WCI 3002360 WCI 3002360 Contact Us For Availability
8
WCI 8007482 WCI 8007482 Contact Us For Availability
8
CLAMP-BLADE EVAPORATOR WCI 8013805 Contact Us For Availability
8
WCI 8009072 WCI 8009072 Contact Us For Availability
8
WCI 3017965 WCI 3017965 Contact Us For Availability
9
FILTER-AIR WITH FRAME WCI 8017189 Contact Us For Availability
9
KIT-START WCI 8004196 Contact Us For Availability
9
WCI 3002441 WCI 3002441 Contact Us For Availability
9
WCI 8007473 WCI 8007473 Contact Us For Availability
9
WCI 3017966 WCI 3017966 Contact Us For Availability
10
WCI 3016770 WCI 3016770 Contact Us For Availability
10
SEAL-CONDENSER-BASE RH WCI 8006453 Contact Us For Availability
10
WCI 3012423 WCI 3012423 Contact Us For Availability
10
FRAME AND GUIDES ASSEMBLY WCI 8017174 Contact Us For Availability
10A
SEAL-TOP FRAME HANDLE (NON-ILLUSTRATED) WCI 8017134 Contact Us For Availability
11
WCI 8017169 WCI 8017169 Contact Us For Availability
11
PARTITION, HORIZONTAL WCI 8007487 Contact Us For Availability
12
WCI 8016194 WCI 8016194 Contact Us For Availability
12
SEAL-PARTITION HORIZ WCI 8012987 Contact Us For Availability
12
GASKET-WINDOW SASH WCI 8002945 Contact Us For Availability
12A
SEAL-CHANNEL BOTTOM (NON-ILLUSTRATED) WCI 8016105 Contact Us For Availability
13
PANEL AND DOOR COMPLETE WCI 8017176 Contact Us For Availability
13
WCI 3012455 WCI 3012455 Contact Us For Availability
13
WCI 8016111 WCI 8016111 Contact Us For Availability
14
CLIP-FRONT TO BASE WCI 3001784 Contact Us For Availability
14
WCI 3001848 WCI 3001848 Contact Us For Availability
15
WCI 3016771 WCI 3016771 Contact Us For Availability
15
WCI 3002126 WCI 3002126 Contact Us For Availability
16
SCREW-FRONT RETAINER WCI 8001076 Contact Us For Availability
16
WCI 3002131 WCI 3002131 Contact Us For Availability
17
WCI 8016109 WCI 8016109 Contact Us For Availability
18
WCI 3002189 WCI 3002189 Contact Us For Availability
19
WCI 3016769 WCI 3016769 Contact Us For Availability
20
WCI 3001861 WCI 3001861 Contact Us For Availability
× ![]()
