Model Electrolux A05LH5F1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS

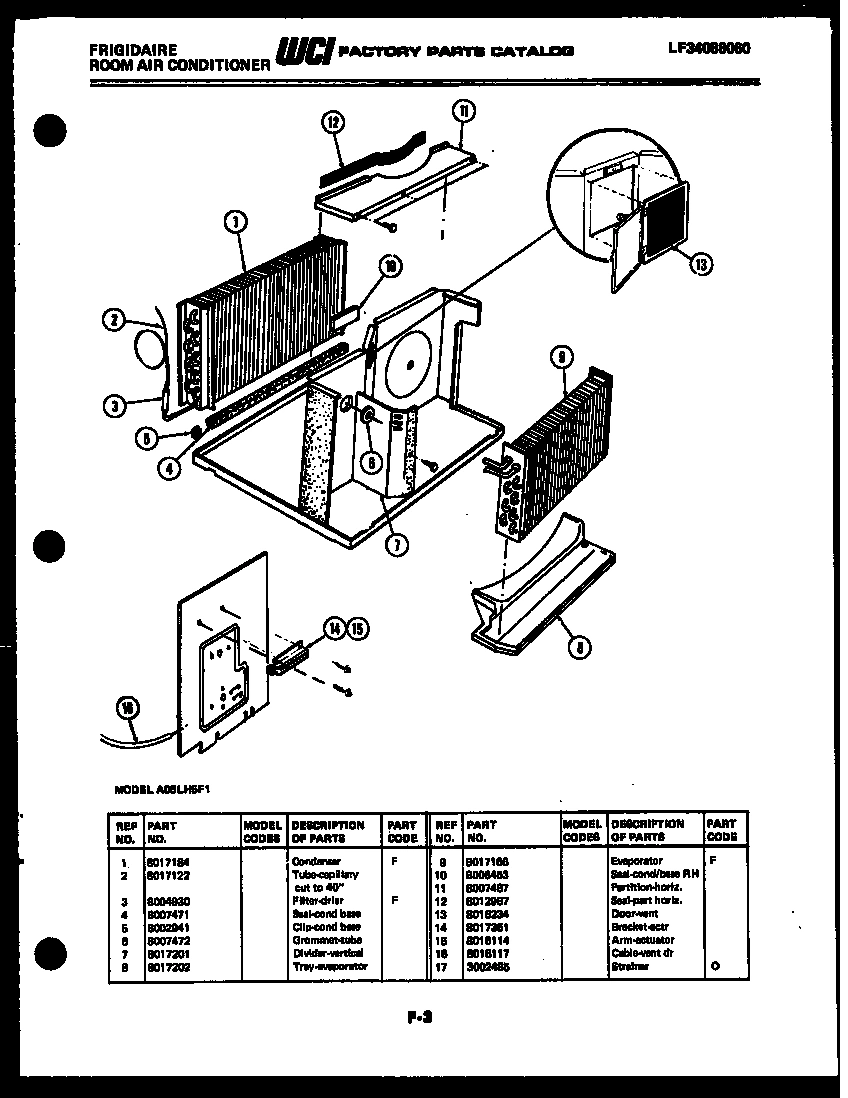

03 - UNIT PARTS

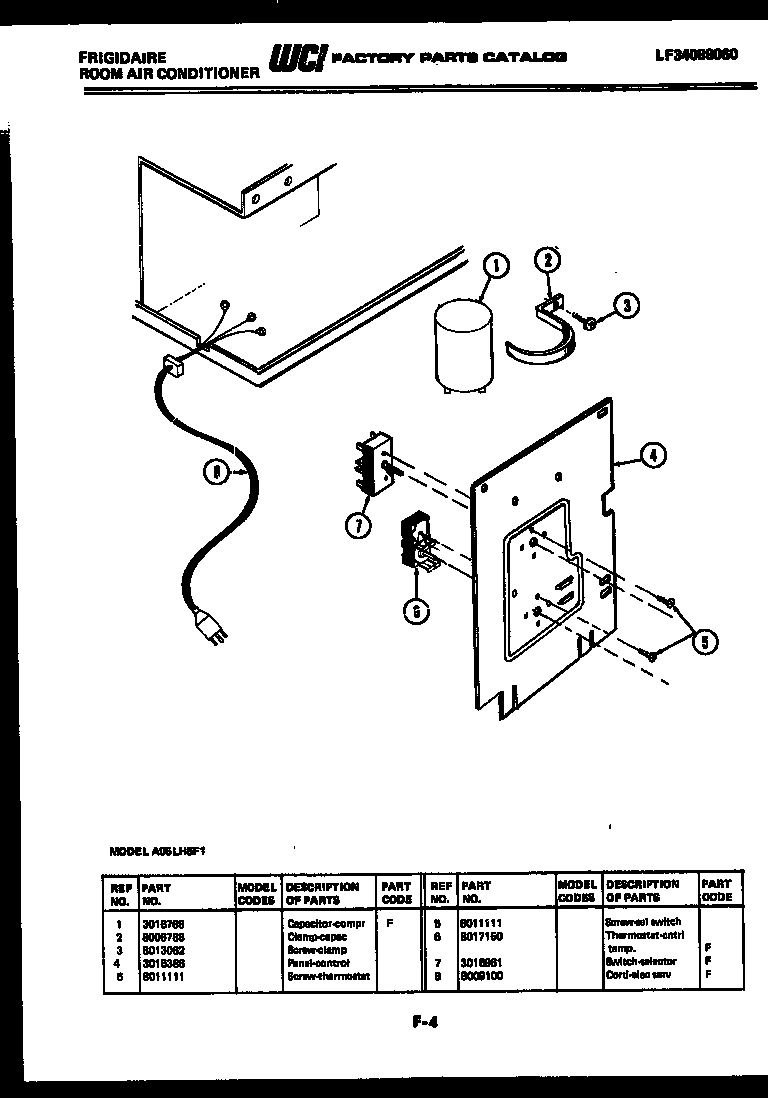

04 - ELECTRICAL PARTS

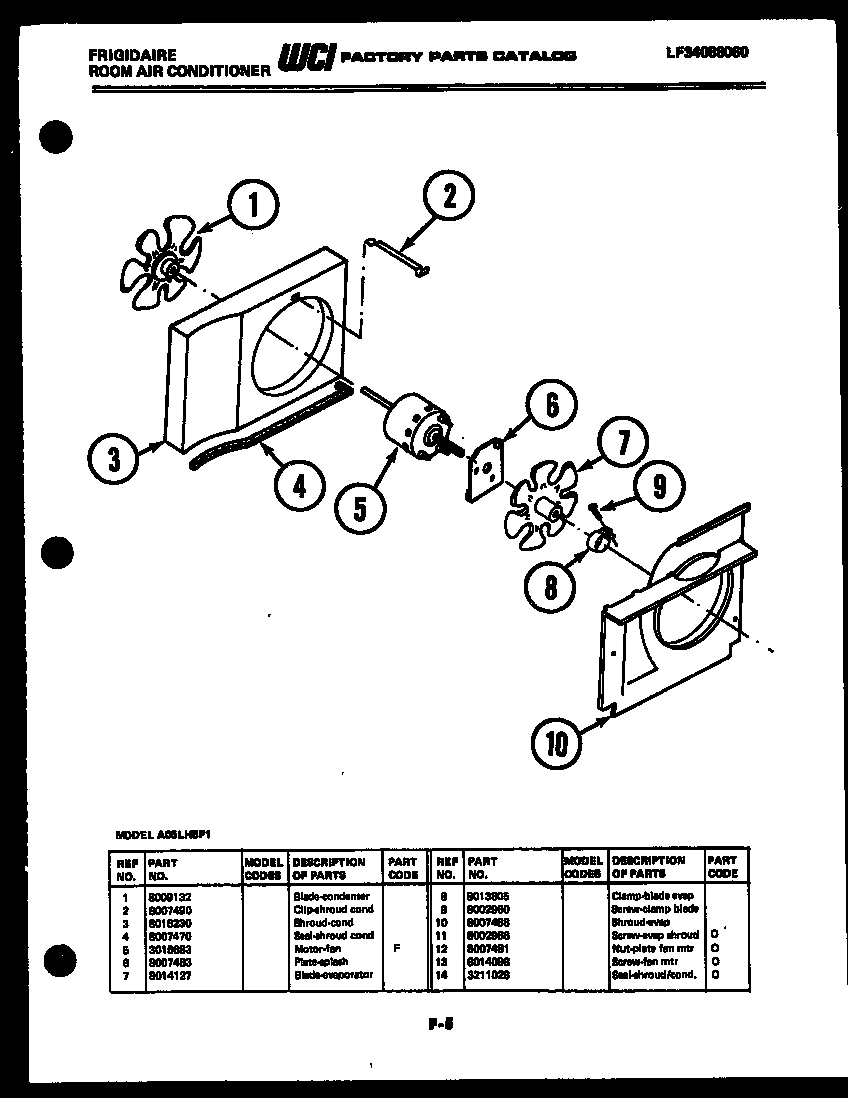

05 - AIR HANDLING PARTS

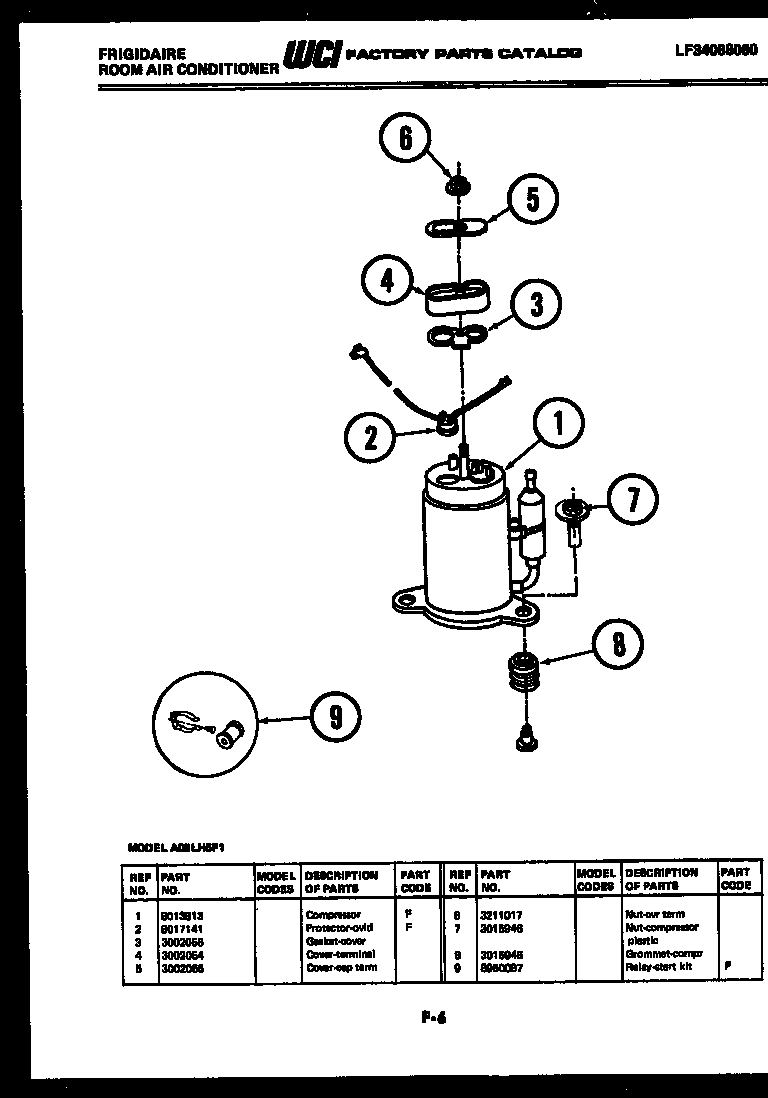

06 - COMPRESSOR PARTS

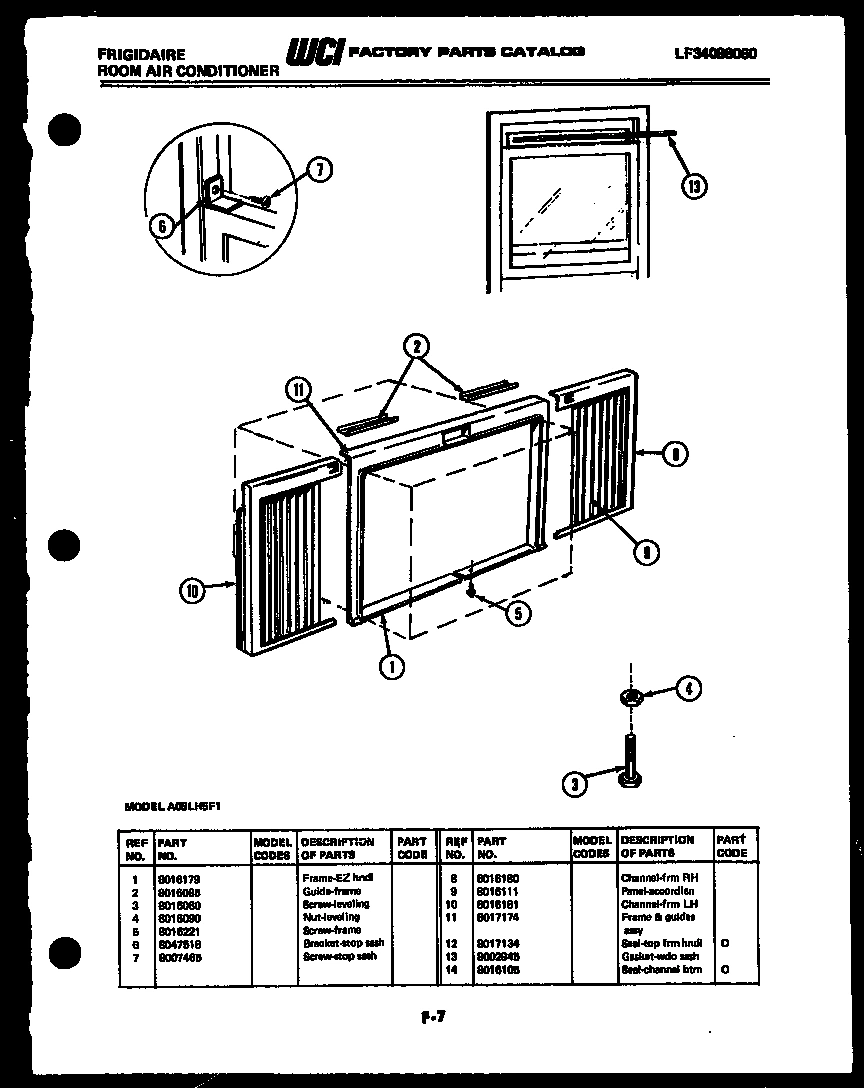

07 - WINDOW MOUNTING PARTS
Common parts from model Electrolux A05LH5F1 ROOM AIR CONDITIONER
1
WCI 3016112 WCI 3016112 Contact Us For Availability
1
WCI 8017184 WCI 8017184 Contact Us For Availability
1
WCI 3016768 WCI 3016768 Contact Us For Availability
1
BLADE-CONDENSER WCI 8009132 Contact Us For Availability
1
WCI 8013813 WCI 8013813 Contact Us For Availability
1
WCI 8016179 WCI 8016179 Contact Us For Availability
2
WCI 8017164 WCI 8017164 Contact Us For Availability
2
TUBE-CAPILLARY - CUT TO 40`` WCI 8017122 Contact Us For Availability
2
CLAMP-CAPAC. WCI 8006788 Contact Us For Availability
2
CLIP-SHROUD COND. WCI 8007490 Contact Us For Availability
2
PROTECTOR-OVLD WCI 8017141 Contact Us For Availability
2
WCI 8016085 WCI 8016085 Contact Us For Availability
3
WCI 8017145 WCI 8017145 Contact Us For Availability
3
WCI 8004930 WCI 8004930 Contact Us For Availability
3
WCI 8013062 WCI 8013062 Contact Us For Availability
3
WCI 8016230 WCI 8016230 Contact Us For Availability
3
GASKET-COVER WCI 3002056 Contact Us For Availability
3
WCI 8016080 WCI 8016080 Contact Us For Availability
4
WCI 8017146 WCI 8017146 Contact Us For Availability
4
WCI 8007471 WCI 8007471 Contact Us For Availability
4
WCI 3015386 WCI 3015386 Contact Us For Availability
4
SEAL-SHROUD COND WCI 8007470 Contact Us For Availability
4
WCI 3002054 WCI 3002054 Contact Us For Availability
4
WCI 8016090 WCI 8016090 Contact Us For Availability
5
WCI 8017127 WCI 8017127 Contact Us For Availability
5
WCI 8002941 WCI 8002941 Contact Us For Availability
5
SCREW-THERMOSTAT WCI 8011111 Contact Us For Availability
5
WCI 3015683 WCI 3015683 Contact Us For Availability
5
COVER-CAP TERM WCI 3002055 Contact Us For Availability
5
WCI 8016221 WCI 8016221 Contact Us For Availability
6
WCI 8017364 WCI 8017364 Contact Us For Availability
6
GROMMET-TUBE WCI 8007472 Contact Us For Availability
6
THERMOSTAT-CNTRL TEMP. WCI 8017150 Contact Us For Availability
6
WCI 8007483 WCI 8007483 Contact Us For Availability
6
NUT-CVR TERM WCI 3211017 Contact Us For Availability
6
WCI 8047518 WCI 8047518 Contact Us For Availability
7
WCI 8017319 WCI 8017319 Contact Us For Availability
7
DIVIDER-VERTICAL WCI 8017201 Contact Us For Availability
7
WCI 3015961 WCI 3015961 Contact Us For Availability
7
WCI 8014127 WCI 8014127 Contact Us For Availability
7
NUT-COMPRESSOR PLASTIC WCI 3015946 Contact Us For Availability
7
SCREW-STOP SASH WCI 8007465 Contact Us For Availability
8
WCI 8007482 WCI 8007482 Contact Us For Availability
8
TRAY-EVAPORATOR WCI 8017202 Contact Us For Availability
8
WCI 8009100 WCI 8009100 Contact Us For Availability
8
CLAMP-BLADE EVAP WCI 8013805 Contact Us For Availability
8
WCI 3015945 WCI 3015945 Contact Us For Availability
8
WCI 8016180 WCI 8016180 Contact Us For Availability
9
WCI 8017189 WCI 8017189 Contact Us For Availability
9
WCI 8017166 WCI 8017166 Contact Us For Availability
9
WCI 8002960 WCI 8002960 Contact Us For Availability
9
RELAY, START KIT WCI 8950087 Contact Us For Availability
9
WCI 8016111 WCI 8016111 Contact Us For Availability
10
WCI 3016770 WCI 3016770 Contact Us For Availability
10
SEAL-COND/BASE RH WCI 8006453 Contact Us For Availability
10
WCI 8007488 WCI 8007488 Contact Us For Availability
10
WCI 8016181 WCI 8016181 Contact Us For Availability
11
WCI 8017169 WCI 8017169 Contact Us For Availability
11
WCI 8007487 WCI 8007487 Contact Us For Availability
11
SCREW-EVAP SHROUD (NON-ILLUSTRATED) WCI 8002966 Contact Us For Availability
11
FRAME & GUIDES ASSY WCI 8017174 Contact Us For Availability
12
WCI 8016194 WCI 8016194 Contact Us For Availability
12
SEAL-PART. HORIZ. WCI 8012987 Contact Us For Availability
12
NUT-PLATE FAN MTR (NON-ILLUSTRATED) WCI 8007481 Contact Us For Availability
12
WCI 8017134 WCI 8017134 Contact Us For Availability
13
PANEL & DR. COMPL. WCI 8017176 Contact Us For Availability
13
WCI 8016234 WCI 8016234 Contact Us For Availability
13
SCREW-FAN MTR (NON-ILLUSTRATED) WCI 8014098 Contact Us For Availability
13
GASKET-WDO SASH WCI 8002945 Contact Us For Availability
14
CLIP-FRNT TO BASE WCI 8010915 Contact Us For Availability
14
SEAL-SHROUD/COND. (NON-ILLUSTRATED) WCI 3211028 Contact Us For Availability
14
WCI 8017351 WCI 8017351 Contact Us For Availability
14
WCI 8016105 WCI 8016105 Contact Us For Availability
15
WCI 3016771 WCI 3016771 Contact Us For Availability
15
WCI 8016114 WCI 8016114 Contact Us For Availability
16
WCI 8001076 WCI 8001076 Contact Us For Availability
16
WCI 8016117 WCI 8016117 Contact Us For Availability
17
WCI 8016109 WCI 8016109 Contact Us For Availability
17
WCI 8017356 WCI 8017356 Contact Us For Availability
18
WCI 3016769 WCI 3016769 Contact Us For Availability
19
SEAL-DIAL PLATE WCI 8007462 Contact Us For Availability
20
WCI 8017137 WCI 8017137 Contact Us For Availability
21
WCI 8017126 WCI 8017126 Contact Us For Availability
22
BRACKET-FRM FRNT (NON-ILLUSTRATED) WCI 8017124 Contact Us For Availability
× ![]()
