Model Whirlpool 9KSM3311XPT0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 3.5 QT – Common Parts & Diagrams
01 - COVER SHEET
02 - BASE AND PEDESTAL UNIT PARTS

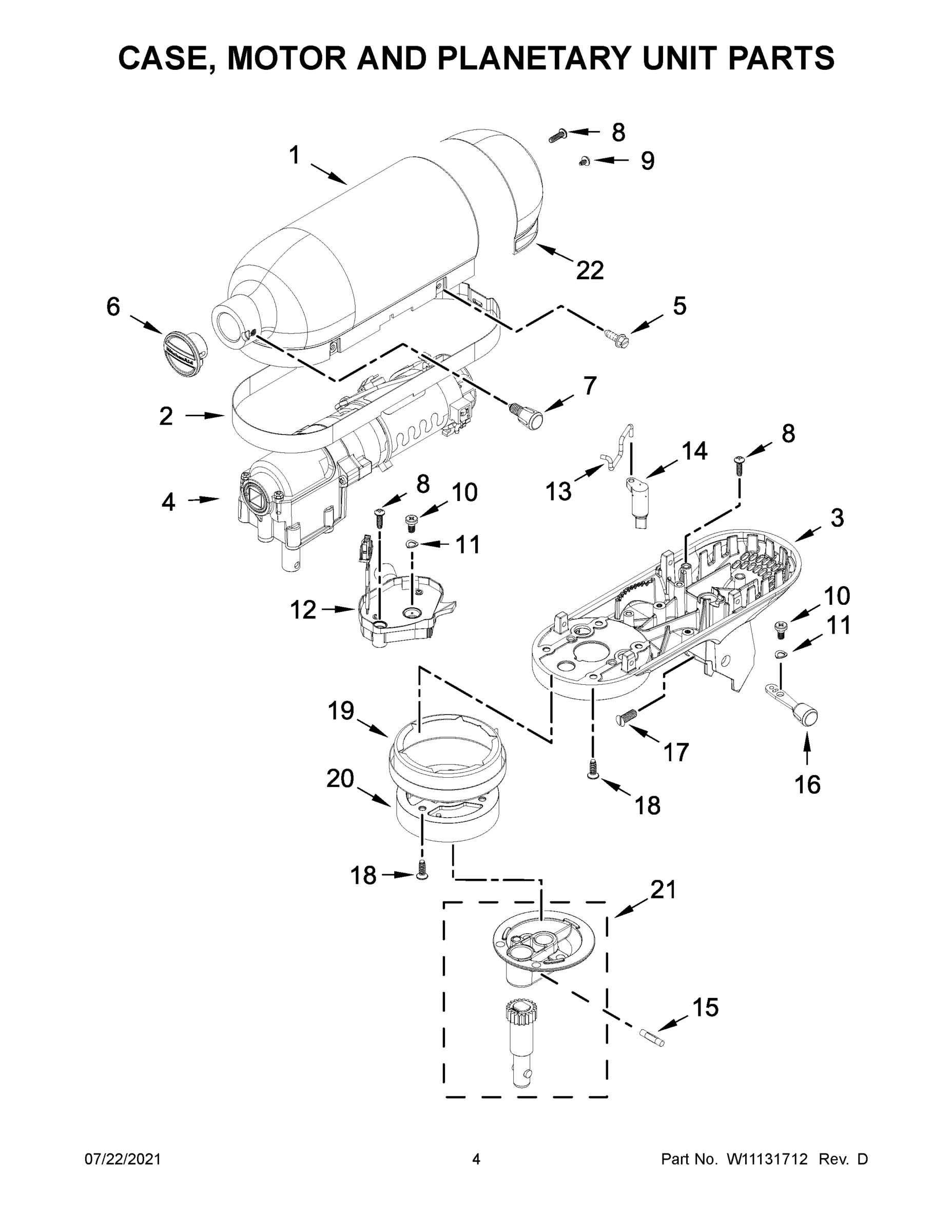

03 - CASE, MOTOR AND PLANETARY UNIT PARTS
Common parts from model Whirlpool 9KSM3311XPT0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 3.5 QT
1
UPPER HOUSING (BLACK MATTE) WPL W10835947 Contact Us For Availability
1A
UPPER HOUSING (MATTE WHITE) WPL W10835945 Contact Us For Availability
1B
UPPER HOUSING (GUAVA GLAZE) WPL W10835950 Contact Us For Availability
1D
UPPER HOUSING (HONEYDEW) WPL W10835948 Contact Us For Availability
1F
UPPER HOUSING (WHITE) WPL W10883876 Contact Us For Availability
1G
UPPER HOUSING (PASSION RED) WPL W11446669 Contact Us For Availability
1H
UPPER HOUSING (MATTE MILKSHAKE) WPL W11176577 Contact Us For Availability
1I
UPPER HOUSING (BLUE VELVET) WPL W11446671 Contact Us For Availability
1J
UPPER HOUSING (PISTACHIO) WPL W11446670 Contact Us For Availability
2
TRIM BAND WPL W10812505 Contact Us For Availability
3
LOWER HOUSING (BLACK MATTE) WPL W10835915 Contact Us For Availability
3A
LOWER HOUSING (MATTE WHITE) WPL W10835913 Contact Us For Availability
3B
LOWER HOUSING (GUAVA GLAZE) WPL W10835918 Contact Us For Availability
3C
LOWER HOUSING (HOT SAUCE) WPL W10765437 Contact Us For Availability
3D
LOWER HOUSING (HONEYDEW) WPL W10835916 Contact Us For Availability
3E
LOWER HOUSING (ICE) WPL W10765440 Contact Us For Availability
3F
LOWER HOUSING (WHITE) WPL W10883870 Contact Us For Availability
3G
LOWER HOUSING (PASSION RED) WPL W11446467 Contact Us For Availability
3H
LOWER HOUSING (MATTE MILKSHAKE) WPL W11176573 Contact Us For Availability
3I
LOWER HOUSING (BLUE VELVET) WPL W11446470 Contact Us For Availability
3J
LOWER HOUSING (PISTACHIO) WPL W11446468 Contact Us For Availability
4
MOTOR & TRANSMISSION ASSEMBLY (120 V) WPL W10882088 Contact Us For Availability
6
POWER CORD (BLACK (JAPAN)) WPL W11039372 Contact Us For Availability
7A
PEDESTAL (MATTE WHITE) WPL W10835907 Contact Us For Availability
7B
PEDESTAL (GUAVA GLAZE) WPL W10835912 Contact Us For Availability
7D
PEDESTAL (HONEYDEW) WPL W10835910 Contact Us For Availability
7E
PEDESTAL (ICE) WPL W10767837 Contact Us For Availability
7F
PEDESTAL (WHITE) WPL W10883868 Contact Us For Availability
7G
PEDESTAL (PASSION RED) WPL W11445741 Contact Us For Availability
7H
PEDESTAL (MATTE MILKSHAKE) WPL W11176572 Contact Us For Availability
7I
PEDESTAL (BLUE VELVET) WPL W11445743 Contact Us For Availability
7J
PEDESTAL (PISTACHIO) WPL W11445742 Contact Us For Availability
8
COVER, BOTTOM WPL W10755036 Contact Us For Availability
13
HEADLOCK LINK WPL W10772250 Contact Us For Availability
14
HEADLOCK CAM WPL W10905352 Contact Us For Availability
18
SCREW WPL W10830178 Contact Us For Availability
20
GEAR, PLANETARY RING WPL W10749720 Contact Us For Availability
21A
PLANETARY & SHAFT ASSEMBLY (MATTE WHITE) WPL W10835933 Contact Us For Availability
21B
PLANETARY & SHAFT ASSEMBLY (GUAVA GLAZE) WPL W10835938 Contact Us For Availability
21D
PLANETARY & SHAFT ASSEM WPL W10835936 Contact Us For Availability
21E
WPL W10765476 WPL W10765476 Contact Us For Availability
21G
WPL W11446544 WPL W11446544 Contact Us For Availability
21H
WPL W11176578 WPL W11176578 Contact Us For Availability
21J
WPL W11446545 WPL W11446545 Contact Us For Availability
22A
WPL W10835951 WPL W10835951 Contact Us For Availability
22B
WPL W10835956 WPL W10835956 Contact Us For Availability
22D
WPL W10835954 WPL W10835954 Contact Us For Availability
22E
WPL W10765460 WPL W10765460 Contact Us For Availability
22F
WPL W10883874 WPL W10883874 Contact Us For Availability
22G
WPL W11446691 WPL W11446691 Contact Us For Availability
22H
WPL W11176579 WPL W11176579 Contact Us For Availability
22I
WPL W11446693 WPL W11446693 Contact Us For Availability
22J
WPL W11446692 WPL W11446692 Contact Us For Availability
× ![]()
