Model Maytag 9876VVV ELECTRIC WALL OVEN – Common Parts & Diagrams

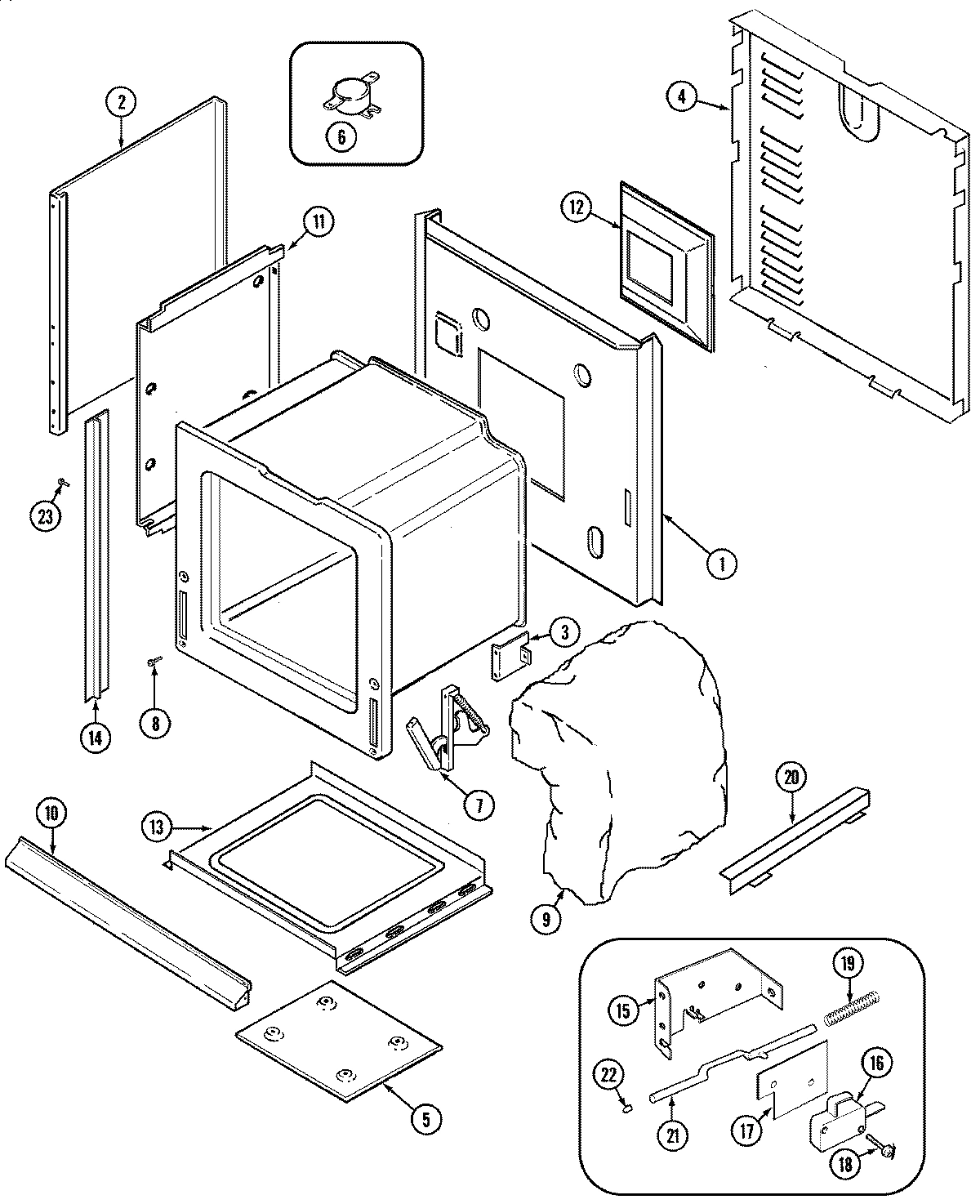

01 - BODY

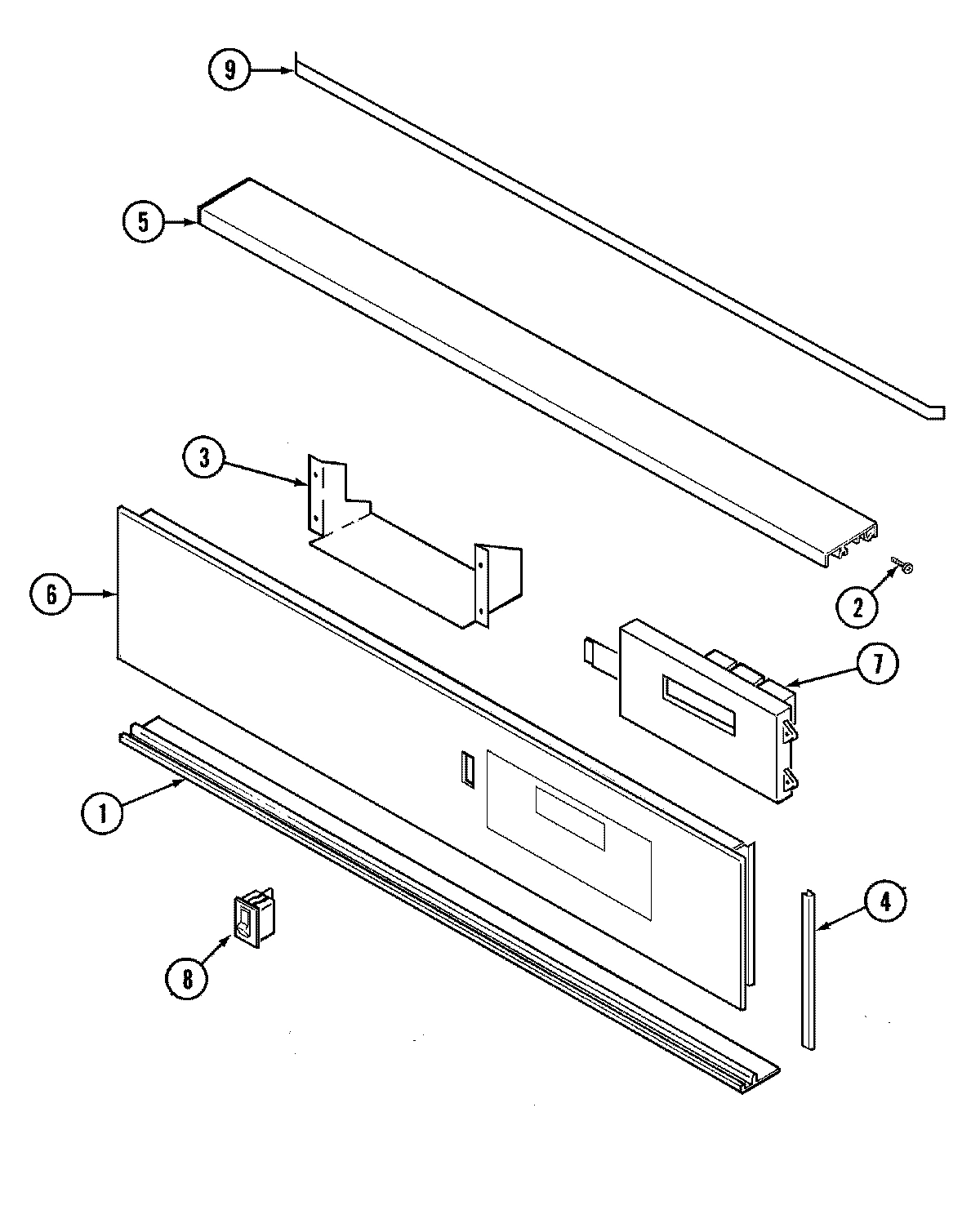

02 - CONTROL PANEL

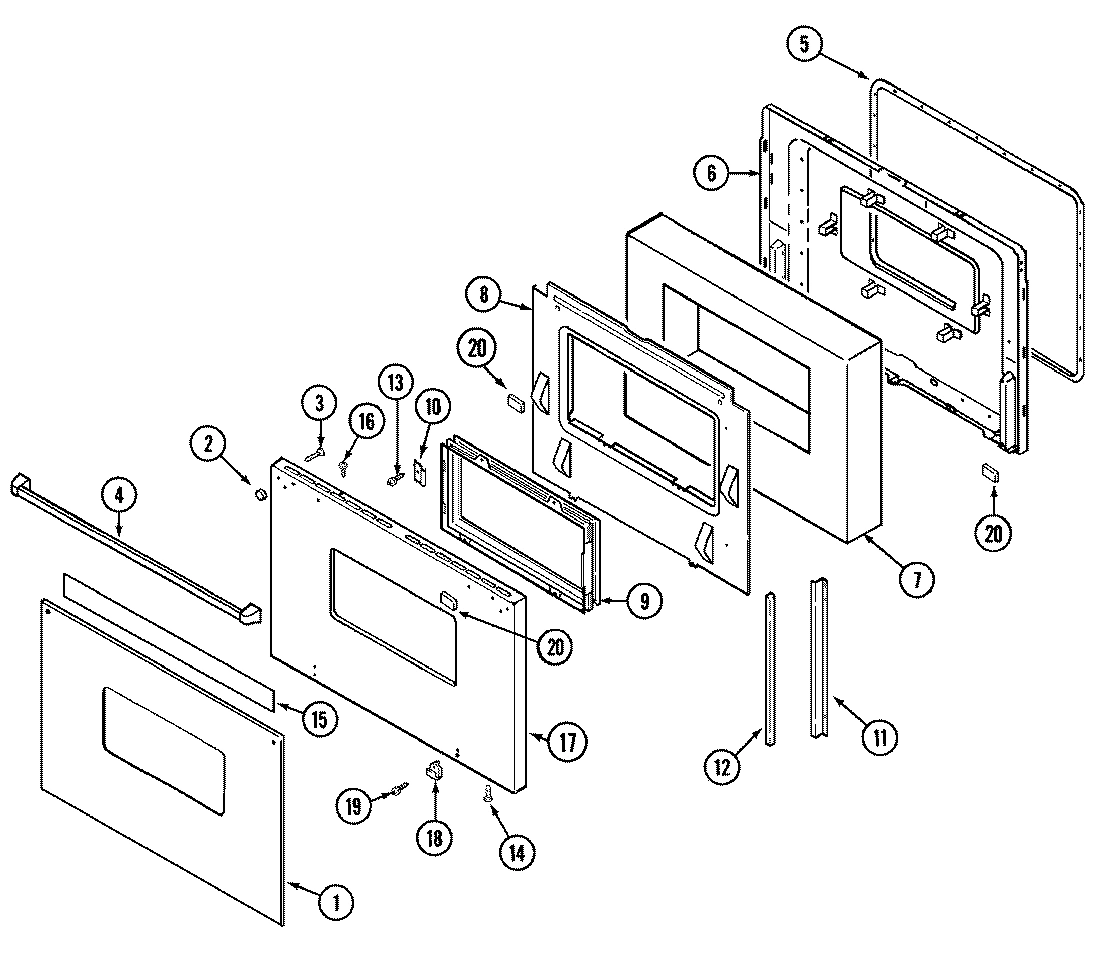

03 - DOOR

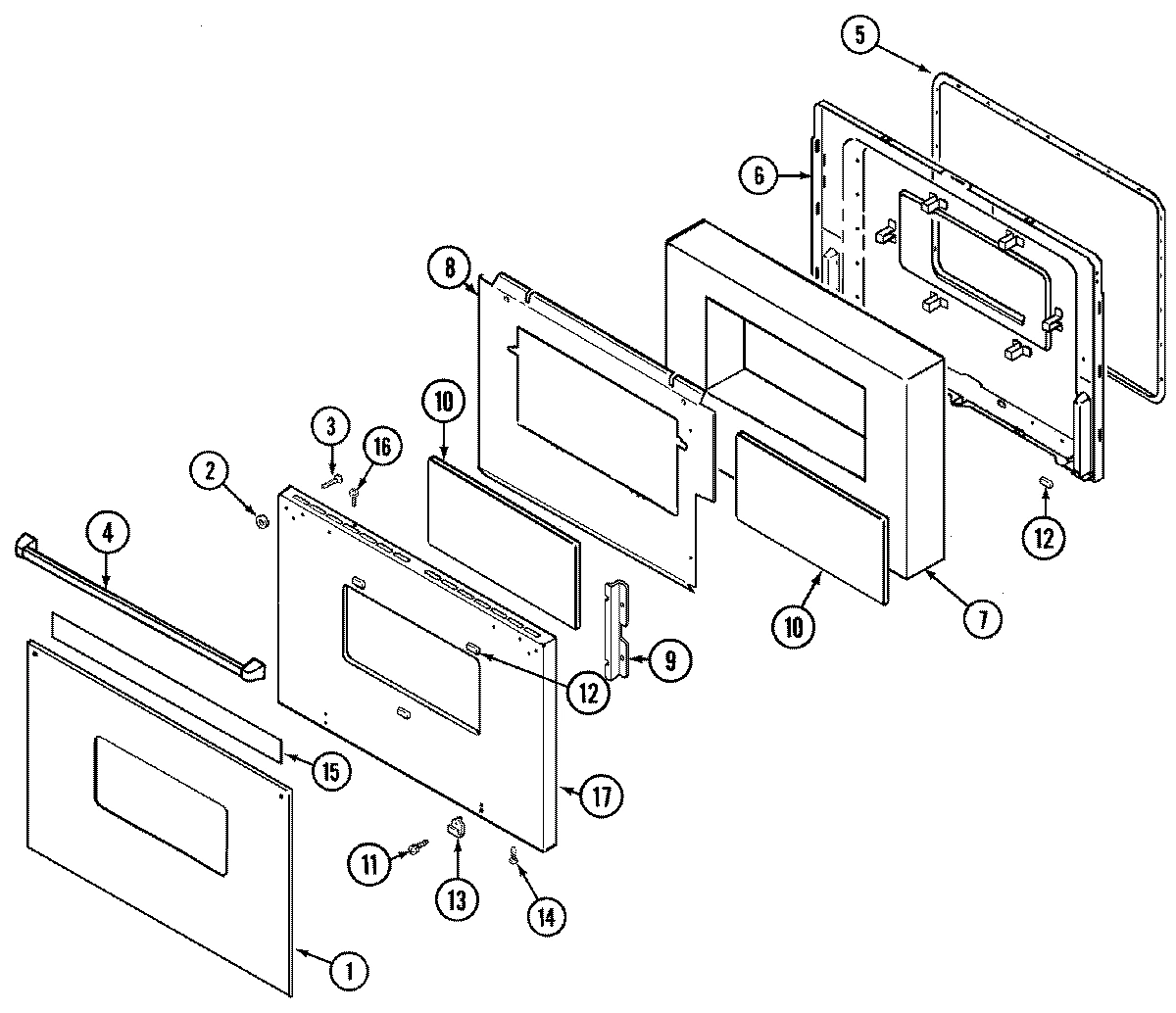

04 - DOOR (SER. PRE. 15)

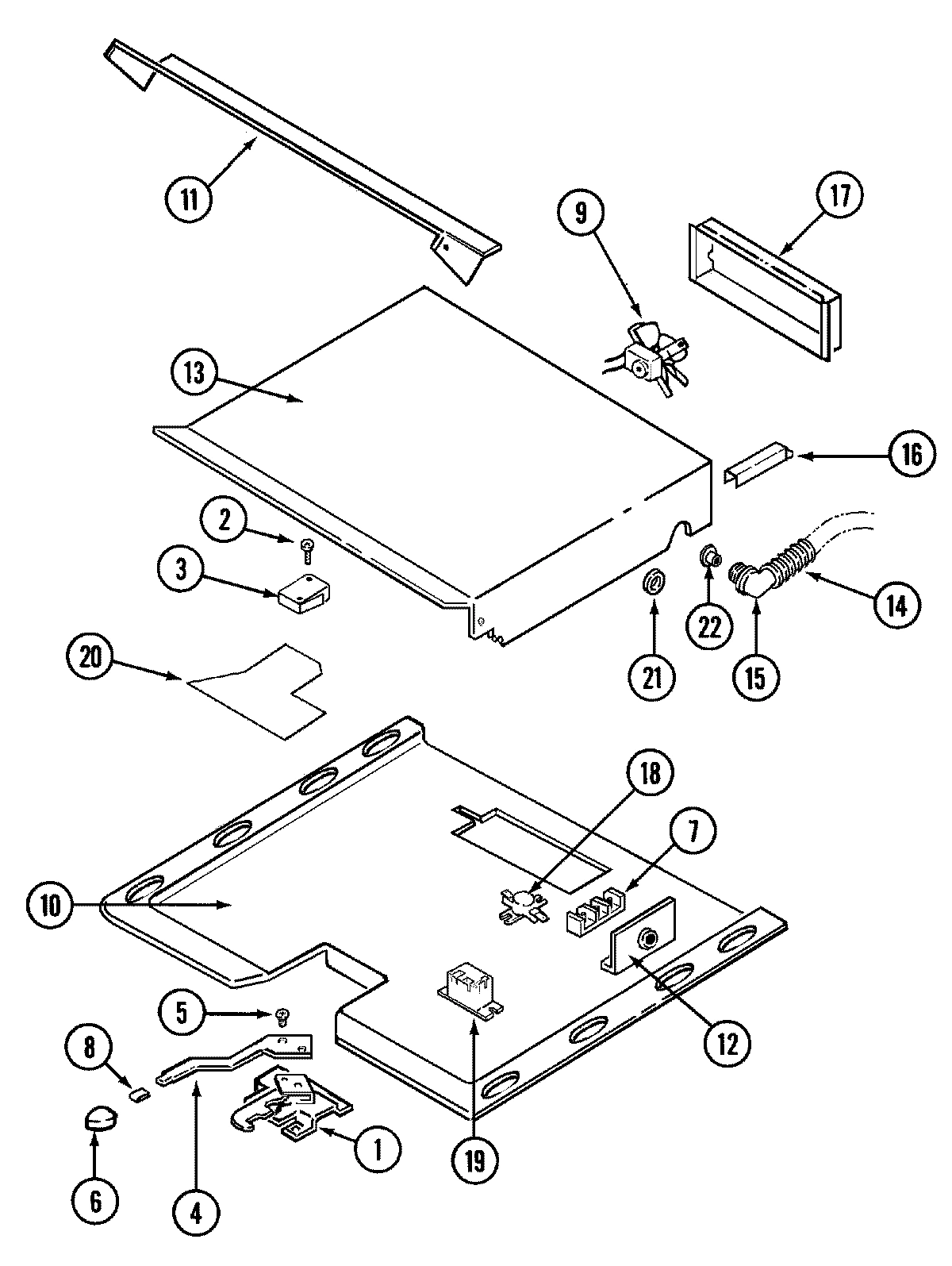

05 - INTERNAL CONTROLS

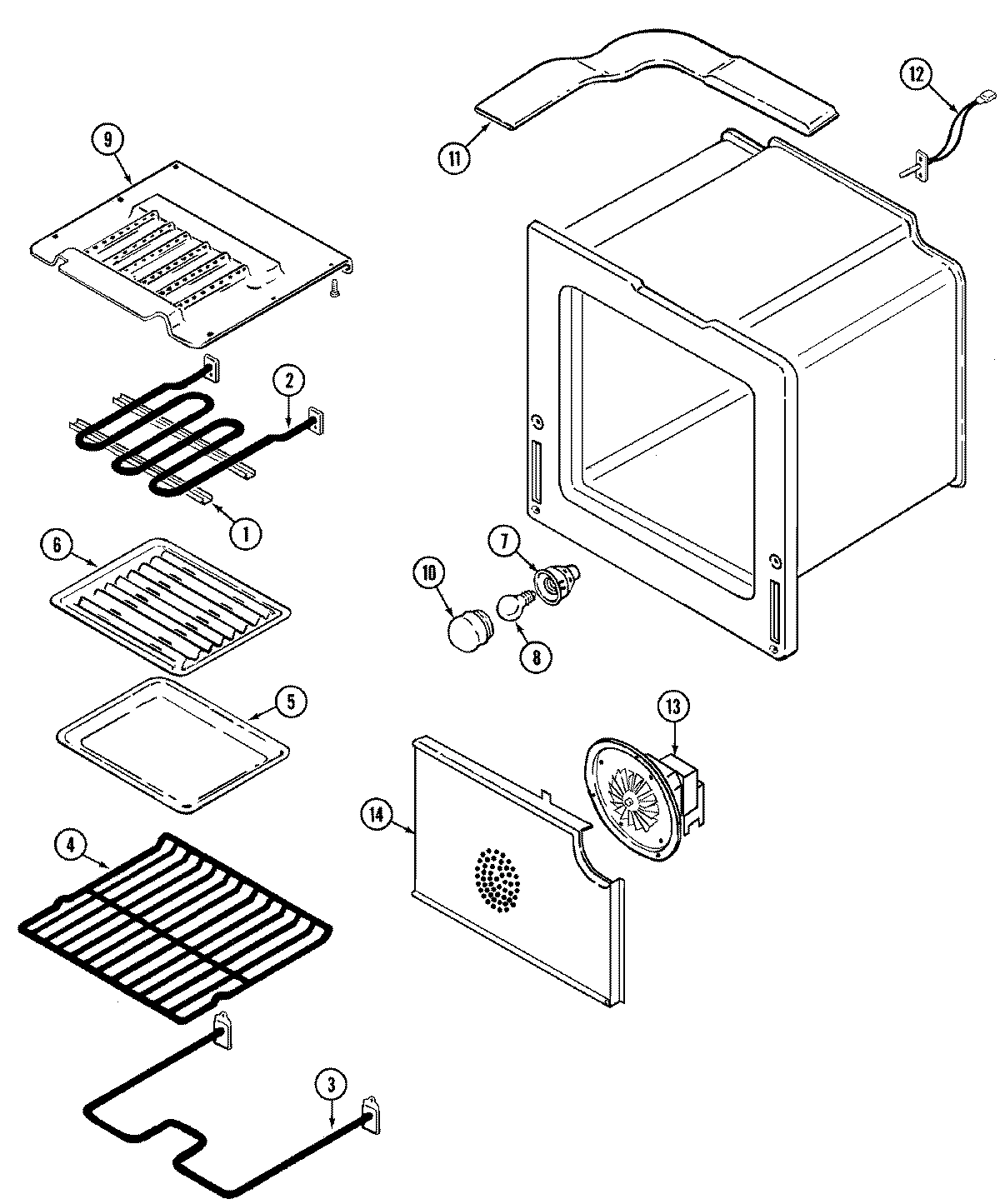

06 - OVEN

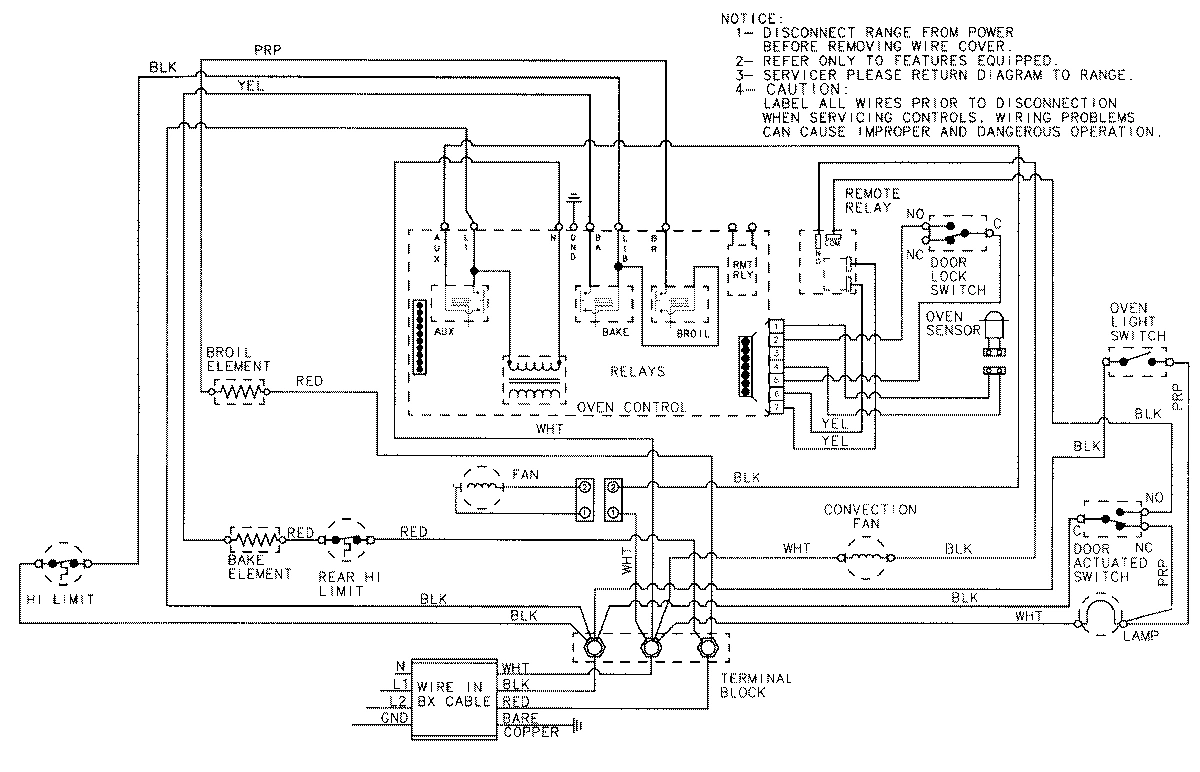

07 - WIRING INFORMATION
Common parts from model Maytag 9876VVV ELECTRIC WALL OVEN
1
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
1
MAY 7756P099-60 MAY 7756P099-60 Contact Us For Availability
1
MAY 7902P368-60 MAY 7902P368-60 Contact Us For Availability
1
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
1
MAY 74003032 MAY 74003032 Contact Us For Availability
1
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
2
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
2
MAY 8010P016-60 MAY 8010P016-60 Contact Us For Availability
2
MAY Y04000072 MAY Y04000072 Contact Us For Availability
3
MAY 7003P056-60 MAY 7003P056-60 Contact Us For Availability
3
SCREW MAY 7101P326-60 Contact Us For Availability
3
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
3
MAY Y04000071 MAY Y04000071 Contact Us For Availability
4
MAY 7720P164-60 MAY 7720P164-60 Contact Us For Availability
4
MAY 7701P111-60 MAY 7701P111-60 Contact Us For Availability
4
MAY 74001725 MAY 74001725 Contact Us For Availability
4
MAY 74001808 MAY 74001808 Contact Us For Availability
5
MAY 7756P101-60 MAY 7756P101-60 Contact Us For Availability
5
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
5
MAY 7116P003-60 MAY 7116P003-60 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
6
MAY 7112P029-60 MAY 7112P029-60 Contact Us For Availability
6
MAY 74001786 MAY 74001786 Contact Us For Availability
6
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
6
MAY 7701P153-60 MAY 7701P153-60 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
7
MAY 7106P057-60 MAY 7106P057-60 Contact Us For Availability
7
MAY 74001787 MAY 74001787 Contact Us For Availability
7
MAY 4804F051-60 MAY 4804F051-60 Contact Us For Availability
7
MAY 74001842 MAY 74001842 Contact Us For Availability
7
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
8
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
8
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
8
MAY 3601F236-51 MAY 3601F236-51 Contact Us For Availability
8
MAY 74001843 MAY 74001843 Contact Us For Availability
8
MAY W10124350 MAY W10124350 Contact Us For Availability
8
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
9
MAY 74001799 MAY 74001799 Contact Us For Availability
9
MAY 74001800 MAY 74001800 Contact Us For Availability
9
MAY 74003036 MAY 74003036 Contact Us For Availability
9
MAY 7752P014-60 MAY 7752P014-60 Contact Us For Availability
9
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
9
MAY 74001844 MAY 74001844 Contact Us For Availability
9
MAY 7427P010-60 MAY 7427P010-60 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
10
MAY 3604F181-71 MAY 3604F181-71 Contact Us For Availability
10
MAY 74001790 MAY 74001790 Contact Us For Availability
10
MAY 74001797 MAY 74001797 Contact Us For Availability
10
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
10
MAY 74001841 MAY 74001841 Contact Us For Availability
10
MAY 74001793 MAY 74001793 Contact Us For Availability
11
MAY 74001436 MAY 74001436 Contact Us For Availability
11
MAY 74001807 MAY 74001807 Contact Us For Availability
11
MAY 8113P041-60 MAY 8113P041-60 Contact Us For Availability
11
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
11
MAY 4005F431-51 MAY 4005F431-51 Contact Us For Availability
11
MAY 7506P125-60 MAY 7506P125-60 Contact Us For Availability
12
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
12
MAY 74001801 MAY 74001801 Contact Us For Availability
12
MAY 16000329 MAY 16000329 Contact Us For Availability
12
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
12
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
12
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
12
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
13
MAY 7112P094-60 MAY 7112P094-60 Contact Us For Availability
13
MAY 74001742 MAY 74001742 Contact Us For Availability
13
MAY 74001449 MAY 74001449 Contact Us For Availability
13
MAY 4001F092-51 MAY 4001F092-51 Contact Us For Availability
13
MAY 74001805 MAY 74001805 Contact Us For Availability
14
MAY 74001388 MAY 74001388 Contact Us For Availability
14
MAY 74001390 MAY 74001390 Contact Us For Availability
14
MAY 74001392 MAY 74001392 Contact Us For Availability
14
MAY 74001393 MAY 74001393 Contact Us For Availability
14
MAY 3414F066-51 MAY 3414F066-51 Contact Us For Availability
14
MAY 5140A037-60 MAY 5140A037-60 Contact Us For Availability
14
MAY 74001161 MAY 74001161 Contact Us For Availability
14
MAY 74001806 MAY 74001806 Contact Us For Availability
15
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
15
MAY 7417P005-60 MAY 7417P005-60 Contact Us For Availability
16
MAY 74001802 MAY 74001802 Contact Us For Availability
16
MAY 7101P308-60 MAY 7101P308-60 Contact Us For Availability
16
MAY 3830F008-51 MAY 3830F008-51 Contact Us For Availability
17
MAY 74001626 MAY 74001626 Contact Us For Availability
17
MAY 2401F123-71 MAY 2401F123-71 Contact Us For Availability
17
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
18
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
18
MAY 7403P313-60 MAY 7403P313-60 Contact Us For Availability
19
SPRING, DOOR SWITCH WPL 74001629 No Longer Available
19
MAY 7101P261-60 MAY 7101P261-60 Contact Us For Availability
19
MAY 74001796 MAY 74001796 Contact Us For Availability
20
MAY 74001627 MAY 74001627 Contact Us For Availability
20
MAY 74001804 MAY 74001804 Contact Us For Availability
21
MAY 74001630 MAY 74001630 Contact Us For Availability
21
MAY 7109P002-60 MAY 7109P002-60 Contact Us For Availability
22
MAY 74001631 MAY 74001631 Contact Us For Availability
22
MAY 8008P017-60 MAY 8008P017-60 Contact Us For Availability
NI
MAY 15001488 MAY 15001488 Contact Us For Availability
× ![]()
