Model Whirlpool 9835XVB ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
01 - BODY

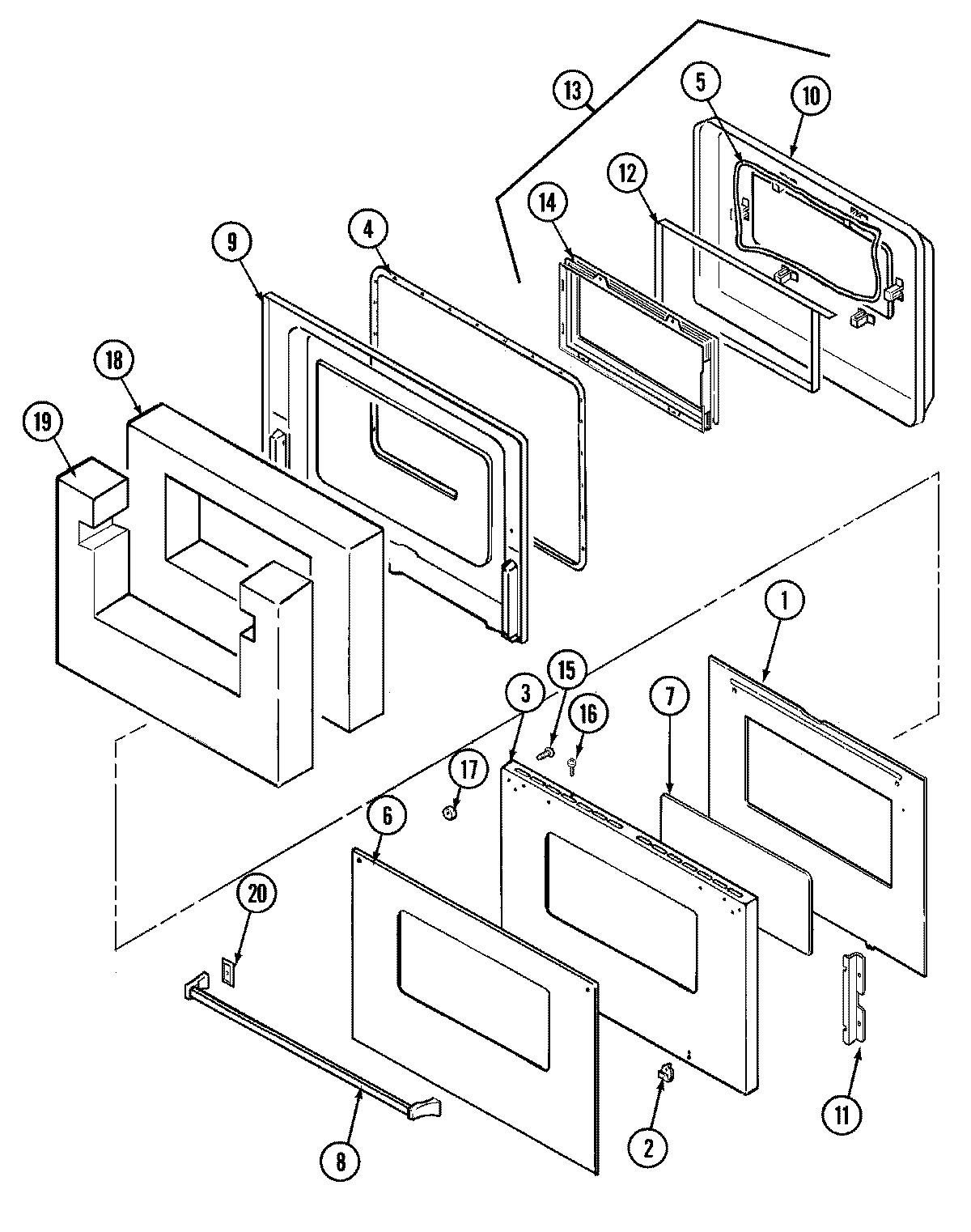

03 - DOOR
05 - MICROWAVE

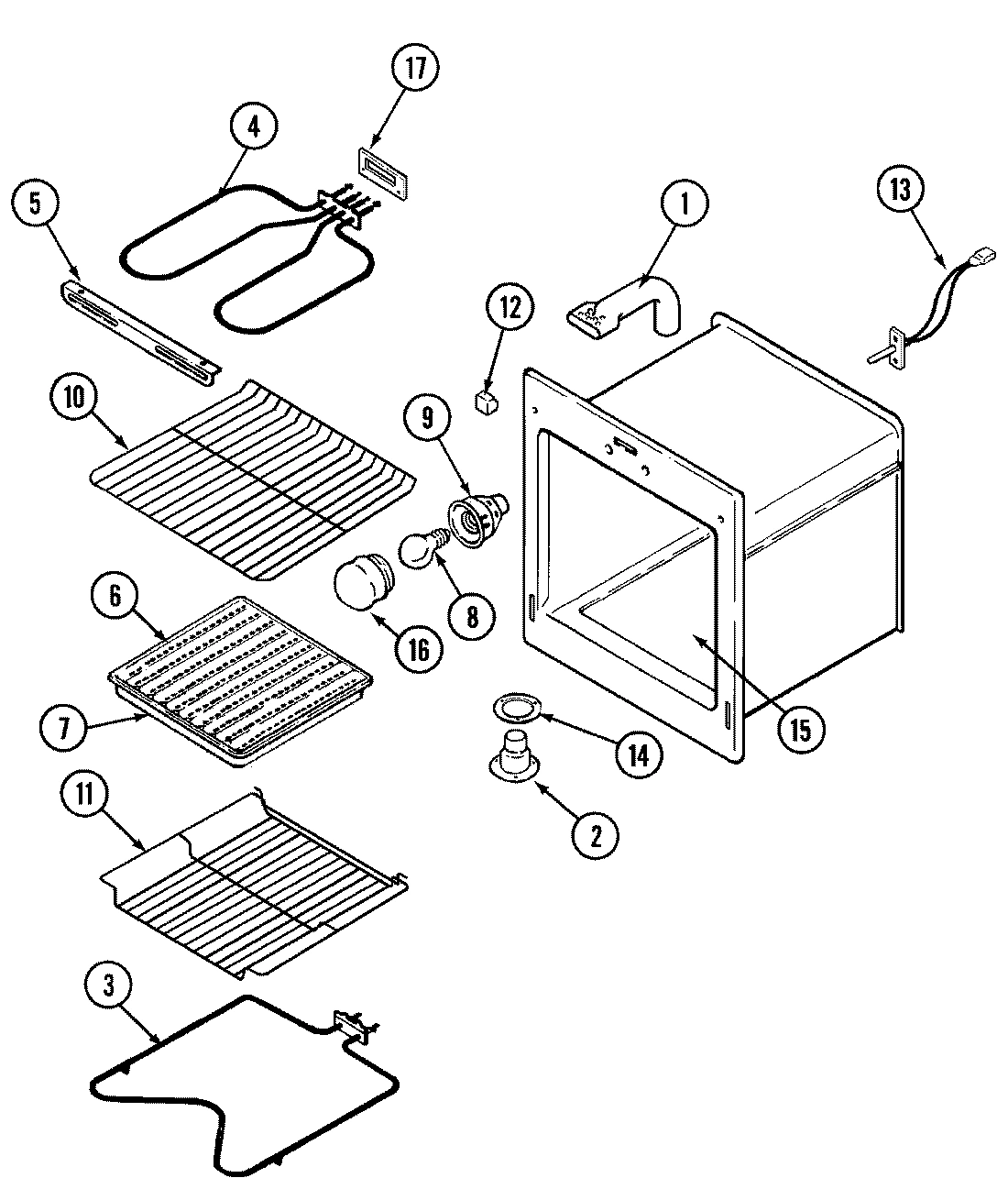

06 - OVEN

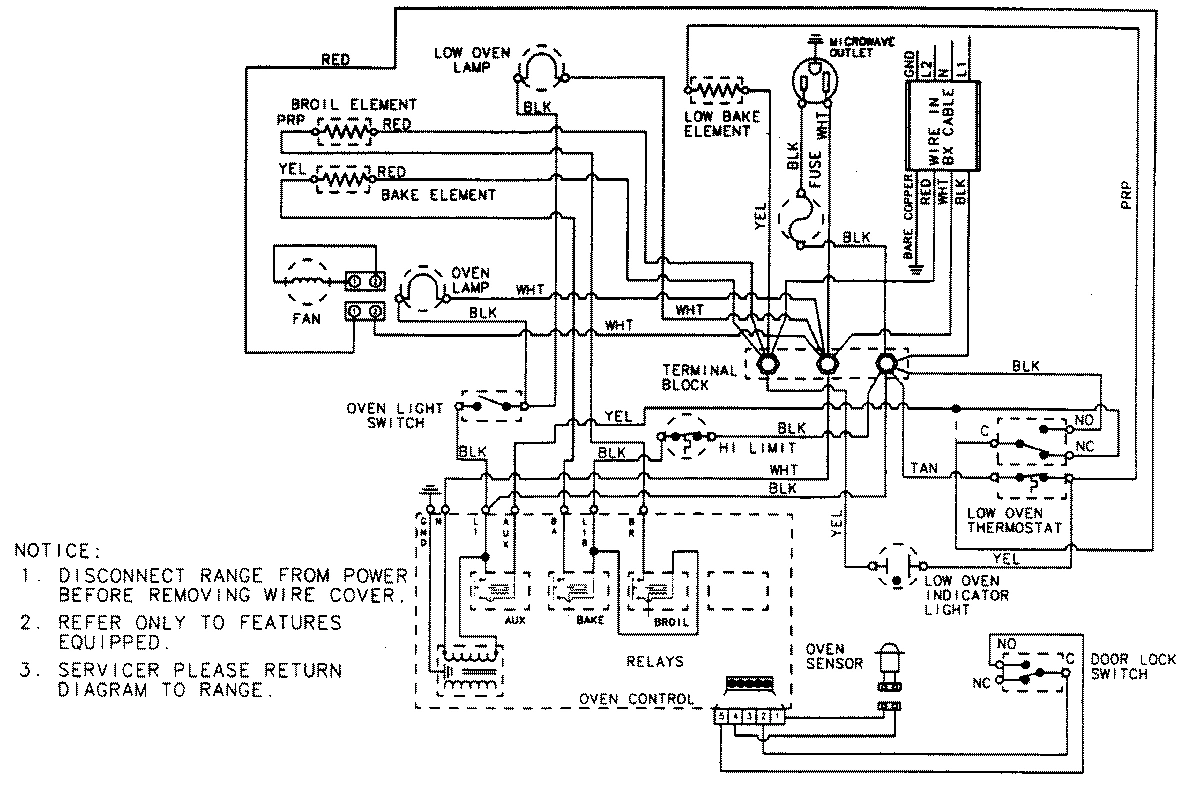

07 - WIRING INFORMATION

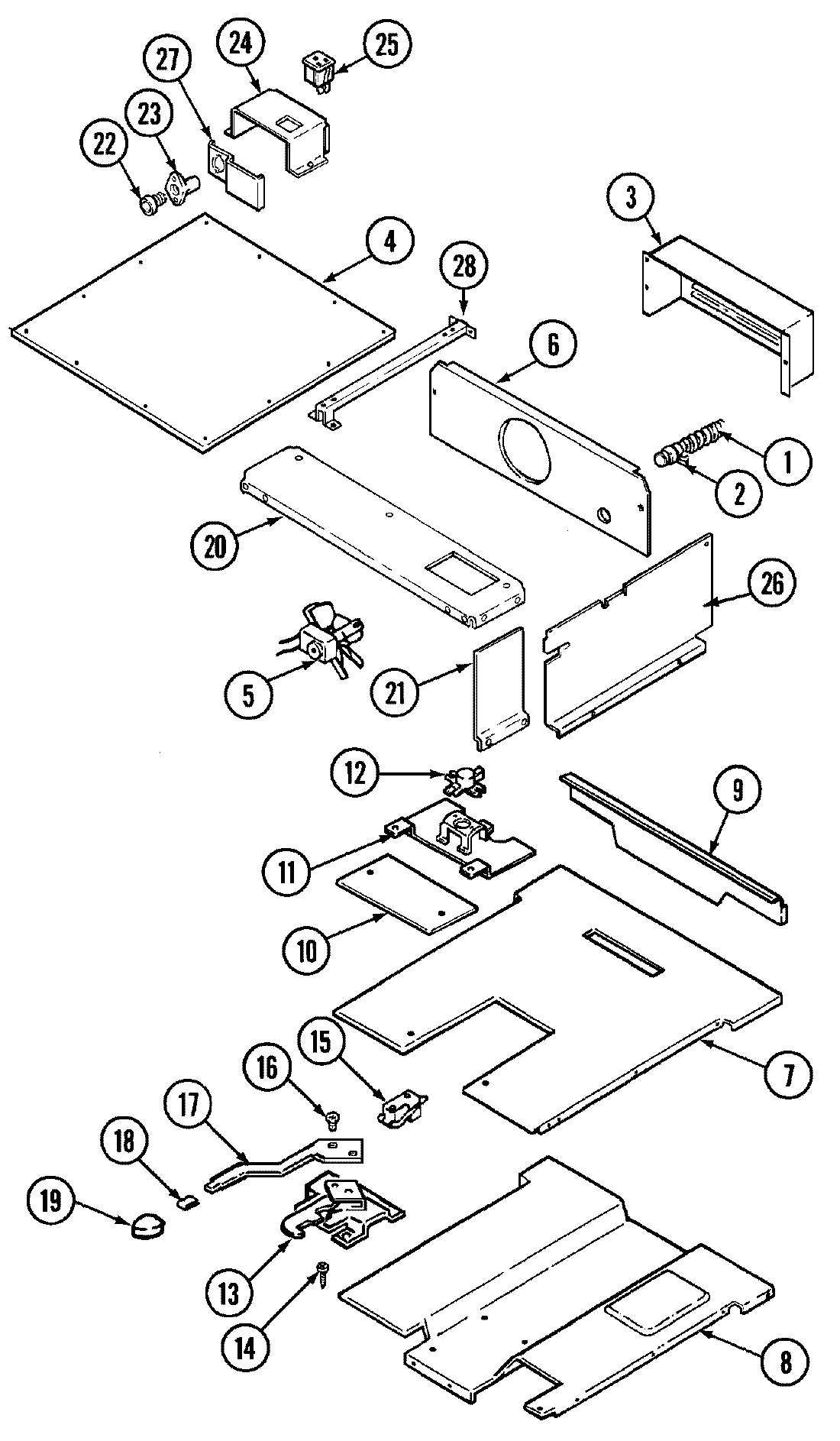

04 - INTERNAL CONTROLS
02 - CONTROL PANEL
Common parts from model Whirlpool 9835XVB ELECTRIC WALL OVEN/MICROWAVE COMBO
1
BAFFLE, DOOR WPL 3601F13151 Contact Us For Availability
1
TUBE, OVEN VENT WPL 8026P02260 Contact Us For Availability
1
TUBING, 1/2 X 48`` FLEXIBLE WPL 3414F03744 Contact Us For Availability
1
WIRES, TUBING WPL 74001547 Contact Us For Availability
1
GROMMET WPL 8008P01760 Contact Us For Availability
1
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
1
CLOCK WPL 7601P28160 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00561 Contact Us For Availability
2
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
2
CATALYST, BURNER WPL 7505P22660 Contact Us For Availability
2
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
2
PANEL, CONTROL (BLK) WPL 74002018 Contact Us For Availability
2
SPACER WPL 8010P10060 Contact Us For Availability
3
BASE, OVEN WPL 74001845 Contact Us For Availability
3
PANEL, DOOR (BLK) WPL 2401F10370 Contact Us For Availability
3
NOT REQUIRED PART OR SEE NOTE FOR M/W PARTS S WPL W10124350 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
3
COVER, FAN WPL 4005F26251 Contact Us For Availability
3
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
4
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
4
GASKET, DOOR WPL 7201P05360 Contact Us For Availability
4
ELEMENT, BROIL WPL 7406P09060 Contact Us For Availability
4
PLATE, MICROWAVE MOUNTING WPL 3605F16880 Contact Us For Availability
4
PLATE, BACKING WPL 3605F19680 Contact Us For Availability
4
SEAL WPL 7208P00860 Contact Us For Availability
5
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
5
TRIM, SIDE (RT-BLK) WPL 74002207 Contact Us For Availability
5
TRIM, SIDE (LT-BLK) WPL 74002208 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
5
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
5
SCREW WPL 7101P07960 Contact Us For Availability
5
FAN ASSY. WPL 7427P01060 Contact Us For Availability
5
GROMMET WPL 8008P00460 Contact Us For Availability
5
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
6
GLASS, OUTER (BLK) WPL 7902P33660 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
COVER, REAR CONTROL WPL 4005F29851 Contact Us For Availability
6
BUTTON, CLOCK (BLK) WPL 7711P49060 Contact Us For Availability
7
PANEL, SIDE (LT) WPL 2618F11351 Contact Us For Availability
7
PANEL, SIDE (RT) WPL 2618F11451 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
COVER, BOX WPL 4005F45251 Contact Us For Availability
7
TRIM, GLASS RETAINER WPL 7720P02360 Contact Us For Availability
8
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
8
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
8
HANDLE, DOOR (BLK) WPL 7701P02460 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
RETAINER, TOP WPL 3804F11851 Contact Us For Availability
8
EXTRUSION, VENT (BLK) WPL 7756P07060 Contact Us For Availability
9
RETAINER, REAR WPL 3804F09651 Contact Us For Availability
9
LINING, DOOR WPL 74002201 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
9
TRIM, CONTROL PANEL (BLK) WPL 74002205 Contact Us For Availability
10
SUPPORT WPL 3807F13780 Contact Us For Availability
10
SCREW WPL 7101P35660 Contact Us For Availability
10
PAD, DOOR WPL 2410W04219 Contact Us For Availability
10
RACK WPL 7801P00560 Contact Us For Availability
10
COVER, LOCK WPL 4005F16045 Contact Us For Availability
10
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
11
INSULATION (TOP & REAR) WPL 7002P15360 Contact Us For Availability
11
INSULATION (BACK) WPL 7002P15460 Contact Us For Availability
11
INSULATION (BOTTOM) WPL 7002P16360 Contact Us For Availability
11
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
11
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
11
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
11
HARNESS, MAIN WPL 5170D22260 Contact Us For Availability
11
HARNESS, SENSOR/LOCK WPL 5170P18560 Contact Us For Availability
12
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
12
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
12
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
12
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
12
MANUAL, USE & CARE WPL 8112P11960 Contact Us For Availability
13
BAFFLE, SIDE WPL 3601F24451 Contact Us For Availability
13
PAD, OVEN DOOR ASSY. WPL 2410A04219 Contact Us For Availability
13
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
13
BRACKET, DOOR LATCH WPL 3801F12751 Contact Us For Availability
13
INSULATOR WPL 7003P00160 Contact Us For Availability
13
WASHER WPL 7109P00460 Contact Us For Availability
13
LATCH ASSY. WPL 8002P01680 Contact Us For Availability
13
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
14
EXTRUSION, TOP WPL 7752P01360 Contact Us For Availability
14
WINDOW ASSY. WPL 5700A08260 Contact Us For Availability
14
GASKET WPL 7201P01660 Contact Us For Availability
15
BRACKET, MICROWAVE WPL 74002211 Contact Us For Availability
15
SCREW WPL 7101P06860 Contact Us For Availability
15
BOTTOM, OVEN WPL 2205F00319 Contact Us For Availability
15
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
15
SWITCH, DOOR LOCK WPL 7403P34760 Contact Us For Availability
16
SCREW WPL 7101P11560 Contact Us For Availability
16
TRIM, SIDE FILLER (BLK) WPL 74002214 Contact Us For Availability
16
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
16
COVER, BULB WPL 7724P04760 Contact Us For Availability
17
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
17
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
17
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
18
TRIM, VENT GRILL (BLK) WPL 74002218 Contact Us For Availability
18
INSULATION, DOOR----NA WPL 7002P02360 Contact Us For Availability
18
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
18
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
19
SCREW WPL 7101P08260 Contact Us For Availability
19
SUPPORT, GLASS WPL 8004P00560 Contact Us For Availability
19
INSULATION, DOOR WPL 7002P02160 Contact Us For Availability
19
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
20
BRACKET, MICROWAVE RETAINER WPL 74002212 Contact Us For Availability
20
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
20
SUPPORT, REAR-TOP WPL 3807F15180 Contact Us For Availability
21
SHIELD, MICROWAVE BOTTOM WPL 74002213 Contact Us For Availability
21
SUPPORT, SIDE (REAR) WPL 3807F14780 Contact Us For Availability
22
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
22
NUT, SNAP WPL 7103P05160 Contact Us For Availability
22
FUSE WPL 7416P00260 Contact Us For Availability
23
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
23
RECEPTACLE, FUSE WPL 7408P03860 Contact Us For Availability
24
BOX, CONNECTION WPL 4006F00180 Contact Us For Availability
25
RECEPTACLE, MW WPL 7408P03260 Contact Us For Availability
26
COVER, CONTROL SIDE (RT) WPL 4005F26051 Contact Us For Availability
26
COVER, CONTROL SIDE (LT) WPL 4005F26151 Contact Us For Availability
27
BRACKET, FUSE MTG WPL 3801F06580 Contact Us For Availability
28
SUPPORT WPL 3807F10380 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001151 Contact Us For Availability
× ![]()
