Model Maytag 9825XUB ELECTRIC WALL OVEN – Common Parts & Diagrams

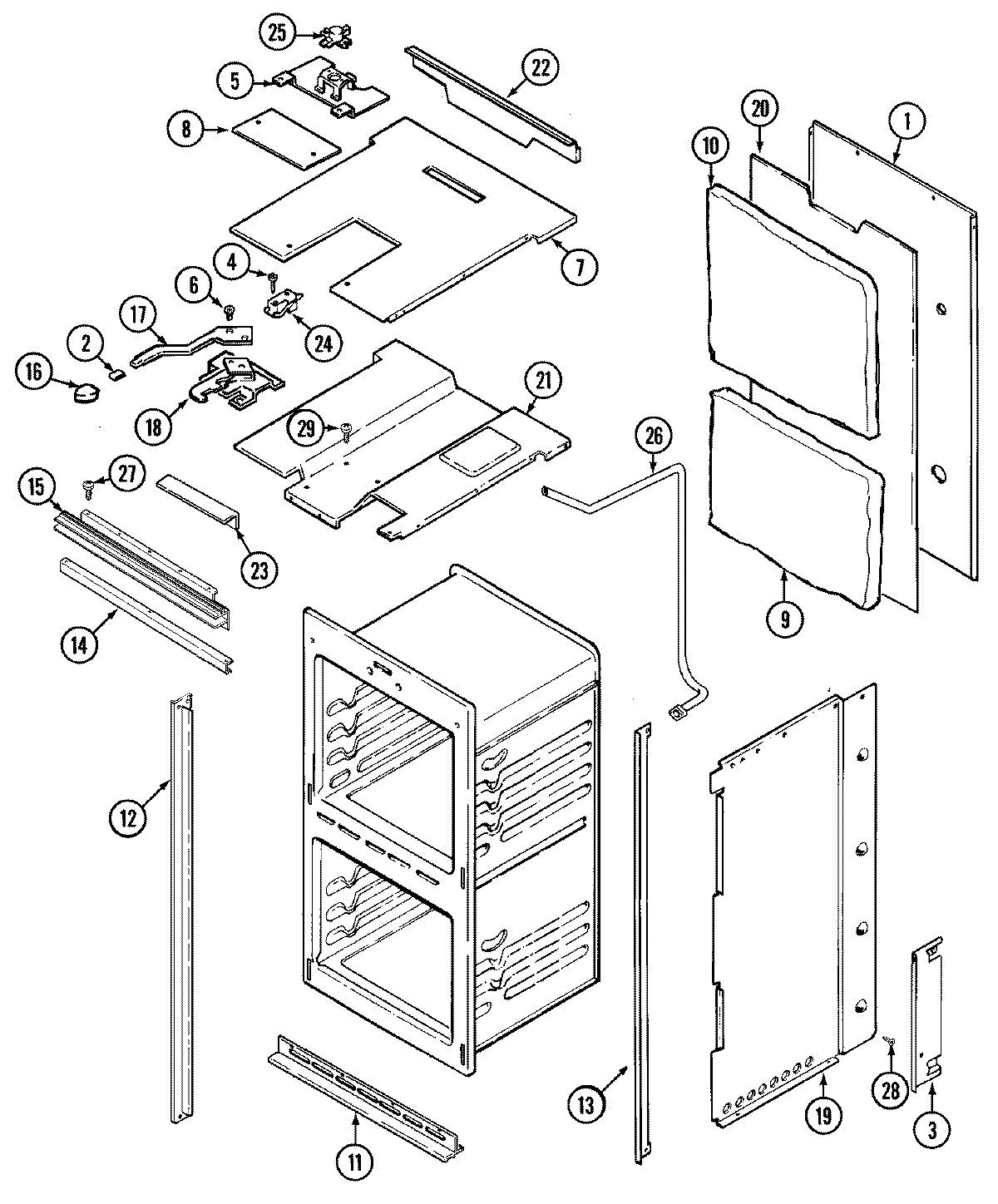

01 - BODY

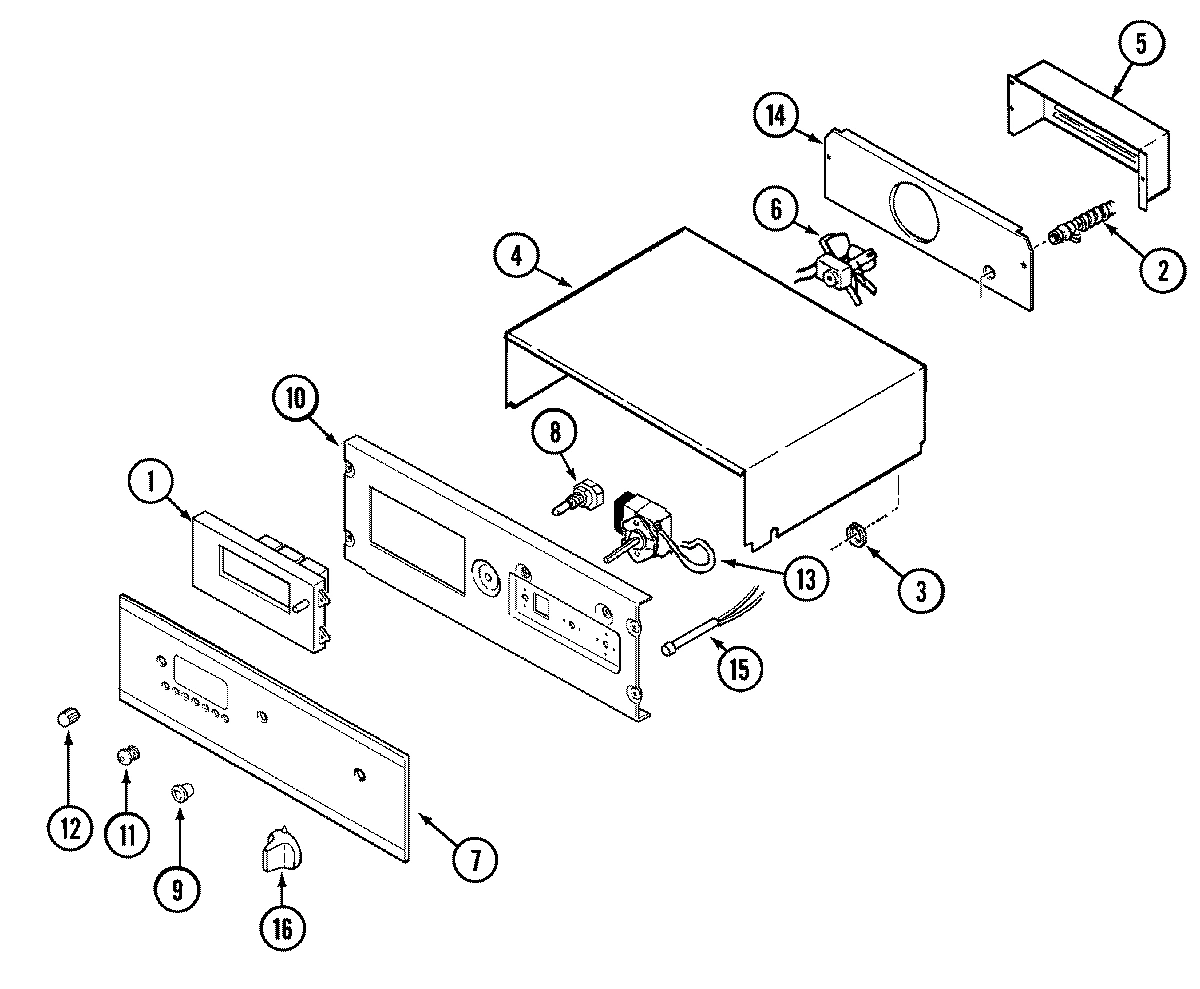

02 - CONTROL PANEL

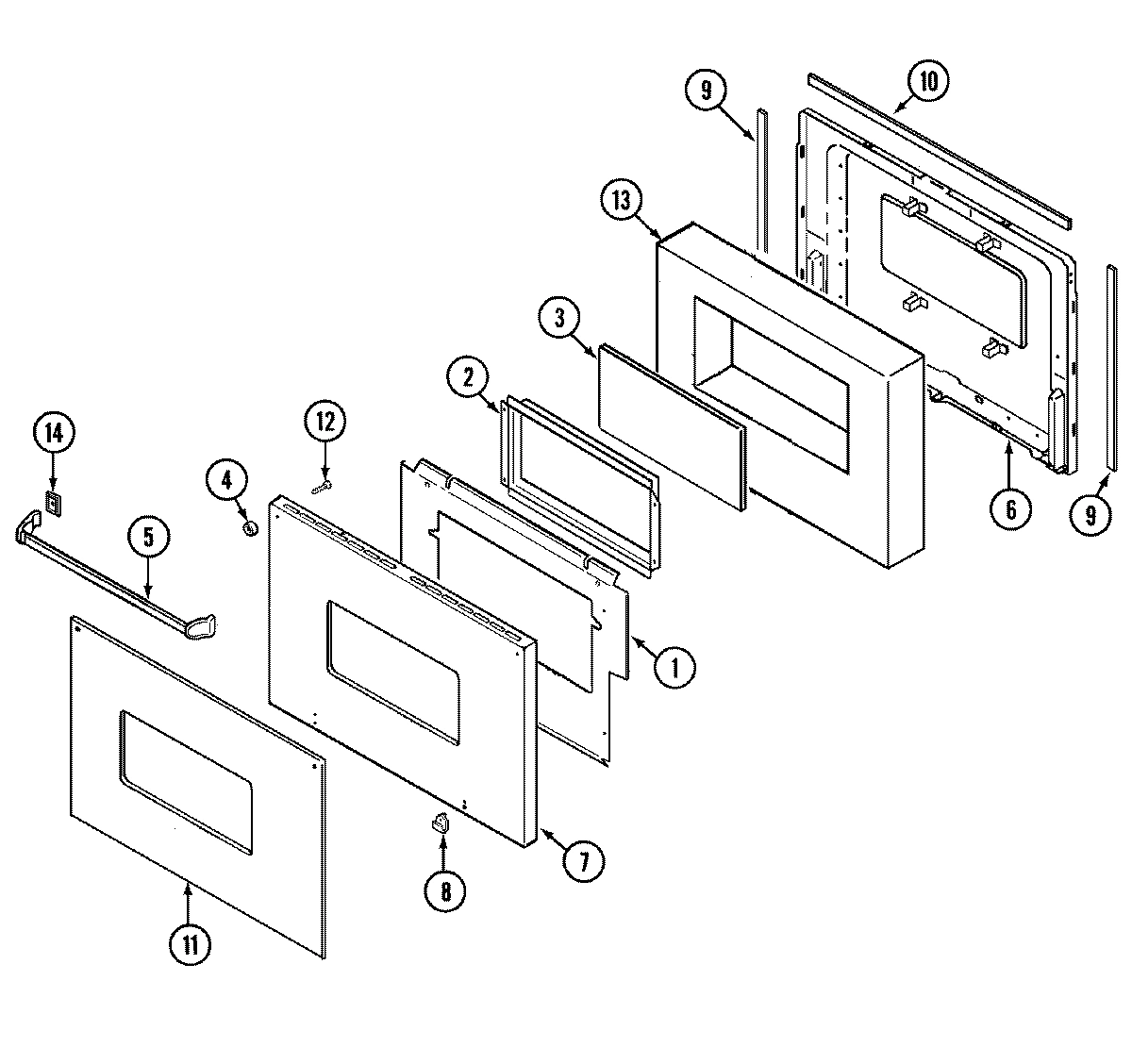

03 - DOOR (LOWER)

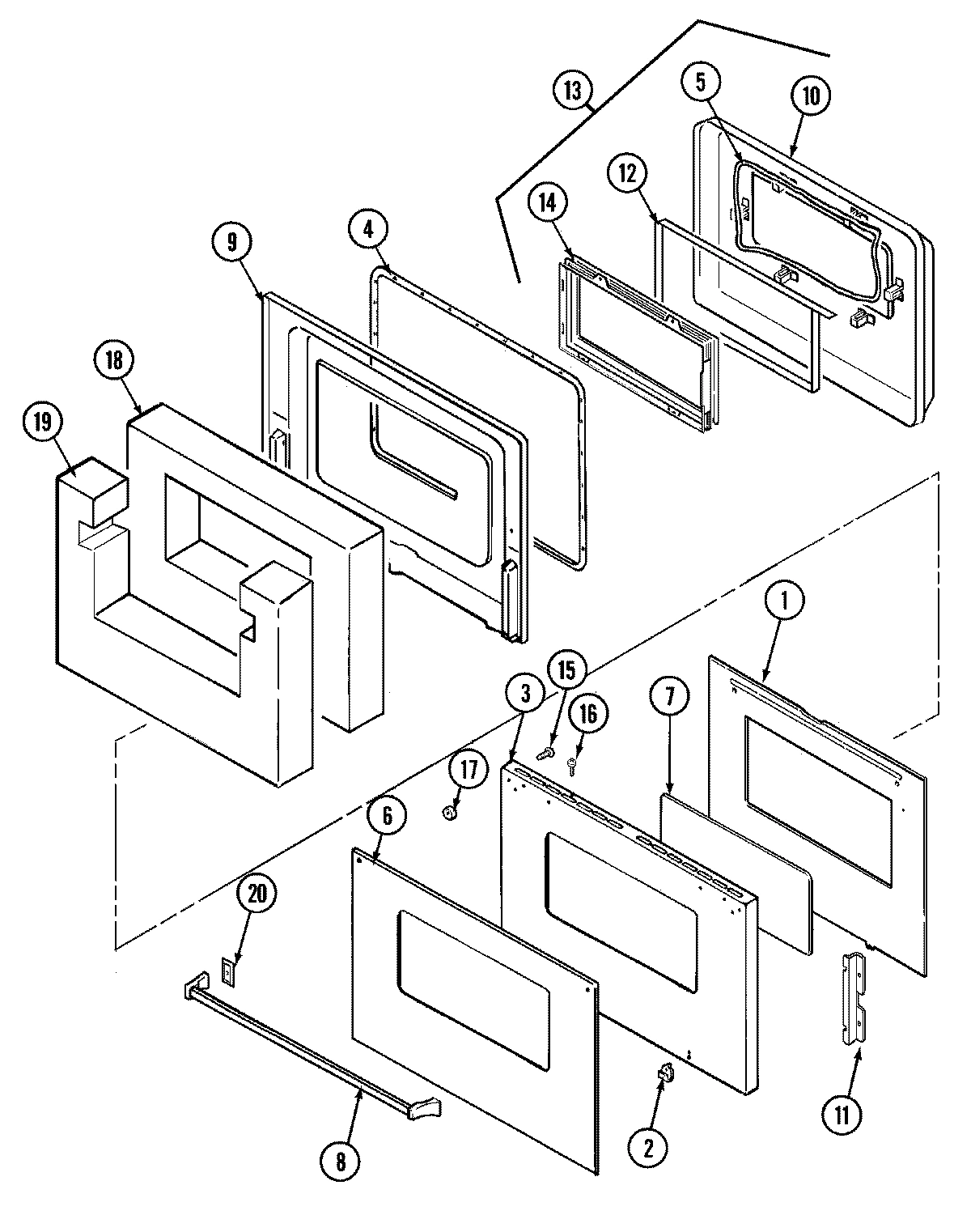

04 - DOOR (UPPER)

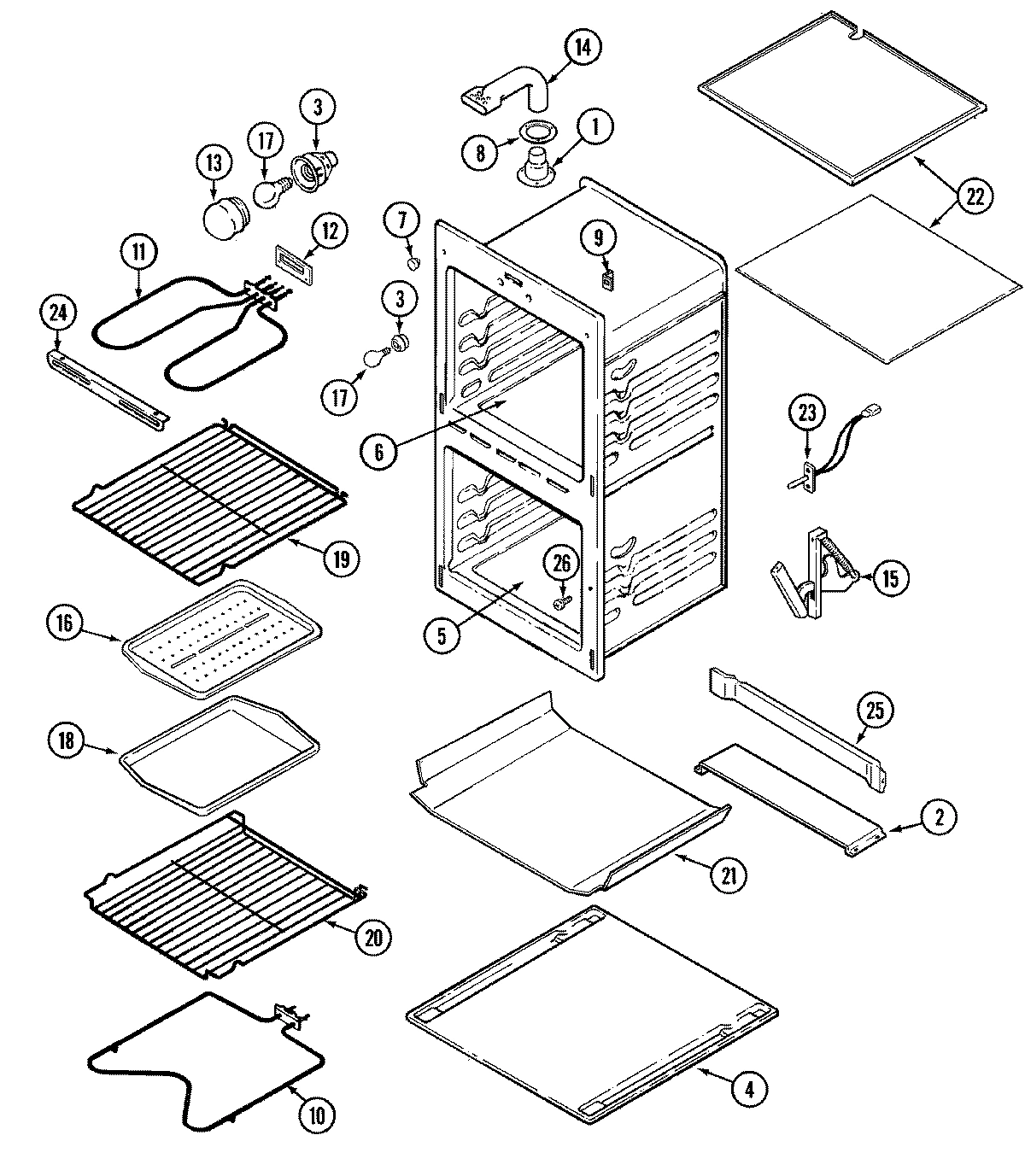

05 - OVEN

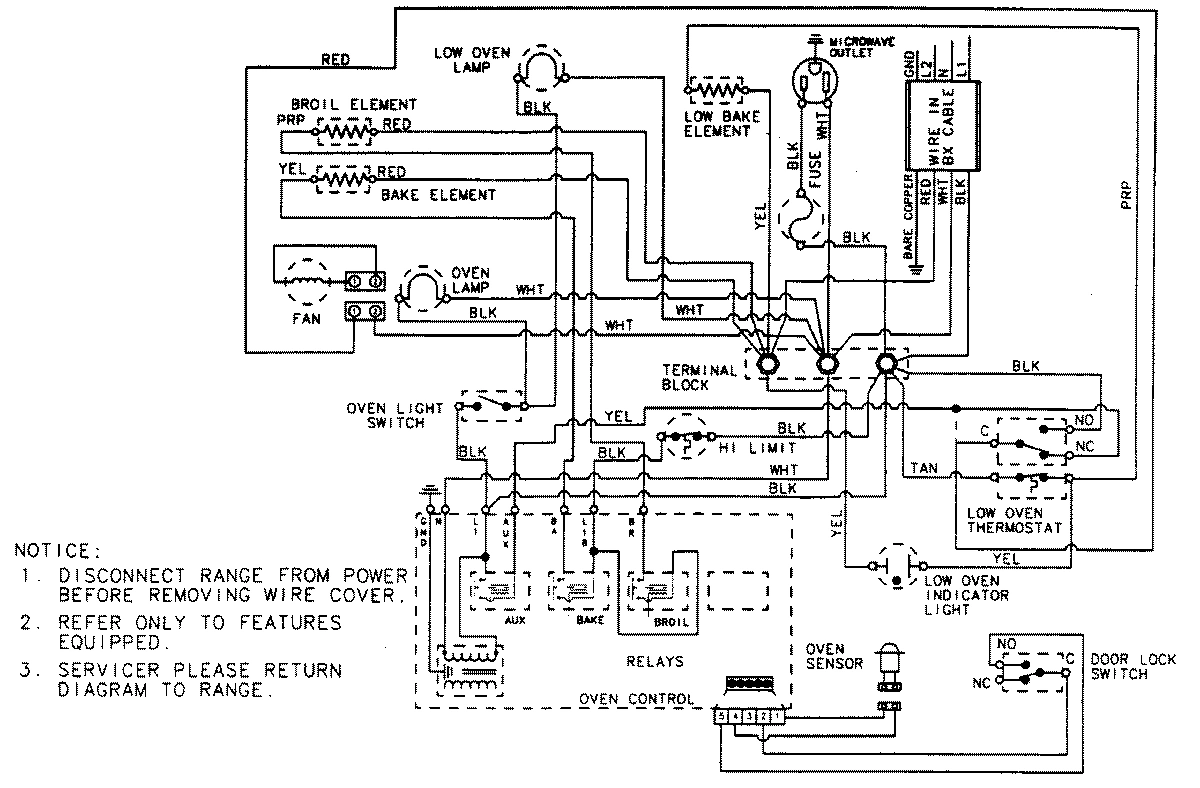

06 - WIRING INFORMATION
Common parts from model Maytag 9825XUB ELECTRIC WALL OVEN
1
MAY 7601P281-60 MAY 7601P281-60 Contact Us For Availability
1
MAY 8010P100-60 MAY 8010P100-60 Contact Us For Availability
1
MAY 3601F102-51 MAY 3601F102-51 Contact Us For Availability
1
MAY 3601F131-51 MAY 3601F131-51 Contact Us For Availability
1
MAY 7505P226-60 MAY 7505P226-60 Contact Us For Availability
2
MAY 3414F037-44 MAY 3414F037-44 Contact Us For Availability
2
MAY 3603F013-80 MAY 3603F013-80 Contact Us For Availability
2
MAY 3601F005-80 MAY 3601F005-80 Contact Us For Availability
3
MAY 7408P035-60 MAY 7408P035-60 Contact Us For Availability
3
MAY 2401F103-70 MAY 2401F103-70 Contact Us For Availability
3
MAY 7417P017-60 MAY 7417P017-60 Contact Us For Availability
3
MAY 7902P386-60 MAY 7902P386-60 Contact Us For Availability
3
MAY 7101P084-60 MAY 7101P084-60 Contact Us For Availability
4
SCREW (10ABX1.0-ZN) MAY 7101P060-60 Contact Us For Availability
4
MAY 4005F150-51 MAY 4005F150-51 Contact Us For Availability
4
MAY 7201P053-60 MAY 7201P053-60 Contact Us For Availability
4
MAY 4003F011-80 MAY 4003F011-80 Contact Us For Availability
5
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
5
MAY 7201P018-60 MAY 7201P018-60 Contact Us For Availability
5
MAY 2205F004-19 MAY 2205F004-19 Contact Us For Availability
6
MAY 7902P336-60 MAY 7902P336-60 Contact Us For Availability
6
MAY 7101P239-60 MAY 7101P239-60 Contact Us For Availability
6
MAY 7427P010-60 MAY 7427P010-60 Contact Us For Availability
6
MAY 8008P004-60 MAY 8008P004-60 Contact Us For Availability
6
MAY 2402W132-19 MAY 2402W132-19 Contact Us For Availability
6
MAY 74001905 MAY 74001905 Contact Us For Availability
6
MAY 2205F003-19 MAY 2205F003-19 Contact Us For Availability
7
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
7
MAY 7912P088-60 MAY 7912P088-60 Contact Us For Availability
7
MAY 2401F104-70 MAY 2401F104-70 Contact Us For Availability
7
MAY 8003P009-60 MAY 8003P009-60 Contact Us For Availability
8
MAY 7701P024-60 MAY 7701P024-60 Contact Us For Availability
8
MAY 7101P279-60 MAY 7101P279-60 Contact Us For Availability
8
MAY 74007948 MAY 74007948 Contact Us For Availability
8
MAY 7403P109-60 MAY 7403P109-60 Contact Us For Availability
8
MAY 7201P016-60 MAY 7201P016-60 Contact Us For Availability
9
MAY 7214P007-60 MAY 7214P007-60 Contact Us For Availability
9
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
9
MAY 2402W130-19 MAY 2402W130-19 Contact Us For Availability
9
MAY 74002201 MAY 74002201 Contact Us For Availability
9
MAY 7112P020-60 MAY 7112P020-60 Contact Us For Availability
10
MAY 3605F195-80 MAY 3605F195-80 Contact Us For Availability
10
MAY 7208P008-60 MAY 7208P008-60 Contact Us For Availability
10
MAY 74007897 MAY 74007897 Contact Us For Availability
10
MAY 2410W042-19 MAY 2410W042-19 Contact Us For Availability
10
MAY 7406P075-60 MAY 7406P075-60 Contact Us For Availability
11
MAY 7711P490-60 MAY 7711P490-60 Contact Us For Availability
11
MAY 7902P335-60 MAY 7902P335-60 Contact Us For Availability
11
MAY 3804F051-80 MAY 3804F051-80 Contact Us For Availability
11
MAY 7101P065-60 MAY 7101P065-60 Contact Us For Availability
11
MAY 7406P090-60 MAY 7406P090-60 Contact Us For Availability
12
MAY 7201P003-60 MAY 7201P003-60 Contact Us For Availability
12
MAY 3804F021-45 MAY 3804F021-45 Contact Us For Availability
13
MAY 7404P042-60 MAY 7404P042-60 Contact Us For Availability
13
MAY 7750P109-60 MAY 7750P109-60 Contact Us For Availability
13
MAY 7002P015-60 MAY 7002P015-60 Contact Us For Availability
13
MAY 2410A042-19 MAY 2410A042-19 Contact Us For Availability
13
MAY 3604F037-44 MAY 3604F037-44 Contact Us For Availability
14
MAY 5700A082-60 MAY 5700A082-60 Contact Us For Availability
14
MAY 7752P011-60 MAY 7752P011-60 Contact Us For Availability
14
MAY 3605F164-51 MAY 3605F164-51 Contact Us For Availability
14
MAY 8026P022-60 MAY 8026P022-60 Contact Us For Availability
15
MAY 7756P070-60 MAY 7756P070-60 Contact Us For Availability
15
MAY 7407P105-60 MAY 7407P105-60 Contact Us For Availability
15
MAY 7101P068-60 MAY 7101P068-60 Contact Us For Availability
15
MAY 7106P037-60 MAY 7106P037-60 Contact Us For Availability
15
MAY 7106P042-60 MAY 7106P042-60 Contact Us For Availability
15
MAY 74001882 MAY 74001882 Contact Us For Availability
16
MAY W10124350 MAY W10124350 Contact Us For Availability
16
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
16
MAY 7711P291-60 MAY 7711P291-60 Contact Us For Availability
16
MAY 7101P276-60 MAY 7101P276-60 Contact Us For Availability
16
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
17
MAY 74003005 MAY 74003005 Contact Us For Availability
17
MAY 8009P011-60 MAY 8009P011-60 Contact Us For Availability
17
MAY 5125A390-60 MAY 5125A390-60 Contact Us For Availability
17
MAY 5170D220-60 MAY 5170D220-60 Contact Us For Availability
17
MAY 74007946 MAY 74007946 Contact Us For Availability
17
MAY 8010P016-60 MAY 8010P016-60 Contact Us For Availability
18
MAY 3801F127-51 MAY 3801F127-51 Contact Us For Availability
18
MAY 7003P001-60 MAY 7003P001-60 Contact Us For Availability
18
MAY 8112P119-60 MAY 8112P119-60 Contact Us For Availability
18
MAY 7002P023-60 MAY 7002P023-60 Contact Us For Availability
18
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
19
MAY 2618F115-51 MAY 2618F115-51 Contact Us For Availability
19
MAY 2618F116-51 MAY 2618F116-51 Contact Us For Availability
19
MAY 7002P021-60 MAY 7002P021-60 Contact Us For Availability
19
MAY 7801P005-60 MAY 7801P005-60 Contact Us For Availability
20
MAY 3804F105-51 MAY 3804F105-51 Contact Us For Availability
20
MAY 8010P015-60 MAY 8010P015-60 Contact Us For Availability
20
MAY 7801P007-60 MAY 7801P007-60 Contact Us For Availability
21
MAY 3804F118-51 MAY 3804F118-51 Contact Us For Availability
21
MAY 3804F104-51 MAY 3804F104-51 Contact Us For Availability
22
MAY 3604F101-80 MAY 3604F101-80 Contact Us For Availability
22
MAY 3804F054-51 MAY 3804F054-51 Contact Us For Availability
22
MAY 7002P163-60 MAY 7002P163-60 Contact Us For Availability
23
MAY 3604F048-80 MAY 3604F048-80 Contact Us For Availability
23
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
23
MAY Y04000052 MAY Y04000052 Contact Us For Availability
24
MAY 7403P347-60 MAY 7403P347-60 Contact Us For Availability
24
MAY 3807F176-19 MAY 3807F176-19 Contact Us For Availability
25
MAY 3807F135-80 MAY 3807F135-80 Contact Us For Availability
26
MAY 8026P014-60 MAY 8026P014-60 Contact Us For Availability
29
MAY 5170P185-60 MAY 5170P185-60 Contact Us For Availability
29
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
29
MAY 7101P082-60 MAY 7101P082-60 Contact Us For Availability
29
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
NI
MAY 15001151 MAY 15001151 Contact Us For Availability
× ![]()
