Model Whirlpool 9824XPB ELECTRIC WALL OVEN – Common Parts & Diagrams

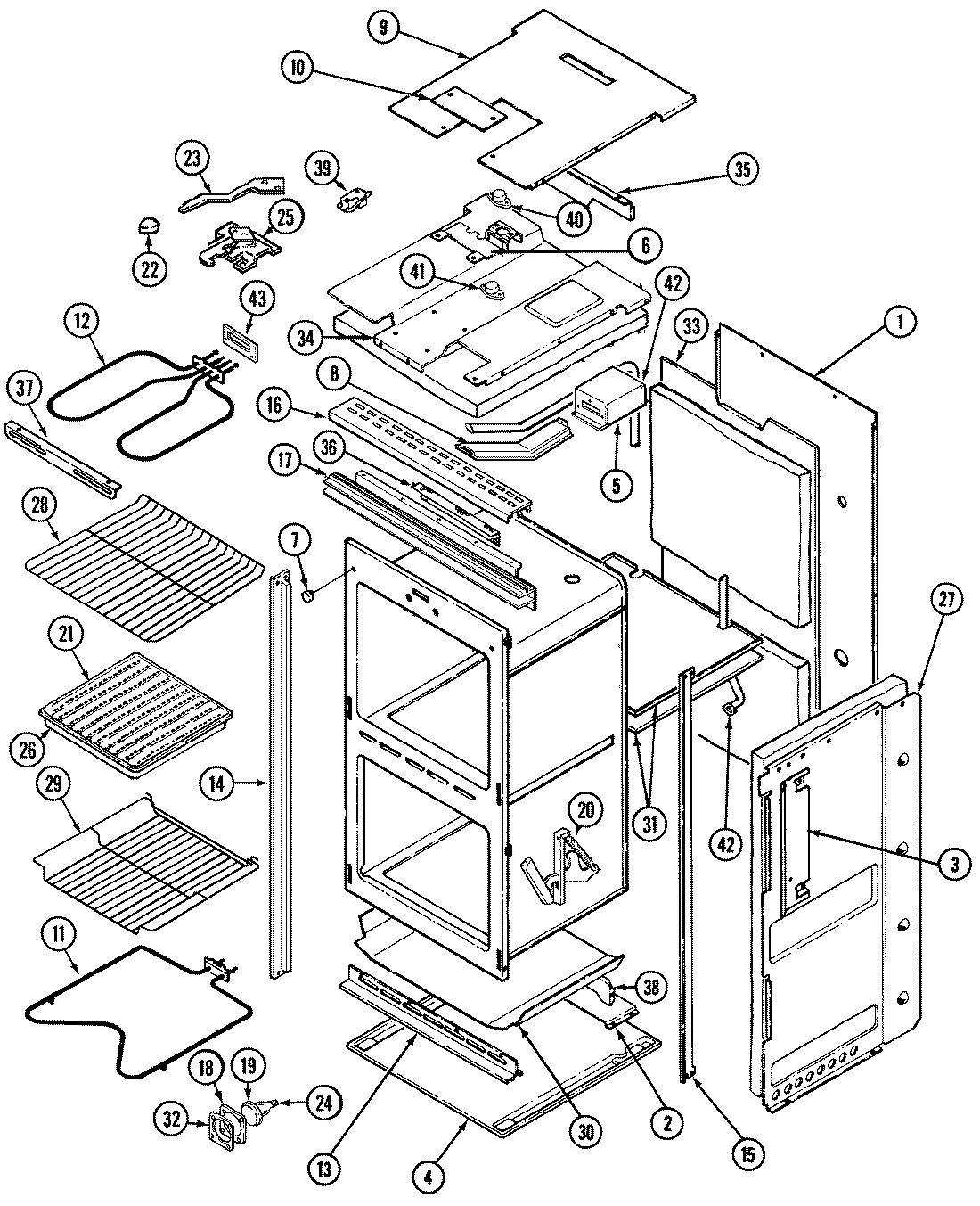

01 - BODY

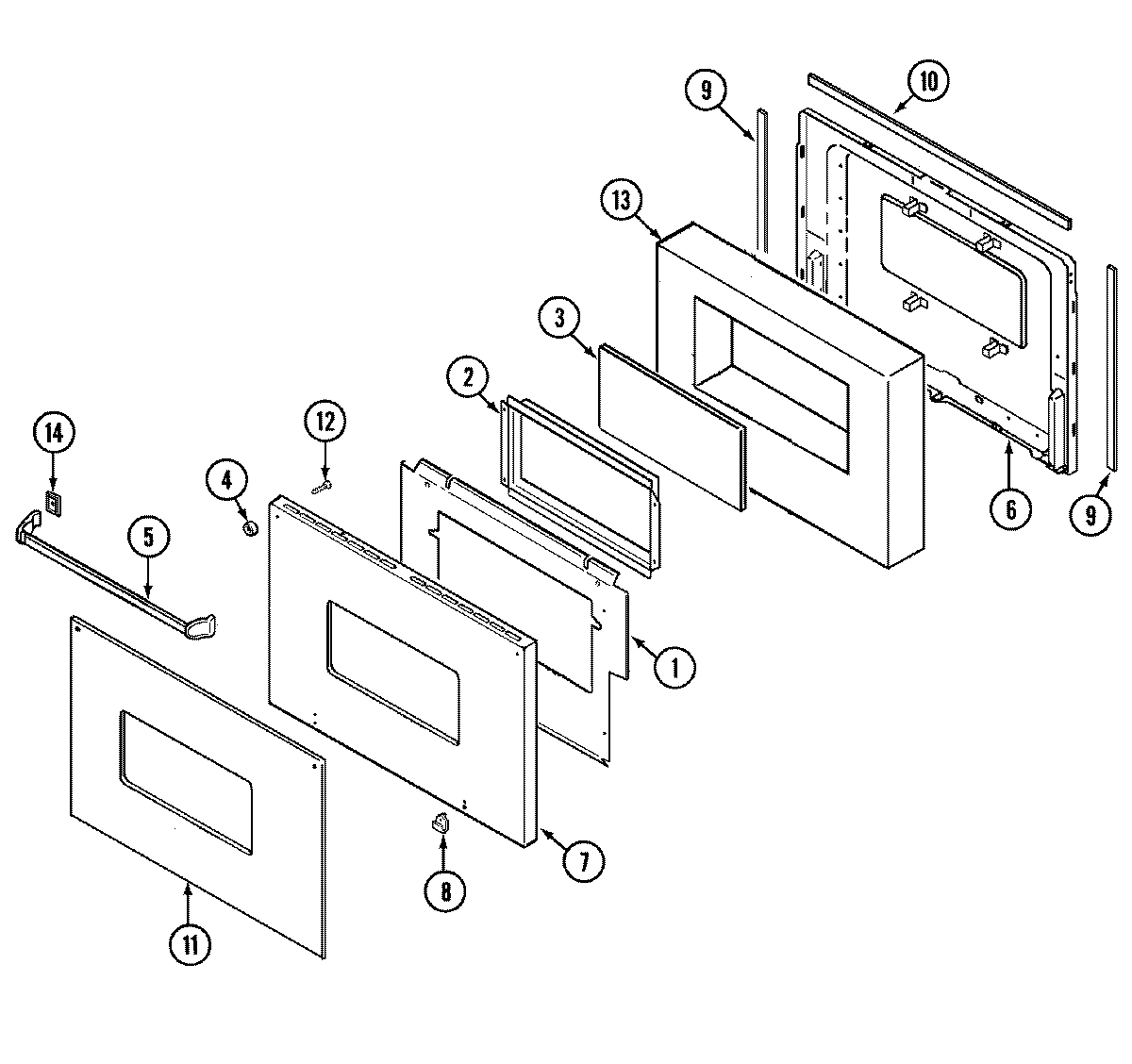

03 - DOOR-LOWER

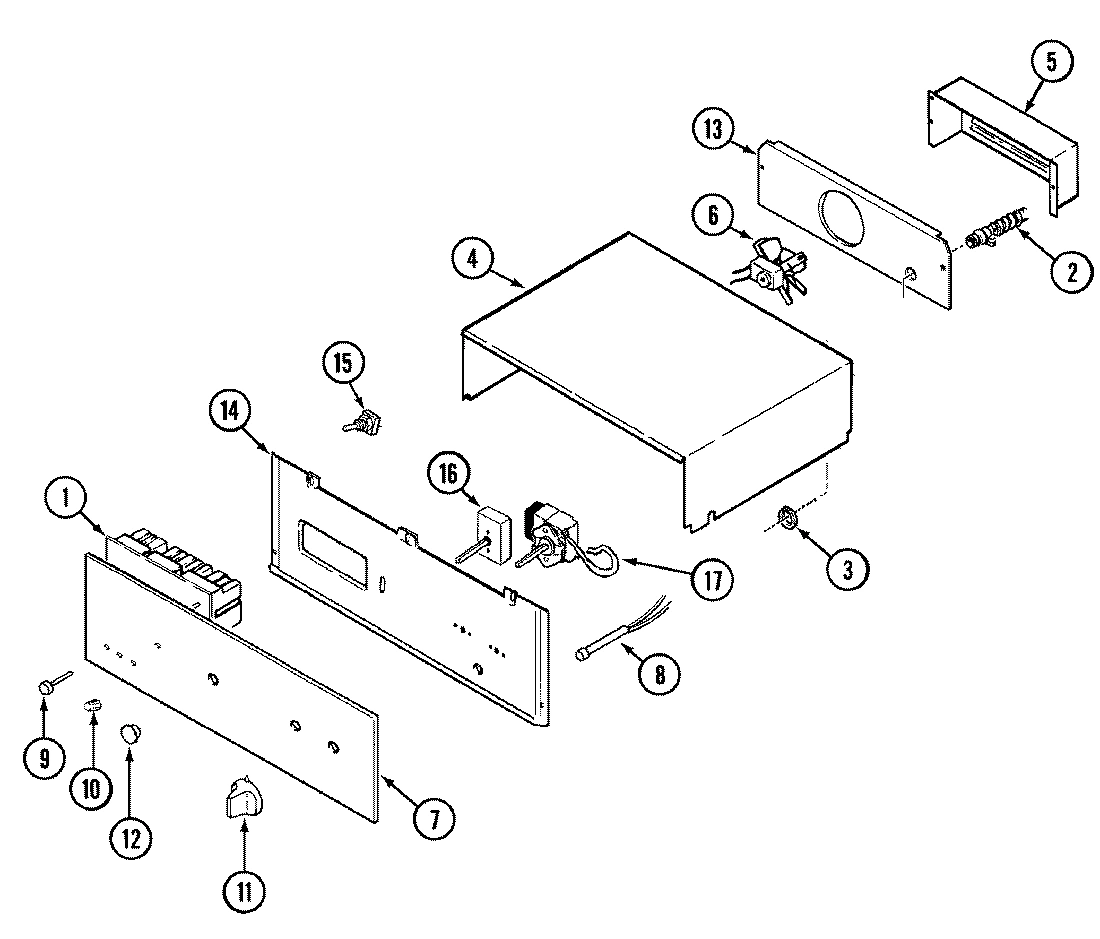

02 - CONTROL PANEL

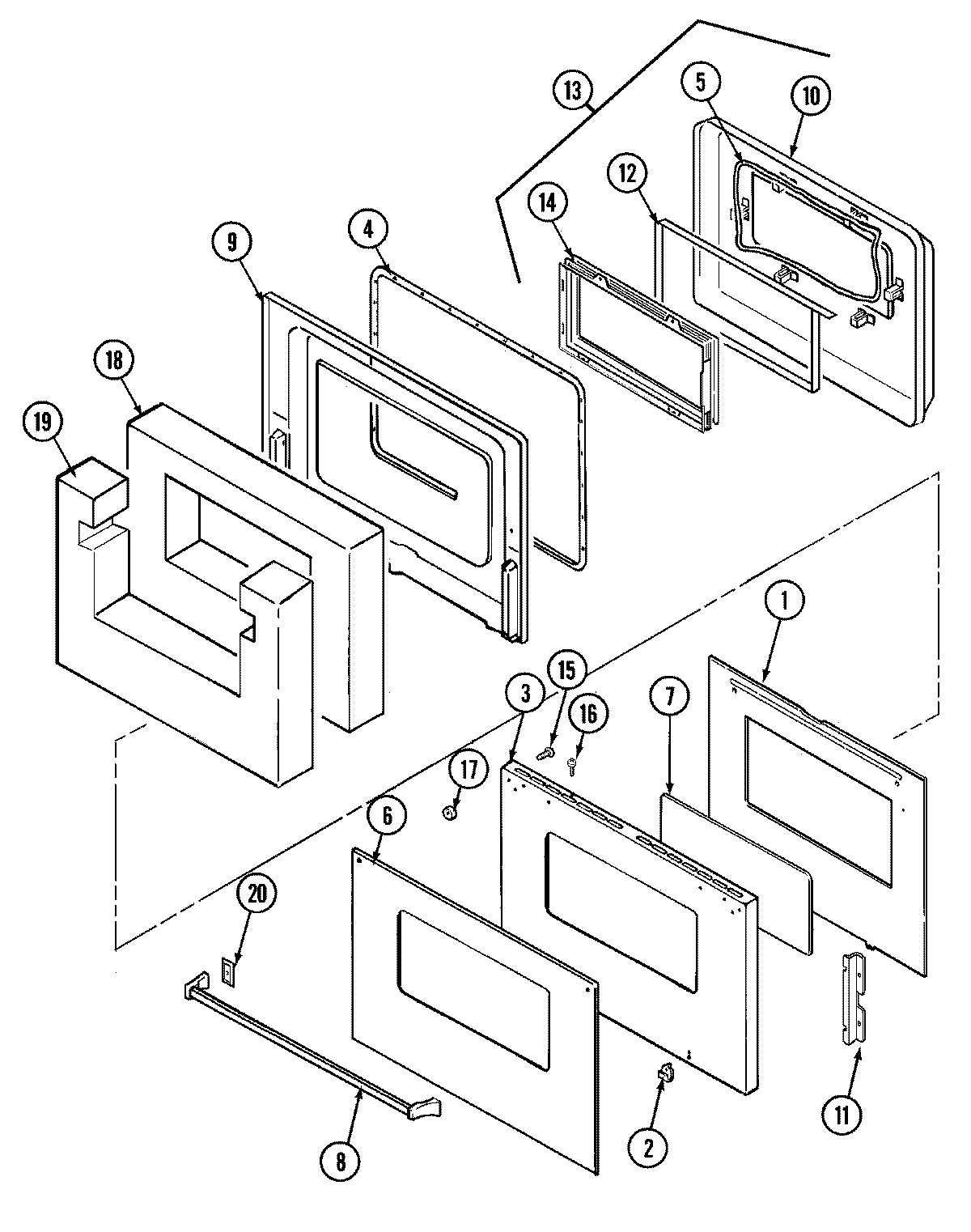

04 - DOOR-UPPER
Common parts from model Whirlpool 9824XPB ELECTRIC WALL OVEN
No.16 N/S INCLUDES CHEF NAMEPLAT WPL NOTE Contact Us For Availability
1
BACK MAIN WPL 4002F07951 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
SCREW WPL 7101P35660 Contact Us For Availability
1
CLOCK WPL 7601P19760 Contact Us For Availability
1
SHAFT, CLOCK WPL 8312P01760 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F13151 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
2
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 7434P00660 Contact Us For Availability
3
BAFFLE, SIDE WPL 3601F13051 Contact Us For Availability
3
GLASS, INNER WPL 7902P38660 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
3
PANEL, DOOR (BLK) WPL 2401F10370 Contact Us For Availability
4
BASE, WALL OVEN WPL 4003F01120 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
4
GASKET WPL 7201P00460 Contact Us For Availability
5
BOX, VENT WPL 4006W04615 Contact Us For Availability
5
COVER, FAN WPL 4005F26251 Contact Us For Availability
5
GASKET WPL 7201P02060 Contact Us For Availability
6
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
6
LINING, DOOR WPL 2402W13219 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
6
GLASS, OUTER (BLK) WPL 7902P33660 Contact Us For Availability
6
TAPE WPL 8270P06560 Contact Us For Availability
7
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
7
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
7
PANEL, DOOR (BLK) WPL 74002359 Contact Us For Availability
7
GLASS, CONTROL PANEL WPL 7912P02060 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
8
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
8
HANDLE, DOOR (BLK) WPL 7701P02460 Contact Us For Availability
8
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
8
LIGHT, INDICATOR----NA WPL 7407P00760 Contact Us For Availability
9
COVER, BOX WPL 4005F20251 Contact Us For Availability
9
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
9
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
9
LINING, DOOR WPL 2402W13019 Contact Us For Availability
10
COVER, LOCK WPL 4005F16045 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
10
PAD, DOOR WPL 2410W04219 Contact Us For Availability
11
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
11
GLASS, OUTER (BLK) WPL 7902P33560 Contact Us For Availability
11
KNOB (CHR) WPL 7711P29160 Contact Us For Availability
11
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
12
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
12
SCREW WPL 7101P06860 Contact Us For Availability
12
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
13
EXTRUSION, BOTTOM (CHR) WPL 7706P07560 Contact Us For Availability
13
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
13
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
13
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
13
PAD, OVEN DOOR ASSY. WPL 2410A04219 Contact Us For Availability
14
EXTENSION, SIDE (LEFT) WPL 7750P02960 Contact Us For Availability
14
EXTRUSION, SIDE-L WPL 7750P03360 Contact Us For Availability
14
PLATE, SWITCH WPL 3605F17080 Contact Us For Availability
14
WINDOW ASSY. WPL 5700A08260 Contact Us For Availability
15
EXTENSION, SIDE (RIGHT) WPL 7750P03060 Contact Us For Availability
15
EXTRUSION, SIDE-R WPL 7750P03460 Contact Us For Availability
15
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
15
SCREW WPL 7101P00460 Contact Us For Availability
16
EXTRUSION, TOP (WHT) WPL 7706P07860 Contact Us For Availability
16
EXTRUSION, TOP (BLK) WPL 7706P19960 Contact Us For Availability
16
EXTRUSION, TOP FRONT (BLK) WPL 7756P00960 Contact Us For Availability
16
EXTRUSION, TOP FRONT (WHT) WPL 7756P05760 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P02360 Contact Us For Availability
16
SCREW WPL 7101P26160 Contact Us For Availability
17
EXTRUSION, VENT (BLK) WPL 7756P07060 Contact Us For Availability
17
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
17
THERMOSTAT, UPPER WPL 7404P03960 Contact Us For Availability
17
THERMOSTAT, LOWER WPL 7404P04260 Contact Us For Availability
18
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
18
MANUAL, USE & CARE WPL 8112P08760 Contact Us For Availability
18
INSULATION, DOOR----NA WPL 7002P02360 Contact Us For Availability
19
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
19
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
19
INSULATION, DOOR WPL 7002P02160 Contact Us For Availability
20
HINGE, OVEN DOOR WPL 7106A02060 Contact Us For Availability
20
HINGE, DOOR WPL 7106P03760 Contact Us For Availability
20
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
22
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
24
BULB, OVEN WPL 7407P02660 Contact Us For Availability
25
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
26
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
27
PANEL, SIDE LF. WPL 2618F08851 Contact Us For Availability
27
PANEL, SIDE RIGHT WPL 2618F08951 Contact Us For Availability
28
RACK WPL 7801P00560 Contact Us For Availability
29
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
30
RETAINER, BOTTOM WPL 3804W03451 Contact Us For Availability
31
RETAINER, INSULATION WPL 3804F05451 Contact Us For Availability
32
RETAINER WPL 3804F01145 Contact Us For Availability
33
RET REAR INSUL WPL 3804F05251 Contact Us For Availability
34
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
35
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
36
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
37
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
38
SUPPORT WPL 3807F13780 Contact Us For Availability
39
SWITCH, DOOR LOCK WPL 7403P00760 Contact Us For Availability
40
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
41
SWITCH, FAN----NA WPL 7403P00160 Contact Us For Availability
42
TUBE, OVEN VENT WPL 8026P01460 Contact Us For Availability
43
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
× ![]()
