Model Maytag 97F-4EXWW ELECTRIC WALL OVEN – Common Parts & Diagrams

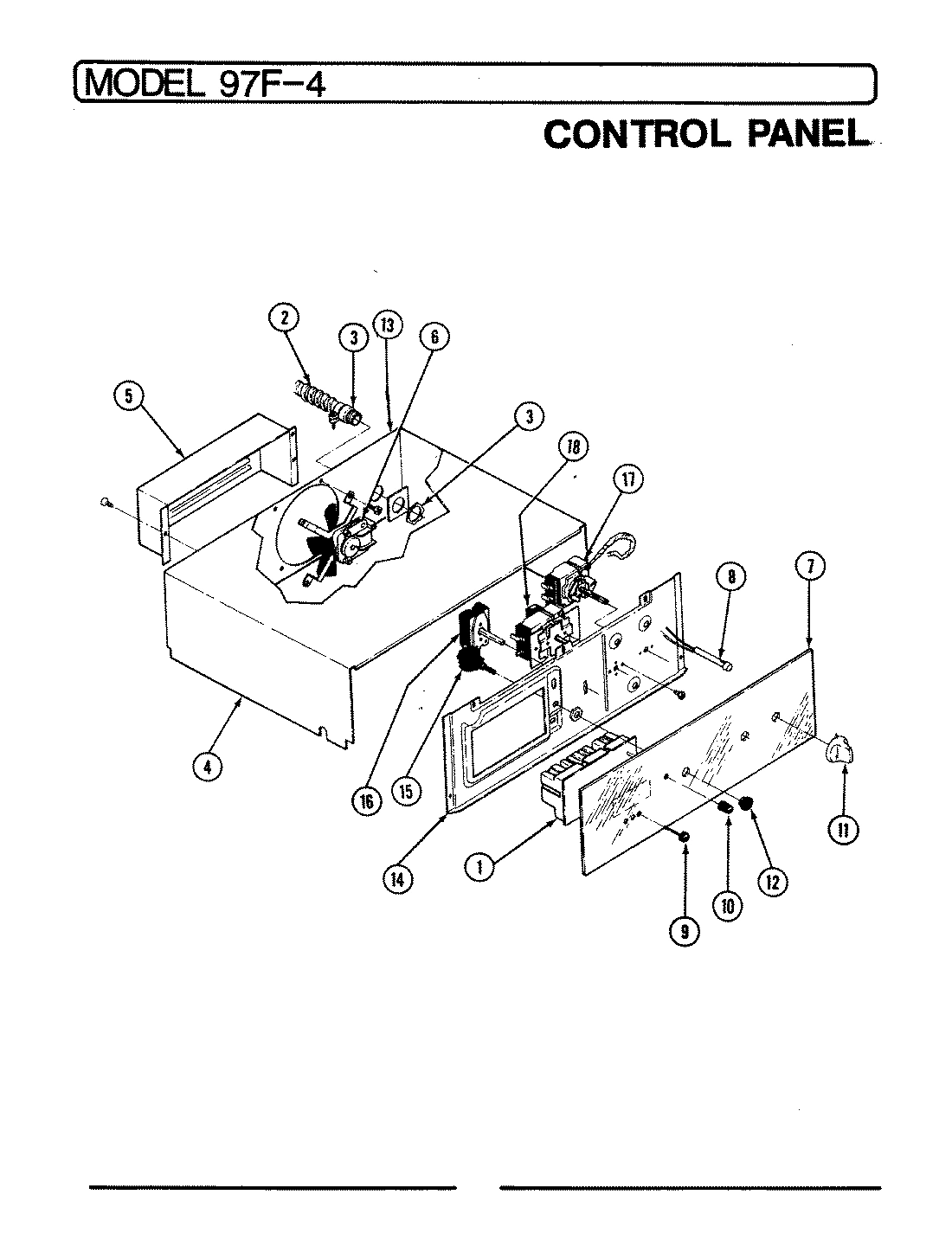

01 - CONTROL PANEL

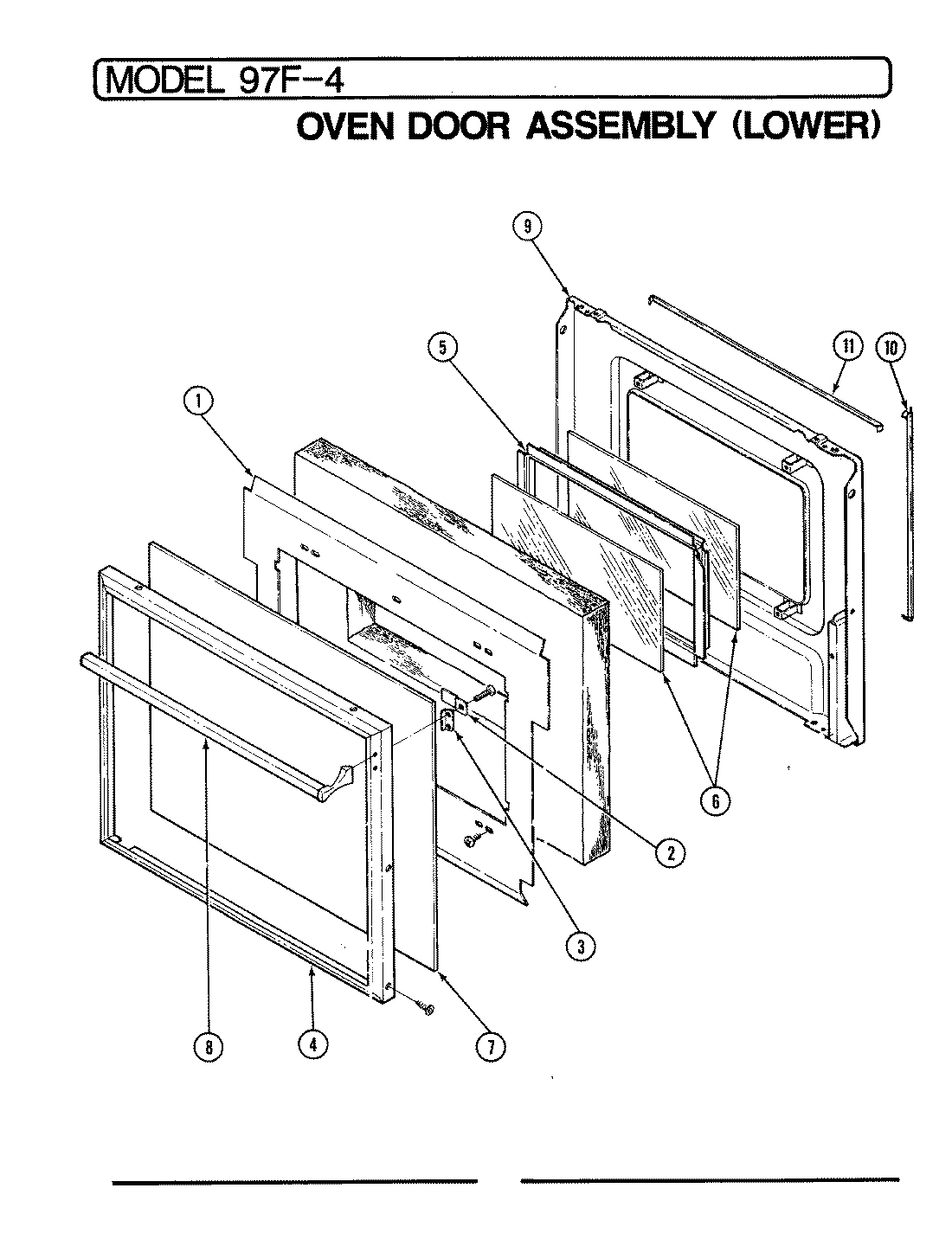

02 - DOOR-LOWER (SER. 1-16)

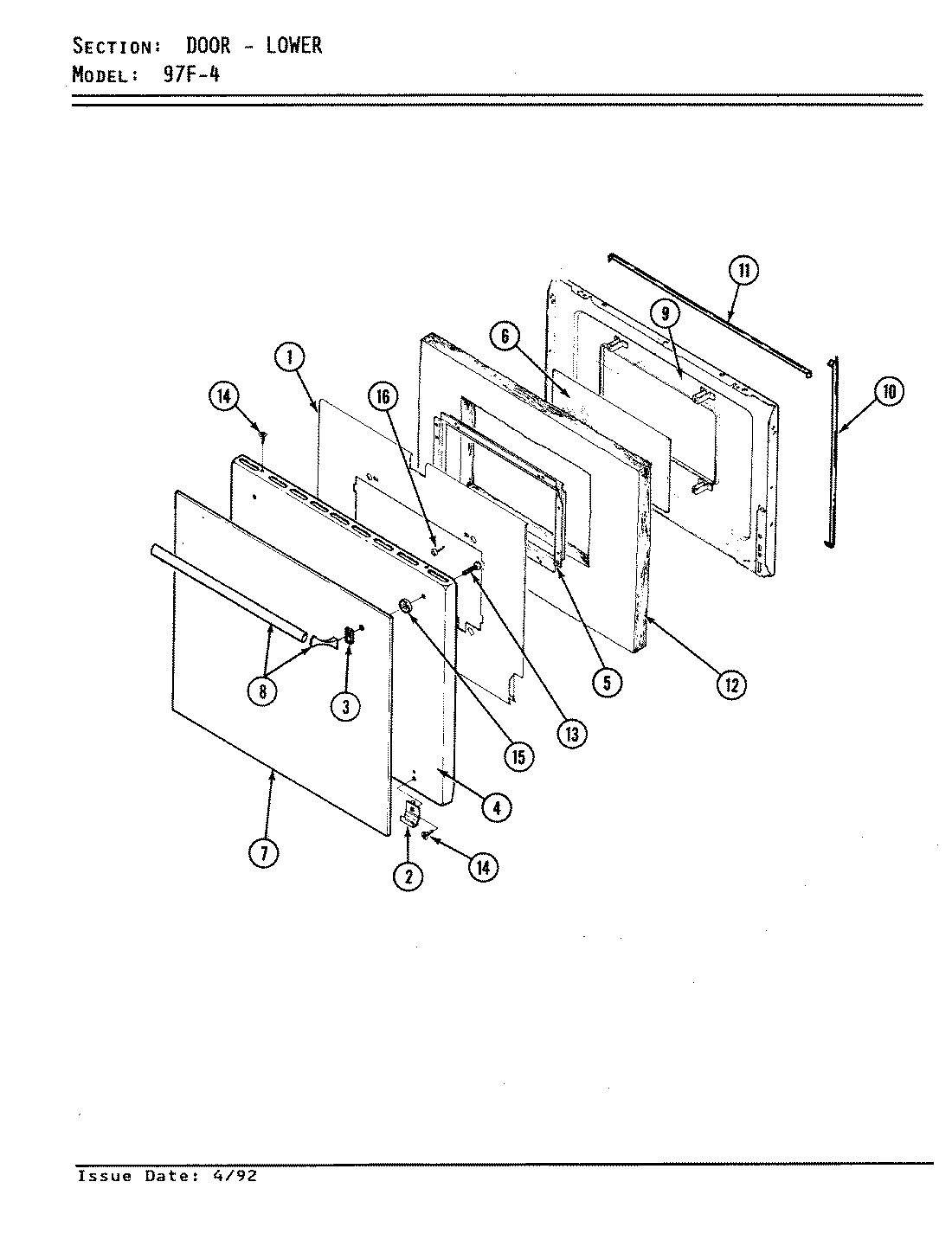

03 - DOOR-LOWER (SER. 17)

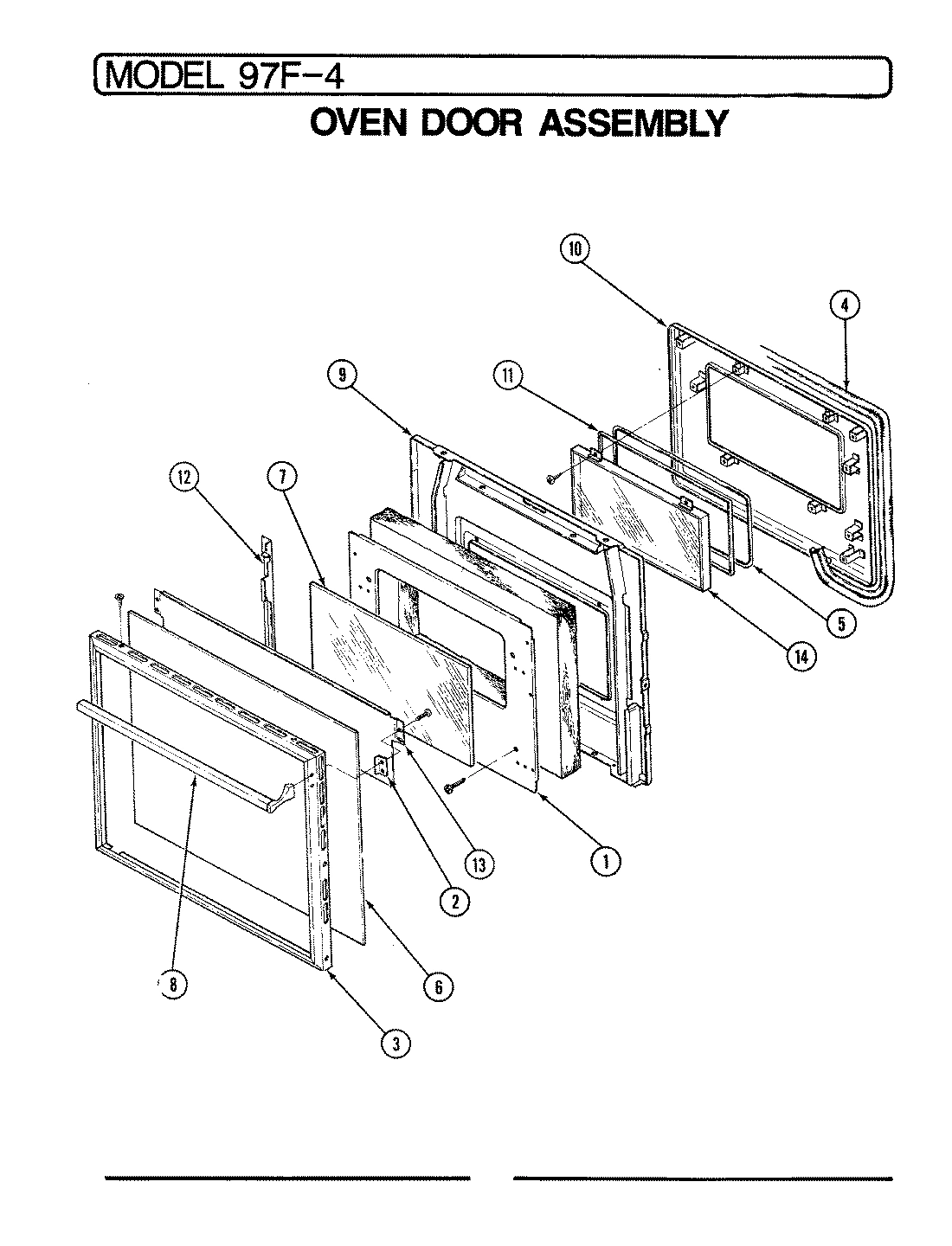

04 - DOOR-UPPER (SER. 1-16)

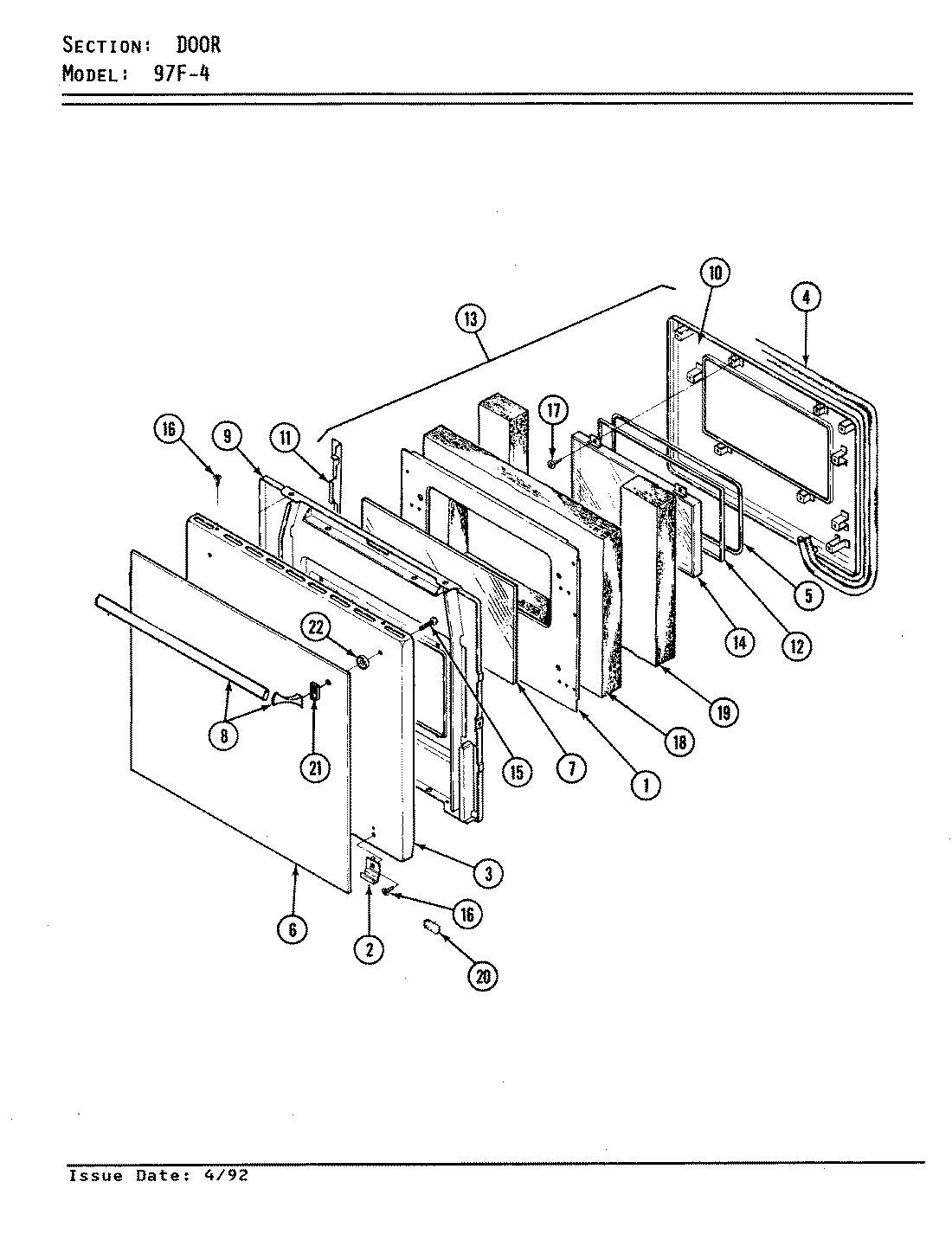

05 - DOOR-UPPER (SER. 17)

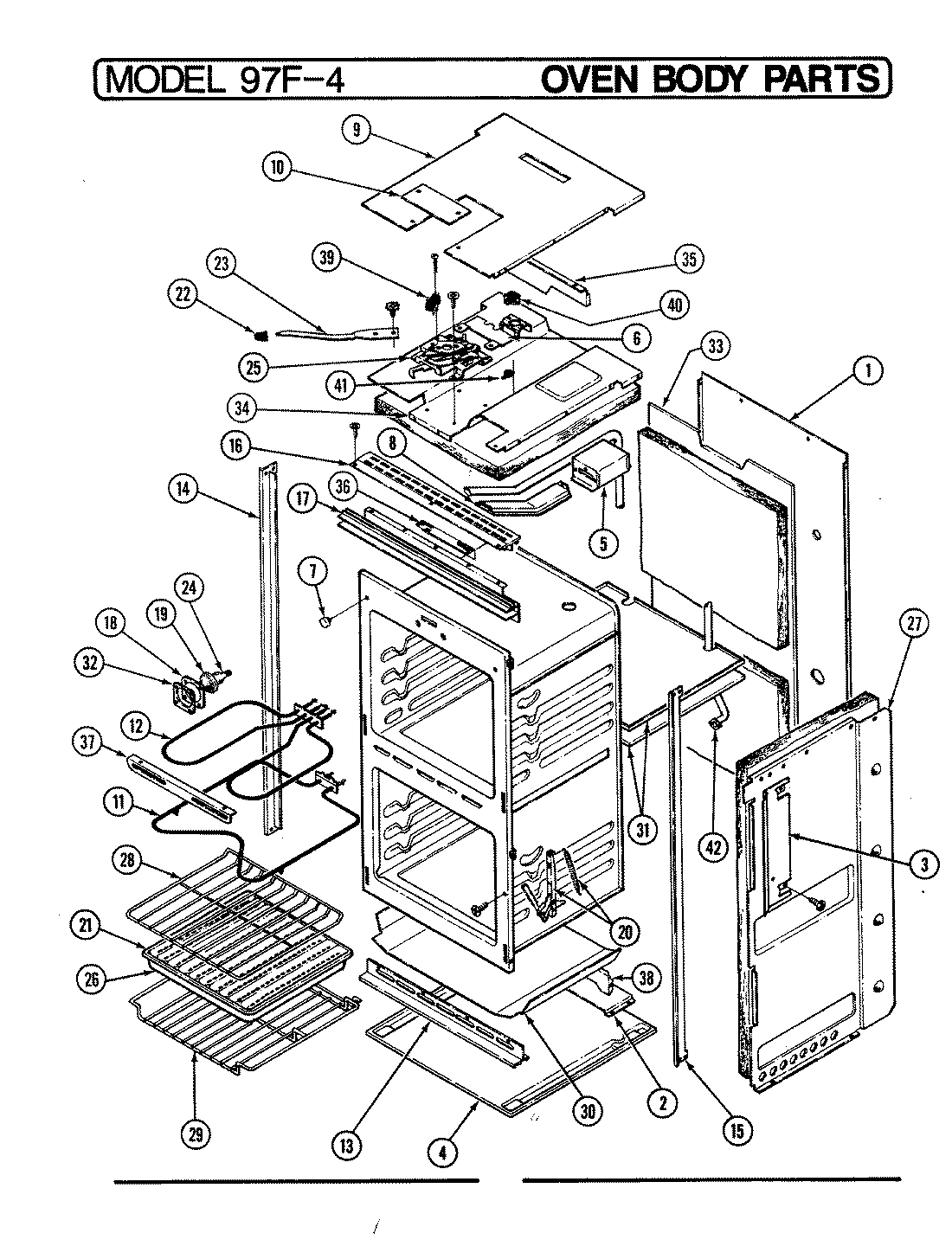

06 - OVEN/BODY
Common parts from model Maytag 97F-4EXWW ELECTRIC WALL OVEN
1
MAY 3601F103-51 MAY 3601F103-51 Contact Us For Availability
1
MAY 3601W131-51 MAY 3601W131-51 Contact Us For Availability
1
SCREW (10ABX1.0-ZN) MAY 7101P060-60 Contact Us For Availability
1
MAY 4002F079-51 MAY 4002F079-51 Contact Us For Availability
2
MAY 3819F003-34 MAY 3819F003-34 Contact Us For Availability
2
MAY 3819F010-70 MAY 3819F010-70 Contact Us For Availability
2
MAY 7112P017-60 MAY 7112P017-60 Contact Us For Availability
2
MAY 3601F005-80 MAY 3601F005-80 Contact Us For Availability
3
MAY 2401F103-70 MAY 2401F103-70 Contact Us For Availability
3
MAY 7712P017-60 MAY 7712P017-60 Contact Us For Availability
3
MAY 7706P250-60 MAY 7706P250-60 Contact Us For Availability
3
MAY 3601F130-51 MAY 3601F130-51 Contact Us For Availability
4
MAY 7706P219-60 MAY 7706P219-60 Contact Us For Availability
4
MAY 2401F104-71 MAY 2401F104-71 Contact Us For Availability
4
MAY 7201P004-60 MAY 7201P004-60 Contact Us For Availability
4
MAY 4003F011-20 MAY 4003F011-20 Contact Us For Availability
5
MAY 7706P128-60 MAY 7706P128-60 Contact Us For Availability
5
MAY 3603F013-80 MAY 3603F013-80 Contact Us For Availability
5
MAY 7201P020-60 MAY 7201P020-60 Contact Us For Availability
5
MAY 4006W046-15 MAY 4006W046-15 Contact Us For Availability
6
MAY 7902P336-60 MAY 7902P336-60 Contact Us For Availability
6
MAY 7902P035-60 MAY 7902P035-60 Contact Us For Availability
6
MAY 7902P265-60 MAY 7902P265-60 Contact Us For Availability
6
MAY 8270P065-60 MAY 8270P065-60 Contact Us For Availability
6
MAY 3801F128-45 MAY 3801F128-45 Contact Us For Availability
7
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
7
MAY 7902P263-60 MAY 7902P263-60 Contact Us For Availability
7
MAY 7902P335-60 MAY 7902P335-60 Contact Us For Availability
7
MAY 8003P002-60 MAY 8003P002-60 Contact Us For Availability
8
MAY 7701P024-60 MAY 7701P024-60 Contact Us For Availability
8
MAY 7701P017-60 MAY 7701P017-60 Contact Us For Availability
8
MAY 3818W002-15 MAY 3818W002-15 Contact Us For Availability
9
MAY 7711P171-60 MAY 7711P171-60 Contact Us For Availability
9
MAY 2402W098-12 MAY 2402W098-12 Contact Us For Availability
9
MAY 2402W132-15 MAY 2402W132-15 Contact Us For Availability
9
MAY 2402W132-19 MAY 2402W132-19 Contact Us For Availability
9
MAY 2402W130-15 MAY 2402W130-15 Contact Us For Availability
9
MAY 2402W130-19 MAY 2402W130-19 Contact Us For Availability
9
MAY 4005F202-51 MAY 4005F202-51 Contact Us For Availability
10
MAY 7711P172-60 MAY 7711P172-60 Contact Us For Availability
10
MAY 7212P007-60 MAY 7212P007-60 Contact Us For Availability
10
MAY 2410A034-15 MAY 2410A034-15 Contact Us For Availability
10
MAY 2410A038-15 MAY 2410A038-15 Contact Us For Availability
10
MAY 2410A042-15 MAY 2410A042-15 Contact Us For Availability
10
MAY 2410A043-19 MAY 2410A043-19 Contact Us For Availability
10
MAY 2410W034-15 MAY 2410W034-15 Contact Us For Availability
10
MAY 2410W038-15 MAY 2410W038-15 Contact Us For Availability
10
MAY 2410W042-15 MAY 2410W042-15 Contact Us For Availability
10
MAY 2410W042-19 MAY 2410W042-19 Contact Us For Availability
10
MAY 2410W043-19 MAY 2410W043-19 Contact Us For Availability
10
MAY 4005F160-45 MAY 4005F160-45 Contact Us For Availability
11
MAY 3804F021-45 MAY 3804F021-45 Contact Us For Availability
11
MAY 7406P013-60 MAY 7406P013-60 Contact Us For Availability
11
MAY 7406P075-60 MAY 7406P075-60 Contact Us For Availability
12
MAY 7002P019-60 MAY 7002P019-60 Contact Us For Availability
12
MAY 3804F051-80 MAY 3804F051-80 Contact Us For Availability
12
MAY 7406P003-60 MAY 7406P003-60 Contact Us For Availability
12
MAY 7406P076-60 MAY 7406P076-60 Contact Us For Availability
13
MAY 7101P089-60 MAY 7101P089-60 Contact Us For Availability
13
MAY 2410A042-19 MAY 2410A042-19 Contact Us For Availability
13
MAY 3804F017-51 MAY 3804F017-51 Contact Us For Availability
13
MAY 7706P153-60 MAY 7706P153-60 Contact Us For Availability
14
MAY 5700A082-60 MAY 5700A082-60 Contact Us For Availability
14
MAY 7706P112-60 MAY 7706P112-60 Contact Us For Availability
14
MAY 7750P014-60 MAY 7750P014-60 Contact Us For Availability
14
MAY 7750P029-60 MAY 7750P029-60 Contact Us For Availability
15
MAY 7101P004-60 MAY 7101P004-60 Contact Us For Availability
15
MAY 7706P113-60 MAY 7706P113-60 Contact Us For Availability
15
MAY 7750P015-60 MAY 7750P015-60 Contact Us For Availability
15
MAY 7750P030-60 MAY 7750P030-60 Contact Us For Availability
16
MAY 7706P114-60 MAY 7706P114-60 Contact Us For Availability
16
MAY 7756P009-60 MAY 7756P009-60 Contact Us For Availability
17
MAY 7404P039-60 MAY 7404P039-60 Contact Us For Availability
17
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
17
MAY 7756P006-60 MAY 7756P006-60 Contact Us For Availability
17
MAY 7756P023-60 MAY 7756P023-60 Contact Us For Availability
17
MAY 7756P070-60 MAY 7756P070-60 Contact Us For Availability
18
MAY 7404P042-60 MAY 7404P042-60 Contact Us For Availability
18
MAY 7002P023-60 MAY 7002P023-60 Contact Us For Availability
18
MAY 7201P014-60 MAY 7201P014-60 Contact Us For Availability
19
MAY 7002P021-60 MAY 7002P021-60 Contact Us For Availability
19
MAY 7902P057-60 MAY 7902P057-60 Contact Us For Availability
20
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
20
MAY 7106A012-60 MAY 7106A012-60 Contact Us For Availability
20
MAY 7106A013-60 MAY 7106A013-60 Contact Us For Availability
20
MAY 7106A019-60 MAY 7106A019-60 Contact Us For Availability
20
MAY 7106A020-60 MAY 7106A020-60 Contact Us For Availability
20
MAY 7106P037-60 MAY 7106P037-60 Contact Us For Availability
21
MAY 8010P015-60 MAY 8010P015-60 Contact Us For Availability
21
MAY 3413F002-19 MAY 3413F002-19 Contact Us For Availability
21
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
22
MAY 8010P016-60 MAY 8010P016-60 Contact Us For Availability
22
MAY 7701P068-60 MAY 7701P068-60 Contact Us For Availability
23
MAY 8009P011-60 MAY 8009P011-60 Contact Us For Availability
24
MAY 7407P026-60 MAY 7407P026-60 Contact Us For Availability
26
MAY 2618F056-51 MAY 2618F056-51 Contact Us For Availability
26
MAY 2618F088-51 MAY 2618F088-51 Contact Us For Availability
26
MAY 3401F004-19 MAY 3401F004-19 Contact Us For Availability
26
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
27
MAY 2618F055-51 MAY 2618F055-51 Contact Us For Availability
27
MAY 2618F089-51 MAY 2618F089-51 Contact Us For Availability
28
MAY 7801P005-60 MAY 7801P005-60 Contact Us For Availability
29
MAY 7801P007-60 MAY 7801P007-60 Contact Us For Availability
30
MAY 3804W034-51 MAY 3804W034-51 Contact Us For Availability
31
MAY 3804F054-51 MAY 3804F054-51 Contact Us For Availability
32
MAY 3804F011-45 MAY 3804F011-45 Contact Us For Availability
33
MAY 3804F052-51 MAY 3804F052-51 Contact Us For Availability
34
MAY 3804F053-51 MAY 3804F053-51 Contact Us For Availability
35
MAY 3604F101-80 MAY 3604F101-80 Contact Us For Availability
36
MAY 3604F048-80 MAY 3604F048-80 Contact Us For Availability
37
MAY 3807F176-15 MAY 3807F176-15 Contact Us For Availability
38
MAY 3807F137-80 MAY 3807F137-80 Contact Us For Availability
39
MAY 7403P007-60 MAY 7403P007-60 Contact Us For Availability
41
MAY 7403P001-60 MAY 7403P001-60 Contact Us For Availability
41
NOT REQUIRED PART OR SEE NOTE SWITCH, FAN (NO MAY W10124350 Contact Us For Availability
42
MAY 8026P014-60 MAY 8026P014-60 Contact Us For Availability
× ![]()
