Model Kenmore 970-C88122-00 DRYER – Common Parts & Diagrams
01 - COVER
03 - CABINET/DRUM

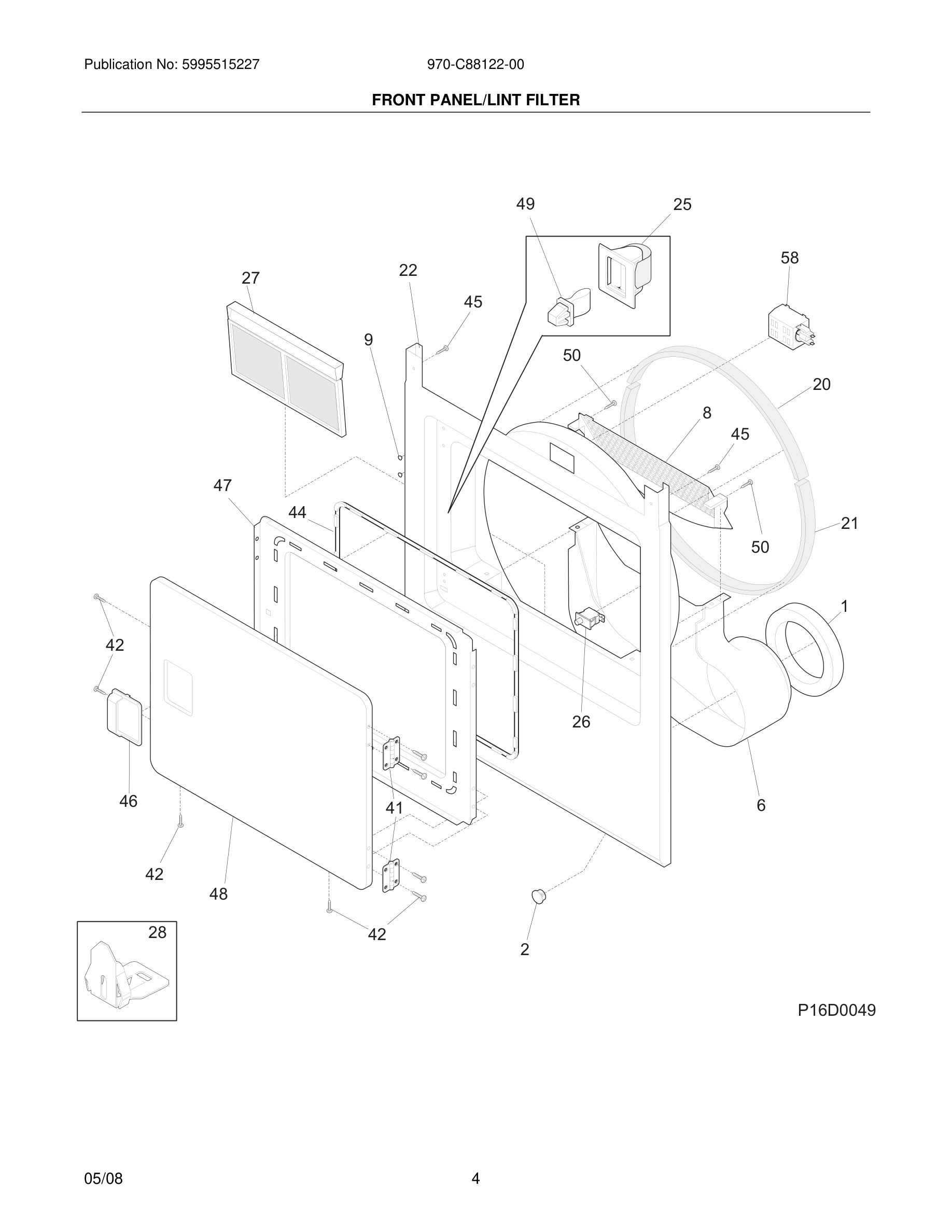

05 - FRONT PANEL/LINT FILTER

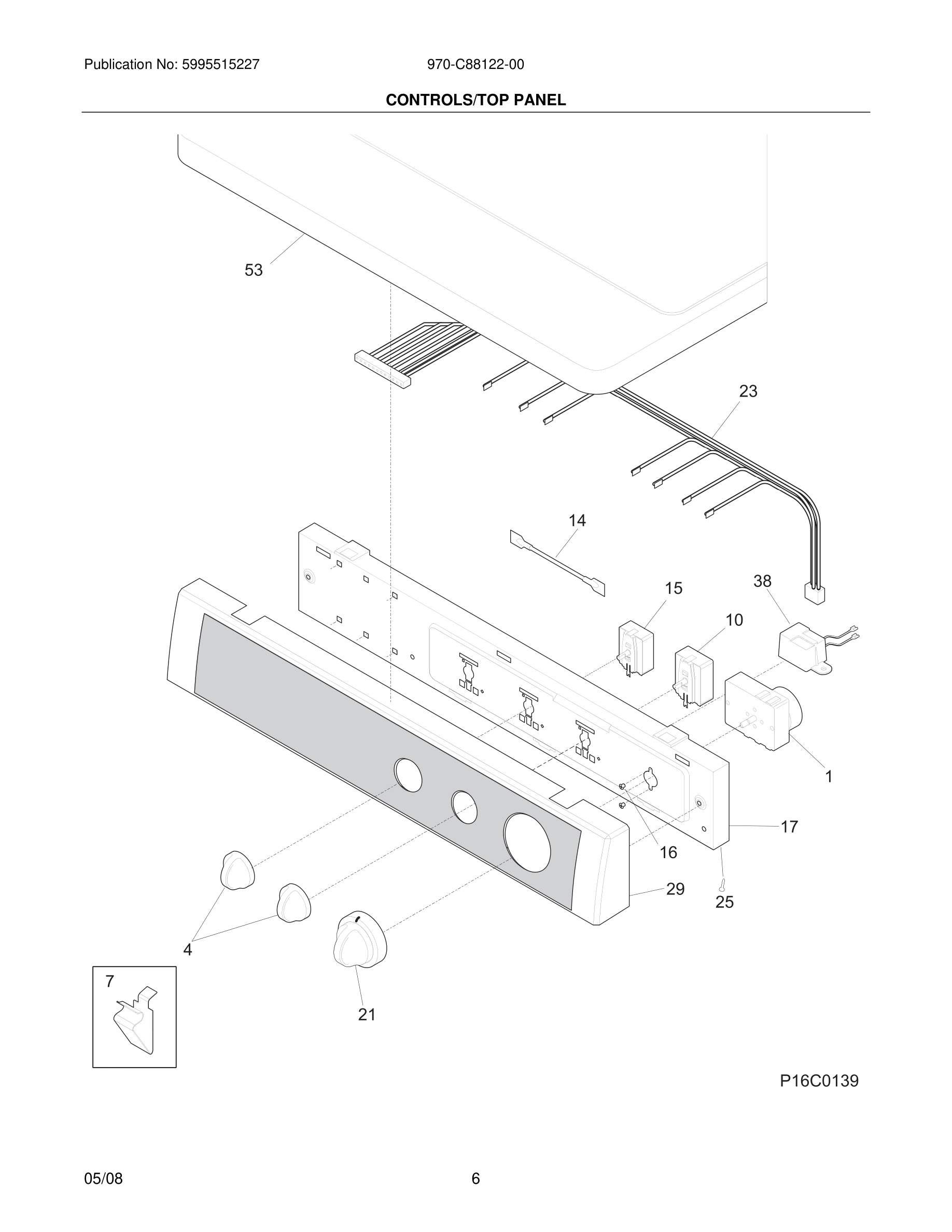

07 - CONTROLS/TOP PANEL

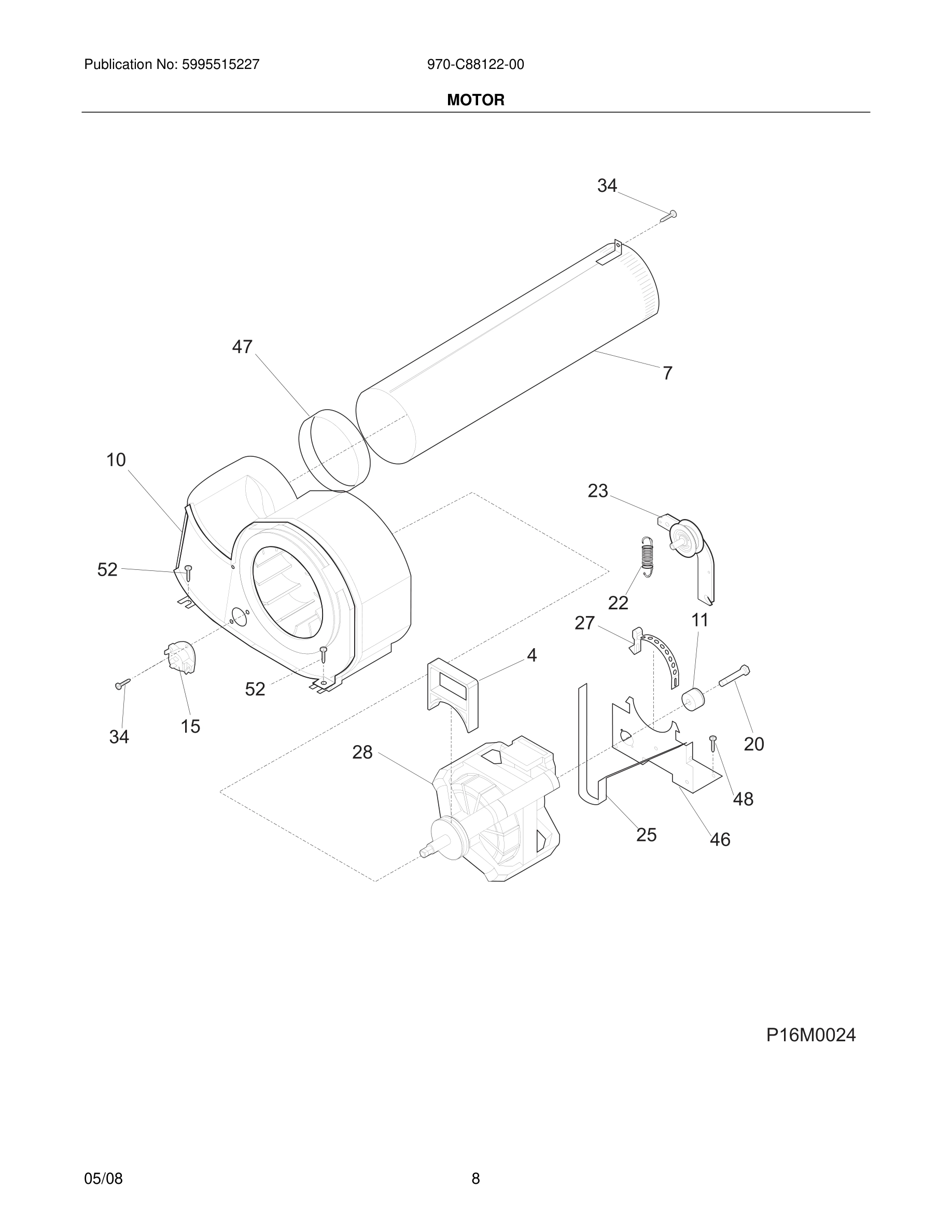

09 - MOTOR

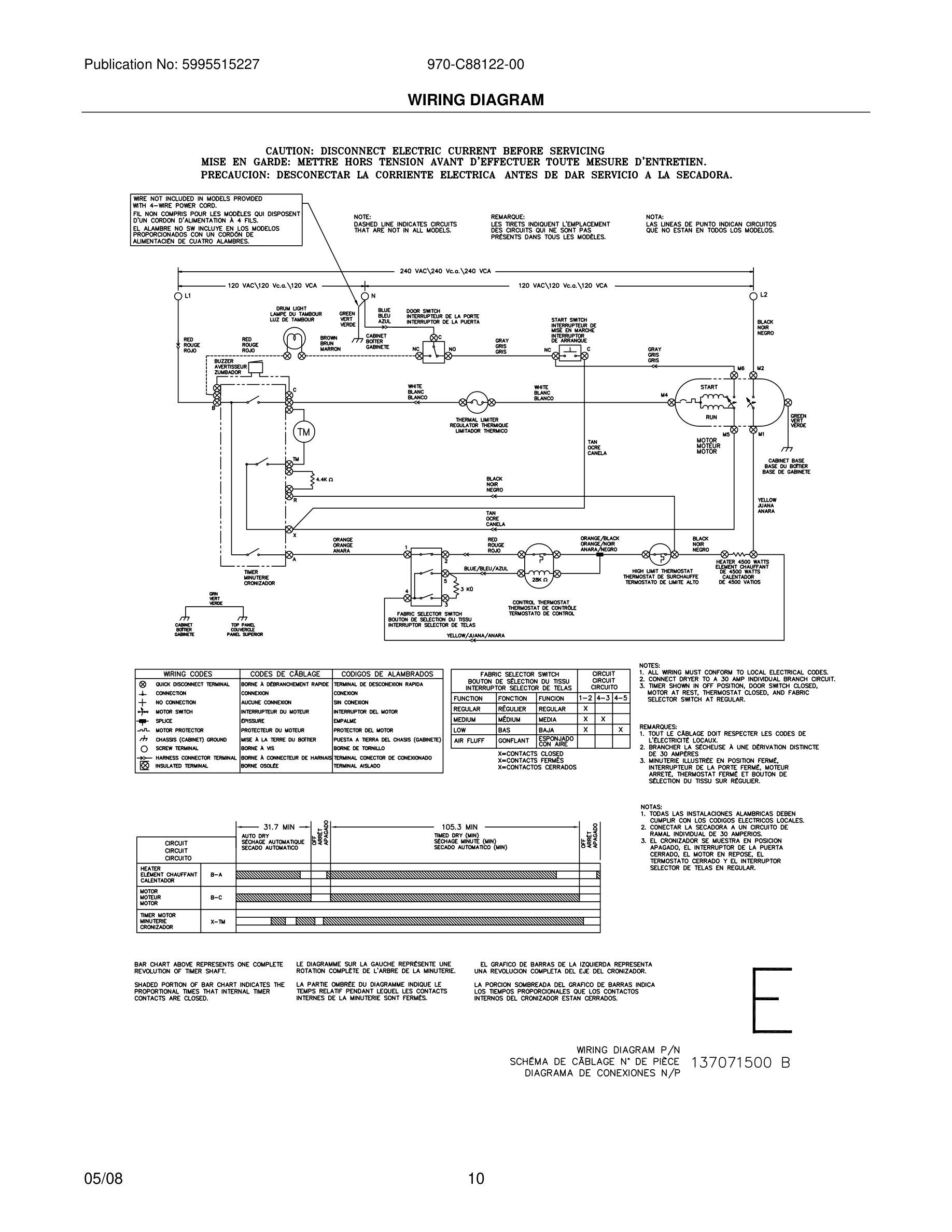

10 - WIRING DIAGRAM
Common parts from model Kenmore 970-C88122-00 DRYER
2
Plug, dome, white WCI 131397000 Contact Us For Availability
4
Lock, blower housing WCI 131435200 Contact Us For Availability
4
Bracket, elec power cord, knock out WCI 131785200 Contact Us For Availability
6
Clip, ball, steel, flat nut WCI 5303281020 Contact Us For Availability
7
Tube, exhaust, rear, w/mtg bracket WCI 131451600 Contact Us For Availability
7*
Tube, exhaust, side/bottom, Optional Kit WCI 131456800 Contact Us For Availability
8
Cover, lint housing WCI 131622202 Contact Us For Availability
9
Plug, white WCI 131633200 Contact Us For Availability
10#
Blower Assy, housing, w/cover & wheel WCI 131775600 Contact Us For Availability
11
Cover, terminal block WCI 5303211428 No Longer Available
11
Spacer, idler WCI 131749800 Contact Us For Availability
14
Screw, bracket mtg., 10-16B x 1.375, cr/sq dr WCI 131205400 Contact Us For Availability
14#
Resistor, power WCI 134446800 Contact Us For Availability
15#
Switch, temp selector, 4 posn rotary WCI 134398500 Contact Us For Availability
17
Bracket, control mtg. WCI 134064501 Contact Us For Availability
20
Screw, hex head, 1/4-20T x 1.25, spacer mtg., WCI 131017900 Contact Us For Availability
20
Bracket, hinge, rear, top panel mtg. WCI 131469100 Contact Us For Availability
20*
Adhesive, high temp WCI 5308027429 Contact Us For Availability
21
Knob, timer, white/gray WCI 131694600 Contact Us For Availability
21
Drum, dryer, galvanized stl., service kit WCI 134122532 Contact Us For Availability
22
Spring, idler arm WCI 131601000 Contact Us For Availability
22*
Insulation WCI 131474700 Contact Us For Availability
23*#
Wiring Harness, main WCI 134110500 Contact Us For Availability
28#
Motor & Pulley Assy WCI 131560100 No Longer Available
29
Screw, quadrex head, 10-14 x 1.00, vane mtg., WCI 131382300 Contact Us For Availability
32
Shaft, drum support, ballhitch WCI 131777700 Contact Us For Availability
35
Screw, 6-20B x 0.230 WCI 131892100 Contact Us For Availability
36#
Thermal Limiter WCI 134120900 Contact Us For Availability
38#
Buzzer WCI 5303286537 Contact Us For Availability
46
Bracket, motor mtg WCI 134203400 Contact Us For Availability
47
Seal, exhaust tube WCI 131633300 Contact Us For Availability
47
Panel, inner door, white WCI 131844104 Contact Us For Availability
48
Panel, outer door, white WCI 131789303 Contact Us For Availability
51
Insulator, heater housing WCI 131472100 Contact Us For Availability
52#
Terminal Block, main WCI 134101400 Contact Us For Availability
53
Panel, dryer top, white, stackable WCI 134086812 Contact Us For Availability
58#
Lamp Assy, drum light, w/mtg bracket WCI 131843500 Contact Us For Availability
64
Clip, front, cabinet bottom WCI 131704600 Contact Us For Availability
× ![]()
