  • Kenmore 970-C88106-00

Model Kenmore 970-C88106-00 DRYER – Common Parts & Diagrams

*
Technical Data Sheet, WIRING DIAGRAM
Technical Data Sheet, WIRING DIAGRAM WCI 134509400 Contact Us For Availability
View on Model
4

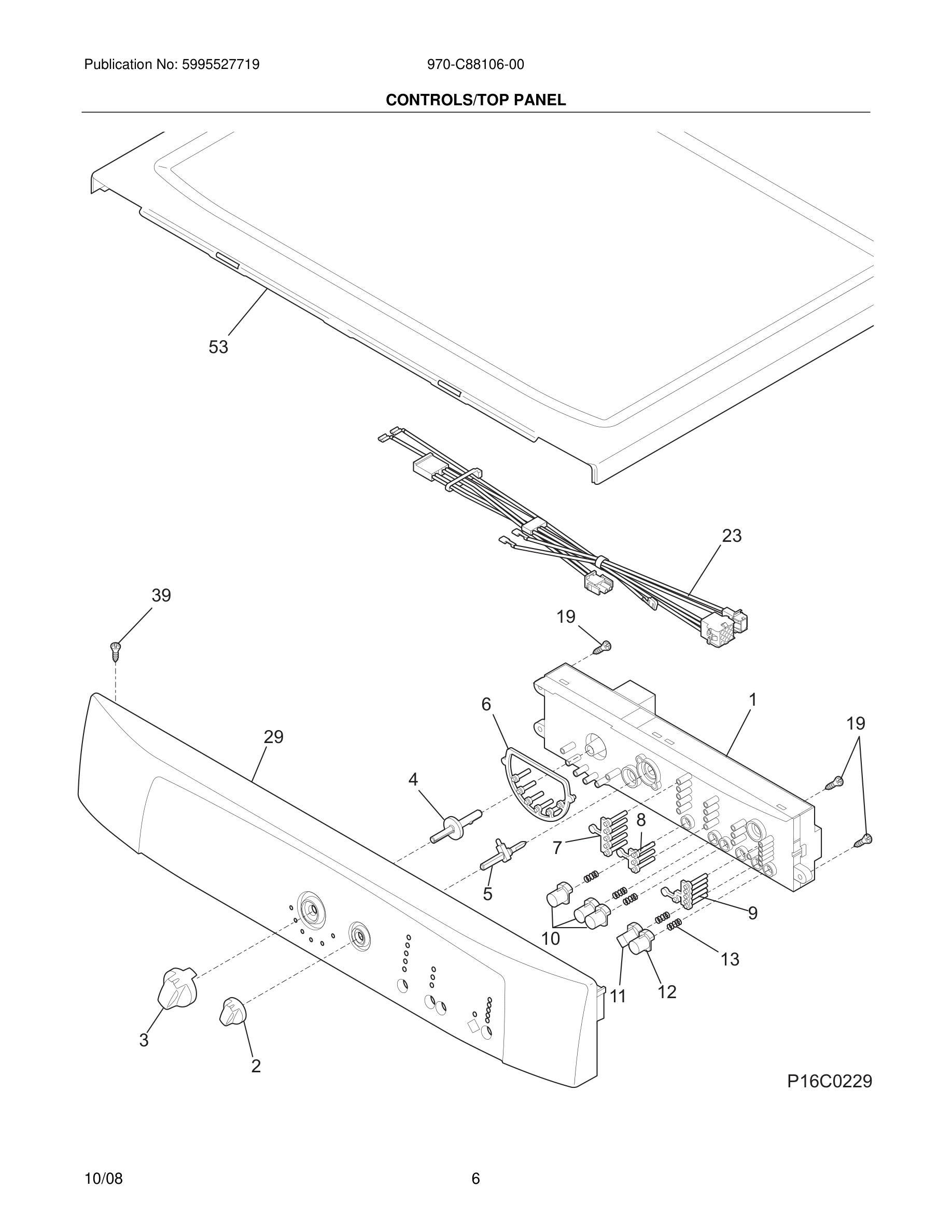

Pin, program knob
Pin, program knob WCI 134347700 Contact Us For Availability
View on Model
4
Bracket, elec power cord, knock out
Bracket, elec power cord, knock out WCI 131785200 Contact Us For Availability
View on Model
6
Duct, air
Duct, air WCI 134382900 Contact Us For Availability
View on Model
7
Tube, exhaust, rear, w/mtg bracket
Tube, exhaust, rear, w/mtg bracket WCI 131451600 Contact Us For Availability
View on Model
7*
Tube, exhaust, side/bottom, Optional Kit
Tube, exhaust, side/bottom, Optional Kit WCI 131456800 Contact Us For Availability
View on Model
8#
Cover, lint housing, w/moist sensor
Cover, lint housing, w/moist sensor WCI 131845845 Contact Us For Availability
View on Model
9
Light Pipe, array, 4 start group
Light Pipe, array, 4 start group WCI 134429400 Contact Us For Availability
View on Model
11
Cover, terminal block
Cover, terminal block WCI 5303211428 No Longer Available
View on Model
13
Spring, push button
Spring, push button WCI 134349400 No Longer Available
View on Model
17
Clip, assembly
Clip, assembly WCI 134408700 Contact Us For Availability
View on Model
20
Bracket, top panel mtg., rear
Bracket, top panel mtg., rear WCI 134166500 Contact Us For Availability
View on Model
22

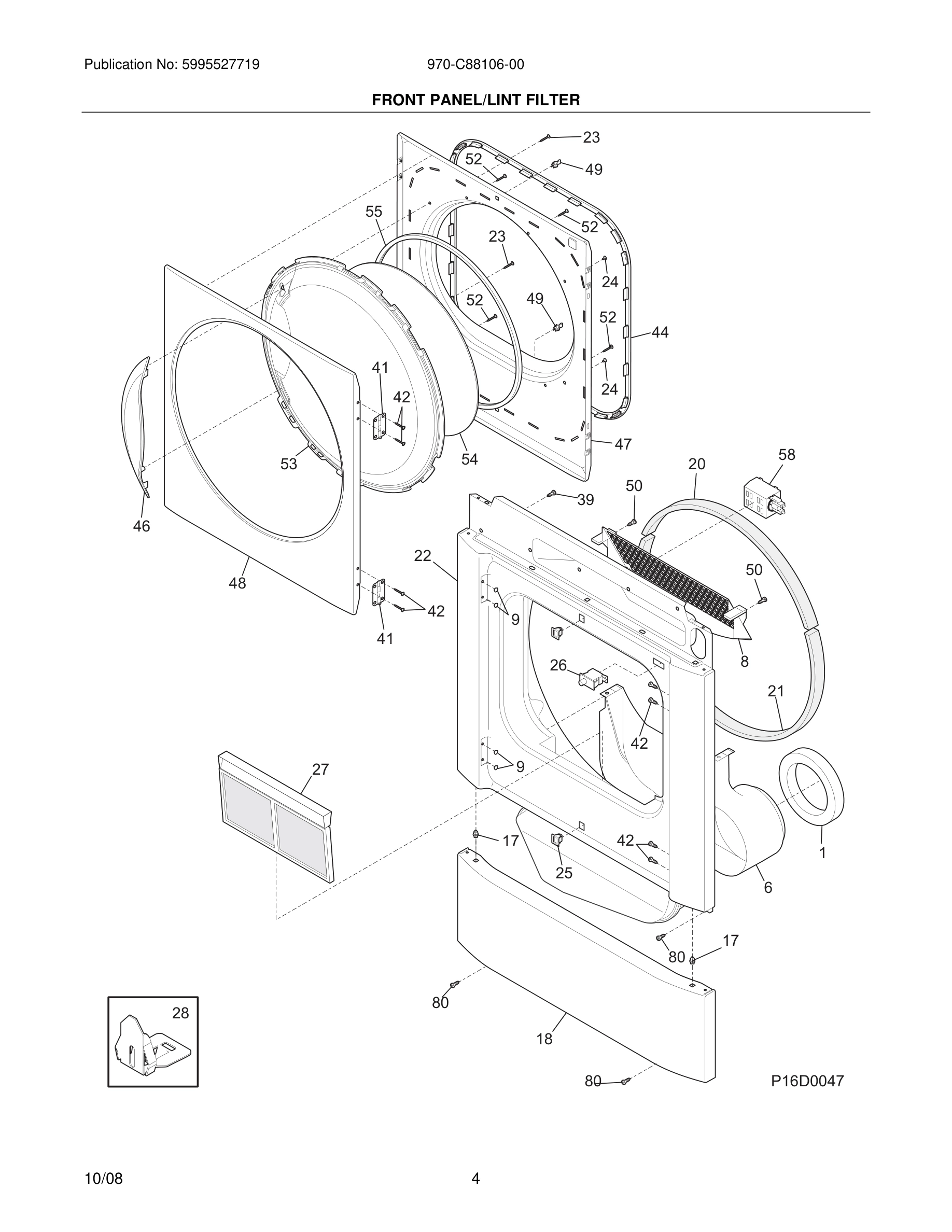

Panel, front, black, w/lamp hole
Panel, front, black, w/lamp hole WCI 134915560 Contact Us For Availability
View on Model
23#
Wiring Harness, controls
Wiring Harness, controls WCI 134394400 Contact Us For Availability
View on Model
23*#
Wiring Harness, main
Wiring Harness, main WCI 134394200 Contact Us For Availability
View on Model
26#
Switch, door, with drum light
Switch, door, with drum light WCI 134813645 Contact Us For Availability
View on Model
28#

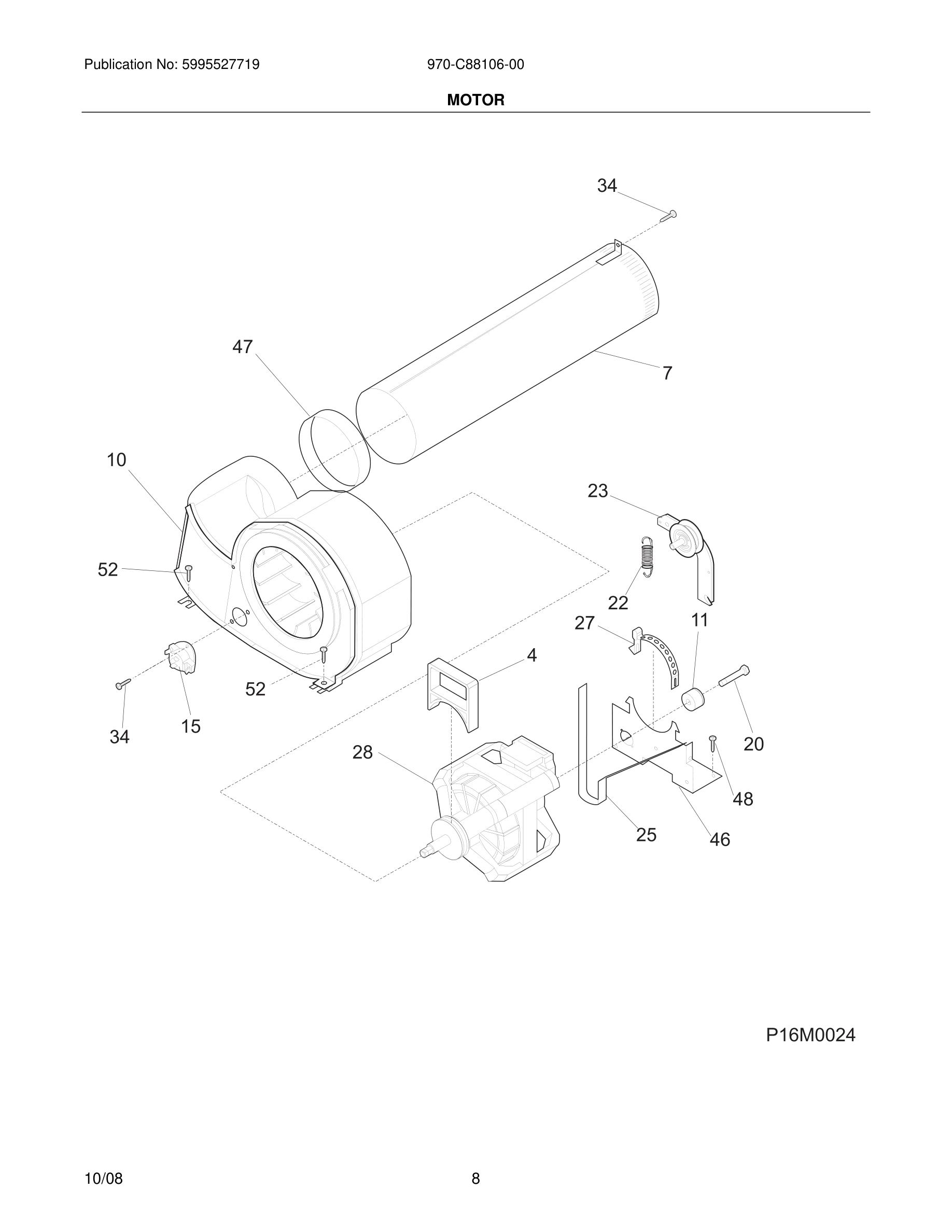

Motor & Pulley Assy
Motor & Pulley Assy WCI 131560100 No Longer Available
View on Model
41
Hinge, door, black
Hinge, door, black WCI 134412460 Contact Us For Availability
View on Model
44
Leveling Leg, screw
Leveling Leg, screw WCI 134344900 No Longer Available
View on Model
44
Gasket, door seal, gray
Gasket, door seal, gray WCI 134413345 Contact Us For Availability
View on Model
46
Bracket, motor mtg
Bracket, motor mtg WCI 134203400 Contact Us For Availability
View on Model
46
Handle, door, black
Handle, door, black WCI 134412660 Contact Us For Availability
View on Model
47
Seal, exhaust tube
Seal, exhaust tube WCI 131633300 Contact Us For Availability
View on Model
48
Panel, outer door, black
Panel, outer door, black WCI 134913160 Contact Us For Availability
View on Model
